Grizzly G0518 Manuale utente

DRUM / FLAP SANDER

MODEL G0518

PARTS LIST

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

PRINTED IN TAIWAN

ONLINE PARTS LIST DISCLAIMER

THESE PARTS REPRESENT THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED. THE MACHINE CONFIGURATION

CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF THE MACHINE, THIS PARTS

LIST MAY NOT EXACTLY DEPICT YOUR MACHINE. CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS ABOUT PART DIFFER-

ENCES. PREVIOUS PARTS LIST VERSIONS ARE NOT AVAILABLE ONLINE.

G0518 Drum/Flap SanderG0518 Drum / Flap Sander

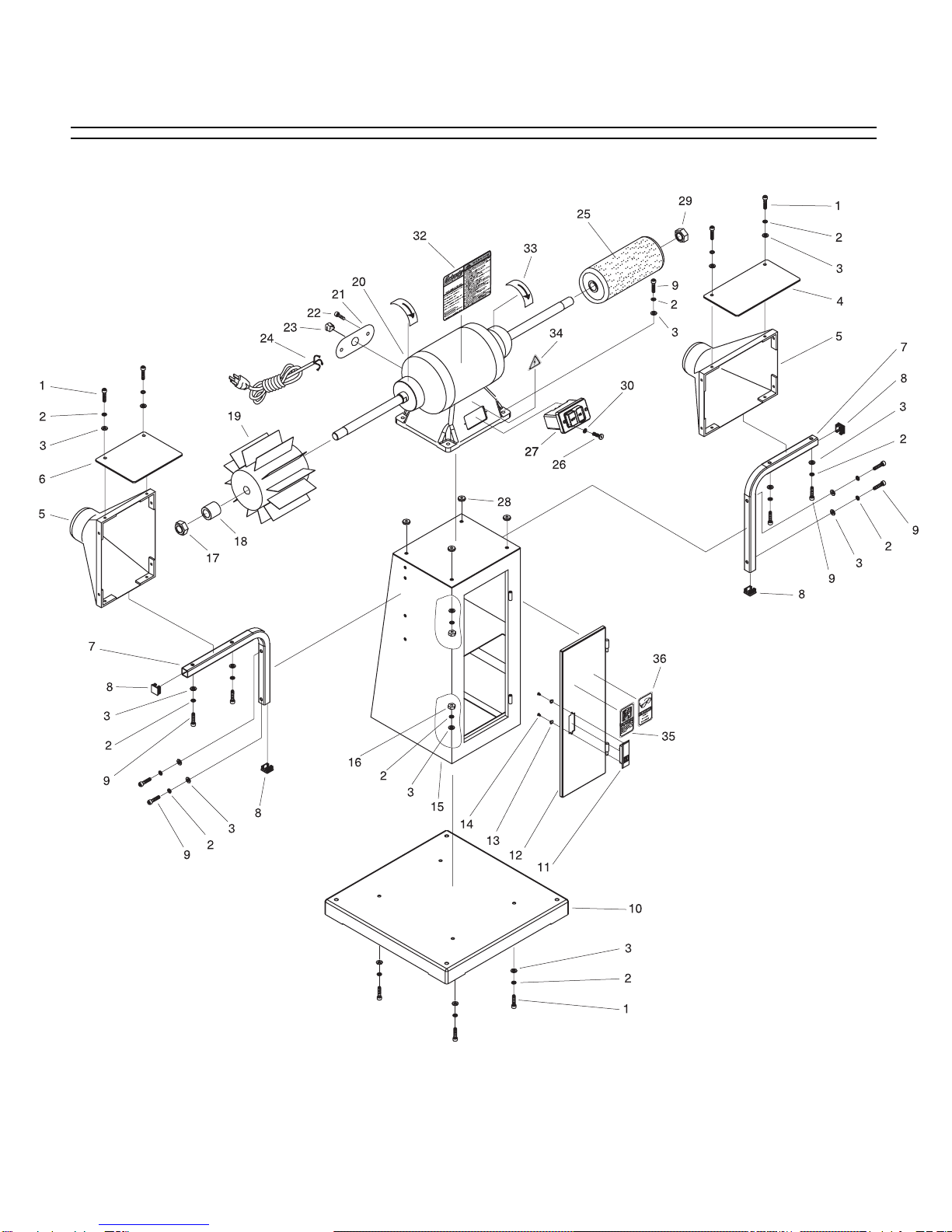

PARTS DIAGRAMS AND LISTS

-B-

G0518 Drum/Flap Sander G0518 Drum / Flap Sander

19 P0518019 BRUSH

20 P0518020 1 HP MOTOR

21 P0518021 PLATE

22 PS08M PHLP HD SCR M5-0.8 X 12

23 P0518023 STRAIN RELIEF

24 PWRCRD110L POWER CORD 110V

25 P0518025 SANDING DRUM

26 PS06M PHLP HD SCR M5-0.8 X 20

27 P0518027 POWER SWITCH

28 P0518028 PLASTIC DISC PAD

29 PN18 HEX NUT 1"-8 LH

30 PLW01M LOCK WASHER 5MM

31 P0518031 FOAM

32 P0518032 MACHINE ID LABEL

33 P0518033 ROTATION LABEL

34 PLABEL-14 ELECTRICITY LABEL

35 PLABEL-12 READ MANUAL LABEL

36 PLABEL-11 SAFETY GLASSES LABEL

1PSB14M CAP SCREW M8-1.25 X 20

2PLW04M LOCK WASHER 8MM

3PW01M FLAT WASHER 8MM

4P0518004 ACRYLIC EYE SHIELD

5P0518005 DUST HOOD

6P0518006 ACRYLIC EYE SHIELD

7P0518007 DUST HOOD BRACKET

8P0518008 PLUG

9PSB12M CAP SCREW M8-1.25 X 40

10 P0518010 BASE

11 P0518011 DOOR LATCH ASSEMBLY

12 P0518012 DOOR COVER

13 PW05M FLAT WASHER 4MM

14 PS17M PHLP HD SCR M4-0.7 X 6

15 P0518015 STAND

16 PFN01M HEX FLANGE NUT M8-1.25

17 PN22 HEX NUT 1"-8

18 P0518018 BUSHING

REF PART # DESCRIPTION REF PART # DESCRIPTION

G0518 Drum/Flap SanderG0518 Drum / Flap Sander

G0518 Drum/Flap Sander G0518 Drum / Flap Sander

112 PS35 PHLP HD SCR 5/16" X 3/4"

113 P0518113 MOTOR BASE

114 PLW04M LOCK WASHER 8MM

115 P0518115 HEX NUT M8-1.25

116 PS18 PHLP HD SCR #10-24 X 1/4

117 P0518117 CAPACITOR CLAMP

118 P0518118 CAPACITOR

119 P0518119 CAPACITOR COVER

120 P0518120 CAPACITOR

121 P0518121 CAPACITOR COVER

122 P0518122 CAPACITOR CLAMP

101 P0518101 MOTOR SHAFT

102 P0518102 STATOR WINDING

103 P0518103 MOTOR BODY

104 PB09M HEX BOLT M8-1.25 X 20

105 P0518105 CENTRIFUGAL SWITCH

106 P6206 BALL BEARING 6206

107 P0518107 MOTOR COVER

108 P0518108 SPRING PLATE

109 PLW01M LOCK WASHER 5MM

110 PS18 PHLP HD SCR #10-24 X 1/4

111 PLW03M LOCK WASHER 6MM

REF PART # DESCRIPTION REF PART # DESCRIPTION
