Grizzly H0592 Manuale utente

Introduction

An excellent air sander that has a free speed of

4,500 RPM. Requires 90 PSI and consumes 12

CFM. Spindle thread nut is 5⁄8" x 11 UNC. Weighs

6.5 lbs. Pad size is 7". Air inlet is 1/4" NPT.

Inventory

A. Air Sander .................................................. 1

B. Pin-Type Spanner Wrench ......................... 1

C. Flat Wrench 19mm ..................................... 1

D. 7” Sanding Pad .......................................... 1

E. Lock Nut ..................................................... 1

F. Handle ........................................................ 1

Operation

Tool requires 90 PSI to operate correctly.

To improve tool lifespan, use a filter/lubricator/

regulator as shown in Figure 2. Otherwise, lubri-

cate daily with a couple drops of pneumatic tool oil

directly into the air fitting as shown in Figure 3.

MODEL H0592

7" ANGLE SANDER

INSTRUCTION SHEET

Figure 1. Model H0592.

Figure 3. Lubricating directly into air fitting.

If you need help with your new pneumatic tool,

call our Tech Support at: (570) 546-9663.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#TR7971 PRINTED IN TAIWAN

EYE INJURY HAZARD!

Always wear safety glasses

when using this tool to

prevent serious personal

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected

operation during service.

EXPLOSION HAZARD!

Never exceed 120 PSI.

Quick

Connector

Quick

Coupler

Air Hose Quick

Coupler

Quick

Connector

Lubricator

Filter

Regulator

Air

Compressor

Your

Tool

Figure 2. Installing your tool.

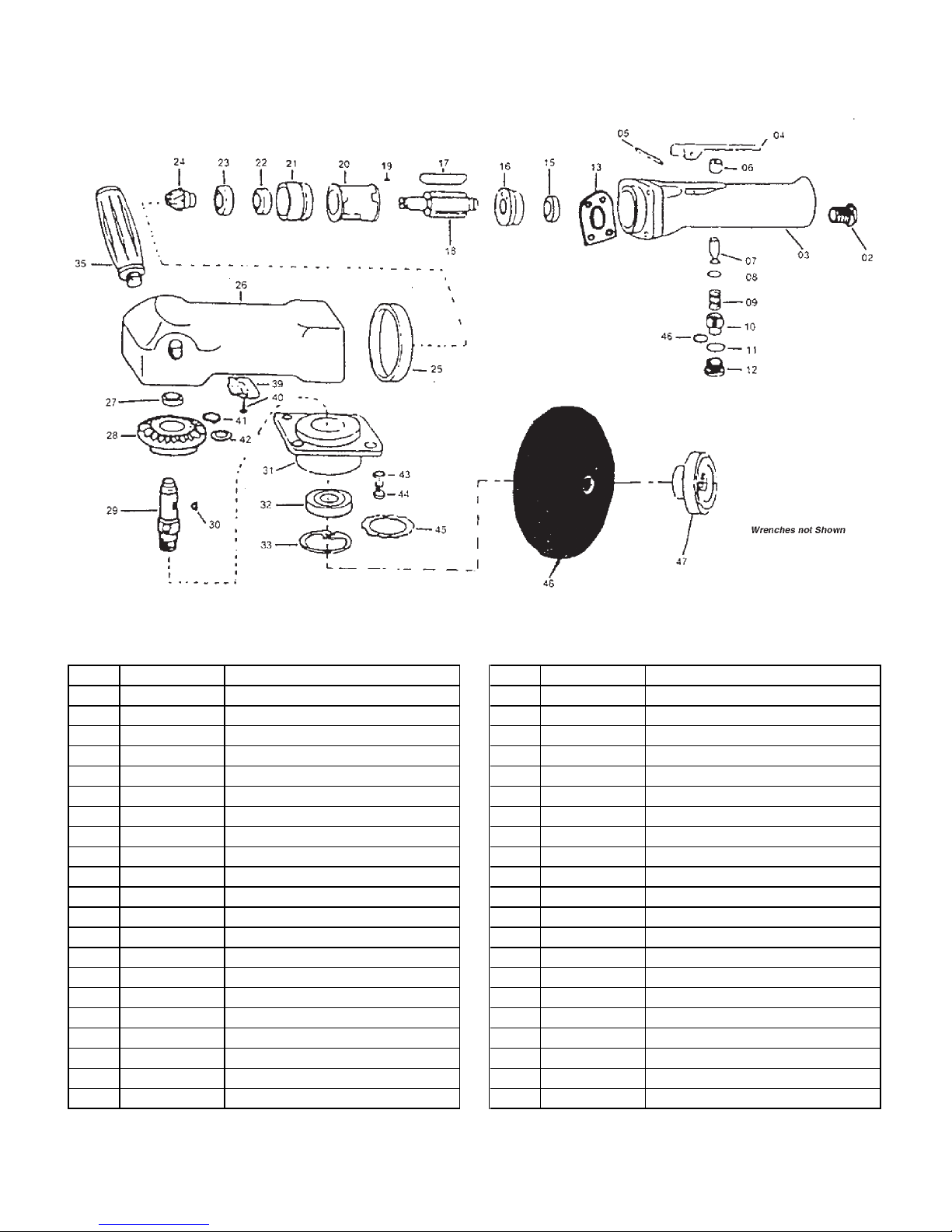

H0592 Parts Breakdown and List

REF PART # DESCRIPTION REF PART # DESCRIPTION

2 PH0592002 AIR INLET 25 PH0592025 HOUSING BAND

3 PH0592003 VALVE BODY 26 PH0592026 MOTOR HOUSING

4 PH0592004 LEVER 27 PH0592027 BEARING

5 PH0592005 LEVER PIN 28 PH0592028 BEVEL GEAR

6 PH0592006 VALVE BUSHING 29 PH0592029 SPINDLE

7 PH0592007 VALVE STEM 30 PH0592030 WOODRUF KEY

8 PH0592008 O-RING 31 PH0592031 HOUSING CAP

9 PH0592009 VALVE SPRING 32 PH0592032 BEARING

10 PH0592010 AIR CONTROLLER 33 PH0592033 RETAINING RING

11 PH0592011 O-RING 35 PH0592035 HANDLE

12 PH0592012 VALVE SCREW 39 PH0592039 EXHAUST DEFLECTOR

13 PH0592013 GASKET 40 PH0592040 EXHAUST DEFLECTOR SCREW

15 PH0592015 BEARING 41 PH0592041 RETAINING RING

16 PH0592016 REAR END PLATE 42 PH0592042 WAVE WASHER

17 PH0592017 ROTOR BLADE 43 PH0592043 SPRING WASHER

18 PH0592018 ROTOR 44 PH0592044 SCREW

19 PH0592019 CYLINDER PIN 45 PH0592045 WAVE WASHER

20 PH0592020 CYLINDER 46 PH0592046 O-RING

21 PH0592021 FRONT END PLATE 47 PH0592047 LOCK NUT

22 PH0592022 BEARING 48 PH0592048 7" SANDING PAD

23 PH0592023 BEARING 49 PH0592049 PIN-TYPE SPANNER WRENCH

24 PH0592024 PINION 50 PH0592050 FLAT WRENCH 19MM
