Grizzly G0588 Manuale utente
-52- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0588001 BODY 199-1 P05910199-1 OVERLOAD RELAY
2 P0588002 TABLE 199-2 P05910199-2 MAGNETIC CONTACTOR
3 PW01M FLAT WASHER 8MM 202 P0588202 DUST SHIELD
4 PSB13M CAP SCREW M8-1.25 X 30 278 P0588278 SCALE DUST COVER
5 P0588005 SWITCH PLATE 307 P0588307 TERMINAL BOX
6 P0588006 SWITCH BASE 308 P0588308 EMERGENCY BUTTON
7 PS06M PHLP HD SCR M5-.8 X 20 309 PLABEL-12 READ MANUAL 2"W X 3 5/16"
8 P0588008 MAG. SWITCH 220V-25A 310 P0588310 KICKBACK WARNING LABEL
9 PSB01M CAP SCREW M6-1 X 16 311 P0588311 DISCONNECT POWER LABEL
10 P0588010 COVER PLATE 312 PLABEL-11 SAFETY GLASSES 2" X 3 5/16"
11 P0588011 SCALE PLATE 313 PLABEL-29 CUTTERHEAD GUARD LABEL
12 PSB02M CAP SCREW M6-1 X 20 314 P0588314 RAISING BLADE LABEL
13 P0588013 ADJUSTMENT BOLT COVER 315 P0588315 TILTING BLADE LABEL
14 PSB26M CAP SCREW M6-1 X 12 316 P0588316 QUALIFIED PERSONNEL LABEL
15 P0588015 MOTOR COVER 317 PLABEL-34 PREWIRED 220V LABEL
16 PSB49M CAP SCREW M6-1 X 60 318 P0588318 LOWER BLADE GUARD LABEL
78 PB137M HEX BOLT M14-2 X 30 319 PLABEL-14 ELECTRICITY LABEL
81 PN32M HEX NUT M14-2 320 P0591320 G0591 ID LABEL
199 P05910199 MAG. SWITCH 440V-14A 321 P0588320 G0588 ID LABEL
SECTION 8: PARTS
Main Body
G0588/G0591 12" Sliding Table Saws -53-
-54- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
3 PW01M FLAT WASHER 8MM 29 PN01M HEX NUT M6-1
9 PSB02M CAP SCREW M6-1 X 20 30 PW03M FLAT WASHER 6MM
17 P0588017 TABLE INSERT 31 P0588031 SCALE BASE
18 PFH07M FLAT HD SCR M5-.8 X 10 32 P0588032 TUBE PLUG
19 P0588019 EXTENSION WING (FRONT) 33 P0588033 SCALE
20 PSB13M CAP SCREW M8-1.25 X 30 36 P0588036 RACK
21 PSS16M SET SCREW M8-1.25 X 10 37 PSB03M CAP SCREW M5-.8 X 8
23 P0588023 EXTENSION WING (RIGHT) 38 P0588038 RAIL
24 PB116M HEX BOLT M10-1.5 X 45 39 P0588039 STUD M12-1.75 X 120
25 PW04M FLAT WASHER 10MM 40 PN09M HEX NUT M12-1.75
26 P0588026 EXTENSION WING SUPPORT 41 PW06M FLAT WASHER 12MM
27 PB138M HEX BOLT M16-2 X 100 279 P0588279 FENCE RAIL PLUG 45 X 33
28 PN13M HEX NUT M16-2
Extension Tables
G0588/G0591 12" Sliding Table Saws -55-
-56- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
9 PSB01M CAP SCREW M6-1 X 16 64 P0588064 HOLD DOWN ARBOR
42 P0588042 SLIDING TABLE 65 P0588065 PLASTIC HOLD DOWN WASHER
43 P0588043 SLIDING TABLE END 66 P0588066 T-NUT PLATE
44 PSB01M CAP SCREW M6-1 X 16 67 P0588067 EDGE SHOE PLATE
45 P0588045 RUBBER PLATE 68 P0588068 T-NUT PLATE
46 PFH23M FLAT HD SCR M8-1.25 X 16 69 PB74M HEX BOLT M10-1.5 X 20
47 P0588047 GIB 70 P0588070 ADJUST HANDLE M10-1.5 X 16
48 PB83M HEX BOLT M6-1 X 16 71 P0588071 STEEL BALL BASE
49 P0588049 STEEL RAILS 72 P0588072 STEEL BALL BASE SPONGE
50 P0588050 HANDLE 73 P0588073 STEEL BALL DIA. 18MM
51 P0588051 HANDLE COVER 74 P0588074 STEEL BALL DIA. 11/16MM
52 P0588052 STOP LEVER 75 P0588075 SLIDING BASE
53 P0588053 SLEEVE 76 P0588076 SLIDING BASE COVER (BACK)
54 P0588054 EXTENSION SPRING 77 P0588077 SLIDING BASE COVER (FRONT)
55 PN13M HEX NUT M16-2 78 PB137M HEX BOLT M14-2 X 30
56 P0588056 STOP PIN 79 PB153M HEX BOLT M14-2 X 40
57 P0588057 HOLD DOWN BRACKET 80 P0588080 ADJUSTMENT PLATE
58 PR02M EXT. RETAINING RING 14MM 81 PN32M HEX NUT M14-2
59 PRP45M ROLL PIN 5 X 32 259 P0588259 HOLD DOWN PLATE
60 P0588060 COMPRESSION SPRING 260 P0588260 KNOB M8-1.25 X 20
61 P0588061 CAM 261 P0588261 HOLD DOWN SHAFT
62 P0588062 HANDLE SHAFT 302 PSB14M CAP SCREW M8-1.25 X 20
63 P0588063 BALL HANDLE 304 P0588304 PUSH HANDLE M14-2 X 16

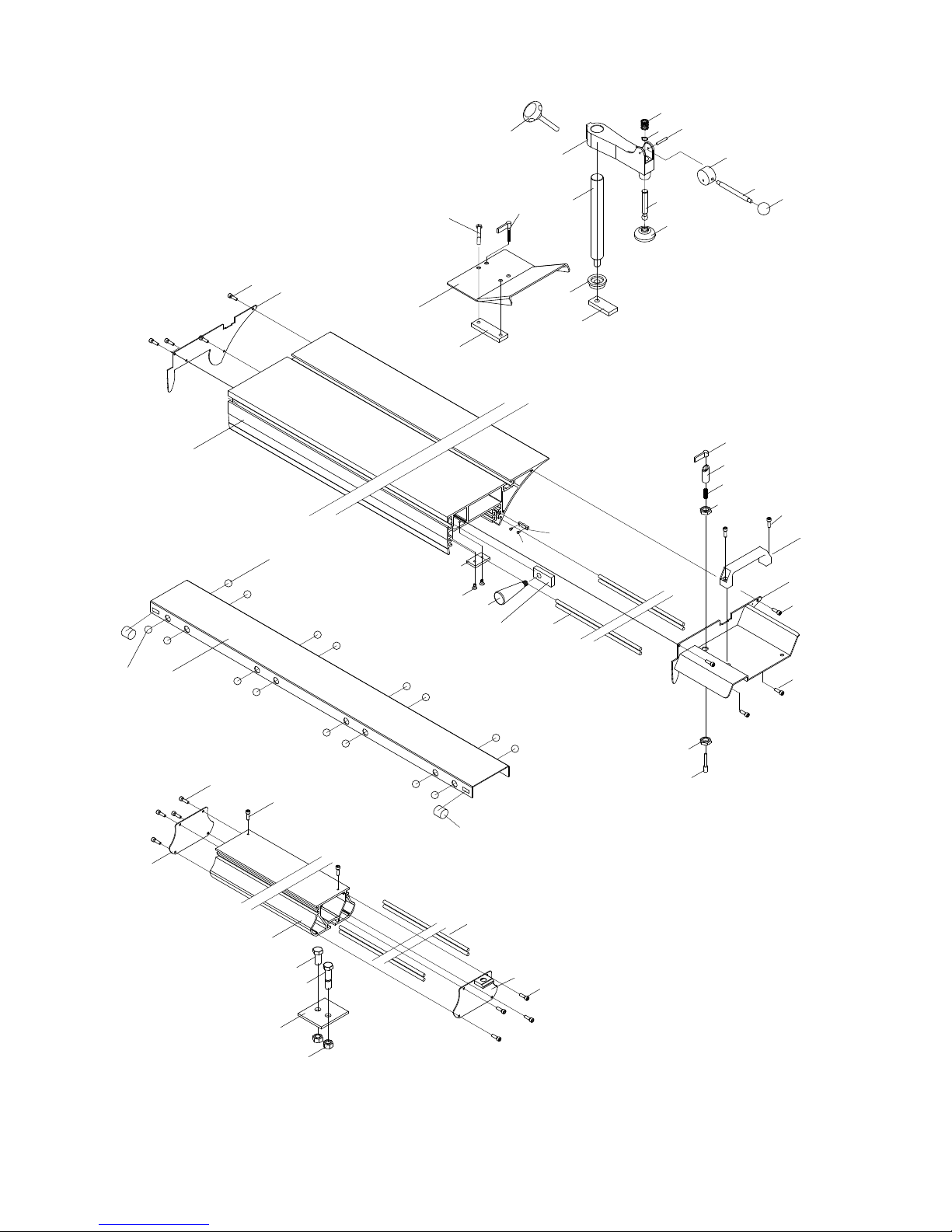

Sliding Table
G0588/G0591 12" Sliding Table Saws -57-
-58- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
21 PSS16M SET SCREW M8-1.25 X 10 96 P0588096 ROTATE SHAFT
22 PN03M HEX NUT M8-1.25 96A P0588096A ECCENTRIC SHAFT
25 PN02M HEX NUT M10-1.5 97 P0588097 ROTATE ARBOR SUPPORT
29 PN01M HEX NUT M6-1 98 P0588098 MAGNET
37 PS05M PHLP HD SCR M5-.8 X 8 99 P0588099 MAGNET BASE
44 PSB01M CAP SCREW M6-1 X 16 100 PFH30M FLAT HD SCR M5-.8 X 8
82 P0588082 CROSSCUT TABLE 101 P0588101 NYLON SCREW M12-1.75 X 12
83 P0588083 CROSSCUT TABLE ROLLER 102 P0588102 SWING ARM END
84 P0588084 SUPPORT ADJUSTMENT BLOCK 103 P0588103 BRUSH
85 PSB04M CAP SCREW M6-1 X 10 104 PSB117M BUTTON HD CAP SCR M5-.8 X 8
86 PSS09M SET SCREW M8-1.25 X 20 105 P0588105 SWING ARM END
87 P0588087 SCALE LABEL (RIGHT) 106 P0588106 EXTENSION SWING ARM
88 P0588088 SCALE LABEL (LEFT) 107 P0588107 SWING ARM ADJ SCR M20-2.5
89 P0588089 SLIDING SURFACE PLATE 108 PN28M HEX NUT M20-2.5
90 P0588090 CROSSCUT TABLE LOCK PLATE 117 PW01M FLAT WASHER 8MM
92 P0588092 ADJUST HANDLE M10-1.5 118 PLN04M LOCK NUT M8-1.25
93 P0588093 SWING ARM 188 P0588188 HEX BOLT M8-1.25 X 100
94 P0588094 ROLLER 189 P0588189 STOP BLOCK
94A P0588094A ECCENTRIC ROLLER 240 PSS02M SET SCREW M6-1 X 6
95 P6900 BALL BEARING 6900 262 P6204 BALL BEARING 6204ZZ
95A P6901 BALL BEARING 6901 265 P0588265 SWING ARM SHAFT

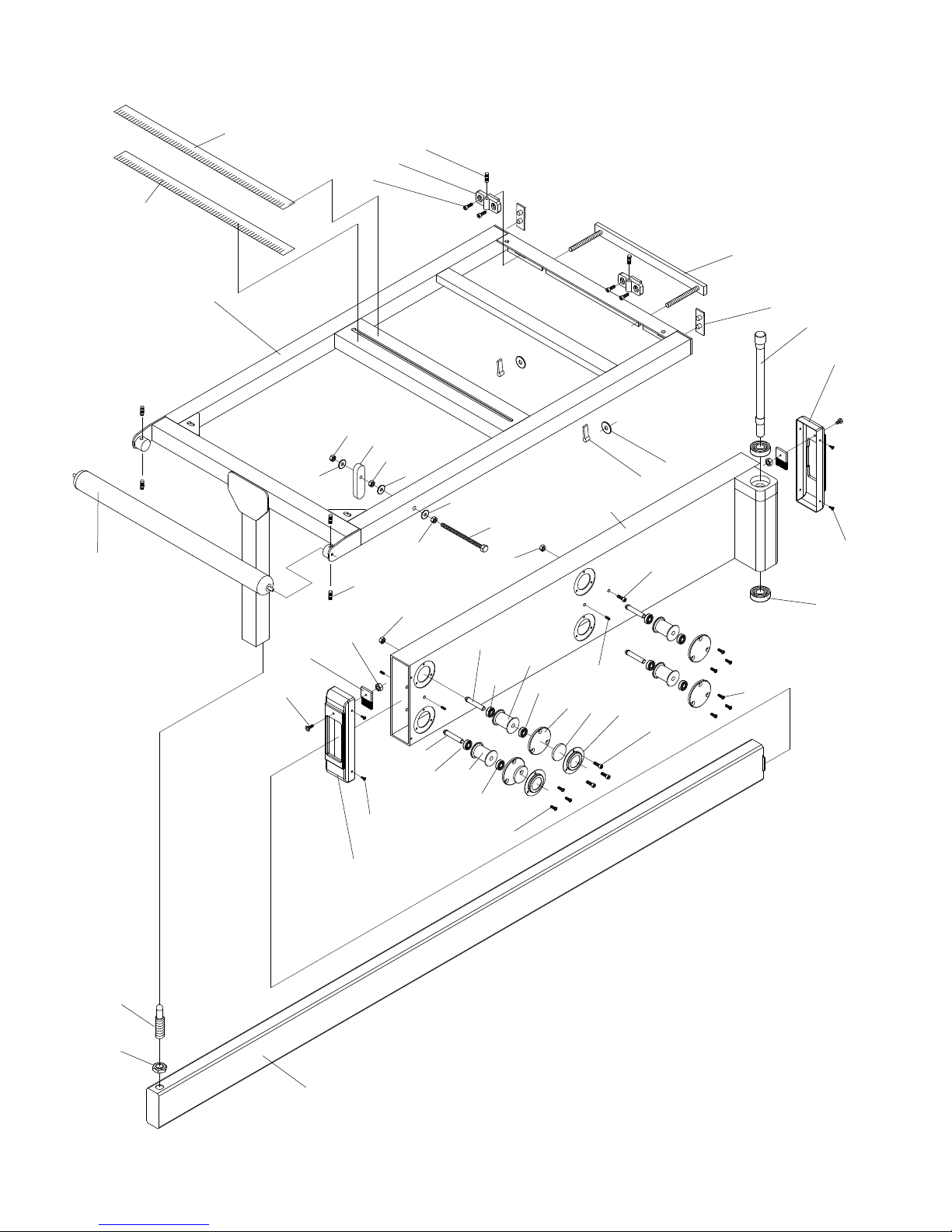

Crosscut Table
G0588/G0591 12" Sliding Table Saws -59-
-60- G0588/G0591 12" Sliding Table Saws
REF PART # DESCRIPTION REF PART # DESCRIPTION
29 PN01M HEX NUT M6-1 121 PSS04M SET SCREW M6-1 X 12
109 P0588109 STOP PLATE 122 P0588122 FRONT SUPPORT BLOCK
110 P0588110 NYLON PAD 123 P0588123 T-BOLT M10-1.5
111 P0588111 KNOB M6-1 X 35 124 P0588124 KNOB M10-1.5
114 P0588114 CLAMPING BASE 125 P0588125 LOCK PLATE M10-1.5 X 25
115 P0588115 T-NUT M6-1 126 P0588126 SCALE(SHORT)
116 P0588116 CLAMPING ARBOR 127 P0588127 CROSS CUTTING FENCE-SHORT
117 PW01M FLAT WASHER 8MM 128 P0588128 LOCK PLATE
118 PLN04M LOCK NUT M8-1.25 129 PSS29M SET SCREW M6-1 X 35
119 P0588119 SCALE (LONG) 130 P0588130 CROSS FENCE SUPPORT PLATE
120 P0588120 CROSSCUT FENCE 263 P0588263 SCALE TUBE
Crosscut Fence
G0588/G0591 12" Sliding Table Saws -61-
