The following changes were made since the owner's manual was printed:

• Blade guard changed.

• Model G0605X1/G0606X1 extension tables now ship in Carton #1.

Aside from this information, all other content in the owner's manual applies and MUST be read and under-

stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.

For questions or help, contact our Tech Support at (570) 546-9663 or [email protected].

READ THIS FIRST

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

Model G0605X1, G0606X1,

G0696X, G0967X

***IMPORTANT UPDATE***

For Machines Mfd. Since 07/21

and Owner's Manual Revised 10/14

New Blade Guard (V4) Old Blade Guard (V3)

Revised G0605X1 Specifications

Shipping Dimensions:

Carton #1

Content ........................................................................................... Machine & Extension Tables

Weight.............................................................................................................................. 785 lbs.

Length x Width x Height ...................................................................................... 46 x 43 x 42 in.

Revised G0606X1 Specifications

Shipping Dimensions:

Carton #1

Content ........................................................................................... Machine & Extension Tables

Weight.............................................................................................................................. 783 lbs.

Length x Width x Height ...................................................................................... 46 x 43 x 42 in.

-2- Model G0605X1-6X1, G0696X-97X (Mfd. 7/21)

Revised Blade Guard Parts

200V4

200V4-1

200V4-2

200V4-3

200V4-33

200V4-5

200V4-34

200V4-8

200V4-9

200V4-12

200V4-13

200V4-14

200V4-15

200V4-16

200V4-17

200V4-32

200V4-4

200V4-5

200V4-7

200V4-18

200V4-7

200V4-8

200V4-5

200V4-18

200V4-19

200V4-21

200V4-22

200V4-23

200V4-24

200V4-25

200V4-26

200V4-27

200V4-28

200V4-29

200V4-30

200V4-31

200V4-7

200V4-8

200V4-6

200V4-20

200V4-21

200V4-1

200V4-3

200V4-33

200V4-6

200V4-8

200V4-10

200V4-13

200V4-6

REF PART # DESCRIPTION REF PART # DESCRIPTION

200V4 P0605X1200V4 BLADE GUARD ASSY V4.07.21 200V4-18 P0605X1200V4-18 PHLP HD SCR M4-.7 X 10

200V4-1 P0605X1200V4-1 FLAT HD SCR M4-.7 X 8 200V4-19 P0605X1200V4-19 MOUNTING PI N

200V4-2 P0605X1200V4-2 UPPER COVER 200V4-20 P0605X1200V4-20 ROLL PIN 5 X 40

200V4-3 P0605X1200V4-3 HEX NUT M6-1 200V4-21 P0605X1200V4-21 FLAT WASHER 5MM

200V4-4 P0605X1200V4-4 BLADE GUARD COVER (RIGHT) 200V4-22 P0605X1200V4-22 ANTI-KICKBACK PAWL (LEFT)

200V4-5 P0605X1200V4-5 FLAT WASHER 6MM 200V4-23 P0605X1200V4-23 TORSION SPRING (LEFT)

200V4-6 P0605X1200V4-6 CONNECTING PLATE 200V4-24 P0605X1200V4-24 COMPRESSION SPRING

200V4-7 P0605X1200V4-7 FLAT WASHER 6MM 200V4-25 P0605X1200V4-25 E-CLIP 7MM

200V4-8 P0605X1200V4-8 FLAT HD SCR M6-1 X 16 200V4-26 P0605X1200V4-26 TORSION SPRING (RIGHT)

200V4-9 P0605X1200V4-9 BRACKET 200V4-27 P0605X1200V4-27 ANTI-KICKBACK PAWL (RIGHT)

200V4-10 P0605X1200V4-10 REAR COVER 200V4-28 P0605X1200V4-28 PAWL MOUNTING BRACKET

200V4-12 P0605X1200V4-12 HEX NUT M5-. 8 200V4-29 P0605X1200V4-29 PIN

200V4-13 P0605X1200V4-13 PHLP HD SCR M5-.8 X 6 200V4-30 P0605X1200V4-30 SHAFT

200V4-14 P0605X1200V4-14 KNOB BOLT 3-LOBE, M6-1 X 35 200V4-31 P0605X1200V4-31 SPREADER

200V4-15 P0605X1200V4-15 BLADE GUARD BODY 200V4-32 P0605X1200V4-32 PHLP HD SCR M5-.8 X 30

200V4-16 P0605X1200V4-16 MOUNTING BLOCK (LEFT) 200V4-33 P0605X1200V4-33 BLADE GUARD WARNING LABEL

200V4-17 P0605X1200V4-17 MOUNTING BLOCK (RIGHT) 200V4-34 P0605X1200V4-34 BLADE GUARD COVER (LEFT)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#JH18863 PRINTED IN TAIWAN

The following changes were recently made to this machine since the owner's manual was printed:

• Contactor manufacturer changed appearance/terminal numbers.

• Motor junction box wiring has changed.

Aside from this information, all other content in the owner's manual applies and MUST be read and under-

stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.

For questions or help, contact our Tech Support at (570) 546-9663 or [email protected].

READ THIS FIRST

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

***IMPORTANT UPDATE***

For Machines Mfd. Since 07/16

and Owner's Manual Revised 10/14

Models G0605X1/G0606X1/

G0696X/G0697X

G0605X1/G0696X Magnetic Switch

OLD NEW

G0606X1/G0697X Magnetic Switch

OLD NEW

G0606X1/G0697X Magnetic Switch

OLD NEW

Changed Terminal Numbers Changed Terminal Numbers

-2- READ ELECTRICAL SAFETY

ON PAGE 78!

G0605X1-6X1, G0696X-97X Update (Mfd. 07/16)

220V Motor

OFF

Magnetic Switch

Assembly MPE-30

Angle Sensor

Digital Readout

On/Off Switch

AC2 R18

14 24

2313

AC1

L6-30 Plug

(As Recommended)

Run

Capacitor

35MFD

450VAC

Start

Capacitor

400MFD

250VAC

R/1/L1 T/5/L3 21S/3/L2

U/2/T1 W/6/T3

220V

V/4/T2

SDE

MA-30

Ground

Hot

220 VAC

Ground

Power Junction Box

Installation work and

electrical wiring

must be done by

qualified electrician

in accordance with

all applicable codes

and standards.

RESET

96 98

1/2 3/4 5/6 18

OFF

SDE RA-30

G0605X1/G0696X Wiring 220V, 1-Ph

G0605X1-6X1, G0696X-97X Update (Mfd. 07/16)-3-

READ ELECTRICAL SAFETY

ON PAGE 78!

G0606X1/G0697X Wiring 220V, 3-Ph

R/1/L1 T/5/L3 NO13S/3/L2

NC21

U/2/T1 W/6/T3

220V

V/4/T2

NC22

NO14

SDE

MA-18

Ground

1/2 3/4 5/6

RESET

OFF

SDE RA-30

96 98

440V

Ground

Hot

L15-30 PLUG

(as recommended)

220 VAC

OFF ON

14 24

2313

Angle Sensor

Digital Readout

AC2 R18

AC1

On/Off Switch

Magnetic

Switch

Assembly

MPE-30

Motor@220V 3-Ph

If connecting machine to a phase

converter, the manufactured leg

must be connected to terminal L3.

PHASE CONVERTER

Power Junction Box

U2 W2

V6 U6

Ground

220V

-4- READ ELECTRICAL SAFETY

ON PAGE 78!

G0605X1-6X1, G0696X-97X Update (Mfd. 07/16)

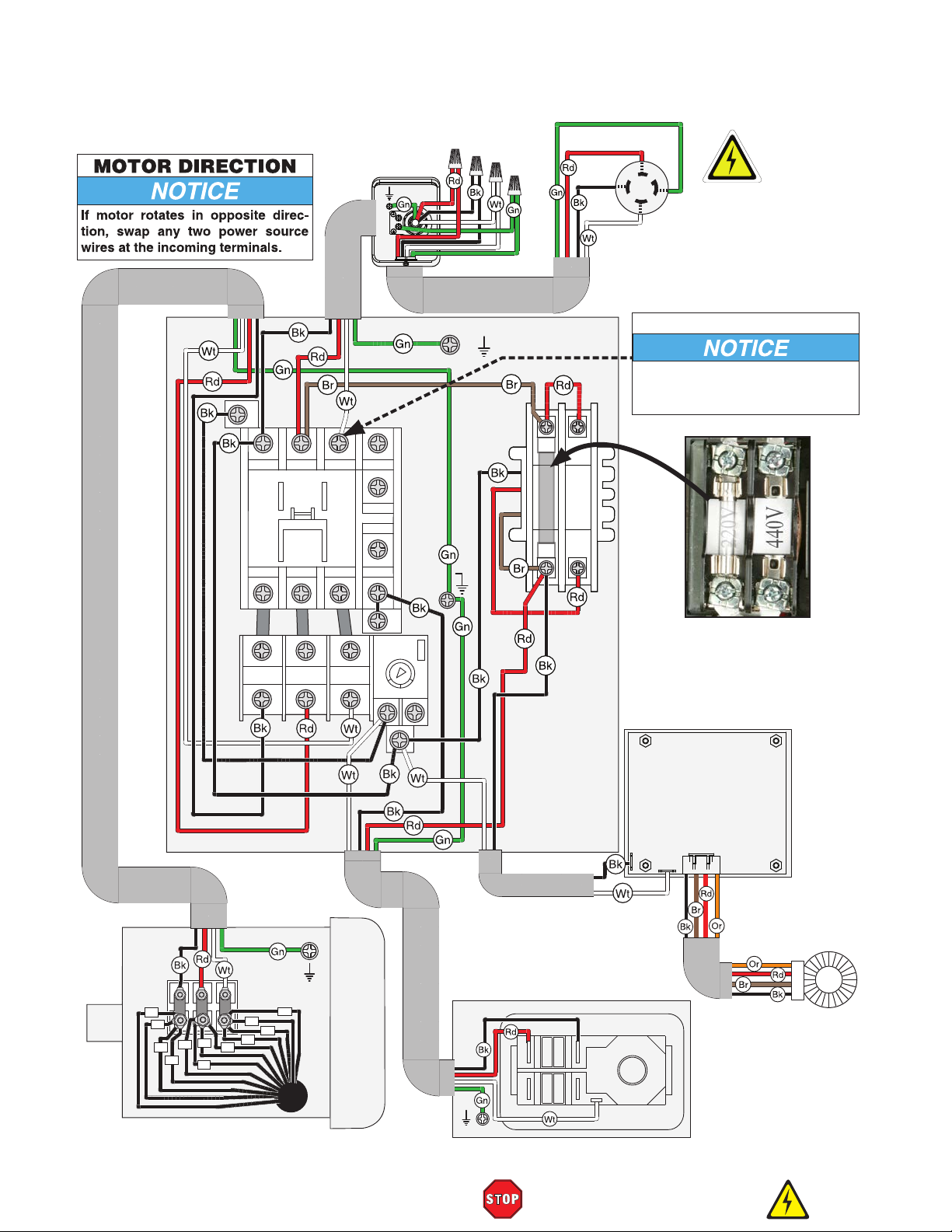

G0606X1/G0697X Wiring 440V, 3-Ph

R/1/L1 T/5/L3 NO13S/3/L2

NC21

U/2/T1 W/6/T3

220V

V/4/T2

NC22

NO14

SDE

MA-18

Ground

RESET

96 98

1/2 3/4 5/6

OFF

SDE RA-30

220V

OFF ON

14 24

2313

Angle Sensor

Digital Readout

AC2 R18

AC1

On/Off Switch

Magnetic

Switch

Assembly

MPE-30

Ground

Hot

DISCONNECT

SWITCH

(as recommended)

3-PHASE

440 VAC

Motor@440V 3-Ph

Power Junction Box

440V

Ground

V2 U2

V6 W1

V5 U5 W5

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#BL20715 PRINTED IN TAIWAN

The following changes were recently made since the owner's manual was printed:

• Parts revised to show new motor. Motor specs updated.

Aside from this information, all other content in the owner's manual applies and MUST be read and under-

stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.

For questions or help, contact our Tech Support at (570) 546-9663 or [email protected].

READ THIS FIRST

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

Model G0605X1/G0696X

***IMPORTANT UPDATE***

For Machines Mfd. Since 11/19

and Owner's Manual Revised 10/14

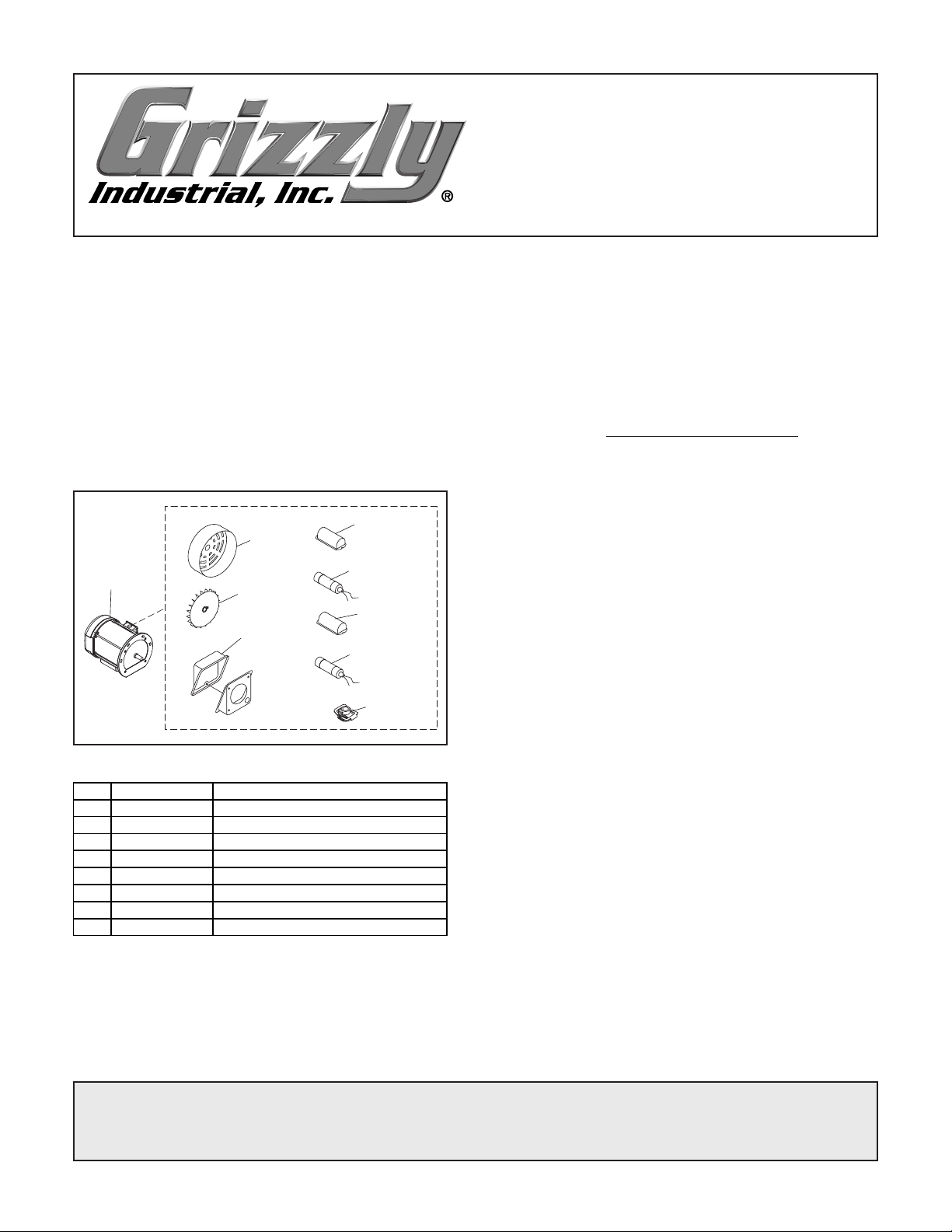

Revised Motor Parts

6V2-2

6V2-1 6V2-4

6V2-5

6V2-3

6V2-8

6V2-6

6V2-7

6V2

REF PART # DESCRIPTION

6V2 P0605X1006V2 MOTOR 5HP 220V 1-PH V2.11.19

6V2-1 P0605X1006V2-1 MOTOR FAN COVER

6V2-2 P0605X1006V2-2 MOTOR FAN

6V2-3 P0605X1006V2-3 J UNCTI ON BOX

6V2-4 P0605X1006V2-4 R CAPACITOR COVER

6V2-5 P0605X1006V2-5 R CAPACITOR 35M 450V 2 X 3-1/2

6V2-6 P0605X1006V2-6 S CAPACITOR COVER

6V2-7 P0605X1006V2-7 S CAPACITOR 250M 300V 1-3/4 X 3-1/2

6V2-8 P0605X1006V2-8 CENTRI FUGAL SWITCH

Revised Motor Specifications

V1 Motor Amps ..............................................18A

V2 Motor Amps ..............................................24A

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MN20291 PRINTED IN TAIWAN

The following change was recently made since the owner's manual was printed:

• Updated version of blade guard included with machine.

Aside from this information, all other content in the owner's manual applies and MUST be read and under-

stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.

For questions or help, contact our Tech Support at (570) 546-9663 or [email protected].

READ THIS FIRST

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

New Blade Guard (V3)

Old Blade Guard (V2)

Model G0605X1/G0606X1

G0696X/G0697X

***IMPORTANT UPDATE***

For Machines Mfd. Since 2/19

and Owner's Manual Revised 10/14

-2- G0605X1-6X1, G0696X-97X Update (Mfd. 2/19+)

New Blade Guard Parts

200V3

200V3-1

200V3-2

200V3-3

200V3-4

200V3-5

200V3-6

200V3-7

200V3-8

200V3-9

200V3-10

200V3-11

200V3-13

200V3-14

200V3-15

200V3-16

200V3-17

200V3-20

200V3-33

200V3-3

200V3-4

200V3-5

200V3-7

200V3-3

200V3-7

200V3-6

200V3-8

200V3-3

200V3-7

200V3-8

200V3-5

200V3-31

200V3-32

200V3-12

200V3-21

200V3-22

200V3-23

200V3-24

200V3-25

200V3-26

200V3-27

200V3-28

200V3-29

200V3-30

200V3-21

200V3-1

200V3-18

200V3-19

200V3-18

200V3-6

REF PART # DESCRIPTION REF PART # DESCRIPTION

200V3 P0605X1200V3 BLADE GUARD ASSY V3.02.19 200V3-17 P0605X1200V3-17 MOUNTING BLOCK (RIGHT)

200V3-1 P0605X1200V3-1 FLAT HD SCR M4-.7 X 8 200V3-18 P0605X1200V3-18 PHLP HD SCR M4-.7 X 10

200V3-2 P0605X1200V3-2 UPPER COVER 200V3-19 P0605X1200V3-19 MOUNTING PIN

200V3-3 P0605X1200V3-3 HEX NUT M6-1 200V3-20 P0605X1200V3-20 ROLL PIN 5 X 40

200V3-4 P0605X1200V3-4 BLADE GUARD COVER 200V3-21 P0605X1200V3-21 FLAT WASHER 5MM

200V3-5 P0605X1200V3-5 FLAT WASHER 6MM 200V3-22 P0605X1200V3-22 ANTI-KICKBACK PAWL (LEFT)

200V3-6 P0605X1200V3-6 CONNECTING PLATE 200V3-23 P0605X1200V3-23 TORSION SPRING (LEFT)

200V3-7 P0605X1200V3-7 FLAT WASHER 6MM 200V3-24 P0605X1200V3-24 COMPRESSION SPRING

200V3-8 P0605X1200V3-8 FLAT HD SCR M6-1 X 16 200V3-25 P0605X1200V3-25 E-CLIP 7MM

200V3-9 P0605X1200V3-9 BRACKET 200V3-26 P0605X1200V3-26 TORSION SPRING (RIGHT)

200V3-10 P0605X1200V3-10 REAR COVER 200V3-27 P0605X1200V3-27 ANTI-KICKBACK PAWL (RIGHT)

200V3-11 P0605X1200V3-11 ROLL PIN 5 X 32 200V3-28 P0605X1200V3-28 PAWL MOUNTING BRACKET

200V3-12 P0605X1200V3-12 HEX NUT M5-.8 200V3-29 P0605X1200V3-29 PIN

200V3-13 P0605X1200V3-13 PHLP HD SCR M5-.8 X 6 200V3-30 P0605X1200V3-30 SHAFT

200V3-14 P0605X1200V3-14 KNOB BOLT 3-LOBE, M6-1 X 35 200V3-31 P0605X1200V3-31 SPREADER

200V3-15 P0605X1200V3-15 BLADE GUARD BODY 200V3-32 P0605X1200V3-32 PHLP HD SCR M5-.8 X 30

200V3-16 P0605X1200V3-16 MOUNTING BLOCK (LEFT) 200V3-33 P0605X1200V3-33 BLADE GUARD WARNING LABEL

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#BL19352 PRINTED IN TAIWAN

READ THIS FIRST

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

Model G0696X/G0697X

***IMPORTANT UPDATE***

For Machines Mfd. Since 11/17

and Owner's Manual Revised 10/14

The following change was recently made since the owner's manual was printed:

• Inventory list has been revised.

Aside from this information, all other content in the owner's manual applies and MUST be read and under-

stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.

For questions or help, contact our Tech Support at (570) 546-9663 or [email protected].

Revised Fence Rail Inventory List

Hardware and Tools (Not Shown) Qty

• Flange Bolts M8-1.25 x 12

(Fence Tube/Front Rail) .................................... 7

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Grizzly Sega

Grizzly

Grizzly G0566 Manuale utente

Grizzly

Grizzly G0948 Manuale utente

Grizzly

Grizzly G1258 Manuale utente

Grizzly

Grizzly G8993 Manuale utente

Grizzly

Grizzly G0555LX Manuale utente

Grizzly

Grizzly G0513 SERIES Manuale utente

Grizzly

Grizzly T28360 Manuale utente

Grizzly

Grizzly EXTREME G0605X Manuale utente

Grizzly

Grizzly G0444Z Guida rapida

Grizzly

Grizzly G0591 Manuale utente

Grizzly

Grizzly G9744 Manuale di istruzioni

Grizzly

Grizzly G0970 Manuale utente

Grizzly

Grizzly G0513 SERIES Manuale utente

Grizzly

Grizzly EXTREME G0514X2 Manuale utente

Grizzly

Grizzly G0640X Manuale utente

Grizzly

Grizzly G0501 Guida rapida

Grizzly

Grizzly H3118 Manuale utente

Grizzly

Grizzly G0701 Manuale utente

Grizzly

Grizzly G0623X Manuale utente

Grizzly

Grizzly G0524 Manuale utente

Grizzly

Grizzly G1023S Manuale utente

Grizzly

Grizzly G9742 Manuale utente

Grizzly

Grizzly H0629 Manuale utente

Grizzly

Grizzly H8145 Guida rapida

Manuali Sega popolari di altre marche

RIDGID

RIDGID BS1400 Manuale utente

ATIKA

ATIKA BWS 400-2 Manuale utente

RGC

RGC FS20 Manuale utente

Makita

Makita M2300 Manuale utente

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manuale utente

IMET Spa

IMET Spa SIRIO 370 AF-E Manuale utente

Optimum

Optimum OPTisaw CS 275 Manuale utente

Makita

Makita BPB180 Manuale utente

Stihl

Stihl MS 462 C-M Manuale utente

AEG

AEG TS 250 K Manuale utente

Meec tools

Meec tools 004665 Manuale utente

Makita

Makita LS1018L Manuale utente

Ryobi

Ryobi RCS1400 Manuale utente

DeWalt

DeWalt DCS391 Manuale utente

Sealey

Sealey SA72 Manuale utente

skilsaw

skilsaw SPT88 Istruzioni per il montaggio

Urrea

Urrea SI810 Dimensioni e guida di installazione

EINHELL

EINHELL BKG 210/1 Manuale utente
