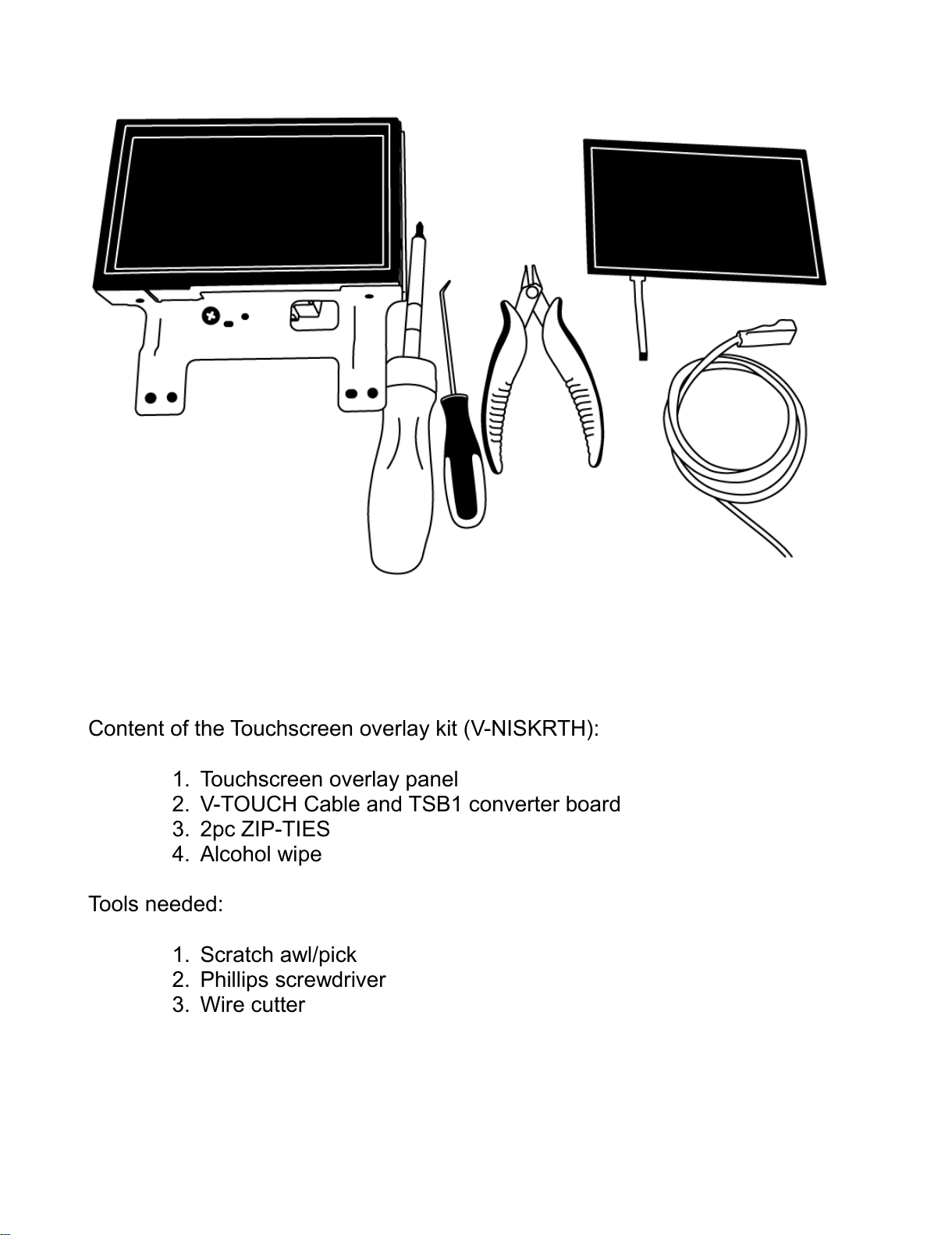

Content of the Touchscreen overlay kit (V-NISKRTH):
1 Touchscreen overlay panel
2 V-TOUCH Cable and TSB1 converter board
3 2pc ZIP-TIES
4 Alcohol wipe
Tools needed:
1 Scratch awl/pick
2 Phillips screwdriver
3 Wire cutter
All manuals and user guides at all-guides.com
Watch YouTube Video: bit.ly/nisk_touchscreen
1 Take the stereo assembly, touchscreen overlay kit (V-NISKRTH), and the
tools, to a flat surface We recommend using the table with good lighting
2 Remove 4 Phillips screws from both sides of vehicle's LCD screen assembly,
and remove LCD assembly from the metal bracket
All manuals and user guides at all-guides.com
Remove 2 Phillips screws from top of LCD enclosure
All manuals and user guides at all-guides.com
Remove 2 Phillips screws from bottom of LCD enclosure
All manuals and user guides at all-guides.com
Now remove the back metal cover from the LCD assembly
All manuals and user guides at all-guides.com
Using the awl tool, remove the front bezel from the LCD assembly
All manuals and user guides at all-guides.com
Remove the factory clear plastic screen cover
All manuals and user guides at all-guides.com
Remove protective plastic from the front side of the supplied touchscreen panel,
and carefully install the supplied touchscreen panel in place of the now removed
factory clear screen cover
All manuals and user guides at all-guides.com
How the new touchscreen panel should look in the front bezel, note that the 4pin
ribbon cable sits within the notch on the bezel
Remove the protective plastic film from the back side of the touchscreen panel,
and clean the screen using supplied alcohol wipe Let it dry
All manuals and user guides at all-guides.com
