Ground Zero HYDROGEN SERIES Manuale utente

HYDROGEN-SERIES

SUBWOOFER

ANLEITUNG / OWNER’S MANUAL

GZHW 25SPL

Ausstattungsmerkmale / Features

•Hochbelastbarer 25 cm SPL Subwoofer

•Klippel® optimierter 3-Fach Magnet

•Stabiler Aluminium-Guss Korb

•Verstärkte Papier Membrane

•Doppel-Zentrierung

•63 mm Kupfer Schwingspule

•Langhub Sandwich Sicke

•Push Terminals

oHigh Power 10” SPL Subwoofer

oKlippel® optimized Triple-Magnet

oStable aluminum cast basket

oReinforced paper cone

oDouble spider

o63 mm / 2.5” Copper voice coil

oHigh-Roll sandwich surround

oPush terminals

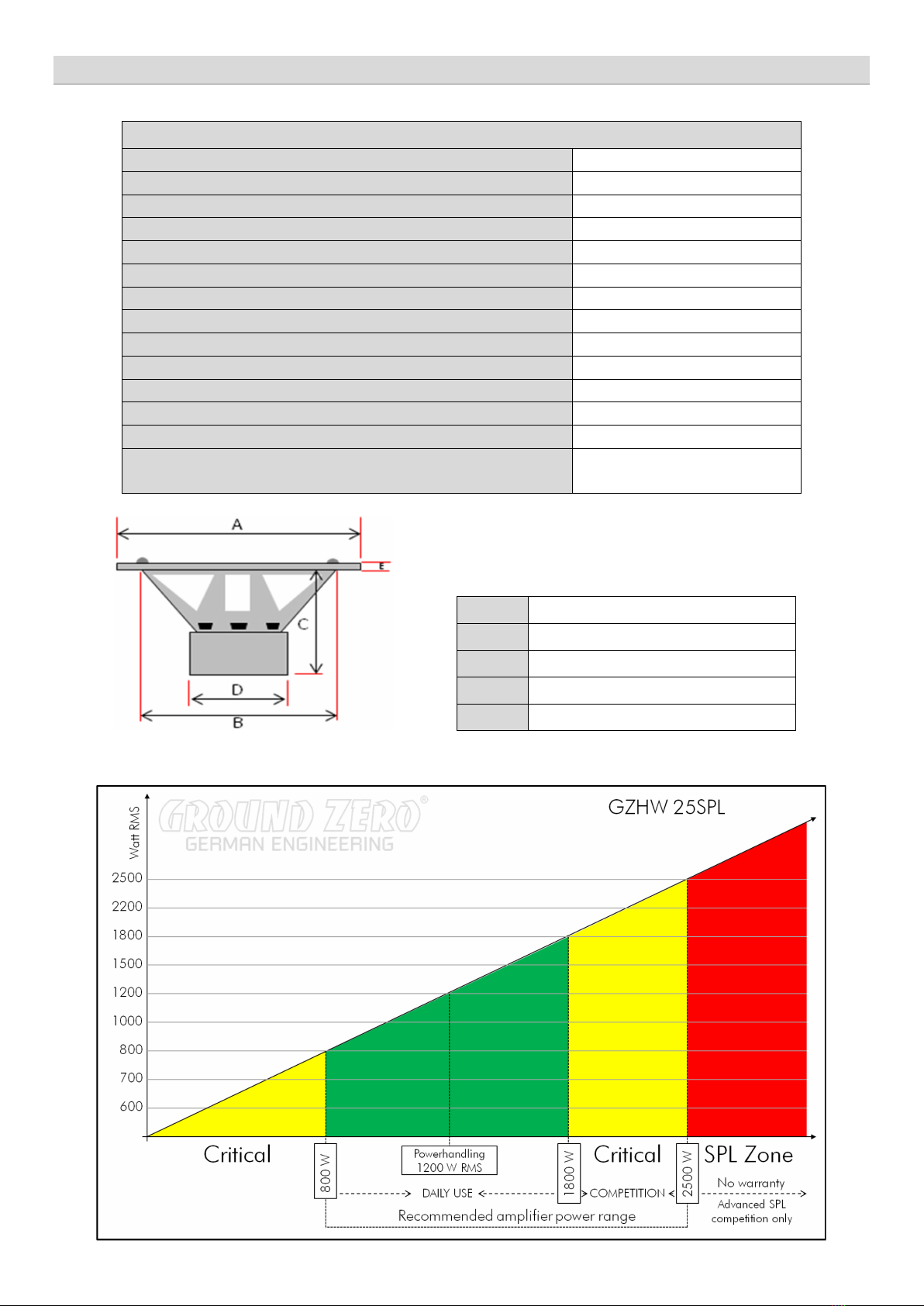

Technische Daten / Specifications

GZHW 25SPL

Voice Coil Diameter mm / inch

63 / 2.5"

Impedance Ohm

2 x 1

Re Ohm

1.92

FS Hz

41.8

Qms

7.976

Qes

0.519

Qts

0.487

Vas Liter / cu.ft.

8.53 / 0.3

MMS gr

267.59

Xmax mm / inch

45 / 1.77”

SPL dB (1w/1m)

BL TESLA – M

16.102

Power W RMS/SPL

1200 / 2500

Empfohlene Verstärkerleistung /

Recommended amplifier power

800 – 2500 WRMS

@2 Ohm ( 0.5 Ohm)

274 mm / 10.79“

238 mm / 9.37“

178 mm / 7“

175 mm / 6.89“

10 mm / 0.39“

* Die hier aufgeführten Gehäusevorschläge sind nur einige, der möglichen Varianten.

Bitte beachten Sie zudem, dass die finale Abstimmung, speziell die Port Längen je nach Fahrzeug und eigenem Geschmack variiert werden sollten.

Above-mentioned enclosure recommendations are just a few possible variations.

Please note that you should find the perfect tuning, especially port length, based on your car and own taste.

Gehäuseempfehlung / Enclosure recommendation

Bassreflex / Vented

(Rot / Red)

40 Liter netto / 1.412 cu.ft. net

Port

10 cm / 4”

Portlänge / Length*

25 cm / 8.27”

Fb / F3

42 Hz / 34 Hz

Bandpass 4 th order

(Grün / Green)

14 Liter netto geschlossen / 0.49 cu.ft. net sealed

28 Liter netto ventiliert / 0.99 cu.ft. net vented

Port

10 cm / 4”

Portlänge / Length*

18 cm / 7.09”

58 Hz

Bandbreite /

Bandwidth (-3dB)

37 – 87 Hz

Geschlossen / Sealed

7 – 20 Liter netto / 0.247 – 0.706 cu.ft. net

Minimum Volume

(Schwarz / Black)

Min. 7 Liter netto / Min. 0.247 cu.ft. net

Qtc / F3

0.73 / 60 Hz

Maximum Volume

(Blau / Blue)

Max. 20 Liter netto / Max. 0.706 cu.ft. net

Qtc / F3

0.58 / 63 Hz

Garantie- und Gewährleistungsbestimmungen

Die Gewährleistung entspricht der gesetzlichen Regelung. Eine Rücksendung kann nur nach vorheriger Absprache und in der

Originalverpackung erfolgen. Bitte unbedingt einen maschinell erstellten Kaufbeleg und eine Fehlerbeschreibung beilegen.

Von der Gewährleistung ausgeschlossen sind Defekte, die durch Überlastung, unsachgemäße Behandlung oder bei

Teilnahme an Wettbewerben entstanden sind. Wir behalten uns das Recht vor, zukünftig nötige Änderungen oder

Verbesserungen an dem Produkt vorzunehmen ohne den Kunden darüber zu informieren.

Terms of warranty

The limited warranty for this product is covered by Ground Zero´s local distribution partners and their

terms and conditions. For further information contact your local retailer or distributor.

Ground Zero GmbH

Erlenweg 25, 85658 Egmating, Germany

Tel. +49 (0)8095/873 830 Fax -8310

www.ground-zero-audio.com
