Grundig GU-CI-AP5647P Manuale utente

Quick Guide

About this guide

The guide includes instructions for using and managing the product.

Pictures, charts, images and all other information hereinafter are for

description and explanation only. The information contained in the

guide is subject to change, without notice, due to firmware updates or

other reasons.

Please find the latest version at WWW.GRUNDIG-SECURITY.COM

Limitation of Liability / Legal Disclaimer

Abetechs GmbH (Grundig Security) undertakes all reasonable efforts

to verify the integrity and correctness of the contents in this document,

but no formal guarantee shall be provided. Use of this document and

the subsequent results shall be entirely on the user’s own

responsibility. Abetechs GmbH (Grundig Security) reserves the right to

change the contents of this document without prior notice. Design and

specifications are subject to change without prior notice.

The product described herein, with its hardware, software and

documentation is provided “as is”, without any warranty, expressed or

implies, including without limitation, merchantability, satisfactory

quality, fitness for a particular purpose, and non-infringement of a

third party.

In no event will our company and its employees or agents be liable to

you for any special, consequential, incidental, or indirect damages,

including among others, damages for loss of business profits, business

interruption, or loss of data or documentation, in connection with the

use of this product, even if our company has been advised of the

possibility of such damages.

QG-GU-CI-AP5647P-2023-11-28-V5-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY

Regarding to products with internet access, the use of the product

shall be wholly at your own risks. Our company shall not take any

responsibilities for abnormal operation, privacy leakage or other

damages resulting from cyber-attack, hacker attack, virus inspection,

or other internet security risks; however our company will provide

timely technical support if required. Surveillance laws vary by

jurisdiction before using this product in order to ensure that your use

conforms to the applicable law. Our company shall not be liable in the

event that this product is used with illegitimate purposes.

In the event of any conflicts between this manual and the applicable

law, the later prevails.

Trademark

Each of trademarks herein is registered. The name of this product and

other trademarks mentioned in this manual are the registered

trademark of their respective company.

reproduced, distributed or changed, partially or wholly, without

formal authorization.

OPEN SOURCE SOFTWARE LICENSE INFORMATION

The software components provided with Grundig products may

contain copyrighted software that is licensed under various open

source software licenses. For detailed information about the

contained open source software packages, the used package versions,

license information and complete license terms, please refer to the

product detail pages on our website www.grundig-security.com. The

complete open source software license information is also included in

firmware files of affected products. Please also check your manuals for

additional information.

You may obtain the complete corresponding open source part of a

specific product from us for a period of three years after our last

shipment of this product by sending an email to: info@grundig-

security.com

Safety and Installation Instruction

Introduction

Please read these instructions carefully and keep them for future

reference. You must heed all the warnings and cautions as well as

follow all the safety and installation instructions.

The appearance of the products, functions and firmware or software

upgrade may differ from this manual.

GRUNDIG reserves the right to perform needed changes without prior

notice.

Safety Instructions

Make sure that you only use the power adapter that is specified in the

specifications sheet of the product. If you use any other adapter or

connect the power supply incorrectly, this may cause explosion, fire,

electric shocks or damage the product. Do not connect several devices

to one power adapter as this may cause an adapter overload and can

lead to over-heating and fire. Make sure that the plug of the power

adapter is firmly connected to the power socket.

Do not place containers with liquids on the product. Do not place

conducting items like tools, screws, coins or other metal items on the

product. These may fall from the product or can cause fire or electric

shocks or other physical injuries.

Do not push or insert any sharp items or any objects into the device as

this may cause damage to the product, fire, electric shocks and/or

physical injuries.

Do not block any ventilation openings, if there are any. Ensure that the

product is well ventilated to prevent any over-heating. Do not subject

the device to physical shock or drop the product.

If the product uses batteries, please use a battery type that is

recommended by the manufacturer. Improper use or replacement of

the battery may result in the hazard of explosion.

Do not use any accessories that are not recommended by GRUNDIG.

Do not modify the product in any way.

If the product starts to smell or smoke comes out of the device,

immediately stop using the product and disconnect it from the power

supply to prevent fire or electric shocks. Then contact your dealer or

the nearest service center.

If the product does not work correctly, contact your dealer or nearest

service center. Never open, disassemble or alter the product yourself.

GRUNDIG cannot accept any liability or responsibility for problems

caused by attempted and unauthorized repair and maintenance.

Installation Instructions

It is necessary to fix the device firmly if the product is installed on a

wall or ceiling. Do not install the product on surfaces or in places that

are vibrating. Do not install the product near radiation sources.

Do not install the product near heat sources, like radiators or other

equipment that produces some heat. If the product is not classified by

any IP class, do not install the product in very cold or hot temperatures

(please refer to the working temperature specified in the specification

sheet of the product), dusty, dirty or damp environment.

If the product is classified by any IP class, never touch the product

cover directly with your fingers, because the acidic sweat of the fingers

may damage the surface coating of the product cover. To clean the

inside and outside of the product cover, use a soft and dry cloth. In any

case, do not use alkaline detergents. The correct configuration of all

passwords and other security settings is the sole responsibility of the

installer and/or end-user (this applies especially to IP Cameras and

Recorders).

Special Installation Instructions for Cameras

Do not touch the sensor module with your fingers. Do not aim the

camera or camera lens at a strong light such as the sun or a bright lamp.

Irreversible damage to the camera can be caused by a strong light.

Do not expose the sensor of the product to laser beams as this may

damage the sensor.

If the product supports IR, you need to take some precautions to

prevent IR reflection. Do not install the product close to reflective

surfaces of objects as this may cause reflection. If the product has a

dome cover, please remove the protection film only after installation

to prevent dust or grease on the camera which can cause reflection.

The foam ring around the lens must be seated flush against the inner

surface of the bubble to isolate the lens from the IR LEDS. Fasten the

dome cover to the camera body so that the foam ring and the dome

cover are attached seamlessly.

For cleaning, use a clean cloth with a bit of ethanol and wipe it carefully

and gently. In any case, do not use alkaline detergents.

If a glove is provided in the package, please use it to open the product

cover. Never touch the product cover directly with fingers, because the

acidic sweat of the fingers may damage the surface coating of the

product cover.

Special Installation Instructions for IP Cameras

Make sure that the latest firmware is installed on the IP Device. You

may get the latest firmware from techsupport@grundig-security.com.

Table of Contents

1 Appearance Description .................................................................. 9

2 Installation .................................................................................... 10

3 Setting the IP-Camera over the LAN .............................................. 13

3.1 Wiring ........................................................................... 13

3.2 Activating the Camera................................................... 14

3.2.1 Activation via Web Browser................................ 14

Activation via Grundig IP-Finder Tool.................. 15

3.3 Modifying the IP Address .............................................. 17

4 Accessing via Web Browser ........................................................... 19

4.1 Initializing the Memory Card......................................... 21

1Appearance Description

The overview of the network PTZ-camera is shown below.

Figure 1-1 Overview of PTZ-Camera

2Installation

Before you start:

Plan the cable routing before installation.

This camera series supports cable-routing through the bracket.

Cut a hole in the wall and route the cables in advance.

Steps:

1. Mark 4 screw holes at desired mounting location on the wall

according to screw holes on the template.

2Drill 4 holes into the wall and put the expansion bolts into them. Fix

the bracket on the wall.

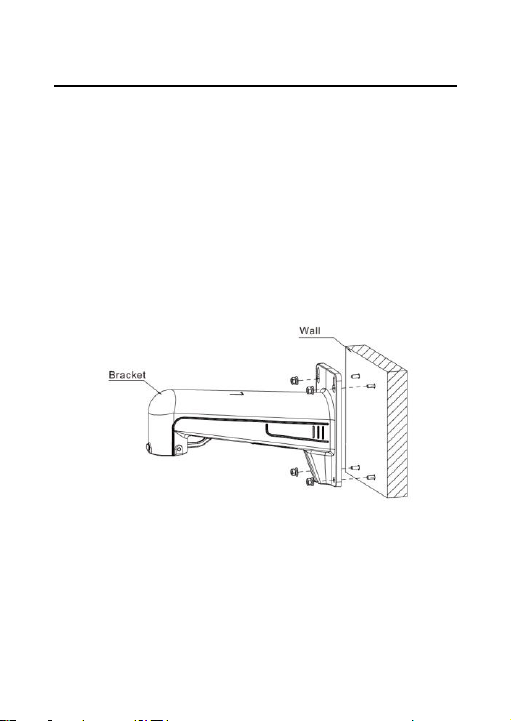

Figure 2-1 Fix the bracket
