ENGLISH

Please note the following information when setting up your television

set.

This television set is designed to receive and display video and audio

signals.

Any other use is expressly prohibited.

The ideal viewing distance is 5 times the screen diagonal.

External light falling on the screen impairs picture quality.

To assure suﬃcient ventilation make sure there is enough space

around it in the wall unit.

The television set is designed for use in dry rooms. If you do use it in

the open, please ensure that it is protected from moisture, such as

rain or splashing water. Do not expose the television set to any mois-

ture.

Do not place any vessels such as vases on the television, as they may

spill liquid, thus presenting a safety risk.

Place the television set on a solid, level surface. Do not place any

objects such as newspapers on the television set or cloth or similar

items beneath it.

Do not place the television set close to heating units or in direct sun-

light, as this will impair cooling.

Heat build-up can be dangerous and shortens the operating life of

the television set. For reasons of safety, have a specialist remove any

dirt deposits in the set from time to time.

Do not open the television set under any circumstances. Warranty

claims are excluded for damage resulting from improper handling.

Make sure the power cord or the power supply unit (if provided) are

not damaged.

The television set may only be operated with the mains

cable/adapter supplied.

Thunderstorms are a danger to all electrical devices. Even if the

television set is switched oﬀ, it can be damaged by a lightning strike

to the mains or the antenna cable. Always disconnect the mains and

antenna plugs during a storm.

Clean the screen with a soft, damp cloth. Only use plain water.

Only clean the television housing with the cloth provided. Only use

plain water.

SET-UP AND SAFETY ------------------------------------------------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 3

Please note when deciding where to put the device that furniture

surfaces are covered by various types of lacquer and plastic, most

of which contain chemical additives. These may cause corrosion to

the feet of the device, thus resulting in stains on the surface of the

furniture which can be diﬃcult or impossible to remove.

The screen of your LCD television meets the highest quality

standards and has been checked for pixel faults.

Despite the great care taken in manufacturing, technological

reasons make it impossible to completely discount the possibility that

some pixels may be faulty.

Provided they are within the thresholds speciﬁed by the DIN norm,

pixel faults of this kind cannot be regarded as a defect as deﬁned by

the warranty.

Notes:

Do not connect any other equipment while the device is switched

on. Switch oﬀ the other equipment as well before connecting it.

Only plug the device into the mains socket after you have con-

nected the external devices and the antenna.

Make sure the power plug is freely accessible.

Caution:

If you want to use a wall bracket for your television, make sure

you read the assembly instructions for the wall bracket carefully

or have your specialist dealer mount it for you.

When buying the wall bracket, make sure that all the fastening

points needed on the television are there on the wall bracket and

that they are all used when it is mounted.

SET-UP AND SAFETY ------------------------------------------------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 4

ENGLISH

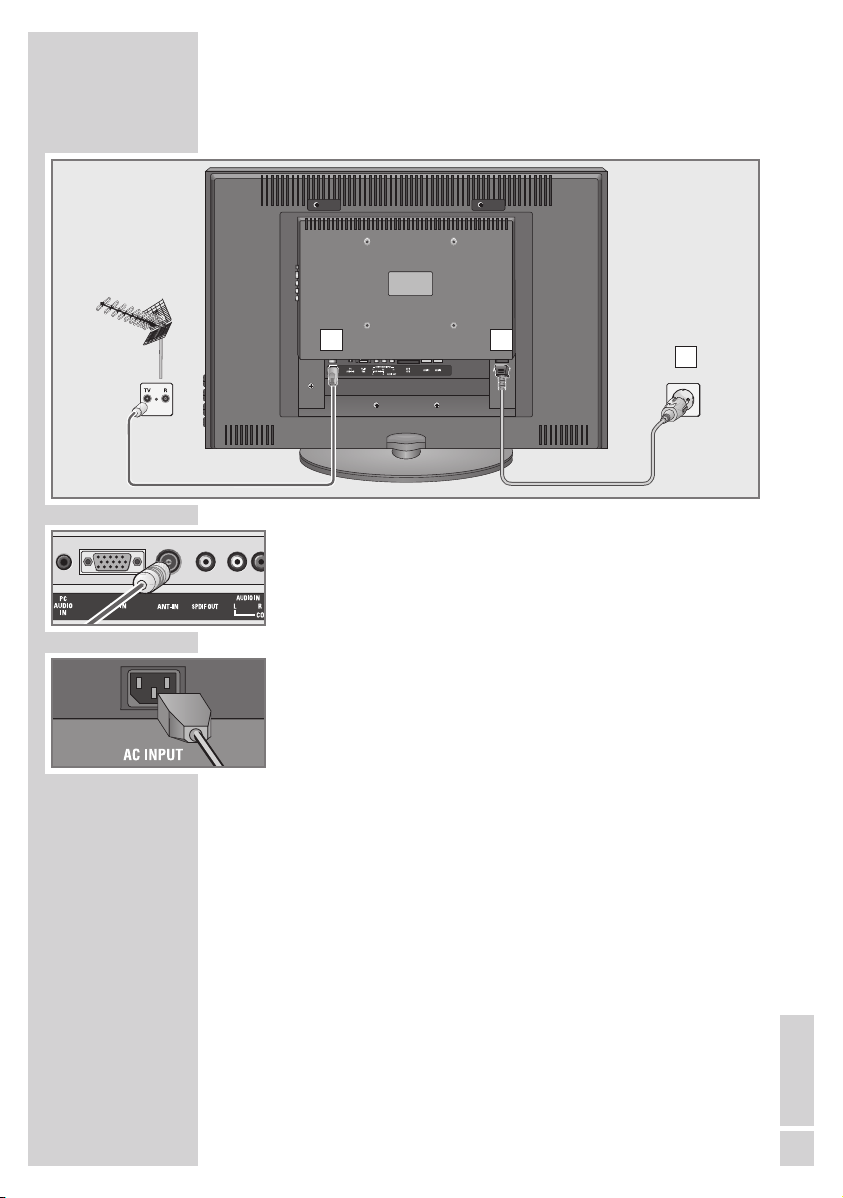

Connecting the antenna and the mains cable

1Plug the antenna cable of the rooftop antenna into the »TUNER«

antenna socket on the television.

2Plug the mains cable supplied into the »AC INPUT« mains socket

of the television.

3Plug the mains cable into the wall socket.

Note:

Only plug the device into the mains socket after you have

connected the external devices and the antenna.

Only connect the television using the power cord supplied to a

suitable earthed safety socket.

Do not use an adapter plug or extension lead which does not

meet the applicable safety standards. Do not tamper with the

power cord.

CONNECTION/PREPARATION ----------------------

1 2 3

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 5

Inserting batteries in the remote control

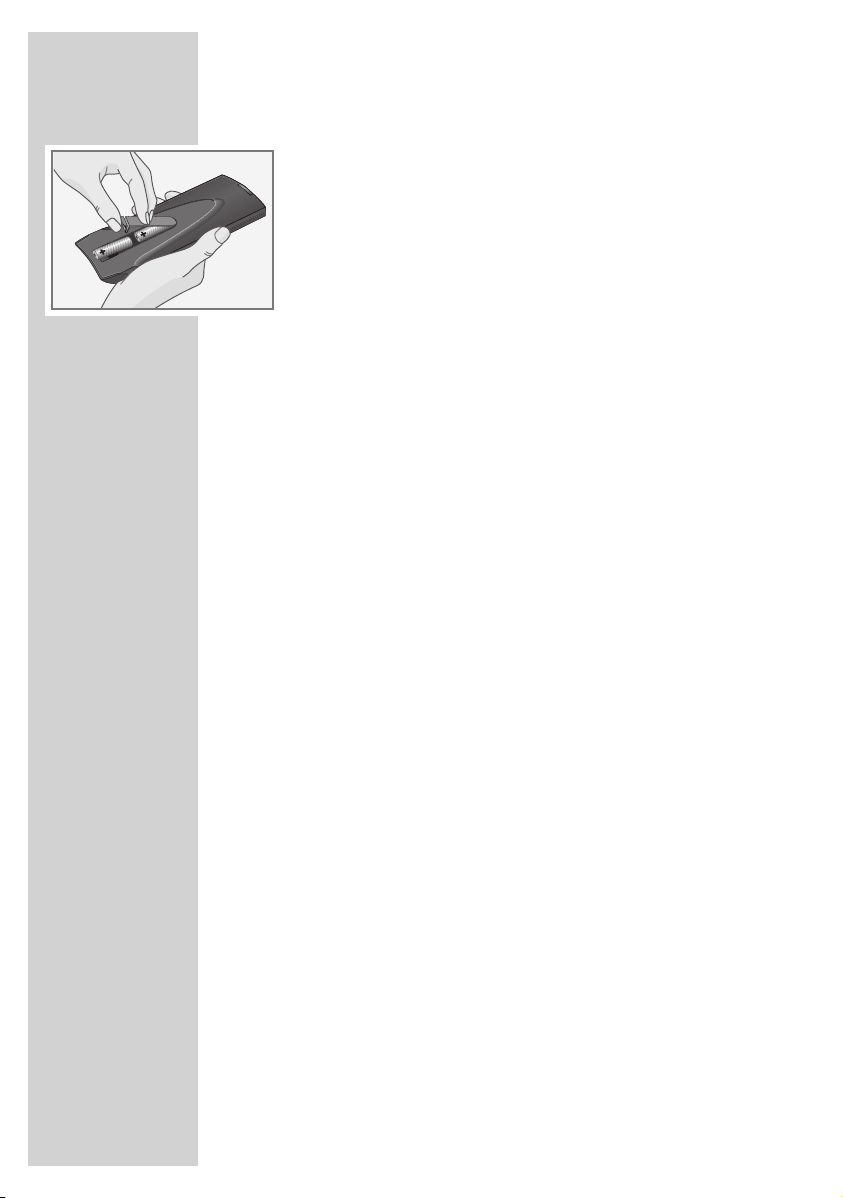

1Open the battery compartment by removing the lid.

2Insert the batteries (Mignon type, for example UM-3 or AA,

2x1,5V). Observe the polarity (marked on the base of the battery

compartment).

3Close the battery compartment.

Note:

If the television no longer reacts properly to remote control

commands, the batteries may be ﬂat. Be sure to remove used

batteries.

The manufacturer accepts no liability for damage resulting from

used batteries.

Environmental note

Batteries, including those which contain no heavy metal, may not

be disposed of with household waste. Please dispose of used

batteries in an environmentally sound manner. Find out about the

legal regulations which apply in your area.

CONNECTION/PREPARATION ----------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 6

ENGLISH

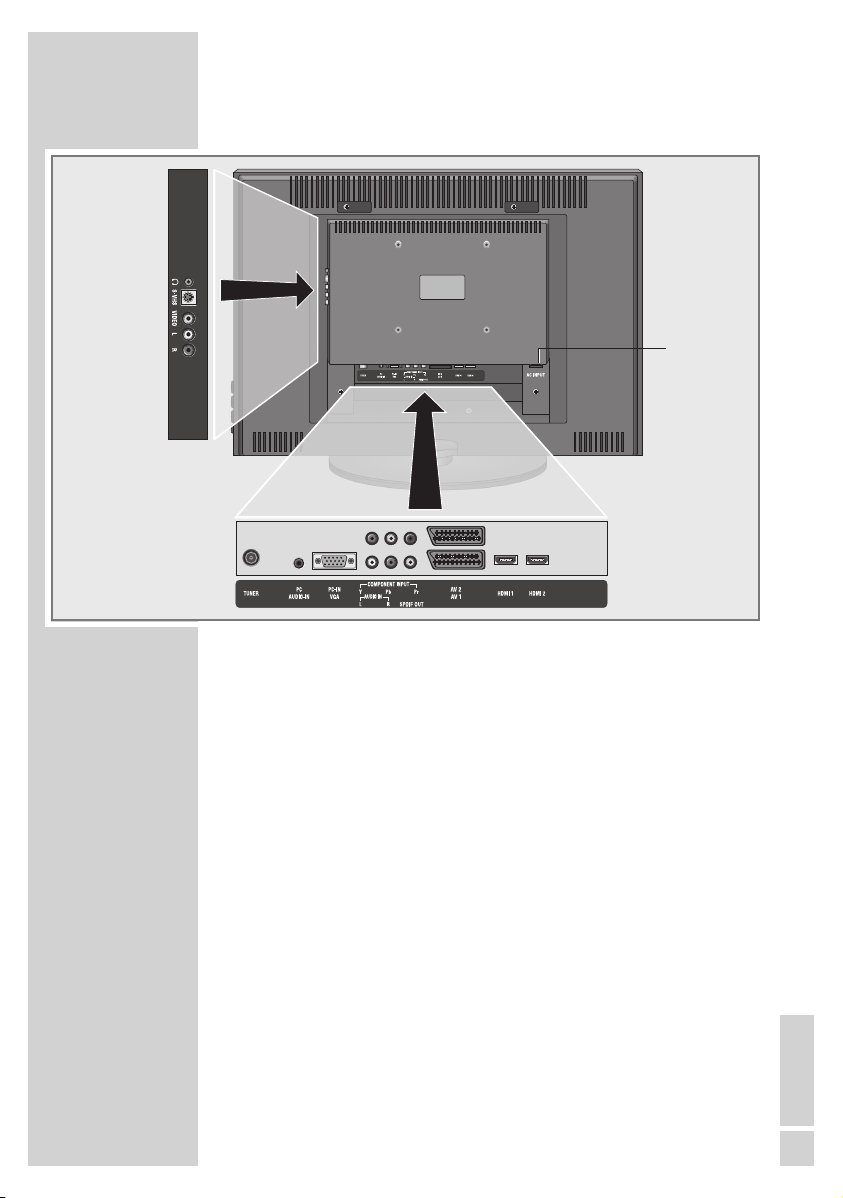

Connections on the television

UHeadphone connection (3.5 mm jack plug).

S-VHS Video signal input for S-Video camcorder.

VIDEO Video signal input for camcorder.

L R Audio signal input for camcorder.

TUNER Antenna socket.

PC AUDIO-IN Audio signal input for PC.

PC-IN VGA VGA socket, video signal input for PC.

COMPONENT

INPUT

Y Pb Pr Video signal input (YUV signal).

AUDIO IN LR Audio signal input (YUV signal).

SPDIF OUT Audio output sockets (coaxial) for PCM signals.

For connecting to a digital multi-channel

audio/video ampliﬁer or AV receiver.

AV2 Euro/AV socket (FBAS signal, Y/C signal).

AV1 Euro/AV socket (FBAS signal, RGB signal).

HDMI1 HDMI socket, audio/video signal input (HDMI).

HDMI2 HDMI socket, audio/video signal input (HDMI).

AC INPUT Socket for the mains cable.

OVERVIEW ----------------------------------------------------------------------------------------------

AC INPUT

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 7

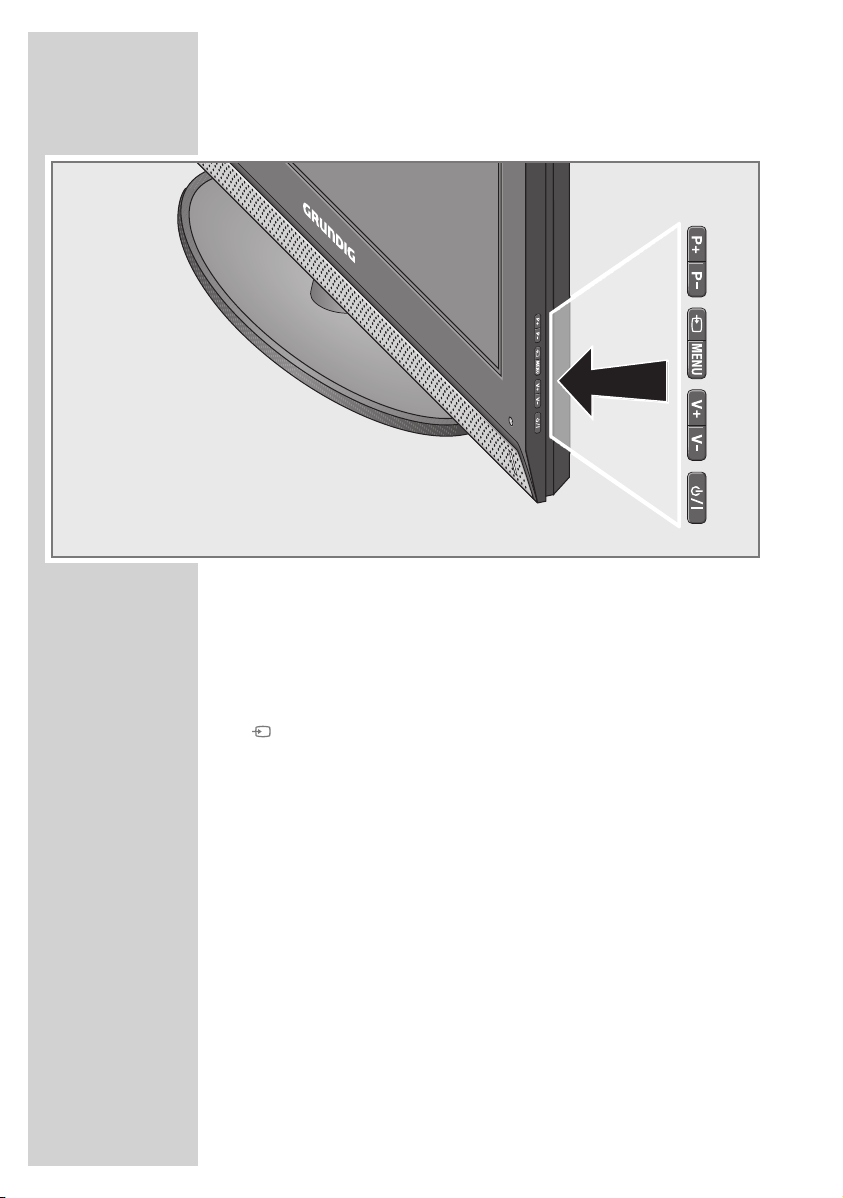

Controls on the television

8/I Switches the television on and back into standby

mode.

The only way to disconnect the television from

the mains supply is to pull the plug.

V+ V – Adjust the volume.

Select menu functions.

Opens the pre-selection for AV channels.

Select within the menu with »+ P« or »P –«,

conﬁrm with »V+« or »V–«.

MENU Opens the »MAIN MENU« menu.;

Press »P+« or »P–« to select an item.

Press »V+« or »V–« to activate a function.

Press »V+« or »V–« to set a function.

Press »MENU« to close the menu.

P+ P – Switch the television on from standby.

Channel selection.

Select a function in the menu.

OVERVIEW ----------------------------------------------------------------------------------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 8

ENGLISH

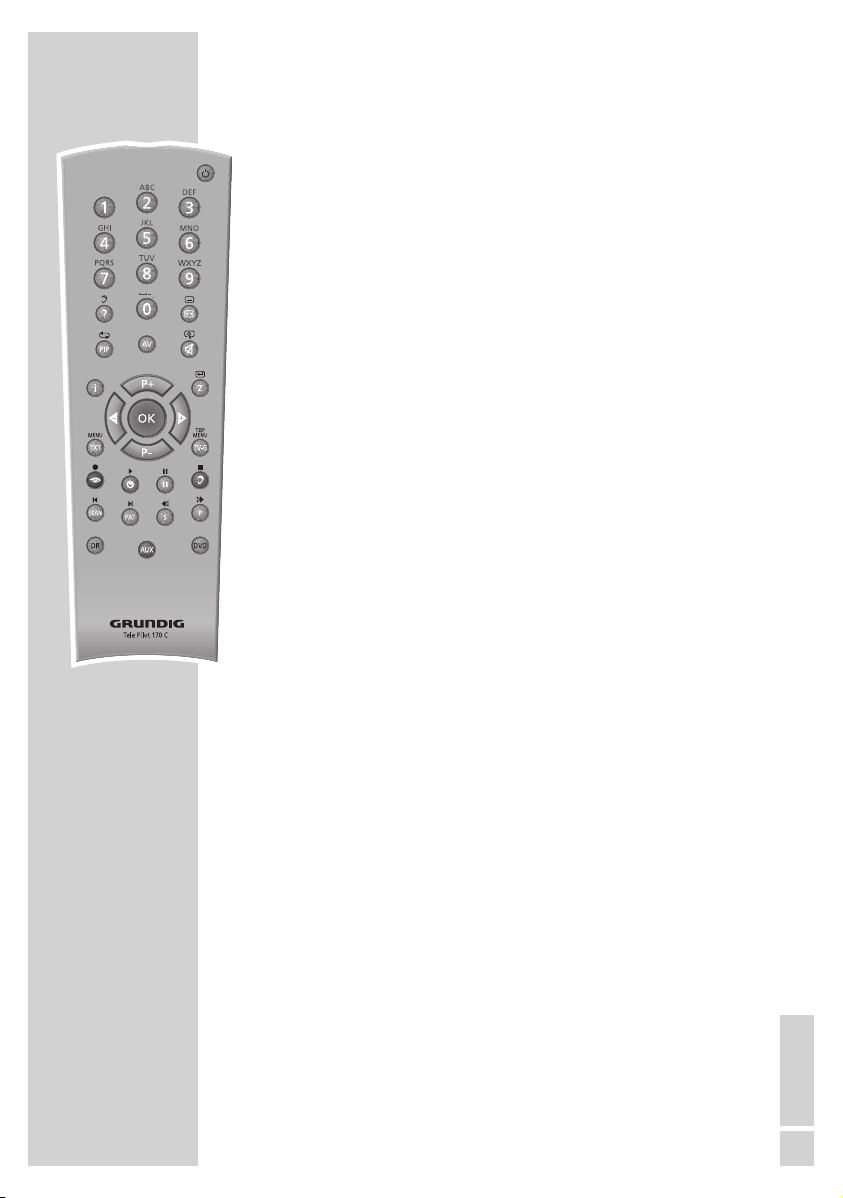

The remote control

8Switches oﬀ the television set (stand-by).

1...0 Switches the television on from standby mode

Selects channels directly.

?Displays the number and name of a station;

reveals answers in teletext mode.

ESwitches between picture formats;

switches to double character size in teletext

mode.

PIP Shows an inset picture;

activates the double window function;

switches back to normal size.

AV Opens the pre-selection for AV channels.

Then selection with P+ or P-.

dSound on/oﬀ (mute).

iCalls up the »MAIN MENU«.

ZZap function;

page stop in teletext mode.

P+, P- Switches the television on from standby;

selects stations step by step;

moves the cursor in the menus up and down.

4 3 Adjusts the volume;

moves the cursor left/right.

OK Calls up the preset channels;

activates various functions.

TXT Switches between teletext and TV modes

TV-G Key has no function.

zSelects various picture settings;

scrolls back a page in teletext mode.

¥Displays the time;

selects the next page in teletext mode.

3Freeze-frame;

selects the desired chapter in teletext mode.

FSelects various audio settings;

selects the desired topic in teletext mode.

OVERVIEW ----------------------------------------------------------------------------------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 9

SCAN Enlarges the picture.

PAT Selects the Split Screen function.

SSelects the sub-pages in teletext mode.

PUpdates a page in teletext mode.

DR, DVD Switches to operation of a GRUNDIG digital

receiver, GRUNDIG digital receiver with hard

disk (PDR), GRUNDIG DVD player or GRUNDIG

DVD recorder.

Keep the appropriate button (»DR«, »DVD«)

pressed down. Then press the appropriate button.

Note:

The »DR« button has been programmed for

operating a GRUNDIG digital receiver (remote

control level 1).

The »DVD« button has been programmed for

operating a GRUNDIG DVD player.

You can change this programming, see »AUX«

button.

The functions available depend on the model of

the device you are using.

Just try it out.

AUX Programming the remote control for the operation

of external devices.

Press »AUX« and hold it down and press three

numerical buttons to enter the appropriate code:

»1«, »2«, »3« for a GRUNDIG DVD player.

»4«, »5«, »6« for a GRUNDIG DVD recorder.

»1«, »4«, »7« for a GRUNDIG digital receiver

(remote control level 1).

»2«, »5«, »8« for a GRUNDIG digital receiver

(remote control level 2).

»3«, »6«, »9« for a GRUNDIG digital receiver

with hard disk (PDR).

OVERVIEW ----------------------------------------------------------------------------------------------

02Vision 6_37_42-6820_en:Layout 1 06.11.2007 10:21 Uhr Seite 10

Altri manuali per Vision 6

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Grundig TV

Grundig

Grundig 22 VLE 522 SG Manuale utente

Grundig

Grundig Vision 2 22-2830 T DVD Manuale utente

Grundig

Grundig 22 VLE 521 BG Manuale utente

Grundig

Grundig Toronto 32-7830 T Manuale utente

Grundig

Grundig 32 GFB 6826 Manuale utente

Grundig

Grundig DAVIO 70 Manuale utente

Grundig

Grundig CUC 7350 Manuale utente

Grundig

Grundig CUC 1826 Manuale utente

Grundig

Grundig 50 GEU 7900C Guida di riferimento

Grundig

Grundig T 55-830 text Manuale utente

Grundig

Grundig GBD4200 Manuale utente

Grundig

Grundig Planatron 42 PW 110-7401 TOP Manuale utente

Grundig

Grundig 49VLE8500-B0 Manuale utente

Grundig

Grundig DIGI 100 CUC 1934 Manuale utente

Grundig

Grundig Berlin SE 7027/8 PIP Manuale utente

Grundig

Grundig 49 GDU 7810B Manuale utente

Grundig

Grundig 40 GUS 9779 Manuale utente

Grundig

Grundig 32 VLE 6020 Manuale utente

Grundig

Grundig PlanaVision 50 PXW 130-8620 Dolby Manuale utente

Grundig

Grundig 43 VLE 6625 BP Manuale utente

Grundig

Grundig Apollo 42 Manuale utente

Grundig

Grundig CUC2021 Istruzioni per la costruzione

Grundig

Grundig 22 VLE 7120 BM Manuale utente

Grundig

Grundig Meglio series Manuale utente

Manuali TV popolari di altre marche

Philips

Philips Colour Television Manuale utente

Toshiba

Toshiba 27A10 Manuale utente

Philips

Philips 42PF9630A/37 Manuale utente

Hitachi

Hitachi 32FX48B Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuale utente

Changhong Electric

Changhong Electric uhd55b6000is Manuale utente

Philips

Philips Matchline 21CE7551 Manuale utente

Panasonic

Panasonic Genus TX-G10 Manuale utente

Toshiba

Toshiba 19A20 Manuale utente

Philips

Philips 25PT4523-16 Manuale utente

Sony

Sony XBR-100Z9D Manuale utente

Philips

Philips PR0930X3 Manuale utente

Philips

Philips Brilliance 231P4QPY Manuale utente

Samsung

Samsung 55S9 B Series Manuale utente

Philips

Philips 32HF9385D Guida alla risoluzione dei problemi

Sharp

Sharp LC-40FI5012E Manuale utente

Loewe

Loewe Table Stand Reference 55 Manuale utente

Philips

Philips 32PFH5300 Manuale utente
