GSI Electronics Agri-Alert 800EZe Manuale utente

ADO1021750

Agri-Alert 800EZe

Alarm System

User’s Manual

Alarm

System in Standby

Burglary Armed

Online (phone)

ZONES

Main

Alarm

Memory

Arm /

Disarm

Standby

GHI

PRS

ABC

JKL

TUV

DEF

MNO

WXY

Back

Enter

Pause

AM / PM

ZONE LIGHTS LEGEND

Green

zone activated

Amber

zone bypassed

Red

zone in alarm

Off

zone deactivated

M 890-00502 rev.16

Rev.17

2AA800EZe rev.16

AA800EZe

WARNINGS

The warranty can be void if this product is used in a manner not

specied by the manufacturer.

Every eort has been made to ensure that this manual is complete,

accurate and up-to-date. The information contained in it is however

subject to change without notice due to further developments.

Manufacturer:

GSI Electronics

5200, Armand-Frappier

Saint-Hubert (Qc)

Canada

J3Z 1G5

AA800EZe rev.16

AA800EZe

TABLE OF CONTENTS

1. INSTALLATION..............................................................4

1.1. Introduction.......................................................................................4

1.1.1. Terms of Use ............................................................................. 4

1.1.2. Using the Product According

to Your Function...................................................................... 4

1.1.3. General Safety Usage............................................................ 4

1.1.4. General Safety Precautions................................................. 4

1.1.5. Symbols of the Manual......................................................... 4

1.1.6. General Safety and Electrostatic

Discharge Prevention............................................................ 5

1.2. Installation Procedure ....................................................................5

1.3. Mounting the Equipment .............................................................5

1.4. Connecting the Equipment..........................................................5

1.4.1. Sensors ...................................................................................... 5

1.4.2. AC Power Connection .......................................................... 5

1.4.3. Backup Battery Connection................................................ 5

1.4.4. Siren Output ............................................................................ 6

1.4.5. 12VDC Output ......................................................................... 6

1.4.6. Outdoor Temperature Sensor ............................................ 6

1.4.7. Relays.......................................................................................... 6

1.4.8. Phone Hookup......................................................................... 6

1.4.9. Connecting the Earth Ground ........................................... 7

1.5. Power Up the System......................................................................7

2. USER INTERFACE ........................................................7

2.1. Front Panel..........................................................................................7

2.2. Modifying a Parameter...................................................................8

2.3. Navigation ..........................................................................................8

2.4. Acknowledging an Alarm..............................................................8

2.5. Telephone Interface ........................................................................8

2.5.1. Alarm Report Call.................................................................... 8

2.5.2. Status Report over the Phone ........................................... 8

2.5.3. Acknowledge upon call-back.............................................8

3. SYSTEM INITIALIZATION..........................................10

3.1. Installation Wizard ........................................................................ 10

3.2. Password ......................................................................................... 10

3.2.1. Setting the Passwords.........................................................10

3.2.2. Changing the User Level....................................................11

3.3. Time & Date..................................................................................... 11

3.4. Units of Measurement................................................................. 11

3.5. Siren ................................................................................................... 11

3.6. Volume.............................................................................................. 12

3.7. Conguring the Zones ................................................................ 12

3.7.1. Introduction ...........................................................................12

3.7.2. Number of Zones & Outside T° Sensor..........................12

3.7.3. Dry Contact Inputs & Burglar Zone Settings ..............13

3.7.4. Temperature Zone Settings ..............................................14

3.7.5. Assigning a Relay to a Zone..............................................14

3.7.6. Disable the Siren...................................................................15

3.7.7. Zones’Vocal Identication ................................................15

3.7.8. Initial Activation of the Zones..........................................15

3.8. System Setup.................................................................................. 16

3.8.1. Standby Mode .......................................................................16

3.8.2. System’s Vocal Identication ............................................16

3.8.3. High Noise Alarms................................................................16

3.8.4. Relay Status.............................................................................17

3.8.5. System Self Test.....................................................................17

3.8.6. System Alarm Monitoring .................................................17

3.8.7. Software Version...................................................................17

4. COMMUNICATION PARAMETERS ...........................18

4.1. Introduction.................................................................................... 18

4.2. Dialout Sequence.......................................................................... 18

4.3. Dialing Information ...................................................................... 19

4.4. Phone Numbers............................................................................. 20

4.5. Pager Setup..................................................................................... 20

4.6. On-Site Listening........................................................................... 21

4.7. Phone Call-in................................................................................... 21

4.8. Disable the Dialer.......................................................................... 22

4.9. Test Report....................................................................................... 22

4.10. Precision of the Phone Signals (DTMF).................................. 22

5. ALARM PARAMETERS ..............................................23

5.1. Summary of Events....................................................................... 23

5.2. Internal System Alarms ............................................................... 23

5.3. Outdoor Temperature Compensation................................... 23

5.4. Burglar Zones.................................................................................. 24

5.4.1. Entry/Exit Delays...................................................................24

5.4.2. Arming/Disarming the System........................................24

5.5. Zone Status...................................................................................... 25

5.5.1. Bypass / Activate...................................................................25

5.5.2. View/ Modify Zone Settings .............................................25

6. MONITORING FUNCTIONS .......................................26

6.1. Alarm Memory ............................................................................... 26

6.2. Current Conditions ....................................................................... 26

6.3. Event Buer..................................................................................... 26

7. INSTALLATION CHECK LIST....................................26

8. UPDATE / BACKUP.....................................................27

9. TECHNICAL SPECIFICATIONS ................................28

10. TROUBLESHOOTING GUIDE ...................................28

10.1. System Troubles............................................................................. 28

10.2. Memory Card Troubles................................................................ 29

10.3. Phone Communication Troubles............................................. 29

11. MAINTENANCE ...........................................................29

11.1. Inspecting and Cleaning the Controller................................ 29

11.2. Replacing the Battery Pack........................................................ 30

12. APPENDIX....................................................................30

12.1. Wire Length..................................................................................... 30

12.2. Backup Battery Life Span............................................................ 30

12.3. Replacement Parts Specications........................................... 30

13. INDEX ...........................................................................31

4AA800EZe rev.16

AA800EZe

1. INSTALLATION

1.1. Introduction

1.1.1. Terms of Use

Read and follow all installation, operation, and

maintenance information carefully before using

the product. If the product is used in a manner not

specied, the protection provided by the product

warranty is considered void.

1.1.2. Using the Product Accord-

ing to Your Function

A responsible body is an individual or group respon-

sible for the use and maintenance of equipment, for

ensuring that the equipment is operated within its

specications and operating limits, and for ensuring

that operators are adequately trained.

Operators use the product for its intended function.

Maintenance personnel perform routine proce-

dures on the product to keep it operating properly.

Service personnel are trained to work on live

circuits, perform safe installations, and repair

products. Only properly trained service personnel

can perform installation and service procedures.

1.1.3. General Safety Usage

The following guidelines must be followed to en-

sure safe usage of the product:

• Installation must only be performed by qualied

service personnel.

• Installation must comply with local and national

safety codes.

• Repairs must only be performed by qualified

service personnel.

• When replacing the fuses, use the same type

and same rating as specied. Make sure the unit is

disconnected from AC power.

• Do not try to operate the system if it is damaged.

Disconnect the power from the unit and call your

local service representative.

• Do not operate when condensation is present.

• Use of the system in a manner not specied by

these instructions can impair the safety protec-

For Customer Use: Enter below the serial num-

ber located on the side of the alarm system and

keep this information for future reference.

Model: AA800EZe

Serial number:

Date installed:

1.1.5. Symbols of the Manual

Warning. Read the following text carefully;

it contains important information which, if

ignored,maycausethe controllertooperate

improperly.

High Voltage. Hazard of electrical shock.

Read the message and follow the instruc-

tions carefully.

Pay attention. The following text contains

very useful information.

Double insulation.

Both direct and alternating current

(AC/DC).

Direct current (DC).

Alternating current (AC).

Functional Ground Terminal Primarily

used for functional earth terminals which

are generally associated with test and

measurement circuits. These terminals

are not for safety earthing purposes but

provide an earth reference point.

tion provided by the system. Do not operate the

system outside of its rated supply voltages or

environmental ranges.

• Failure to read the installation and user manuals

or to comply with the warnings and references

contained herein can result in serious bodily injury

or controller damage.

• Do not insert metal objects into the connectors.

• Use the system only as specied.

• Carefully read all instructions.

• Do not use the system if it does not operate cor-

rectly.

• The enclosures must be closed and locked before

you operate the product.

• Use only specied replacement parts.

1.1.4. General Safety Precautions

WARNING: Read and save

these instructions!

Safety may be jeopardized if the equipment is used

in a manner not specied by the manufacturer.

Carefully read and keep the following instructions

for future reference.

The room temperature where the alarm system

is located must always remain between 32°F and

104°F (0°C to 40°C). For Indoor use only !

To avoid exposing the alarm system to harmful

gases or excessive humidity, it is preferable to install

it in a corridor.

Do not spray water on the alarm system ! In order

to clean it, wipe it with a damp cloth.

The enclosure should be opened and inspected

once a year for moisture. Proper care will extend

the life of the system.

AA800EZe rev.16

AA800EZe

1.1.6. General Safety and Electro-

static Discharge Prevention

Electrostatic discharge (ESD) can damage equip-

ment and impair electrical circuitry. ESD damage oc-

curs when electrostatic components are incorrectly

handled, and can result in complete or intermittent

failures. Always follow ESD-prevention procedures

when you remove and replace components. Wear

an ESD-preventive wrist strap, ensuring that it

makes good skin contact.

Connect the grounding clip to an unpainted surface

of a metal chassis frame to safely ground unwanted

ESD voltages.

To guard against ESD damage and shocks, the wrist

strap and cord must operate correctly. If no wrist

strap is available, ground yourself by touching the

metal part that is grounded. For safety, periodically

check the resistance value of the antistatic strap. It

must be between 1 and 10 Mega ohms (Mohm).

1.2. Installation Procedure

To avoid electrical shocks and equipment dam-

age, unplug the unit before making connections.

1. Determine where you want to install the sys-

tem. You need an unswitched AC power outlet and

a telephone plug nearby to operate the system.

2. Make a list of all the sensor inputs you will be

using with the Agri-Alert system.

3. Mount the Agri-Alert system on the wall (see

section 1.3).

4. Connect a ground wire to the ground terminal

of the system (see section 1.4.9).

5. Install and connect all zone sensors and the

siren. If the alarm system uses the phone, connect

the phone line to the Phone Plug-in Card and then

insert the card in the PHONE CARD port of the Agri-

Alert. If the system uses an outside temperature

sensor, connect the sensor to the Outdoor Plug-in

Card and then insert the card in the OUTDOOR port

of the Agri-Alert. These 2 plug-in cards are optional

(see section 1.4).

6. Install the battery and then power up the Agri-

Alert with the 16VAC wall transformer (note that the

system will not boot when connecting the battery).

1.3. Mounting the Equipment

The Agri-Alert system should be mounted on a wall.

Use 3/16” diameter screws to mount the enclosure

on the wall. Fasten the black caps onto the mount-

ing holes once the screws are tightened. Make

sure the cover can be opened easily (to open the

enclosure, pull the latch and lift the cover).

If outdoor connections are used, mount the

enclosure as close as possible to the entry point

of the outdoor wiring.

1.4. Connecting the Equip-

ment

Electrical knockouts are located on the bottom

of the enclosure for running the cables. Use a

screwdriver and a hammer to punch out the holes.

Additional holes made in the enclosure will void

the warranty.

Strip the wires as little as possible (about 1/4”) to

avoid electrical shorts. Once they are connected,

run them through watertight nylon cable glands

at the bottom of the enclosure.

All wiring must be done by an authorized elec-

trician and must comply with applicable codes,

laws and regulations. Be sure power is off before

doing any wiring to avoid electrical shocks and

equipment damage.

Do not install rigid conduit into electrical knock-

outs. Only nylon cable glands are permitted for

cable or wire fastening.

Before making the connections, pass the wires

through an hermetic cable holders at the bottom

of the enclosure.

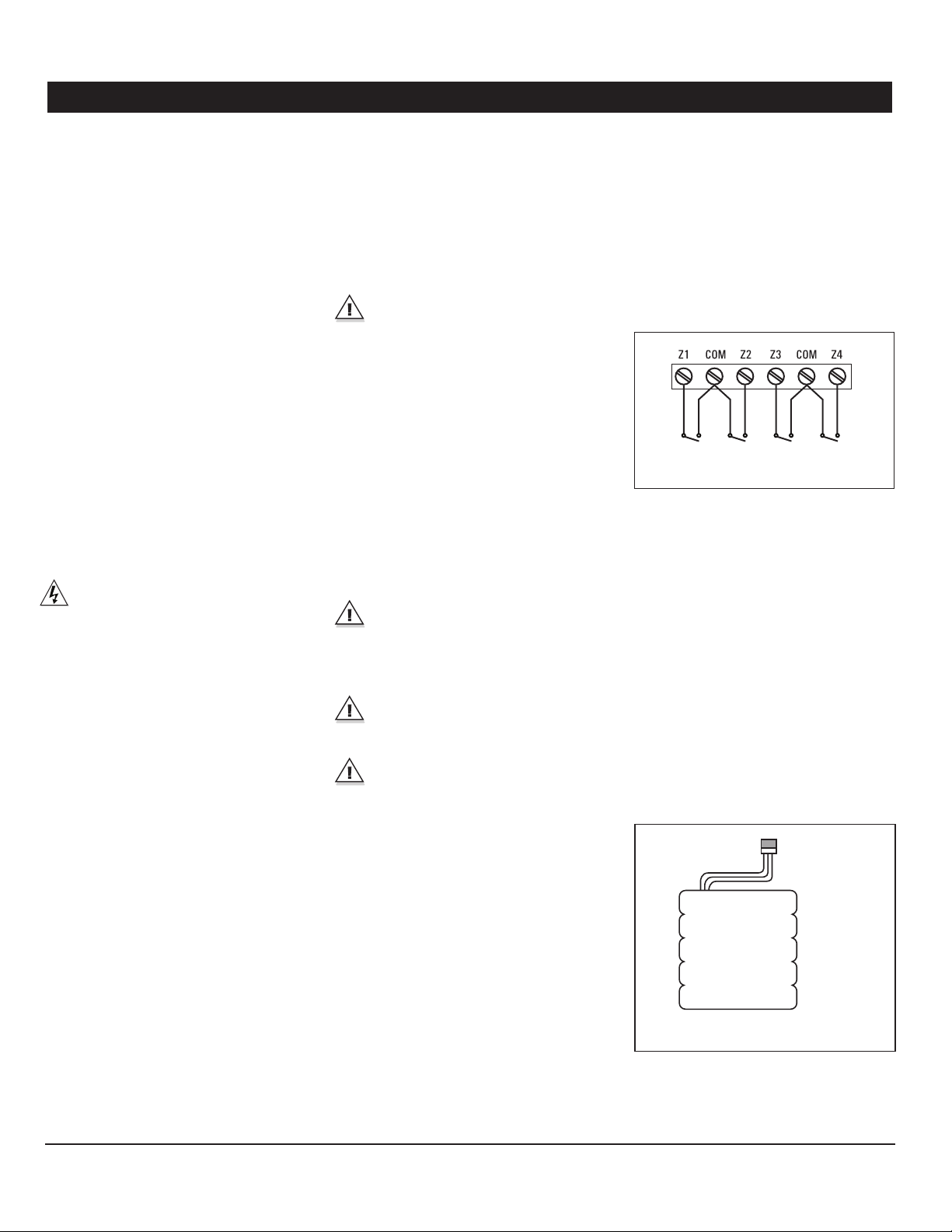

1.4.1. Sensors

The terminals used for sensor inputs are numbered

Z1, Z2, Z3, etc. on the removable card. Connect

each sensor to a Z terminal and to the ground

terminal (COM). Note that each “COM” terminal is

used by two zones; for example, Z1 and Z2 share

the same “COM” terminal. Make sure each sensor

is connected to the proper “COM” terminal. False

alarms can result if the ground wires are not prop-

erly connected.

Zone 1

Sensor

Zone 2

Sensor

Zone 3

Sensor

Zone 4

Sensor

1.4.2. AC Power Connection

The terminals marked 16VAC on the main board

are used for connecting the transformer. The trans-

former provided with the system is a 16.5VAC/40VA

transformer. It must be plugged into a 120VAC 60Hz

outlet. Make sure the power source is unswitched

(i.e. there is no switch on the power outlet).

1.4.3. Backup Battery Connection

The Agri-Alert system uses a rechargeable 8.4V bat-

tery Ni-MH 2300mAh (part number 112-00007). No

other type of battery can be used. Plug the battery

pack’s male connector to the female socket located

on the main board inside the enclosure. See Ap-

pendix B for normal battery life spans.

Battery Pack

Battery Connector

6AA800EZe rev.16

AA800EZe

1.4.4. Siren Output

Connect the siren to the SIREN terminals on the

removable circuit card. The voltage supplied is

12VDC with a maximum current of 1A. Note that

the battery must be hooked up if a siren is used.

Make sure the positive wire is connected to the

positive terminal of the siren. The siren circuit is

monitored by the Agri-Alert system for defects

and wire troubles. This may not work properly if the

impedance of the siren is too high. If this is the case,

you can add a 1.5KOhm resistor (1/2W) to the siren

circuit as close to the siren as possible.

If no siren is used, connect a 1.5KOhm 1/2W resistor

between the positive and negative terminals of the

siren or disable the siren monitoring function as

explained in section 3.5.

1.4.5. 12VDC Output

The terminals marked 12VDC pro-

vide 12VDC with a maximum cur-

rent of 500mA. This output can be

used to power other accessories

such as temperature controllers

or the Agri-Alert wireless module

(WM-3000). In case of power fail-

ure, the battery back-up provides

12VDC to this line.

12VDC

12 VDC

Device

1.4.6. Outdoor Temperature Sen-

sor

In order to use an outside temperature sensor a

plug-in card must be inserted in the “Outdoor”

port of the Agri-Alert (be sure to line up the ground

connector of the card with the quick connect pin

of the bottom board). The outdoor temperature

plug-in card is optional.

Outdoor Card

Ground

Connector

Quick

connect

“OUTDOOR” portOutside

temperature

sensor

1.4.7. Relays

The Agri-Alert has 2 built-in relays which can be

used to control various on/o devices. Relay out-

puts provide 24VDC or AC with a maximum current

of 2A. They can either be activated manually or

when an alarm occurs in a zone.

Normally

Open (N.O.)

Connection

N.O.

On/O󰀨

Device

Normally

Close(N.C.)

Connection

N.C.

On/O󰀨

Device

Tip*

Ring

*The TIP wire is the one with the

most positive voltage reading on a

voltmeter.

Phone Card

Phone line OUT

Phone line IN

Phone card connector

Ground

connector

Quick

connect pin

Phone Hookup

CAUTION – To reduce the risk of re, use only No. 26 AWG or larger

telecommunication line cord.

1.4.8. Phone Hookup

A plug-in card must be inserted in the “Phone Card”

port of the Agri-Alert to use dialing functions (be

sure to line up the ground connector of the card

with the quick connect pin of the bottom board).

The phone plug-in card is optional.

If dialing functions are used, the system has priority

over other users when dialing out. This means the

system disconnects all other phones on the line

when dialing out in case of emergency.

AA800EZe rev.16

AA800EZe

10ft (3 m)

Bedrock

<47 in( 1.2 m)

EARTH

10ft (3m)

metal rod

10ft

(3 m)

2 ft

(600mm)

10ft (3 m)

<47 in( 1.2 m)

2 ft

(600mm)

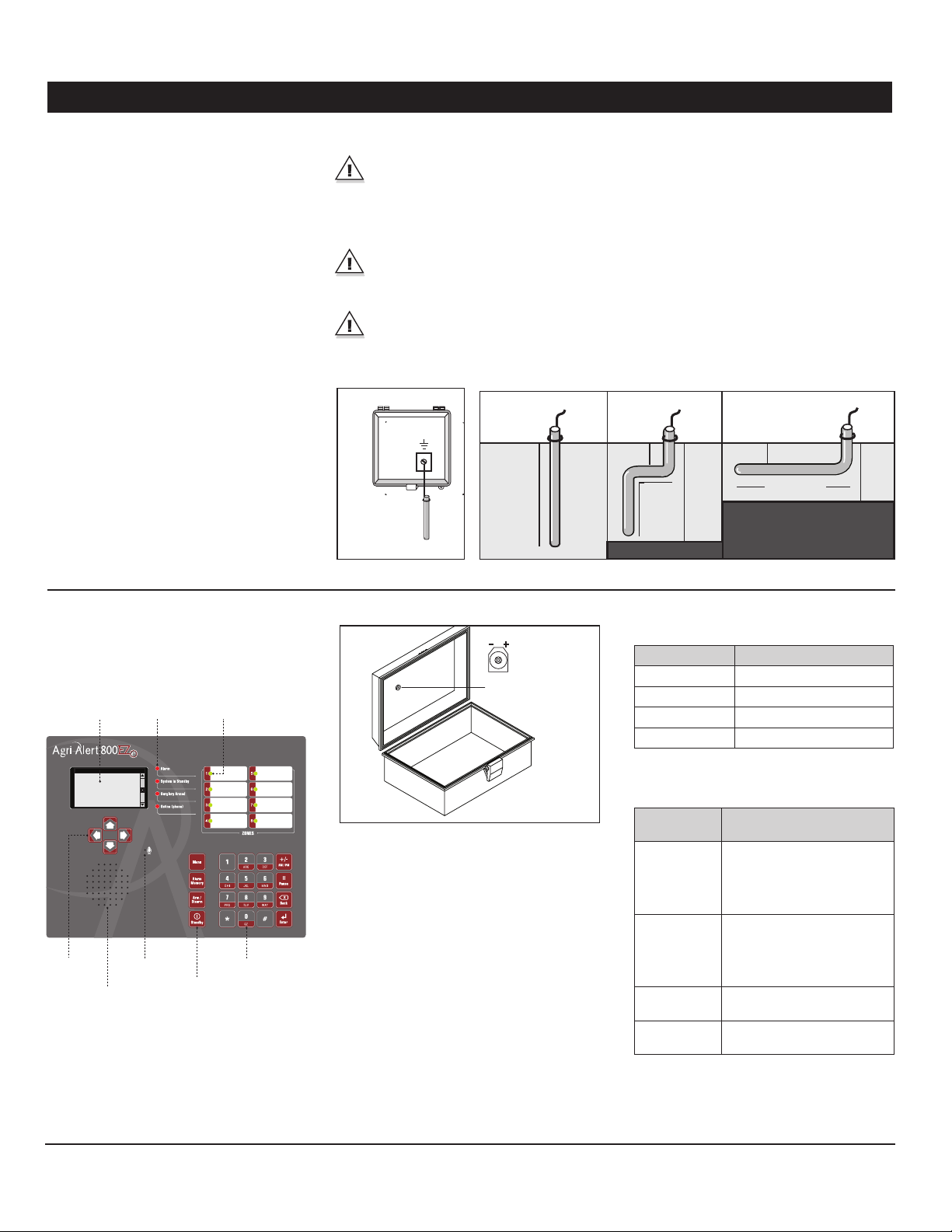

1.4.9. Connecting the Earth

Ground

The earth ground terminal of the Agri-Alert must be

connected to the earth ground as follows.

Use a rod at least 5/8 inches (16 millimeters) india-

meter at least 10 feet (3 meter) long. The rod must

have a clean metal surface free of paint, enamel or

other nonconducting substances. Drive the rod

at least 10feet (3 meters) into the ground. If the

bedrock is more than 47inches (1.2meters) deep,

drive the rod into the ground to bedrock level and

bury any remainder horizontally at least 2 feet

(600millimeters) below ground level. If the bedrock

is less than 47inches (1.2meters) deep, bury the rod

horizontally at least 2 feet (600millimeters) below

ground level (ref. Article 10-702, 3d of the Canadian

Electricity Code C22.10-99).

The rod must be connected to the wire described

above. It is recommended to let the rod going out of

the ground to connect it. The wire length must not

exceed 50feet (15 meters).

IMPORTANT: The earth ground terminal must

be connected to a proper ground to protect the

electronic components from damage due to

lightning surges and electrostatic discharges.

Do not use the electrical ground for this purpose

If outdoor connections are used, mount the

enclosure as close as possible to the entry point

of the outdoor wiring

A faulty earth ground connection immediately

voidsthe system warrantywithout further notice.

1.5. Power Up the System

After executing the paragraph 1.4, the system is

ready to power up for the rst time. Read other

paragraphs before powering the system for its

conguration.

The power up is done by plugging the wall trans-

former into a 120VAC 60Hz outlet.

2. USER INTERFACE

2.1. Front Panel

LCD Screen

Arrow keys Microphone

Speaker Short-cut

keys

Keypad

Status LEDs Zone Status LEDs

Graphic LCD Screen: A graphic LCD screen

is used to provide and collect information. The

contrast of this screen can be adjusted with the

potentiometer located behind the display. Turn

the potentiometer with a screwdriver to adjust the

contrast of the screen.

Potentiometer of the

LCD screen

Arrow Keys: These keys are used to step through

menu items.

Speaker: The speaker delivers the system identi-

cation and alarm messages.

Integrated Microphone: The microphone is

used to record ID messages and gives an on-site

listening input.

Keypad: The keypad is used to enter data and to

enable/disable the various functions of the system.

Hot Keys: The hot keys bring you to specic pre-

dened menus. These menus are not accessible

from the main menu.

Zone Status LEDs:

Zone LED Meaning

Red Zone is in alarm

Green Zone is activated

Amber Zone is bypassed

O Zone is disabled

System LEDs:

System Sta-

tus LED

Meaning

Alarm This LED is On when one or more

alarm conditions are detected (the

individual zone LED on the right

side of the panel tells which zone

is in alarm).

System in

Standby

This LED is ON when the Agri-Alert

system is in standby mode (the

system does not monitor alarm

conditions). It turns OFF when

normal monitoring is resumed.

Burglary Armed This LED is ON when the burglar

zone is armed.

Phone This LED is ON when the system

uses the phone line.

8AA800EZe rev.16

AA800EZe

2.2. Modifying a Parameter

Use the numeric keypad and/or the up and down

arrow keys to modify the value of a parameter and

then press Enter to validate the new value.

A password may be required to change the value of

a parameter. Refer to section 3.2.2 to enter/change

your password or to disable the protected access.

2.3. Navigation

Menus items can be accessed with the arrow keys

or by pressing the proper number on the numeric

keypad. A highlight bar indicates which item is

selected on screen. You can move this bar up and

down using the arrow keys and then press “Enter”

to select the menu item. Press “Back” to exit from

a menu.

To get further information about the navigation

process, select the help menu:

1. Select:

• Main Menu

• Help Menus

• Programming Notes

The system gives the meaning of all possible navi-

gation icons:

Programming Notes

Previous Screen/

Cancel Editing

Enter/Select/Apply

Navigate

Exit Wizard

Next wizard Step

Increase /

Decrease Value

Negative Sign/Switch

time to PM

Insert Pause in Phone

Number

2.4. Acknowledging an

Alarm

The Agri-Alert knows an alarm message has been

received when a user acknowledges the alarm.

There are several ways of doing this. If you are on-

site when an alarm is detected, enter your password

(if the password feature is enabled) or simply press

<1> key on the front panel to acknowledge the

alarm. You can also acknowledge an alarm over

the phone when the Agri-Alert system reports the

alarm or you can call the Agri-Alert system yourself

between phone dialouts if the intercall time is

greater than zero (see section 2.5).

Follow this sequence to acknowledge an alarm

from the keyboard:

1. If this screen is not already displayed, press the

Alarm Memory button.

System is in alarm

Curtain doesn't move

Press 1 to continue

to acknowledge alarm

Continue

2. Press 1 to continue.

3. If you have not been identied by the system

yet, the Agri-Alert may prompt for a password. Type

in your password and then press Enter.

Active Alarm Status

Alarm Memory

System is in Alarm

Press 1 to Acknowledge

Continue View

Memory

4. Press “#” to get details about the active alarm

situation or type 1 to acknowledge it right away.

Note that the dialout sequence automatically starts

when an alarm is set o (if the zone in alarm uses

the dialout function).

The siren stops ringing when the alarm is acknowl-

edged. If the alarm is not acknowledged at the end

of the dialout sequence, the Agri-Alert automati-

cally acknowledges it and stops the siren.

2.5. Telephone Interface

The Agri-Alert system sends alarm reports over

the phone. You can also call the system to get

some status reports. When calling the Agri-Alert,

make sure the “Phone Call-in” parameters are set

properly (see section 4.7).

2.5.1. Alarm Report Call

When an alarm occurs, the Agri-Alert system tries to

reach you by phone and dials all numbers of the di-

alout sequence (see chapter4). It puts an end to the

dialout sequence when the alarm is acknowledged.

The following section outlines the dialog session

when a number is reached. Note that a touch-tone

phone is required to respond to the system prompts

and that the system automatically hangs up when

the session is over.

2.5.2. Status Report over the

Phone

You can dial into the Agri-Alert system and obtain

status reports over the phone. A touch-tone phone

is needed to respond to the system prompts.

The following section outlines the dialogue session

when the Agri-Alert system answers the call. The

system automatically hangs up when the status

report is nished.

2.5.3. Acknowledge upon call-

back

If the parameter “Ack. on callback?” is set to “Yes”

(see section 4.7), you can acknowledge an alarm /

test call without using the touch-tones. The follow-

ing sequence should be respected:

1. The Agri-Alert calls you to report an alarm /

test call.

2. Listen to the complete message and wait until

the Agri-Alert hangs up.

3. Call the Agri-Alert back within 30 seconds from

hanging up.

• As soon as the Agri-Alert answers, the alarm/

test call will automatically be acknowledged.

• You can then hang up or wait on the line to

listen to a complete status report.

AA800EZe rev.16

AA800EZe

Telephone Session

Status Report

Hello, this is Agri-Alert

ID message of the Agri-Alert

system (if applicable)

Enter your password and press

star (*)

The user enters a four-digit password

on the phone keypad and presses

start (*). If an incorrect password is

entered, the system replies “Wrong

password”; if it is correct, the system

replies “OK”.

Main Menu:

- For a complete status report, press 1;

- For a status report on a particular

zone, press 2;

- To select relay, press 3;

- For on-site listening, press 4;

- To activate/bypass a zone, press 5;

- For a new selection, press 8;

- To hang-up, press 0.

The user selects the desired menu on

the keyboard.

Telephone Session –

Alarm Call

Hello, this is Agri-Alert

ID message of the Agri-Alert

system (if applicable)

Description of the alarm condi-

tion

(e.g.: “Alarm Zone 1”).

On-site Listening

[Microphone input is sent over

the phone for on-site listening if

enabled].

To acknowledge the alarm mes-

sage, enter your password and

press Star (*)

The user enters a four-digit password

on the phone keypad and presses

start (*). If an incorrect password is

entered, the system replies “Wrong

password”; if it is correct, the system

replies “OK”. The system automati-

cally acknowledges the alarm when

a correct password is entered.

Main Menu:

- For a complete status report, press 1;

- For a status report on a particular

zone, press 2;

- To select relay, press 3;

- For on-site listening, press 4;

- To activate/bypass a zone, press 5;

- For a new selection, press 8;

- To hang-up, press 0.

The user selects the desired menu on

the keyboard.

Complete Status Report

[...]

Status of each zone:

- Activated;

- Bypassed;

- Deactivated;

- Not installed;

- Alarm (if the zone is in alarm);

- Temperature (if this is a T° zone).

Status of the system:

- Low battery / Battery OK;

- System power down / System

power OK;

- System trouble;

- Relay 1-2 activated / deactivated.

[System returns to the main

menu]

Zone Status Report

[...]

Enter zone number and press

star (*).

The user types in the zone number

on the keypad and presses star (*).

Status of the chosen zone:

- Activated;

- Bypassed;

- Deactivated;

- Not installed;

- Alarm (if the zone is in alarm);

- Temperature (if this is a T° zone).

[System returns to the main

menu]

10 AA800EZe rev.16

AA800EZe

3. SYSTEM INITIALIZATION

3.1. Installation Wizard

The Installation Wizard guides you through the

process of initializing your Agri-Alert system. When

it is launched, the Wizard displays all setup menus

in turn. You can choose to perform or to skip each

programming step and can exit from the Wizard

at any time.

To run the Installation Wizard:

1. Select:

• Main Menu

• Install Programming*

• Use Program Wizard

*Accessible with the Installer or Master password

only (see section 3.2).

Welcome to Wizard

Installation

1 Set Time & Date

2 System Options

3 Install Zone

4 Install Phone

Start

2. All programming steps are displayed.

3. Press the pound key “#” to launch the Installa-

tion Wizard or press Back to cancel.

4. Follow the prompts to configure your Agri-

Alert system.

Programming steps — Here is a list of all pro-

gramming steps of the Installation Wizard. Refer to

the proper section of this manual to get information

about each of them.

• Time and date (section 3.3)

• System options

Default Passwords:

Master 0800

Installer 0801

User 1 ----

User 2 ----

User 3 ----

User 4 ----

User 5 ----

User 6 ----

User 7 ----

User 8 ----

IMPORTANT

Choose easy-to-remember

passwords and write them

down in a safe place!

3.2.1. Setting the Passwords

1. Select:

• Main Menu

• System Auxiliaries

• Password Management*

*Accessible with the Installer or Master password

only (see section 3.2).

Password Management

Current User Installer

Enable password Yes

Installer 0801

User 1

User 2

Back

2. Set the following parameters:

Enable password — Select “Yes” to use the

password protection or select “No” to disable it.

Users — Use the numeric keypad to specify the

password of each users.

Units of measurement (section 3.4)

Volume: speaker & phone line (section 3.6)

Phone line volume (section 3.6)

Passwords (section 3.2)

• Setup Zones (section 3.7)

• Zone’s Vocal Identication (section 3.7.7)

• Outdoor Temp. compensation (sec. 5.3)*

* Accessible if a zone uses the outside temperature

sensor (sec. 3.7).

• Phone numbers (sections 4.3 & 4.4)

• Auto-Test Schedule (section 4.9)

• Burglar arming options (section 5.4)

• Siren options (section 3.5)

• Zone’s Activation (section 3.7.8)

3.2. Password

The Agri-Alert can use a password protection to

limit access to certain menus and can identify

4dierent levels of users (the password protec-

tion is optional):

LEVEL 1– System:

This user level is automatically selected after

5minutes of inactivity. It gives a read-only access

to the current condition menu and to the system

version menu.

LEVEL 2 – User:

This user level gives access to all functions of the

controller except for the “Install Programming”

menu. Up to 8 dierent password can be assigned

to the users.

LEVEL 3 – Installer:

This user level gives a read/write access to all func-

tions of the system, except for the event buer .

LEVEL 4 – Master:

This user level gives a read/write access to all func-

tions of the system, including the event buer menu.

Altri manuali per Agri-Alert 800EZe

Indice

Altri manuali GSI Electronics Sistema di sicurezza

GSI Electronics

GSI Electronics Agri-Alert 800EZe Manuale utente

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
