GT-Lite GT-RL-FL Manuale utente
WARNING
CAUTION
- Basic precautions should always be followed when using product.
- Read and follow these instructions and observe all warnings.
- Carefully read and understand the information given in this manual
before beginning installation. Failure to do so could lead to electric
shock, fire, or other injuries which could be hazardous or even fatal.
- Save these instructions and warnings.
- Warning: This rope light may present a shock or fire hazard if the
installation instructions are not followed carefully. Install only
in locations that follow current electrical codes and adhere
to National Electric Code (NEC) standards.
- Do not connect the rope light to power prior to installation.
- This Patriot Lighting rope light is connectible up to 160 feet.
- Please follow instructions for extending the rope light found on
Page 3 under LINKING INSTRUCTIONS.
- This item is water resistant only. NEVER submerge in water!
- Do not run this tape light off of any power supply other than the
adapter provided in this package. Failure to follow this guideline
will result in voided product warranty.
- Never place power supply, receiver, or remote in locations
exposed to moisture.
POWER
Assembly & Installation: GT-RL-FL | 16ft LED RGB Color Rope Light
WHILE INSTALLING OR SERVICING UNIT!
Complete LED Lighting Solutions
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK,
SHUT OFF POWER BEFORE
INSTALLING OR SERVICING THIS FIXTURE
PAGE 1
DO NOT:
BEFORE BEGINNING INSTALLATION: PARTS LIST
PRODUCT SPECIFICATIONS:
Make sure that all parts in parts list
are present and undamaged. If any
parts are damaged, do not attempt
installation -- call Customer Service.
A. 16ft LED RGB Rope Light
B. Power Cord with Controller
C. 16pcs Mounting Clips/Screws
D. Remote Control
• Do NOT fold the rope light.
• Do NOT bend past a radius of 1”.
• Do NOT cut rope light.
16ft LED ROPE LIGHT
1.7ft 18/2 AWG Power Cord
22WPower Used (Watts)
RGB
Color Temp
Mulit-ColorLight Appearance
(A) (B) (C) (D)
Assembly & Installation: GT-RL-FL | 16ft LED RGB Color Rope Light
PAGE 2
1. Measure and ensure there is enough room for the rope light
to be attached to desired installation location.
2. Use screws and mounting brackets to create the desired
path for rope light.
3. Do not pinch or cut rope light.
4. Once rope light is secure, attach power cord.
5. Plug power cord into power outlet.
5. Use power cord controller or remote to achieve desired
light setting.(See
REMOTE CONTROL SETTINGS
on page 4)
INSTALLATION INSTRUCTIONS:
DO NOT look directly at LED
lights for any length of time!
EYES
1. Insert end of first rope light into beginning of second rope light.
2. Turn plastic washer clockwise to secure rope lights together.
LINKING INSTRUCTIONS:
(1)
(2) Link up to 10 ropes (160ft)
Assembly & Installation: GT-RL-FL | 16ft LED RGB Color Rope Light
PAGE 3

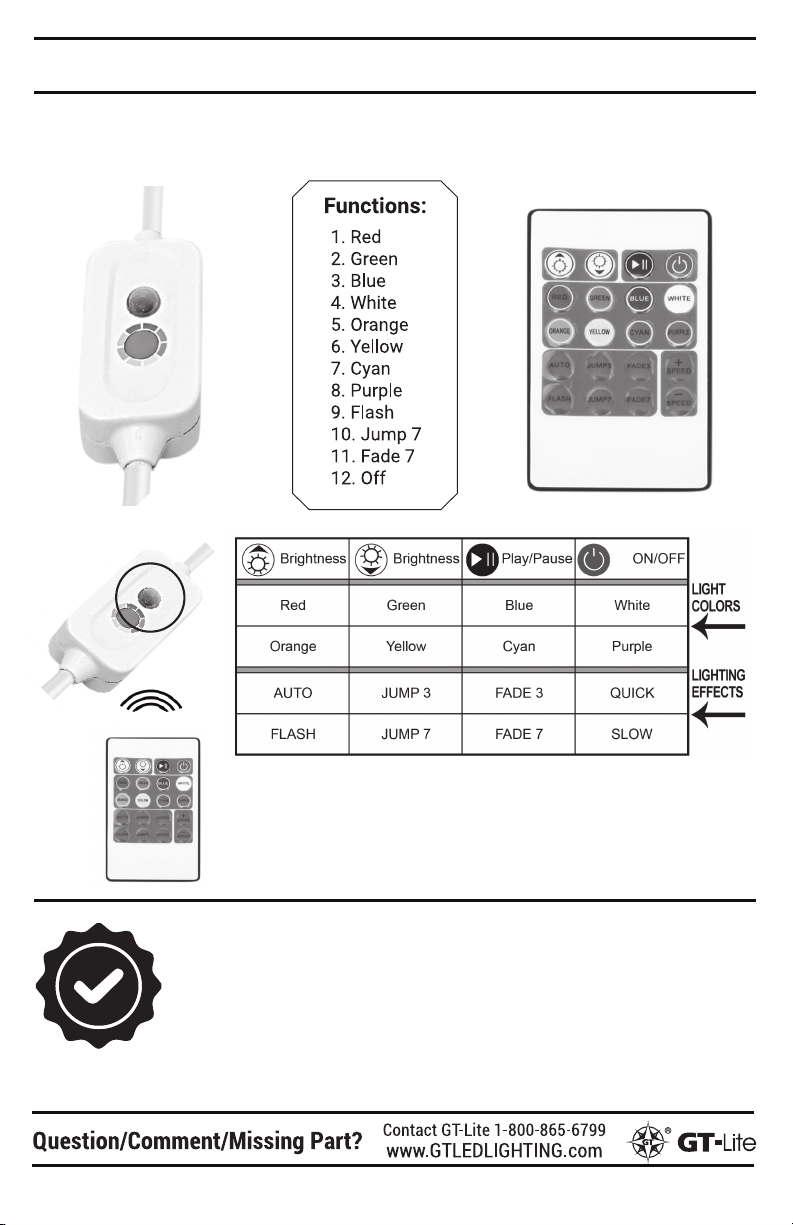

Controller on Power Cord:
REMOTE CONTROL SETTINGS:
This product is guaranteed against failure due to factory defects in
materials or workmanship for one (1) year from the date of purchase.
This warranty is non-transferable and applies only to the original owner.
Proof of purchase required for repair or replacement. This warranty does
not cover normal wear of parts or damage resulting from any misuse of
the product. Misuse of the product includes but is not limited to: using in
extreme weather conditions, opening the housing of the product, or
attempted remodel/alterations made to product.
Infrared Remote Control:
• The Remote uses an Infrared Signal to change the color
via the receiver node on the Power Cord Controller.
• The Remote will only work in line-of-site of the receiver
node on the Control Box
Assembly & Installation: GT-RL-FL | 16ft LED RGB Color Rope Light
PAGE 4
