Installation Guide LIRA™
IG-LIRA-2016-11-031
CAUTION
Do not attempt to install or use Luminaire until you read and understand this installation guide and safety
labels.
Luminaires must be installed by a qualified professional in accordance with all national and local electrical
and construction codes and regulations.
Ensure that main power supply is OFF before installing or wiring Luminaire(s).
Do not exceed the specified voltage and current input.
GVA Luminaires have no serviceable parts. Do not attempt to open the units.
Do not use a luminaire with a damaged lens, body or cable.
Do not hot swap. Ensure power supply is off before connecting or disconnecting fixtures.
Not heading cautions may result in a hazardous situation which can cause injury or property
damage.
Connecting Luminaires
LIRA Luminaires require 12VDC or 24VDC Class 2 or limited to 25A Power Supply
with Class 2 outputs. If PSU is other than Class 2, provisions must be made to create Class 2 outputs
Ensure main power supply is turned OFF before beginning work
Connect Class 2, 12~24VDC output to power conductors of LIRA luminaire : red(+), black(-)
Connect DMX I/O to DMX conductors of LIRA luminaire (output optional)
Do not connect luminaire directly to line voltage
DMX Data
Orange = DMX (-) INPUT
White/Orange = DMX (+) INPUT
Blue = DMX (-) OUTPUT
Blue/White = DMX (+) OUTPUT
Brown/White = DMX COMMON
12~24VDC
Red = (+)
Black = (-)
IG-LIRA 2016-11-032

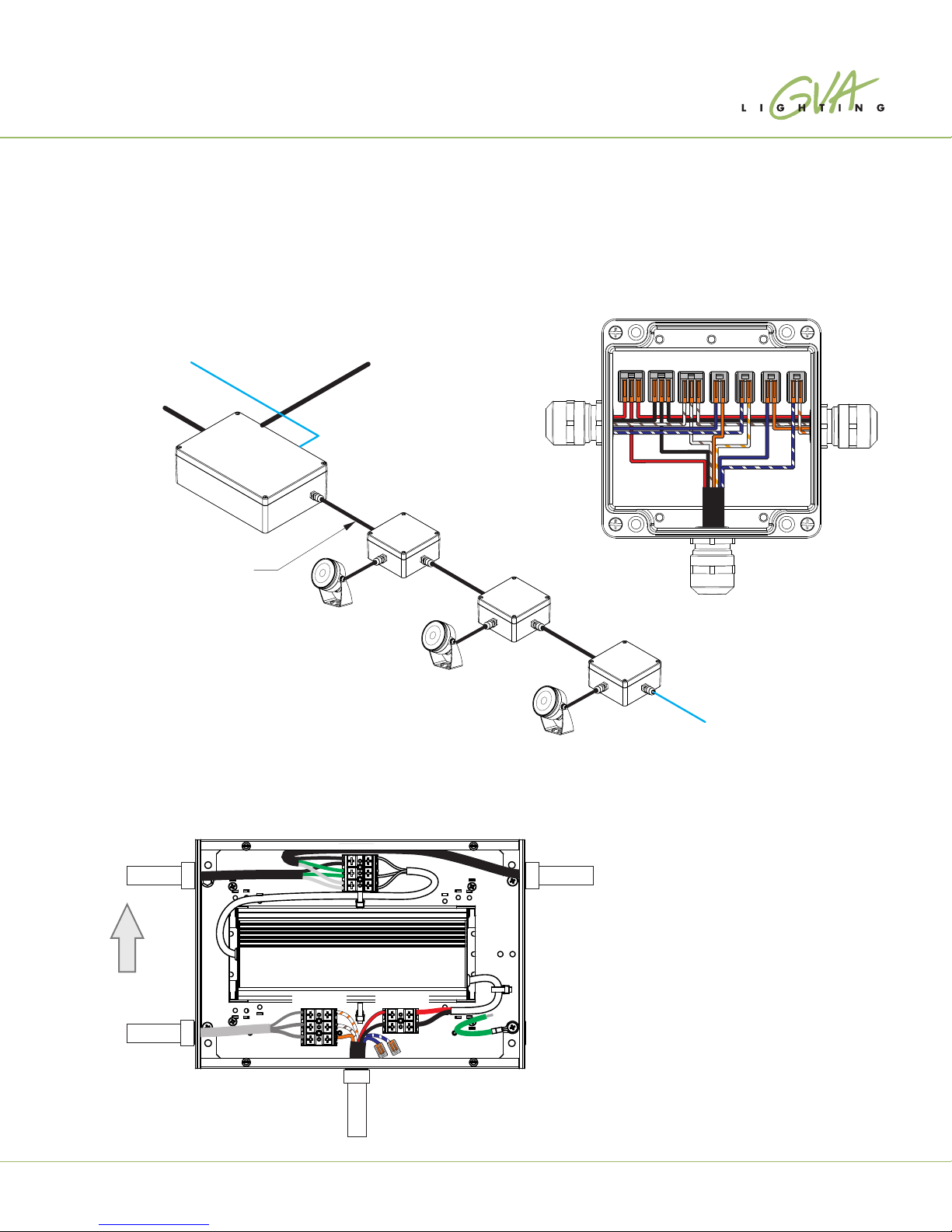

Wiring Diagram
LIRA fixtures 12~24VDC power conductors should be connected in parallel
DMX Common may also be connected in parallel
DMX I/O must be connected in series
Total load shall not exceed power rating of PDB-ELV
Installation Guide LIRA™
C
D
LINE VOLTAGE IN
DMX DATA IN
LINE VOLTAGE OUT
(OPTIONAL)
DMX DATA OUT
TO NEXT PDB
(OPTIONAL)
LIRA
WATER PROOF
JUNCTION BOX
(BY OTHERS)
7C POWER AND DMX CABLE
(or 2C Power cable + 5C DMX cable)
PDB-ELV12/24-100-DMX-ELV+DMX-120~277VAC-IP66
FROM PDB-ELV
OR
PREVIOUS
LIRA/J-BOX
TO NEXT
LIRA/J-BOX
(OPTIONAL)
LIRA Cable Color Code:
Red = 12~24VDC(+)
Black = 12~24VDC(-)
Orange = DMX (-) INPUT
White/Orange = DMX (+) INPUT
Blue = DMX (-) OUTPUT
Blue/White = DMX (+) OUTPUT
Brown/White = DMX COMMON
TO LIRA
PDB-ELV CONNECTIONS
AC INPUT
120~277V
DMX INPUT
THIS SIDE UP
WHEN MOUNTING ON
VERTICAL SURFACES
DMX I/O
TERMIN AL
VDC OUT PUT
TERMIN AL
AC OUTPUT
120~277V
(OPTIONAL)
VDC+DMX OUTPUT
TO DMX LUMINAIRE(S)
FOLLOW LABELS AND MARKINGS
ON TERMINAL BLOCKS AND CABLES
FOR CORRECT POLARITY
