GW Instek GRA-440 Manuale utente
Rack Adapter Panel
GRA-440
Assembly Manual
GW INSTEK PART NO. 82RA-44000M01
This assembly manual contains proprietary information, which is protected by copyrights. All rights are
reserved. No part of this manual may be photocopied, reproduced or translated to another language
without prior written consent of Good Will company.
The information in this manual was correct at the time of printing. However, Good Will continues to
improve products and reserves the rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.
ISO-9001 CERTIFIED MANUFACTURER
All manuals and user guides at all-guides.com
GRA-440 Assembly Manual
2

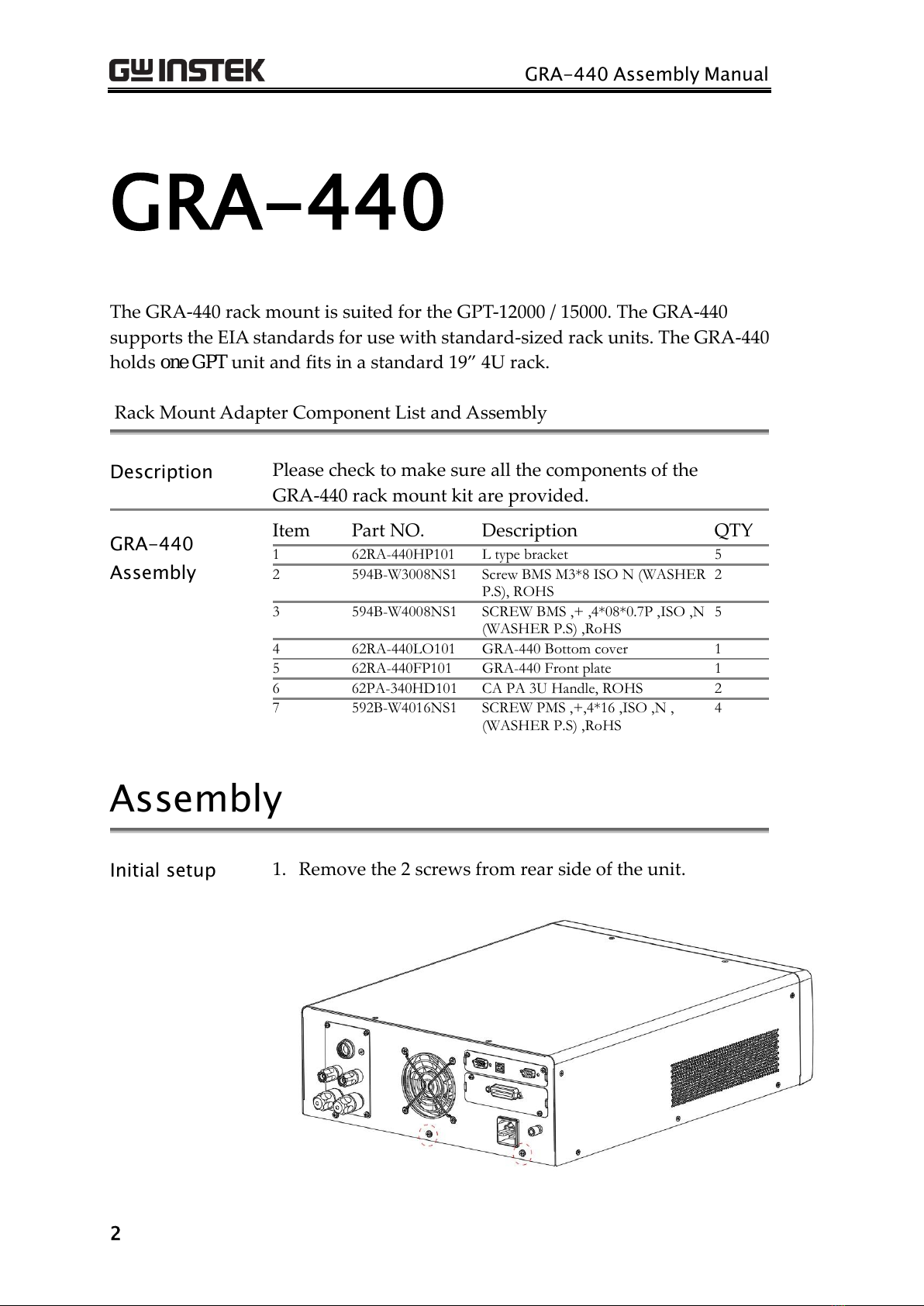

GRA-440
The GRA-440 rack mount is suited for the GPT-12000 / 15000. The GRA-440
supports the EIA standards for use with standard-sized rack units. The GRA-440
holds one GPT unit and fits in a standard 19” 4U rack.
Rack Mount Adapter Component List and Assembly
Description
Please check to make sure all the components of the
GRA-440 rack mount kit are provided.
GRA-440
Assembly
Item
Part NO.
Description
QTY
1
62RA-440HP101
L type bracket
5
2
594B-W3008NS1
Screw BMS M3*8 ISO N (WASHER
P.S), ROHS
2
3
594B-W4008NS1
SCREW BMS ,+ ,4*08*0.7P ,ISO ,N
(WASHER P.S) ,RoHS
5
4
62RA-440LO101
GRA-440 Bottom cover
1
5
62RA-440FP101
GRA-440 Front plate
1
6
62PA-340HD101
CA PA 3U Handle, ROHS
2
7
592B-W4016NS1
SCREW PMS ,+,4*16 ,ISO ,N ,
(WASHER P.S) ,RoHS
4
Assembly
Initial setup
1. Remove the 2 screws from rear side of the unit.
All manuals and user guides at all-guides.com
GRA-440 Assembly Manual
3

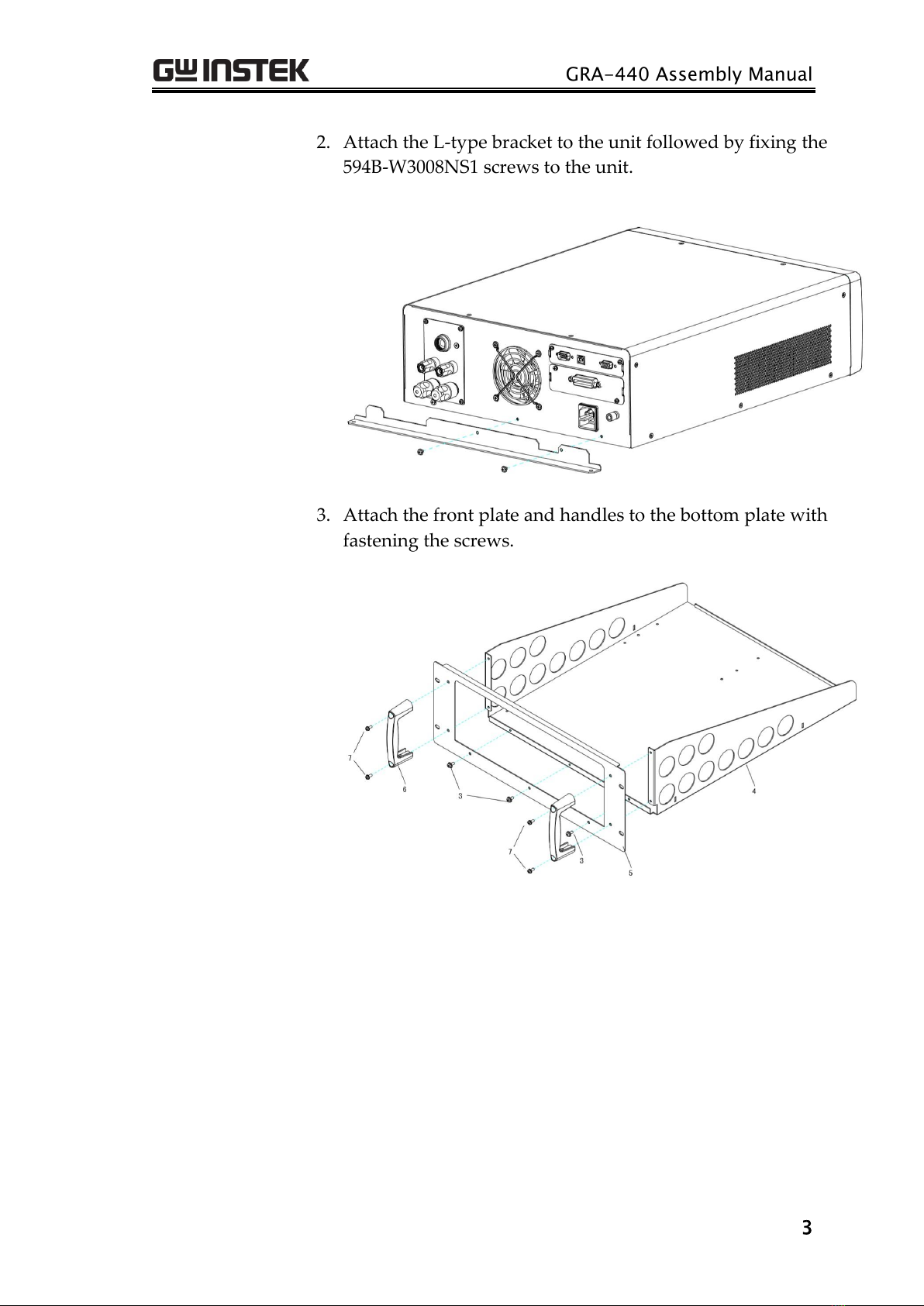

2. Attach the L-type bracket to the unit followed by fixing the
594B-W3008NS1 screws to the unit.
3. Attach the front plate and handles to the bottom plate with
fastening the screws.
All manuals and user guides at all-guides.com
GRA-440 Assembly Manual
4

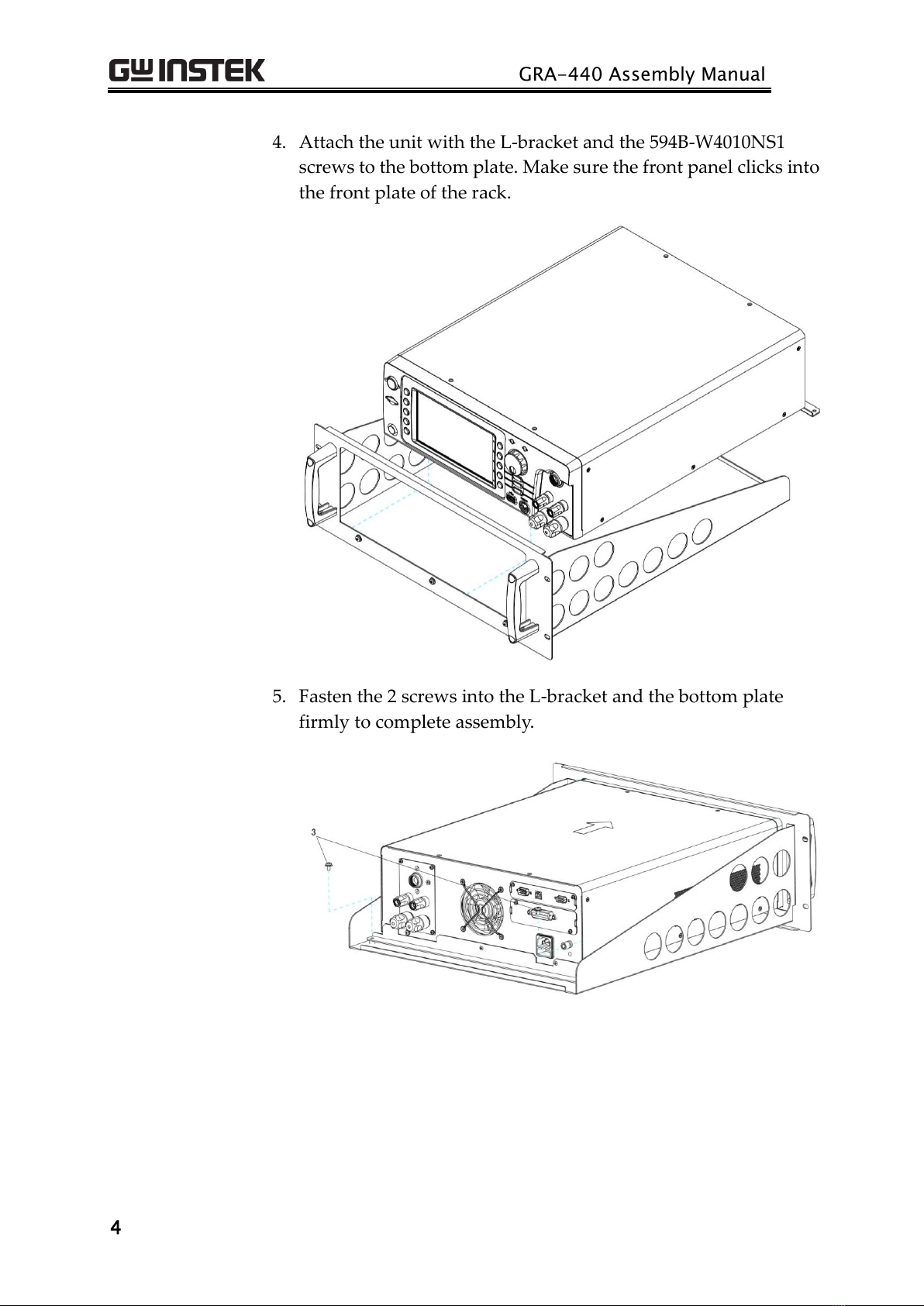

4. Attach the unit with the L-bracket and the 594B-W4010NS1
screws to the bottom plate. Make sure the front panel clicks into
the front plate of the rack.
5. Fasten the 2 screws into the L-bracket and the bottom plate
firmly to complete assembly.
