GW Instek USG Series Manuale utente

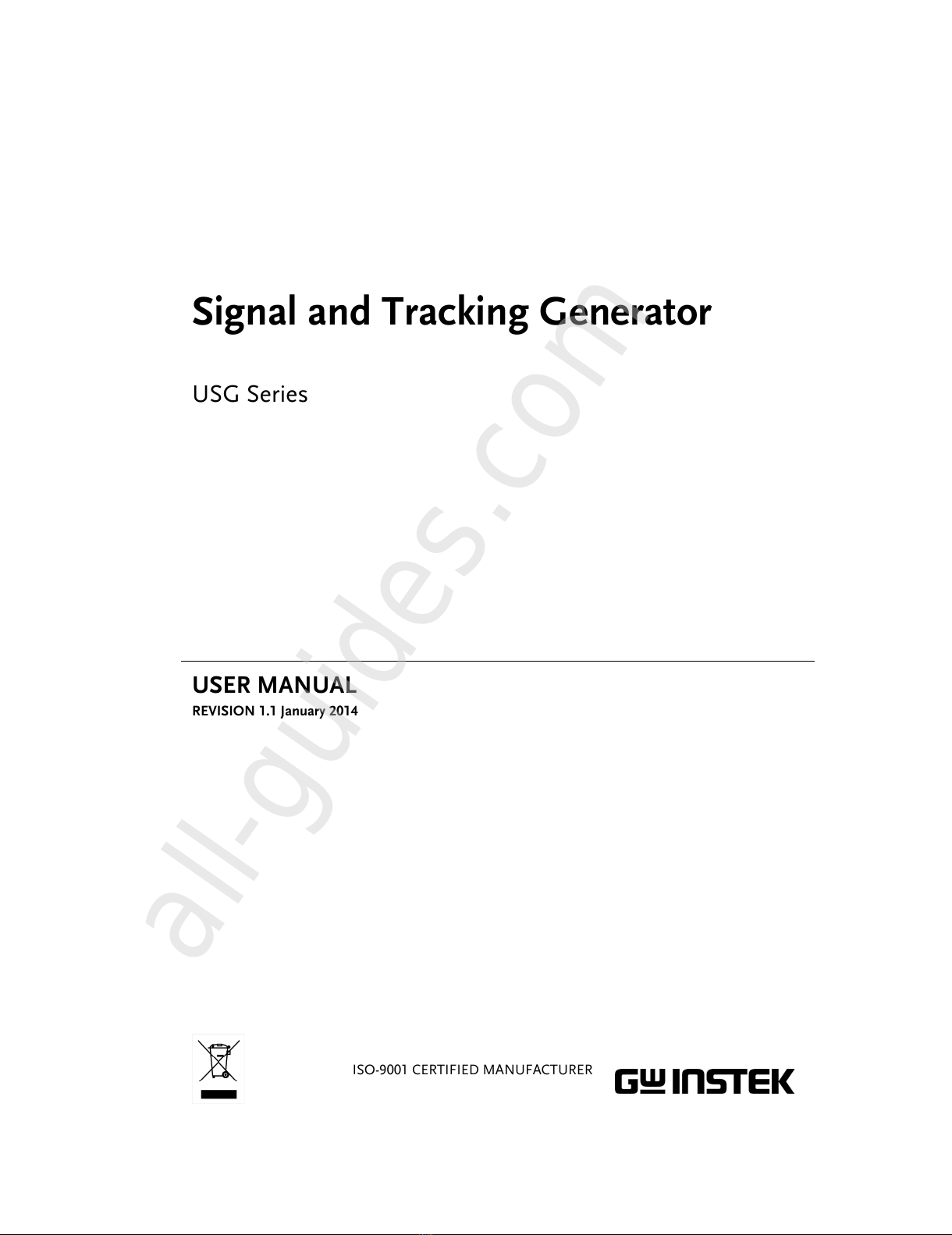

Signal and Tracking Generator

USG Series

USER MANUAL

REVISION 1.1 January 2014

ISO-9001 CERTIFIED MANUFACTURER

All manuals and user guides at all-guides.com

all-guides.com

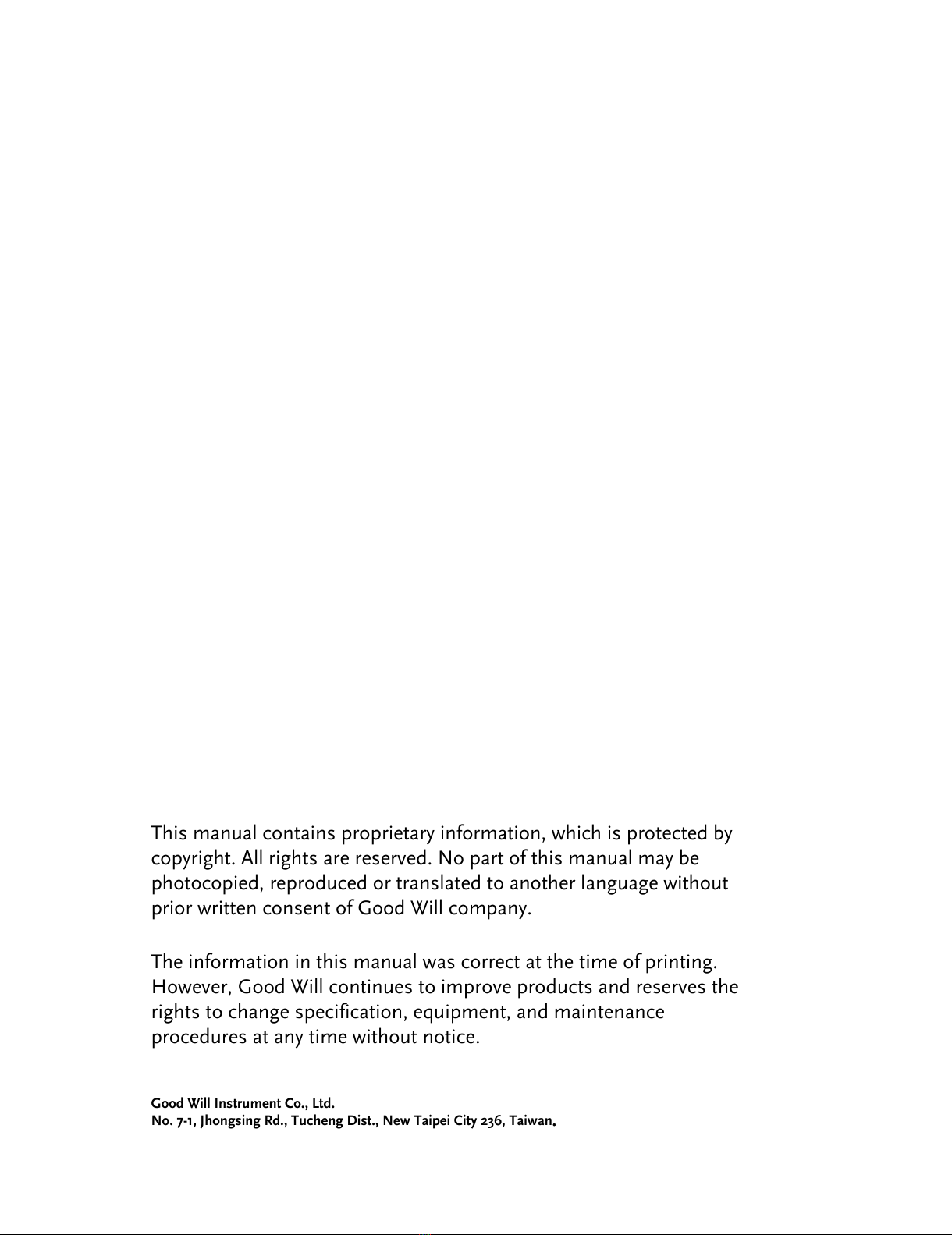

This manual contains proprietary information, which is protected by

photocopied, reproduced or translated to another language without

prior written consent of Good Will company.

The information in this manual was correct at the time of printing.

However, Good Will continues to improve products and reserves the

rights to change specification, equipment, and maintenance

procedures at any time without notice.

Good Will Instrument Co., Ltd.

No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

All manuals and user guides at all-guides.com

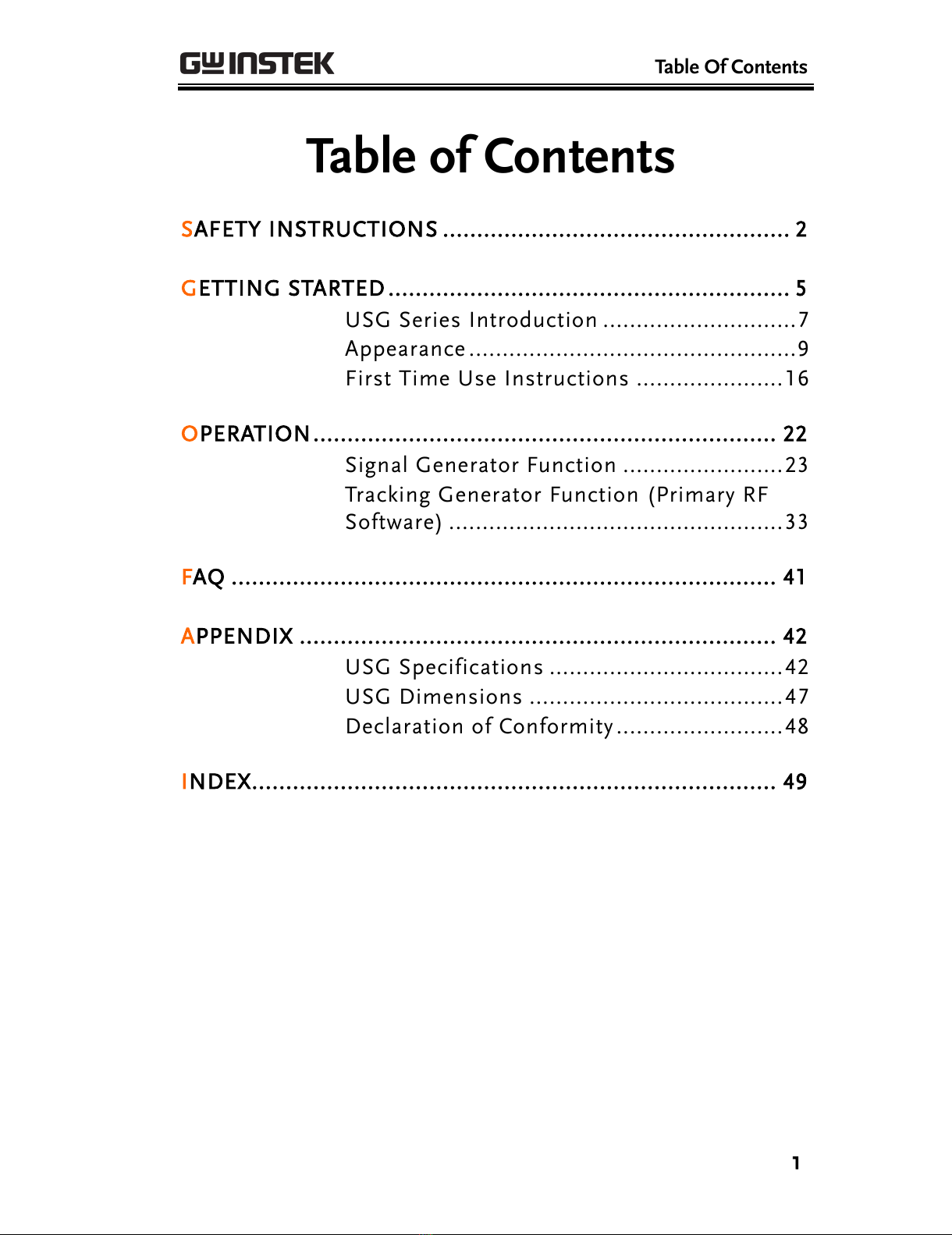

Table Of Contents

Table of Contents

SAFETY INSTRUCTIONS ................................................... 2

GETTING STARTED ........................................................... 5

USG Series Introduction .............................7

Appearance .................................................9

First Time Use Instructions ......................16

OPERATION.................................................................... 22

Signal Generator Function ........................23

Tracking Generator Function (Primary RF

Software) ..................................................33

FAQ ................................................................................ 41

APPENDIX ...................................................................... 42

USG Specifications ...................................42

USG Dimensions ......................................47

Declaration of Conformity .........................48

INDEX............................................................................. 49

All manuals and user guides at all-guides.com

USG Series User Manual

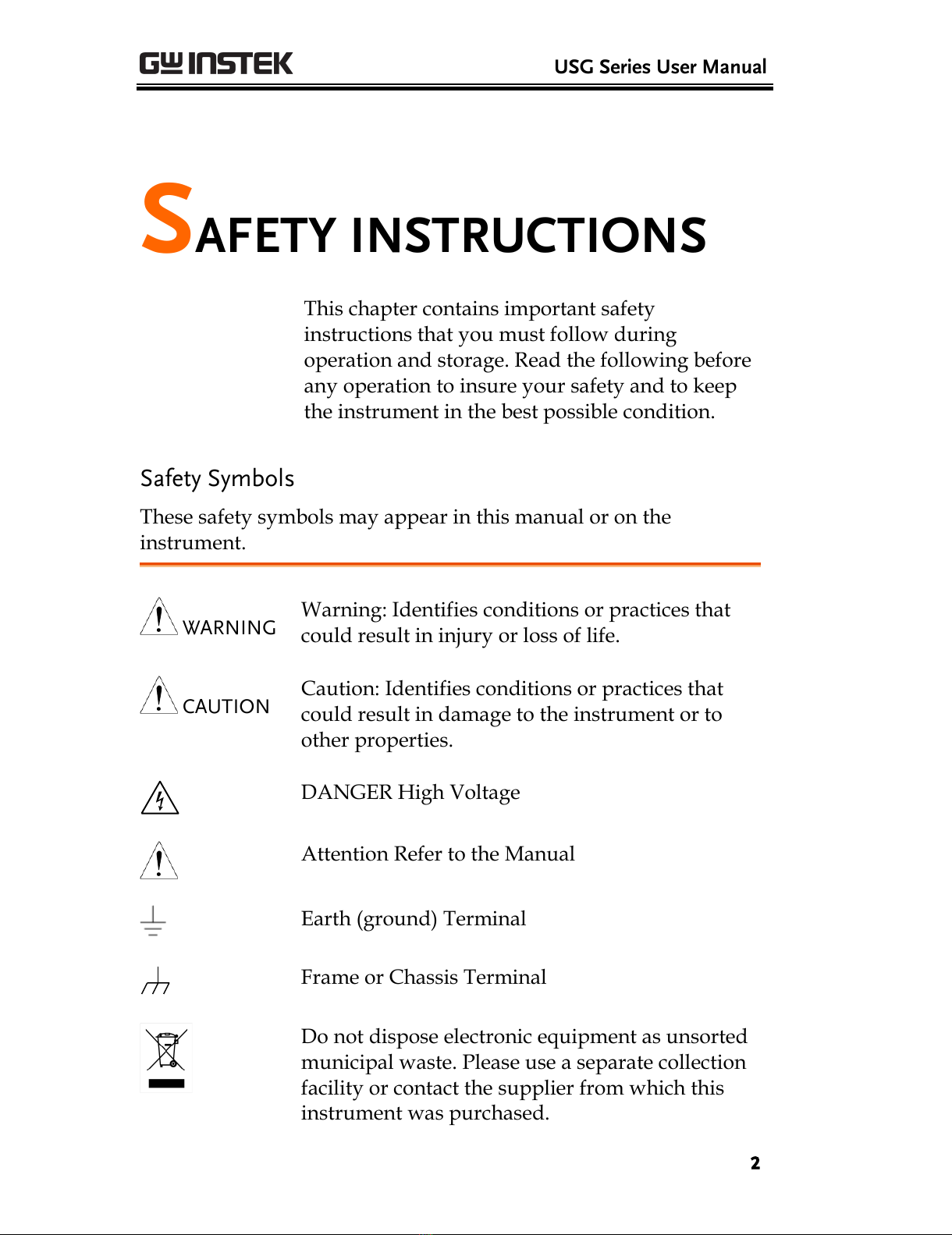

SAFETY INSTRUCTIONS

This chapter contains important safety

instructions that you must follow during

operation and storage. Read the following before

any operation to insure your safety and to keep

the instrument in the best possible condition.

Safety Symbols

These safety symbols may appear in this manual or on the

instrument.

WARNING

Warning: Identifies conditions or practices that

could result in injury or loss of life.

CAUTION

Caution: Identifies conditions or practices that

could result in damage to the instrument or to

other properties.

DANGER High Voltage

Attention Refer to the Manual

Earth (ground) Terminal

Frame or Chassis Terminal

Do not dispose electronic equipment as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased.

All manuals and user guides at all-guides.com

SAFETY INSTRUCTIONS

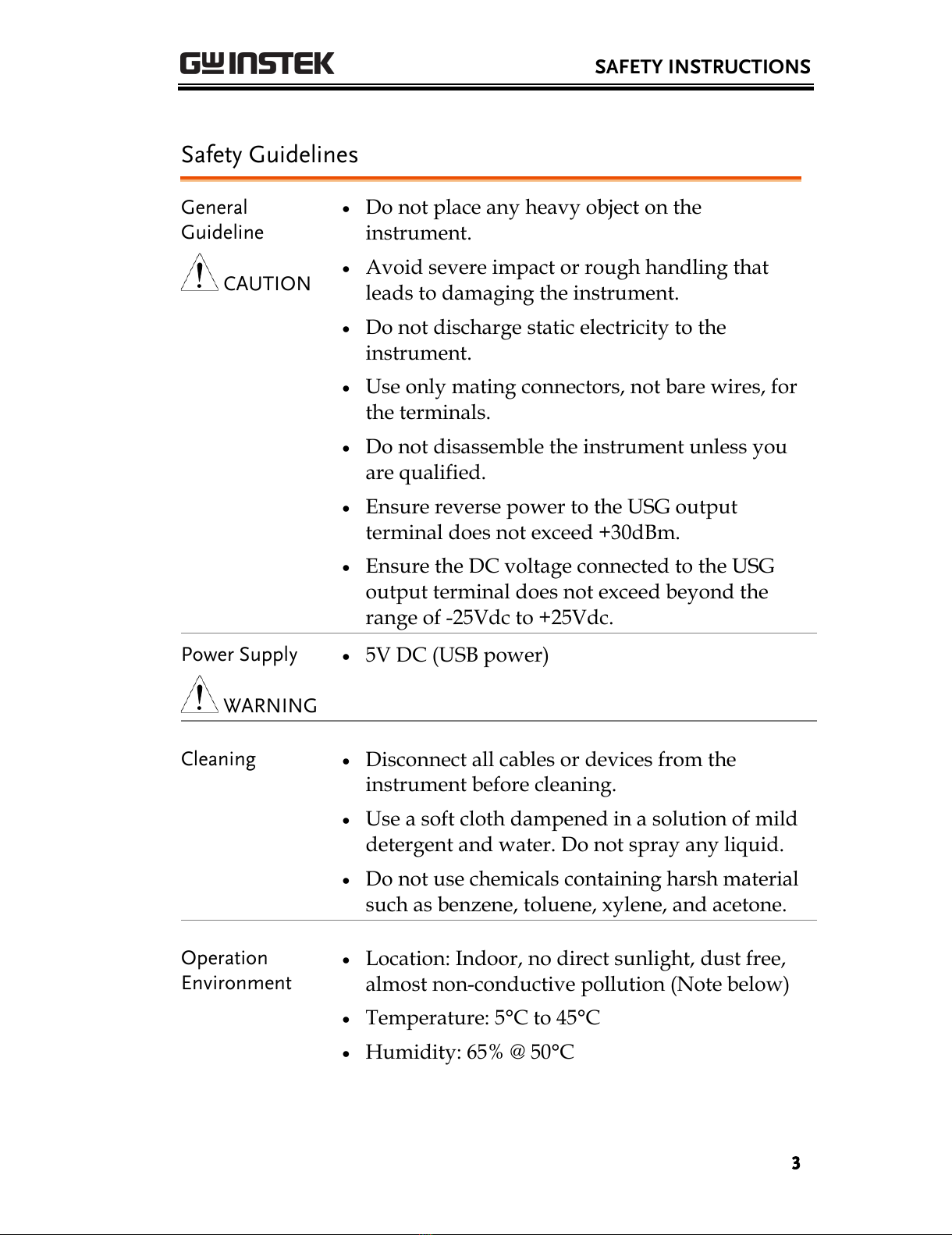

Safety Guidelines

General

Guideline

CAUTION

Do not place any heavy object on the

instrument.

Avoid severe impact or rough handling that

leads to damaging the instrument.

Do not discharge static electricity to the

instrument.

Use only mating connectors, not bare wires, for

the terminals.

Do not disassemble the instrument unless you

are qualified.

Ensure reverse power to the USG output

terminal does not exceed +30dBm.

Ensure the DC voltage connected to the USG

output terminal does not exceed beyond the

range of -25Vdc to +25Vdc.

Power Supply

WARNING

5V DC (USB power)

Cleaning

Disconnect all cables or devices from the

instrument before cleaning.

Use a soft cloth dampened in a solution of mild

detergent and water. Do not spray any liquid.

Do not use chemicals containing harsh material

such as benzene, toluene, xylene, and acetone.

Operation

Environment

Location: Indoor, no direct sunlight, dust free,

almost non-conductive pollution (Note below)

Temperature: 5°C to 45°C

Humidity: 65% @ 50°C

All manuals and user guides at all-guides.com

USG Series User Manual

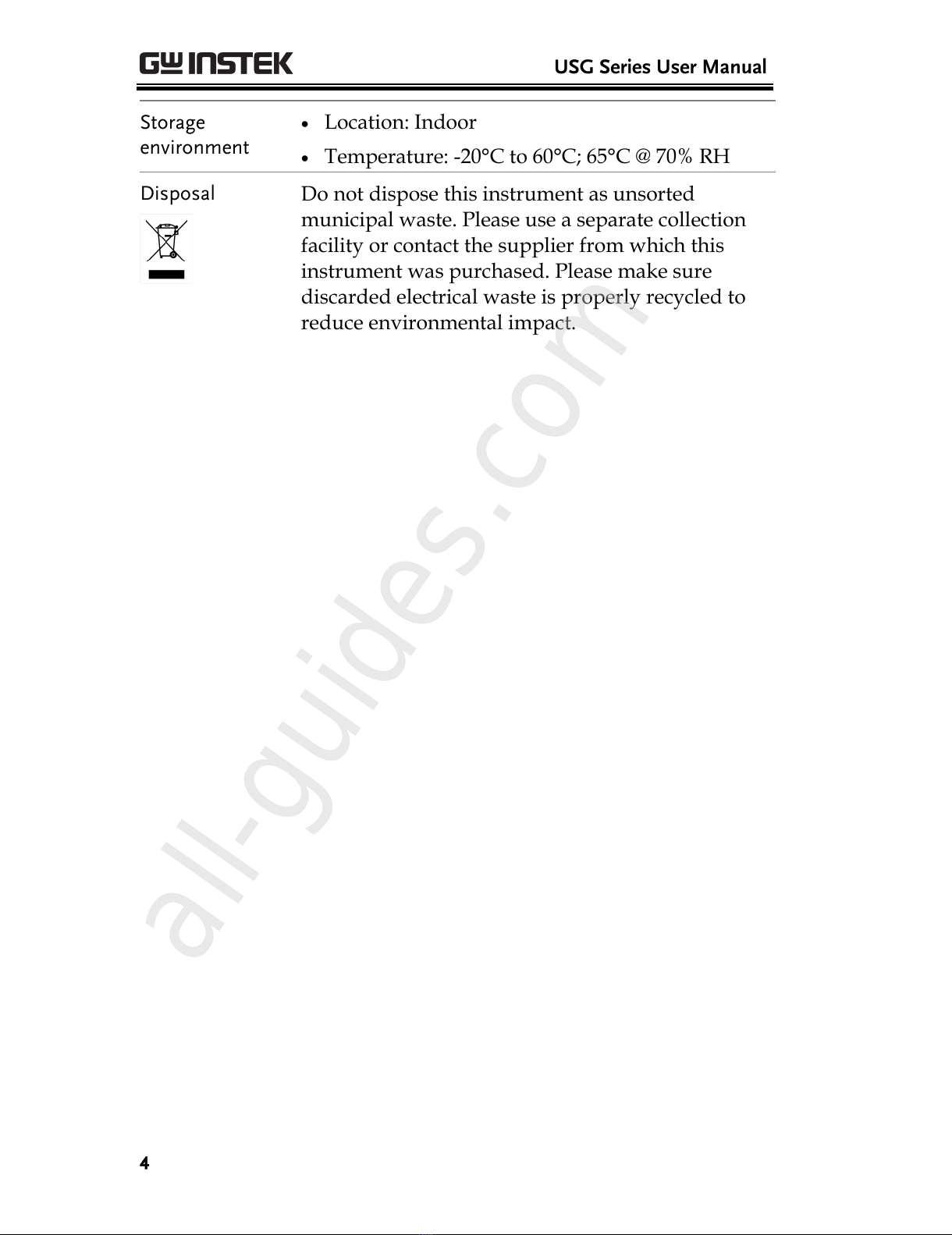

Storage

environment

Location: Indoor

Temperature: -20°C to 60°C; 65°C @ 70% RH

Disposal

Do not dispose this instrument as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased. Please make sure

discarded electrical waste is properly recycled to

reduce environmental impact.

All manuals and user guides at all-guides.com

all-guides.com

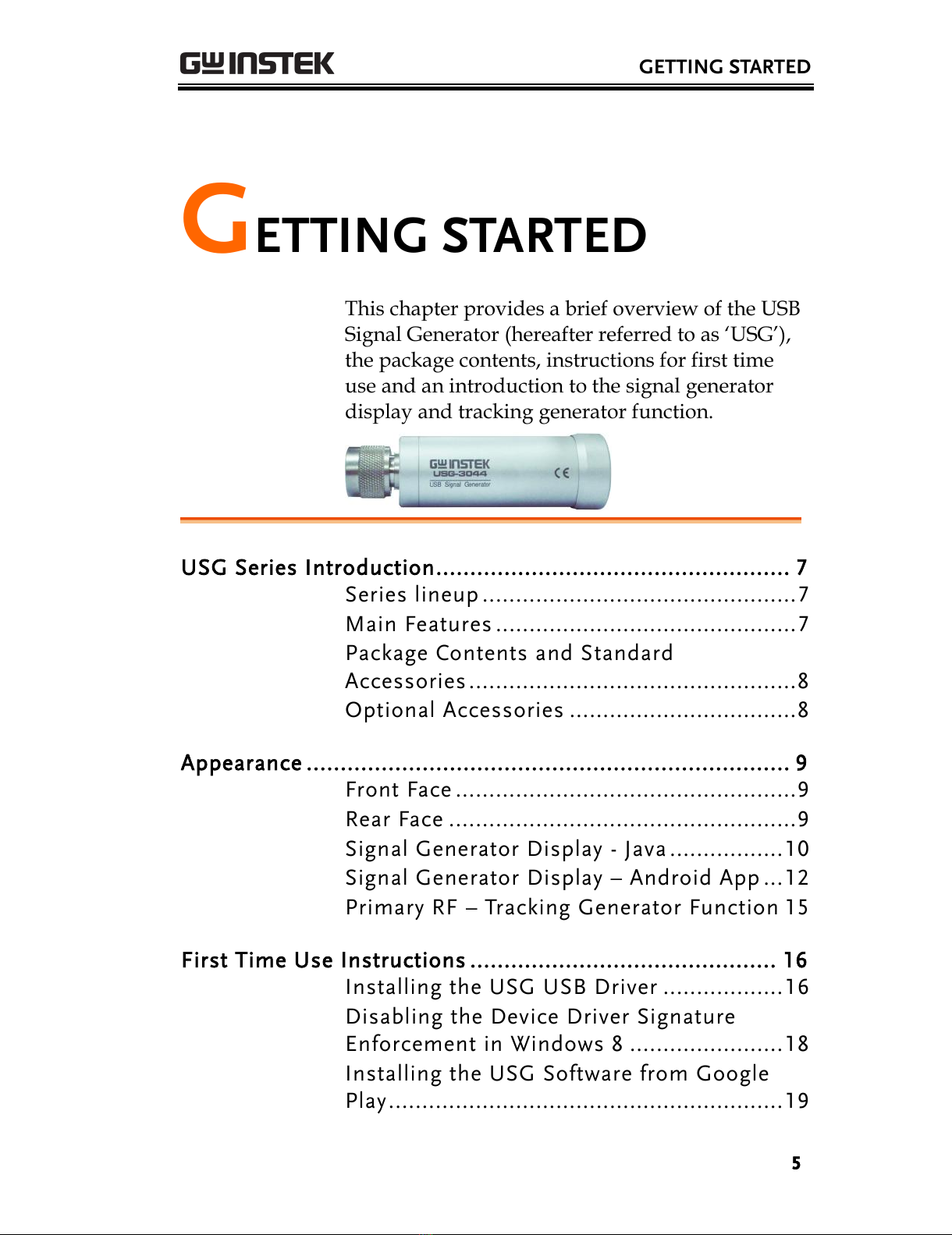

GETTING STARTED

This chapter provides a brief overview of the USB

Signal Generator (hereafter referred to as „USG‟),

the package contents, instructions for first time

use and an introduction to the signal generator

display and tracking generator function.

USG Series Introduction.................................................... 7

Series lineup ...............................................7

Main Features .............................................7

Package Contents and Standard

Accessories .................................................8

Optional Accessories ..................................8

Appearance ....................................................................... 9

Front Face ...................................................9

Rear Face ....................................................9

Signal Generator Display - Java .................10

Signal Generator Display –Android App ...12

Primary RF –Tracking Generator Function 15

First Time Use Instructions ............................................. 16

Installing the USG USB Driver ..................16

Disabling the Device Driver Signature

Enforcement in Windows 8 .......................18

Installing the USG Software from Google

Play...........................................................19

All manuals and user guides at all-guides.com

USG Series User Manual

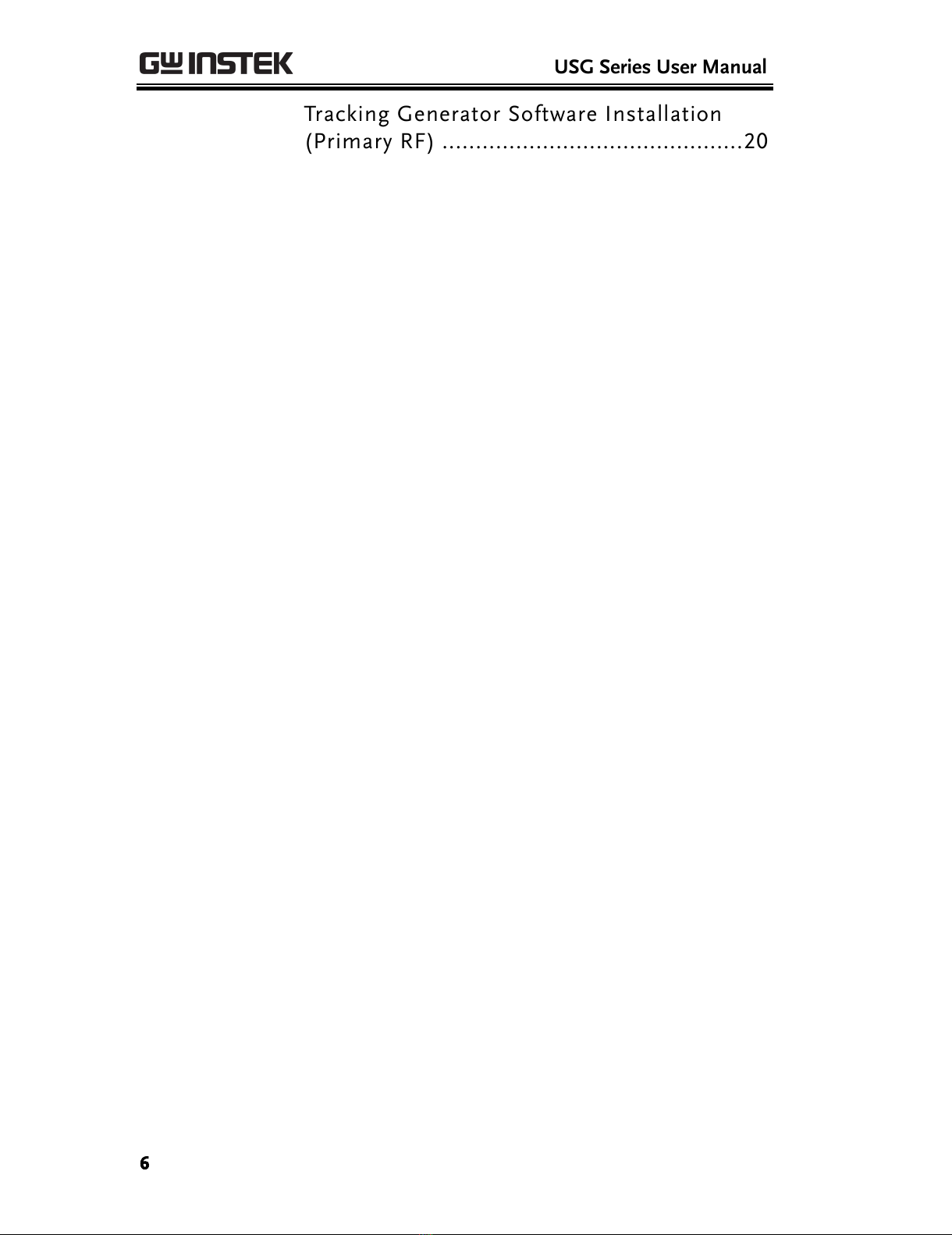

Tracking Generator Software Installation

(Primary RF) .............................................20

All manuals and user guides at all-guides.com

GETTING STARTED

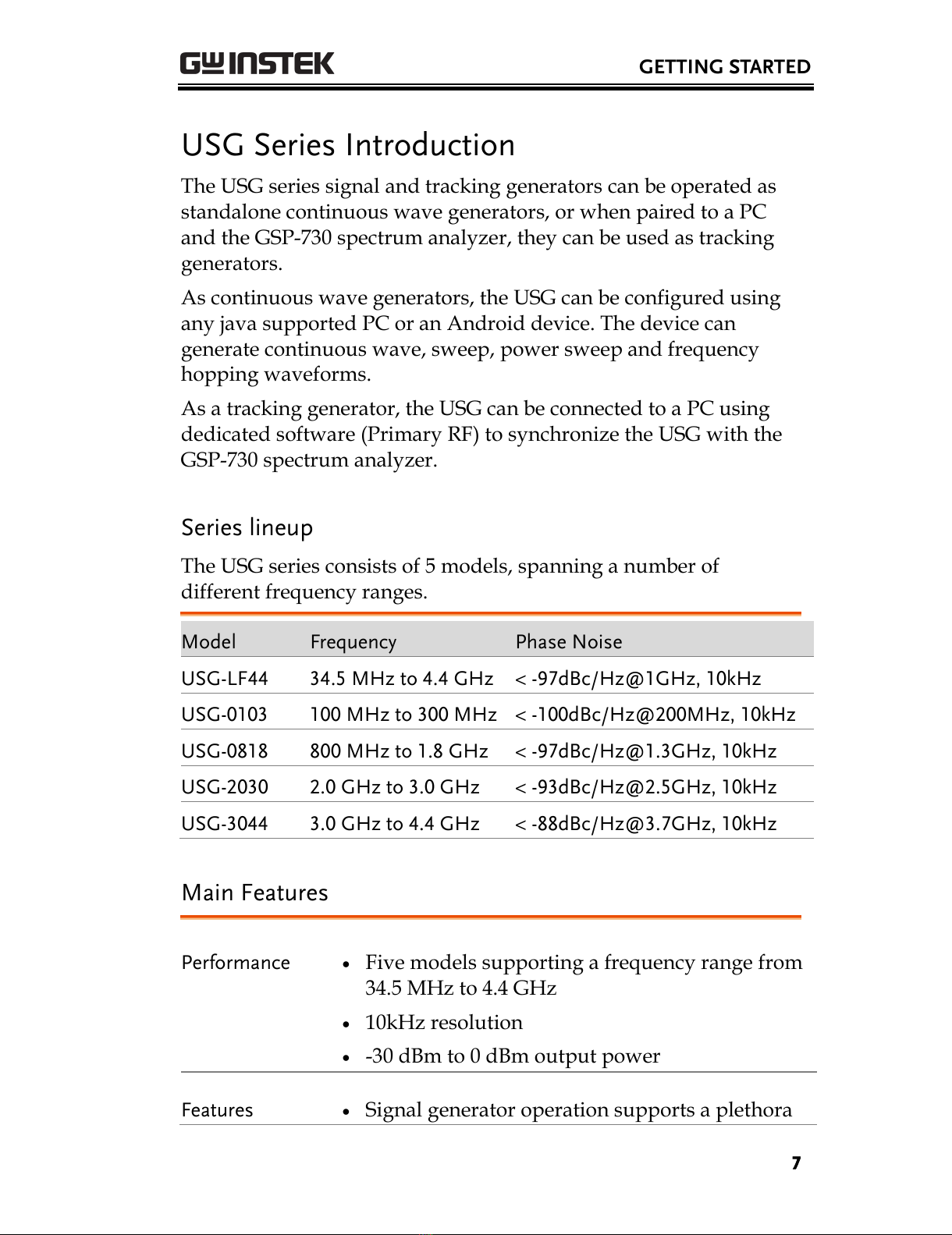

USG Series Introduction

The USG series signal and tracking generators can be operated as

standalone continuous wave generators, or when paired to a PC

and the GSP-730 spectrum analyzer, they can be used as tracking

generators.

As continuous wave generators, the USG can be configured using

any java supported PC or an Android device. The device can

generate continuous wave, sweep, power sweep and frequency

hopping waveforms.

As a tracking generator, the USG can be connected to a PC using

dedicated software (Primary RF) to synchronize the USG with the

GSP-730 spectrum analyzer.

Series lineup

The USG series consists of 5 models, spanning a number of

different frequency ranges.

Model

Frequency

Phase Noise

USG-LF44

34.5 MHz to 4.4 GHz

< -97dBc/Hz@1GHz, 10kHz

USG-0103

100 MHz to 300 MHz

< -100dBc/Hz@200MHz, 10kHz

USG-0818

800 MHz to 1.8 GHz

< -97dBc/Hz@1.3GHz, 10kHz

USG-2030

2.0 GHz to 3.0 GHz

< -93dBc/Hz@2.5GHz, 10kHz

USG-3044

3.0 GHz to 4.4 GHz

< -88dBc/Hz@3.7GHz, 10kHz

Main Features

Performance

Five models supporting a frequency range from

34.5 MHz to 4.4 GHz

10kHz resolution

-30 dBm to 0 dBm output power

Features

Signal generator operation supports a plethora

All manuals and user guides at all-guides.com

USG Series User Manual

of control devices:

Any java-enabled PC: Windows, Mac or Linux

PCs.

Any android device that supports USB OTG

(USB On The Go) operation (via Google Play).

Continuous wave, sweep wave, frequency

hopping wave, power sweep wave.

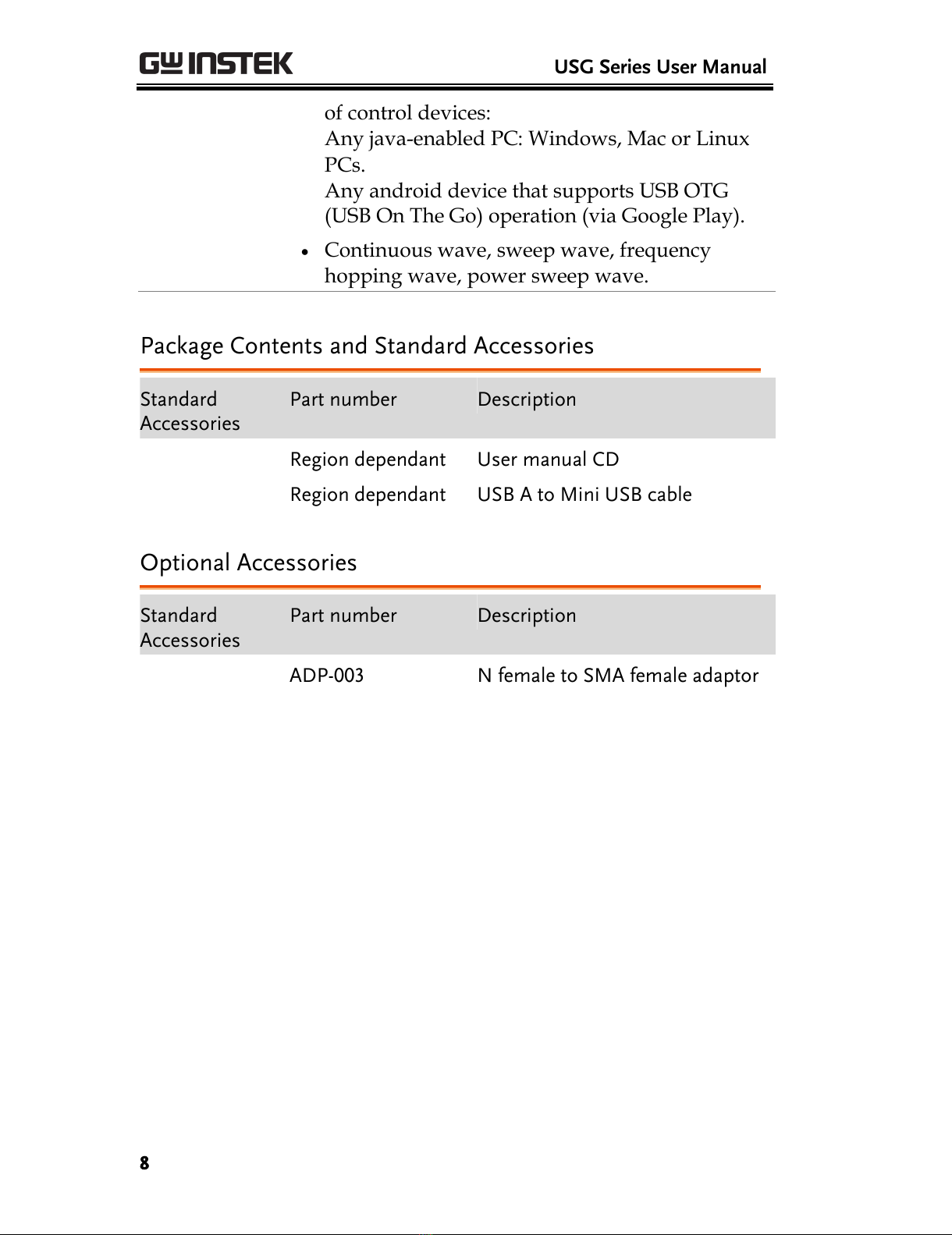

Package Contents and Standard Accessories

Standard

Accessories

Part number

Description

Region dependant

User manual CD

Region dependant

USB A to Mini USB cable

Optional Accessories

Standard

Accessories

Part number

Description

ADP-003

N female to SMA female adaptor

All manuals and user guides at all-guides.com
