GW Instek PSU 60-25 Manuale utente

Programmable DC Power Supply

PSU Series

USER MANUAL

GW INSTEK PART NO. 82SU-60250EA1

ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by

photocopied, reproduced or translated to another language without

prior written consent of Good Will company.

The information in this manual was correct at the time of printing.

However, Good Will continues to improve products and reserves the

rights to change specification, equipment, and maintenance

procedures at any time without notice.

Good Will Instrument Co., Ltd.

No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

SAFETY INSTRUCTIONS

Table of Contents

SAFETY INSTRUCTIONS ................................................... 5

GETTING STARTED ........................................................... 9

PSU Series Overview ............................ 10

Appearance .......................................... 14

Theory of Operation ............................. 22

OPERATION .................................................................... 34

Set Up.................................................. 36

Basic Operation ................................... 51

Parallel / Series Operation ................... 68

Test Scripts .......................................... 85

CONFIGURATION ........................................................... 93

Configuration Overview ....................... 94

ANALOG CONTROL .......................................................113

Analog Remote Control Overview....... 114

Remote Monitoring ............................ 133

Isolated Analog Control Option ......... 140

COMMUNICATION INTERFACE .....................................156

Interface Configuration ...................... 157

FAQ ...............................................................................181

APPENDIX .....................................................................183

PSU Factory Default Settings ............. 183

Error Messages & Messages .............. 185

LED ASCII Table Character Set ........... 186

PSU Specifications............................. 187

PSU Series User Manual

PSU Dimensions ................................ 193

Declaration of Conformity .................. 194

INDEX............................................................................195

SAFETY INSTRUCTIONS

This chapter contains important safety

instructions that you must follow during

operation and storage. Read the following before

any operation to insure your safety and to keep

the instrument in the best possible condition.

Safety Symbols

These safety symbols may appear in this manual or on the

instrument.

WARNING

Warning: Identifies conditions or practices that

could result in injury or loss of life.

CAUTION

Caution: Identifies conditions or practices that

could result in damage to the PSU or to other

properties.

DANGER High Voltage

Attention Refer to the Manual

Protective Conductor Terminal

Earth (ground) Terminal

PSU Series User Manual

Do not dispose electronic equipment as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased.

Safety Guidelines

General

Guideline

CAUTION

Do not place any heavy object on the PSU.

Avoid severe impact or rough handling that

leads to damaging the PSU.

Do not discharge static electricity to the PSU.

Use only mating connectors, not bare wires, for

the terminals.

Do not block the cooling fan opening.

Do not disassemble the PSU unless you are

qualified.

(Measurement categories) EN61010-1:2010 and EN61010-2-030

specifies the measurement categories and their requirements as

follows. The PSU falls under category II.

Measurement category IV is for measurement performed at the

source of low-voltage installation.

Measurement category III is for measurement performed in the

building installation.

Measurement category II is for measurement performed on the

circuits directly connected to the low voltage installation.

0 is for measurements performed on circuits not directly

connected to Mains.

Power Supply

WARNING

AC Input voltage range: 85Vac~265Vac

Frequency: 47Hz to 63Hz

To avoid electrical shock connect the protective

grounding conductor of the AC power cord to

an earth ground.

SAFETY INSTRUCTIONS

Cleaning the PSU

Disconnect the power cord before cleaning.

Use a soft cloth dampened in a solution of mild

detergent and water. Do not spray any liquid.

Do not use chemicals containing harsh material

such as benzene, toluene, xylene, and acetone.

Operation

Environment

Location: Indoor, no direct sunlight, dust free,

almost non-conductive pollution (Note below)

Relative Humidity: 20%~ 85% (no condensation)

Altitude: < 2000m

Temperature: 0°C to 50°C

(Pollution Degree) EN61010-1:2010 and EN61010-2-030 specifies

the pollution degrees and their requirements as follows. The PSU

falls under degree 2.

Pollution refers to “addition of foreign matter, solid, liquid, or

gaseous (ionized gases), that may produce a reduction of dielectric

strength or surface resistivity”.

Pollution degree 1: No pollution or only dry, non-conductive

pollution occurs. The pollution has no influence.

Pollution degree 2: Normally only non-conductive pollution

occurs. Occasionally, however, a temporary conductivity caused

by condensation must be expected.

Pollution degree 3: Conductive pollution occurs, or dry, non-

conductive pollution occurs which becomes conductive due to

condensation which is expected. In such conditions, equipment

is normally protected against exposure to direct sunlight,

precipitation, and full wind pressure, but neither temperature

nor humidity is controlled.

Storage

environment

Location: Indoor

Temperature: -25°C to 70°C

Relative Humidity: ≤90%(no condensation)

Disposal

Do not dispose this instrument as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased. Please make sure

discarded electrical waste is properly recycled to

reduce environmental impact.

PSU Series User Manual

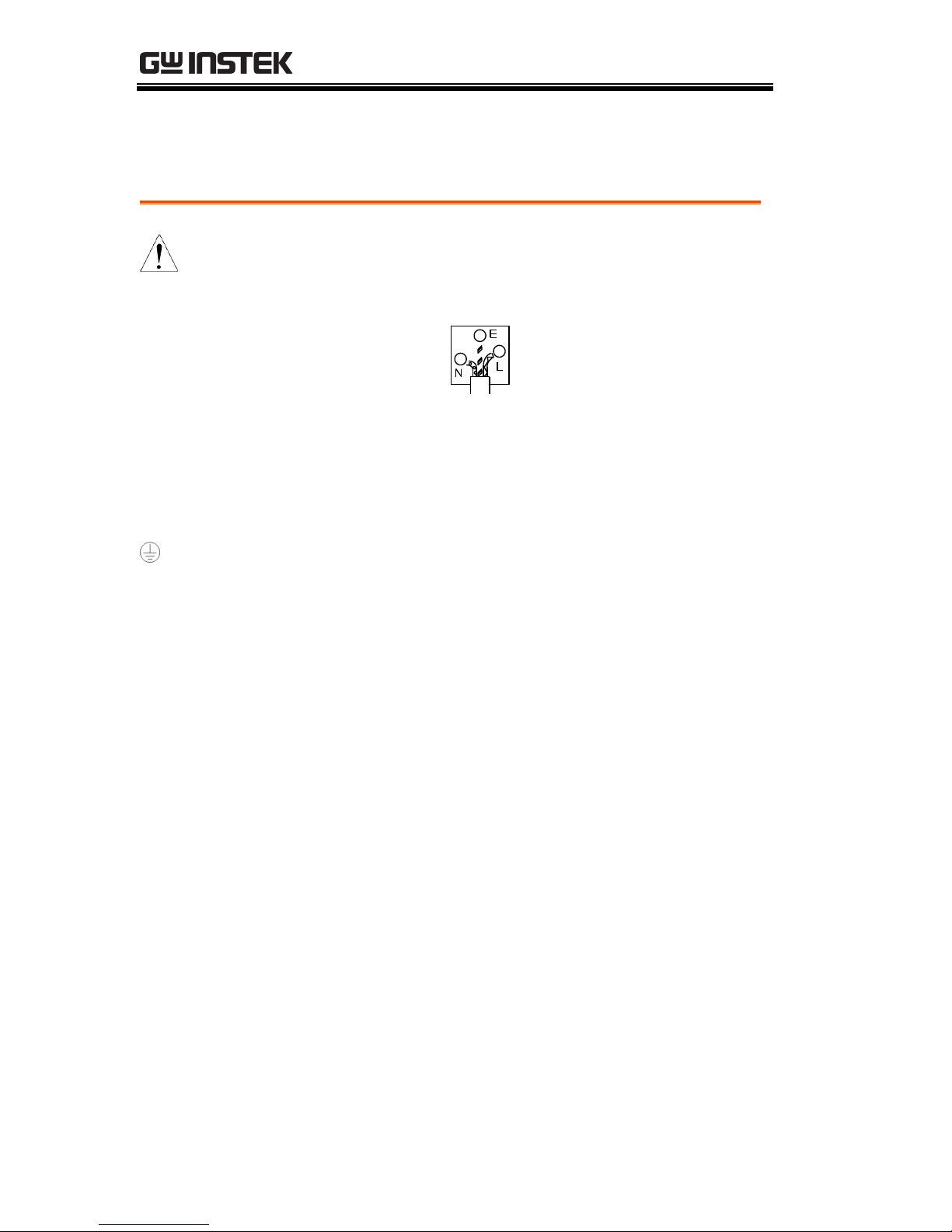

Power cord for the United Kingdom

When using the power supply in the United Kingdom, make sure

the power cord meets the following safety instructions.

NOTE: This lead/appliance must only be wired by competent persons

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in this lead are coloured in accordance with the

following code:

Green/ Yellow:

Earth

Blue:

Neutral

Brown:

Live (Phase)

As the colours of the wires in main leads may not correspond with

the coloured marking identified in your plug/appliance, proceed

as follows:

The wire which is coloured Green & Yellow must be connected to

the Earth terminal marked with either the letter E, the earth symbol

or coloured Green/Green & Yellow.

The wire which is coloured Blue must be connected to the terminal

which is marked with the letter N or coloured Blue or Black.

The wire which is coloured Brown must be connected to the

terminal marked with the letter L or P or coloured Brown or Red.

If in doubt, consult the instructions provided with the equipment

or contact the supplier.

This cable/appliance should be protected by a suitably rated and

approved HBC mains fuse: refer to the rating information on the

equipment and/or user instructions for details. As a guide, a cable

of 0.75mm2should be protected by a 3A or 5A fuse. Larger

conductors would normally require 13A types, depending on the

connection method used.

Any exposed wiring from a cable, plug or connection that is

engaged in a live socket is extremely hazardous. If a cable or plug is

deemed hazardous, turn off the mains power and remove the cable,

any fuses and fuse assemblies. All hazardous wiring must be

immediately destroyed and replaced in accordance to the above

standard.

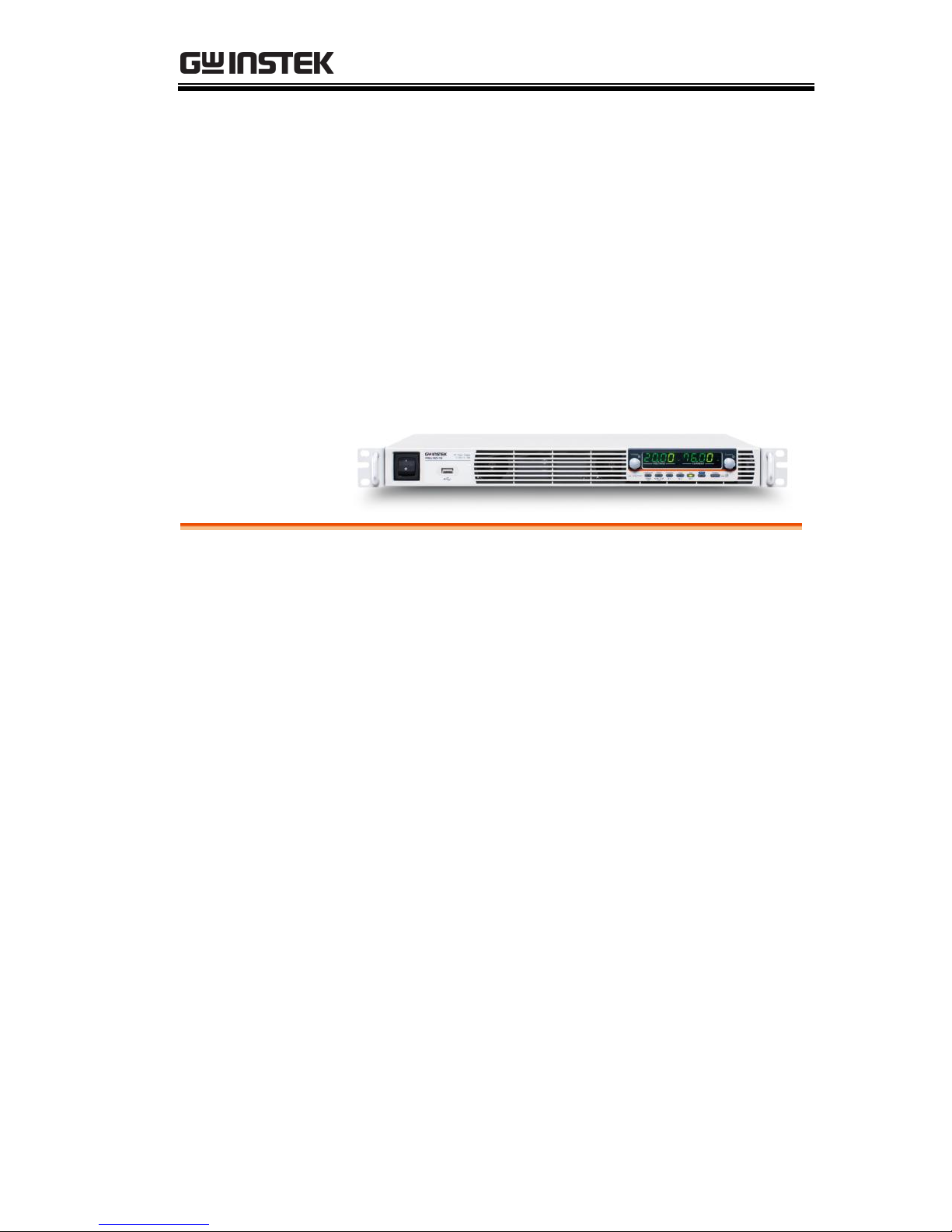

GETTING STARTED

This chapter describes the power supply in a

nutshell, including its main features and front /

rear panel introduction. After going through the

overview, please read the theory of operation to

become familiar with the operating modes,

protection modes and other safety considerations.

PSU Series Overview ....................................................... 10

Series lineup..............................................................................................................10

Main Features...........................................................................................................11

Accessories................................................................................................................12

Appearance ..................................................................... 14

PSU Series Front Panel...........................................................................................14

PSU Series Display and Operation Panel ............................................................. 17

Rear Panel ................................................................................................................. 19

Theory of Operation ........................................................ 22

Operating Area Description...................................................................................22

CC and CV Mode .................................................................................................... 23

Slew Rate................................................................................................................... 25

Bleeder Control........................................................................................................25

Internal Resistance...................................................................................................26

Alarms .......................................................................................................................27

Considerations..........................................................................................................29

Grounding ................................................................................................................32

PSU Series User Manual

PSU Series Overview

Series lineup

The PSU series consists of 5 models, covering a number of different

current, voltage and power capacities:

Model name

Voltage Rating1

Current Rating2

Power

PSU 6-200

200A

1200W

PSU 12.5-120

12.5V

120A

1500W

PSU 20-76

20V

76A

1520W

PSU 40-38

40V

38A

1520W

PSU 60-25

60V

25A

1500W

1Minimum voltage guaranteed to 0.2% of rating voltage.

2Minimum current guaranteed to 0.4% of rating current.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali GW Instek Alimentazione elettrica

GW Instek

GW Instek SPS-1230 Manuale utente

GW Instek

GW Instek PSW 30-72 Manuale del proprietario

GW Instek

GW Instek ASR-2000 Series Manuale utente

GW Instek

GW Instek ASD Series Manuale utente

GW Instek

GW Instek PSW Series Manuale utente

GW Instek

GW Instek PRP Series Manuale del proprietario

GW Instek

GW Instek PSH series Manuale utente

GW Instek

GW Instek PPX Series Manuale del proprietario

GW Instek

GW Instek GPD-3303 Series Manuale utente

GW Instek

GW Instek PSW 30-36 Manuale utente

GW Instek

GW Instek PPX Series Manuale utente

GW Instek

GW Instek GPE-1326 Series Manuale utente

GW Instek

GW Instek PEL-3021 Manuale utente

GW Instek

GW Instek PSW Series Manuale utente

GW Instek

GW Instek PLR Series Manuale utente

GW Instek

GW Instek PEL-500 Series Manuale utente

GW Instek

GW Instek PPH-1503 Manuale utente

GW Instek

GW Instek PSU Series Manuale del proprietario

GW Instek

GW Instek PEL-3000 Series Manuale utente

GW Instek

GW Instek PSP-603 Manuale utente

GW Instek

GW Instek PEL-2000A Series Manuale utente

GW Instek

GW Instek PFR-100MGP Manuale utente

GW Instek

GW Instek PSB-1400M Manuale utente

GW Instek

GW Instek PSB-2000 series Manuale utente

Manuali Alimentazione elettrica popolari di altre marche

Monacor

Monacor PS-12CCD Manuale utente

VOLTIMA

VOLTIMA MagicBox 15 Manuale utente

Agilent Technologies

Agilent Technologies 6032A Manuale utente

Miller

Miller Auto Deltaweld 452 Manuale utente

BCP

BCP PUOUBK Foglio di istruzioni

HC 2210 Manuale utente

Puls

Puls CT5.241 Manuale utente

OCZ

OCZ ZX1250W Manuale utente

iseg

iseg ECH 238 Manuale utente

Power

Power XXL A Series Manuale utente

Agilent Technologies

Agilent Technologies 6631B Manuale utente

Renogy

Renogy PHOENIX 300 Manuale utente

HP 6200B Manuale di servizio

Epson

Epson Stylus Scan 2500 Manuale operativo

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuale utente

Puls

Puls MiniLine ML50.100 Manuale utente

Puls

Puls AS-Interface SLA4.100 Manuale utente

Kenwood

Kenwood PS-60 Manuale utente
