GW Instek GRA-410 Manuale utente

Rack Adapter Panel

GRA-410

Assembly Manual

GW INSTEK PART NO. 82RA-41000MC1

This assembly manual contains proprietary information, which is protected by copyrights. All rights are

reserved. No part of this manual may be photocopied, reproduced or translated to another language

without prior written consent of Good Will company.

The information in this manual was correct at the time of printing. However, Good Will continues to

improve products and reserves the rights to change specification, equipment, and maintenance

procedures at any time without notice.

Good Will Instrument Co., Ltd.

No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

ISO-9001 CERTIFIED MANUFACTURER

All manuals and user guides at all-guides.com

all-guides.com

GRA-410 Assembly Manual

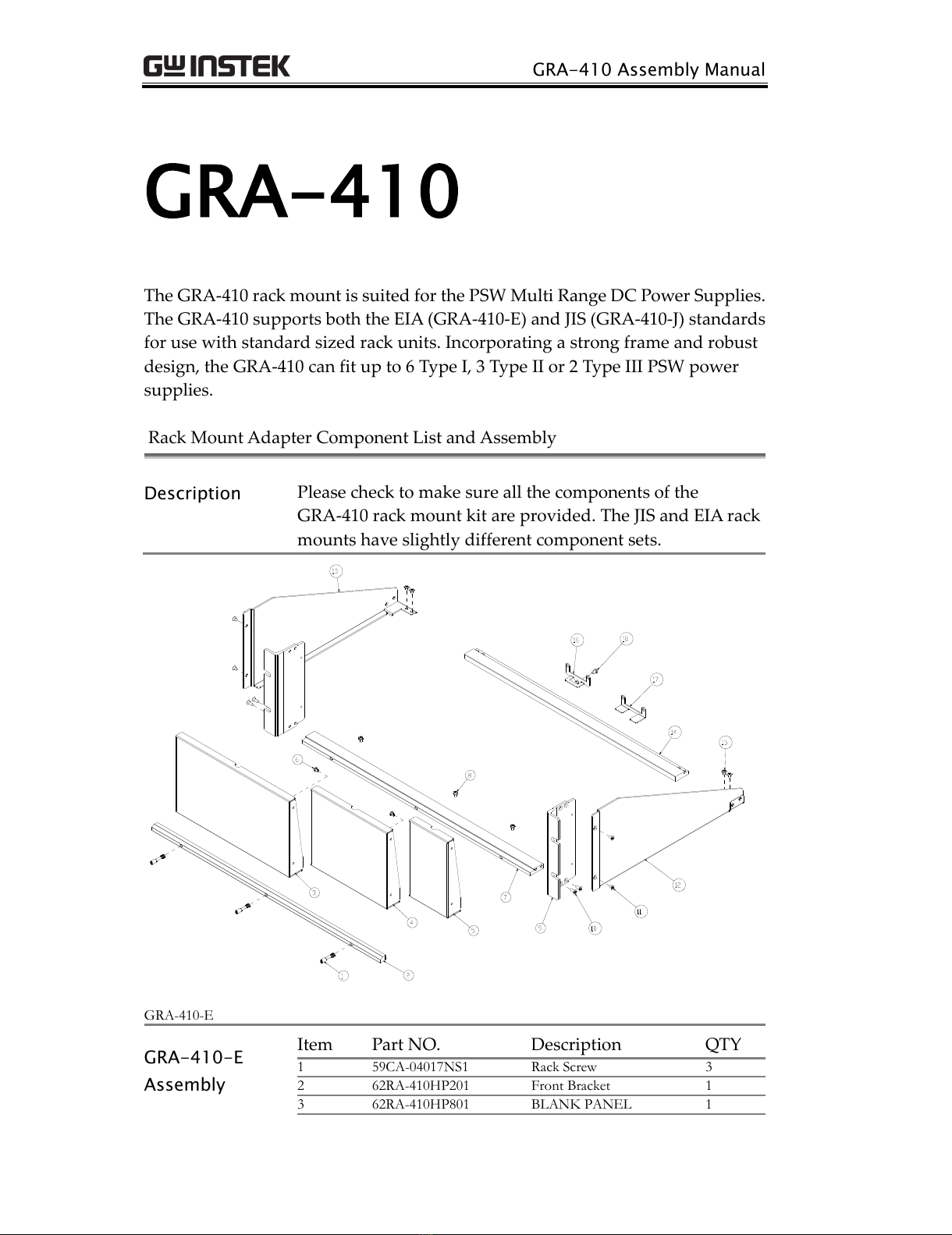

GRA-410

The GRA-410 rack mount is suited for the PSW Multi Range DC Power Supplies.

The GRA-410 supports both the EIA (GRA-410-E) and JIS (GRA-410-J) standards

for use with standard sized rack units. Incorporating a strong frame and robust

design, the GRA-410 can fit up to 6 Type I, 3 Type II or 2 Type III PSW power

supplies.

Rack Mount Adapter Component List and Assembly

Description

Please check to make sure all the components of the

GRA-410 rack mount kit are provided. The JIS and EIA rack

mounts have slightly different component sets.

GRA-410-E

Assembly

Item

Part NO.

Description

QTY

59CA-04017NS1

Rack Screw

62RA-410HP201

Front Bracket

62RA-410HP801

BLANK PANEL

All manuals and user guides at all-guides.com

GRA-410 Assembly Manual

62RA-410HP701

BLANK PANEL

62RA-410HP601

BLANK PANEL

5320-00403001

SR-3S

62RA-410HP101

Middle Bracket

592B-W3008NS1

PMS-W-3*8

62RA-410HPAA1

EIA BRACKET 3U

593B-03008NS1

FMS-3*8

593B-03005NS1

FMS-3*5

62RA-410HP5B1

Right Bracket

62RA-410HP4A1

Left Bracket

62RA-410HP3A1

Rear Bracket

599B-03006NS1

IMS 3*6

62RA-410HP9A1

Rack HP

62RA-410HPD01

Rack HP

594B-W3008NS1

BMS-W-3*8

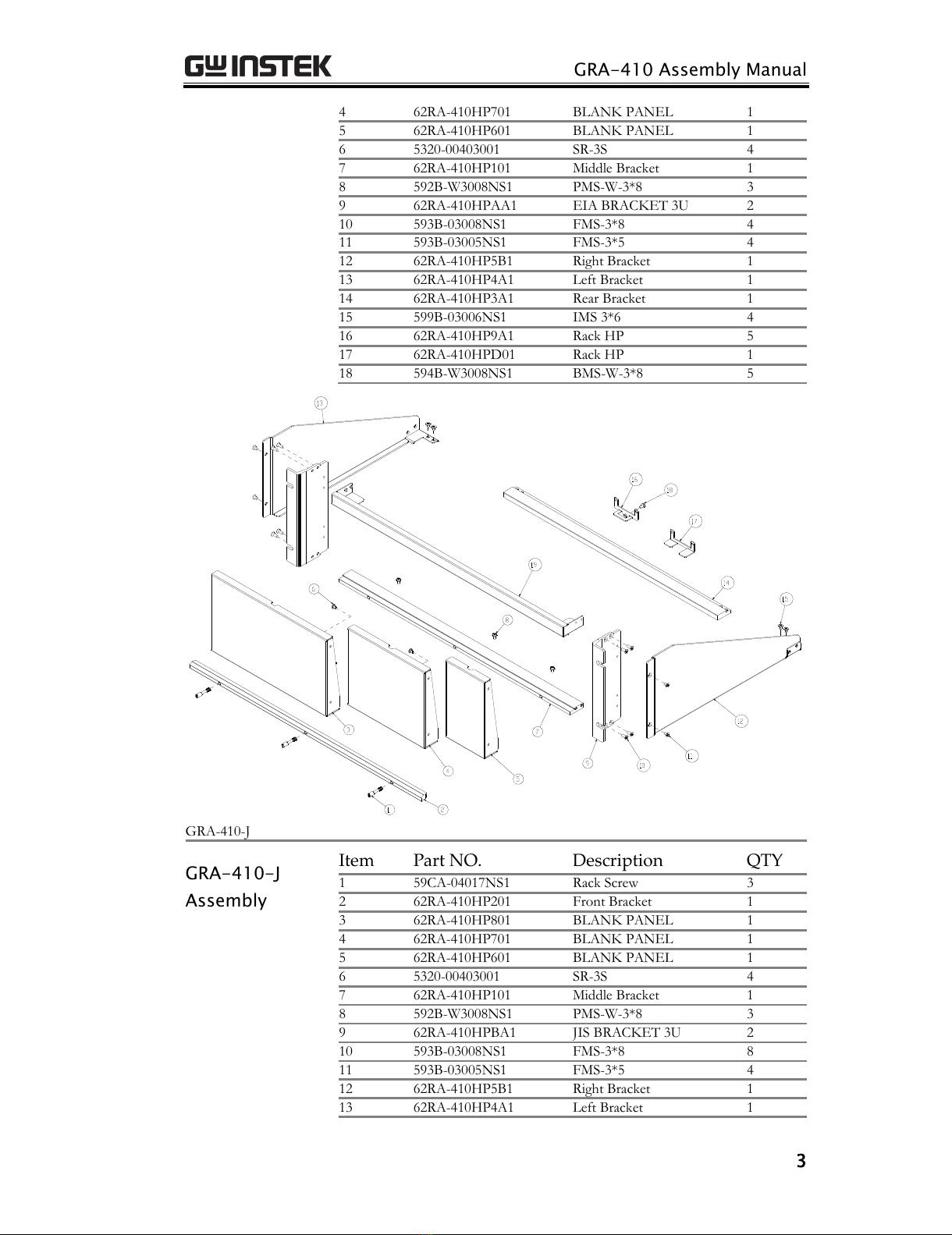

GRA-410-J

Assembly

Item

Part NO.

Description

QTY

59CA-04017NS1

Rack Screw

62RA-410HP201

Front Bracket

62RA-410HP801

BLANK PANEL

62RA-410HP701

BLANK PANEL

62RA-410HP601

BLANK PANEL

5320-00403001

SR-3S

62RA-410HP101

Middle Bracket

592B-W3008NS1

PMS-W-3*8

62RA-410HPBA1

JIS BRACKET 3U

593B-03008NS1

FMS-3*8

593B-03005NS1

FMS-3*5

62RA-410HP5B1

Right Bracket

62RA-410HP4A1

Left Bracket

All manuals and user guides at all-guides.com

Assembly

62RA-410HP3A1

Rear Bracket

599B-03006NS1

IMS 3*6

62RA-410HP9A1

Rack HP

62RA-410HPD01

Rack HP

594B-W3008NS1

BMS-W-3*8

62RA-410HPC01

TOP Bracket

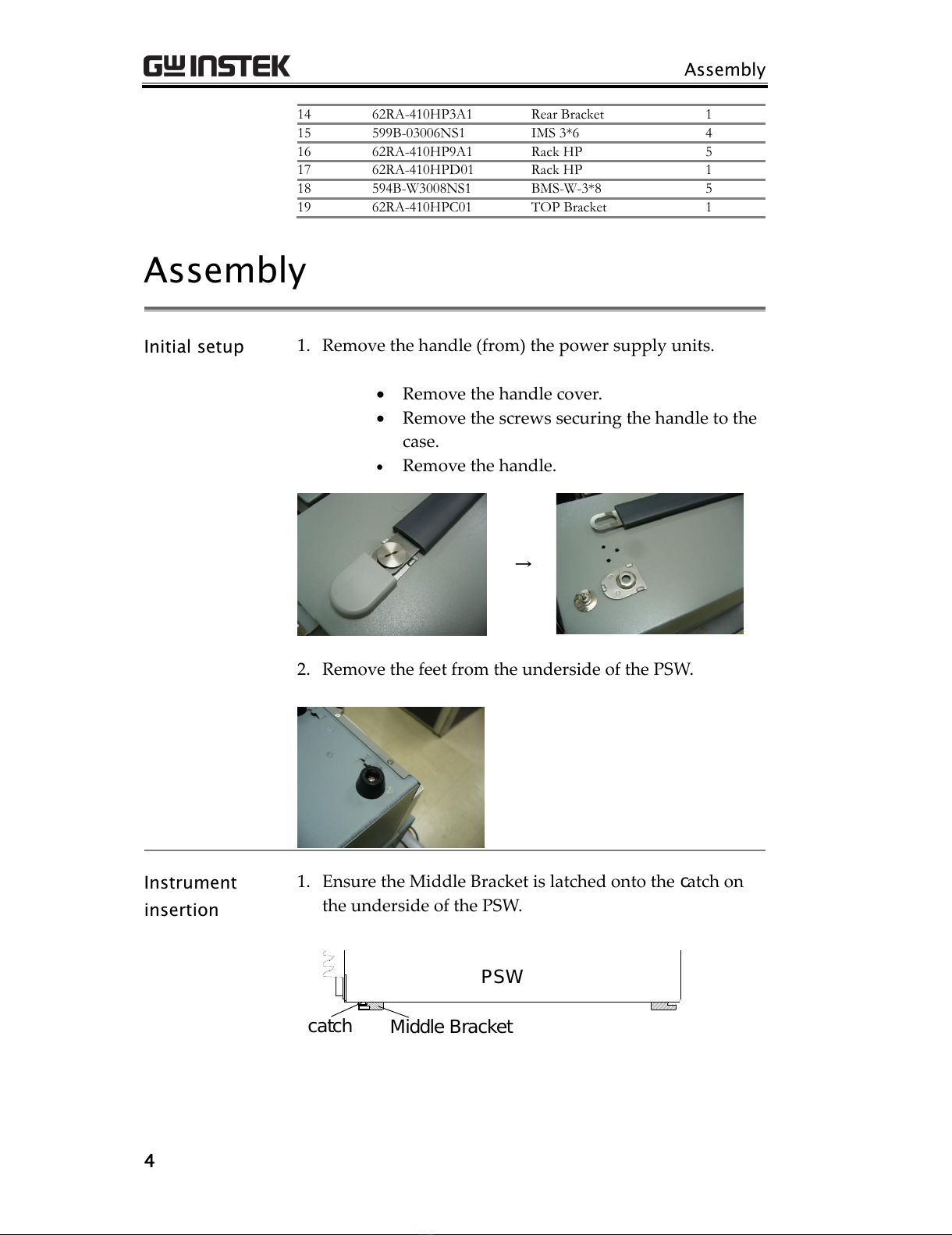

Assembly

Initial setup

1. Remove the handle (from) the power supply units.

Remove the handle cover.

Remove the screws securing the handle to the

case.

Remove the handle.

→

2. Remove the feet from the underside of the PSW.

Instrument

insertion

1. Ensure the Middle Bracket is latched onto the catch on

the underside of the PSW.

PSW

catch Middle Bracket

All manuals and user guides at all-guides.com

GRA-410 Assembly Manual

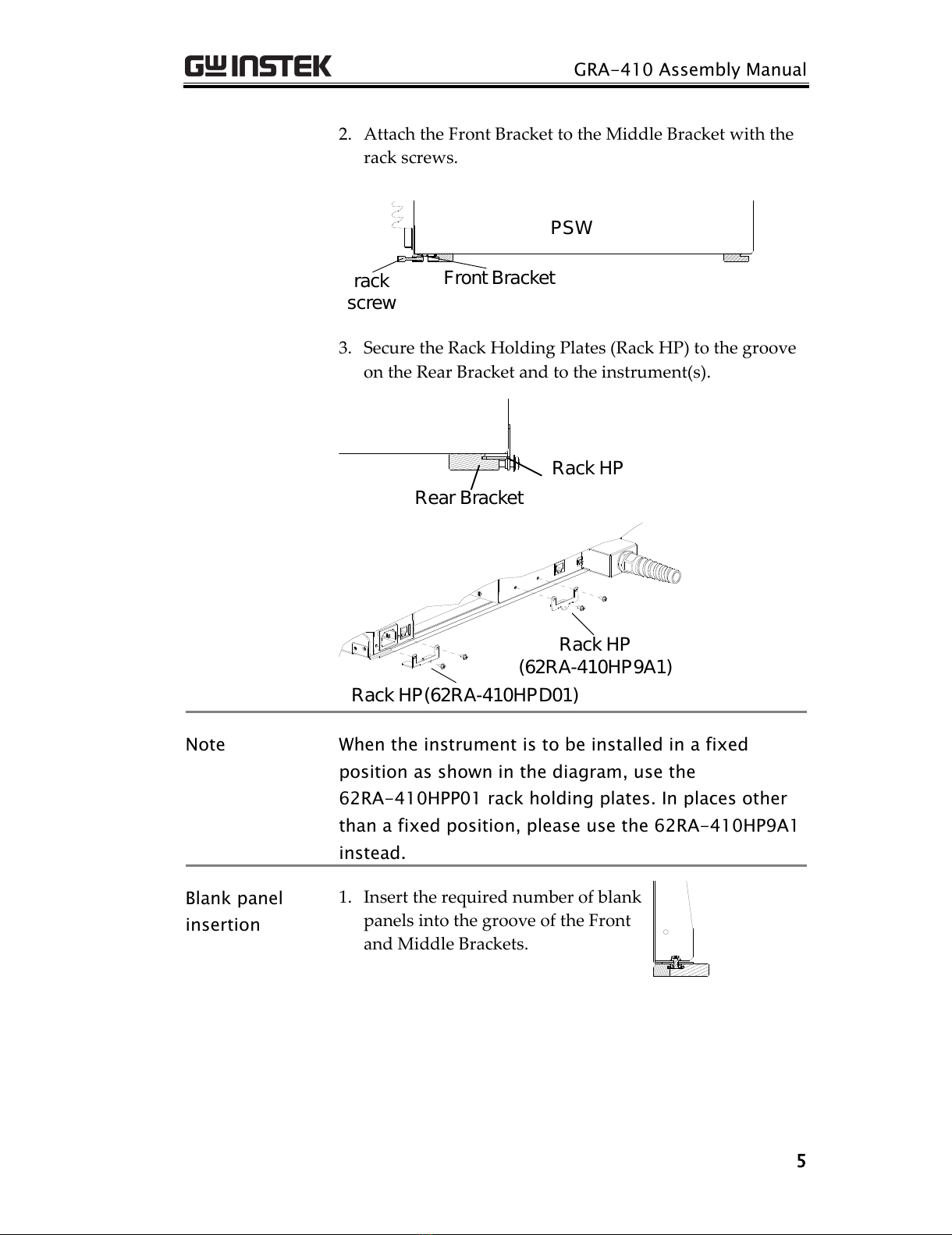

2. Attach the Front Bracket to the Middle Bracket with the

rack screws.

PSW

Front Bracket

rack

screw

3. Secure the Rack Holding Plates (Rack HP) to the groove

on the Rear Bracket and to the instrument(s).

PSW

Rack HP

Rear Bracket

Rack HP(62RA-410HPD01)

Rack HP

(62RA-410HP9A1)

Note

When the instrument is to be installed in a fixed

position as shown in the diagram, use the

62RA-410HPP01 rack holding plates. In places other

than a fixed position, please use the 62RA-410HP9A1

instead.

Blank panel

insertion

1. Insert the required number of blank

panels into the groove of the Front

and Middle Brackets.

All manuals and user guides at all-guides.com

Specification

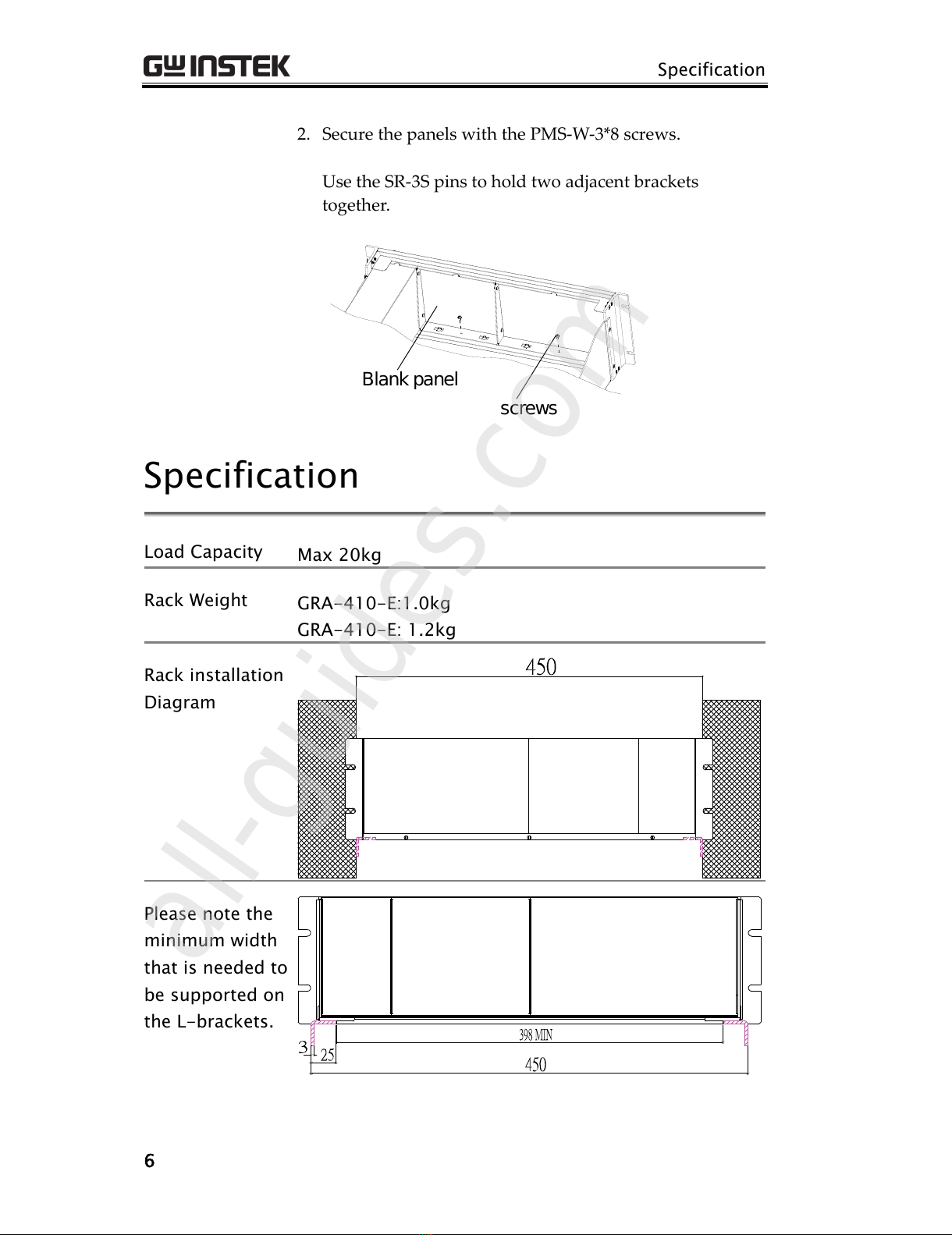

2. Secure the panels with the PMS-W-3*8 screws.

Use the SR-3S pins to hold two adjacent brackets

together.

Blank panel screws

Specification

Load Capacity

Max 20kg

Rack Weight

GRA-410-E:1.0kg

GRA-410-E: 1.2kg

Rack installation

Diagram

Please note the

minimum width

that is needed to

be supported on

the L-brackets.

All manuals and user guides at all-guides.com
