H-KING FW190 Manuale utente
INSTRUCTION MANUAL
1
Packing list:
1: PP FW190 fuselage *1
2: Carbon tube 5*5*940mm *1
3: Pull rod *4
4: Motor mount *1
5: Quick rod adjuster *4
6: Hinge *4
7: M3 screws *4
8: Hook and loop tape *1
9: Wood strip *4
10: Carbon strip *4
11: Landing gear *2
12: PP sheets *2
Tools:
1: 1.5mm allen wrench
2: Phillips screwdriver
3: Modelling knife
4: Wire cutters
5: Hot melt glue gun and glue sticks
6: Foam Glue
7: No.502 glue
Electronic equipment:
Motor：2208-2212-2216 1400kv *1
Prop：8 inch *1
ESC：20-40A *1
Servo：8/9g *4
Battery：1300-2200mah 3S *1
2

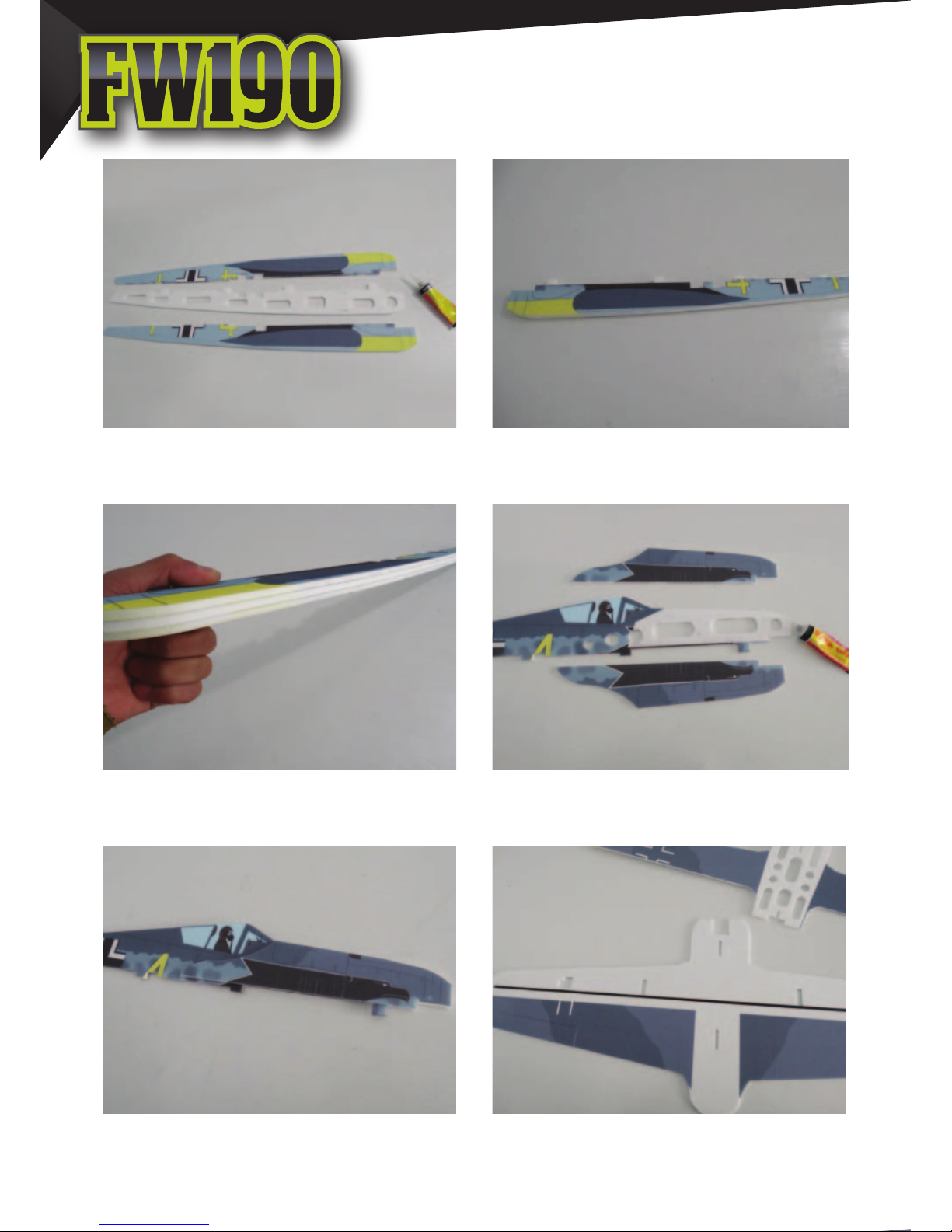

Press it after assembly.
Press it after assembly. Install the carbon tube into the wing.
Important: don’t glue the carbon tube now!
Assemble the 3 pcs top fuselages using foam glue.
Assemble the 3 pcs bottom fuselages using foam
glue.
3
Assemble the 2 pcs wings using foam glue.
Make sure 2 pcs wings trim.
Assemble the mid horizontal fuselage on wings using
foam glue. Make sure all parts trim.
Assemble the bottom horizontal fuselage on wings
using foam glue.
Make sure all parts trim. Especially the hole.
Turn over fuselage after assembly, Reinforce wing
and horizontal tail using foam glue. Then glue the
carbon tube using foam glue or No.502 glue.
Install the 2 pcs carbon strip into the horizontal tail
and glue them using No.502 glue.
4
Install the carbon strip into the vertical tail and glue it
using No.502 glue.
Install motor mount on fuselage after assembly using
foam glue.
Press the carbon strip into the horizontal fuselage’s
hole first.
Applying foam glue on top vertical fuselage and
horizontal fuselage.
Wait glue dried. Then assemble bottom fuselage into
the horizontal fuselage using foam glue.
5
Then press the top vertical fuselage into horizontal
fuselage.
Reinforce all bonding parts using hot glue sticks.
Especially for weakness point as shown picture
above.
Assemble 2 pcs PP sheets on wing using hot glue
sticks. Make sure the hole trim.
Install the landing gear on the PP sheets using hot
glue sticks as shown picture above.
Glue the vertical tail using hot glue sticks.
Install the shortest carbon strip into the hole using
No.502 glue.
Assemble the metal cross with motor on the wood
motor mount using the 4 pcs M3 screws.
Assemble Quick rod adjuster and install it in hinge,
apply a little No.502 to the nuts.
Install arm on servo and electrify all servos to make
sure the arm perpendicular to servo. Then install arm
screws.
Applying glue into the servo’s hole on the wing using
hot glue sticks. Then put servo into the hole.
Assemble motor on the metal cross using screws.
6

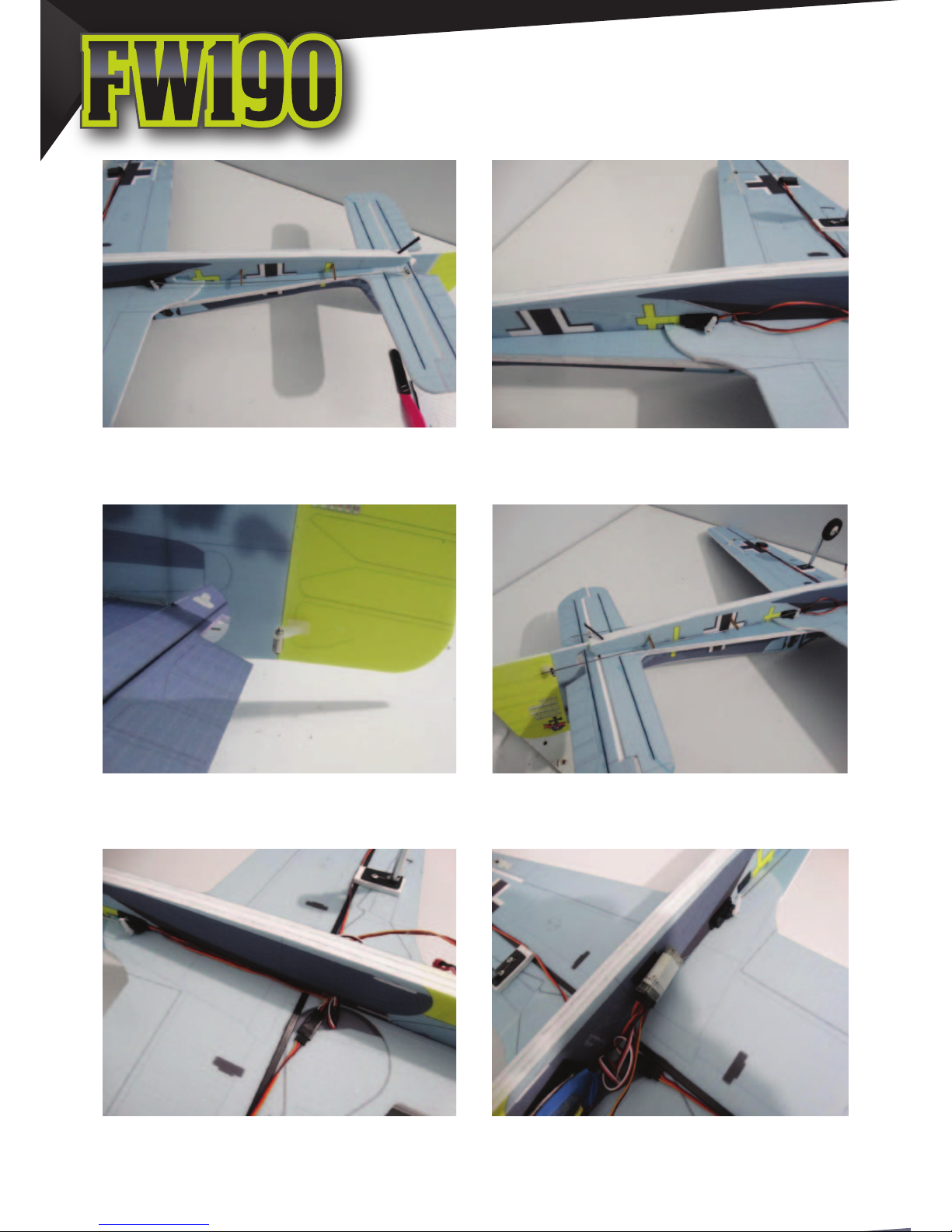

Glue the servo’s wire on wing using hot glue sticks
and use Y cord connect the 2 servos on wing.
Don’t forget block the hinge with cover and apply glue
to reinforce.
Install the 2 pcs shorter rods into arm and Quick rod
adjuster. Then adjust the pull rod and tighten the
screws.
Same way to install the front fuselage’s servo. Use the shorter pull rod for the front fuselage’s servo.
Install hinge into the hole on wing using foam glue.
7
Install wood strip in the hole using No.502 glue or hot
glue sticks. Notice must let pull rod through the hole
on wood strip.
Same way to install the middle fuselage’s servo.
Install hinge into the hole on vertical tail using foam
glue. Don’t forget block the hinge with cover and
apply glue to reinforce.
Also need install 2 pcs wood strips using No.502 or
hot glue sticks. Notice must let pull rod through the
hole on wood strip.
Glue the servo’s wire on wing using hot glue sticks. Connect servo, ESC with receiver. Glue hook and
loop tape on fuselage using foam glue. Then put
receiver on tape.
