H3C LSUM1FWCEAB0 Manuale utente

Manual version: 6PW101-20170411 BOM: 3123A19Y

H3C LSUM1FWCEAB0 firewall card

1 Card identifier

The card identifier LSUM1FWCEAB0 is at the upper right corner of the front panel.

2 Introduction

The LSUM1FWCEAB0 card is a 10-Gbps high performance firewall card that provides functions

including firewall, VPN, content filtering, and NAT. You can install it on an H3C S10500 or S7500E

switch to improve security capabilities of the switch without changing the network topology.

3 Specifications

The card has one console port, two USB ports, and two GE combo interfaces.

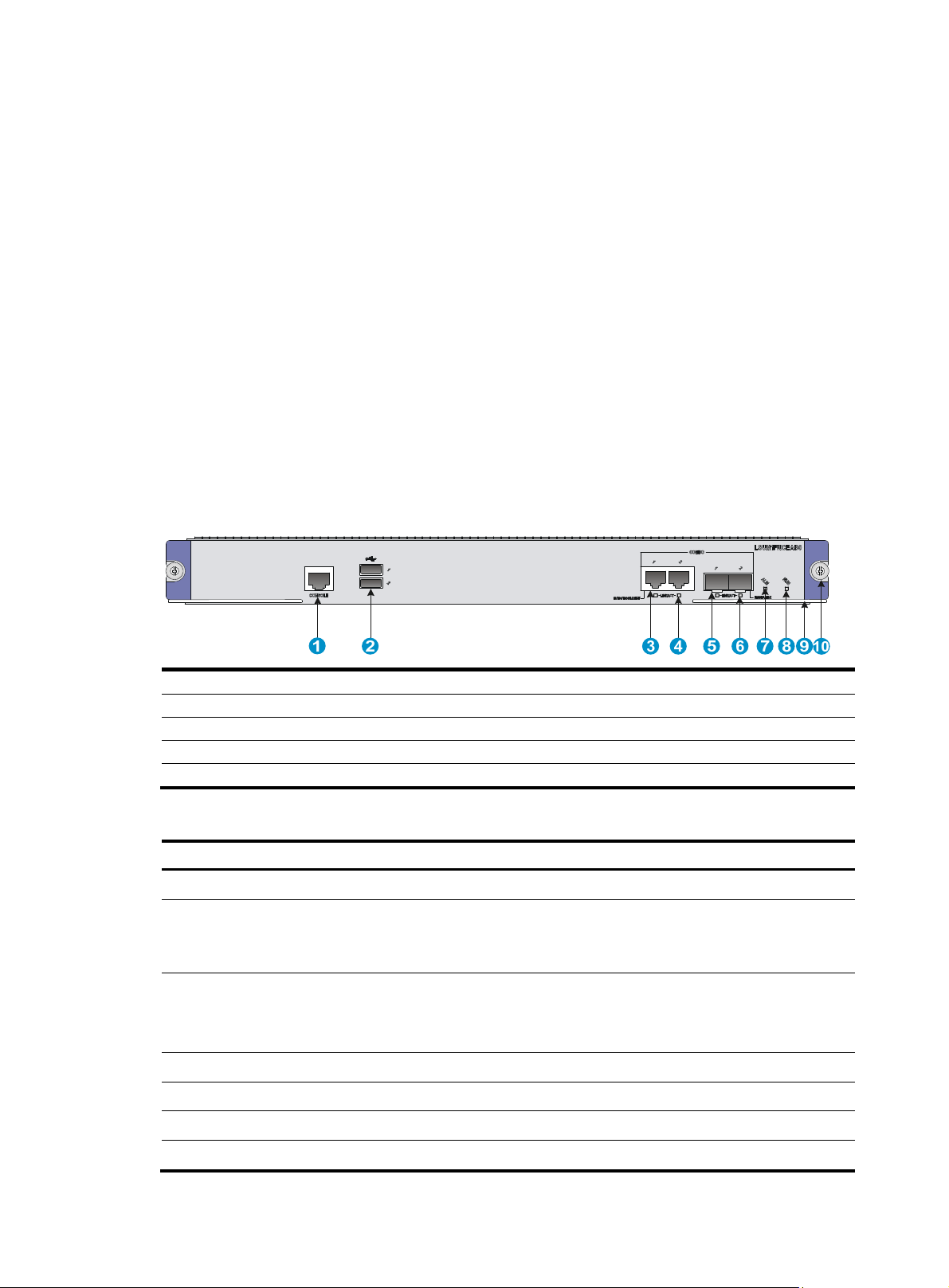

Figure 1 Front panel of the LSUM1FWCEAB0 firewall card

(1) Console port (CONSOLE) (2) USB ports (reserved)

(3) 10/100/1000BASE-T copper combo port

(4) Copper

combo port

LED (LINK/ACT)

(5) 1000BASE-X fiber combo port (6) Fiber combo port

LED (LINK/ACT)

(7) Alarm LED (ALM) (8) System LED (RUN)

(9) Ejector lever (10)

Captive screw

Table 1 Card specifications

Item S

ecification

Flash 8 MB Nor Flash

Memory

One memory slot

Standard configuration: 8 GB (one 8-GB DDR3

SDRAM)

CF card slot

One built-in CF card slot

Standard configuration: 4 GB

Maximum configuration: 4 GB

Dimensions (H × W × D) 40.1 × 399.2 × 376.8 mm (1.58 × 15.71 × 14.83 in)

Power consumption 109.0 W to 157.1 W

Weight 3.9 kg (12.79 lb)

Hot swapping Supported

Manual version: 6PW101-20170411 BOM: 3123A19Y

Item S

ecification

Interfaces

•1 console port

•2 USB ports (reserved)

•2 combo interfaces. A combo interface is a logical

interface that contains one 1000BASE-X SFP fiber

port and one 10/100/1000Base-T copper port.

The two ports share one interface view and cannot

work simultaneously. When you use the combo

enable {copper |fiber } command to enable one

port, the other port is disabled automatically.

CAUTION:

Keep the dust plug installed on the unused SFP port.

Ambient temperature

•Operating: 0°C to 45°C (32°F to 113°F)

•Storage: –40°C to +70°C (–40°F to +158°F)

Ambient humidity

•Operating: 10% RH to 95% RH, noncondensing

•Storage: 5% RH to 95% RH, noncondensing

Compatible gateway models and slots

•H3C S10500 switches (The quantity requirement

for this card varies by switch model.)

•S7500E switches (The quantity requirement for this

card varies by switch model.)

NOTE:

To verify compatibility of the card with the software release you are using, see the release notes.

Table 2 Console port specifications

Item S

ecification

Connector RJ-45

Interface standard RS-232

Transmission baud rate 9600 bps (default) to 115200 bps

Transmission medium Asynchronous serial cable

Transmission distance ≤15 m (49.21 ft)

Services

•Provides connection to an ASCII terminal.

•Provides connection to the serial port of a local or

remote (through a pair of modems) PC running

terminal emulation program.

•Supports command line interface (CLI)

Table 3 10/100/1000BASE-T copper Ethernet port specifications

Item S

ecification

Connector RJ-45

Interface standard 802.3, 802.3u, and 802.3ab

Interface type MDI/MDIX autosensing

Supported cable Category-5 (or above) twisted pair cable

Manual version: 6PW101-20170411 BOM: 3123A19Y

iii

Item S

ecification

Transmission distance 100 m (328.08 ft)

Port transmission rate

•10 Mbps, half/full duplex

•100 Mbps, half/full duplex

•1000 Mbps, full duplex

Table 4 1000BASE-X fiber port specifications

Item S

ecification

Transceiver module SFP

Connector type LC

Interface standard 802.3, 802.3u, and 802.3ab

Operating mode 1000 Mbps, full duplex

Table 5 1000BASE-X SFP port specifications

Gigabit SFP module Central

wavelength

Connector

Cable specifications

Maximum

transmission

distance

SFP-GE-SX-MM850-A 850 nm LC 62.5/125μm

multi-mode optical fiber 0.55 km (0.34 miles)

SFP-GE-LX-SM1310-A 1310 nm LC 9/125 μm single-mode

optical fiber 10 km (6.21 miles)

SFP-GE-LH40-SM1310 1310 nm LC 9/125 μm single-mode

optical fiber 40 km (24.86 miles)

SFP-GE-LH40-SM1550 1550 nm LC 9/125 μm single-mode

optical fiber 40 km (24.86 miles)

SFP-GE-LH80-SM1550 1550 nm LC 9/125 μm single-mode

optical fiber 80 km (49.71 miles)

SFP-GE-LH100-SM1550 1550 nm LC 9/125 μm single-mode

optical fiber 100 km (62.14 miles)

4 LEDs

The card provides LEDs to show the operating status of the card and the interfaces.

Table 6 LED description

LED Status Descri

tion

Alarm LED (ALM)

Off The system is operating correctly.

Steady red A serious failure has occurred. Read the system log for

troubleshooting.

Manual version: 6PW101-20170411 BOM: 3123A19Y

LED Status Descri

tion

System LED (RUN)

Off No power input or the firewall card is faulty.

Steady green The system is not operating correctly.

Flashing green (1 Hz) The system has started up and is operating correctly.

Flashing green (8 Hz) The system is loading the software.

Combo interface LED

(LINK/ACT)

Off No link is present on the port.

Steady green A link is present on the port.

Flashing green The port is sending or receiving data.

5 Installing and removing the card

CAUTION:

•Wear a reliably-grounded ESD wrist strap before you install or remove the firewall card.

•Do not touch the components on the PCB.

The slots on the H3C S10500 switches are either horizontally oriented or vertically oriented. When

installing the card in a horizontal slot, make sure its PCB faces up. When installing the card in a vertical

slot, make sure its PCB faces left.

This section uses a vertically oriented card to describe the installation and removal procedures.

5.1 Installing the card

1. Remove the blank panel from the slot for the card at the front of the switch.

This manual uses slot 9 as an example.

2. Place the card vertically with the surface-mounted components facing left. Pull outward the ejector

levers and gently push the card in along the slot guide rails until the card is in close contact with

the backplane.

3. Push the ejector levers inward.

4. Tighten the captive screws with a Phillips screwdriver to secure the card in the slot.

Manual version: 6PW101-20170411 BOM: 3123A19Y

Figure 2 Installing an LSUM1FWCEAB0 firewall card

5.2 Removing the card

1. Use a Phillips screwdriver to loosen the captive screws at both sides of the card until all pressure

is released.

2. Pull the ejector levers at both sides of the card outward, and pull the card along the guide rails until

it completely comes out of the backplane.

3. Place the card on an anti-static workbench with the surface-mounted components up, or put it in an

anti-static bag.

4. If no new card is to be installed, install a filler panel to prevent dust and ensure good ventilation in

the switch.

6 Software upgrade

The LSUM1FWCEAB0 card has an independent operating system and CLI. To upgrade the card

software, you must access its CLI or Boot menu after logging in to the card through its console port or

management Ethernet port. For information about upgrading the LSUM1FWCEAB0 firewall card, see the

release notes.

Manual version: 6PW101-20170411 BOM: 3123A19Y

7 Obtaining documentation

To access the most up-to-date H3C product documentation on the H3C website at www.h3c.com.hk:

1. Go to http://www.h3c.com.hk/Technical_Documents.

2. Click Security Products, and then choose the desired product.
