H3C S12500R Series Manuale utente

Contents

1 Preparing for installation······························································· 1-1

Safety recommendations ·········································································································· 1-1

General safety recommendations ························································································ 1-1

Electricity safety ··············································································································· 1-1

Handling safety ················································································································ 1-1

ESD prevention················································································································ 1-2

Laser safety ···················································································································· 1-2

Examining the installation site···································································································· 1-2

Weight support ················································································································ 1-2

Temperature ··················································································································· 1-2

Humidity ························································································································· 1-3

Cleanliness ····················································································································· 1-3

EMI ······························································································································· 1-3

Grounding······················································································································· 1-4

Power ···························································································································· 1-4

Cooling ·························································································································· 1-4

Space ···························································································································· 1-5

Installation accessories······································································································ 1-5

1-1

1 Preparing for installation

H3C S12500R Ethernet Switch Router Series includes the following models:

•S12516R

•S12508R

•S12504R

Safety recommendations

To avoid possible bodily injury and equipment damage, read Compliance and Safety Manual

provided with the device and all safety recommendations in this chapter carefully before installation.

The recommendations do not cover every possible hazardous condition.

General safety recommendations

•Keep the device clean and dust-free.

•Do not place the device on a moist area, and avoid liquid flowing into the device.

•Make sure the ground is dry and flat and anti-slip measures are in place.

•Keep the device and installation tools away from walk areas.

•Do not wear loose clothing, jewelry (for example, necklace) or any other things that could get

caught in the device when you install and maintain the device.

Electricity safety

•Clear the work area of possible electricity hazards, such as ungrounded power extension

cables, missing safety grounds, and wet floors.

•Locate the emergency power-off switch in the room before installation so you can quickly shut

power off when an electrical accident occurs.

•Remove all external cables, including power cords, before moving the chassis.

•Do not work alone when the device has power.

•Before performing a task that is hazardous when power is present, make sure the device is

completely powered off.

Handling safety

CAUTION:

Do not hold the handle of a fan tray, a power module, or a card, or the air vents of the chassis to

move the device. Any attempt to move the device with these parts might cause equipment damage

and even bodily injury.

Remove power modules, cards, and all external cables, including the power cords, before moving

the chassis. As a best practice, use a mechanical lift, such as forklift truck, to move the chassis.

If no mechanical lift is used, follow these guidelines to move the chassis:

•Cooperate with a minimum of four people to move the chassis.

1-2

•Lift the chassis by using the chassis handles or by supporting the bottom from the two sides.

•Lift and put down the chassis slowly and never move suddenly.

ESD prevention

To prevent the electric component from being damaged by electrostatic discharge (ESD), follow

these guidelines:

•Ground the device reliably. For how to ground your device, see "Installing the device."

•Always wear an ESD wrist strap and make sure it is reliably grounded when installing FRUs.

For how to use an ESD wrist strap, see "Installing FRUs."

•Hold a PCB by its edges. Do not touch any electronic components or printed circuit.

•Put cards away in antistatic bags for future use.

Laser safety

WARNING!

Do not stare into any fiber port or view directly with non-attenuating optical instruments when the

device has power. The laser light emitted from the fiber port might hurt your eyes.

The device is a Class 1 laser product.

Examining the installation site

The device must be used indoors. To ensure correct operation and long lifespan of your device, the

installation site must meet the requirements in this section.

Weight support

Make sure the floor can support the total weight of the rack, chassis, cards, power modules, and all

other components. To mount the device in a rack, make sure the slide rails can support the total

weight of the device and its accessories (cards, power modules, and transceiver modules).

Additionally, the floor and slide rail loading plan must also consider system expansion, such as

adding more cards. For more information, see H3C S12500R Switch Router Series Hardware

Reference.

Temperature

CAUTION:

If condensation appears on the chassis when you move it to a high-temperature environment, dry

the chassis before powering it on to avoid short circuits.

To ensure correct operation of the device, make sure the room temperature meets the requirements

in Table 1-1.

Table 1-1 Temperature requirements

Temperature Range

Operating temperature 0°C to 40°C (32°F to 104°F)

1-3

Temperature Range

Storage temperature –40°C to +70°C (–40°F to +158°F)

Humidity

Maintain appropriate humidity in your equipment room, as described in Table 1-2.

•Lasting high relative humidity can cause poor insulation, electricity leakage, mechanical

property change of materials, and metal corrosion.

•Lasting low relative humidity can cause washer contraction and ESD and cause problems

including loose mounting screws and circuit failure.

Table 1-2 Humidity requirements

Humidity Range

Operating humidity 5% to 95%, noncondensing

Storage humidity 5% to 95%, noncondensing

Cleanliness

Dust buildup on the chassis might result in electrostatic adsorption, which causes poor contact of

metal components and contact points. In the worst case, electrostatic adsorption can cause

communication failure.

Table 1-3 Dust concentration limit in the equipment room

Substance Concentration limit (particles/m3)

Dust particles

≤3 x 104

(No visible dust on desk in three days)

NOTE:

Dust particle diameter ≥5 µm

The equipment room must also meet limits on salts, acids, and sulfides to eliminate corrosion and

premature aging of components, as shown in Table 1-4.

Table 1-4 Harmful gas limits in the equipment room

Gas Max. (mg/m3)

SO20.2

H2S 0.006

NH30.05

Cl20.01

EMI

All electromagnetic interference (EMI) sources, from outside or inside of the device and application

system, adversely affect the device in the following ways:

•A conduction pattern of capacitance coupling.

1-4

•Inductance coupling.

•Electromagnetic wave radiation.

•Common impedance (including the grounding system) coupling.

To prevent EMI, perform the following tasks:

•If AC power is used, use a single-phase three-wire power receptacle with protection earth (PE)

to filter interference from the power grid.

•Keep the device far away from radio transmitting stations, radar stations, and high-frequency

devices.

•Use electromagnetic shielding, for example, shielded interface cables, when necessary.

Grounding

Using a good grounding system to protect your device against lightning shocks, interferences, and

ESD is essential to the operating reliability of your device.

Make sure the equipment room grounding system has a resistance value less than 1 ohm.

For more information about grounding the device, see "Installing the device."

Power

Perform the following tasks to meet the power requirements:

1. Calculate the system power consumption.

The system power consumption varies by card type and density. For more information about

system power consumption calculation, see H3C S12500R Switch Router Series Hardware

Reference.

2. Identify the number of power modules.

The total maximum output power of all power modules must be higher than the system power

consumption. For more information about available power modules, see H3C S12500R Switch

Router Series Hardware Reference.

3. Verify that the power system at the installation site meets the requirements of the power

modules, including the input method and rated input voltage. For more information about power

module specifications, see H3C S12500R Switch Router Series Hardware Reference.

Cooling

Plan the installation site for adequate ventilation:

•Leave a minimum of 30 cm (11.81 in) of clearance at the inlet and outlet air vents.

•The rack for the device has a good cooling system.

•The installation site has a good cooling system.

•Verify that the airflow design of the chassis meets the airflow design of the installation site.

1-5

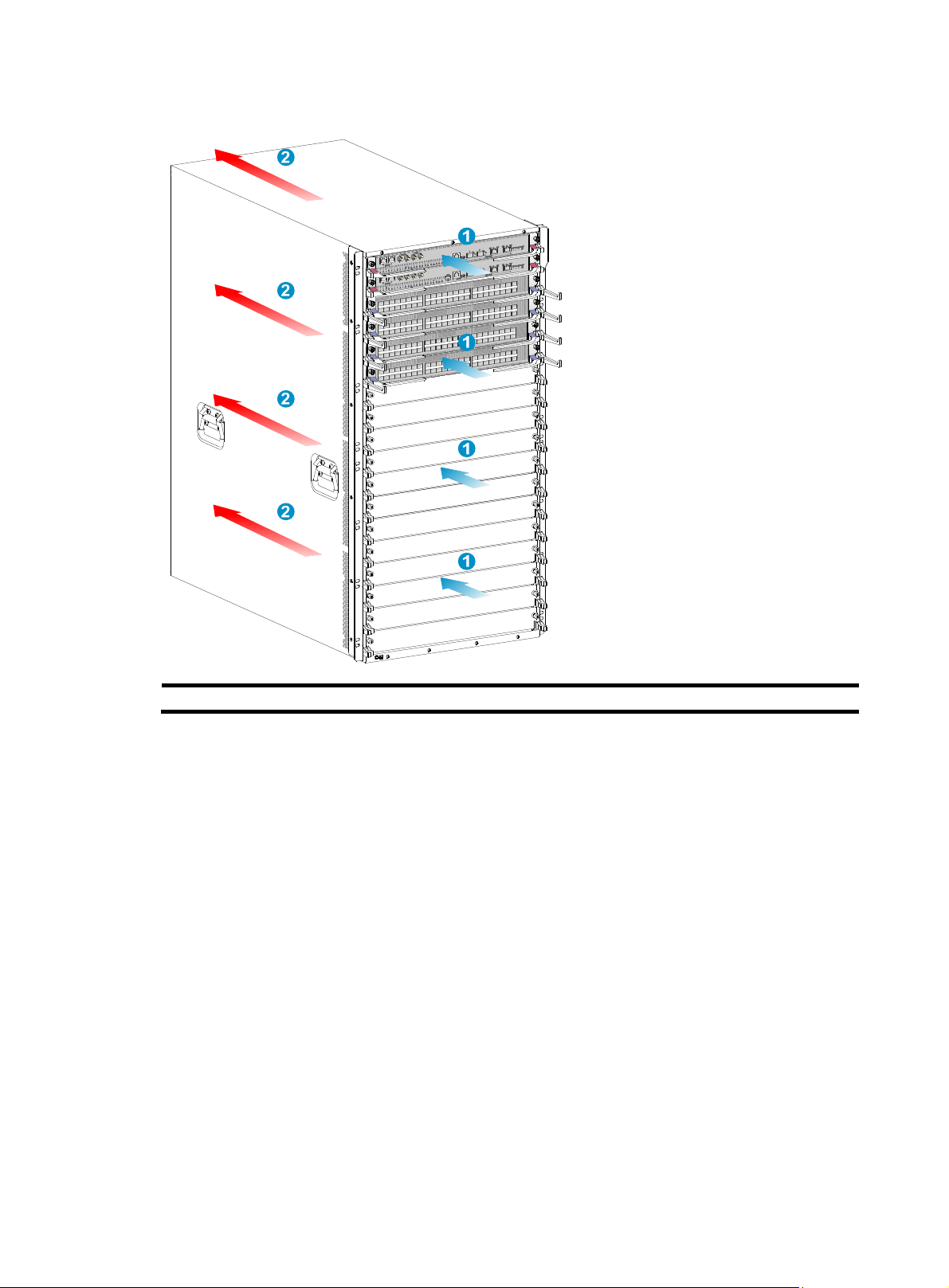

Figure 1-1 Airflow through the device (S12516R)

(1) Chassis air intake direction (2) Chassis air exhaust direction

Space

For easy installation and maintenance, follow these space requirements:

•Reserve a minimum of 1.2 m (3.94 ft) of clearance between the rack and walls or other devices.

•Make sure the rack has enough space to accommodate the device.

For information about device dimensions and rack requirements, see "Device dimensions and

rack requirements."

Installation accessories

Before installation, make sure you have all the required installation accessories.

1-6

Table 1-5 Installation accessories

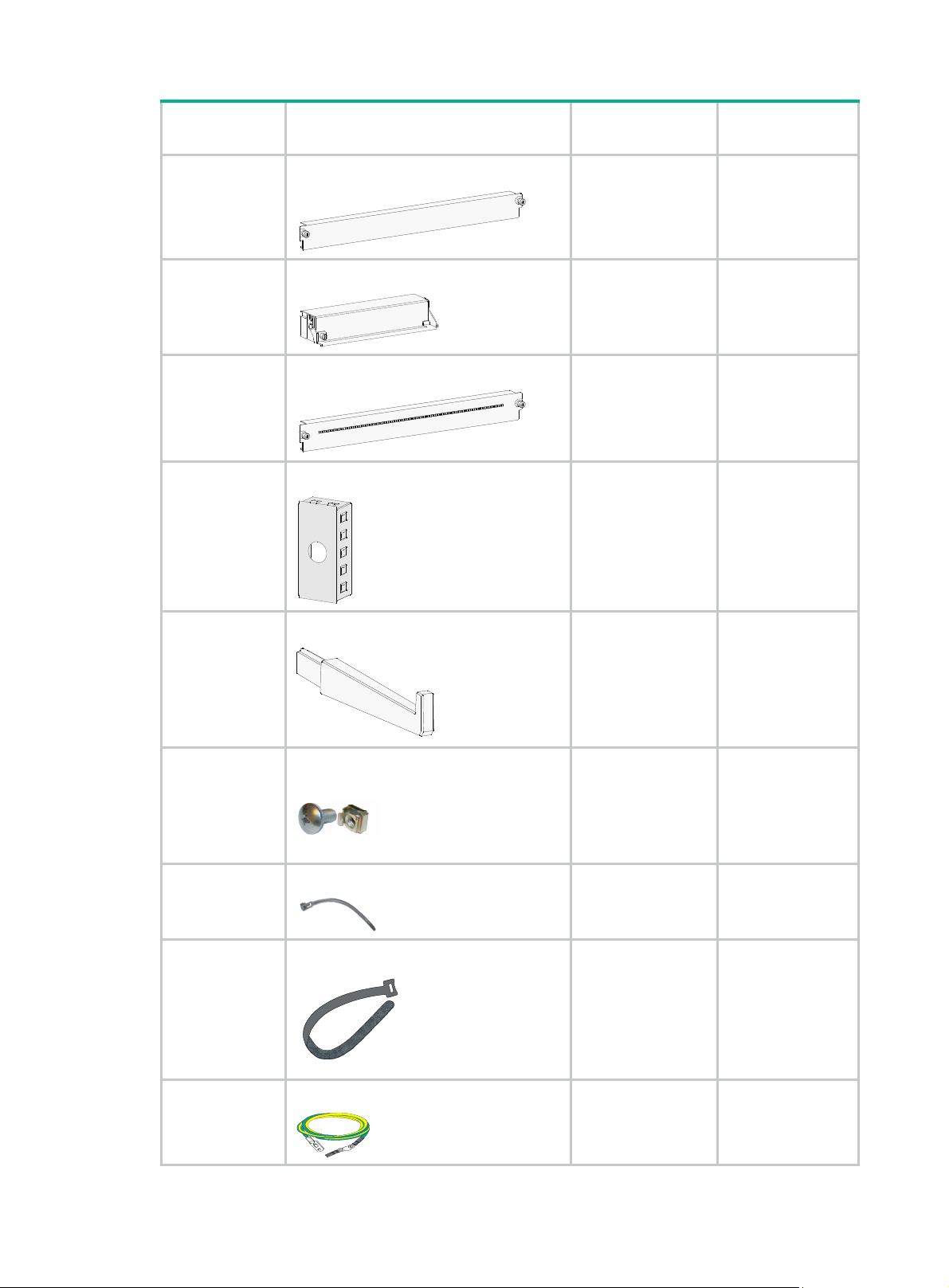

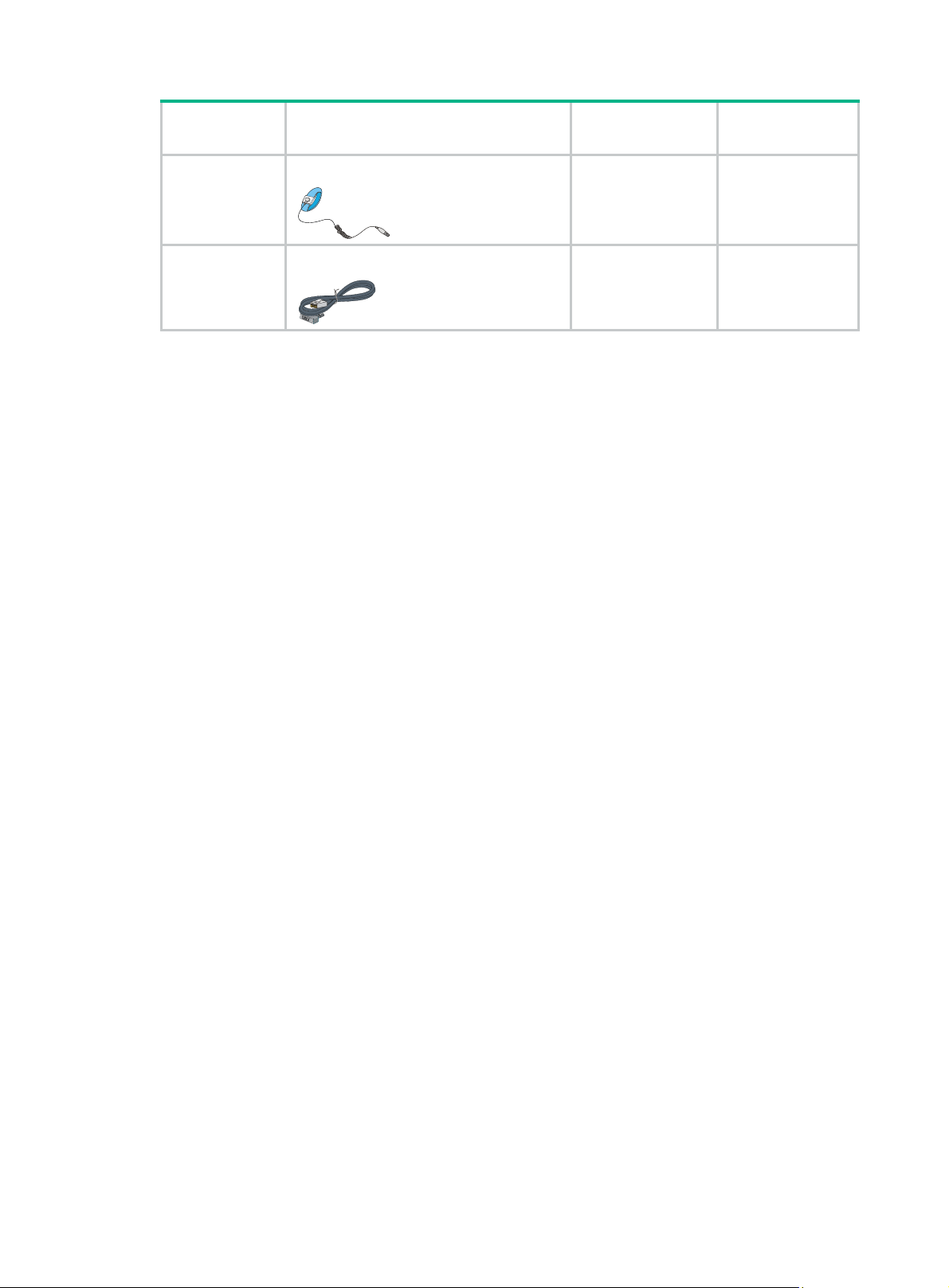

Product code Description Quantity Applicable

device models

2150A08S

S12516R mounting brackets

1 pair S12516R

2150A0AX

S12508R mounting brackets

1 pair S12508R

2150A0BW

S12504R mounting brackets

1 pair S12504R

1-7

Product code Description Quantity Applicable

device models

2113A0YW

S12500R MPU filler panel

•S12516R

•S12508R

2113A1EH

S12504R MPU filler panel

2 S12504R

2113A0YV

S12500R service module filler panel

•S12516R: 16

•S12508R: 8

•S12504R: 4

All S12500R

models

2114A09Q

S12500R power module filler panel

•S12516R: 16

•S12508R: 8

•S12504R: 4

All S12500R

models

2150A0AB

S12500R cable management bracket

•S12516R: 32

•S12508R: 16

•S12504R: 8

All S12500R

models

•26020141

•26020075

M6 screw and cage nut

•S12516R: 30

kits

•S12508R: 14

kits

•S12504R: 12

kits

All S12500R

models

2110A042

Releasable cable tie

1 All S12500R

models

2110A05W

Velcro strap

1 All S12500R

models

0404A0UU

Grounding cable

1 All S12500R

models



1-8

Product code Description Quantity Applicable

device models

28050001

ESD wrist strap

1 All S12500R

models

04042967

Console cable

1 All S12500R

models
