Haas+Sohn HSP 6 Premium 521.08 Documento tecnico

HSP 6 Premium 521.08, 539.08

Equipment sheet

Pellet stove GB

0552108001403c

Equipment sheet

HSP 6 Premium 521.08, 539.08

Notes in the text

Of utmost importance there are the notes entitled WARNING. The notes entitled WARNING advise you on

serious danger of damage to the heating device or of an injury.

The note entitled Notice advises you on possible damage to your heating device.

The note entitled Important calls your attention to the information important for the operation of your heating

device.

The note itself calls your attention to the information important for the operation of your heating device in

general.

Contents

1. Technical data.............................................................................................................................. 1

2. Dimensions................................................................................................................................... 2

2.1. Dimensions HSP 6 Premium 521.08 ...................................................................................... 2

2.2. Dimensions HSP 6 Premium 539.08 ...................................................................................... 2

3. Cleaning work .............................................................................................................................. 3

3.1. Cleaning the surface ................................................................................................................. 3

3.2. Cleaning the glass panel .......................................................................................................... 3

3.3. Clean combustion chamber “function instruction” Error F040............................................. 3

3.4. Cleaning the combustion pot - weekly.................................................................................... 3

4. Maintenance work....................................................................................................................... 5

4.1. Cleaning the flue gas passes ................................................................................................... 5

4.2. Cleaning the pellet container - annual maintenance ............................................................ 8

5. Replacement parts list............................................................................................................... 9

5.1. Replacement parts list HSP 6 Premium 521.08, 539.08 (without trim parts).................... 9

5.2. Detail A1.................................................................................................................................... 11

5.3. Replacement parts list HSP 6 Premium 521.08 .................................................................. 12

5.4. Replacement parts list HSP 6 Premium 539.08 .................................................................. 13

6. Circuit diagram .......................................................................................................................... 14

Technical data

1. Technical data

HSP 6 Premium

521.08

HSP 6 Premium

539.08

Heat output range: 2,4 – 8,3 kW 2,4 – 8,3 kW

Nominal heat output: 8,0 kW 8,0 kW

Height: 1011 mm 1203 mm

Width: 500 mm 500 mm

Depth: 504 mm 504 mm

Weight: 116 kg 124 kg

Diameter of flue elbow: 80 mm 80 mm

Flue gas temperature: 206 °C 206 °C

Testing transport pressure at nominal output: 11 Pa 11 Pa

Testing transport pressure at partial output: 5 Pa 5 Pa

Flue gas flow rate in g/s 5,6 g/s 5,6 g/s

CO level in flue gas (%) (min./max.) 0,001/0,023 % 0,001/0,023 %

Efficiency: 90/95 % 90/95 %

CO level in flue gas: <15 mg/Nm³ <15 mg/Nm³

NOx level in flue gas: 143 mg/Nm³ 143 mg/Nm³

OGC level in flue gas: <5 mg/Nm³ <5 mg/Nm³

Proportion of dust in flue gas: 9 mg/Nm³ 9 mg/Nm³

Contents of storage container (pellet tank): about 17 kg about 32 kg

Duration of burn with one charge (min./max.): about 10 h/30 h about 20 h/60 h

Permitted fuel: Low-dust wood pellets diameter: 6 mm diameter: 6 mm

to Ö-Norm M 7135, DIN plus, EN plus-A1 length: max. 30 mm length: max. 30 mm

Room heating capacity to Ö-Norm M 7521: max. 230 m³ max. 230 m³

Room heating capacity to DIN 18893, constant heating: 250m³/145m³/98m³ 250m³/145m³/98m³

Room heating capacity to DIN 18893, timed heating: 165m³/95m³/65m³ 165m³/95m³/65m³

Electricity supply: 230 V (50 Hz) 230 V (50 Hz)

Electricity supply input:

in normal operation: max. 50 W max. 50 W

Electric ignition (for max. 15 minutes on ignition): max. 380 W max. 380 W

Electronics fuses: (F3) T 0,315 A, 250 V T 0,315 A, 250 V

Fuses for the ignition, screw conveyor motor, induced

draught, (F1) T 3,15 A, 250 V T 3,15 A, 250 V

Safety distances

Minimal distances from flammable materials:

side: 15 cm

rear: 10 cm

front (radiation area): 80 cm

Dimensions

2. Dimensions

2.1. Dimensions HSP 6 Premium 521.08

2.2. Dimensions HSP 6 Premium 539.08

Cleaning work

3. Cleaning work

WARNING

Before starting any cleaning work, the stove must be cool down!

Once the cleaning work is completed, the correct operating status of the device must be re-

established: Put the combustion pot in correctly, close the combustion chamber door.

3.1. Cleaning the surface

Dirt on the upper surface of the stove may be cleaned off with a damp cloth or if necessary with mild soapy

water. You are advised against using corrosive cleaning agents and solvents since these might damage the

surfaces.

3.2. Cleaning the glass panel

To clean the viewing panel, you must first open the stove door. Dirt on the glass panel can be removed with a

glass cleaner or with a damp sponge on which you have sprinkled some of the wood ash present.

(Environmentally friendly). Cleaning the glass panel may only be done with a cooled down stove in the OFF

operating mode.

3.3. Clean combustion chamber “function instruction” Error

F040

• The whole combustion space must be cleaned after 30-hours operation at the latest, or once a week.

• The requirement to clean the fire-box (flickering of the display) appears during heating, in case that the

cleaning interval has elapsed.

• After the fire-box has been cleaned, the error message "Clean the fire-box" will be confirmed automatically.

The condition for automatic confirmation of this error message is that the fire-box door is opened for more

than 60 seconds. This time is necessary for careful cleaning of the fore-box, including the burner.

• This reset of the operating hours counter occurs even if the cleaning of the combustion chamber is

performed before the 30 operating hours have run provided that the stove is in “Off” operating status and the

door is open for longer than 60 seconds during cleaning.

3.4. Cleaning the combustion pot - weekly

During operation, deposits may form in the combustion pot. How quickly the combustion pot becomes dirty

depends solely on fuel quality. The deposits or encrustations must be removed from time to time.

Cleaning work

WARNING

If this is not done, the clinker will continue to accumulate. Then the device will no longer be able to ignite

properly. Pellets can pile up in the combustion pot. In extreme cases, this can reach all the way back to the

pellet chute. Backfire in the pellet container and smouldering in the pellet tank might possibly result.

This will destroy your device and is not covered in your guarantee.

WARNING

Cleaning the combustion pot may only be done with a cooled down stove in “OFF” operating mode.

Otherwise there is a risk of burns!

• Take out the burner bowl from the stove.

• Remove the remains of ashes and slag.

• After the cleaning, mount the burner bowl back to its proper position on the burner rest.

• Re-check the proper seating of the burner bowl, in order to avoid any lack of tightness.

Maintenance work

4. Maintenance work

WARNING

Before starting any cleaning work, the stove must be cool down! The mains plug must be pulled out of

the power supply socket (always in advance)!

The frequency of maintenance in turn depends to a large extent on the pellet quality (ash content). Quality

pellets have a low ash content of about 0.2-0.3%. However, if the ash content is higher (0.5% and over), the

interval from maintenance to maintenance is reduced and the accumulation of ash increases by 2 or 3 times.

WARNING

Devices that are not maintained in accordance with our specifications must not be operated. Failure to

observe this point will invalidate all guarantee claims.

4.1. Cleaning the flue gas passes

CAUTION

Check and clean the flue-gas ways, exhaust (flue-gas) fan and flue-gas ducts at the latest after 1000 kg of

pellets have been consumed. Clean with a brush or an ash extractor.

Please perform the cleaning in two steps:

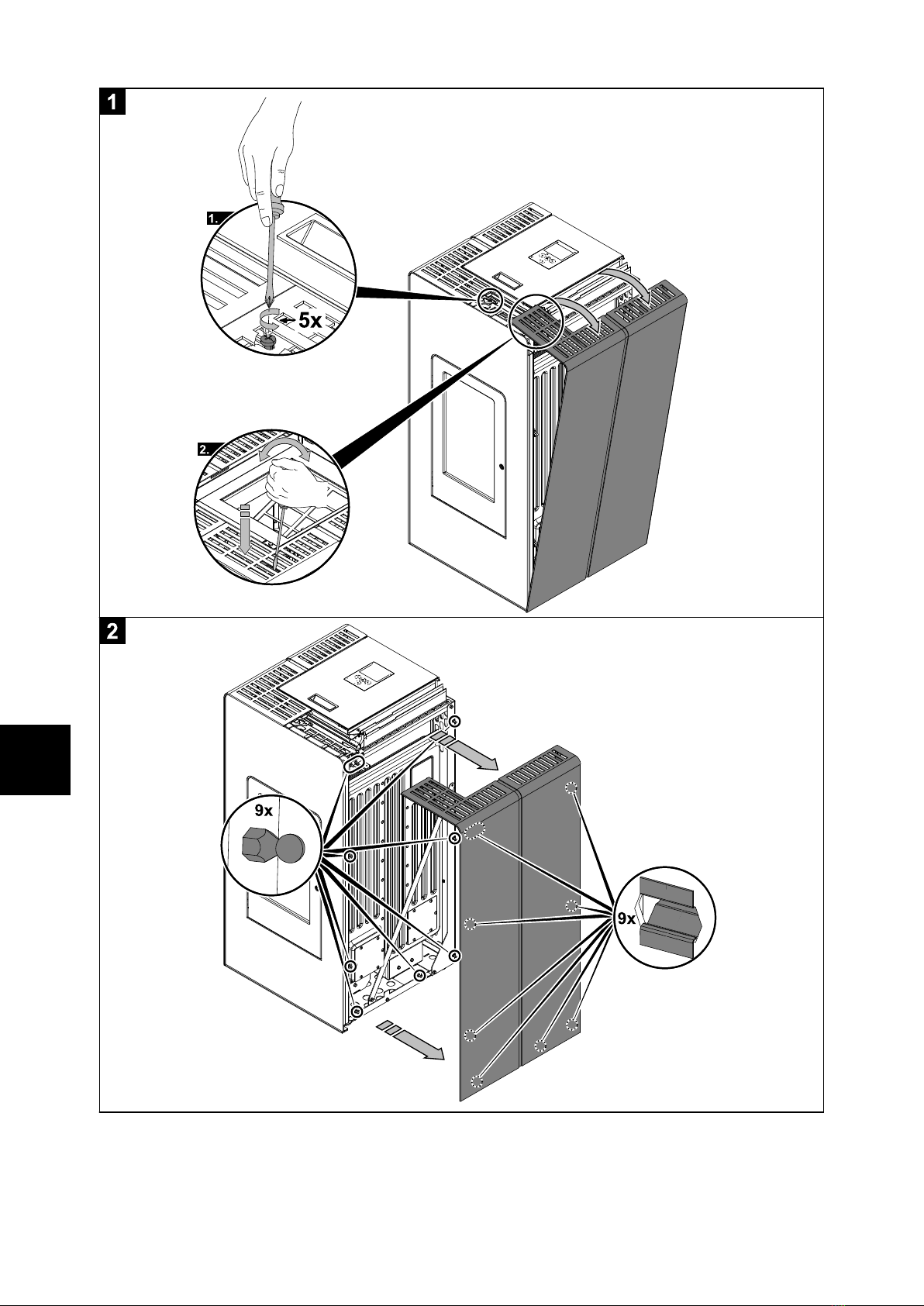

Figure 1: Removing the flue baffle

Maintenance work

Figure 2a: Removing the side wall
