Haier AE092FCAJA, AE182FCAJA Manuale utente

AE182FCBJA

0010572352

Household MRV

Ceiling Concealed Type Room Air Conditioner

CEILING CONCEALED TYPE AIR CONDITIONER INDOOR UNIT

AE182FCBJA

AE092FCAJA

AE182FCAJA

Health and power failure compensation function

15-16

17Fault occurs

Installation precautions 19-20

21-33

21*/15.5*

AE092FCBJA,AE182FCBJA

21*/18*

AE092FCAJA,AE182FCAJA

R407C:AE092FCBJA AE182FCBJA

SWING

NEWFAN

SET

LOCK

RESET

12 **

HEALTH

FANSPEED

TIMP

MODE SLEEP

CLOCK

TIMER

OFF

AUTO

SET

ROOM

ON OFF

MODE FAN

TEMP

CLOCK SET

TIMER SLEEP

RESET

FILTERRESET

ON/OFF

HEALTH

R22: AE092FCAJA AE182FCAJA

SWING

1.In outdoor unit without oxygen bar function or non-negative ion air conditioner, there

is no health function mentioned in the third item function.

2.The "Swing" function are not available on the models mentioned in this manual;

3.Actual products may vary slightly from the ones show in the manual, due to the continuous

development.

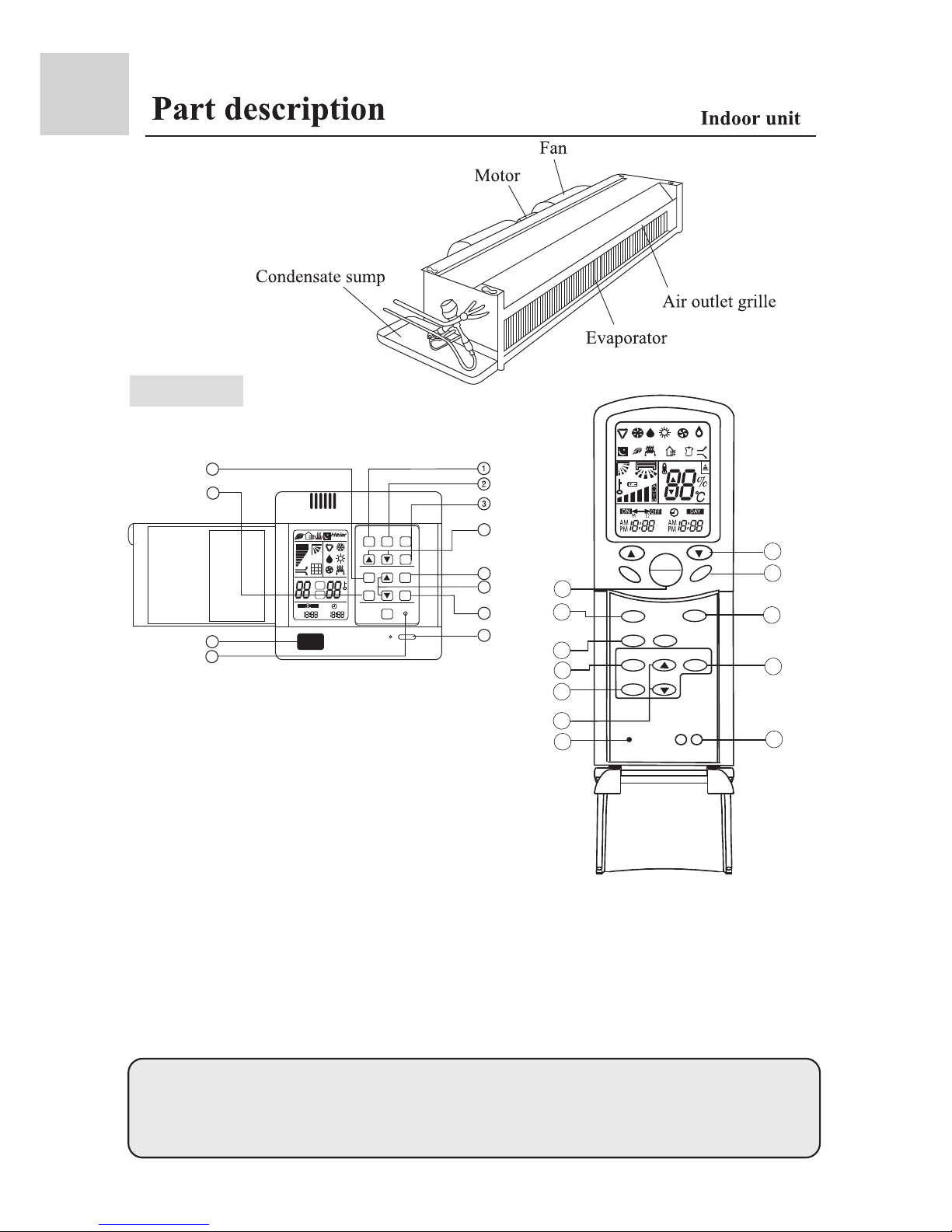

Buttons of the wire controller.

Operation

5.CLOCK

Used to set correct time.

6.TIMER

Used to select

TIMER ON,

TIMER OFF,

TIMER ON/OFF.

8.TIME

Used to set clock and

timer setting.

Used for unit start and

stop.

1.MODE

Used to select AUTO

RUN, COOL, DRY,

HEAT and FAN

operation.

2.FAN SPEED

Used to select fan

speed: LO, MED, HI,

AUTO

7.SET

Used to confirm Timer

and Clock settings.

9.SLEEP

Used to select sleep

mode.

3.HEALTH

Use to control oxygen-make

function and negative ion function.

(If both of these functions exist,

use ìhealth buttonî to control both

of them)

Note:

4.TEMP

Used to select your

desired temp.

10.Power ON/OFF

eceiver

the signal from

remote controller.

11.

Receiver

window

12.RESET

Press with a pointed

article to reset value if

abnormal operation

occurs.

13.LOCK

Used to lock press

button,Press LOCK

button again to cancel

lock function.

Buttons of the remote controller.

AM PM AM PM

AUTO

SET

ROOM

ON OFF

MODE FAN

TEMP

CLOCK SET

TIMER SLEEP

RESET

FILTERRESET

ON/OFF

HEALTH

Operation

1.When using remote controller, first point it to the receiving

window of wire controller, and then operate remote controller.

A ìtickî tone will be uttered to indicate a right acceptance.

2.All the buttons except the sleeping button is no effective

after wire controller received lock signal from remote controller.

AUTO

SET

ROOM

ON OFF

MODE FAN

TEMP

CLOCK SET

TIMER SLEEP

RESET

FILTERRESET

ON/OFF

HEALTH

SWING

AM PM AM PM

Display of the wire controller and remote controller.

Clock set

When unit is started for the first time, clock should be adjusted as follows:

Press CLOCK button, "AM"or "PM" flashes.

Press or to set correct time. Each press will increase or decrease 1min. If the

button is kept depressed, time will change quickly.

After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock

starts working.

3.DRY

2.COOL

1.AUTO

6.SLEEP

10.CLOCK

12.TEMP.

4.HEAT

13.LOCK.

11.OPERATING LAMP

5.FAN OPERATION

8.TIMER ON

9.TIMER OFF

7.FNA SPEED

Note:The above information is the explanation ofthe displayed information therefore

varieswith those displayed in actual operation.

AM PM AM PM

SWING

NEWFAN

SET

LOCK

RESET

HEALTH

FANSPEED

TIMP

MODE SLEEP

CLOCK

TIMER

OFF

Remote controller

(Operation of remote controller)

NOTE:The wired remote controller is supplied by factory along with the

indoor unit,but the remote controller should be purchased separately.

Battery loading

Batteries are fitted as follows:

Make sure that the remote controller is used within 7 meters from receiver window

of the wire controller and there are no obstructions in between.

The remote controller or wire controller should be handled with care.

When operating the remote controller in an area where electronically controlled lights

are installed or wireless handsets are used, move closer to the indoor unit as the function

of the remote controller might be affected by signals from this equipment.

Note:

It is recommended that the batteries be removed from the compartment if the remote

controller is not used for an extended period.

The remote controller is programmed for automatic test of operation mode after the

batteries are replaced. When the test is conducted, all icons will appear on the screen

and then disappear if the batteries are properly fitted.

Loading the battery

Ensure that batteries are correctly placed in the compartment as required for positive and

negative terminals.

Replacing the battery compartment lid

The battery compartment lid is reinstalled in the reverse sequence.

Display review

Press the button to see if batteries are properly fitted. If no display appears, refit the batteries.

Remove the battery compartment lid

Slightly press and disengage the battery compartment lid marked with ì î and then hold

the remote controller by the upper section and then remove the battery compartment lid by

pressing in the direction of the arrow as shown in the figure above.

Caution:

If the remote controller does not operate as designed after fitting new batteries of the same

type, press the Reset button (marked ) with a pointed article.

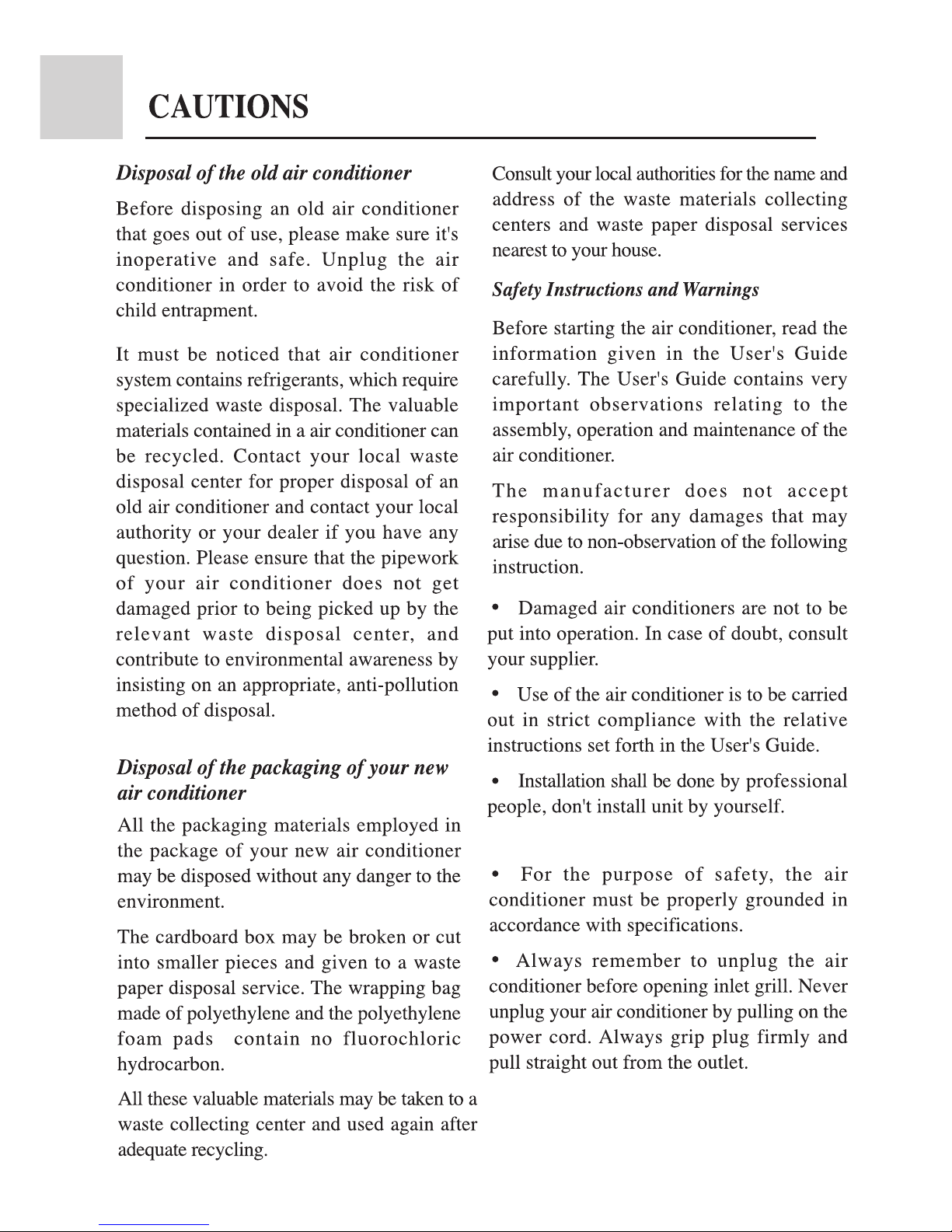

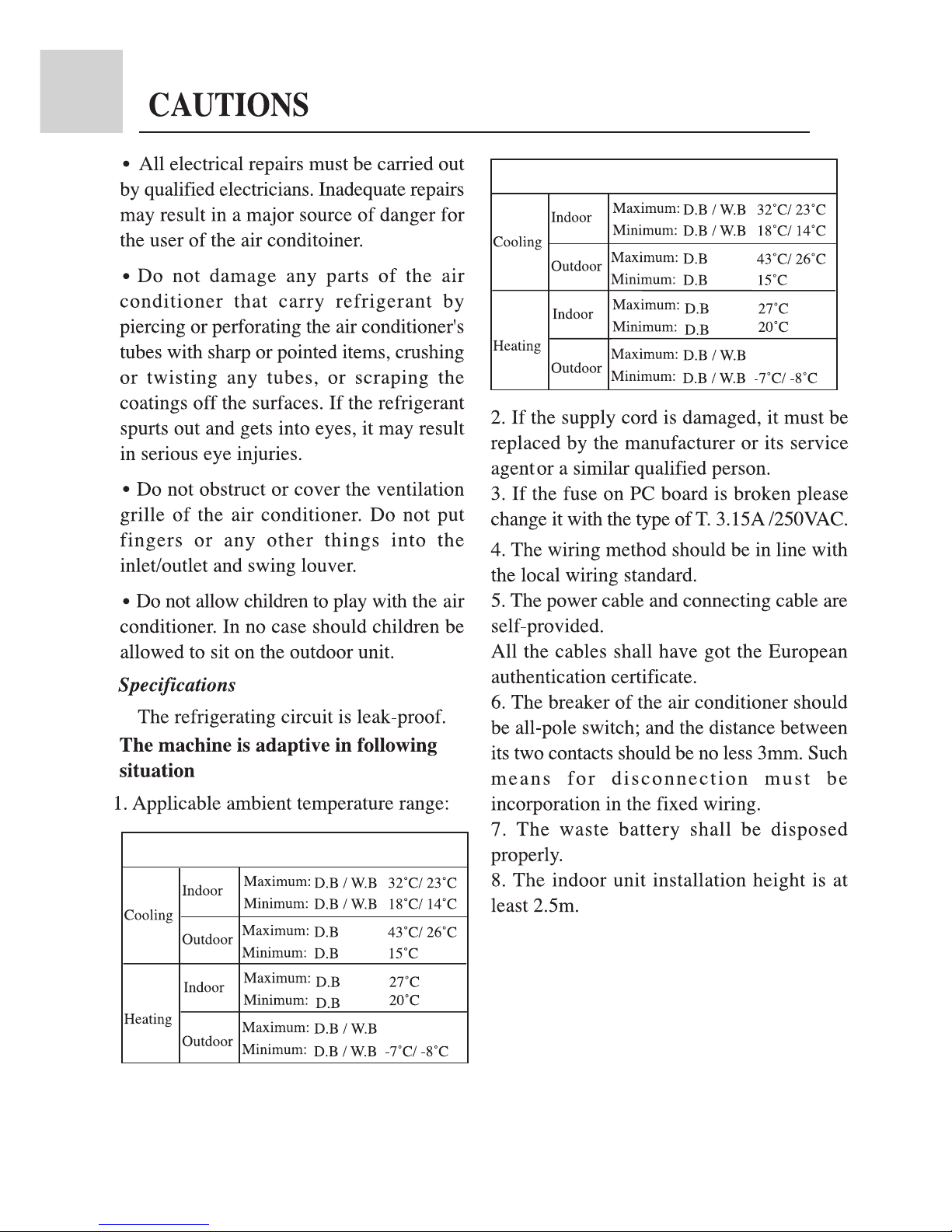

Important Points of Safety

The following four important points of safety and suggestions should be paid great attention:

Warning: Misuse may cause fatal result such as death or serious injury etc.

Attention: Misuse may cause human injury or damage of machine, in some case

fatal results.

: Content marked with this ìforbiddenî sign should be absolutely forbid-

den, otherwise may cause damage of machine and human injury of the

user.

: Content marked with this ìcompulsoryî sign should be executed comp-

ulsively, otherwise may cause damage of machine and human injury of

the user.

Comply with the following important points of safety.

Put these important points of attention and suggestions nearby and convenient for reference in need.

Hand over this instruction manual to new user if you resell this machine.

Warning

Warning for installation

l Entrusted Installation

Installation of the machine should

be entrusted to certified person of

after service. Unauthorized install-

ation may cause water leakage,

electric shock or fire hazard for

improper operation.

l To prevent leakage of refrigerant,

let certified person of after service

do it.

Leakage of refrigerant over certain

consistence may result in shortage

of oxygen. Enough precautions

MUST be done to avoid oxygen

shortage in case of refrigerant lea-

king if the room where the air-

conditioner is installed is small.

l The power supply must be fitted with

earth line to ensure valid earthing of

the air-conditioner. No or incomplete

earthing connection may cause the

risk of electric shock.

l Test run

After indoor units are installed,all

cassettes hinded models should be

tested.when the units are confirmed

to be normal,other fitments can be

installed. !

Important Points of Safety

Warning

l Avoid your body being blown

directly by cold wind for long

period, otherwise your health

may be affected.

l Donít extend your fingers or

any other article into the inlet

or outlet during operation of

the machine for touching re-

volving fans may cause human

injury or damage of machine.

l If something abnormal (e.g.: burnt

smell etc.) occurs, stop running the

machine, shut down the manual

power switch and contact after

service. Continuous operation in

disorder may cause fire hazard or

electric shock etc.

Warning for use Warning for move and repair

l When you have to disassemble

and reinstall the machine, entrust

it to after service. Improper inst-

allation may cause fire hazard,

electric shock or damage of ma-

chine.

l Unauthorized alteration or repair

work is strictly forbidden. Impr-

oper alteration or maintenance

may cause fire hazard, electric

shock or water leakage. Repair

work should be entrusted to cert-

ified person of after service.

Attention

Attention points for installation

l Ensure the drainage hose work

normally during installation.

Improper installation of drainage

can cause water leakage and

damp articles.

l DO NOT install the machine in

place where flammable gas

releases easily to avoid fire

hazard.

l Ensure electric leakage breaker

being installed. Electric leakage

breaker MUST be installed,

otherwise electric shock may be

caused.

l If the power supply cord is

damaged, call a certified

electrician of the manufacturer

or other maintenance department

to replace it.

! !

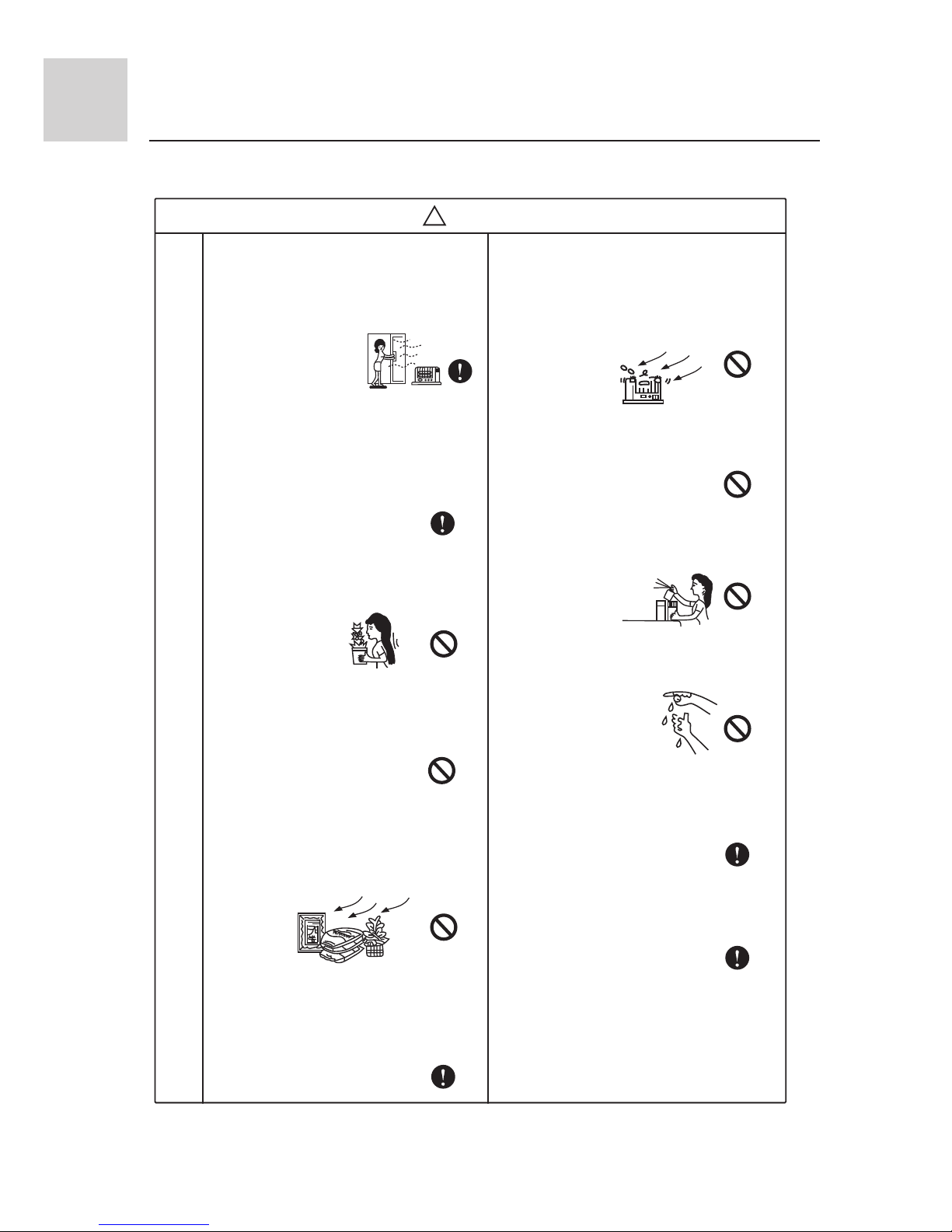

Important Points of Safety

Attention

Attention points for use

* Ensure ventilation of the room

if the machine is used with

burning facilities. Deficient

ventilation can cause oxygen

shortage.

* Check whether installation

bench of the machine is

damaged after a long period

of use. Machine on damaged

bench may fall down and cause

human injury or other damage.

* In place where winds produced

by the machine can reach, donít

lay any animals or plants which

may be hurt otherwise.

* Donít put vases containing water

or other else on the unit assembly.

Otherwise, the machine may be

immersed internally and result in

bad electric insulation causing

electric shock.

* The is machine CANNOT be

used for the purpose of prese-

rving food, animals, plants,

precision instruments and

artwork etc., which may be

destroyed otherwise.

* DONíT replace fuse with ma-

terial other than fuse of proper

capacity. Replacing fuse with

metal wire or copper etc. can

cause fire hazard or other faults.

* DONíT lay any burning facilities

in place where winds produced by

the machine can reach. Incomplete

combustion of burning facility may

be caused otherwise.

* DONíT clean the machine with

water. Electric shock may occur

otherwise.

* DONíT put flammable spray

articles nearby or spray them to

the machine. Fire hazard may

occur otherwise.

* DONíT operate switch with wet

hand. Electric shock may occur

otherwise.

* Stop operation and shut down

manual power switch before

cleaning and maintenance.

* The power supply MUST be of

rated voltage and connected with

special electrical supply circuit.

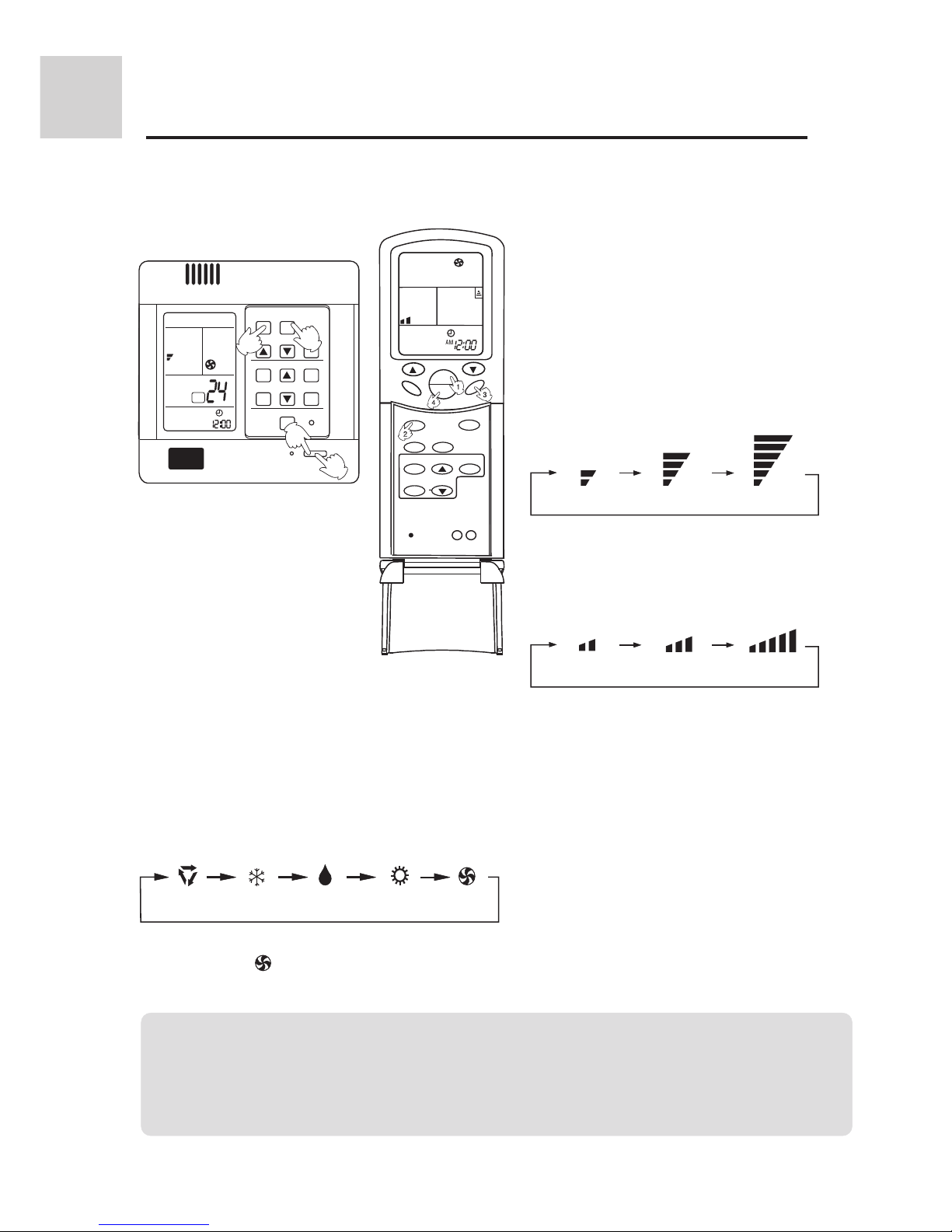

Operating instructions

Fan operation

Enjoy yourself by just a

gentle press.

(1) Unit start

(2) Select operation mode

(3) Fan

Press ON/OFF button, unit starts.

Previous operation status appears on display.

(Not Timer setting)

Power indicator lights up.

Press MODE button. For each press, operation

mode changes as follows:

Unit will run in selected mode.

stop display at " " FAN.

Press wire controller FAN button. For

each press,fan speed changes as

follows:

Wire controller can memorize settings in each operation mode. To run it next time just select

the operation mode and it will start with the previous setting.

No reselecting is needed.(TIMER ON/OFF needs reselecting)

In FAN mode, temp. can't be set.

Hints

AUTO COOL DRY FAN

The air conditioner has the function of POWER

FAILURE RESUME.

(4) Unit stop

Press ON/OFF button.

Only time and room temp remains on

LCD.All indicators go out.

HEAT

LOW MID HIGH

MODE FAN

HEALTH

TEMP

CLOCK SET

TIMER SLEEP

RESET

FILTERRESET

ON/OFF 1

ROOM

Press remote controller FAN button.

For each press,fan speed changes as

follows:

Unit will run at selected fan speed.

LOW MID HIGH

SWING

NEWFAN

SET

LOCK

RESET

HEALTH

FAN

TIMP

MODE SLEEP

CLOCK

TIMER

ONOFF

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Haier Condizionatore d'aria

Haier

Haier HPU-18H03 Manuale utente

Haier

Haier AD242ALEAA Istruzioni per l'installazione e il funzionamento

Haier

Haier HWR05XCJ Manuale utente

Haier

Haier HW-07LN03 Manuale utente

Haier

Haier HSU30HEA03/R2 Manuale utente

Haier

Haier HSU-10VNJ17 Manuale utente

Haier

Haier HSU-103C01 Manuale utente

Haier

Haier HSU-22LEA03 Manuale utente

Haier

Haier HWR05XCL Istruzioni per il montaggio

Haier

Haier CPR10XC6 - Commercial Cool 10,000 BTU Portable Air... Manuale utente

Haier

Haier Smart PowerABH071H1ERG Scheda tecnica

Haier

Haier AS072AIAAA Manuale utente

Haier

Haier HSU-32LEA13-W Manuale utente

Haier

Haier HPU-24FSG03T Istruzioni per l'installazione e il funzionamento

Haier

Haier HSU-12RHE03 Manuale utente

Haier

Haier HSU-07HEA03 - annexe 1 Manuale utente

Haier

Haier HPAC90E Manuale utente

Haier

Haier HSU-12HR03 Manuale utente

Haier

Haier HW-18EM13 Manuale utente

Haier

Haier HSU-09RUG03 Manuale utente

Haier

Haier 1U25YEEFRA Manuale utente

Haier

Haier 2U40S2SM1FA Manuale utente

Haier

Haier H2SM-(9+12)HV03/R2 Manuale utente

Haier

Haier AS12SH1ERA Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
