Haier AU092ACBHA Manuale utente

FLOOR UNIT

OPERATION MANUAL

Please read this operation manual

before using the air conditioner.

AZ122AOBHA

AU122ADBHA

AZ092AOBHA

AU092ACBHA

(HFU-12H03(B)/R1)

(HFU-09H03(B)/R1)

AZ142AOBHA

AU142ADBHA

(HFU-14H03(B)/R1)

E

2

Do not obstruct or cover the ventilation

grille of the air conditioner. Do not put

fingers or any other things into the

inlet/outlet and swing louver.

Do not allow children to play with the air

conditioner. In no case should children be

allowed to sit on the outdoor unit.

Specifications

The refrigerating circuit is leak-proof.

1. Applicable ambient temperature range:

2. If the power supply cord is damaged, it

must be replaced by the manufacturer

or its service agent or a similar qualified

person.

3. If the fuse of indoor unit on PC board is

broken,please change it with the type of

T. 3.15A/ 250V. If the fuse of outdoor unit

is broken, change it with the type of

T.25A/250V.

4. The wiring method should be in line with

the local wiring standard.

5. After installation, the power plug should

be easily reached.

6. The waste battery should be disposed

properly.

7. The appliance is not intended for use by

young children or infirm persons without

supervision.

8. Young children should be supervised to

ensure that they do not play with the

applience.

9. A breaker should be used in the circuits,

which should be all-pole cutoff and the

distance between its two contacts should

be not at least 3mm .

10.Please employ the proper power plug,

which fit into the power supply cord.

11.The power plug must have acquired the

local attestation.

The machine is adaptive in following

situation

Cooling

Heating

Indoor

Indoor

Outdoor

Outdoor

Maximum: D.B/W.B 32OC / 23OC

Minimum: D.B/W.B 18OC / 14OC

Maximum: D.B/W.B 43OC / 26OC

Minimum: D.B 18OC

Maximum: D.B 27OC

Minimum: D.B 15OC

Maximum: D.B/W.B 24OC / 18OC

Minimum: D.B/W.B -15

OC

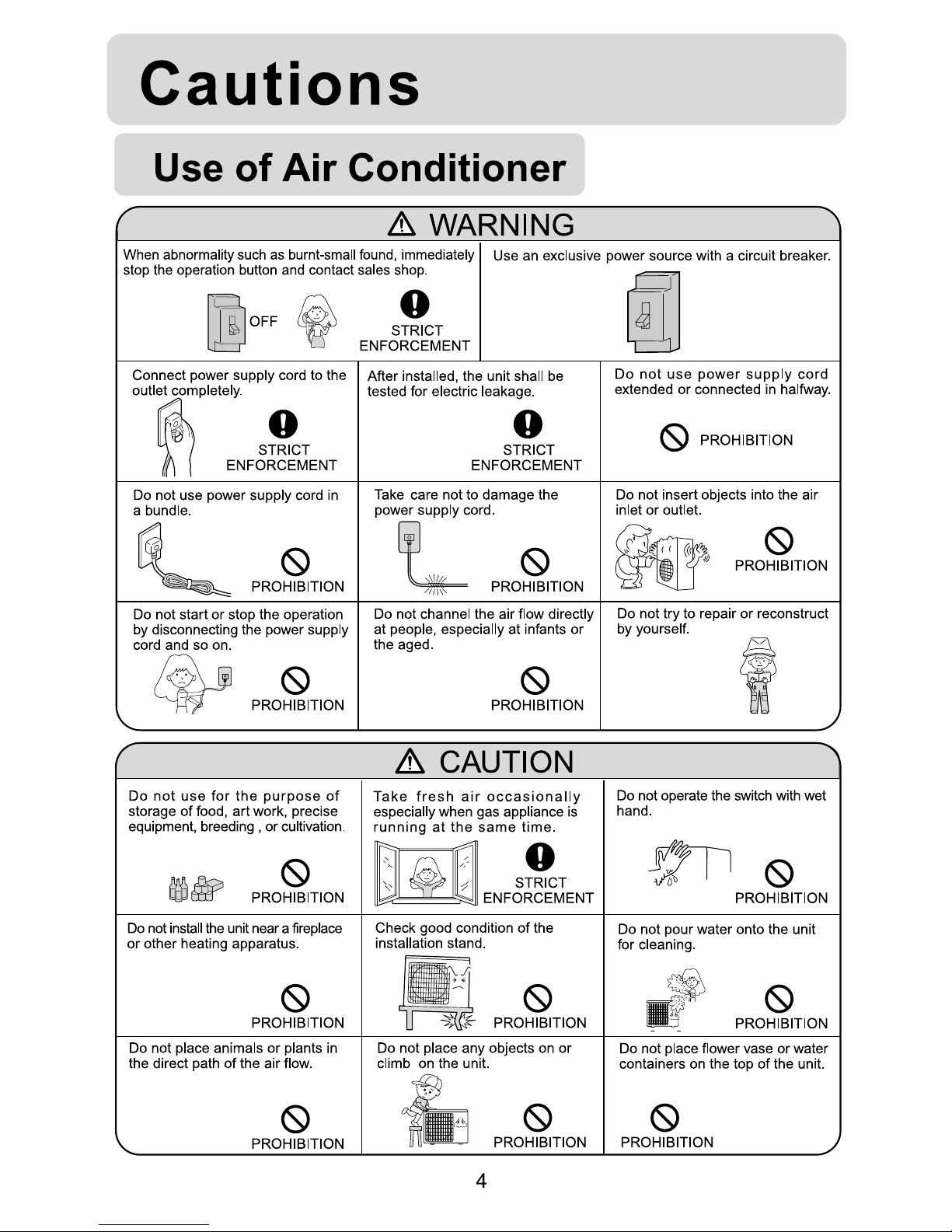

Cautions

5

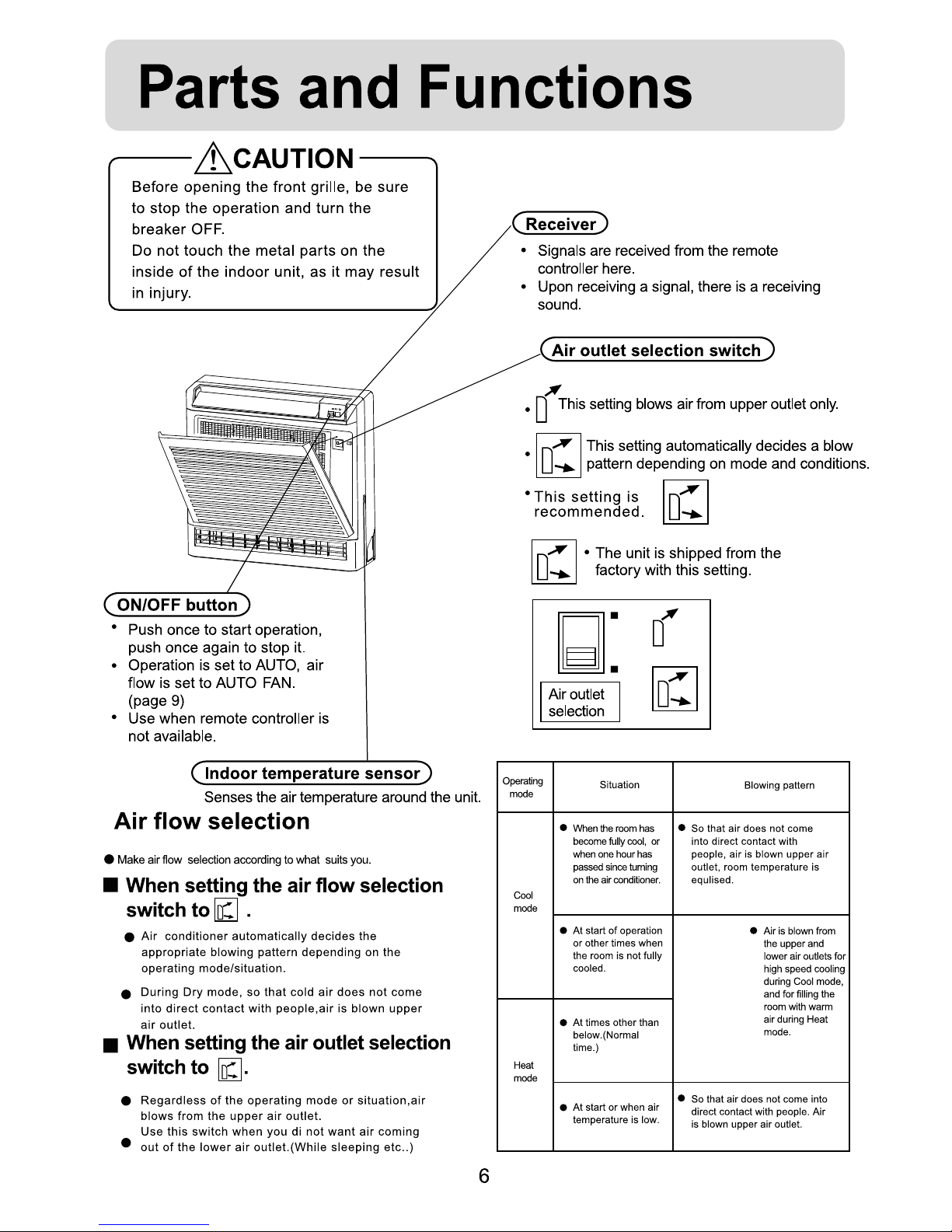

Parts and Functions

1

3

4

5

2

Outdoor unit

Indoor unit 1.OUTLET

2.CONTROL PANEL

3.INLET

4.FILTER ( inside )

5.OUTLET

HFU-09H03(B)/R1

HFU-12H03(B)/R1

HFU-14H03(B)/R1

Questo manuale è adatto per i seguenti modelli
