Haier ESA3247 Manuale utente

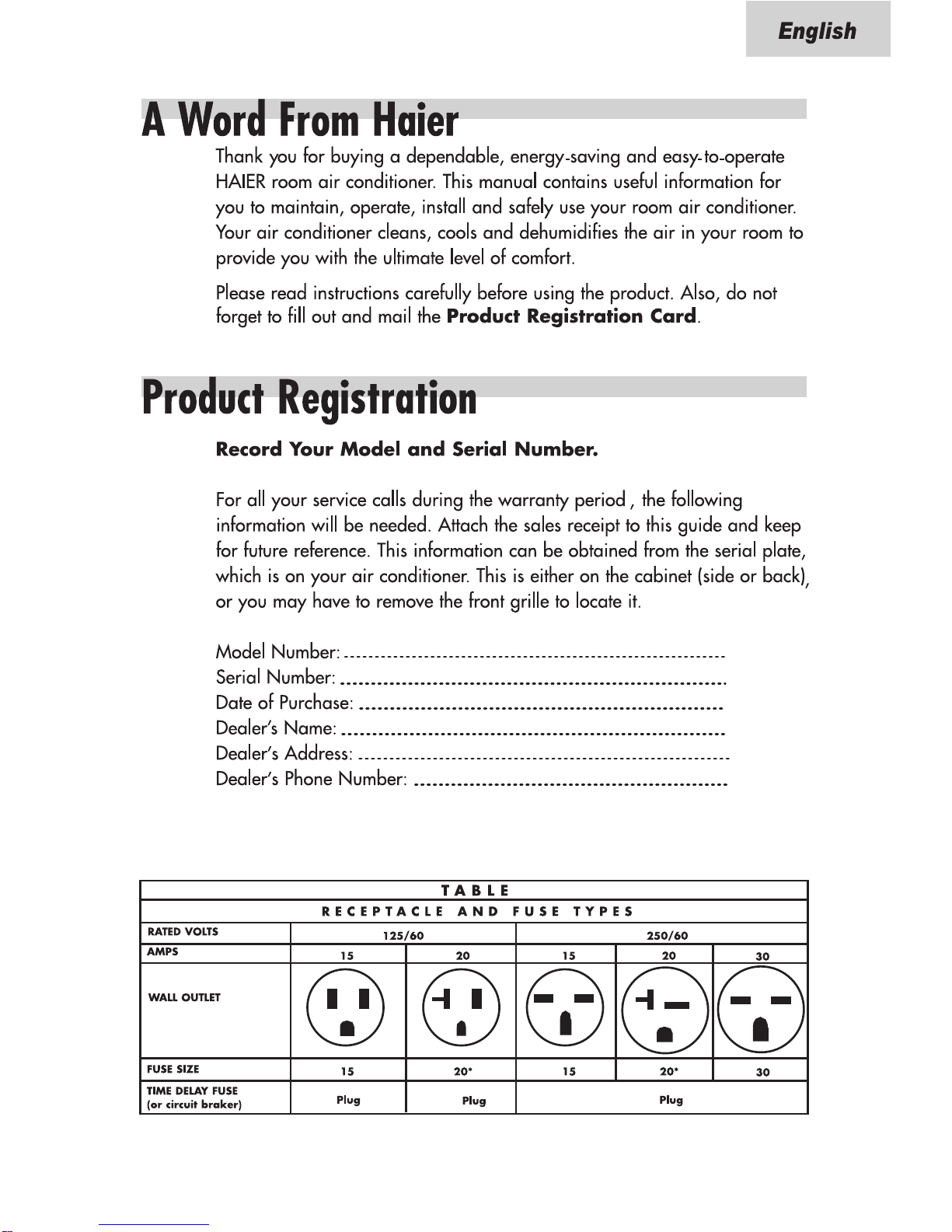

0010555512

(ESA3156/ESAX3186/

ESA3247/ESA3185 Only)

HWR24VC5, ESA3156

ESAX3186, ESA3247,ESA3185

6-7

8-12

13-20

15-20

21-22

22-23

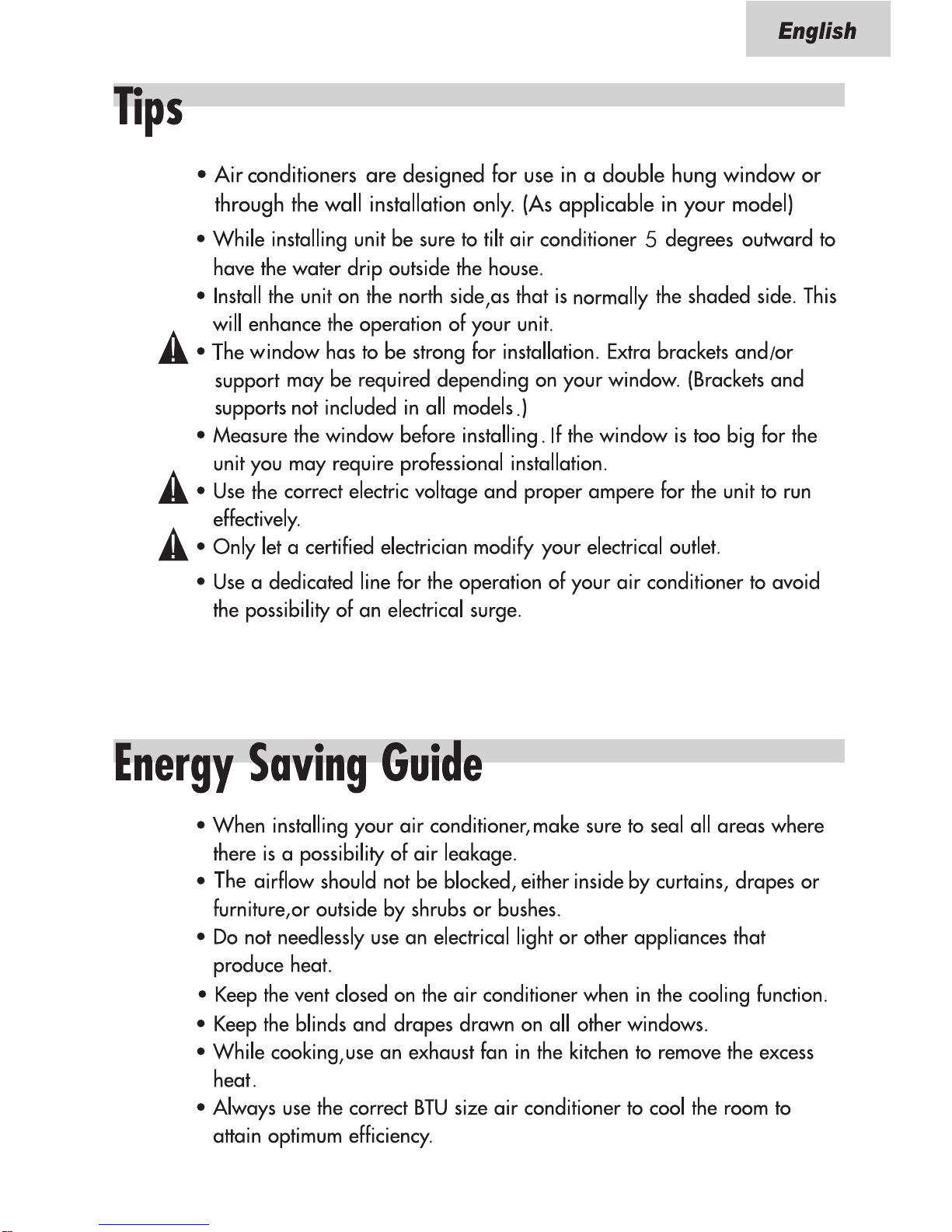

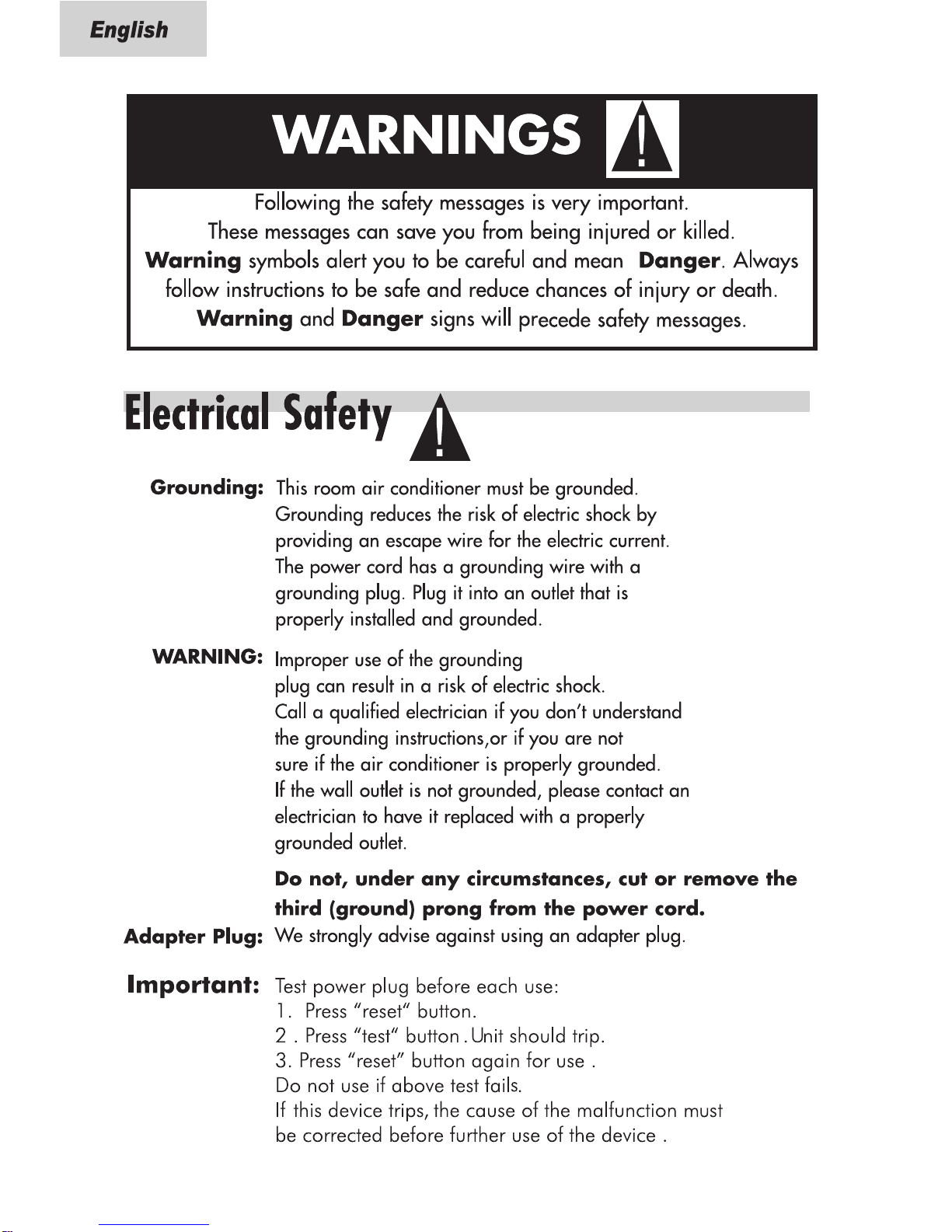

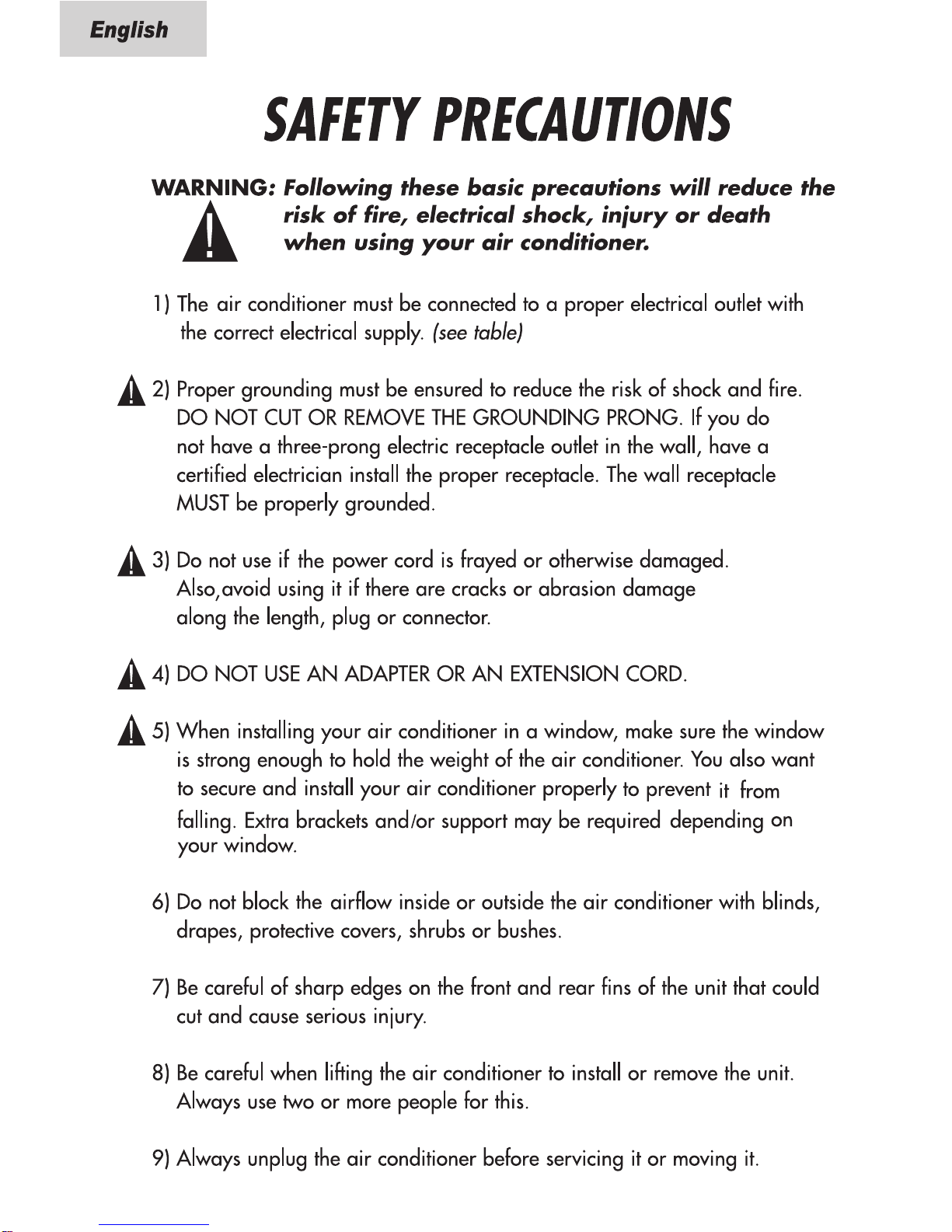

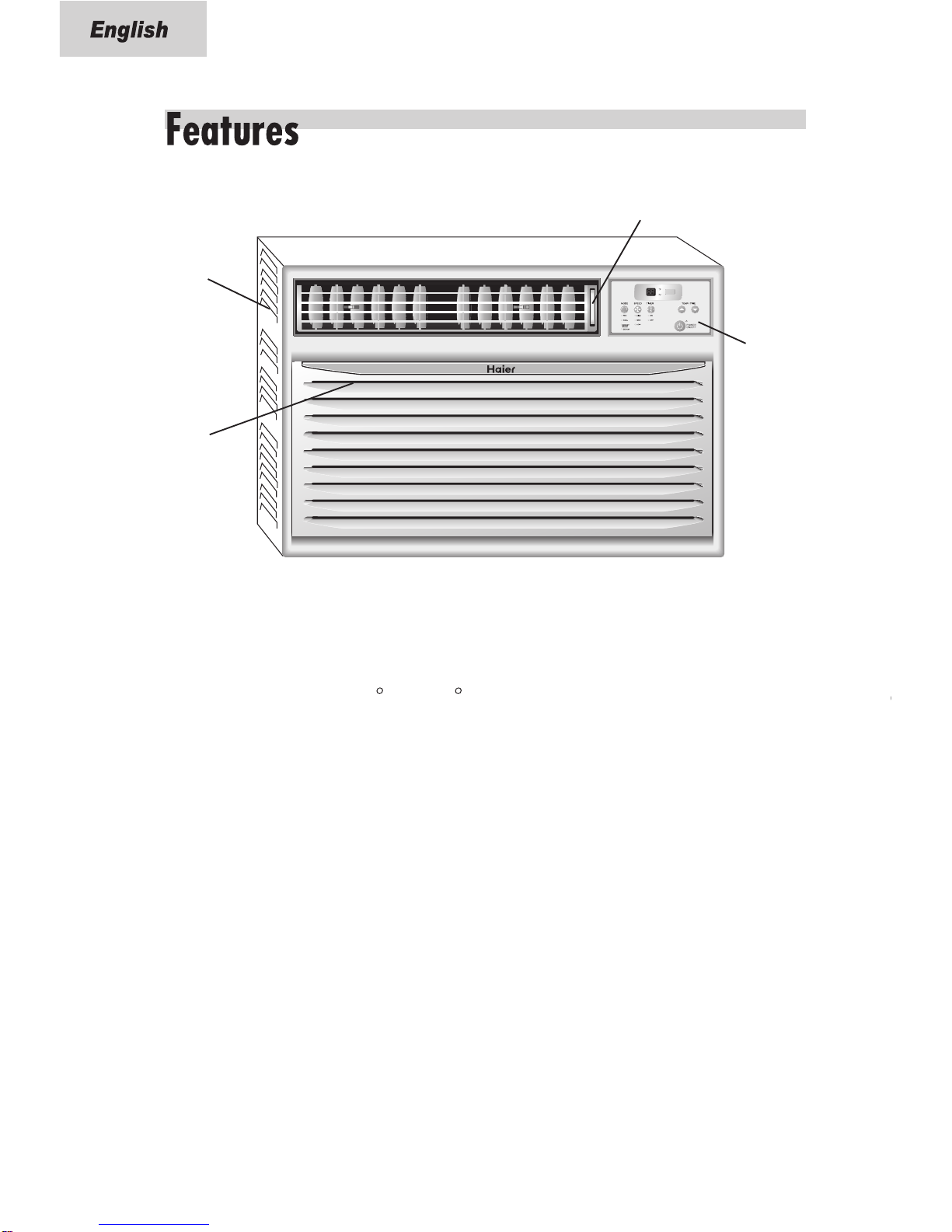

electronic

touch pad

easy-access

filters

side vent

louvers

vent

controller

1.Thermostat

This allows you to adjust the temperature of the

air--the lower the setting,the cooler the air

temperature. With this you can set the

temperature to your desired comfort level. You

can set the temperature between 61 F and 86

2.Fan Speed

With this you can control the fan speed as well

as the A/C (cooling) speed.

You have 3 levels of A/C Speed to set at your

desired level. LO will circulate air at the lowest

velocity, MED at medium velocity and HIGH

will circulate at the maximum, velocity. You have

3 levels of Fan Speed to set at your desired

comfort level: HIGH, MED and LOW.

3. Function

Your air conditioner has 4 Functions.

a) COOL

Here the air conditioner will operate the

compressor and the desired fan speed set to

give you cold air for your comfort.

b) FAN

You can run the fan without the A/C function

on cooler days. The fan can be set to run at

3 speeds as desired.

c) DEHUMIDIFY

This enables your air conditioner to operate as

a dehumidifier as well. It will remove the excess

moisture from the air to keep your room at a

comfortable, dry stage. You can use this feature

alone in case you do not wish to use the air

conditioner.

d) ENERGY SAVER

When this feature is "On" , the fan will shut off

three minutes after the compressor cycles off.

This will reduce energy consumption and noise.

When the compressor turns back on, the fan

will turn on at the same time. In the "Off"

position, the fan will not shut off when the

compressor cycles off.

4.Timer

Your air conditioner can be set to go on or off

at your desire. This can be programmed up to

24 hours in advance.

5.4-Way Air Flow

The air directional louvers let you control the

direction of the airflow to the desired direction.

The airflow can be directed up-down-right side-

left side.

6.Vent

The Fresh Air vent allows the air conditioner

to recirculat inside air, draw fresh air into the

room and exhaust stale air to the outside.

7.Slide Out Chassis

Your air conditioner becomes more versatile

with this feature. You have the option to install

the unit in a window or the wall.

8. Window Install Kit

This kit enables you to install the air conditioner

in a double hung window. Extra brackets or

support may be needed, depending on your

window.

9.Remote Control

This fully functional wireless remote allows you

to operate your air conditioner from a distance.

You need not get up to change the settings or

the functions, or to turn the unit on or off.

10.LCD Display Electronic Control Panel

The 4-function LCD displays Room Temperature,

Temperature Setting, Timer Setting and Time

Remaining to Stop/Start the unit. Electronic

Control Panel lets you set the temperature to

the exact temperature you desire.

11.Electrostatic Filter (not all models)

Being constructed of high efficiency purifying

substance, active carbon fabric, electrostatic

fabric, electrostatic active carbon net and other

materials, this air conditioner purifies the air

effectively. Its wavy structure increases the

capability to filter dust and smoke effectively.

Due to the retention of active carbon, it has

a high purifying speed capable of strong airflow.

12. How The Unit Drains

On humid days with the air conditioner in use,

moisture may collect on the pan or the bottom

of the air conditioner. If the unit is positioned

properly, the moisture will gather towards the

back of the unit.This will not affect the operation

of the unit and the moisture will evaporate in

time. Occasionaly the moisture will flow over

the back of the pan, but this will not affect the

operation of the unit. Never drill holes in the

pan under any circumstance.

Cool airflow movement as dictated by the set fan speed.

Water sounds. This is normal since your air conditioner also acts as a dehumidifier.

Thus you will hear water sounds from water drops falling on the condenser.

As the refrigerant flows through the inner sealed tubing, a rushing noise may be

occur.

Rattling or vibrating noises may be heard due to poor wall or window installation.

High pitch compressor sound may be heard.

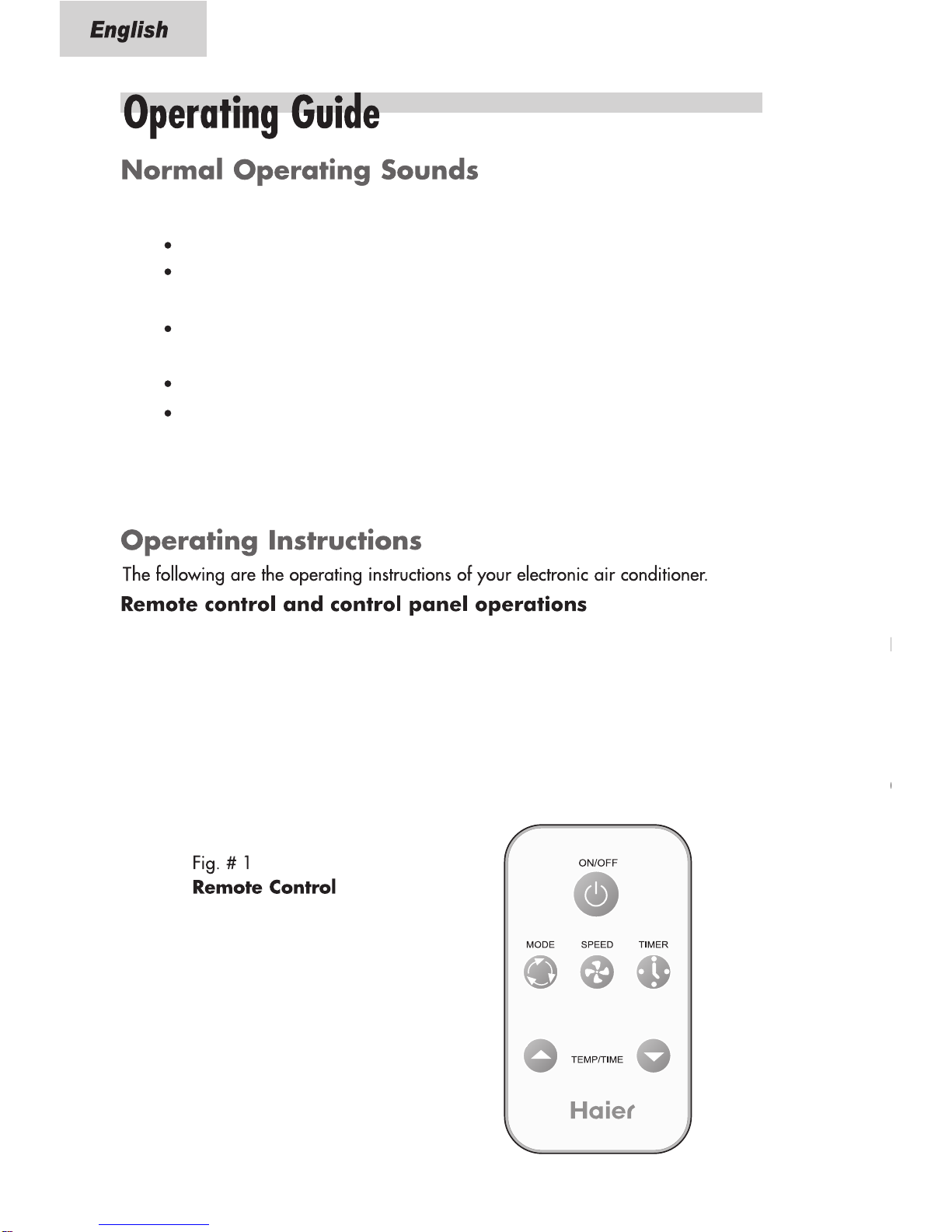

After installing your air conditioner, plug it into the proper electrical outlet in the

wall. Keep the vent in the closed position. Now set the air conditioner at your

comfort level. This fully functional wireless remote allows you to operate your air

conditioner without having to get up and go to the unit. The full function feature

allows you to change the settings and turn the unit on or off from the remote itself.

This control pad works the same as the control pad on the air conditioner. (See

Fig. #1)

The following sounds are normally heard during the operation of an air conditioner.
