Haier HS-06CE12 Manuale utente

Air ConditionerEdition:2006/01/15

OPERRATION

TEMP. TIMER

TEMP./TIMER

FAN

AUTO

HIGH

LOW

MODE

AUTO

COOL

DRY

FAN

TIMER

FAN SPEED indicator

It indicates the set fan speed.

During AUTO mode , the fan speed

can t be selected. And the indicator is

off during DRY running.

MODE indicator

It indicates the operation mode.

The operation mode indicator selected

by the remote controller will also be on

during AUTO mode.

TIMER indicator

It turns on during TIMER running.

Remote signal receiver

A beeping sound is generated when a

signal from remote controller is received.

TEMP. light

The TEMP. light turns on when

set the temperature or display

the room temperature.

TIMER light

The TIMER light turns on when

set the timer.

TEMP. / TIMER display

Display room temp. , setting temp.

and timer time.

ON/OFF button

TEMP. or TIMER set

Operation mode (COOL, DRY, FAN) can,t be changed with the control panel.

Fan speed (AUTO, HIGH, LOW) couldn,t be changed with the control panel.

TIMER operation couldn,t be set with the control panel.

Air Conditione

Edition:2006/01/15

Air Conditioner



Edition:2005/12/28

•

FUNCTION

Used to select operation mode:

COOL,FAN,DRY, AUTO .

TIMER button

Used for TIMER OFF.

ON/OFF

Press it to start unit and press it again to stop.

FAN SPEED

Used to select desired fan speed:

AUTO, HIGH, LOW.

TEMP. or TIME +,-button

Used to set TEMP. or TIMER setting.

Air Conditioner



Edition:2005/12/28

grille.

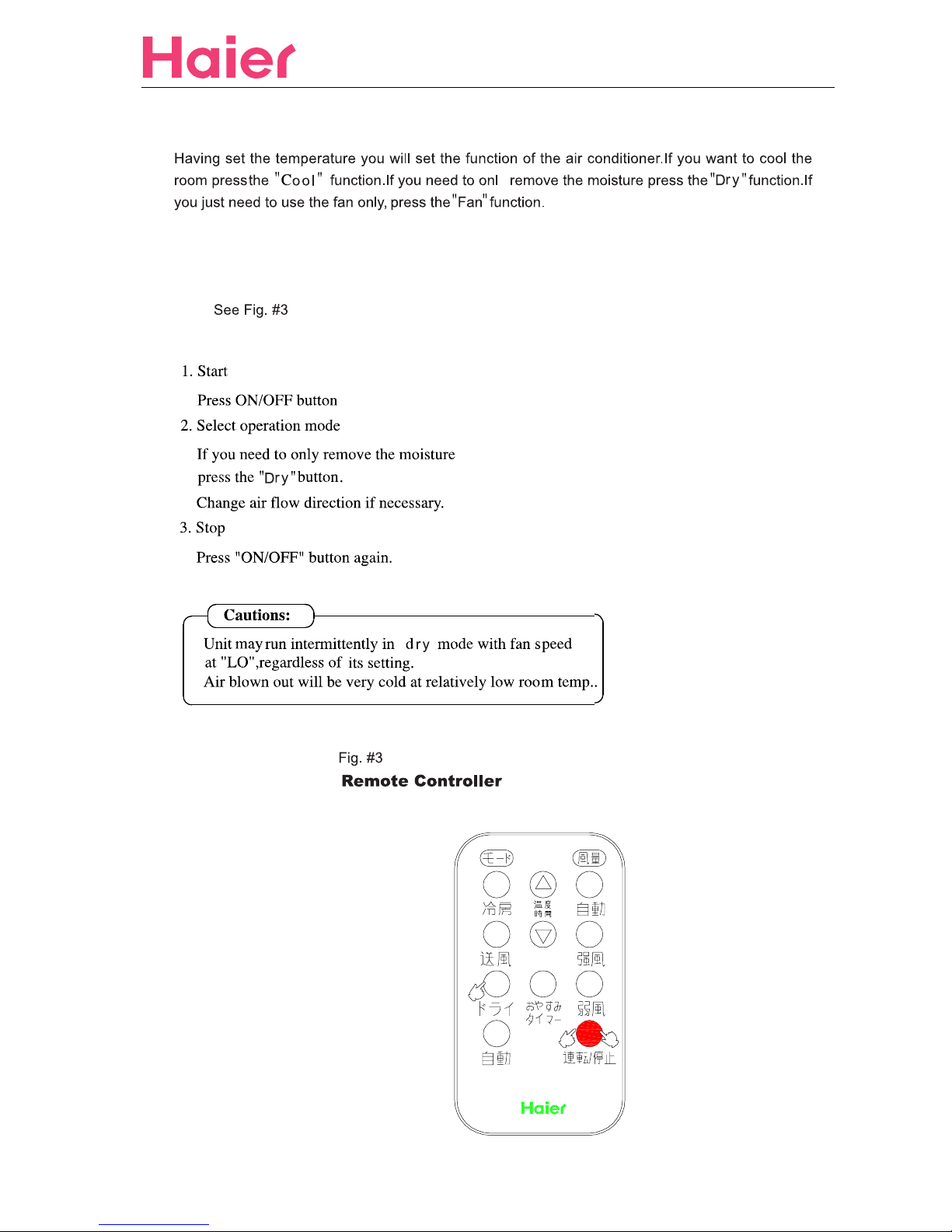

COOL button

COOL

HIGH or LOW

or in the AUTO speed

Cool Operation

Air Conditioner



Edition:2005/12/28

Dry Operation

Air Conditioner



Edition:2005/12/28

In some

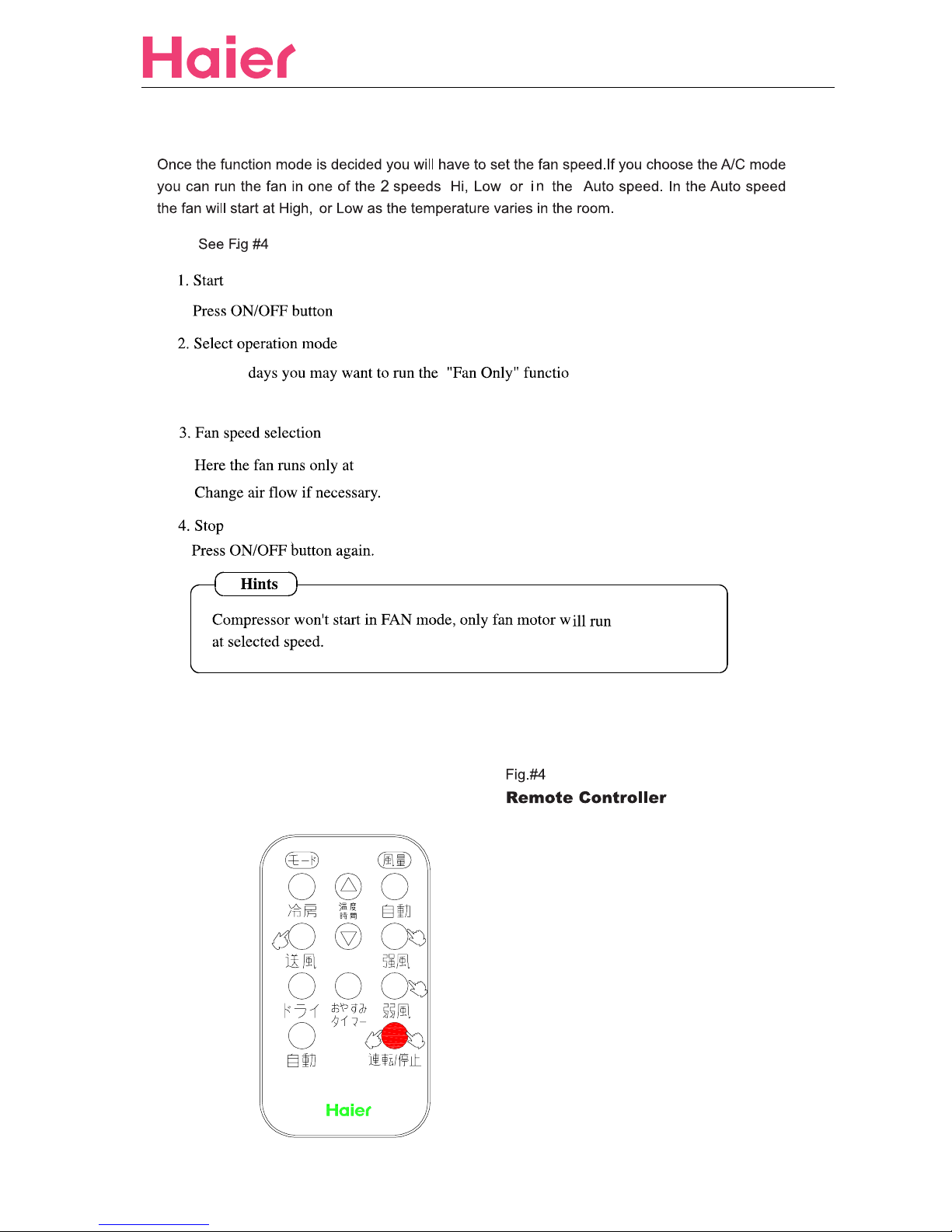

Press the FAN button.

HIGH or LOW speed.

Fan Operation

Air Conditioner



Edition:2005/12/28

Auto Operation

Press AUTO button, the unit runs follow the requirements

below:

Room

temperature(Tr)

Designated

temperature

Fan

speed

Operation

mode

Tr > 25oC

22oC<Tr < 25oC

Tr < 22oC

25oC AUTO COOL

24oC

23oC

AUTO

DRY

FAN

If room temperature is changed, the operation mode will corresponding

changed after 30 minutes.

(Electrify for the first time)

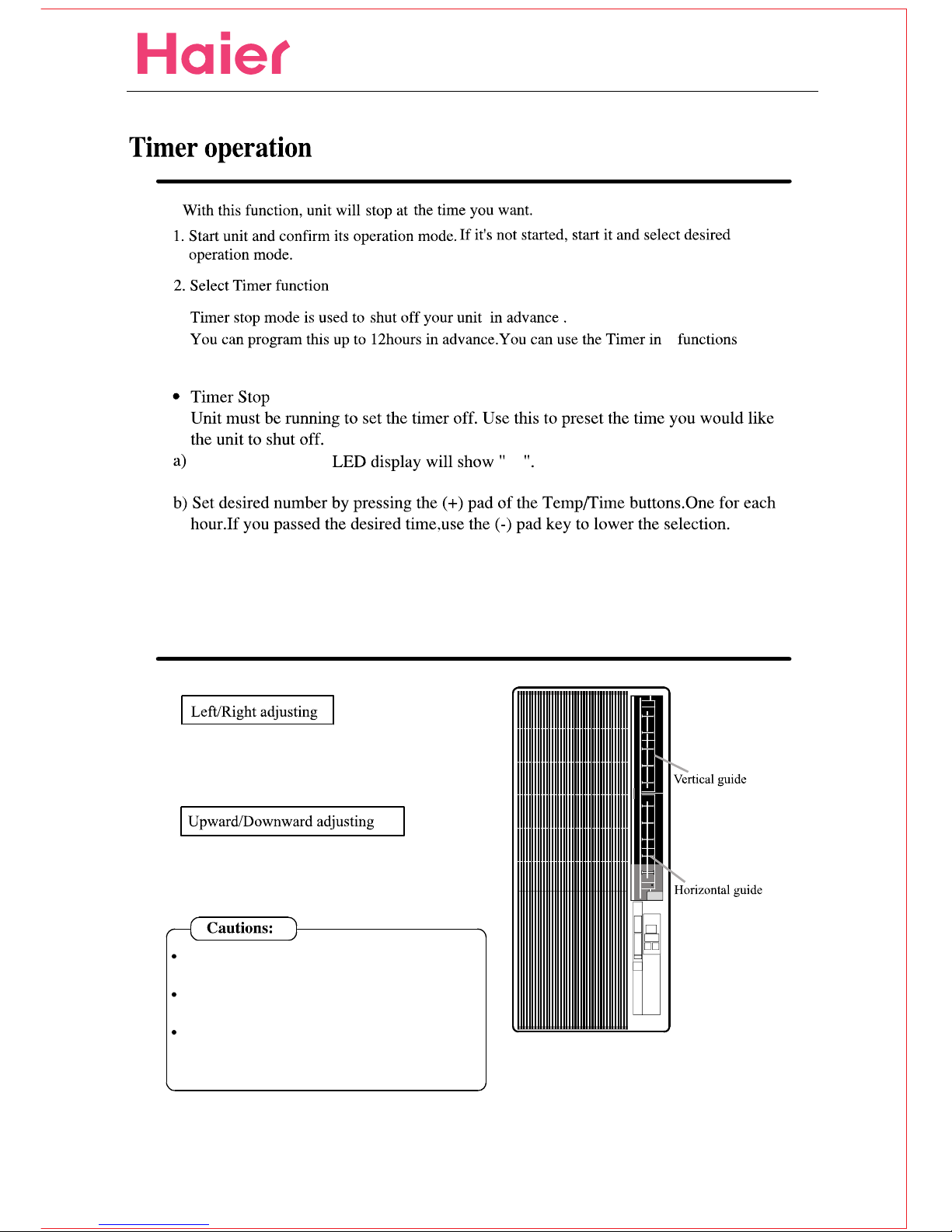

Turn the horizontal guide blade gently to

adjust the upward/downward air direction.

Turn the vertical guide blade gently to

adjust the left/right air direction.

COOL,DRY,FAN,AUTO.PressTIMERbottom.

Press TIMER bottom,

c) Cancel TIMER stop

Press TIMER bottom again, TIMER stop is canceled.

Adjusting of the air direction

blade

Vertical guide blade shall be opened to correct position

before use.

Vertical guide blade and horizontal guide blade must be

opened during use

When air outlet long time covered by Vertical guide blade

and horizontal guide blade in COOL or DRY mode,

condensate water might occur.

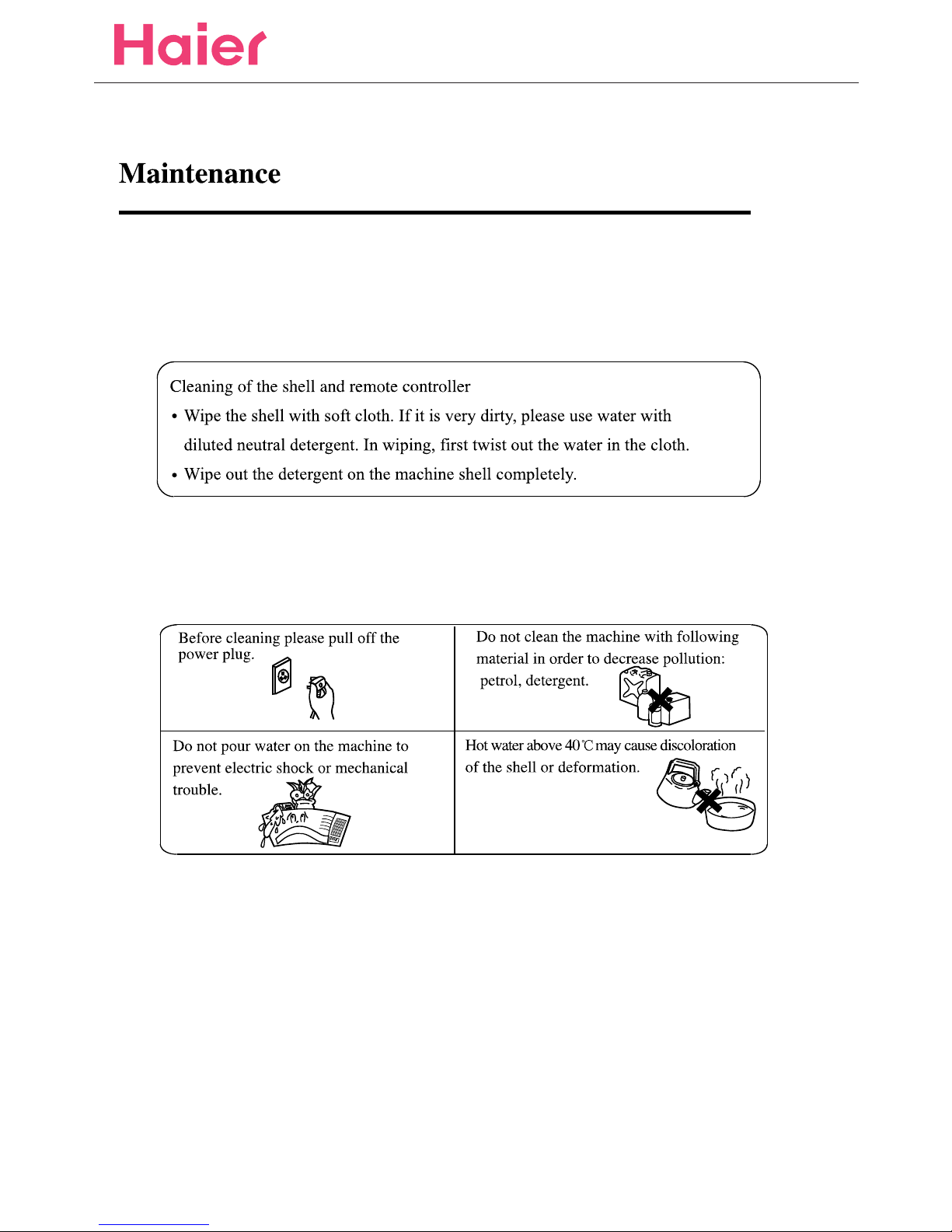

Air Conditione

Edition:2006/01/15

Air Conditione

Edition:2006/01/15

Air Conditione

Edition:2006/01/15
