Haier HW-07LM03 Manuale utente

No.0010515220

HW-07LM13

HW-07LM03

HW-09LM13

HW-09LM03

HW-12LM13

HW-12LM03

WINDOW TYPE ROOM AIR CONDITIONER

OPERATION

MANUAL

Please read this operation manual

before using the air conditioner.

Please keep it attentively.

Contents

Contents ............................................................................... 2

Part Name.............................................................................. 3

Operation Guide ................................................................ 4-5

Maintenance ...................................................................... 6-8

Trouble shooting ................................................................... 9

Installation Instructions......................................................... 10

Installation Guide............................................................. 11-12

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its serviceagent or a similar qualified person.

3. After installation, the power plug should be easily reached.

4. The wiring method should be in line with the local wiring standard.

1. Applicable ambient temperature range:

The machine is adaptive in following situation:

Cooling Indoor

Outdoor

Maximum:

Minimum:

Maximum:

Minimum:

D.B/W.B

D.B

32oC/23oC

18oC/14oC

43oC/26oC

18oC

D.B/W.B

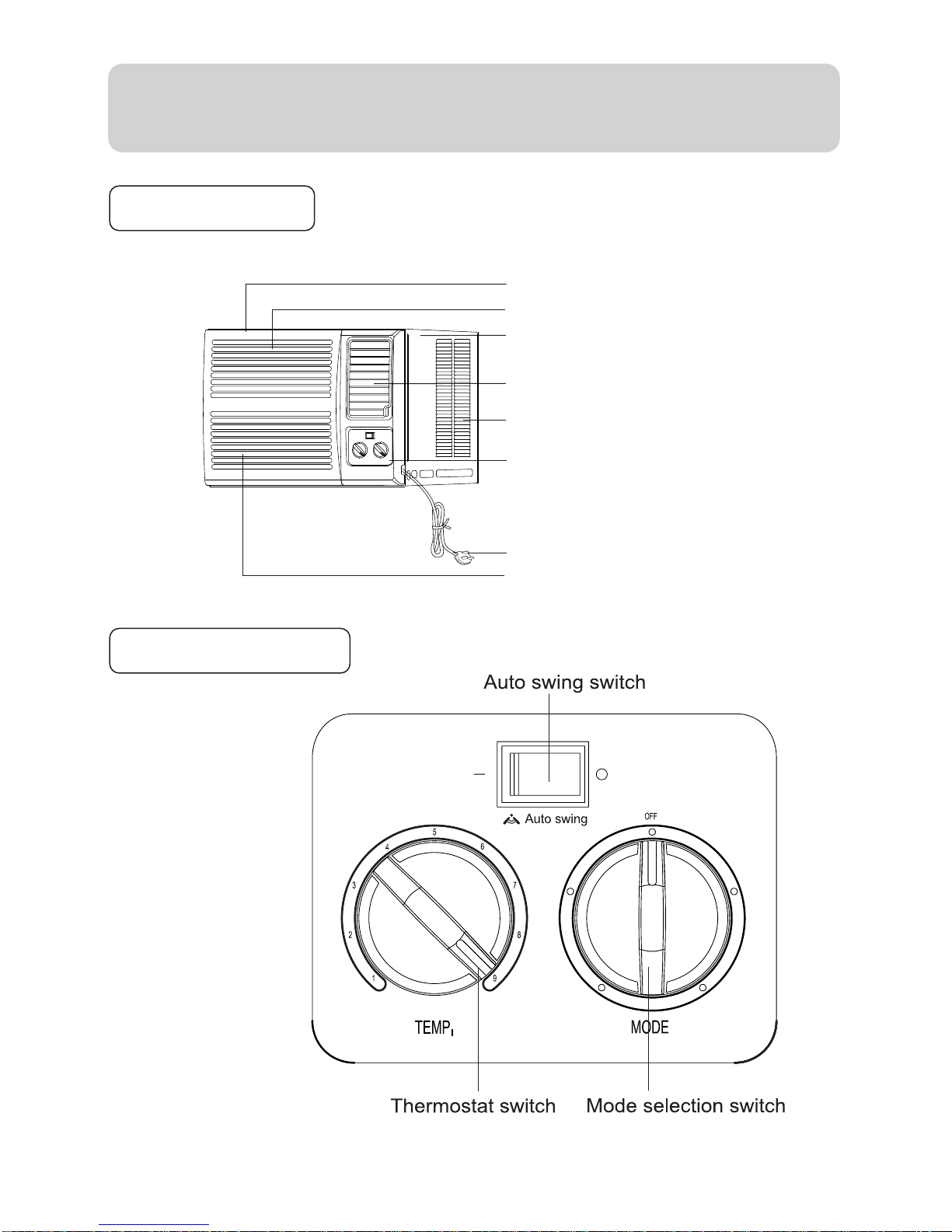

Parts Name

Machine body

Operation panel

Front panel

Air inlet (indoor side)

Air outlet (indoor side)

Air inlet (outdoor side)

Display

panel

Air filter (inside)

Machine body

Power plug

MINI

COOL MAX

COOL

LOW

FAN HIGH

FAN

HIGH

COOL

LOW

COOL

WAITTHREE MINUTES BEFORE RESTARTING

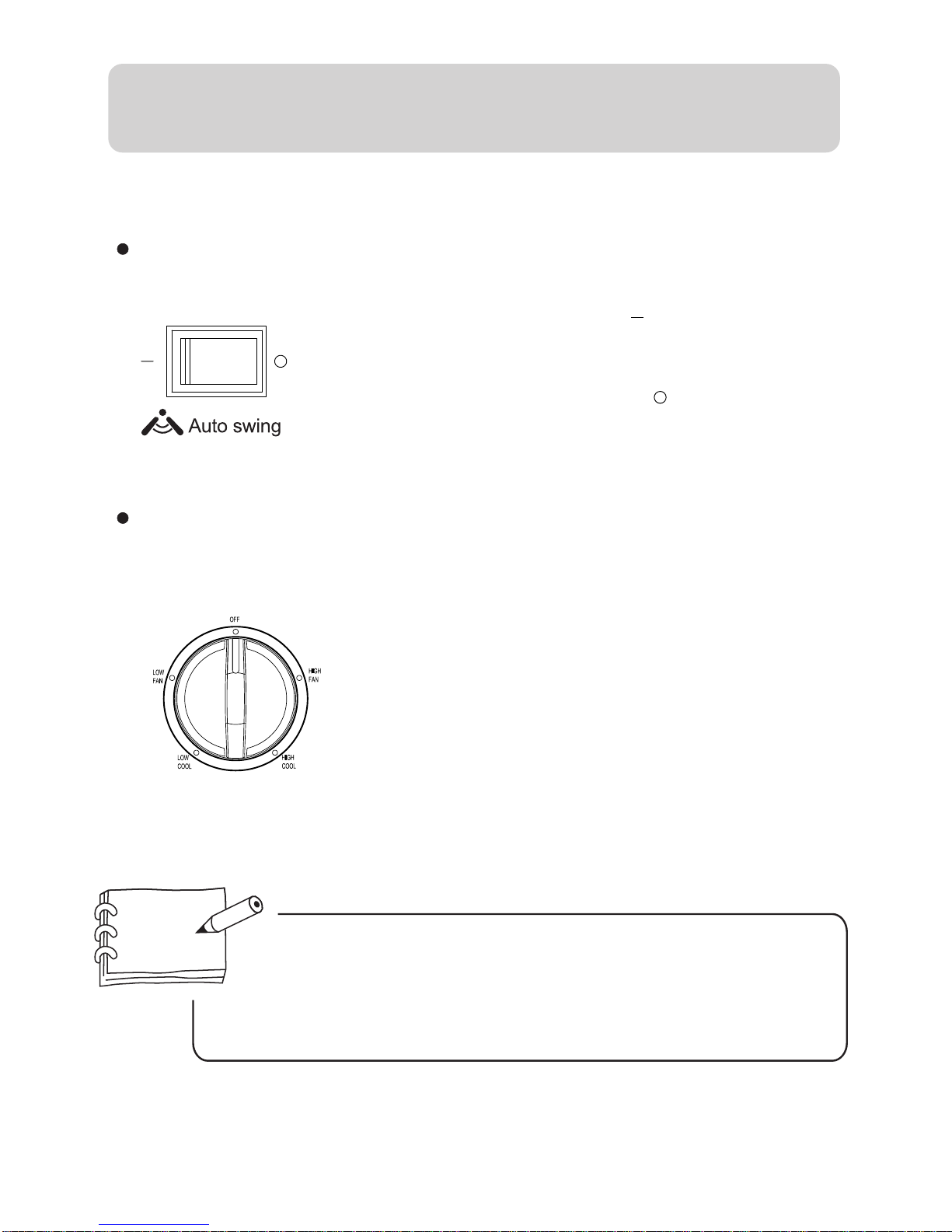

Operation Guide

When the mode selection switch is turned to "HIGH FAN" or "LOW FAN" ,

the air conditioner will only blow out air without cooling.

If the mode selection switch is turned from cooling mode to fan

mode, do not turn it back until at least 3 minutes have elapsed.

<1>

<2>

<3>

<4>

<5>

When set to " HIGH FAN", fan motor runs at high

speed to blow out strong air.

When set to "LOW FAN", fan motor runs at low

speed to blow out gentle air.

When set to "LOW COOL", air conditioner will

start cooling at low speed, blowing out gentle air.

When set to "HIGH COOL", air conditioner will

start speedy cooling, blowing out strong air.

When set to "OFF", air conditioner stops running.

Mode selection switch controls the fan motor

speed and cooling speed.

Hint

When the switch is set to " ",

and vertical louvers will swing from side to side,

delivering gentle air thus making you feel very

comfortable. When it is set to " ", the indicator

goes out, and the vertical louvers stop at any position.

Auto swing switch

Mode selection switch

Operation Guide

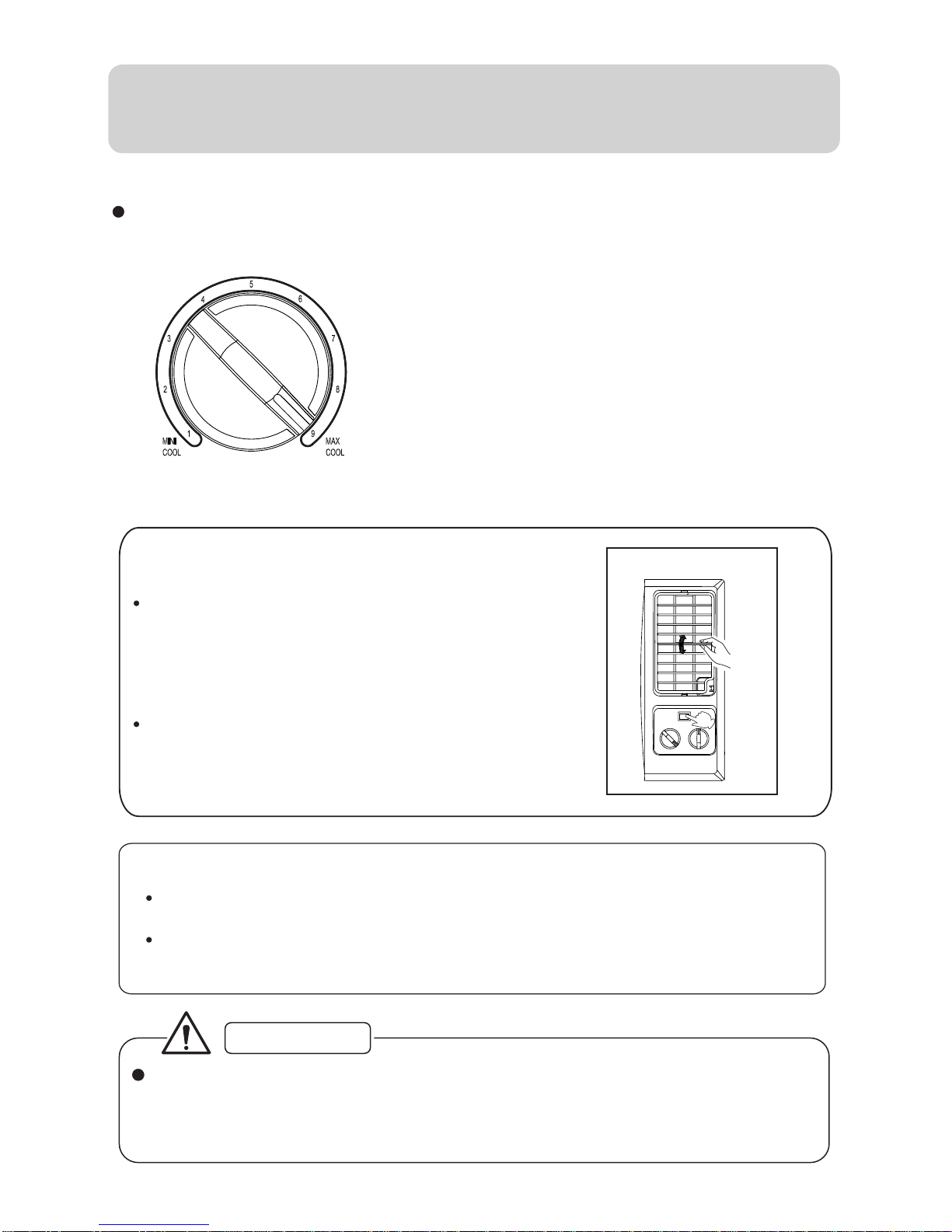

In cooling mode, after you turn thermostat switch counter-clockwise,

do not turn it back until at least 3 minutes have elapsed.

Otherwise, the fuse may blow due to overload.

Do not exceed the selection range.

This switch controls the preset indoor temperature

to makethe air conditioner start or stop automatically,

so as to reduce power consumption and operate the

system both comfortably and economically.

The compressor stops running when the

set temperature is reached but the fan

continues to operate to keep an even

indoor temperature.

Remark:

Vertical airflow direction

Airflow Direction Vane

The Vertical Airflow Direction Vane is

manually controlled by positioning the

vane todischarge the air upward,

downward or straight out.

Thermostat switch

CAUTION

Note:

It is advisable not to keep vertical flap at downward position for a long time

in COOL or FAN mode, otherwise , condensate water might occur.

Don't move the horizontal flap with hand in order to avoid the vertical flap

abnormal, using the remote controller to adjust the move of vertical flap.

The horizontal air direction is adjusted

by setting the AUTO SWING switch to

the ON position.

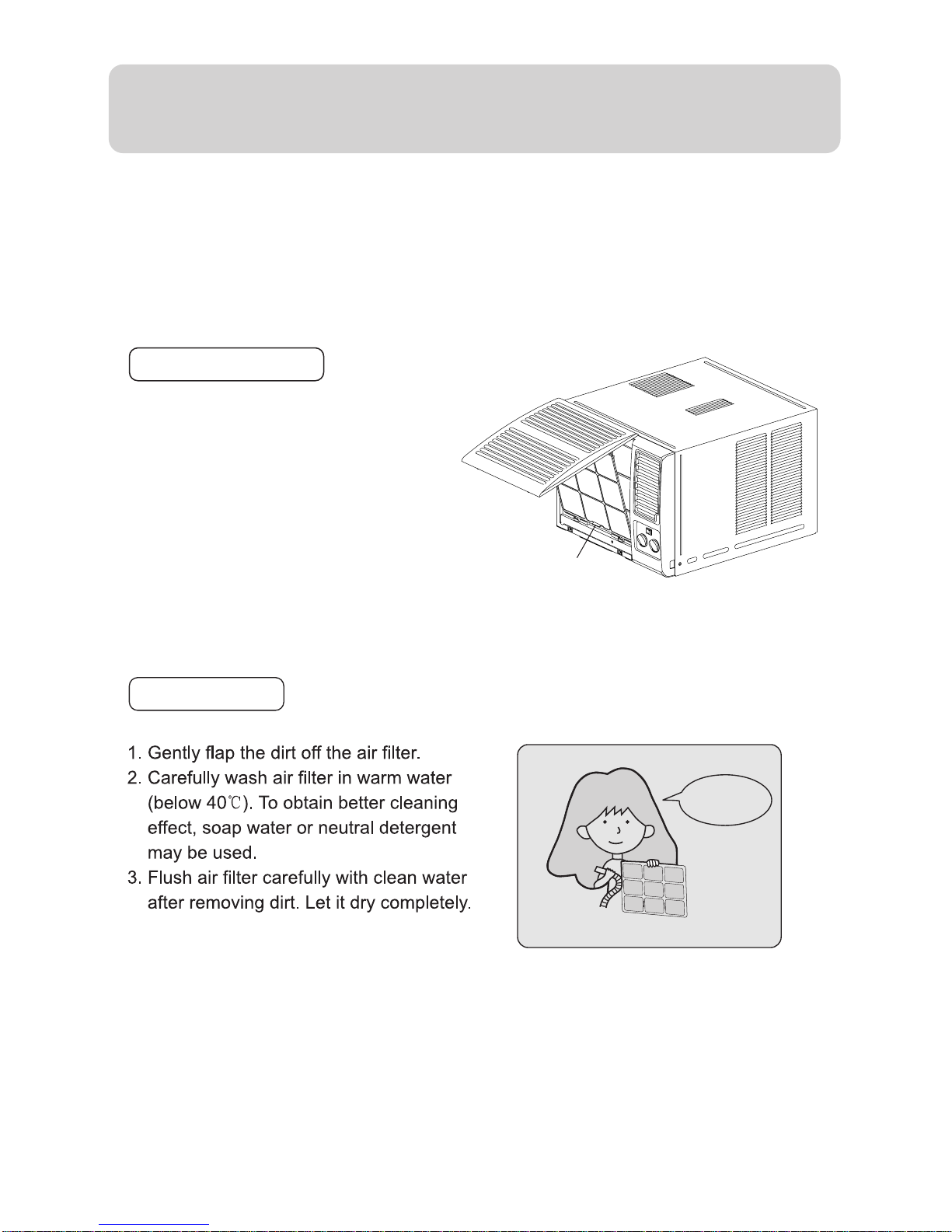

Maintenance

Air filter cleaning (before cleaning, turn off the power)

Air filter cleaning

Cleaning of the

air filter

Take out the air filter

When dirt accumulates on air filter, air circulation will be blocked, which causes poor

cooling. It is advisable to clean air filter every two weeks for longer operation.

1.Press the concave parts on both sides at

the lower part of air inlet grille to open the

air inlet grille.

2.Hold the hump of filter mesh with

fingers (as illustrated) and take it out.

Hump

Cautions

Power cord: Be sure to use the exclusive power cord.

Change installation place: If air-con need to be changed to another

place please contact the dealer, who sold you the unit.

(Refer to P12 for choosing these two modes.)

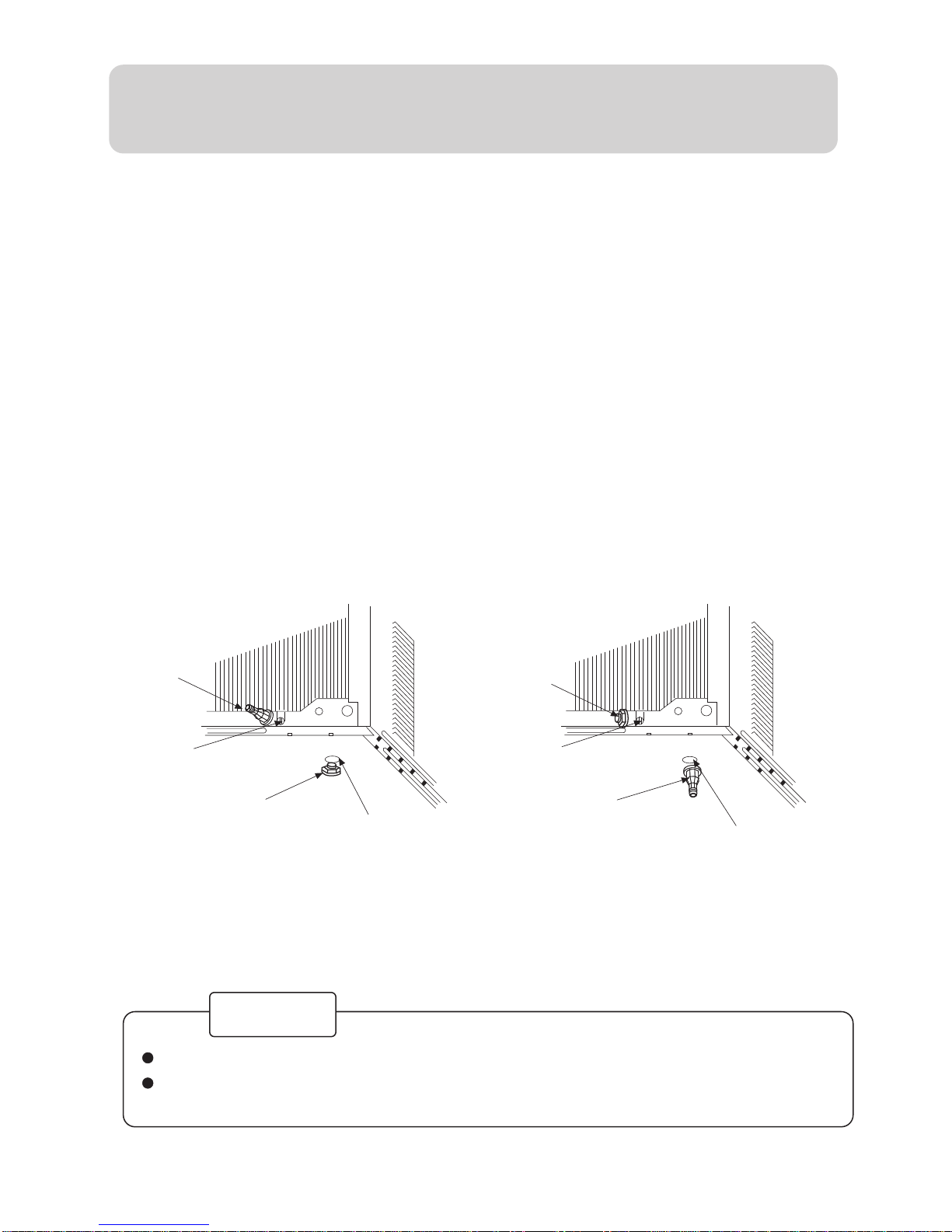

Maintenance

Bottom plate hole

Back hole

Outlet pipe fitting

Fig.1

Rubber lid

Fig.2

Rubber lid

Back hole

outlet pipe fitting Bottom plate hole

Disposal of the condensed water

Generally there are two methods available on disposal of the condensed water:

1. Block the bottom plate hole of the conditioner with rubber lid, install outlet pipe fitting on the

back hole and let the condensing water flow from the back hole of the conditioner. (See Fig.1 )

2. Block the back hole of the conditioner with rubber lid and install outlet pipe fitting to the bottom

hole, which can make the condensed water flow out from the bottom plate. (See Fig.2)

If necessary the above two methods can both have extra pipe added on the outlet pipe fitting.

(available on the market).

In this method, the accumulated condensed water in the bottom plate is hit by the fan onto the

heat exchanger, and evaporated and blown out from the machine. It can cool the heat

exchanger radiator more quickly, and improve the energy efficiency of the conditioner. But the

hitting noise by the fan at the outdoor side is relatively large.

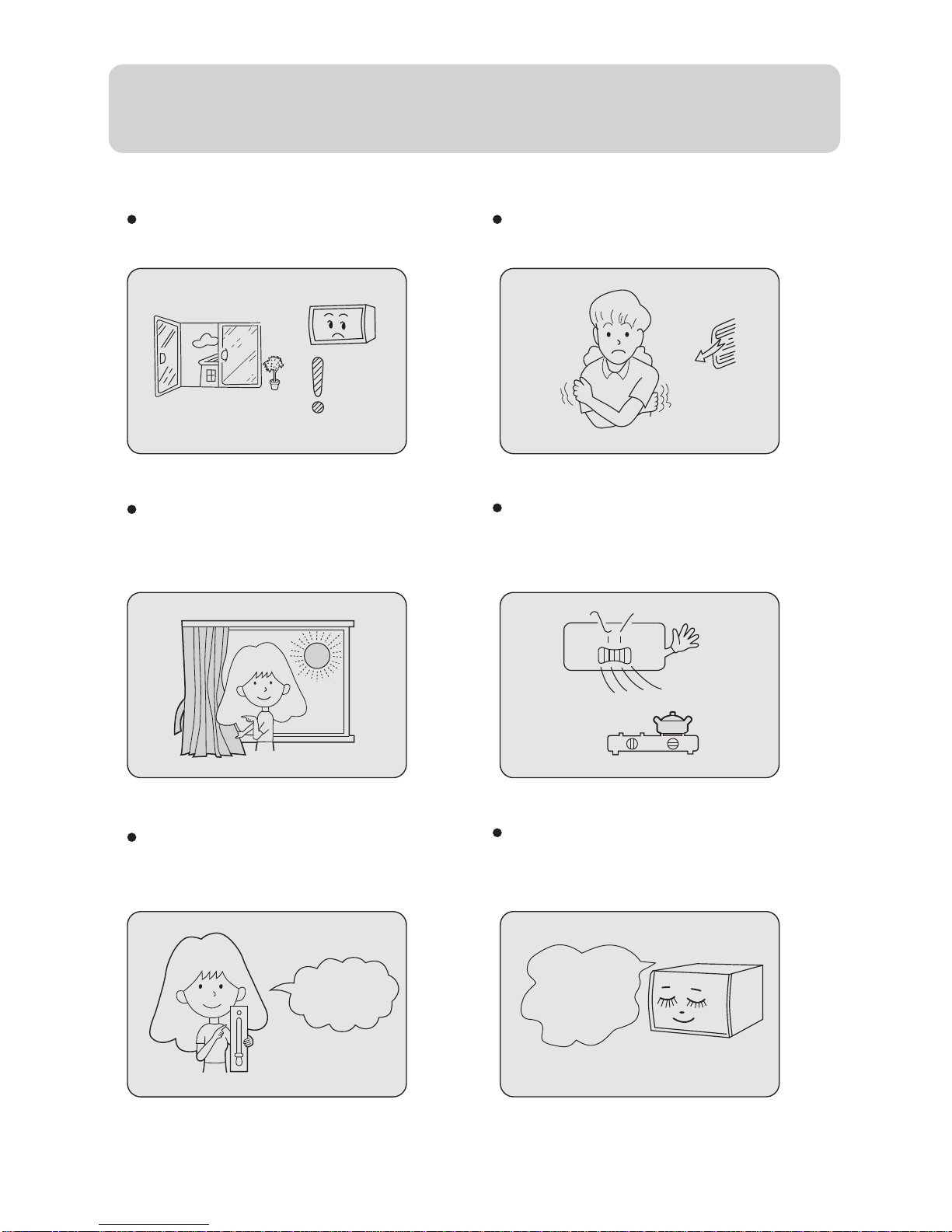

After unit stops, don't restart it

until 3 min. have elapsed.

Don't be exposed to cold air for

a long time.

Proper

temperature

Avoid opening doors and windows

unless necessary.

Use curtain or blind

Direct sunlight may reduce cooling

effect, always use window curtain.

Keep heat source away from

air conditioner.

Set temp . a little bit higher

before going to bed.

OK! Enjoy a

3-min nap

Maintenance

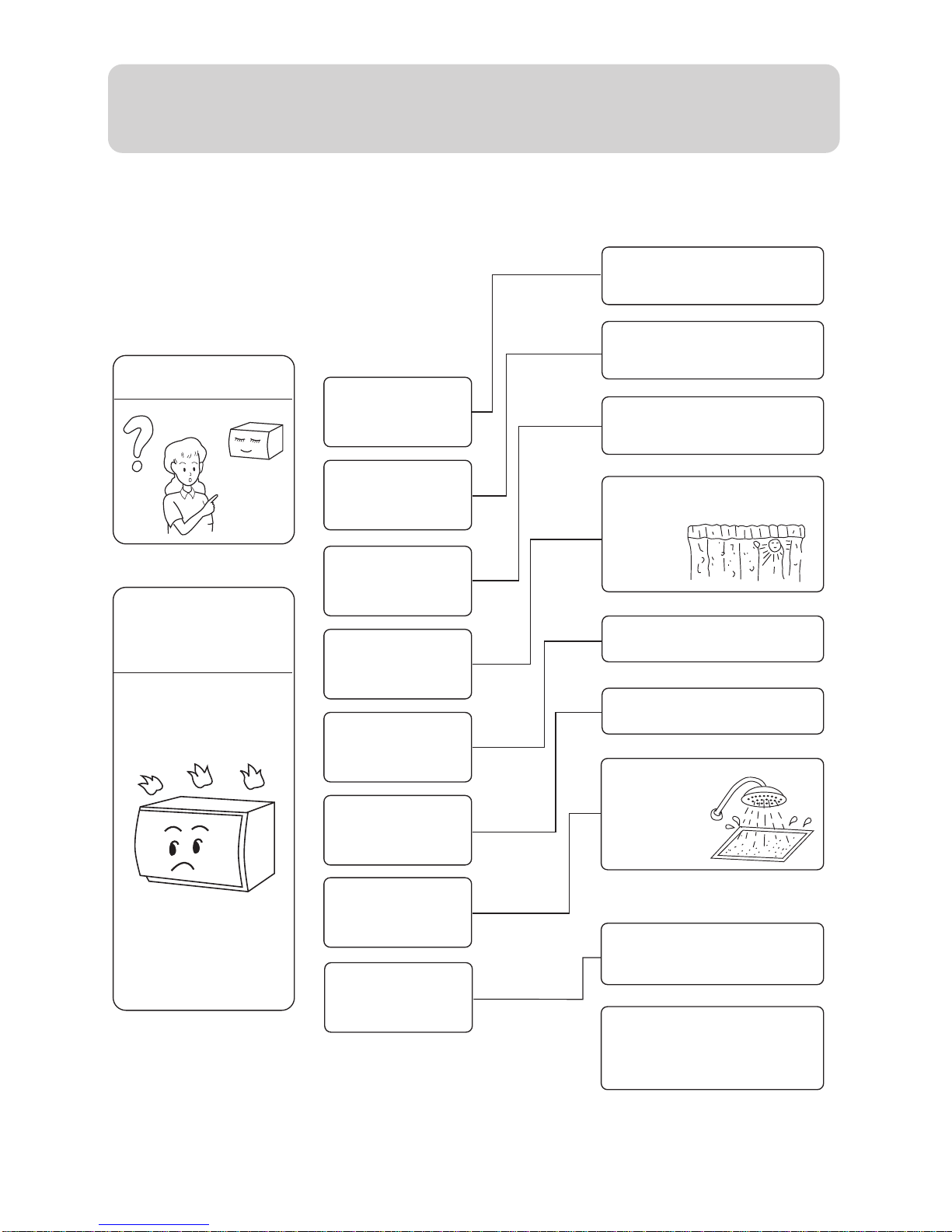

Troubleshooting

Doesn't work Is plug firmly inserted?

Is there power failure?

Readjust power supply.

No cool air or

poor cooling

Is thermostat switch

wrongly adjusted?

Readjust the thermostat.

Is there any direct

sunlight in the room?

Use curtain or blind.

Are doors or windows

left open?

Shut doors and windows.

Are there any obstacles

blocking air inlet and

outlet?

Remove the obstacles.

Is there too much heat

source in the room?

Is air filter clogged?

Clean it.

If problems can not be solved

please pull out power plug and

contact your dealer.

Remove the heat source

Does fuse get burned?

Replace fuse.

Go away!

Baby has

gone sleep,

better to adjust

suitable temp.

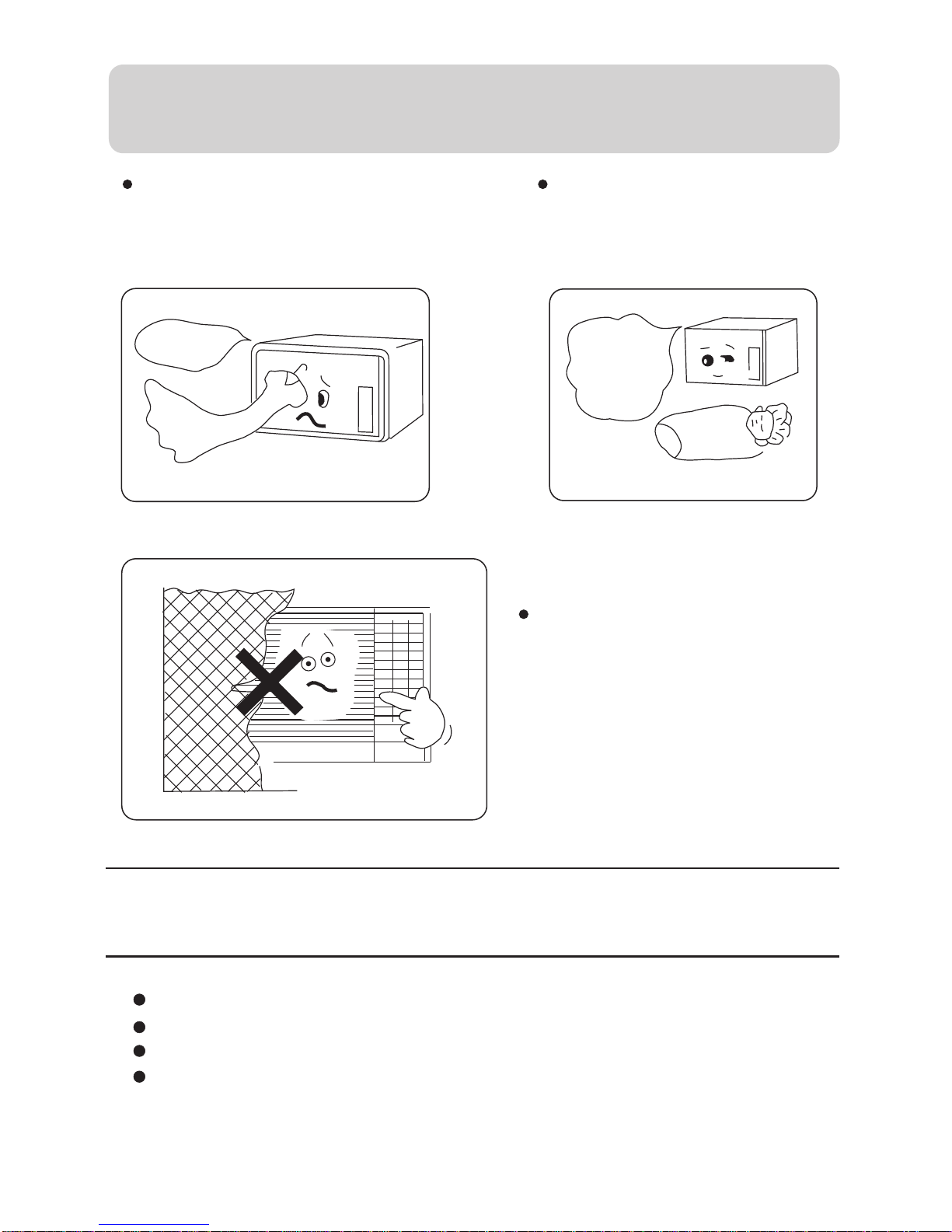

Don't hang clothes in the vicinity

of air inlet. This will decrease

cooling effect and cause abnormal

operation.

Temperature should be set

properly when there are infant,

child, the aged or disabled

in the room.

Before operating mode selection

switch, check that if the air inlet

or outlet have been blocked.

For longer and trouble-free operation of the unit, pay special attention to

the following:

Install air-con at a place strong enough to support the unit.

Leave enough space around air inlet and outlet for better circulation.

Avoid places where flammable gas leaks.

Problems may occur if unit is installed in the following places:

Place where oil exists in the air including engine oil or seaside with

salt breeze blows and hot spring area with sulphurous gas in the air.

Installation Instructions
