OPERATION

MANUAL

WINDOW TYPE ROOM AIR CONDITIONER

No.0010546097

HW-18C03/R1

Please read this operation manual

before using the air conditioner.

Please keep it attentively.

Contents

Contents ............................................................................. 2

Part Names.......................................................................... 3

Operation Guide ............................................................. 4-5

Maintenance ...................................................................... 6

Cautions ........................................................................... 7

Trouble shooting ............................................................... 8

Installation Instructions..................................................... 9

Installation Guide............................................................... 10

Parts Name

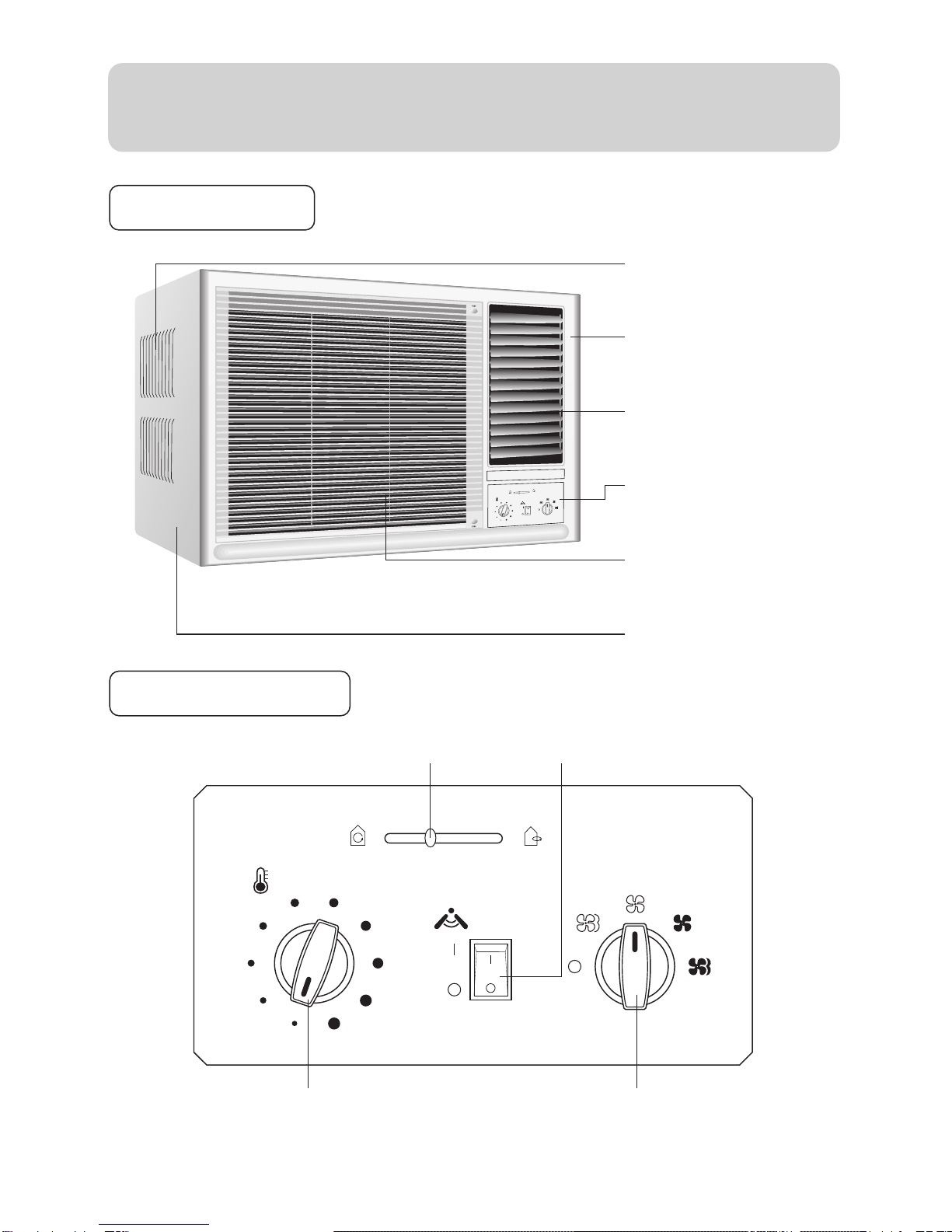

Front panel

Air inlet (indoor side)

Air outlet (indoor side)

Air inlet (outdoor side)

Operation panel

Cabinet

Machine body

Operation panel

Mode selection switch

Auto swing switch

Thermostat switch

Ventilation lever

WAIT 3 MINUTES BEFORE RESTARTINGVENTILATOR

Mode selectionTemp. settingAuto swing

WAIT3 MINUTES BEFORE RESTARTING

VENTILATOR

Mode selection

Temp. setting

Auto swing

Operation Guide

When the mode selection switch is turned to " " or " " ,

the air conditioner will only blow out air without cooling.

If the mode selection switch is turned from cooling mode to fan

mode, do not turn it back until at least 3 minutes have elapsed.

<1>

<2>

<3>

<4>

<5>

When set to " ", fan motor runs at high

speed to blow out strong air.

When set to " ", fan motor runs at low speed

to blow out gentle air.

When set to " ", air conditioner will start

cooling at low speed, blowing out gentle air.

When set to " ", air conditioner will start

speedy cooling, blowing out strong air.

When set to " ", air conditioner stops running.

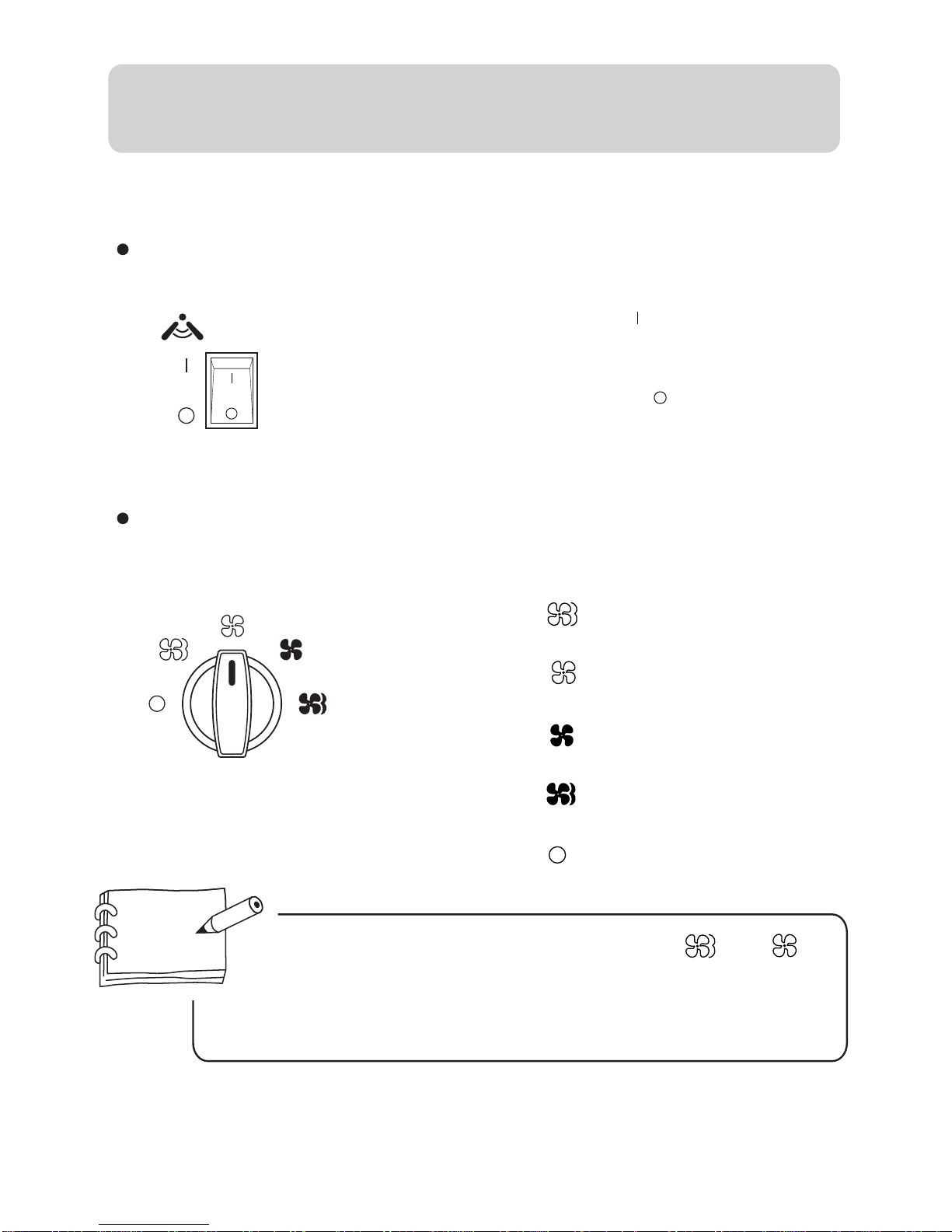

Mode selection switch controls the fan motor

speed and cooling speed.

Hint

When the switch is set to " ", the indicator lights

up, and vertical louvers will swing from side to side,

delivering gentle air thus making you feel very

comfortable. When it is set to " ", the indicator

goes out, and the vertical louvers stop at any position.

Auto air deflector switch

Mode selection switch

Auto swing

Mode selection

Operation Guide

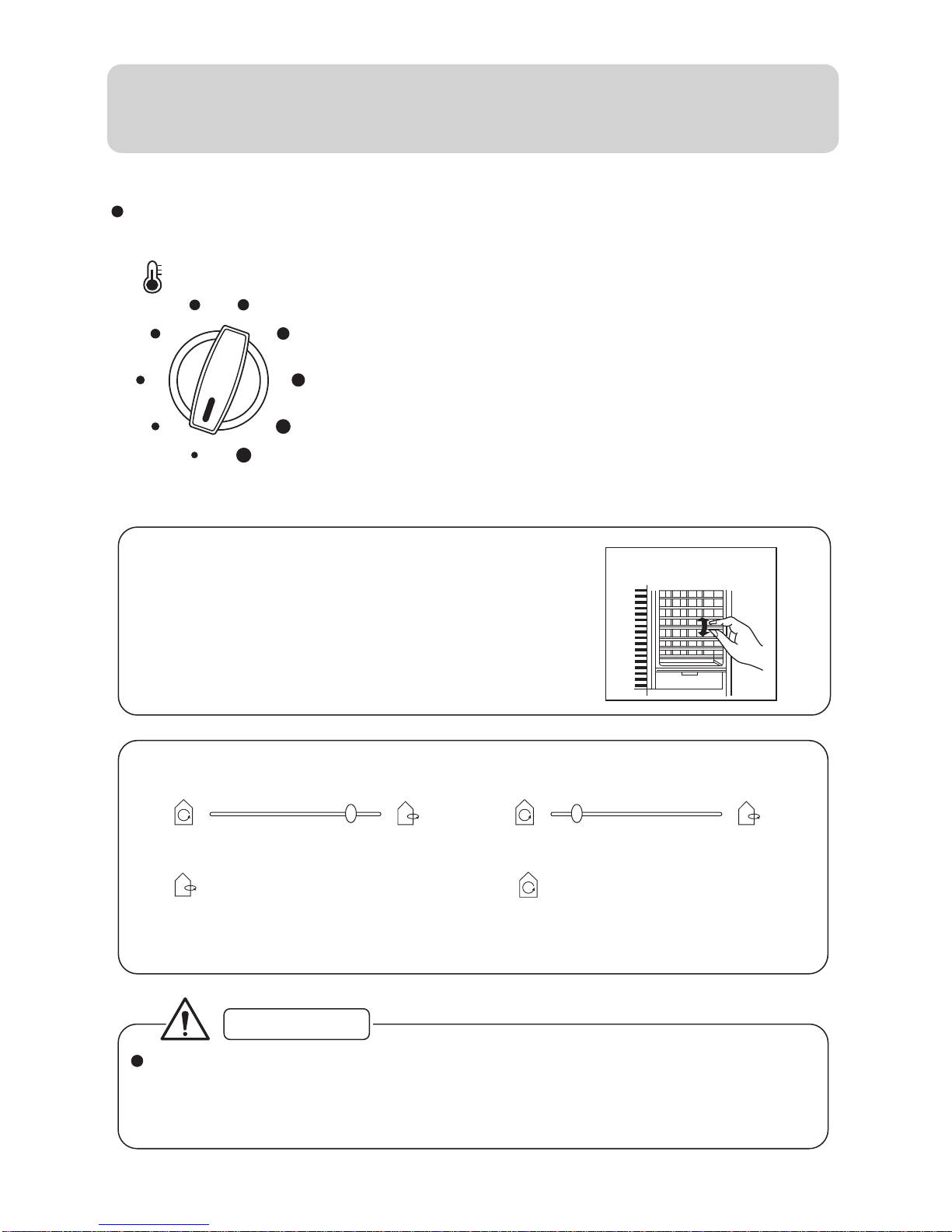

In cooling mode, after you turn thermostat switch counter-clockwise,

do not turn it back until at least 3 minutes have elapsed.

Otherwise, the fuse may blow due to overload.

Do not exceed the selection range.

This switch controls the preset indoor temperature

to makethe air conditioner start or stop automatically,

so as to reduce power consumption and operate the

system both comfortably and economically.

The compressor stops running when the

set temperature is reached but the fan

continues to operate to keep an even

indoor temperature.

Remarks:

Ventilation Lever

When the slide lever is at the:

"" position, the vent door

opens to allow air, smoke or

odors to be expelled from the

room.

"" position, the vent door is

closed and the air inside the room

is circulated and conditioned.

Vertical airflow direction

Vertical Airflow Direction Vane (Airflow

direction adjustment Up-and-Down)

The Vertical Airflow Direction Vane is

manually controlled by positioning the

vane todischarge the air upward,

downward or straight out.

Thermostat switch

CAUTION

VENTILATOR VENTILATOR

Temp. setting

Maintenance

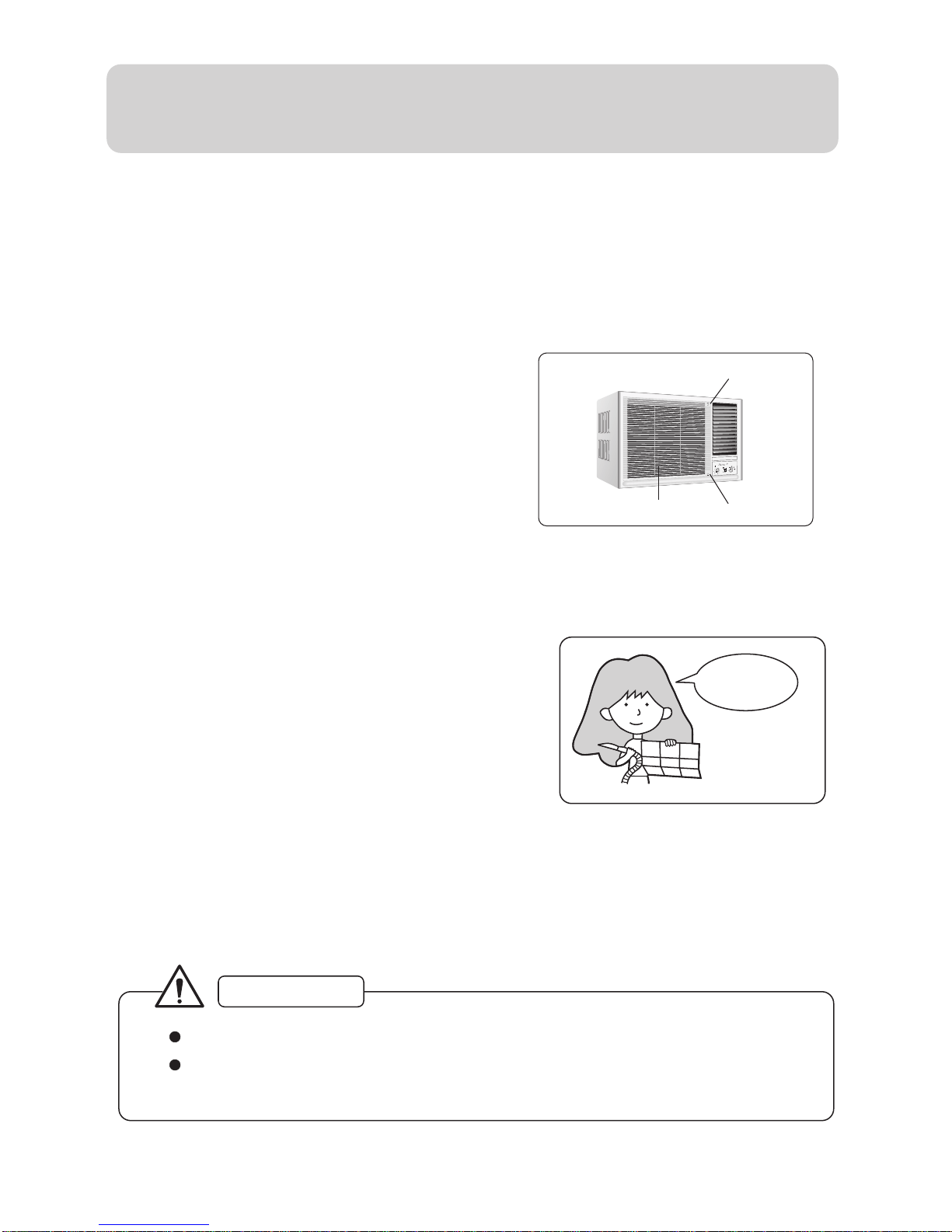

Air filter cleaning: Please clean the air filter every two weeks

When dirt accumulates in the air filter, air circulation will be blocked, and causes poor

cooling. It is advisable to clean the air filter every two weeks for efficient operation.

Removal of air filter

(1) Loosen the air inlet by pushing " PUSH " at

both edges as shown.

(2) Open the air inlet.

(3) Hold the handle at lower part of the air filter

and draw outward to remove the air filter.

1. Gently tap the dirt off the air filter.

2. Carefully wash the air filter in warm water

(below 40 oC). To obtain better cleaning

effect, soapy water or neutral detergent

may be used.

3. Flush the air filter carefully with clean water

after removing the dirt. Let it dry completely.

(1) Put the air filter on.

(2) Push the part marked " PUSH " until you hear a click.

Air filter cleaning

Installation of filter

Power cord: Only to use an exclusive power cord.

Changing installation site: If the air conditioner needs to be changed to another

location, please contact the dealer that sold you the unit.

Washing

air filter

PUSH

Air inlet PUSH

CAUTION

WAIT3MINUTESBEFORE RESTARTING

VENTILATOR

Modeselection

Temp.setting

Autoswing

Cautions

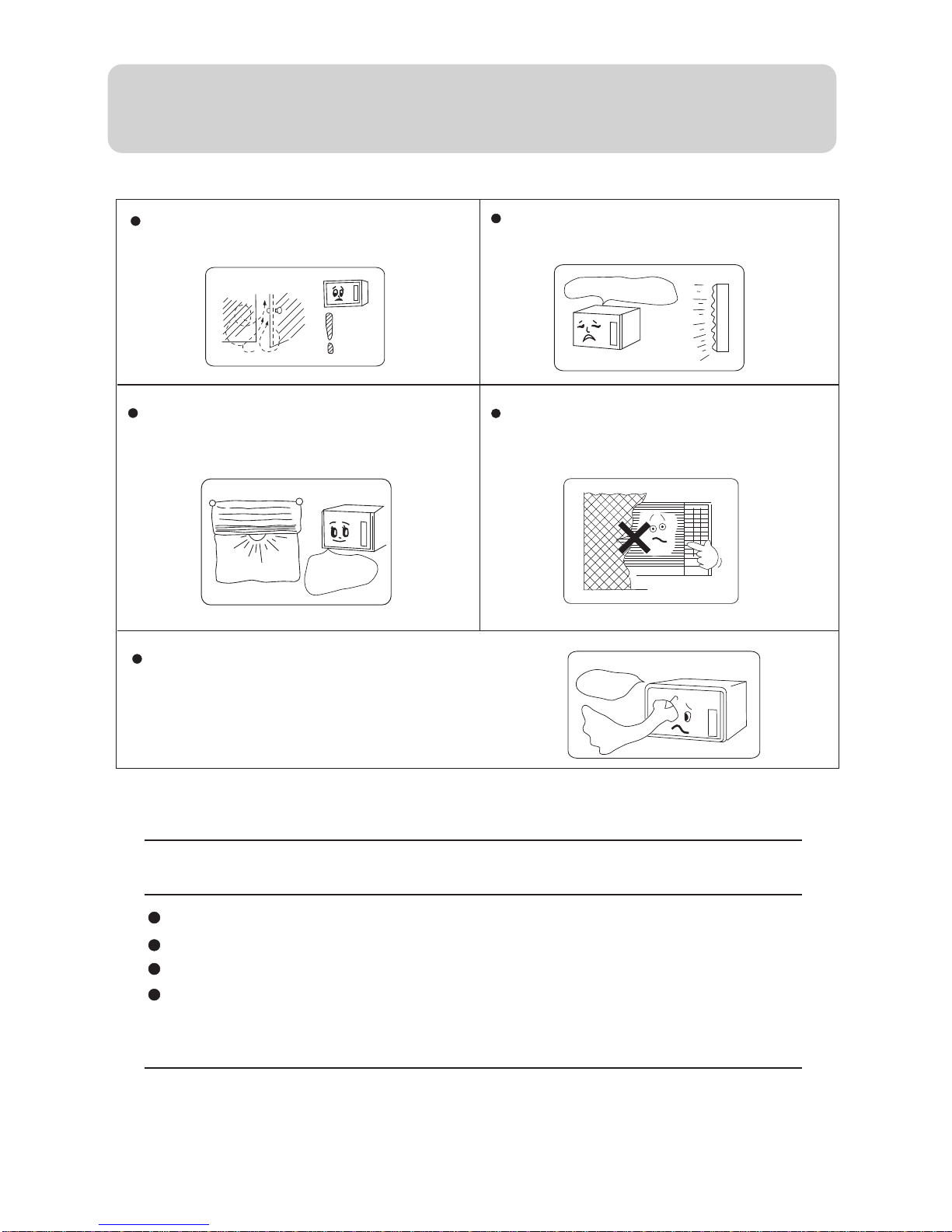

Avoid opening doors and windows

as much as possible.

Use curtain or blinds.

Direct sunlight may reduce cooling

effect, so always use window curtain.

Keep heat sources away from the

air conditioner.

Do not hang clothes in the vicinity

of the air inlet. This will decrease

the cooling effect and cause abnormal

operation.

Before operating the mode selection

switch, check whether the air inlet

or outlet has been blocked.

Go away!

No entrance

Keep away from me

For longer and trouble-free operation of the unit, pay special attention to

the following:

Install the air conditioner at a location strong enough to support the unit.

Leave enough space around the air inlet and outlet for better circulation.

Avoid sites where flammable gas leaks.

Problems may occur if the unit is installed in the following areas:

Place where oil exists in the air including engine oil, seaside with

salt breeze, and hot springs area with air-borne sulfurous gas.

Troubleshooting

Condition Check Item Corrective Action

Doesn't

operate

Is plug firmly inserted?

Is fuse burned out?

Is there power failure?

Restore power or replace

fuse.

No cool air or

poor cooling

Is thermostat switch

incorrectly adjusted? Adjust the thermostat.

Is there direct sunlight

into the room? Use curtain or blinds.

Is mode selection switch

set to fan mode?

Are doors or windows left

open?

Shut doors and windows.

Is there any obstacle

blocking air inlet or outlet? Remove the obstacle.

Is the fresh air knob

shifted to the right?

Is there a strong heat

source in the room?

Is air filter clogged? Remove and clean.

If problems cannot be solved, please pull out power plug and contact your

dealer.

Close vent by shifting

knob to the left.

Remove or turn off the

heat source.

Installation Instructions

Selection of the installation position

1. Select position where the structure is firm.

2. Select position where the air inlet and outlet are not blocked by obstacles.

3. Select position where the cooled air can be blown to every corner of the room.

4. Select position where there's no direct sunlight. If sunlight cannot be avoided, some means of

sun shade is required.

5. Select position where the outdoor airflow will not bother neighbors.

6. Select position where condensation drainage is not impeded.

7. Select position where there's no dangerous gas or oil vapor nearby.

8. An extension cord is not recommended.

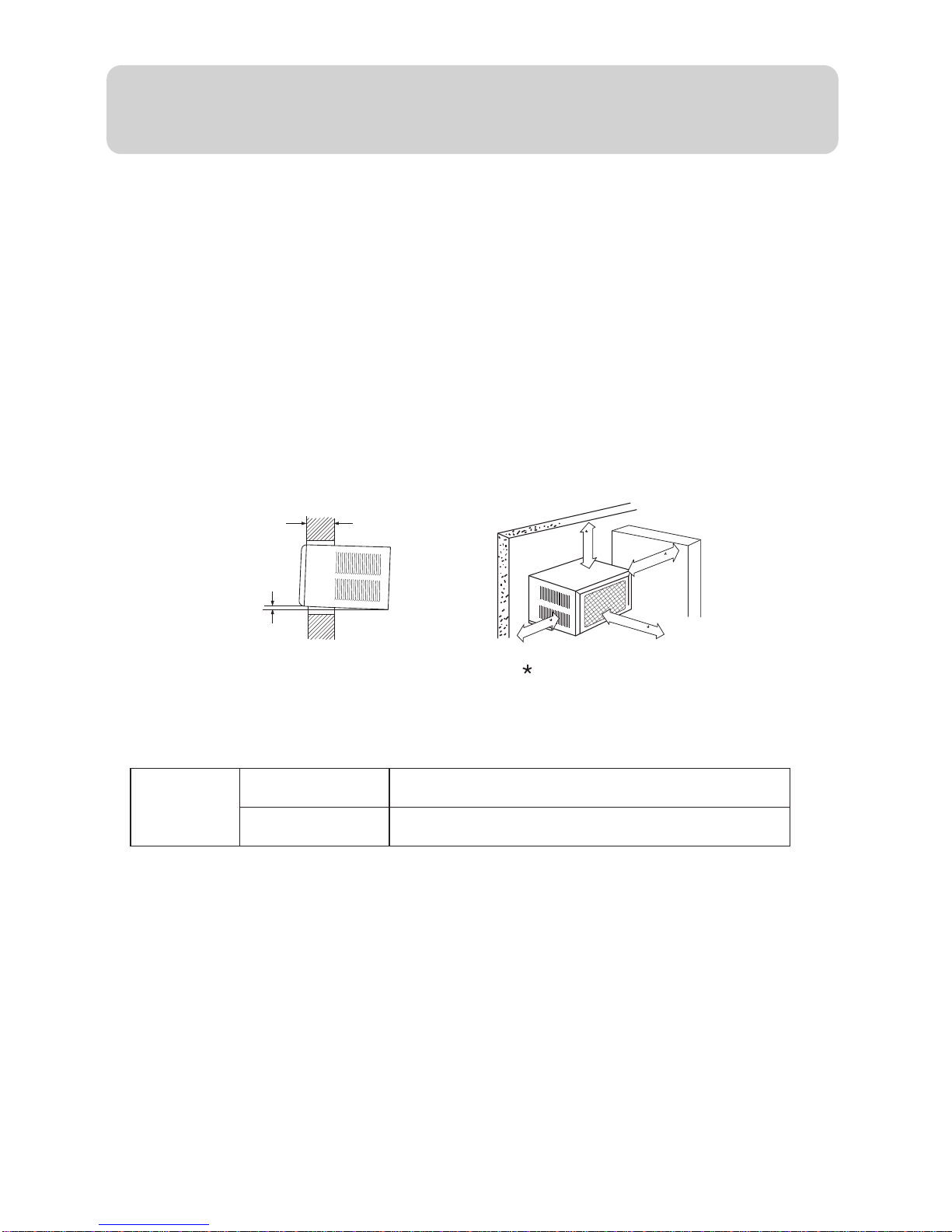

Installation diagram

The unit must be installed so that the back (outdoor side) is lower to allow drained water to flow

out smoothly.

Requirements for electricity:

1. Applicable ambient temperature range :

2. If the power supply cord is damaged, it must be replaced by the manufacturer, the service,

agent or a similar qualified supplier. An extension cord is not recommended.

3. The wiring method should comply with local wiring standards.

4. After installation, the power plug should be easy to access.

5. The breaker of the air conditioner should be an all-pole switch (25A) and the distance between its

two contacts should be no less than 3mm.

6. The appliance must be connected to a socket outlet with the appropriate rating.

7.The appliance is not intended for use by young children or infirm persons without supervision.

8.Young children should be supervised to ensure that they do not play with the appliance.

Width of wall should be

less than 295mm

5 ~ 10mm

400mm

700mm

Minimum distance

Cooling Indoor

Outdoor

Maximum:

Minimum:

Maximum:

Minimum:

D.B/W.B

D.B

32oC/23oC

18oC/14oC

43oC/26oC

18oC

D.B/W.B

NOTE:For HW-18C03/R1 are CFC mode, which adopt the R407c refrigerant.

Installation Guide

Installation of air conditioner (only for reference)

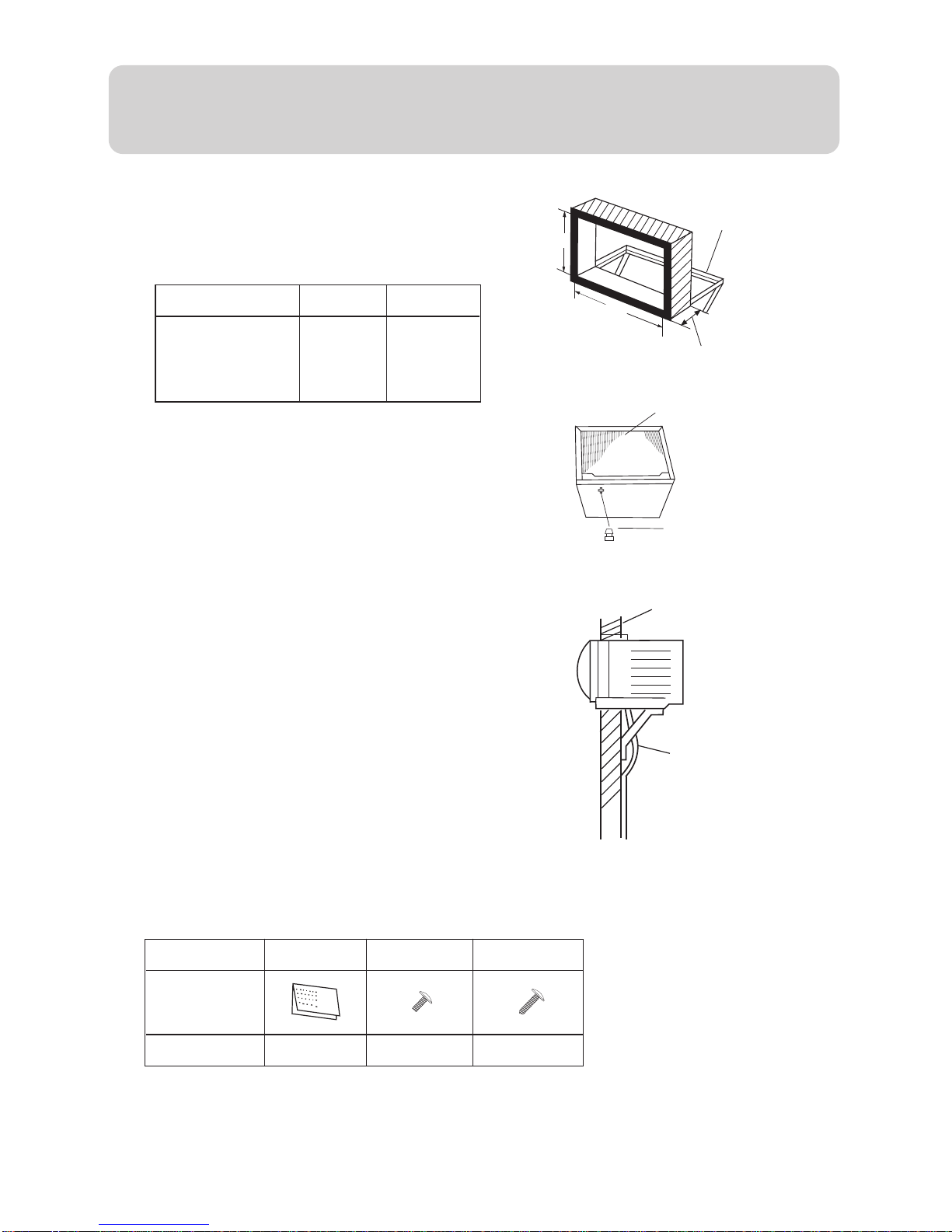

1. Make a wooden frame. (Fig.1)

2. Attach a metal support (not provided by

manufacturer) in a firm location with expanding

screws or bolts.

3. Remove the air conditioner from its packing

carton.

4. Place the air conditioner on the metal support.

5. Stuff gaps in the wall or window with soft

sponge material or rubber gaskets to block

outside noise and keep cool air from escaping.

6. Lift the back of the machine body slightly.

You can see the drain hole at the back of

the bottom plate. (see Fig. 2).

7. After installation of all the accessories,

put the whole machine on the metal support.

If there's water outlet flexible pipe, lead

the pipe to needed position (see Fig.3).

Supplied accessory parts.

Model BA

Note: After finishing the installation of the air conditioner,

fix the panel board onto the casing with one front

attachment screw and two side attachment screws.

Name

Appearance

Quantity

Manual

Side screw

Front screw

Fig.2

Fig.3

Thickness of wall

Metal support

Fig.1

Wall

670mm440mm

HW-18C03/R1

Rubber lid

Condenser

water outlet

flexible pipe
