Haier D200 Manuale utente

Your Phone

Keys and Functions

Earpiece

Display

Fourways Navigation Key

Right Soft Key

Power/End Key

OK/HotkeytoWAP

Keypad

Microphone

Charging Port

Front View

Send Key

Left Soft Key

Volume Side Key

Screen Icons

Installing the Battery

1) Aim the protruding part at the bottom of the battery

at the groove of the phone.

2) Push the top part of the battery to the phone and

press down the lock until it is locked.

Switch off the phone, push up the lock at the top of the

battery to uplift the top of the battery and separate it

with the main board.

1) Make sure to switch off your phone before taking

out the battery.

2) Make the metal face of the RUIM card down and

put it conferring the level of the card.

3) Reinstall the battery.

1) Remove the battery after switching off your phone.

2) Remove the RUIM card.

3) Reinstall the battery.

Removing the Battery

Installing the RUIM Card

Removing the RUIM Card

Charging the Battery

Using the Function Menu

Making a call

1)Plug the charger transformer into a standard outlet.

2)Insert the charger output plug into charging

connector of the bottom of the phone.

3)The rolling of the electric quantity bar indicates that

the phone begins to charge.

4) When the battery level full and stop rolled, the

phone will display 'Battery full'.

5)After charging is complete, switch off the electric

supply and pull out the charger's jack.

1.In idle mode, press to display the interface.

2.Press to scroll to a menu item.

3.Press to display the menu.

4.Display the submenu in either of the ways:

Press to scroll to a submenu item and press

to display the submenu.

Press the number key corresponding to the number

of a submenu to display it.

5.Press to return to the previous menu or quit the

function menu.

Press to return to the idle screen.

1.Dialing

Select a desired entry from the names list or directly

type in the phone number in idle mode, press key

to dial.

2. Making an international call

Press and hold key until ‘+’ appears on screen.

3.Ending a call

You can end a call at any time by holding down the

key till the call has been terminated.

1.Press key or any key (need setting) to answer the

call.

Or press key [Silence] once to close incoming

ringer, press [Accept] again to receive the incoming

call.

2.Press key twice to reject the incoming call.

The phone lock code is used to protect your phone

from unauthorized use.

It can be set automatically to lock your phone each

time it is switched on or when in idle mode. In this

condition, you can only dial emergency call.

You must press key to enter correct phone lock

code, and then access the phone menu (The default

code is 000000).

You can set protection code (PIN code) in order to

prevent random using of your phone by others. Each

time you restart your phone, the phone will prompt you

Enter the country code, area code (without prefix

zero) and phone number.

Press key to dial.

Receiving a call

Phone Lock

PIN and PUK

to enter PIN code. You can get PIN code from your

mobile phone service provider. In this condition, press

Key to dial emergency call.

Note:

If you have entered the PIN code incorrectly

continuously for max retry limits, the RUIM card will be

automatically locked. In this condition, the phone will

prompt for PUK (PIN Unlocking key). You can get the

PUK from your mobile phone service provider.

Your phone supports WAP 2.0. You can use this facility

to connect to selected services on the mobile Internet.

This menu option allows you to download a host of

exciting content with WAP browser.

Simply browse on the web page and download from a

wide selection of Ringtones, Wallpapers, and other

applications such as BSE Stock Portfolio tracker, Faith

and many more.

For short access to WAP menu, you can directly press

Key in idle mode.

This document is a user guide for USB Windows

Input PIN code and press key. (For security, an *

will be displayed on the screen to in place of the

number you enter.)

If you make a wrong enter, you can press key to

re-enter the code.

USB windows device driver installation guide

Introduction

WAP

device driver installation process. The USB Windows

device driver provides the interface between the

operating system and Haier D200 handsets, allowing

user applications to communicate with devices. This

installation guide is intended to provide a detailed

description of the USB Windows device driver

installation process.

We will supply an accessory CD including this driver.

Upon successful completion of the installation process,

the following files will be located in the specified

directories folders:

C:\Program Files\VIA Telecom\VIA CBP USB

Driver\*.inf:

ViaUsbEts.inf

ViaUsbHub.inf

ViaUsbModem.inf

C:\Program Files\VIA Telecom\VIA CBP USB

Driver\*.sys:

ViaUsbEts.sys

ViaUsbModem.sys

C:\Program Files\VIA Telecom\VIA CBP USB

Driver\*.PDF:

ctm_via_usb_drv_installation_user_guide_8_A.PDF

You must close all firewalls and anti-virus software

before installing the USB driver.

1. To install the USB Windows device driver, you must

first start the Setup application, ViaUsb_Setup.exe, by

double-clicking the associated icon.

Components

Installation

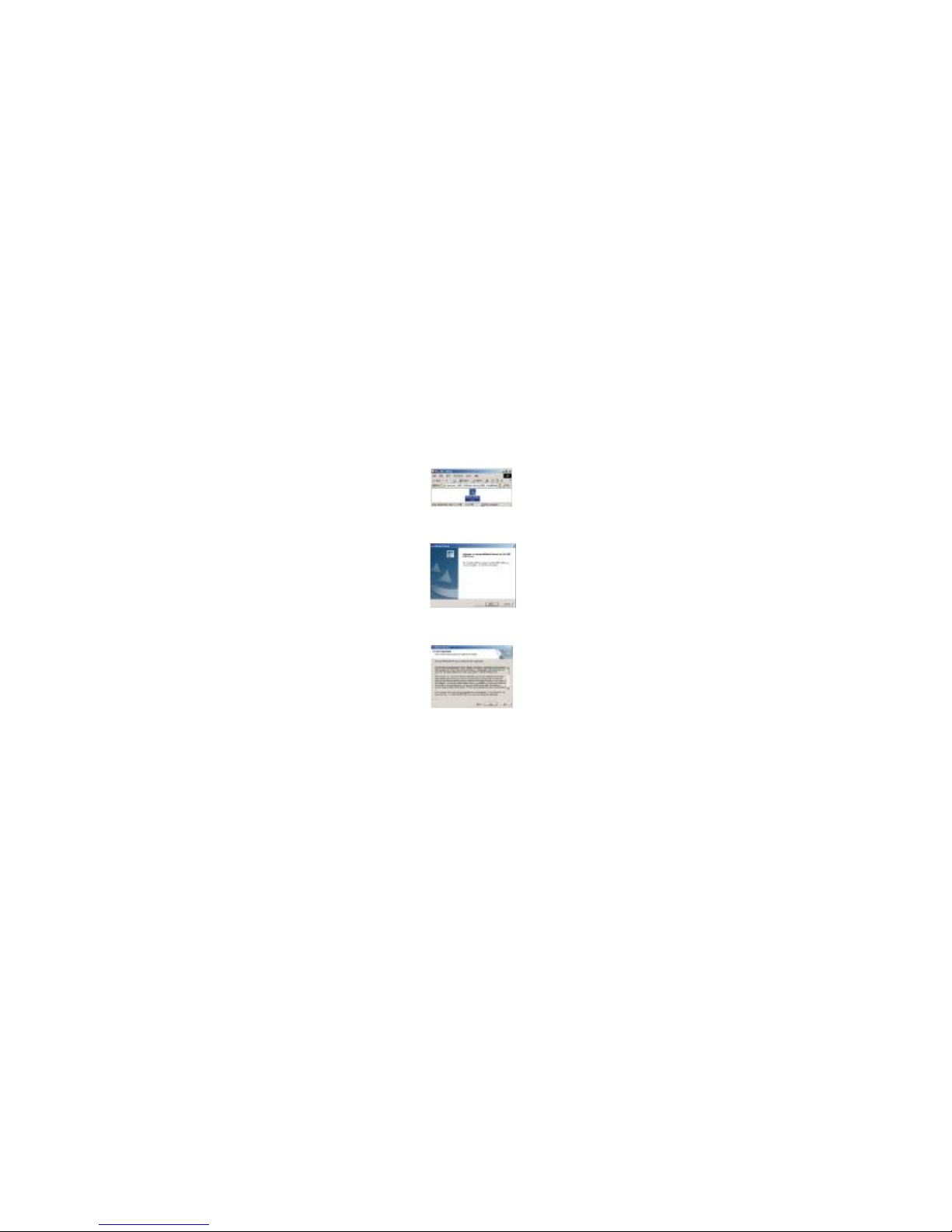

Figure 1 - USB Windows Device Driver Setup Icon

Figure 2 - USB Windows Device Driver Setup Welcome Dialog Box

Figure 3 - USB License Agreement Dialog Box

2. The USB Windows Device Driver Setup Welcome

dialog box will appear.

3. Click the button to continue.

The License Agreement dialog box appears.

4. To continue, you must accept the License

Agreement by clicking the button. If you select the

button, the following dialog box will appear,

Yes

confirming whether you truly wish to terminate the

installation process at this time.

If you select the button, the installation process is

terminated. If you select the button, the License

Agreement dialog box (Figure 3) will reappear.

Upon agreeing to the License Agreement (Figure 3),

the Customer Information Request Dialog Box will

appear.

5. Please enter the appropriate user and company

name into the corresponding fields. By clicking the

button, you will proceed to the actual installation

of the USB Windows Device Driver support files into

their appropriate folders.

The USB Installation Status Message dialog box will

then appear indicating what percentage of the file

copying task is complete.

Figure 4- USB Windows Device Driver Setup Process Termination

Confirmation Dialog Box

Figure 5 USB Setup Customer Information Request Dialog Box

Yes
