Haier DW9-TFE3 Series Manuale utente

Dishwasher

DW9-TFE3 Series

DW9-UFE3 Series

Instructions for Use

DW9-TFE3

DW9-UFE3

Index

Safety information

Installation

Getting to know your appliance

How to fill the salt container

How to fill the rinse aid container

How to fill the detergent dispenser

Not suitable for the dishwasher

Arranging crockery, glasses, etc. in the dishwasher

Programme overview

Washing dishes

How to keep your dishwasher in shape

Care and maintenance

Trouble shooting

Technical data

Important information

Safety information

At time of delivery

Check packaging and dishwasher immediately for signs of transport damage. If the appliance is

damaged, do not use it and contact the retailer or our approved customer service department without

delay.

Please dispose of packaging materials properly.

The dishwasher must only be used by adults for the washing of household dishes and cooking utensils.

Do not place any heavy objects on the door or stand on the door when it is open. The appliance could

tip forward.

The water inside the dishwasher is not suitable for drinking.

Do not use solvents of any kind inside your dishwasher. There is a risk of explosion.

Open the door carefully if the dishwasher is operating. There is a risk of water coming out.

During normal use

Do not touch the heating element during or after a wash cycle.

Fundamental rules to follow when using the appliance:

- Never touch the dishwasher when barefoot or with wet hands or feet.

- Do not use extension cords and multiple sockets.

- If the appliance is not operating properly or maintenance must be performed, disconnect the appli

ance from the power supply.

Site the dishwasher and connect it up in accordance with the installation instructions.

The dishwasher must not be connected to the electricity supply while installation is being carried out.

Ensure that the domestic wiring is properly earthed.

The mains electricity supply must conform to the details shown on the dishwasher rating plate.

Do not connect the dishwasher to the electricity supply using an extension cable.

After the appliance has been installed, the mains plug should still be easily accessible.

During installation, the power cable must not be excessively or dangerously kinked or flattened.

This appliance cannot be installed outdoors, even if the area in which it is installed is covered by a

roof. It is very dangerous to leave the appliance exposed to rain and the elements.

During installation

If your family includes children or the infirm

The appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

Keep detergents out of the reach of children.

If a fault occurs

If the appliance malfunctions, turn off the water supply to the appliance, switch it off and disconnect

the plug from the wall socket. Then, consult the section entitled "Trouble shooting". If you cannot

solve the problem, contact a service centre.

Only specialised personnel are authorised to make repairs.

If the power cable is damaged, it must be replaced by the manufacturer or a manufacturer-approved

service engineer.

To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:

- Call only the service centres authorised by the manufacturer, or the approved service agents.

- Always use original spare parts.

When disposing of old appliances

Appliances which are no longer being used must be made inoperable by disconnecting the plug from

the wall socket, cutting the power cable and removing the door lock.

Take the appliance to a designated waste disposal centre.

Warning

Children could get locked or stuck in the appliance (risk of

suffocation). Therefore: Remove the mains plug and cut themains

wire. Damage the door lock so that the door can no longer be

closed.

Dangerous voltage

Positioning the appliance

Positioning the appliance in the desired location. The appliance is equipped with water supply and drain

hoses that can be positioned to the right or the left of the appliance to facilitate proper installation.

Levelling the appliance

Once the appliance is positioned, adjust the feet (screwing them in or out) to level the appliance. If the

appliance is level, it will help to ensure proper performance.

Installation

fig.A

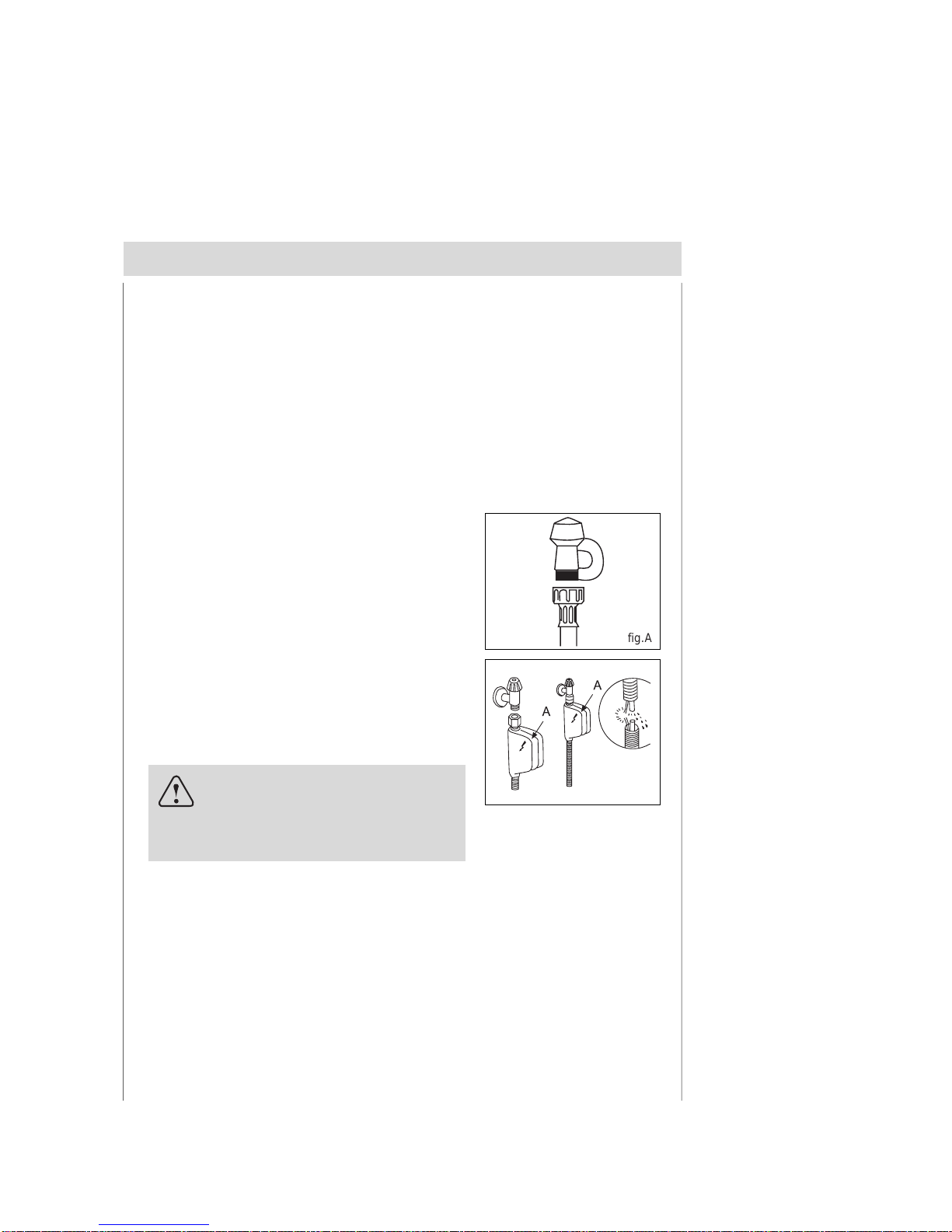

Cold water connection

Connect the water supply hose to a threaded 3/4 inch (ca. 19mm)

connector, making sure that it is fastened tightly in place (see

Fig. A).

If the water pipes are new or have not been used for an extended

period of time, let the water run for a while until the water is clear

and free of impurities.

If this precaution is not taken, there is a risk that the water inlet

can get blocked and damage the appliance.

Anti-Flooding protection

The dishwasher is equipped with a system that stops the supply of water in the event of a problem with

the water supply hose or leaks within the unit, in order to prevent damage to your home. If for any reason

the box containing the electrical components happens to get damaged, turn off the power supply and

unplug the appliance immediately. In order to guarantee that the anti-flooding feature operates properly,

box "A" with the water supply hose must be attached to the water supply tap as shown in Fig. B. If the

length of the hose is not adequate to make a proper connection, the hose must be replaced with one

which is long enough. This hose is available upon request from specialised retailers and approved ser-

vice centres.

fig.B

Warning

The appliance is to be connected to the

mains water using new hose sets. Old

hose sets should not be reused.

Electrical connection

After making sure that the voltage and frequency values for your domestic electricity supply correspond

to those on the rating plate (located on the inner door of the appliance), insert the plug into an electrical

socket which is properly earthed (the earthing of the appliance is a legal safety requirement).

Caution:

The dishwasher's mains plug must be accessible even when the

appliance is installed as a built-in unit so thatmaintenance can be

carried out safely.

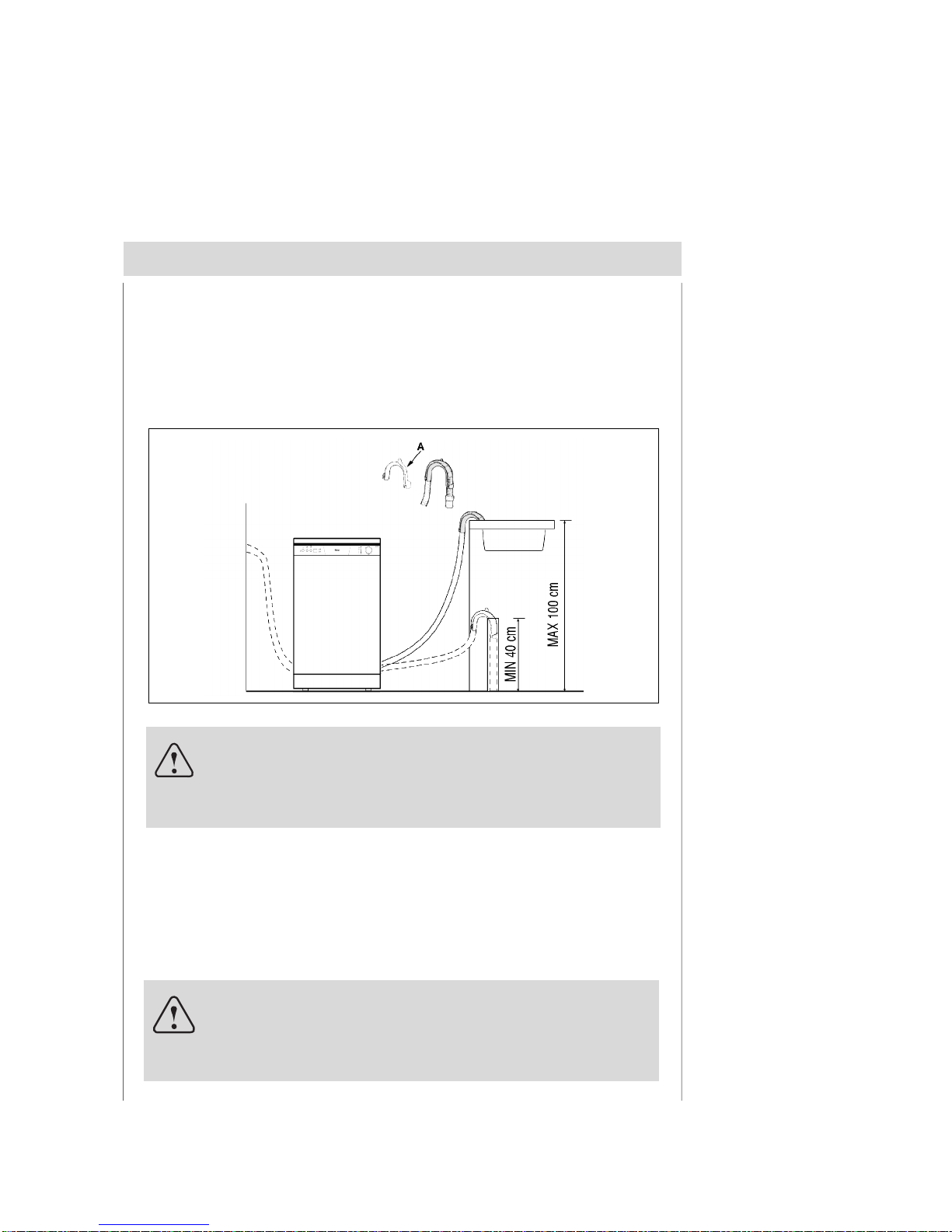

Drain hose connection

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, making sure to avoid kinking or

pinching. If necessary, fit a syphon trap (U-bend) with a connecting piece for the drain hose (Fig. C). The

free end of the hose must be at a height between 40 and 100 cm and must not be immersed in water.

Attention:

The syphon trap (U-bend) must be securely fastened to the wall to

prevent the drain hose from moving and thus causingwater to be

spilt.

fig.C

ELECTRICAL CONNECTION (UK ONLY)

For your safety please read the following information.

Warning: This appliance must be earthed.

The appliance must be connected to a socket by means of a three pin plug, suitably earthed and should

be protected by a 13 amp fuse.

The appliance is supplied with a rewireable 3-pin plug fitted with a 13-amp fuse. Should the fuse require

replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.

The plug contains a removable fuse cover that must be refitted when the fuse is replaced. In the event of

the fuse cover being lost or damaged, the plug must not be used until a replacement cover has been

obtained.

Caution:

The plug must be accessible even when the appliance is installed as a built-in unit so that maintenance

can be carried out safely.

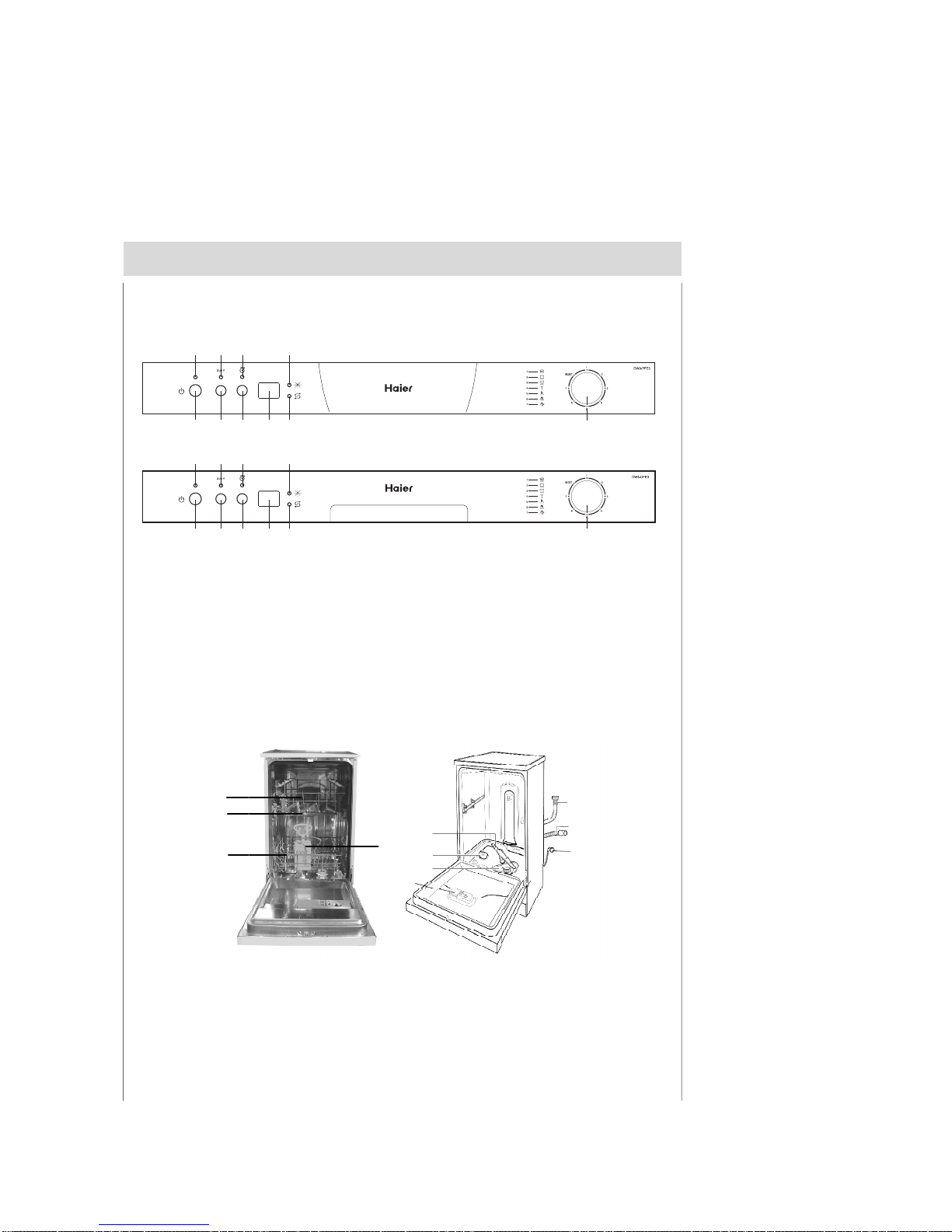

Getting to know your appliance

Close-up view (control panel)

Dishwasher interior

Upper Rack

Top Spray Arm

Silverware Basket

Bottom Spray Arm

Lower Rack Detergent and Rinse Aid Dispenser

Salt Container Cap

Washing Filter

Water Inlet Hose

Drain Hose

Power Supply Cord

"3 in 1" Indicator Low Salt Indicator

Time-remaining Indicator

ON-OFF Indicator

ON-OFF Button

Delayed Start Button

Delayed Start Indicator

Low Rinse Aid Indicator

Programme selection dial.

"3 in 1" Button

Salt

The hardness of water varies from place to place. If hard water is used in the appliance, deposits will form on the

dishes and utensils.

The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals

from the water.

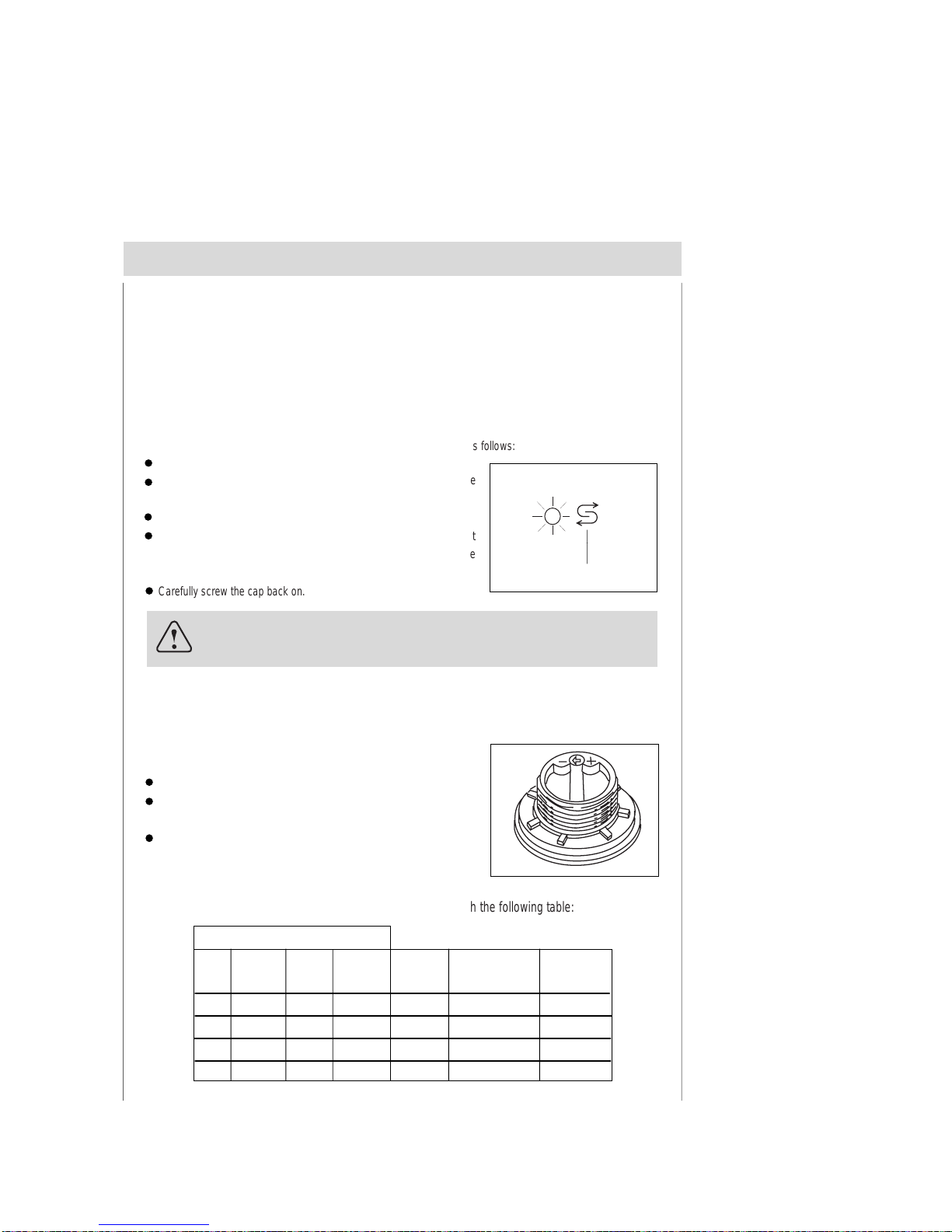

How to fill the salt container

Filling the container with salt

Always use salt intended for use with dishwashers.

The salt container is located beneath the lower rack and should be filled as follows:

Adjusting salt consumption

You can adjust the amount of salt used to suit the hardness of the water in your area. This is intended to

optimize the level of salt consumption so that it remains at a minimum.

To adjust salt consumption, proceed as follows:

It is recommended that adjustments be made in accordance with the following table:

When the low Salt indicator "1" lights, you must add salt.

Remove the lower rack and then unscrew and remove the cap from the

salt container.

If you are filling the container for the first time, fill it with water.

Place the end of the funnel (supplied) into the hole and introduce about

2 kg of salt. It is normal for a small amount of water to come out of the

salt container.

Carefully screw the cap back on.

Important

To prevent the formation of rust, fill with salt just before beginning a wash cycle.

Unscrew the cap from the salt container;

There is a ring on the container with an arrow on it (see figure to the

side).

If necessary, rotate the ring in an anticlockwise direction from the "-"

setting towards the "+" sign, based on the hardness of the water being

used.

Water Hardness

Clarke

degrees ºdH mmol/l Selector

position Salt

consumption

(Grams/cycle) Autonomy

(cycles/2kg)

0-14 0-17 0-1,7

1,8-4,418-4414-36

36-71 45-89 4,5-8,9

>89>71 >8,9

"-"

Middle

60"+"

Level

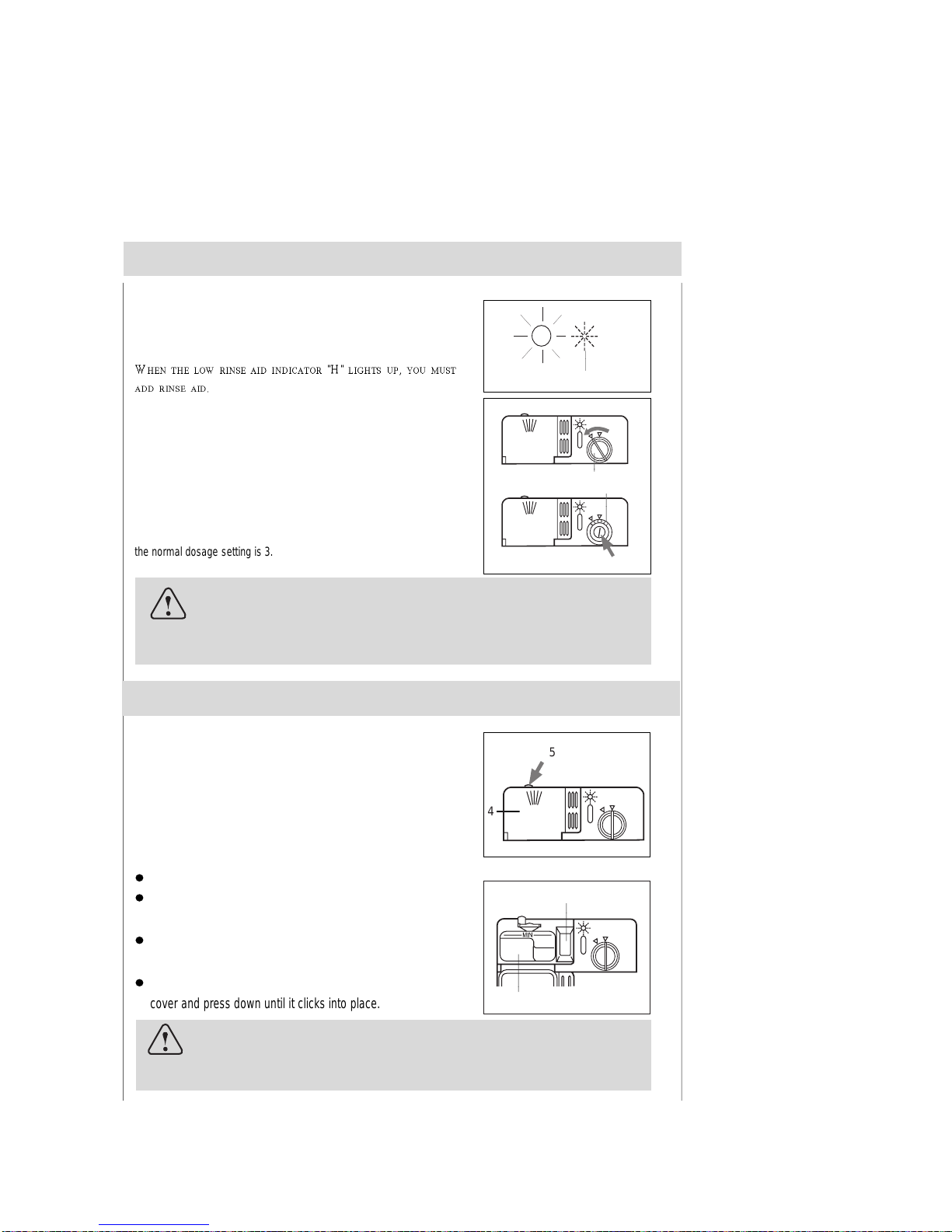

Rinse aid

This product makes dishes sparkle and helps them to dry without spotting.

The dispenser is located on the inside panel of the door.

Adding rinse aid

Regardless of the type of detergent dispenser installed on your appliance,

you must proceed as indicated below when loading the rinse aid.

To open the dispenser, turn the cap "2" in an anti-clockwise direction and

then pour in the rinse aid, making sure not to overfill. The amount of rinse

aid used for each cycle can be regulated by turning the dose adjustor "3",

located beneaththe cap "2", with a screwdriver. There are 6 differentsettings;

the normal dosage setting is 3.

How to fill the rinse aid container

How to fill the detergent dispenser

Important

Correct dosage of rinse aid improves drying. If drops of water remain on the dishes

or spotting occurs, the dosage adjustor should be turned to a higher setting. If the

dishes have white streaks, turn the dosage adjustor to a lower setting.

Detergent

Detergent specifically intended for use with dishwashers must be used. The

dispenser must be refilled before the start of each wash cycle following the

instructions provided in the "Programme overview". The detergent dispenser

is located on the inside panel of the door.

To open cover "4" on the dispenser, press button "5".

The detergent for the wash cycle should be poured into

compartment"6“.

The detergent for the pre-wash cycle should be poured into

compartment"7".

After the detergent has been placed in the dispenser, close the

cover and press down until it clicks into place.

Notice:

To facilitate closing the cover, remove any excess detergent on the

edges of the dispenser.

Adding detergent

Altri manuali per DW9-TFE3 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Haier Lavastoviglie

Haier

Haier HDW9TFE3WH HA AA Manuale utente

Haier

Haier DW12-TFE3 series Manuale utente

Haier

Haier DW12-ABM4 Manuale utente

Haier

Haier DW9-AFM ME Manuale utente

Haier

Haier DW12-LBE Manuale utente

Haier

Haier UNDERCOUNTER DISHWASHER Manuale utente

Haier

Haier WQP4-3N Manuale utente

Haier

Haier HDT18PA - Space Saver Compact Dishwasher Manuale utente

Haier

Haier HDW9-AFM Manuale utente

Haier

Haier DW12-TFE1 series Manuale utente

Haier

Haier HDW13V1W1 Manuale utente

Haier

Haier HDW201SS Manuale utente

Haier

Haier DW15-PFE S Istruzioni di installazione e manutenzione

Haier

Haier DW60BI Manuale utente

Haier

Haier ESD 300 Series Manuale utente

Haier

Haier HDW101SS Manuale utente

Haier

Haier DW12-CFE SS Manuale utente

Haier

Haier DW12-CBE4 Manuale utente

Haier

Haier DW9-TFE3 Series Manuale utente

Haier

Haier DW9-AFM ME Manuale utente

Haier

Haier DWL3025 Manuale utente

Haier

Haier HDW12-SFE1 Series Manuale utente

Haier

Haier DW12-BFE ME Manuale utente

Haier

Haier DW-7777-01 Manuale utente

Manuali Lavastoviglie popolari di altre marche

Electrolux

Electrolux ESI5211LOX Manuale utente

KitchenAid

KitchenAid KUDB230B Manuale utente

Brandt

Brandt BDJ424DB Manuale utente

Asko

Asko DSD767UXXL.AU Manuale utente

Beko

Beko DFN26210W Manuale utente

NEFF

NEFF S153ITX00E Scheda tecnica

Midea

Midea SV 4.45 wi Manuale utente

LG LDF7932 Manuale utente

Gorenje

Gorenje GV63214 Manuale utente

Hotpoint

Hotpoint HDA1100ZWH Manuale di servizio

Blomberg

Blomberg LDFN2240W Manuale utente

AEG

AEG FFB83836PM Manuale utente

Cylinda

Cylinda DM3220RFD Manuale utente

Atag

Atag DW8214MB Manuale utente

GE GLD8000 Series Manuale utente

Siemens

Siemens SN23HI02KE Scheda tecnica

Omega

Omega ODW717X Manuale utente

BORETTI

BORETTI BVW-683 Manuale utente
