Haier HDB24EA Manuale utente

HAIER

FULLY AUTOMATIC

DISHWASHER

SERVICE MANUAL

PART # DW-8888-24

HAIER AMERICA TRADING, LLC

www.haieramerica.com

All manuals and user guides at all-guides.com

all-guides.com

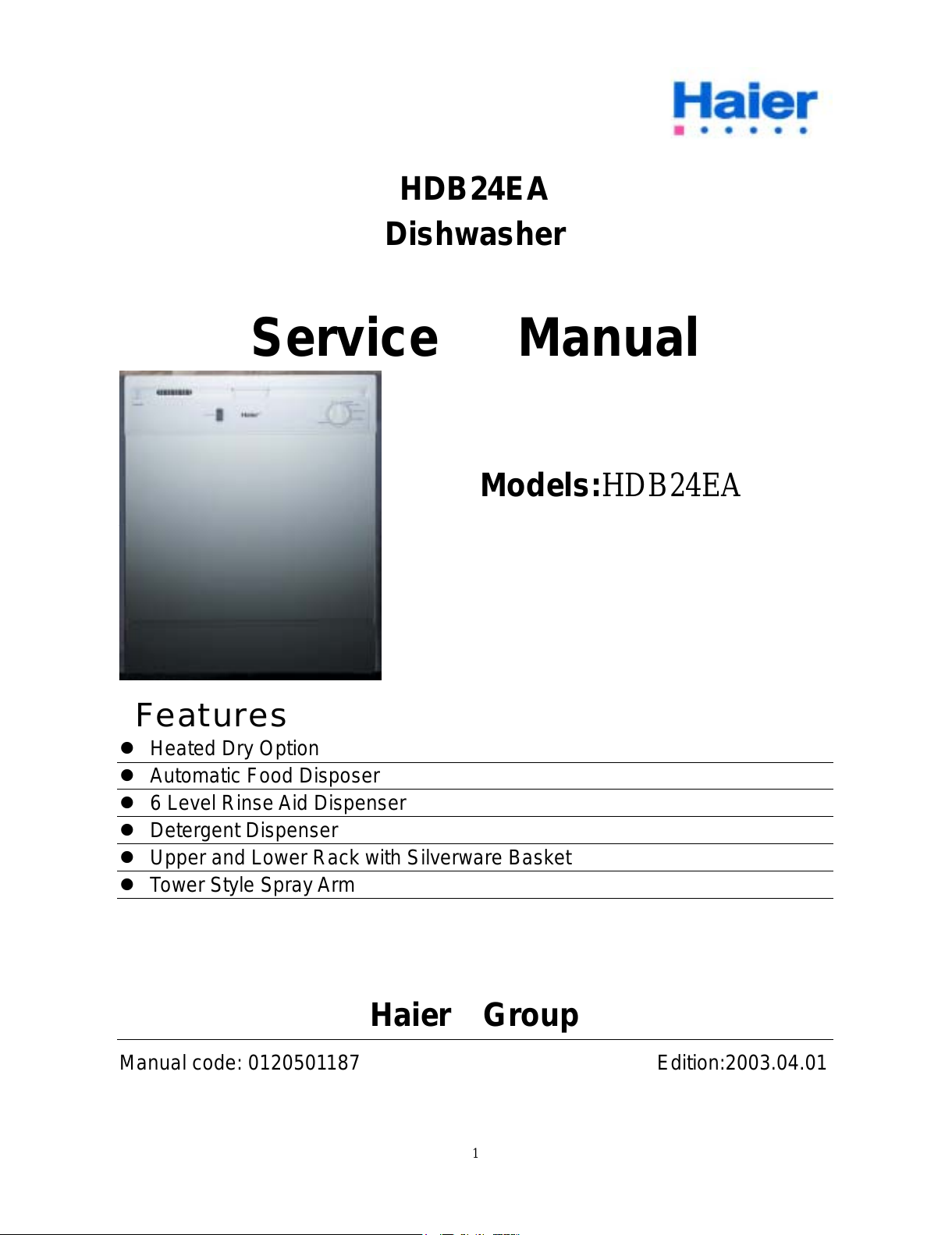

HDB24EA

Dishwasher

Service Manual

Models:HDB24EA

Features

zHeated Dry Option

zAutomatic Food Disposer

z6 Level Rinse Aid Dispenser

zDetergent Dispenser

zUpper and Lower Rack with Silverware Basket

zTower Style Spray Arm

Haier Group

Manual code: 0120501187 Edition:2003.04.01

All manuals and user guides at all-guides.com

Contents

1. Features ………………………………………………………………………….…..……...3

2. Specifications……………………..……………………… ……………………………….4-5

3. Safety Precaution………………………………………… ………………………..…….…6

4. Before using your dishwasher……………………… ………………………….………….7

5. Parts and features……………………………………………………………………………8

6. Start-up guide…………………… ……………………………………………………….9-10

7. Dishwasher loading………………………………… ………….. ………………...…...10-12

8. Dishwasher use…………………………………………………………………………..12-16

9. Washing special items…………………………………………………….…………………17

10. Dishwasher care……… ……………………………………………………….……………18

11. Troubleshooting……………………………… ………………..………………….….….19-20

12. Dishwasher installation…………………………… …………..………………………...21-36

13. Program diagram………………………………………… ……….…………………………37

14. Electrical schematic diagram…………………………………………..………………..38

15. Maintenances Services and Trouble Shooting………………………………….……..39-42

All manuals and user guides at all-guides.com

Features

1.Features

1.1 Heated Dry Option

1.2 Automatic Food Disposer

1.3 6 Level Rinse Aid Dispenser

1.4 Detergent Dispenser

1.5 Upper and Lower Rack with Silverware Basket

1.6 Tower Style Spray Arm

All manuals and user guides at all-guides.com

Specifications

2.Speciafications

1Haier Model Number HDB24EA

2Features

Installation Type Built-in

Wash System Standard

Wash Levels 2

Filtration System twice/filtration

Door Liner Plastic

Tub Liner Plastic

Food Disposer Yes

3Cycles

Pre-wash Yes

Pots & Pans Wash Yes

HeavyWash Yes

NormalWASH Yes

Light WASH No

Glassware No

Rinse & Hold Yes

4Additional programm settings

Upper Wash No

Hi-temp wash No

Convection dry No

Vented Dry No

Heated Dry Yes

DelayStart No

Start/Pause No

Rapid Dry ON/OFF Yes

5Rack, Shelf & Basket

Material of cover PA(NYLON)

Upper Rack Deluxe(not adjustable)

Lower Rack Deluxe(not adjustable)

Silverware Basket Deluxe

Cup shelf No

Sprayer Stainlesssteel(lower)+Plastic(upper)

6Function description

Control Type Dial/Push Button

Indicator lights No

Touch Pad/Push Button Push Button

Rinse Aid Dispenser Yes

Detergent Dispenser Yes

120'F Inlet Water Yes

Overfill Safety Control(flood cotrol) Yes

All manuals and user guides at all-guides.com

Heating element Yes

Leveling Legs Yes

Color Availability White

Power wire No

Washing pump & Drain pump Yes/Yes

fan for drying No

7System Performance Spec

Normal wash Performance Yes

Main wash noise (dBa) 60

DOE energy(KWH/Y) 560

Normal wash water usage 5.5gal(24.8L)

8Regulatory

UL/CSA/ETL/EEV/ISO9001 CSA/EEV/ISO9001

9Unit Dimensions (Inches)

Height w/Olegs retracted 33-7/8

Height w/ legs Extended 34-1/2

Overall Width 23-7/8

Overall Depth 24-5/8

Unit Weight (lbs) 68

10 Carton Dimensions (In.)

Height 36-3/8

Width 26-3/8

Depth 28-1/2

Shipping Weight (lbs) 82

Container Quantity 40`ST/40`HQ/Container Utilization 143(40`ST)/(68%)

45`HQ/Container Utilization

UPC Code

11 Power requirements 115V/60Hz

Watts 920

All manuals and user guides at all-guides.com

all-guides.com

Safety Precaution

3. Safety Precaution

All manuals and user guides at all-guides.com

Before using your dishwasher

4. Before using your dishwasher

All manuals and user guides at all-guides.com

Parts and features

5.Parts and features

All manuals and user guides at all-guides.com

Start-up guide

6.Start-up guide

All manuals and user guides at all-guides.com
