Haier T60-32 Manuale utente

Spin-drier

T60-32

User's manual

This manual is for

Please read this manual

carefully before using.

Retain it for future reference.

Contents

Safety precautions

The musts in using

Using sequence

Packing list *Specification

Names of the parts

Trouble-Shooting *Answers to question

Base frame

Cabinet

Fixing leg

(four pieces)

Back cover

Handle

Inner cover

Control panel

Note:The figures inthis manual canonly be regardedas diagrammatic sketches.

Please understand that, due to constant improvement of design, the extractor

and its accessoriesthat you havepurchased may beinconsistent with these

figures in the manual.

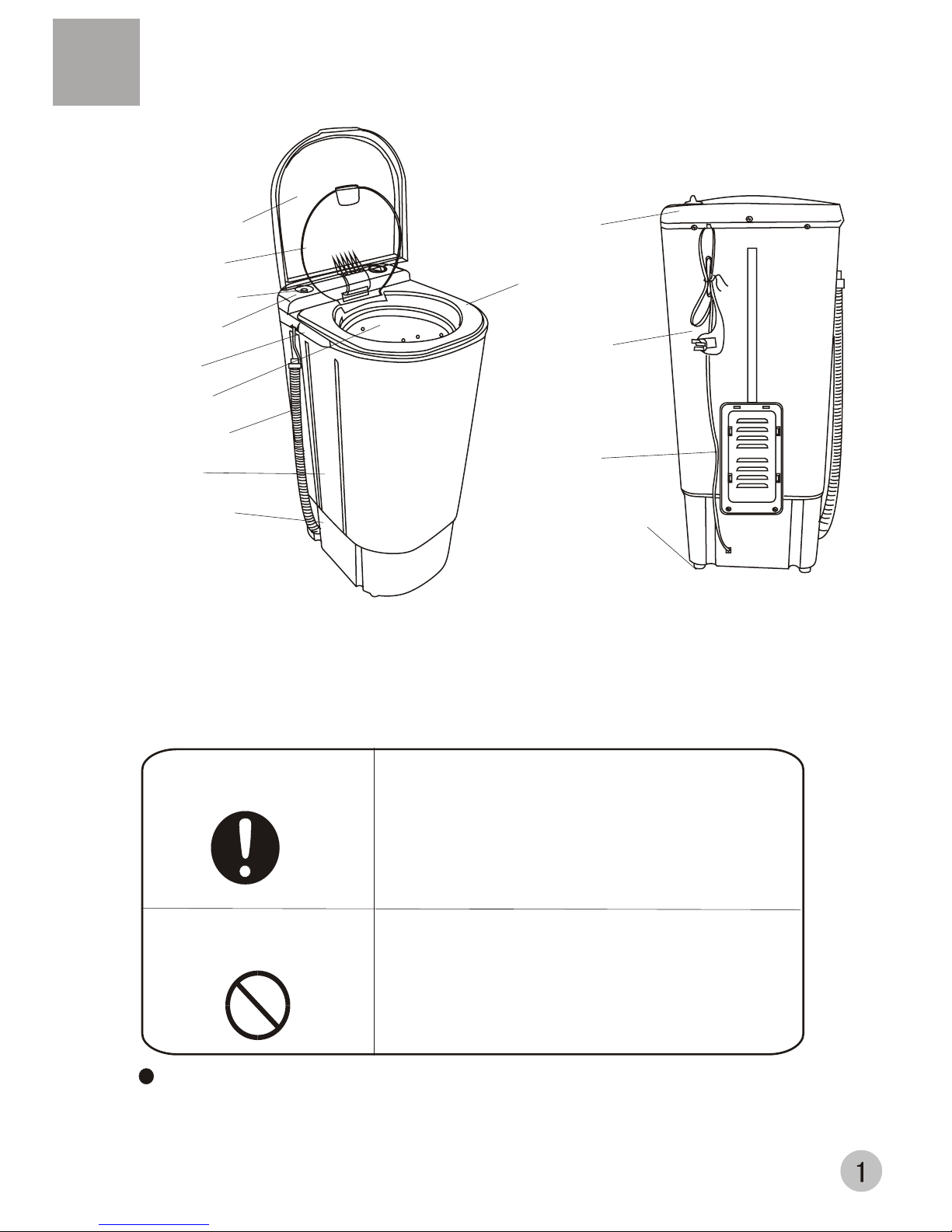

Names of the parts

Spin tub

Water-filling entrance

Drain hose

Cover of the spin tub

Knob of spin timer

Panel support

Power line

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

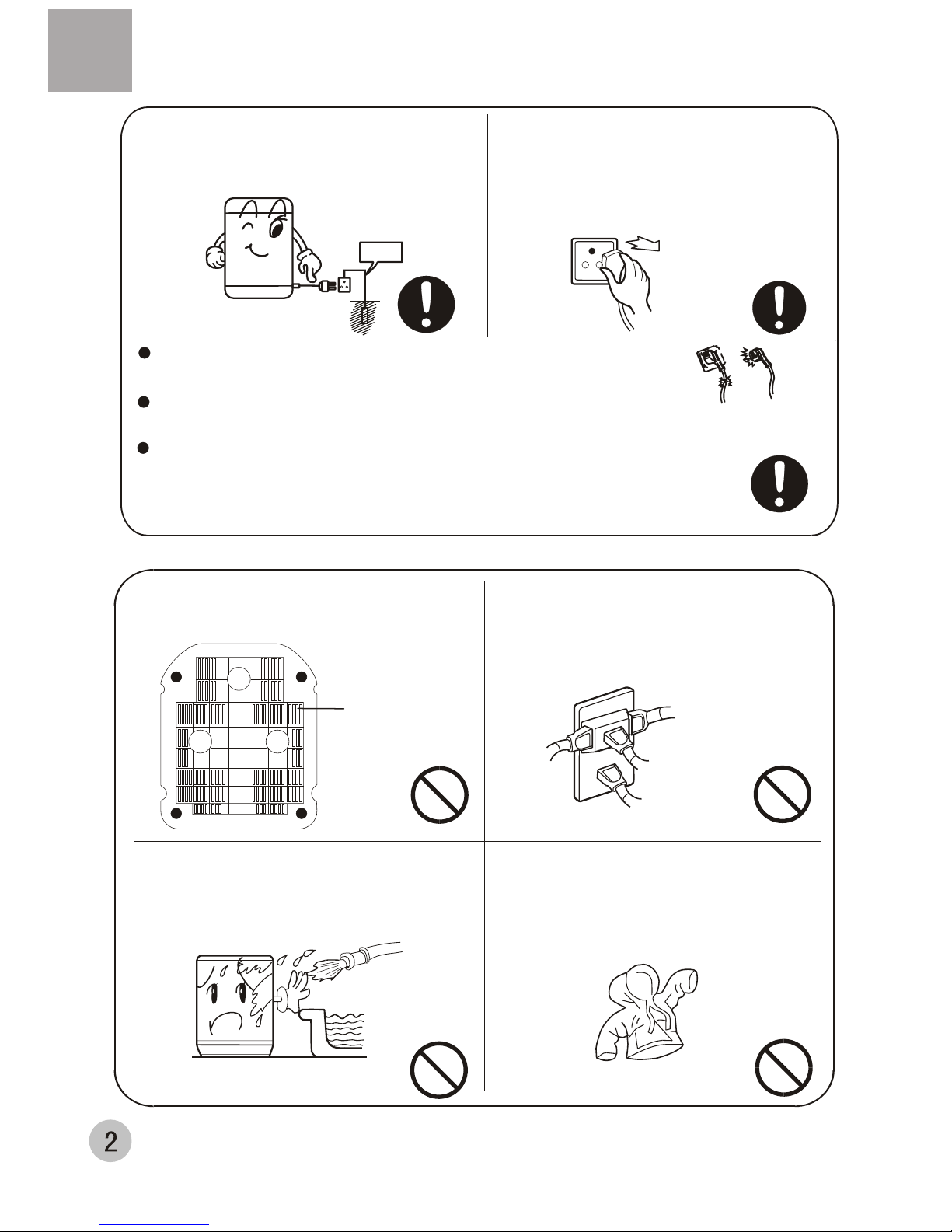

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

In case the spin dryer is installed

on ground with carpet , do not block

the ventilation hole with carpet.

Do not share one receptacle with other

electric appliances. Do not use it in

case that the power plug is damaged

or the inserting into the receptacle is

loose.

Do not wash water-proof laundries

such as the raincoat, bicycle shelter

etc. To avoid abnormal vibration

during spinning.

Do not put the machine at damp place

like the bathroom . Never wash it with

water. Do not place wet laundries on the

control panel.

Please insert the power cord into special

receptacle with rated voltage.Be sure to

use single-phase two pins receptacle.If

possible,please adopt electric leakage

protector.

When the machine is normally using,

please put the power plug at the loc-

ation easily to be inserted and extracted

by hand. Be sureto pull the plug off when

there'spower failure, orthe machine is

being moved, cleaned or when it is idle.

Ventilation hole at

the bottom of the

spin dryer

Do not bend, stretch, twist, bind the power cord by force,

or reform it. Do not press or clamp it with heavy items.

Keep the prong of the power plug clean.

If dust is found on the power plug, please wipe it off with dry cloth.

If the power cord and power plug are bad, or the receptacle is loose,

be sure to have it replaced by the technicians of our special shop

or our agent, or the after-sale service department for the sake

of avoiding any risk.

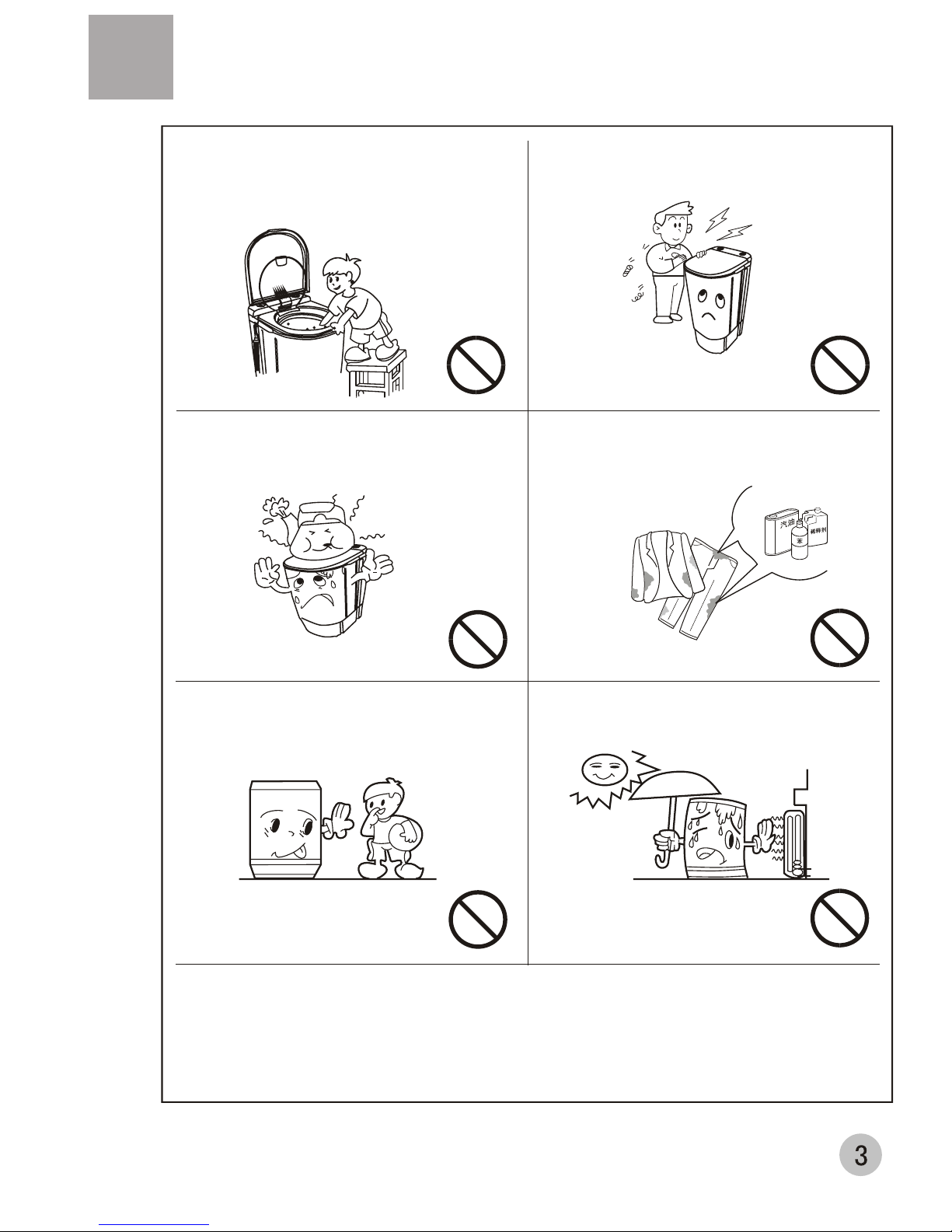

Safety precautions

Earth

Slanting or uneven ground may result in unstable working or abnormal noise.

Please make the machine stand horizontally.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Handicapped or children without care

shall not use the machine.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Safety precautions

OFF

SPIN TIMER

WATER INLET

Usage of the panel

Laundries Towel turkish

towel

Spin time(min.) About4~5 About2~4 About1~2 within about 1

The capacity of spinning of the machine refer to the largest weight ofthe standard

laundries under dry condition that can be spinned in one time. Laundries quantity

in one cycle shall be lower than the rated capacity.

The thickness ,size , type of the cloth will influence the actual spinning time.

Set the spinning duration depend-

ing on the category and amount of

the articles.

Notes:

4.If extra drain hose is needed , please make separate

purchase. The inner diameter of the extra hose shall

not less than 30mm, and thelength shall not exceed

1.5m.

<10cm

> 30mm

<1.5m

To set to below 1 minute, first set

to 2 minute then turn it back. it can

increase the service life of the timer

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be less than

10cm , or the drainage will not be smooth enough

and cause incomplete drainage.

2. Do not tramp or press the drain hose.

3. If the drain hose is too long, cut it at mid point.To make

smooth drainage, cut the front end of the hose slantingly.

bed sheet

Shirt Pajamas Underwear

Underpants

Blending thin

clothes

Water-added rinsing-spinning,

to be used during defoaming

-spinning.

The musts in using

Select the spinning time

List 1

Please make the machine stand horizontally.

Confirm that the washing machine is earthed reliably . Then insert the power plug I

nto the receptacle. Do not connect the earth terminal to the gas pipe and tap

water pipe.

Put down the drain hose .

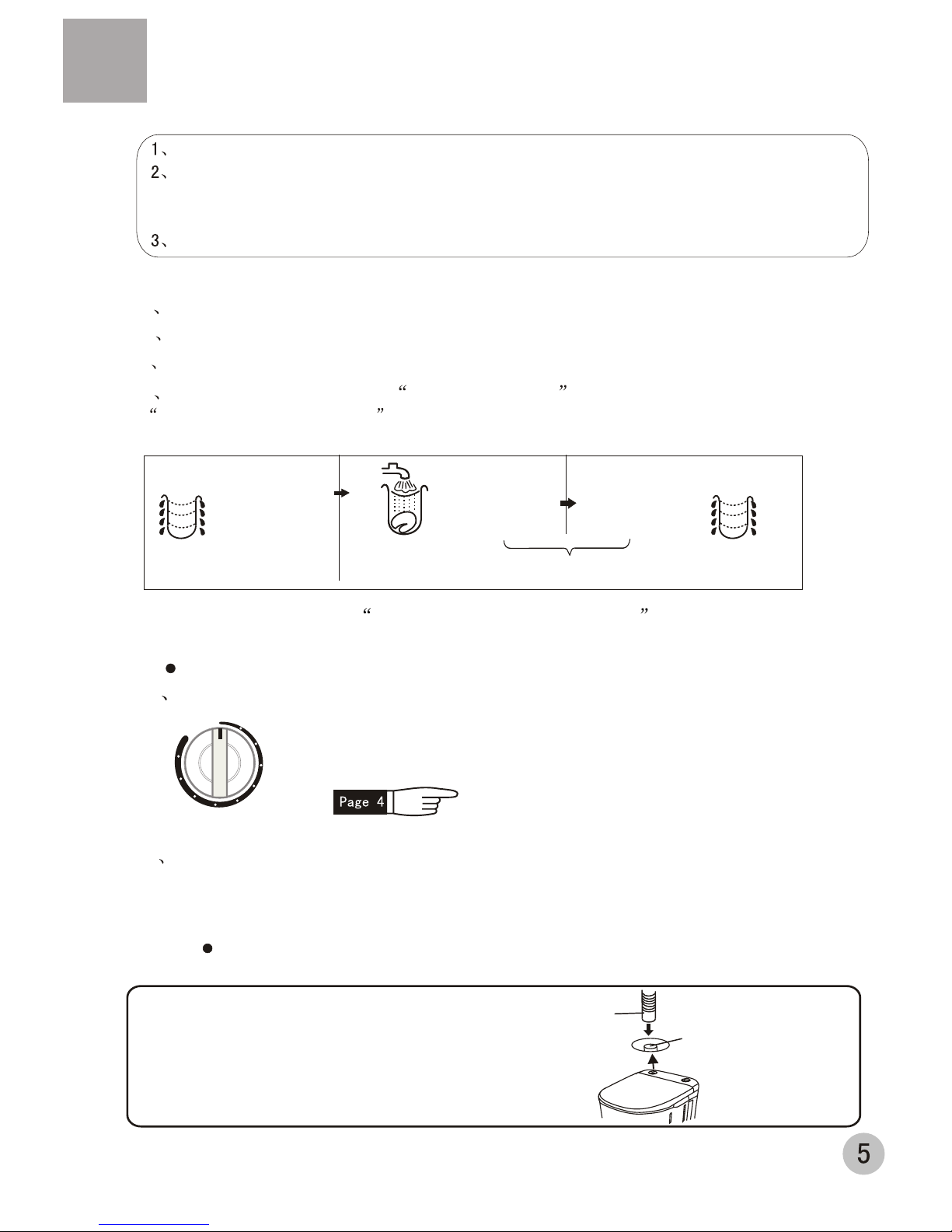

Preparation before spinning

Spin process

1Put the laundyies in properly

2Put the gland in properly

3Close the inner and outer coverof the spin tub

Select suitable spin time according to the laundries, and do spinning

Refer list 1 of page 3

4Do you need water-added Rinsing-spinnning

Water-added rinsing-spinning has an effect that can remove the surplus liquid dirt,

5Select spin time

Spin timer

Spin for about

1~2 minutes

OFF

Using sequence

Foam-removing

spinning

Remove most of

the foam extra

detergent liquid. Remove the detergent

liquid remained

The effect is best when the laundries quantity is below 80% of the rated value.

Spin

Fill water for

about 1 minutes Spin for about

1~2 minutes

Note: Refer to the Notes on Spinning carefully.

6Take the laundry out when the spinning ends.

When the spinning ends, open the top lid and the interior lid. Then take out

the depression cover and laundry after the spinning drum has stopped

rotation completely.

Note: If there needs no water-added rinsing-spinning , set the duration for

spinning directly.

Water inlet entrance

Water inlet hose

Install the water inlet hose

The water hose should be connected

as shown in the right figure.

It works in a way as follows:

Notes on Spinning

Hang up the drain hose.

Pull off the power plug and hang up the power cord.

Wipe the complete unit with soft cloth twisted dry.

Open the inner/outer cover of the spin tub for some time (about one hour),

then close them.

Disposal after spinning

Wipe off the water drops on

the surface and inside the

tub with clean soft cloth.

Be sure to pull off the power

plug before maintenance.

Maintenance

During the spinning, the

draining hose must be

leveled down. Donot lift

or hang it up.

If the cabinetis dirty, wipe itwith wet softcloth

Do not wash it directly by water.

Wipe with neutral detergent if too dirty

Do not wipe with thinner, petrol,

alcohol, etc.

Toprotect your laundries

and washing machine,

please takeout all of the

coins, buttons, sand,

hairpin and other foreign

materials beforewashing.

Use the foam-removing spin-

ning to remove the extra deter-

gent liquid. It can both shorten

the washing time and save the

water consumption.

Please put in the gland properly even if the laundries

Do not leaveany articles abovethe depression cover.

Push Gland Push

Proper The laundries

are slanting Proper No gland

In spinning, it will pause the

work if you open the outer

cover of the spintub. Close

it to resume the spinning.

Thinner

Alcohol

Petrol

quantity is small.

Trouble-shooting Answers to question

The machine does not act.

Is there power failure--Please use it when there's power supply.

Is the power plug loose--

(If there's breakdown, please pull off the power plug before checking) The following

phenomena are not breakdowns sometimes. Please confirm again before sending

it to repair. If there are real breakdowns, please come to the special maintenance

department or after-sale service department of our company. Do not repair it by yourself.

Phenomena The reason-How to solve

There's abnormal sound

and violent vibration

during spinning

Is the machine slanting--Adjust the machine to be even

Is the gland pressed evenly--

Insert the power plug tightly.

Put the gland in properly

Check if the laundry is inclined to one side--Take it

out and replace it evenly.

Check if thereare any metal articles in the laundry.

-- take themout.

Check if itis too full with thelaundry-- load the laundry

only in theright amount.

Check if there are any articles out of the spinning drum

-- put them into the drum.

Spin-drier

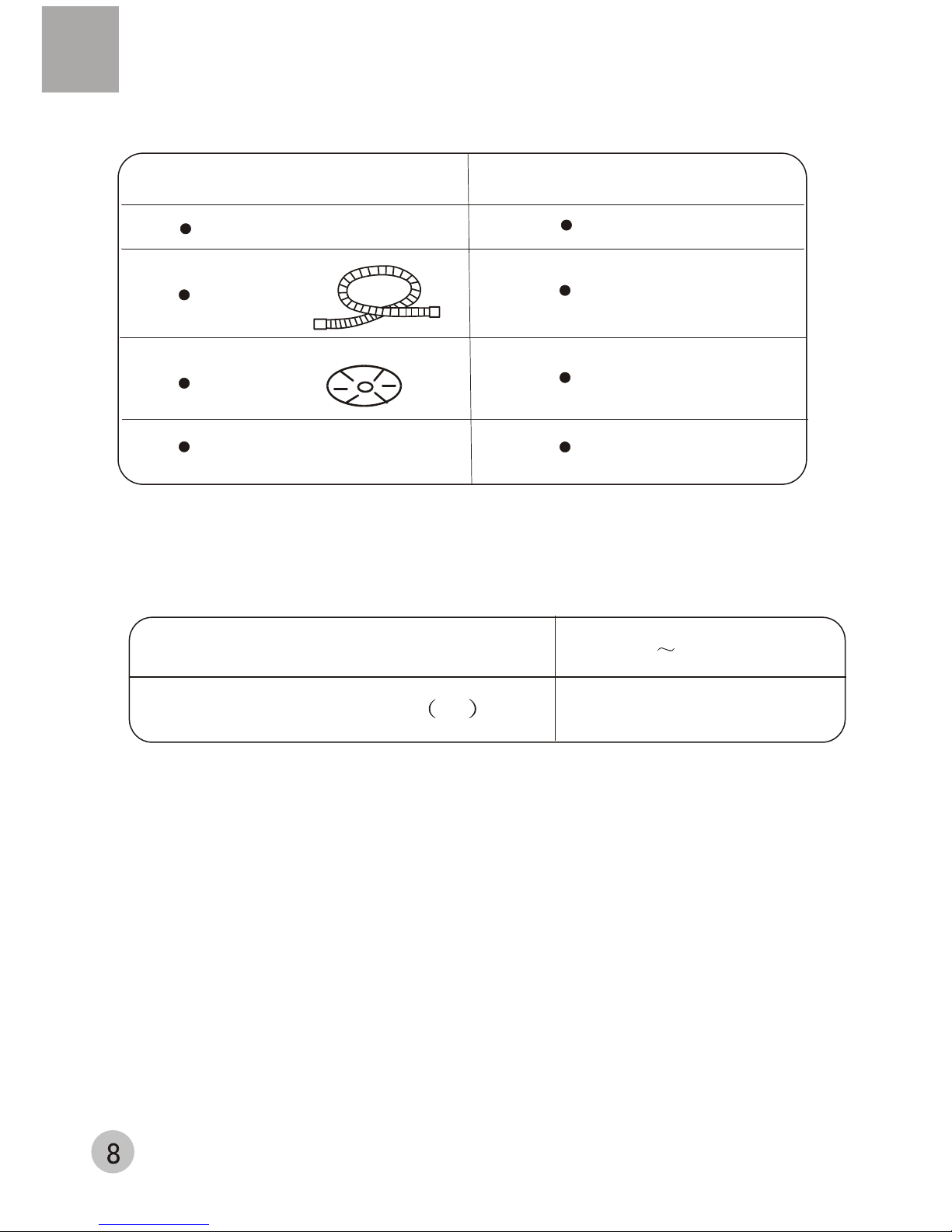

Packing list

User's manual

Name Quantity

One piece

Gland

One piece

Water inlet hose

One set

0.02 0.2

Specification

Injection pressure(MPa)

Rated spinning capacity kg 6.0
