Haier HB80 Manuale utente

B80

Single Door Vertical Cooler

HB80

SingleDoor Vertical Cooler

Installation and Operating Instructions

MAN6819

Rev. 1.0 Oct. 2006edition.

SKOPE IndustriesLimited.

SKOPE IndustriesLimited reserve the

right toalter specifications without notice.

is a registeredtrade

mark of SKOPE Industries Limited.

TRADE MARK INFRINGEMENT

TheSKOPE trade mark onthis product is infringedif the owner, for thetime

being, does any of the following:

•Applies thetrade mark to theproduct aftertheir state, condition,get-up

or packaging has been altered in anymanner

•Alters, removes (includingpart removal) or obliterates (includingpart

obliteration) thetrademark ontheproduct

•Applies any other trade mark to the product

•Addsto the product any writtenmaterial that is likely to damage the

reputation ofthetrademark

Noticeof the above contractual obligations passes to:

•Successors or assigns of the buyer

•Future owners ofthe product

B80

Single Door Vertical Cooler

1INSTALLATION

1.1Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.2Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

1.3Positioning the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2OPERATION

2.1Cabinet Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2.2Loading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.3Temperature Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3MAINTENANCE

3.1Cabinet Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

3.2Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

3.3Advanced Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

3.4Contact Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

TABLE OF CONTENTS

4B80

Single Door Vertical Cooler

1.1Safety Information

When using any electrical appliance, safety precautions should

always be observed. Read these instructions carefully and retain for

future reference.

•This appliance is not intended for use by young or infirm persons

unless they have been adequately supervised by a responsible

person to ensure that they can use the appliance safely. Young

children should be supervised to ensure that they do not play

with the appliance.

•Disconnect the cabinet from the mains power supply before

attempting any cleaning or maintenance.

•Do NOT use this appliance for other than its intended use.

•Do NOT cover the grilles or block the entry or exhaust of airflow

by placing objects up against the refrigeration unit.

•Do NOT probe any opening.

•Only use this appliance with voltage specified on the rating label.

•Ensure adequate ventilation of the refrigeration unit.

•Be careful not to touch moving parts and hot surfaces.

•Regulations require that all electrical work be carried out by

authorised persons. For your own safety, and that of others,

ensure this is done.

•If the supply cord becomes damaged, it must be replaced by a

SKOPE authorised service agent, or similarly qualified person,

in order to avoid a hazard.

Disposal

Care must be taken when disposing of this product to avoid hazards.

Please contact SKOPE Customer Services for advice regarding

disposal of this product.

INSTALLATION

B80

Single Door Vertical Cooler

1.2Unpacking

Remove all packing material from the inside and outside of the

cabinet, including the foam base and all adhesive tape holding the

cabinet accessories.

Shelves

Remove the packing material from both shelves and then position

the shelves into the cabinet at the desired heights. The bottom shelf

has hooks on the back which lock the shelf in position.

Figure 1: Cabinet Shelves

Evaporator Fan

Top Shelf

Bottom Shelf

INSTALLATION

6B80

Single Door Vertical Cooler

1.3Positioning the Cabinet

Power Supply

This cooler is rated 220-240 Va.c. and will draw a maximum of 1.1

Amps. Do not overload the power supply. The 3-core mains flex,

which exits behind the refrigeration unit, should be retrieved before

the cabinet is positioned.

Ventilation

When positioning the cabinet, adequate clearance must be

maintained for ventilation. For efficient operation of the cooler, it is

essential that adequate ventilation be provided around the cabinet.

Normal maximum operating conditions are 40°C at 40% RH

(Climatic Class 5).

This cooler should not be recessed or enclosed in a cabinet. It is

designed for free-standing installation only. The recommended

clearance on both sides and at the back of the cabinet is 50mm.

Location

When positioning the cabinet:

•Avoid direct sunlight and warm draughts etc.

•Allow adequate space for the door to open fully.

•Ensure the cabinet is positioned on a level surface so the door

shuts and seals correctly, and to prevent the condensate tray

from overflowing.

Levelling

This cooler has a levelling bolt located underneath the door hinge.

After final positioning, the levelling bolt can be adjusted to stabilise

the cabinet. Turn the levelling bolt clockwise to raise or anti-

clockwise to lower the cabinet.

INSTALLATION

B80

Single Door Vertical Cooler

2.1Cabinet Operation

Connect the cooler to the mains power supply and check operation

of the refrigeration unit and cabinet interior light. After moving the

cooler, allow the cabinet to stand for at least 30 minutes before

connecting to the power supply.

If the cooler has been disconnected from the power supply for any

reason, allow about 10 minutes before switching it back on. This

allows the refrigeration system pressure to equalise before the

system is restarted.

Refrigeration Unit

The evaporator fan (inside the cabinet) should operate continuously

from the time the cabinet is plugged in. This may be verified by

checking air movement inside the cabinet. The thermostat will click

when it cycles on and off.

Cabinet Light

The cabinet interior light is controlled by the light switch beside the

thermostat knob inside the cabinet. The fluorescent lamp will require

aperiod of time to stabilise following initial start up. See page 10 for

instructions on replacing the fluorescent lamp.

OPERATION

8B80

Single Door Vertical Cooler

2.2Loading

The cooler should be left running for 30 minutes to allow the cabinet

to cool down before loading with product. When loading the cabinet

shelves with product:

•Allow air space around all the product, for even cooling and

efficient operation of the cooler.

•Do not exceed a maximum of 30 kg per shelf.

•Do not allow products to overhang the front or rear of the

shelves, as this will effect air flow.

•Do not obstruct air flow from the evaporator fan.

OPERATION

B80

Single Door Vertical Cooler

2.3Temperature Adjustment

The storage temperature of the cooler can be regulated to suit

different ambient temperature by turning the thermostat knob,

located inside the cabinet (see Figure 2 below).

The thermostat knob is graduated from 0 through to 6, with 1being

the warmest and 6 being the coldest. The normal temperature

controller setting is between 3 and 5.

•To make colder - turn the thermostat knob clockwise.

•To make warmer - turn the thermostat knob anti-clockwise.

Note: Turning the knob to ‘0’ will switch the refrigeration unit OFF.

Figure2: Thermostat Knob

Thermostat Knob

LightSwitch

OPERATION

10 B80

Single Door Vertical Cooler

3.1Cabinet Light

The cabinet interior light is fitted with a 5 Watt fluorescent lamp. To

replace the lamp:

1.Disconnect the cabinet from the mains power supply.

2.Remove the light cover by carefully bending out the side clips.

3.Pull the fluorescent lamp out of the lamp holder.

4.Replace with a maximum 5 Watt fluorescent lamp.

5.Carefully align the side clips on the light cover and fit back into

place.

6.Reconnect the cabinet to the mains power supply.

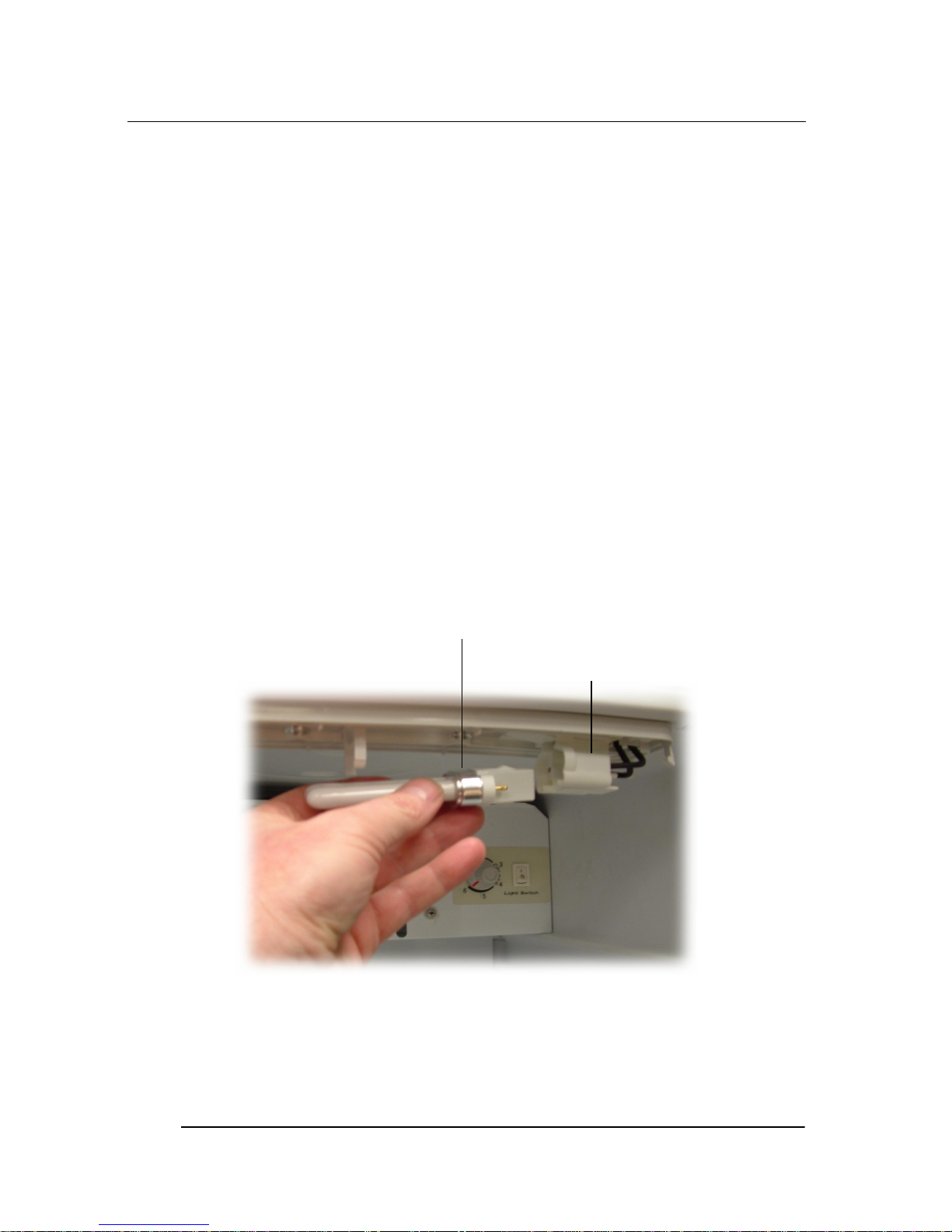

Figure3: ReplacingtheFluorescent Lamp

Fluorescent Lamp

Lamp Holder

MAINTENANCE
