Haier HTF-219H Manuale utente

IMPORTANT

Please read this Owner’s Manual carefully before using

your freezer. Keep in a safe place for future reference.

Thank you for choosing

HTF-219/319/379/429/519H

CHEST FREEZER

USER MANUAL

IMPORTANT

Please read this Owner’s Manual carefully before using

your freezer. Keep in a safe place for future reference.

Thank you for choosing

Table of Contents

Outline Drawing Page 1

Important Safeguards Page 2-3

Electric Control panel Page 4

Freezer Installation Page 5

Energy Saving Tips Page 6

Operating the Freezer Page 6-7

Care and Cleaning Page 8

Defrosting Page 9

Useful Hints Page 10

Troubleshooting Page 10-11

Technical Data and Wiring Diagram Page 12

Warranty Information Page 13

(1) Hinge Yes

(2) Sealing gasket Yes

(3) Food Basket Yes

(4) Drainage Plug Yes

(5) Ventilation grill for compressor Yes

(6) Lock Yes

(7) Light

(8) Control Panel

Yes

DANGER

AVOID THE RISK OF CHILD ENTRAPMENT.

BEFORE THROWING AWAY AN OLD REFRIGERATOR OR FREEZER, TAKE

OFF THE DOORS/LIDS AND REMOVE THE SHELVES SO THAT CHILDREN

CANNOT GET TRAPPED INSIDE.

Important Safeguards

Read all instructions before using this appliance.

When using this appliance, always exercise basic safety precautions, including

the following:

1) Use this appliance only for its intended purpose as described in this guide.

2) Remove all packaging before commencing freezer operation.

3) This freezer must be installed properly in accordance with the installation

instructions before it is plugged in and used. See grounding instructions in

the installation section.

4) This freezer is designed for freestanding installation only and it should not be

recessed or built in.

5) At least 7.5cm air space on top, sides and back of the freezer should be

given. This allows air to circulate freely and helps to prevent condensation

on the cabinet.

6) It is recommended that the freezer is cleaned before use as per the ‘Care

and Cleaning Instructions’ in this manual.

7) Never unplug your freezer by pulling on the power cord. Always grip the plug

firmly and pull it straight from the outlet.

8) Replace or repair immediately all electric service cords which may have

become frayed or otherwise damaged. Do not use cord that shows cracks or

abrasion damage along its length or at either the plug or connector end.

9) If your old freezer is still around the house but not in use, be sure to remove

the doors to reduce the possibility of danger to children.

10)Unplug your freezer before cleaning or before making any repairs. NOTE:

We strongly recommend that any servicing or repairs be undertaken by a

suitably qualified technician.

11)Do not refreeze any foods which have been thawed.

12)Do not use any electrical devices or sharp instruments to defrost the freezer.

13)Food should only be placed inside the freezer 8 hours after the freezer has

been turned on to avoid wasting power and over working the compressor.

14)Ensure that hot food is allowed to cool completely before freezing.

15)Do not overfill the freezer. Where possible, large blocks of meat should be

cut and wrapped in smaller pieces. Space should be left between packages

of food to enable air to circulate at all times.

16)Never place combustible, explosive or volatile liquid, gas or other materials in

the freezer.

17)Do not install the freezer in the same vicinity of any combustible, explosive or

volatile liquids/gases.

18)Do not leave beverages such as beer, soft drinks or other liquids packaged

in glass containers in the freezer. Such liquids will expand upon freezing and

can cause the glass to break.

19)Do not put water directly in to the tank of the freezer.

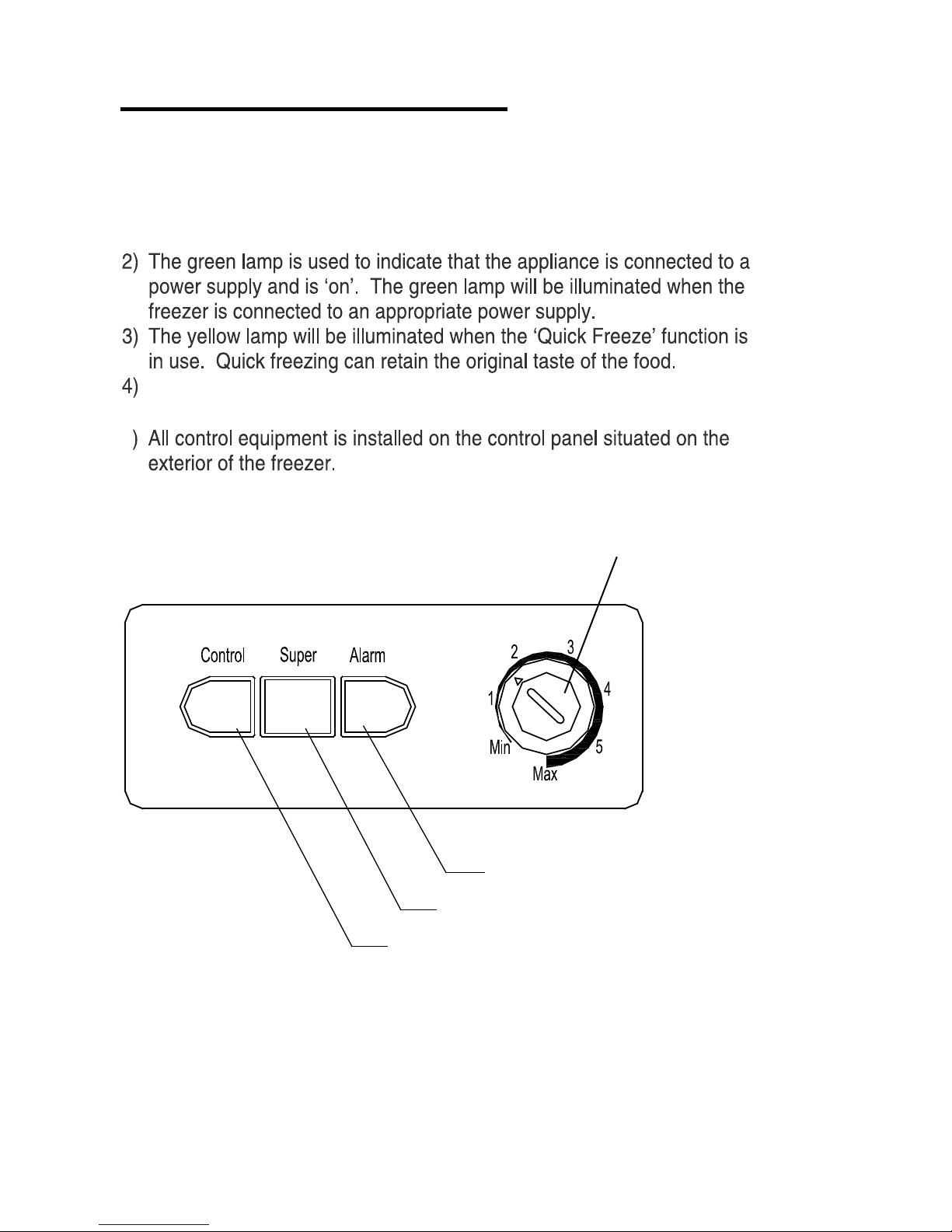

Electric Control Panel

The main functions of the electric control panel are:

1) The thermostat is numbered “0”-“5”. This refers to the temperature on

the inside of the freezer. The temperature is lowered by turning the

dial in a clockwise direction.

temperature control dial switch

The red lamp will be illuminated when the freezer interior temperature

is higer than -6.5C.

red light -alarm

green power - on light

yellow fast freeze switch

Freezer Installation

1) The freezer is designed for free-standing installation only.

2) The freezer should not be recessed or built in.

3) Install the freezer on a base strong enough to support it when fully loaded.

Ensure the freezer is on a stable surface to minimize noise and vibration.

4) When moving the freezer, never tilt at an angle more than 45oas this could

damage the compressor and freezer system. If the freezer is tilted over 45o,or

has been stored on its side, allow the freezer to stand upright for at least 24

hours prior to plugging it back in. This will allow the refrigerant to settle.

5) Install the freezer in a well-ventilated area away from any heat source or direct

sunlight. Air must be allowed to circulate freely around the freezer. Allow at

least 3inches (7.5cm) of clearance space for the top, back and sides.

6) Install the freezer in a dry place to prevent rust from forming on the compartment

body and to avoid the risk of damaging the electric insulation.

Electrical Connection and Precautions

1) IMPORTANT – For personal safety, this appliance must be properly

earthed.

2) The voltage range for this appliance is 187v – 242v. In the event that your

regional power supplier cannot meet this requirement, please use a safe and

reliable automatic voltage regulator with a minimum output of 500W to avoid

damaging the compressor.

3) A 13 Amp, 3 pin plug and 5 Amp fuse only must be used for this freezer to avoid

serious damage. The plug should always be wired in accordance with the

following codes:

Green and Yellow EARTH (E)

Blue or Black Neutral (N)

Brown or Red LIVE (L)

It is safest to consult a qualified electrician at all times

4) In the event of an electrical short circuit, grounding reduces the risk of electric

shock by providing an escape wire for the electrical current. This appliance is

volt, 50Hz A.C. power

hand locks, allow you to secture the freezer contents from

Part How to Clean

Exterior • Wash using warm water and a mild detergent e.g. soap or

dishwashing liquid.

• Rinse thoroughly, wipe clean and dry.

• DO NOT USE HARSH CLEANERS OR ABRASIVES.

• Waxing is recommended if humidity is high to prolong the

life of your freezer. Use a good quality car wax or

appliance wax. DO NOT USE WAX ON PLASTIC

PARTS.

• DO NOT USE BLEACH OR PETROL BASED

PRODUCTS TO CLEAN YOUR FREEZER.

• DO NOT PLACE HOT OR HEAVY OBJECTS ON THE

SURFACE OF THE FREEZER TO AVOID DAMAGING

THE SURFACE OR DEFORMING THE GASKET.

Interior • Wash with a warm water solution containing either a mild

detergent or baking soda (2 tablespoons/30g baking soda

to 1 litre warm water).

• Wipe clean and dry.

• If fridge and freezer are left empty and disconnected from

mains for more than a few days then help prevent odours

by leaving an open box of baking soda in the freezer,

changing it every 3 months.

• DO NOT WASH ANY PLASTIC PARTS FROM THE

FREEZER IN A DISHWASHER.

Lid Liner / Gasket • Wash using only warm water and a mild detergent.

/ Food Basket • Rinse and dry.

• Liquids such as oil and juice stick easily to the gasket – to

clean, wipe with lukewarm water to extend the life of the

plastic.

Care and Cleaning

IMPORTANT

Before Cleaning always switch the freezer off and remove the plug from

the power supply.
