Haier Thermocool BD-100E Manuale utente

BD-100E BD-142E BD-198

CHEST FREEZER

USER MANUAL

BD-100E BD-142E BD-198

IMPORTANT

Please read this Owner’s Manual carefully before using

your freezer. Keep in a safe place for future reference.

Thank you for choosing

Unique Haier THERMOCOOL 12 MONTH GUARANTEE gives you peace of

mind and assured satisfaction from the moment of purchase. The 12 MONTH

GUARANTEE covers:

-Free part replacement under warranty

-Free repair under warranty

Unique Haier THERMOCOOL NATIONWIDE SALES and SERVICE NETWORK

offers you fast, reliable service and replacement spare parts which will normally

be available for many years. Sales & Service is available in ILUPEJU, IBADAN,

BENIN, WARRI, PORT HARCOURT, ABA, ENUGU, ONITSHA, KADUNA,

ZARIA, KANO, JOS, MAIDUGURI, MINNA, ABUJA. Contact HPZ or your local

HAIER THERMOCOOL distributor for information.

---We Know Cool

Haier THERMOCOOL reserves the right to amend specifications without

notice as part of its continuous improvement programme. Haier

THERMOCOOL is a registered trademark.

HPZ Ltd

Haier Thermocool Sales Office

45/47 Town Planning Way, llupeju P. M. B. 21132 lkeja

Lagos Nigeria

Tel: +234 (0) 1 4973460-8

Fax: +234 (0) 1 4962076

E-mail: [email protected]

Haier THERMOCOOL produce high quality Split Air-conditioners which are

strong, reliable,elegantly styled-yet practical and long lasting for the most

demanding tropical climate and conditions.

Haier THERMOCOOL new generation air-conditoners are convenient to use,

highly efficient, energy saving and are built for quiet running to withstand voltage

fluctuations.

Table of Contents

Outline Drawing Page 1

Important Safeguards Page 2-3

Electric Control panel Page 4

Freezer Installation Page 5

Energy Saving Tips Page 6

Operating the Freezer Page 6-7

Care and Cleaning Page 8

Defrosting Page 9

Useful Hints Page 10

Troubleshooting Page 10-11

Guide to Home Freezing Page 12

Accessories List Page 13

Technical Data and Wiring Diagram Page 14

Warranty Page 15

Included in the

Following Models

BD-100E/142E/198

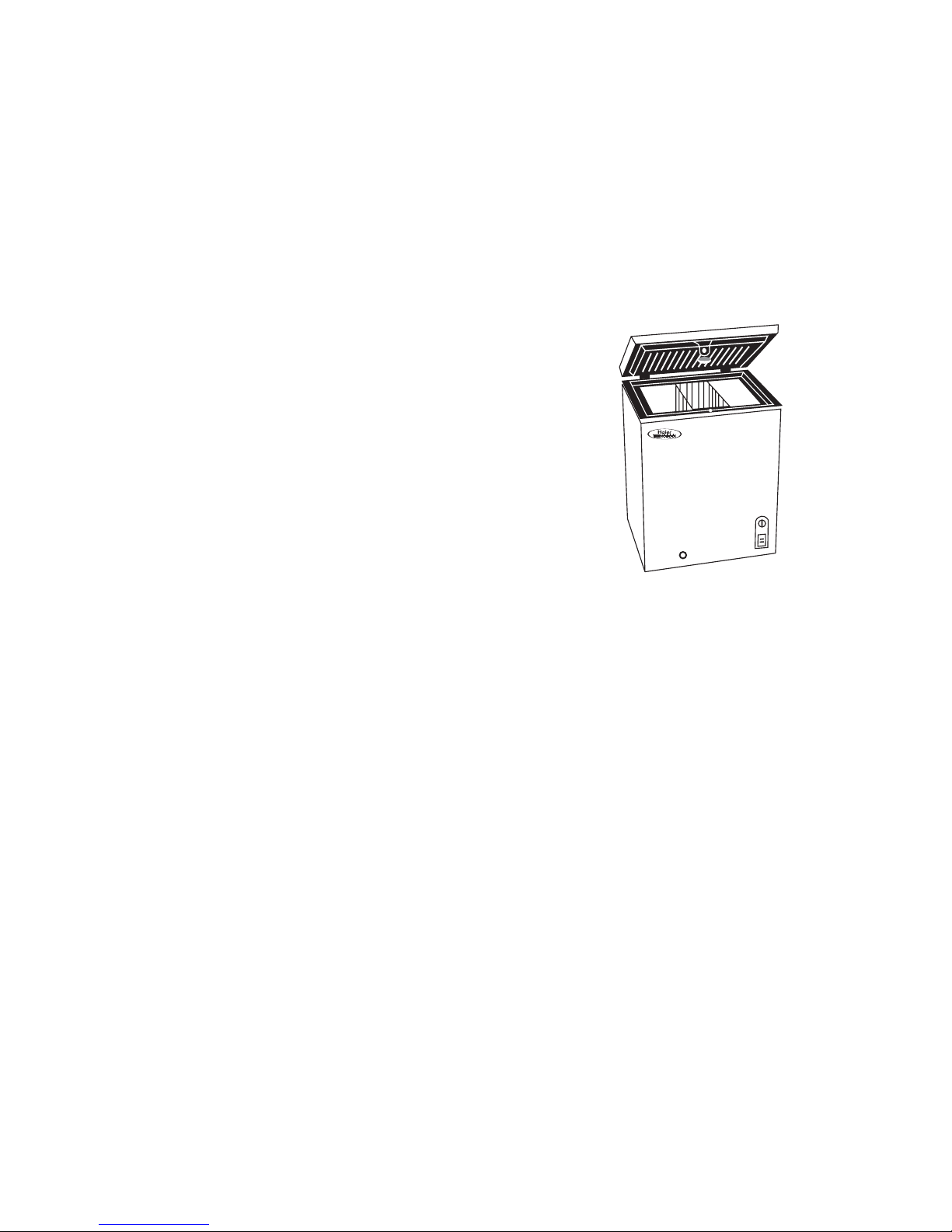

(1) Hinge Yes

(2) Sealing gasket Yes

(3) Light Yes

(4) Food Basket Yes

(5) Drainage Plug Yes

(6) Control Panel Yes

(7) Ventilation grill for compressor Yes

(8) Lock Yes

DANGER

AVOID THE RISK OF CHILD ENTRAPMENT.

BEFORE THROWING AWAY AN OLD REFRIGERATOR OR FREEZER, TAKE

OFF THE DOORS/LIDS AND REMOVE THE SHELVES SO THAT CHILDREN

CANNOT GET TRAPPED INSIDE.

Important Safeguards

Read all instructions before using this appliance.

When using this appliance, always exercise basic safety precautions, including

the following:

1) Use this appliance only for its intended purpose as described in this guide.

2) Remove all packaging before commencing freezer operation.

3) This freezer must be installed properly in accordance with the installation

instructions before it is plugged in and used. See grounding instructions in

the installation section.

4) This freezer is designed for freestanding installation only and it should not be

recessed or built in.

5) At least 7.5cm air space on top, sides and back of the freezer should be

given. This allows air to circulate freely and helps to prevent condensation

on the cabinet.

6) It is recommended that the freezer is cleaned before use as per the ‘Care

and Cleaning Instructions’ in this manual.

7) Never unplug your freezer by pulling on the power cord. Always grip the plug

firmly and pull it straight from the outlet.

8) Replace or repair immediately all electric service cords which may have

become frayed or otherwise damaged. Do not use cord that shows cracks or

abrasion damage along its length or at either the plug or connector end.

9) If your old freezer is still around the house but not in use, be sure to remove

the doors to reduce the possibility of danger to children.

10)

Unplug your freezer before cleaning or before making any repairs. NOTE:

We strongly recommend that any servicing or repairs be undertaken by a

suitably qualified technician.

11)Do not refreeze any foods which have been thawed.

2 15

12)Do not use any electrical devices or sharp instruments to defrost the freezer.

13)Food should only be placed inside the freezer 8 hours after the freezer has

been turned on to avoid wasting power and over working the compressor.

14)Ensure that hot food is allowed to cool completely before freezing.

15)Do not overfill the freezer. Where possible, large blocks of meat should be

cut and wrapped in smaller pieces. Space should be left between packages

of food to enable air to circulate at all times.

16)Never place combustible, explosive or volatile liquid, gas or other materials in

the freezer.

17)Do not install the freezer in the same vicinity of any combustible, explosive or

volatile liquids/gases.

18)Do not leave beverages such as beer, soft drinks or other liquids packaged

in glass containers in the freezer. Such liquids will expand upon freezing and

can cause the glass to break.

19)Do not put water directly in to the tank of the freezer.

314

OFF

BD-100E/142E/198

Freezer Installation

1) The freezer is designed for free-standing installation only.

2) The freezer should not be recessed or built in.

3) Install the freezer on a base strong enough to support it when fully loaded.

Ensure the freezer is on a stable surface to minimise noise and vibration.

4)When moving the freezer, never tilt at an angle more than 45

as this could

damage the compressor and freezer system. If the freezer is tilted over 45

, or

has been stored on its side, allow the freezer to stand upright for at least 24

hours prior to plugging it back in. This will allow the refrigerant to settle.

5) Install the freezer in a well-ventilated area away from any heat source or direct

sunlight. Air must be allowed to circulate freely around the freezer. Allow at

least 3inches (7.5cm) of clearance space for the top, back and sides.

6) Install the freezer in a dry place to prevent rust from forming on the compartment

body and to avoid the risk of damaging the electric insulation.

Electrical Connection and Precautions

1) IMPORTANT – For personal safety, this appliance must be properly

earthed.

2) The voltage range for this appliance is 187v – 242v. In the event that your

regional power supplier cannot meet this requirement, please use a safe and

reliable automatic voltage regulator with a minimum output of 500W to avoid

damaging the compressor.

3) A 13 Amp, 3 pin plug and 5 Amp fuse only must be used for this freezer to avoid

serious damage. The plug should always be wired in accordance with the

following codes:

Green and Yellow EARTH (E)

Blue or Black Neutral (N)

Brown or Red LIVE (L)

It is safest to consult a qualified electrician at all times

4) In the event of an electrical short circuit, grounding reduces the risk of electric

shock by providing an escape wire for the electrical current. This appliance is

8 9
