Haier HBLC20AB11 Manuale utente

USER'S MANUAL

15"17"20"LCD TV

Please read thismanual carefully before

using your televisionand keep thismanual

in a goodplace for futurereference.

MODEL:

L15L6A-G0, 15SV6-A0, L17LV6-T1,

HBLC20AB11

CONTENT

1Safety notice items....................................................................2

2Main functions...........................................................................2

3Front panel controls...................................................................3

4Connection options....................................................................4

5Remote control key functions......................................................5

6Connection instructions..............................................................6

7Basic operating instructions.......................................................10

8Menu operations.......................................................................12

9Specifications...........................................................................21

To users:

Thank you for using our LCD-TV. After unpacking, please check that you

have the following items: Operating instructions, Remote control, AC-

DC adapter, AC wire, and Batteries.

Before connecting the LCD-TV and turning the power on, please

read this book carefully. Please keep this book for later use. When it

was loss of function by electrostatic shock, please switch the on/off

button for restoring the function.

Safety Notice Items

Incorrect usage will cause fire or electric shock. To prevent this, please do

as required when you are installing, using and cleaning this machine. To insure

your safety and extend the life-span of LCD-TV, please read the following items

carefully before using:

lPlease read and understand all the instructions before operation;

lPlease keep the book for later use;

lPlease comply with the warning instructions on the machine and in this book

strictly;

lPlease comply with the instructions provided;

lPlease do not use additional devices that are not recommended by

manufacturer:

lBefore operation, please make sure that the operating voltage of your unit is

normal;

lDo not placethe unit on unstable, dusty andhumid places;

lNever put theunit in direct sunlight or nearheat sources;

lAllow enough space for proper ventilation;

lPlease keep water away from the LCD-TV . If water comes in contact with the

LCD-TV, disconnect the power cord from the power source, then wipe the set

with a dry soft cloth;

lDo not remove the back cover. If services were need, please refer to qualified

Personnel

Main Functions

1-Can be connected with analog RGB input

2-Can be connected with CVBS, S-VIDE, AV input and component

(YPbPr/YCbCr).

3-Can receive TV signal

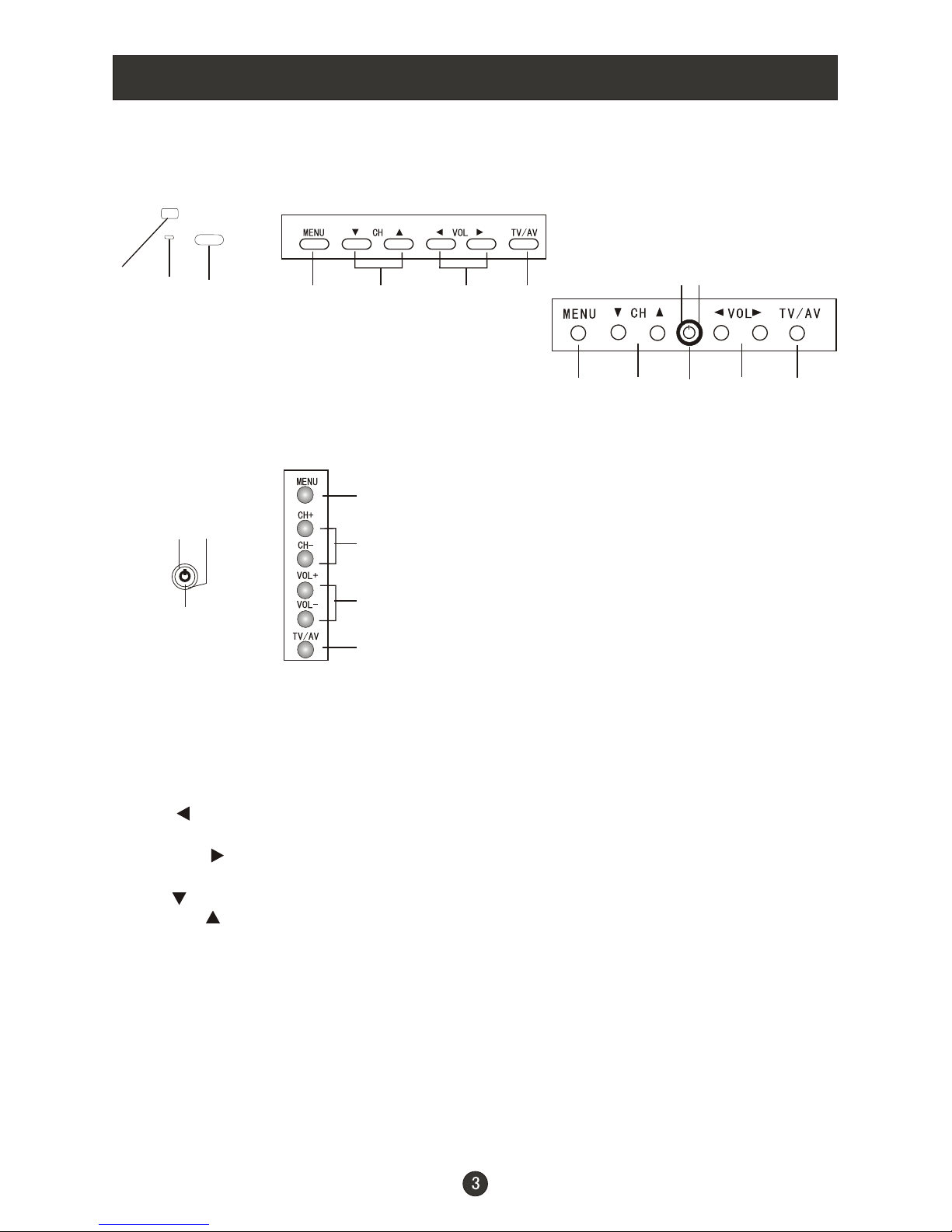

Front Panel Controls

Control Panel Function

1. MENU Press to display/exit the main menu

2. VOL (VOL-) Volume down / to select the main menu/to adjust the

item in the OSD

VOL (VOL+) Volume up/ to select the main menu/ to adjust the

item/to enter the submenu.

3. CH (CH-) TV channel down / to select the item in the menu

CH (CH+) TV channel up / to select the item in the menu

4.TV/AV Select the inputsignals: PC/COMPONENT/AV/SV/TV

5. Power supplyswitch

6. Power indicator

Illuminates red in standby mode, illuminates green when the display is

turned on

7.Remote Sensor Receivingremote control sends the infrared remote

signal.

L15SV6-A0

123 4

L17LV6-T1/HBLC20AB11

1 2

L15L6A-G0

VGA

AV AUDIO IN S-VIDEO

DC-IN

VIDEO

ANTENNA

VGA Audio Input

Connect the monitor

output connector from

a PC to the appropriate

input port.

AV Audio Input

Connect audio/video

output from an external

device to these jacks

DC Power Cord Socket

This TV operates on DC power.

The voltage is indicated on the

Specifications page . Never

attempt to operate the TV on AC

power.

VGA Input

Connect the monitor

output connector from

a PC tothe appropriate

input port.

External Video Input

Connect video output

from an external device

to these jacks.

S-Video Input

Connect S-Video out

from an S-Video device

to the jacks

Antenna Input

Connect cable or

antenna signals to

the TV, either direc-

tly or through your

cable box.

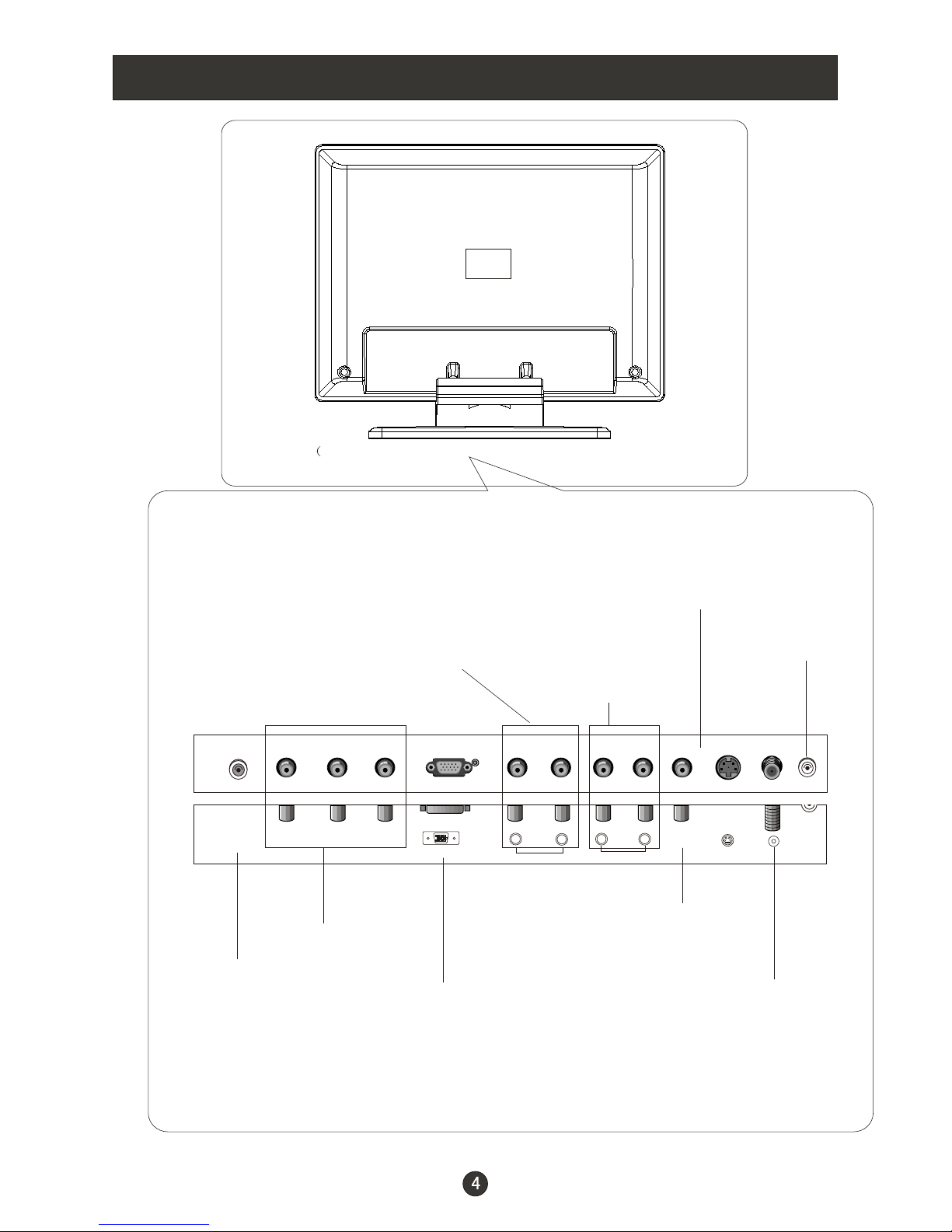

Connection Options

The figure is just for referrence, please see the real.)

Earphone output

VGAAUDIO IN

YPbPr Input

EARPHONE

YPb/Cb Pr/Cr

789

RECALL

TV/AV

RATING

MUTE

P.STD SLEEP

DISPLAY

MENU CH+

VOL- VOL+

CH-

789

RECALL

TV/AV

MTS/SAP

EXIT

MUTE

P.STD

DISPLAY

-/--

MENU CH+

VOL- VOL+

CH-

11 12

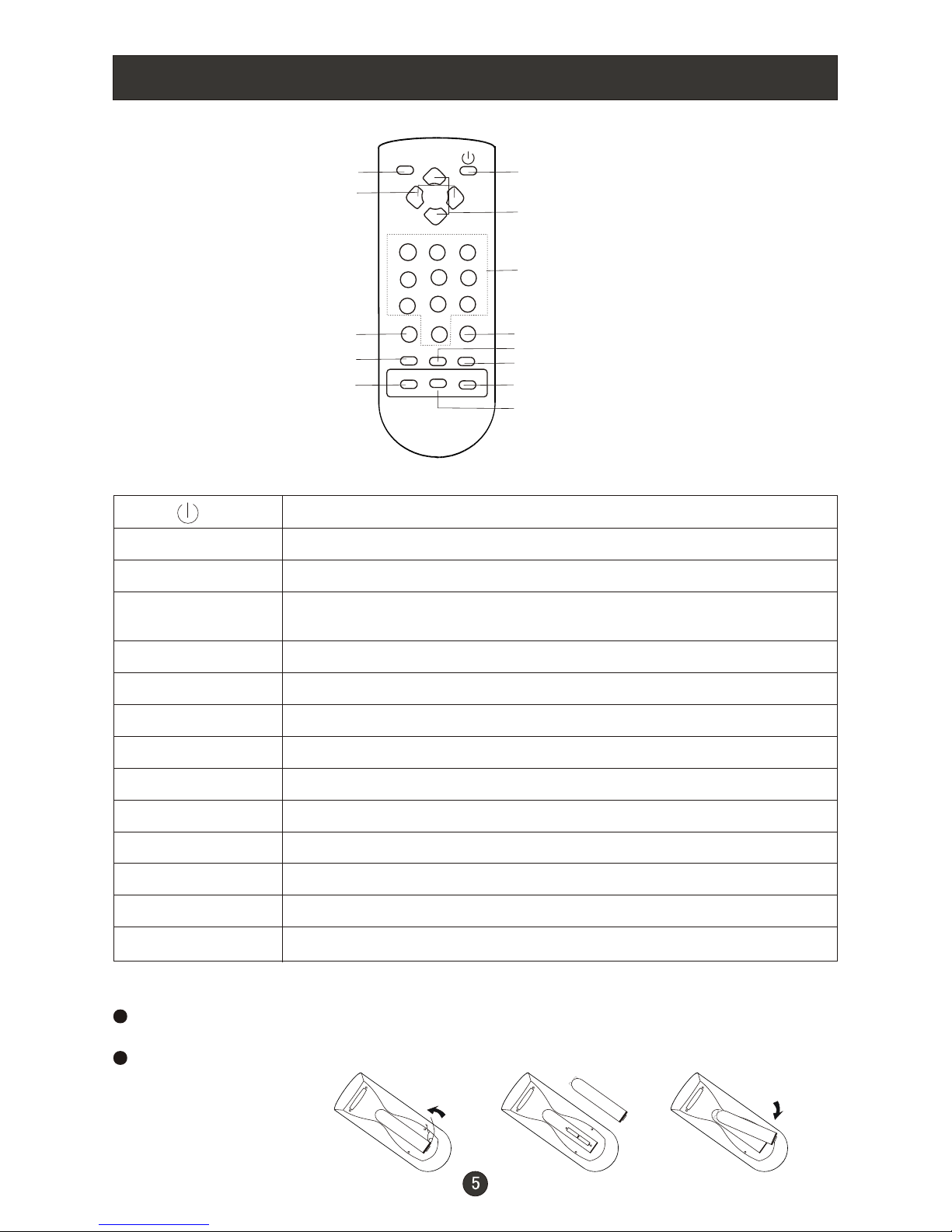

Remote Control Key Functions

When using theremote control, aim it towards the remote sensor onthe TV

1. Power supply switch

2. MENU

To display/exit the main menu

3. CH+/CH-

TV channel up/down or select the item of the menu

4. VOL+ Volume up/ to select the main menu/ to adjust the item/ to

enter the submenu.

VOL- Volume down / to select the main menu/ to adjust the item

5. 0-9 TV channel numberselect

6. RECALL

Quick TV channel switch(return to the last channel)

7. -/-- One , two or threebit TV channel select

8. TV/AV Select PC/COMPONENT/AV/SV/TV

9. MTS/SAP Select MONO,STEREO, SAP in NTSC system

10. MUTE MUTE

11. P.STD Select picture mode:PERSONAL/STANDARD/MILD/FRESH

12. DISPLAY Display current input signal information

13. EXIT Menu exit

Illustration of the keys on the remote control:

Installing Batteries

Open the battery compartment cover on the back side and install the batteries

matching correct polarity(+with+,-with-)

Install two 1.5VAA batteries. Do notmix old or used batteries withnew ones.

Replace cover

Connection Instructions

Ensure that you connect the grounding / earth wire to prevent possible

electric shock. If grounding methods are not possible, have a qualified

electrician install a separate circuit breaker. Do not try to ground the

unit by connectingit to telephone wires, lightening rods, or gas pipes.

Grounding

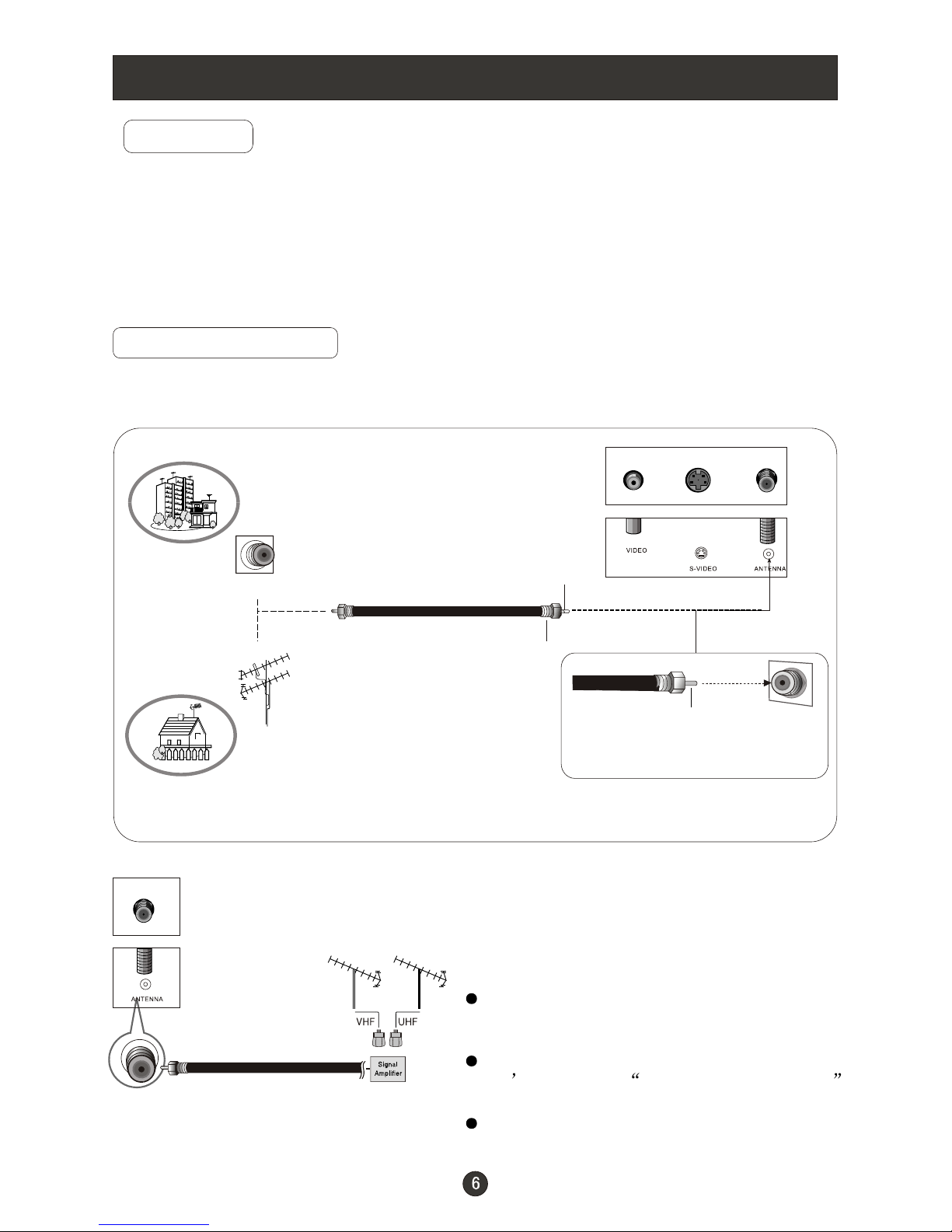

External Equipment Connections

Antenna Connection

- Antenna or Cable Service without a Cable Box Connections

- For optimum picture quality, adjust antenna direction if needed.

Multi-family Dwellings/Apartments

(Connect to wallantenna socket)

wall antenna

socket

VHF antenna

UHF antenna

outdoor

antenna

Single-family Dwellings /Houses

(Connect to walljack for outdoorantenna)

Bronze Wire

Be careful notto bend thebronze

wire when connectingthe antenna.

Bronze Wire

Turn clockwise to tighten.

RF coaxial wire(75 ohm)

To improve picture quality in a poor

signal area, purchase and install a

signal amplifier.

If the antenna needs to be split for two

TV s, install a 2-Way Signal Splitter

in the connections.

If the antenna is not installed properly,

contact your dealer for assistance.

NOTE: All cables shown are not included with the TV

Connection Instructions

Resolution

Horizontal frequency

(Khz)

Vertical frequency

(Hz)

Clock

(MHz)

640X480

20-55

60-85

32.5-60

800X600

20-55

60-85

32.5-60

1024X768

20-70

60-75

25-80

720X400

31-47

28.322

You can use your LCD-TV as a monitor for your personal computer using a VGA

cable (not supplied).

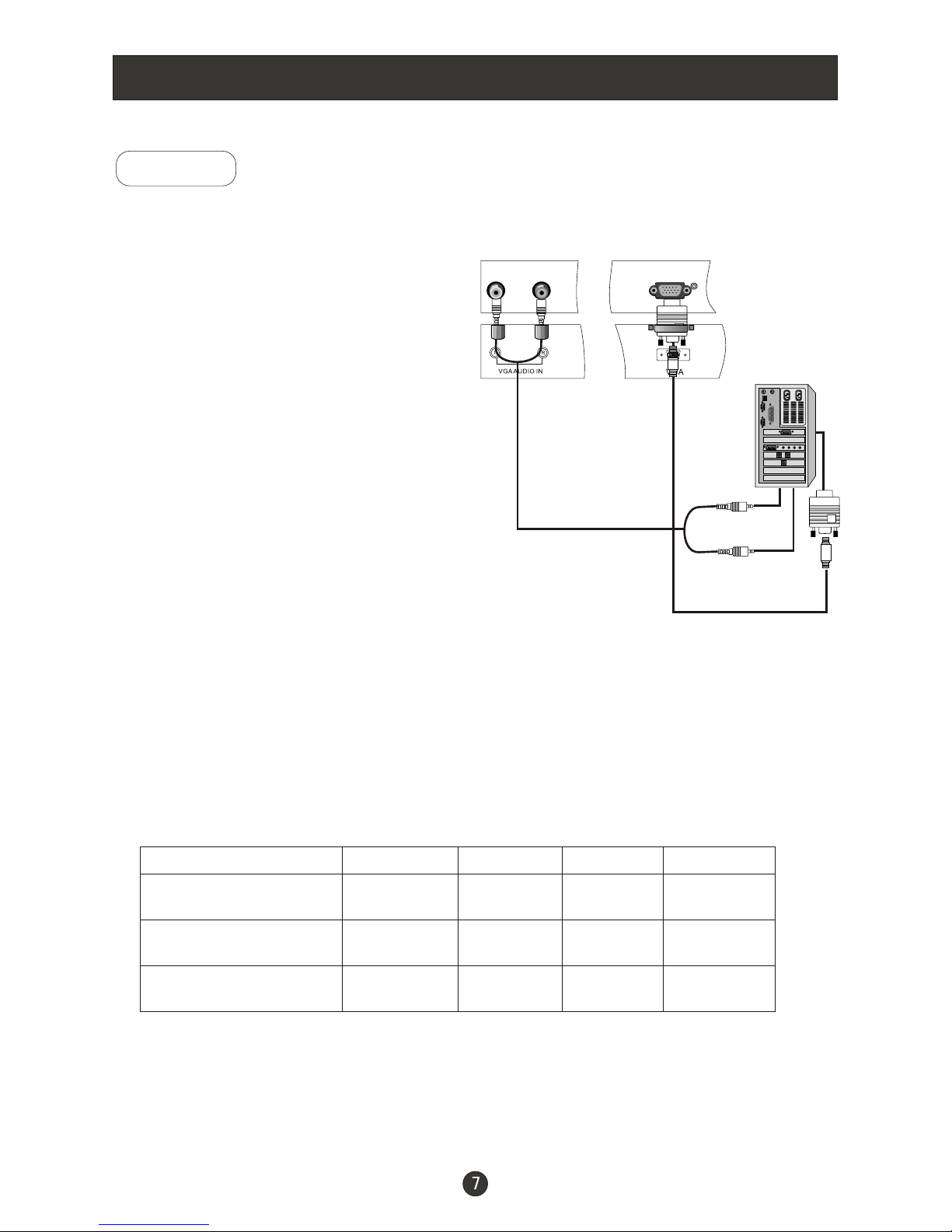

PC Setup

Connection and use steps:

1.Read the userguide supplied with

your computer and ensure that it has

a VGAconnector;

2.Make sure that the power of the LCD

-TV and thePC are off;

3.Connect a Dtype 15-pin VGAinterface

cable ( not supplied ) to the VGA video

interface connector on the PC. Then

connect the other end to the VGA video

interface connector on the back of the

LCD-TV.Tighten the screwson the VGA

connectors once they are firmly

connected;

4.Turn on the power of the LCD-TV first ,

and then turn on the power of the PC;

5.Press the TV/AV button to set the video

input mode ofthe LCD-TV to PC-RGB;

7.Our LCD-TV can support the resolution list in table 2 . If the resolution you

want is not listed , the LCD-TV may not display the image properly .

Check the image on your TV. There may be noise associated with the resolution,

vertical pattern, contrast or brightness in PC mode. If noise is present, change

the PC mode to another resolution, change the refresh rate to another rate or

adjust the brightness and contrast on the menu until the picture is clear. If the

refresh rate of the PC graphic card can not be changed,change the PC graphic

card or consult the manufacturer of the PC graphic card.

Connection Instructions

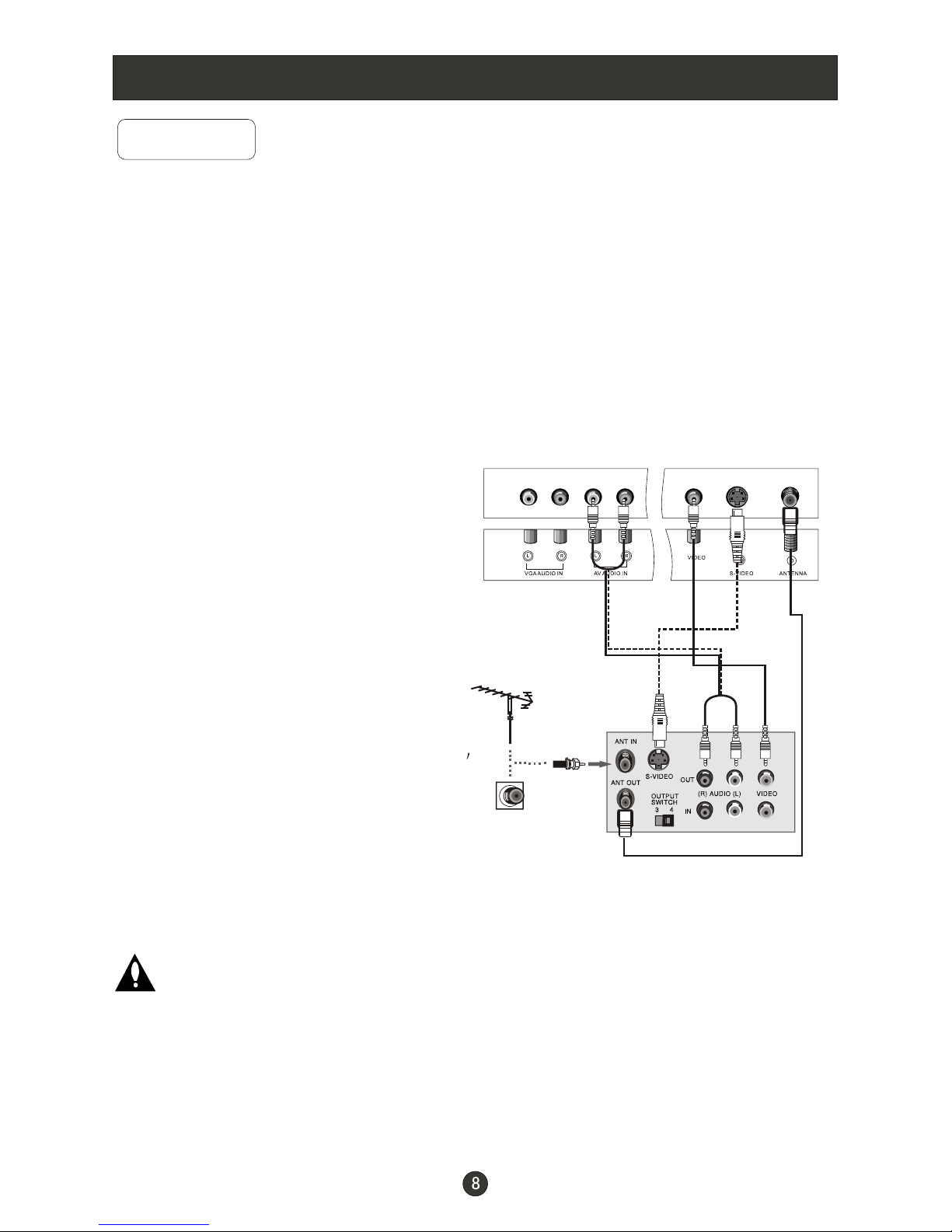

VCR Setup

Connection and use steps:

1.Read the user guide supplied with your AV devices and ensure that it has

Composite or S-Video connectors;

2.Make sure that the power of the LCD-TV and the AV device are off;

.Turn on the power of the LCD-TV first ;

and then turn on the power of the AV

device;

4.Press the TV/AV button to set the video

input mode of the LCD-TV to S-VIDEO

mode or AV mode.

Connection Option 1

Set VCR output switch to 3 or 4 and then

tune TV to the same channel number.

Connection Option 2

1. Connect the audio and video cables from

the VCR's output jacks to the TV input jacks,

as shown in the figure.

When connecting the TV to VCR, match

the jack colors (Video = yellow, Audio

Left = white,and Audio Right = red).

If you connect an S-VIDEO output from

VCR to the S-VIDEO input, the picture

quality is improved; compared to conne-

cting a regular VCR to the Video input.

2. Insert a video tape into the VCR and press

PLAY on the VCR. (Refer to the VCR owner s

manual.)

- To avoid picture noise (interference), leave an adequate distance between the

VCR and TV

VCR

Do not connect to both Video and

S-Video at the same time. In the

event that you connect both Video

and the S-Video cables, only the

S-Video will work.)

Connection Instructions

Cable TV Setup

- After subscribing to a cable TV service from a local provider you can watch cable

TV programming. The TV cannot display TV programming unless a TV tuner

device or cableTV converter box is connected to the TV.

- For furtherinformation regarding cable TV service, contact your localcable TV

service provider(s).

Connection Option 1

1. Select 3or 4 with channel switch on cable

box.

2. Tunethe TV channel to the same selected

output channel on cable box.

3. Select channelsat the cable box or with

the cable box remote control.

Connection Option 2

1. Connect theaudio and video cables from

the Cable Box'soutput jacks to the TV

input jacks, asshown in the figure.When

connecting the TV to aCable Box, match

the jack colors

(Video = yellow, Audio Left = white, and

Audio Right= red).

2. Select theinput source by using the TV/AV

button on theremote control.

3. Select yourdesired channel with the

remote control forcable box.

External A/V Source Setup

How to connect

Connect the audioand video cables from

the external equipment'soutput jacks to the

TV input jacks,as shown in the figure.

When connecting theTV to external equip-

ment, match thejack colors (Video = yellow,

Audio Left =white, and Audio Right = red).

How to use

1. Select theinput source by using the TV/AV

button on theremote control. (If connected

to A/VINPUT 1, select Video input source).

2. Operate thecorresponding external equi-

pment. Refer toexternal equipment ope-

rating guide.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Haier TV LCD

Haier

Haier LT19M1CW Manuale utente

Haier

Haier 48DR3505 Manuale utente

Haier

Haier LE32K6500A Manuale utente

Haier

Haier LE32B7000C Manuale utente

Haier

Haier LE32B7500 Manuale utente

Haier

Haier L19M3 Manuale utente

Haier

Haier LED46T3 Manuale utente

Haier

Haier L26A8A-A1 Manuale utente

Haier

Haier LE19P620 Manuale utente

Haier

Haier HLT10 Manuale utente

Haier

Haier HL24XD2 Manuale utente

Haier

Haier L20AV6A-A0 Manuale utente

Haier

Haier L37A9A-A Manuale utente

Haier

Haier LT26K3 Manuale utente

Haier

Haier HLH26ATBB - 26" LCD TV Manuale utente

Haier

Haier LT22R3CW Manuale utente

Haier

Haier L22B1120 Istruzioni per il montaggio

Haier

Haier LE22K800 Manuale utente

Haier

Haier L32A9AH Manuale utente

Haier

Haier L15TA11W Manuale utente

Haier

Haier LE22B600 Manuale utente

Haier

Haier LE55H330 Manuale utente

Haier

Haier HLTDC15 - 15" LCD TV Manuale utente

Haier

Haier L30CV6-A1 Manuale utente

Manuali TV LCD popolari di altre marche

LG 32LC4R* Manuale utente

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuale utente

Salora

Salora 22LED1600 Manuale utente

Samsung

Samsung LA32E420 Guida

Dell

Dell W1900 19 Istruzioni utente

Samsung

Samsung LN40C670M1F Manuale utente

Samsung

Samsung Series 4+ Manuale utente

Samsung

Samsung 5 Series Manuale utente

Grundig

Grundig 40 VLE 8230 BP Manuale utente

Philips

Philips 43PFL4901/F7 Manuale utente

Sony

Sony Bravia XBR-43X830C Manuale utente

LG 32LS350 Manuale utente

VIORE

VIORE LED32VF60 Manuale utente

Toshiba

Toshiba Regza 42HL167 Manuale utente

JVC

JVC LT-32A220 Manuale utente

Philips

Philips 20TA1000/93 Manuale utente

Philips

Philips 32PFL3158T/12 Manuale utente

Sony

Sony Bravia KDL-V32XBR2 Manuale utente
