Owner s Manual

TFT-LCD COLOUR TV

MODEL:

L15SV6-A0, L17LV6-A1,L20AV6-A0

L17L6A-G1,L20L6A

Please read thismanual carefully before

using your televisionand keep thismanual

in a goodplace for futurereference.

TFT-LCD TV High Brightness & Contrast NICAM/A2 Stereo Sound

English-1

Contents

Warning

Loading battery

Functions of remote controller

Operation instructions

Screen display

Programme setup

Sound system & Video system set up

Others

External audio and video device connections

Connected to PC as a monitor

Specifications

Troubleshooting

Front control panel

Back cover interface 5

Picture control 15

Picture Control P.MODE 15

Sound Control

Set the Equalizer User

Sound Control S.MODE (Sound Status Mode)

English-2

WARNING

RISK OF ELECTRICSHOCK

DO NOT OPEN

WARNING

Caution

Unauthorized disassembly of this product is prohibited.

Power supply

This product requires DC power supply which is switched by a AC-DC

converter. The voltage value is as per the information specified on the

rating label, which is fixed on the back of the television set. The

product will never be supplied with AC power source. The information

of AC-DC voltage is stated on the converter casing.

Warning

To avoid fire or electric hazards, never place your television receiver

in an area with heavy moisture. Attention should be paid to avoid

accidental scratches or impacts onto the LCD screen.The function of

sound may be lost and the function of picture may bedisordered in

electrostatic discharge, they can be restored by operation of the

controls.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER

(OR BACK). NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE

PERSONNEL.

DANGEROUS VOLTAGE

Uninsulated Dangerous Voltage, that

may be of sufficient magnitude to

constitute a risk of electric shock, is

present within the cabinet of this unit.

ATTENTION

The Owner's Manual contains

important operating and maintenance

instructions. For your safety, it is

necessary to refer to the manual.

English-3

WARNING

Application area

Do not expose the television set directly to floodlight, sunlight, heavy

humidity, high temperature or thick dusts. Locate the television set in

a well-ventilated area, away from vibration and blockage of ventilation

port on the television rear side.

Cleaning

Unplug the television set when the LCD screen is to be cleaned. Use

soft fabrics for cleaning the screen and electric cables. If necessary, a

piece of wet but clean soft cloth can be used for cleaning the screen,

but never use any liquid or spray detergent.

Power source connection

1 Plug the 12V AC-DC converter to the 12V input jack of the television

set.

2 Correctly connect the AC wire to the AC-DC converter.

3 Insert the AC wire plug in the jack of AC power source.

Disconnect the television set with the power source or antenna plug

when it heavily rains with thunderstorm or power supply is interrupted.

Do not tie electric cables to any other objects to avoid accident

damages.

English-4

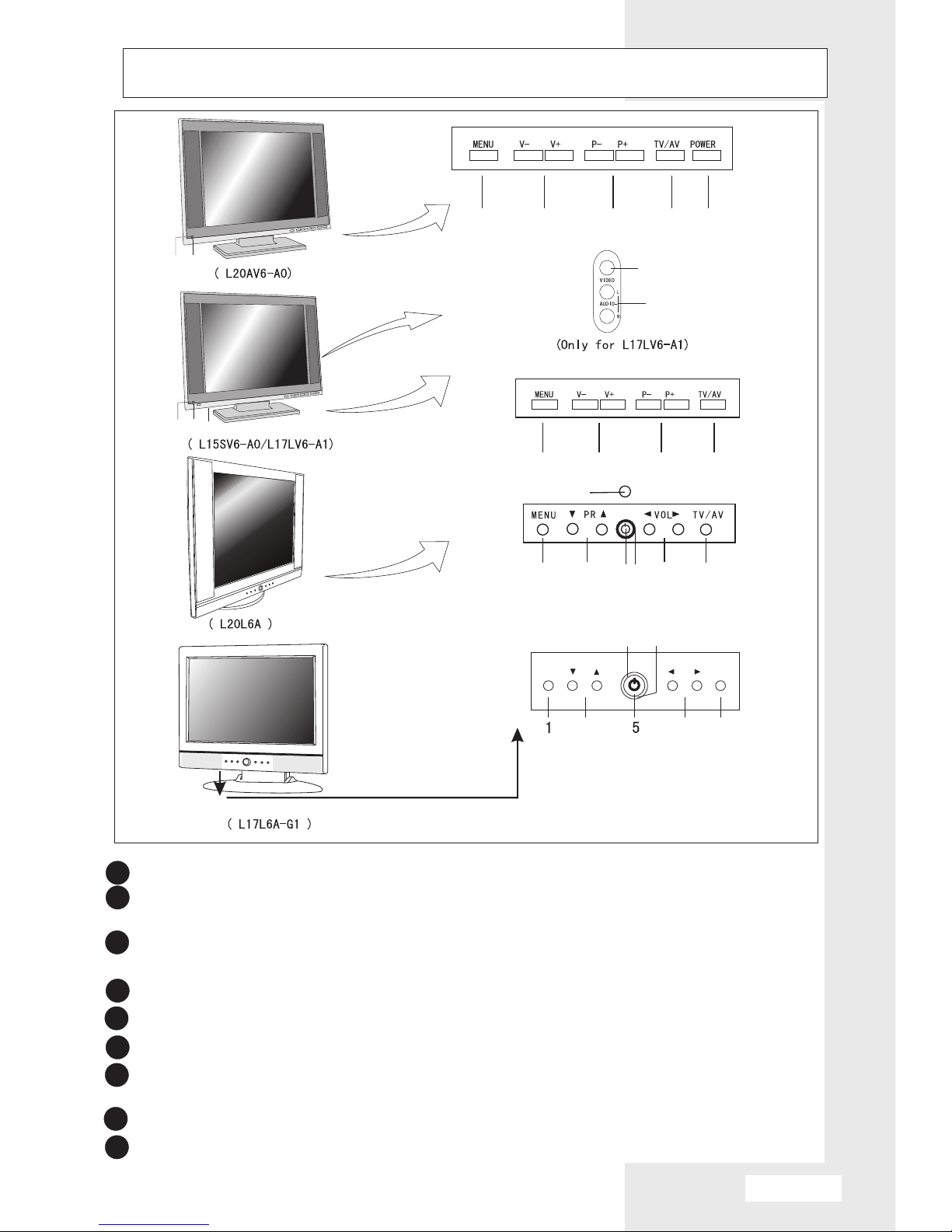

FRONT CONTROL PANEL

1 2

43 5

1 2

MENU PR VOL TV/AV

1MENU Display the menu.

3 P- P+ (programme number down/ up button)

Select a channel or select an option in the menu.

6 Power Indicator When the main power is turned on, the indicator is on.

5Power Turns the TV set on/off.

8Video video input terminal.

9Audio audio input terminal.

2V- V+ ( volume down /up button)

Adjust the volume or change the menu set.

4 TV/AV

To exchange between TV and other available video inputs

7 Remote Sensor

Receiving remote controller sends the infrared remote signal.

Note: The silk-screen or the array may be change without notice.

English-5

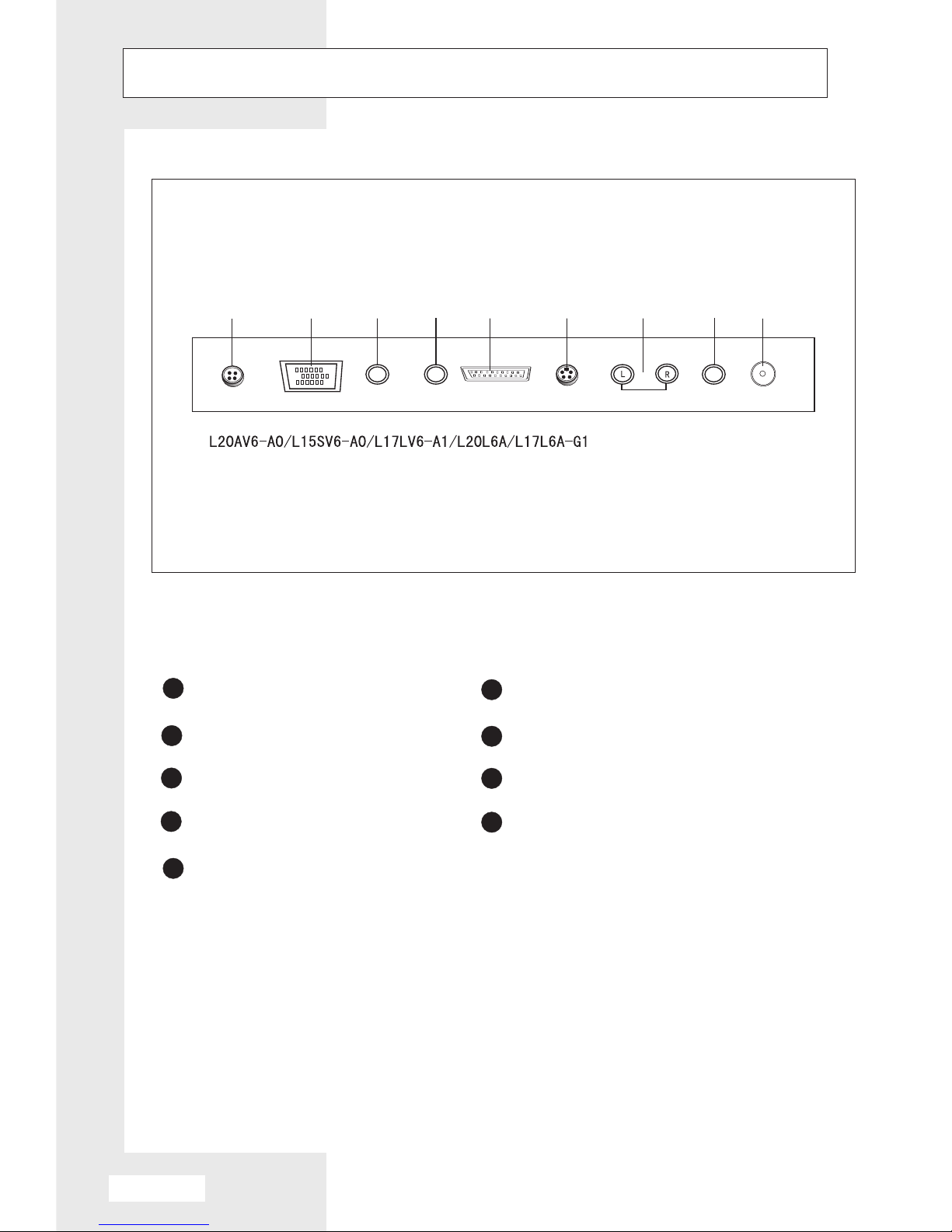

BACK COVER INTERFACE

D-SUB IN

DC IN S-VIDEO VIDEO

PC AUDIO IN

HEADPHONE ANT

AUDIO

SCART

1Antenna input

3External audio input

5SCART input

7Headphone output slot

912V power input

2External video input

4S terminal input

6Computer audio input

Computer/digital TV signal input8

English-6

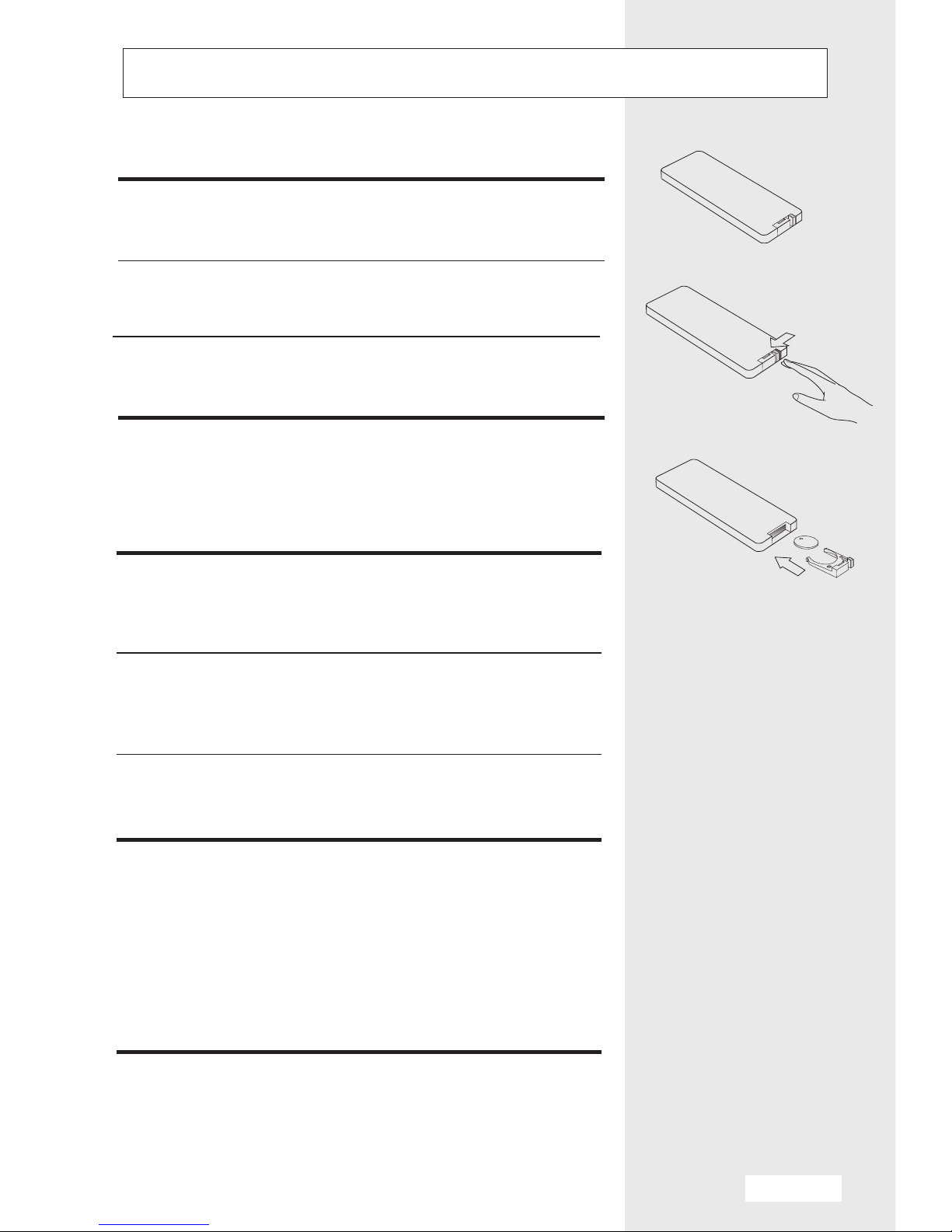

LOADING BATTERY

Loading a battery to the compartment

1 Remove the cover of battery compartment

as shown in the figure.

2 Properly load one 3V Li-Battery in the

compartment of the remote controller.

3 Replace the cover of the battery compartment.

Cautions

1 Ensure that there is no obstacle to signals from

the remote controller to the receiving sensor of the

television set.

2 Keep the remote controller away from heat

source or high moisture and avoid impacts to the

remote controller.

3 Do not operate the remote controller directly

in floodlight or strong sunlight.

CAUTION

RISK OF EXPLOSION IF BATTERYIS REPLACED

BY ANINCORRECT TYPE.

DISPOSE OF USEDBATTERIES ACCORDING TO

THE INSTRUCTIONS.

English-7

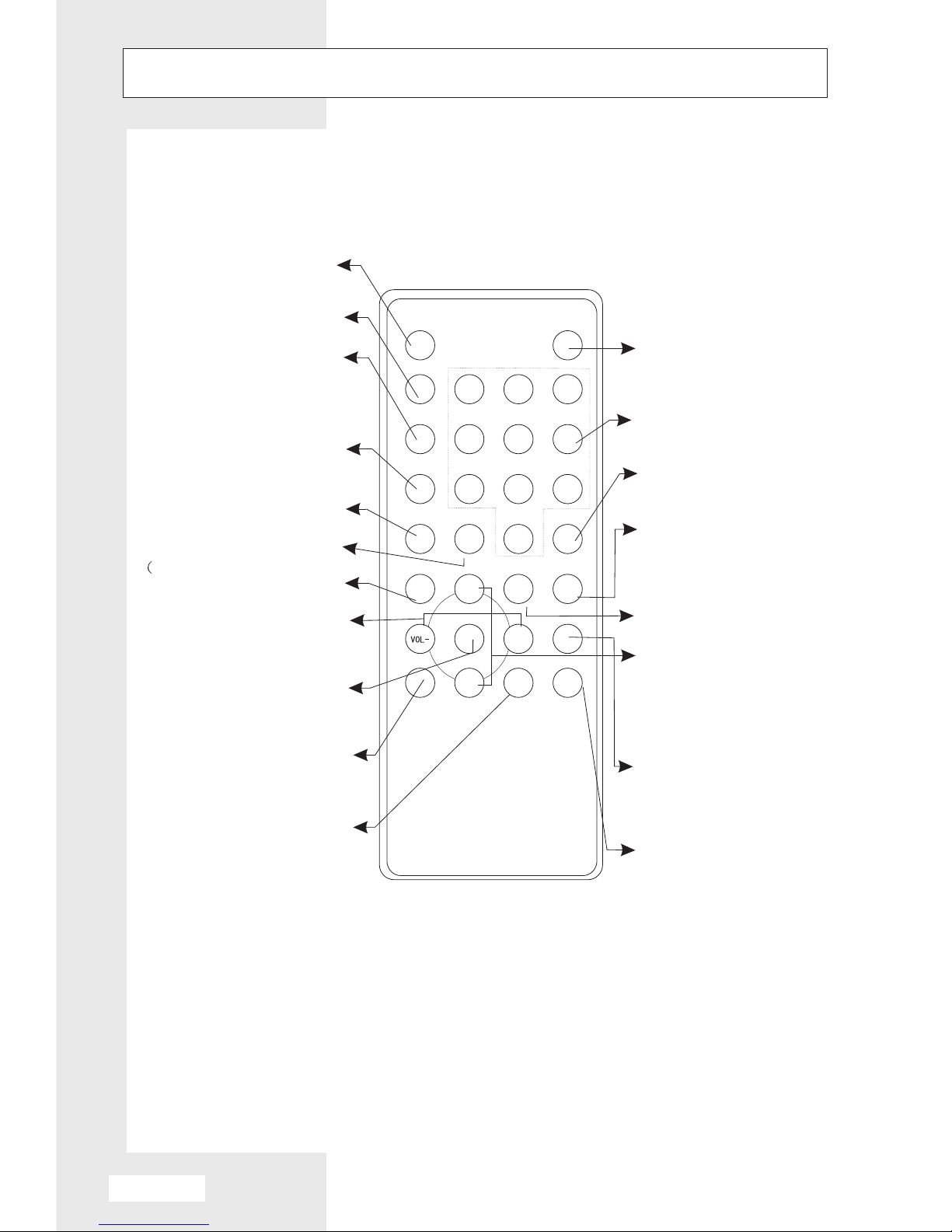

FUNCTIONS OF REMOTE CONTROLLER

POWER MUTE

TV/AV

DISPLAY

SLEEP

NICAM

DIGITAL

BASS

CH+

VOL+

MENU DVD

CH-

OK Q.VIEW

P.MODE S.MODE ARC

Press to conceal the

sound of programme

Channel direct

selection

To exchange between

TV and other available

video inputs

Option of computer

input

Option of DVD input

Programme quick

review

To select programme

or menu item

DC standby

DISPLAY

To display the SLEEP

TIME,press the

VOL+/- buttons to set

the sleep time

A2 stereo/NICAM

selection

Autoadjust the display

to match theTV screen

in PC mode)

To make sure the

selection

Adjusts volume, reset

menu or enter submenu

To call the main menu

Digital bass selection

Option of picture mode

Option of sound mode The ARC function

is not available except

L17LV6-A1 and

L17L6A-G1

(Press this key, the present

size will be on the screen.

Then use VOL +/- to adjust

the picture size between Fill

all and 4:3)

English-8

OPERATION INSTRUCTIONS

Turning the TV On and Off

Standby Setup: The AC-DC converter and the

AC power cord must be set up and connected to

have the TV in standby mode ready to be turned

on. Press the power button on the front panel of

the TV to go into standby mode.

1 If the TV is in standby mode, press the Power

button on the remote controller to turn on the TV

Set.

2 Press the Power button and the TV goes into

standby mode.

Note : If the TV is on and the power button on the

remote controller is pressed to turn the TV

off, the TV goes into standby mode.

Programme selection

1 You can select a channel with the CH-/+ or the

NUMBER button.

Volume adjustment

1 Press the VOL-/+ buttons to adjust the volume.

Quick view

1 Press the Q.VIEW button to view the last

programme you were watching.

POWER

CH+ CH-

VOL+ VOL-

Q.VIEW

English-9

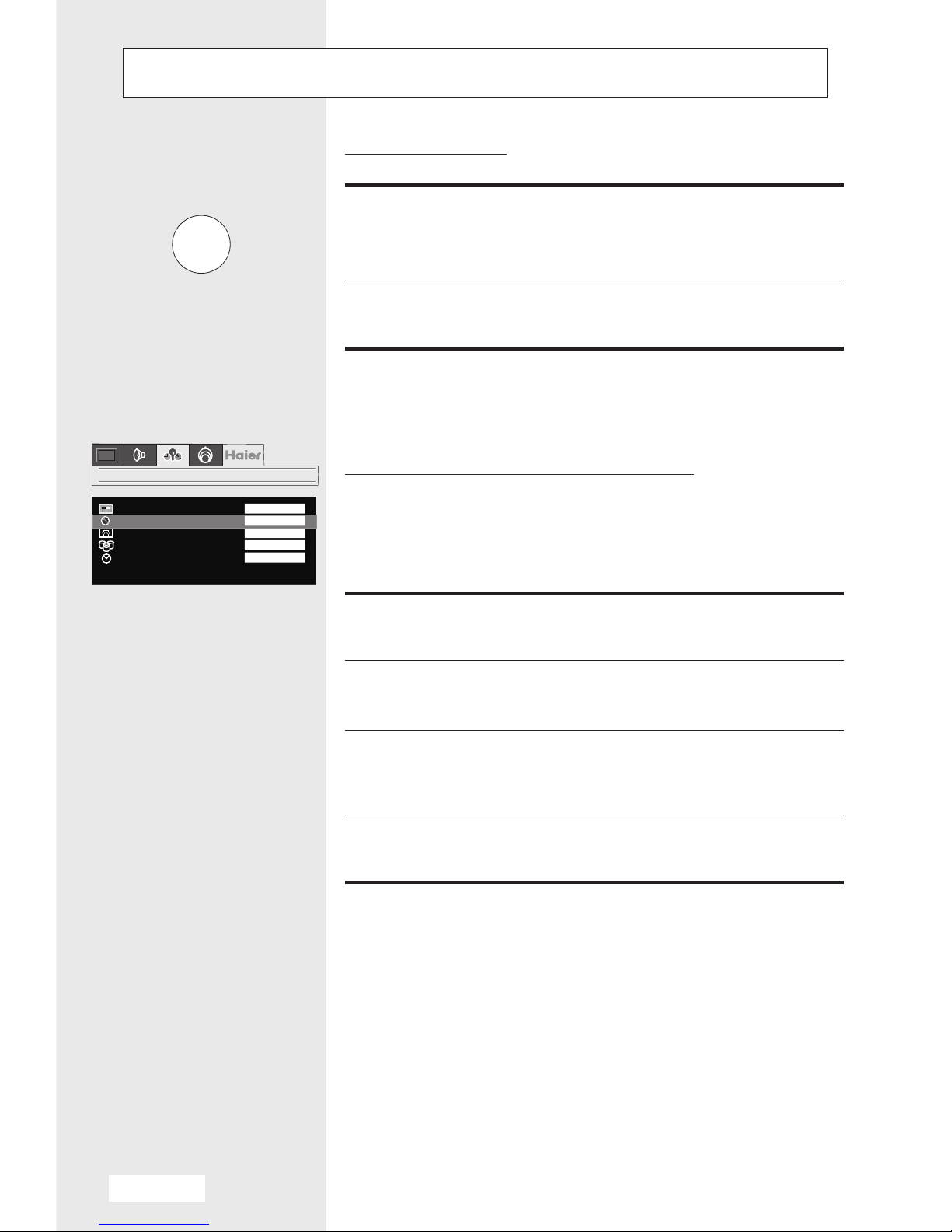

OPERATION INSTRUCTIONS

SOUND SYSTEM

COLOR SYSTEM

SLEEP TIME

SOUND SYSTEM

COLOR SYSTEM

SLEEP TIME

Auto

0 min/0 min

OSD TONEOSD TONE OFF

Mute function

1 Press the MUTE button then the sound will be

switched off and the display appears.

2 You can cancel it by pressing the MUTE again.

On screen language selection

The menu can be displayed on the screen in

desired language.

First select your language.

1 Press the MENU button.

2 Select the third menu.

to select LANGUAGE.

Press CH- button to enter the Menu then press

CH-/+ buttons

4 Press the VOL+ button to select desired language.

MUTE

LANGUAGELANGUAGE English
