Haier L55B2181 Manuale utente

Please READ this manual carefully before

operating your TV, and retain it for future

reference.

TFT-LCD TV

OWNER S MANUAL'

MODEL :S

L55B2181

WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or

the like.

WARNING: Excessive sound pressure from earphones and headphones can cause hearing loss.

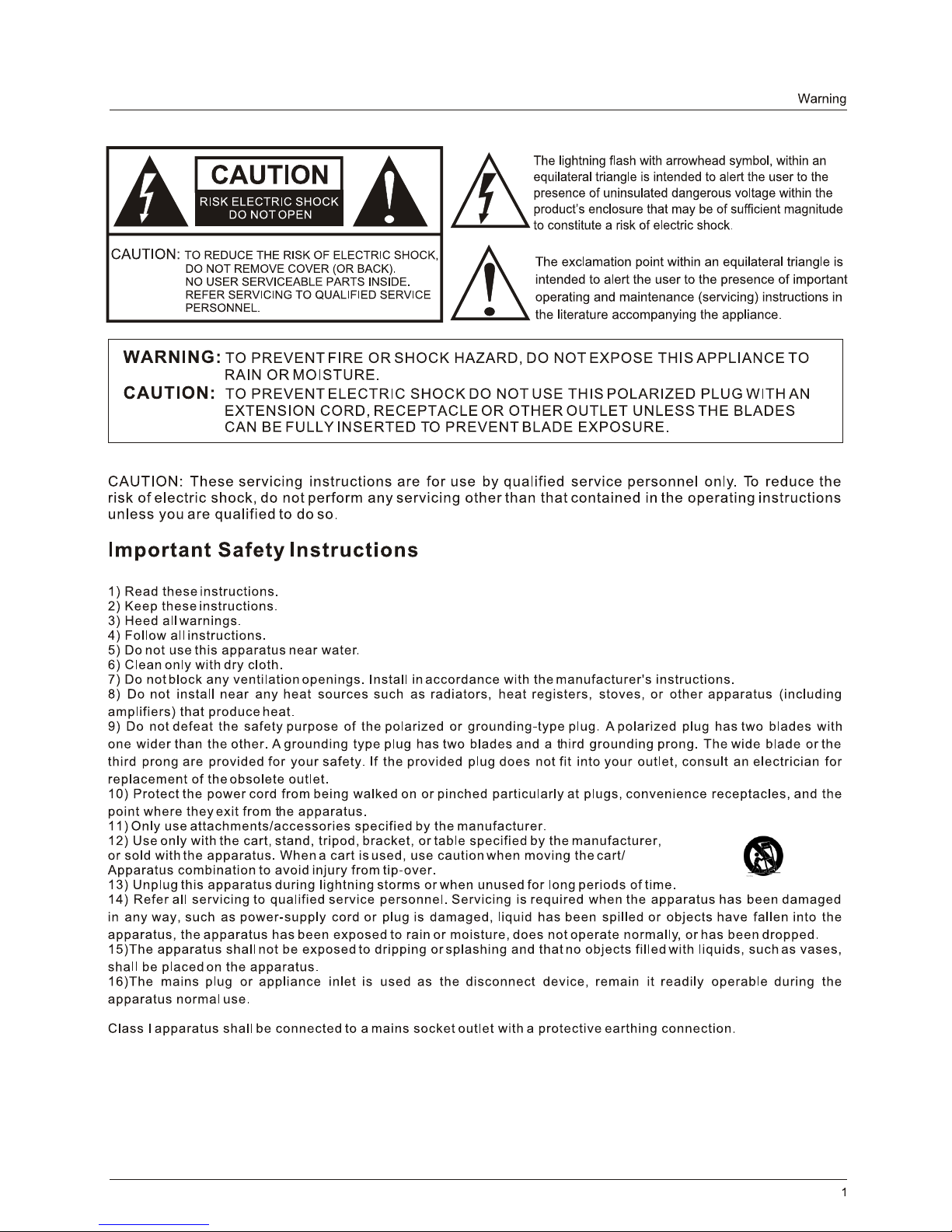

Safety Instructions

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, use and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However there is no

guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to

try to correct the interference by one or more of the following measures:

*Reorient or relocate the receiving antenna.

*Increase the separation between the equipment and receiver.

*Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

*Consult the dealer or an experienced radio/TV technician for help.

This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may be not cause harmful interference.

(2) this device must accept any interference received, including interference that may cause undesired

operation.

FCC CAUTION:

To assure continued compliance and possible undesirable interference, the provided ferrite cores must be

used when connecting this display to video equipment; and maintain at least 15.7” spacing to other

peripheral device.

CANADIANNOTICE:

This Class B digital apparatus compiles with Canadian ICES-003.

FCC STATEMENT

SAVE THESE INSTRUCTIONS

yourThank you for purchasing a Haier product. This easy-to-use manual will guide you in getting the best use of

product. Remember to record the model and serial number. They are on label on the back of the unit.

Model number

serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

Safety Instructions

the

Contents

Warning

Safety Instructions

Unit and Accessories

Product Features

Introduction

1. Front View

2. Rear View

4. Base Stand Assembly Instructions

Connection

Basic Operation

OSD Menu

1. Picture menu

2. Audio menu

3. Time menu

4. Setup menu

5. Lock menu

6. Channel menu

Simple Troubleshooting

Warranty

2-3

6-10

11-13

15-22

20-21

22edomBSU.7

8Instruction for Wall Mount.3

Contents

6. Remote Control 10

5. Remote Control Installing Batteries 9

Unit and Accessories and Product Feature

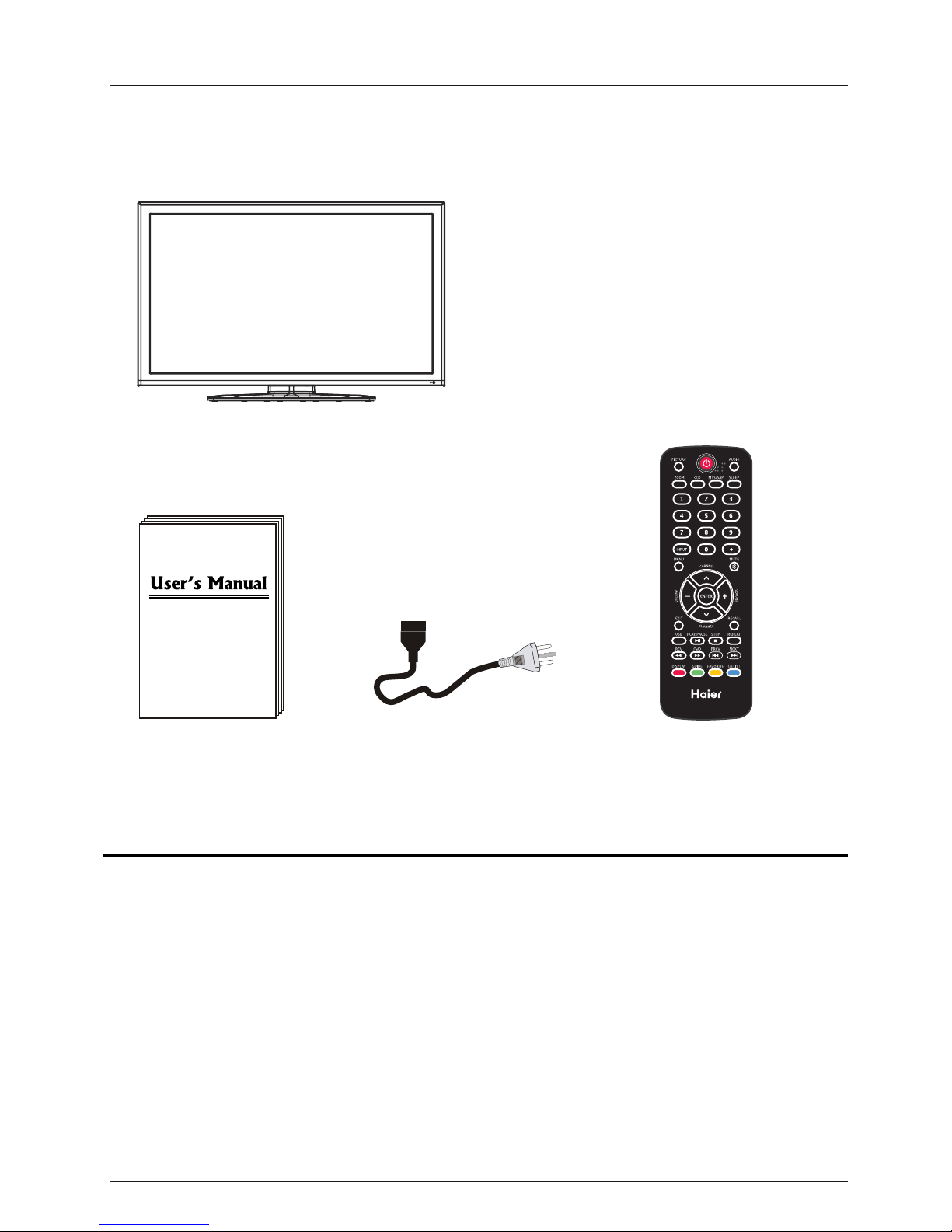

Unit and Accessories

TV set

User's manual Remote control

Batteries: 2xAAA

Product Features

´PHDVXUHGGLDJRQDOO\ZLGHVFUHHQIRUDcomplete home theater experience

[QDWLYHUHVROXWLRQIRU)XOO+'SSHUIRUPDQce

,QWHJUDWHG$76&79WXQHUIRU+'79EURDGFDVWUHFHSWLRQ

[+'0,LQSXWIRUWUXHGLJLWDOFRQQHFWLRQV

9*$SRUWIRUFRQQHFWLRQWR3&



$&SRZHUFRUG

Introduction

1. Front View

1). (IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby)LED Indicator: Press POWER to turn on and off.

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

2). The functions of the buttons:

INPUT: Press to change the input source.

MENU: Press to display the OSD (on screen display) menu,

press again to exit the menu.

VOL+/-: Press to adjust the volume.

The effective receiving range for the signal is up to 30 feet from the front of the remote

control window, and 300to the left or right side and 200above or below the remote control

window.

Led Indicator

Remote Control window

(Keep clear)

POWER/STANDBY:Turn on/off (standby) the TV set.

CH / : Press to scan through channels.

Introduction

2. Rear View

AC POWER IN : Connect the power cable to a wall outlet.

USB: Insert USB storage device to the USB port to view JPEG photos, or listen to MP3 music.

This port is also used for software updates.

HDMI1/2/3 : Connect the source(s) for digital video such as a Blu-ray player, video game console,

or set top box through this all digital connector.

VGA: Connect a VGA (D-sub 15) cable from the 15-pin VGA connector on your PC.

PC audio: Connect an audio cable from the audio output or headphone jack of your PC.

Component

AV IN (Composite)

Coax: Digital audio output.

Headphone: Connect headphones. When it is inserted to the jack, the integrated speakers will

be muted.

YPbPr: Connect the component video cables from a device, such as a DVD Player or cable box.

Use red for Pr, blue for Pb, and green for Y.

VIDEO: Connect the cable for composite video from a device, such as a DVD player, VCR, or

camcorder.

RF IN: Connect to an antenna or digital cable (out-of-the-wall, not from Cable Box) for Digital TV.

R/L in: Connect the audio cables from the component video device. Use red for right audio (R)

and white for left audio (L).

R/L in: Connect the audio cables from the composite video device. Use red for right audio (R)

and white for left audio (L).

RF IN AC POWER IN

USB HDMI1 HDMI2 HDMI3 COAX

VIDEO AV IN AUDIO OUT

AUDIO OUT R/L: Connect the audio cables to an external audio device, such as a sound bar or

sterco system. Use red for right audio (R) and white for left audio (L).

Introduction

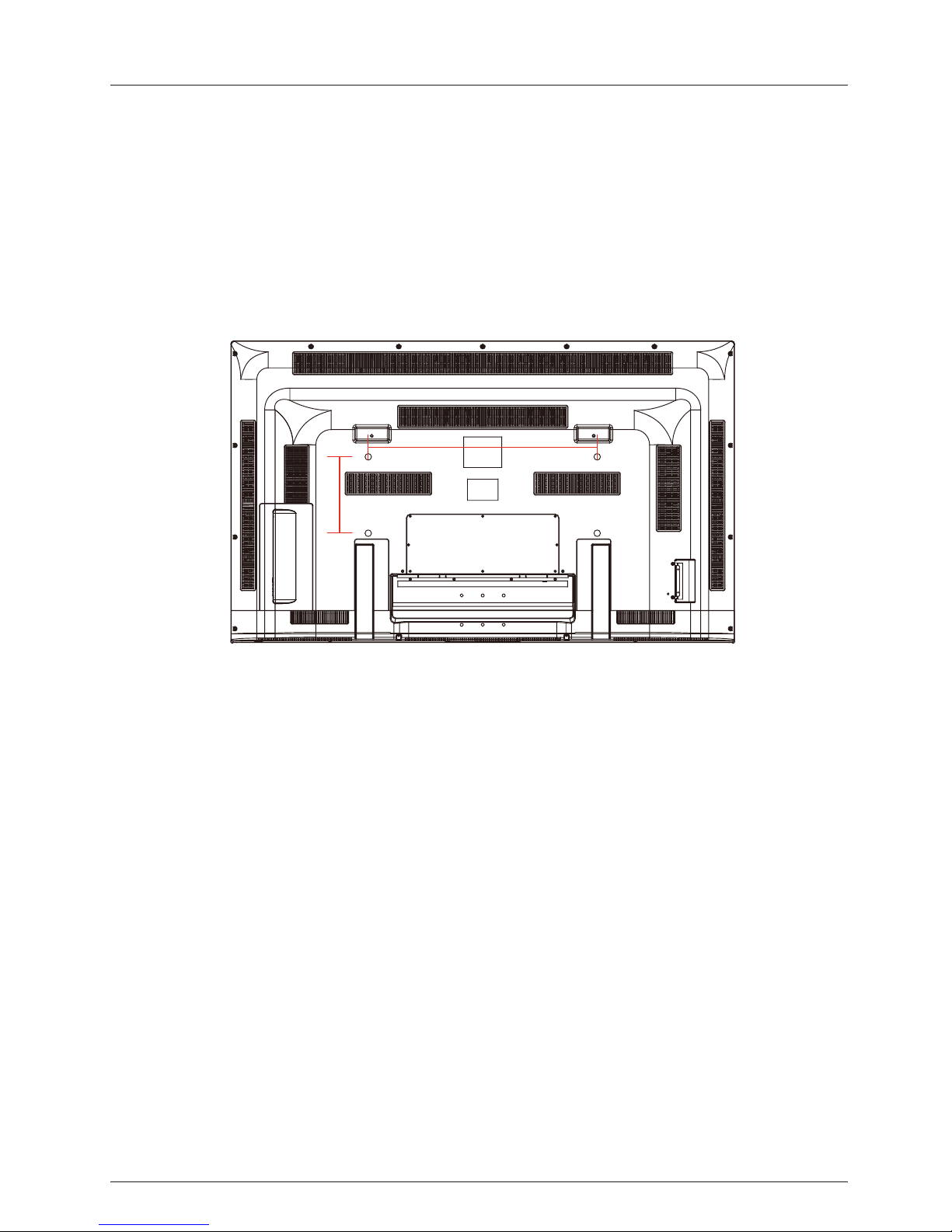

Dimensions for Mounting Hole Pattern

A wall mount kit (purchased separately) will allow you to mount your TV on the wall.

For detailed information on installing the wall mount, refer to the instructions provided

by the wall mount manufacturer. It is strongly recommended to contact a technician

for professional assistance for wall mount installation.

HAIER is not responsible for any damage to the product or injury to yourself or others

resulting from wall-mounting.

-This TV is compatible with a 600mm x 200mm mounting hole pattern.

- Do not mount your TV at more than a 15 degree tilt.

- Always use at least two people to mount the TV to a wall.

- Do not install your Wall Mount Kit while your TV is turned on. It may result in

personal injury due to electric shock.

- 4 pcs of type M8 screws are required for installing the wall mount bracket to

your TV. Do not use screws that are longer than 15 mm. Screws that are too

long may cause damage to the inside of the TV set.

- Do not fasten the screws too tight for this may damage the TV or cause the

TV to fall, resulting in personal injury. HAIER is not liable for these kinds of

incidents

3. Instruction for Wall Mount

- We suggest that you keep your TV at least 2.36 inches (60 mm) from the wall to

prevent cable interference.

- Before mounting your TV on the wall, you need to remove the base if you attached it.

- For your safety, please use only with UL listed wall mount brackets with minimum

weight of the TV without stand (83lbs).

600mm

200mm
