Dear users,
Thank you for your selection and usage of Haier products.
Haier products integrate hi-tech, precision and advanced science, and possess
high quality and excellent performance among similar products. To facilitate you
to use the product, please read the user's manual carefully and operate according
to the steps stated in the manual. Please retain the manual for future reference.
You can be rest assured that the international star-level services of Haier will
always accompany you. No matter what kind of problems you meet in usage,
please contact us according to the telephone and address stated in the warranty
certificate. We are at your service all the time. Thanks again for your choosing
Haier product. Due to the improvement of the product, the Haier microwave oven
you have may be different from the figure in the user's manual on some part. We
apologize for any inconvenience occurred therefrom.
1
Features of the Product
● The door adopts unique anti-choke structure and integrated punch forming,
And thus effectively prevents the microwave from leaking.
● It is controlled by two-step interlock switch. The power will be switched off
automatically when the door is open, therefore it is much safer to use.
● The sealing part of the cavity is produced with antiseptic materials, and
can suppress the reproduction of the bacteria effectively.
● The special function of the microwave oven can eliminate the germ in the
food quickly and completely.
★High-temperature roast
● It has “microwave + grill” combined grill function, and can produce perfect
grill food.
● It has modern appearance and superior quality, and thus becomes the
best choice for the household microwave oven.
★Safe to use
★Shining appearance
★Healthy and germicidal
2
+30SEC
AUTO MENU
MICRO POWER
＋TIME/WEIGHT ADJUST－
START
GRILL/COMBI
PAUSE/CANCEL

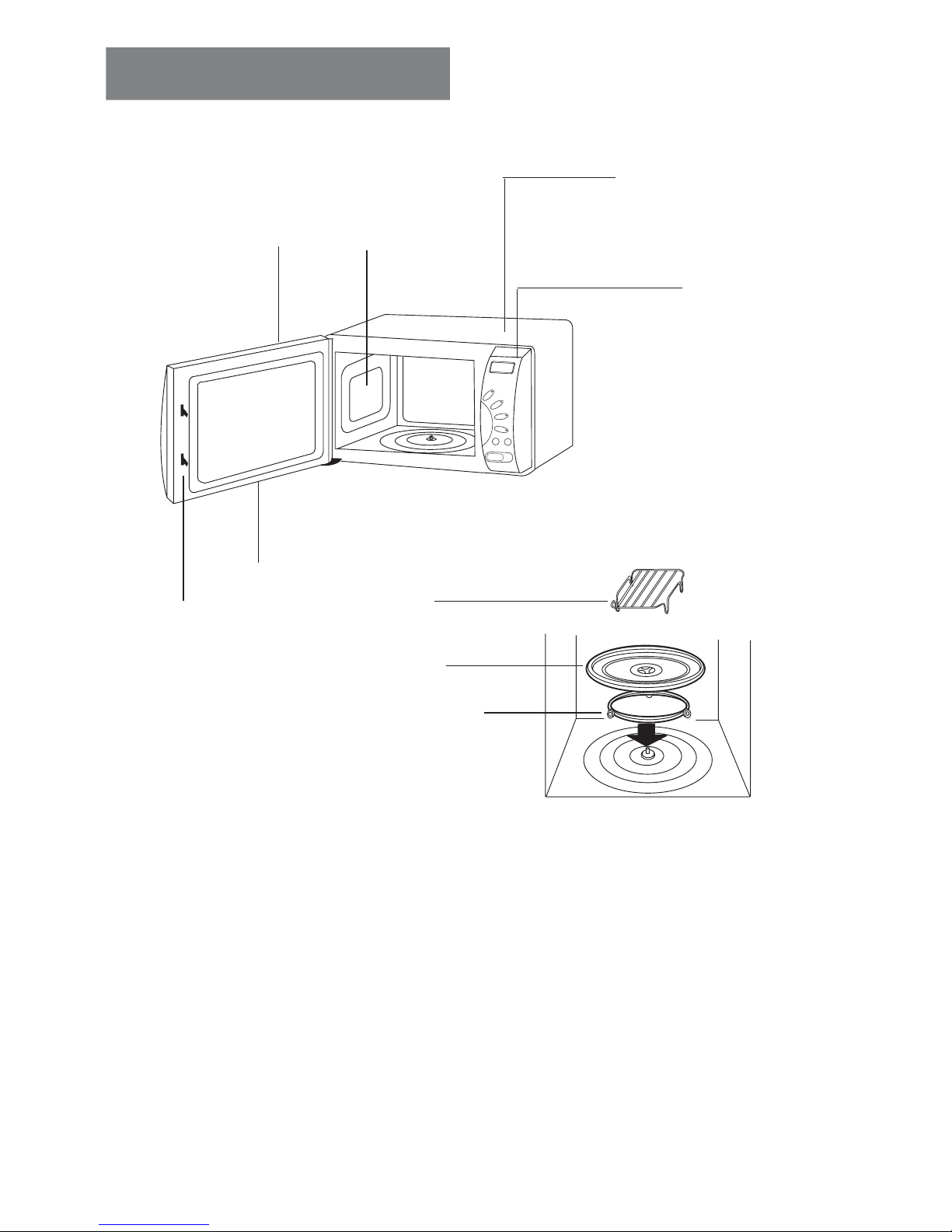

glass rotary
tray
shell
operation
board
tray support
diagrammtic sketch for
the accessory installation
baking
mesh
cavity
door hook
door seal
door
useful volume of the
cavity is 16 l
Names of the Parts
3
1. Beverage
2. Fish
3. Auto
Reheat
4. Instant
Noodle
5. Barbecue
6. Vegetable
7. Chicken
8. Auto
Defrost
AUTO COOKING MENU

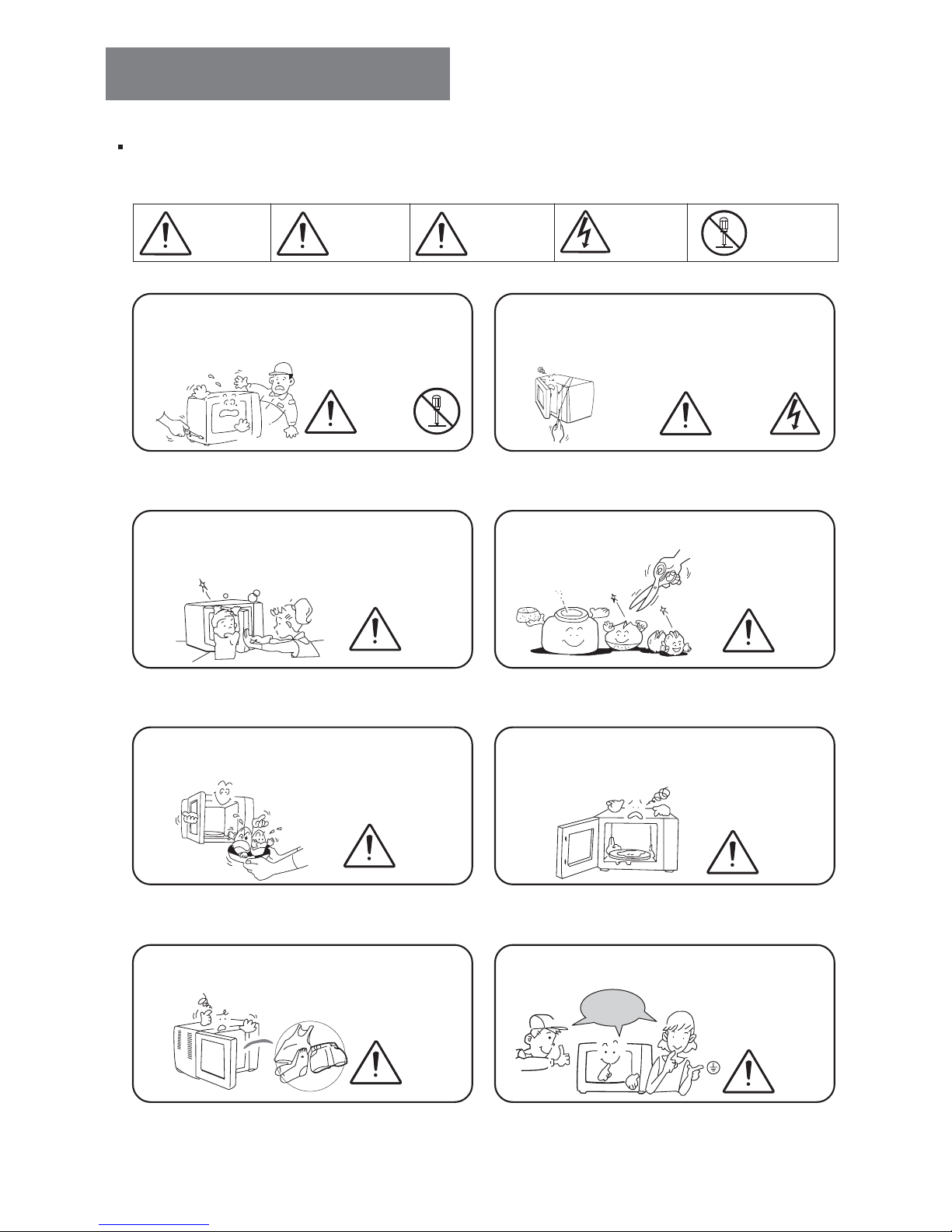

Please read the safety precautions carefully to guarantee safe and convenient
use of Haier microwave oven.
Danger Warning
No one except the professional technicians
are permitted to disassemble the microwave
oven, or it may result in electric shock.
Danger
Attention Electric
shock
hazard
switch hole on the front side of the cavity. It
may cause hazard.
interlock switch hole
No
dismantle
Danger
Do not use the microwave oven for purposes
other than for cooking food
This appliance must be earthed
Do not cook eggs in their shells to avoid
bursting
Remember to clear away excess grease
from the inside the cavity. Otherwise it may
cause smoke or fire during heating.
warning
Do not apply excess force to the door. It
may cause distortion of the door and result
in microwave leakage.
Do not use sealed containers. For those
foods with skin, please prick holes on the
skin.
warning
Safety Precautions
warning warning
warning warning
safe and
reliable
4
1. If the door seal or the door body is damaged, please do not use the
appliance before it is repaired by professional technicians.
2. Before use, please check if the cooking containers are suitable for
microwave oven.
3. If you find smoke in the oven, leave the door in the closed position, and
switch off the power supply of the oven (remove the plugtop from the
supply socket).
4. We do not recommend the use of plastic, paper or other combustible
materials containers for cooking, please be sure to observe the operating
instructions for the microwave oven, in order to avoid accidents
5. When you heat liquid in the oven, please take care of the delayed
splashing of possible boiling liquid.
6. Do not use the microwave oven if there’s no food inside, so as to avoid
damaging the appliance by no-load running.
7. Children are not allowed to operate the microwave oven without the
instruction of adults.
Safety Precautions
Warning
warning warning

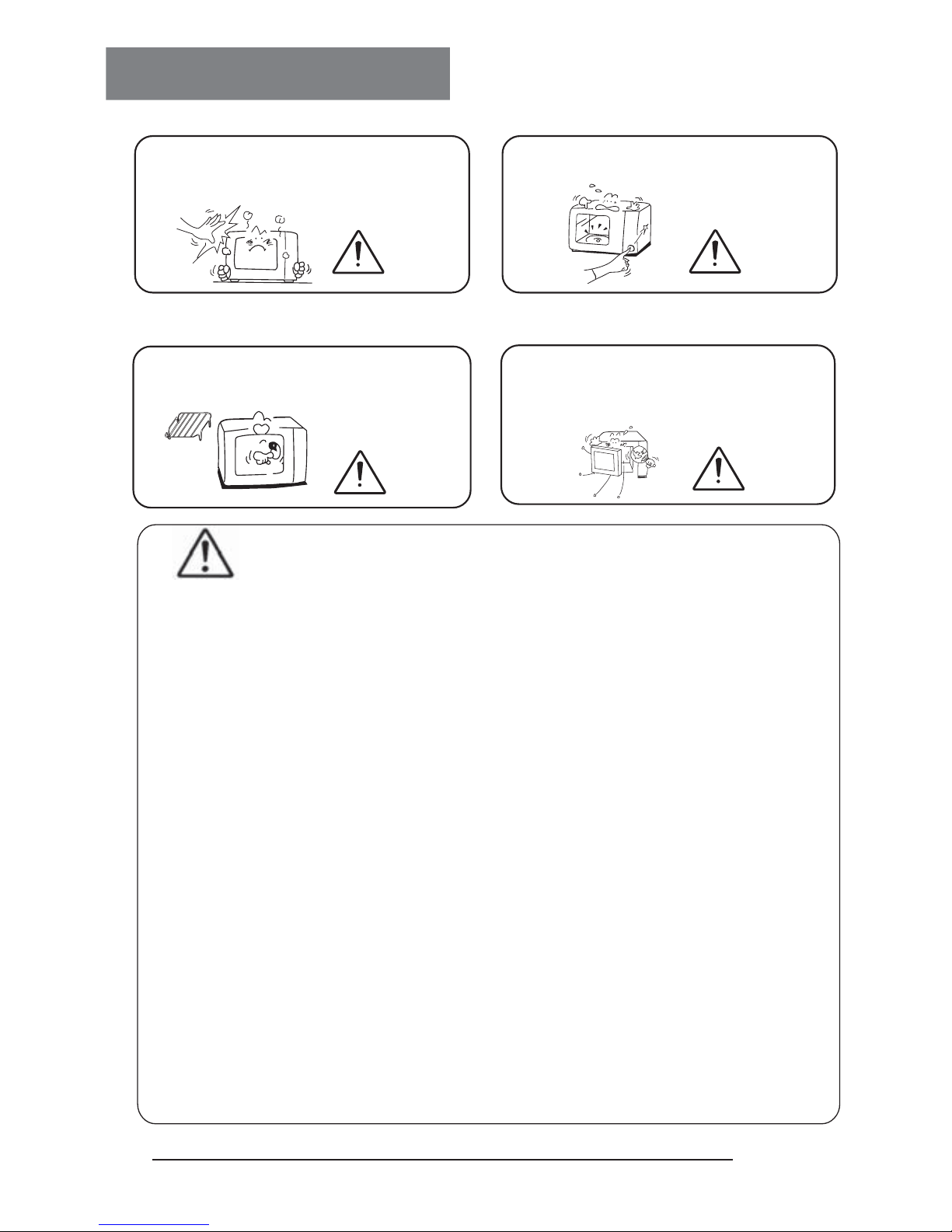

When roasting , the face of the door and
the top of the cabinet may become hot to
touch.
Do not use it with the cavity empty. It will
damage the microwave oven.
Do not use the product for any industrial and commercial purpose.
Do not use metallic dishware to cook with
microwave as it will cause internal arcing.
Allow the cavity to cool after long cooking
processes (i.e. Roasting etc) before
starting another cook cycle.
warning warning
5
8. Small amounts of food require shorter cooking or heating time. If normal times
are allowed they may overheat and burn.
6
Installation Environment
glass rotary tray
rotary tray support
Open the
carton user’s
manual
+30S
AUTOCOOKING MENU
1.Beverage
2.Fish
3.Auto
Reheat
4.Instant
Noodle
5.Barbecue
6.Vegetable
7.Chicken
8.Auto
Defrost
AUTOMENU
MICROPOWER
＋TIME/WEIGHTADJUST－
START
GRILL/COWER
PAUSE/CANCEL
Open the Package Carton * Installation

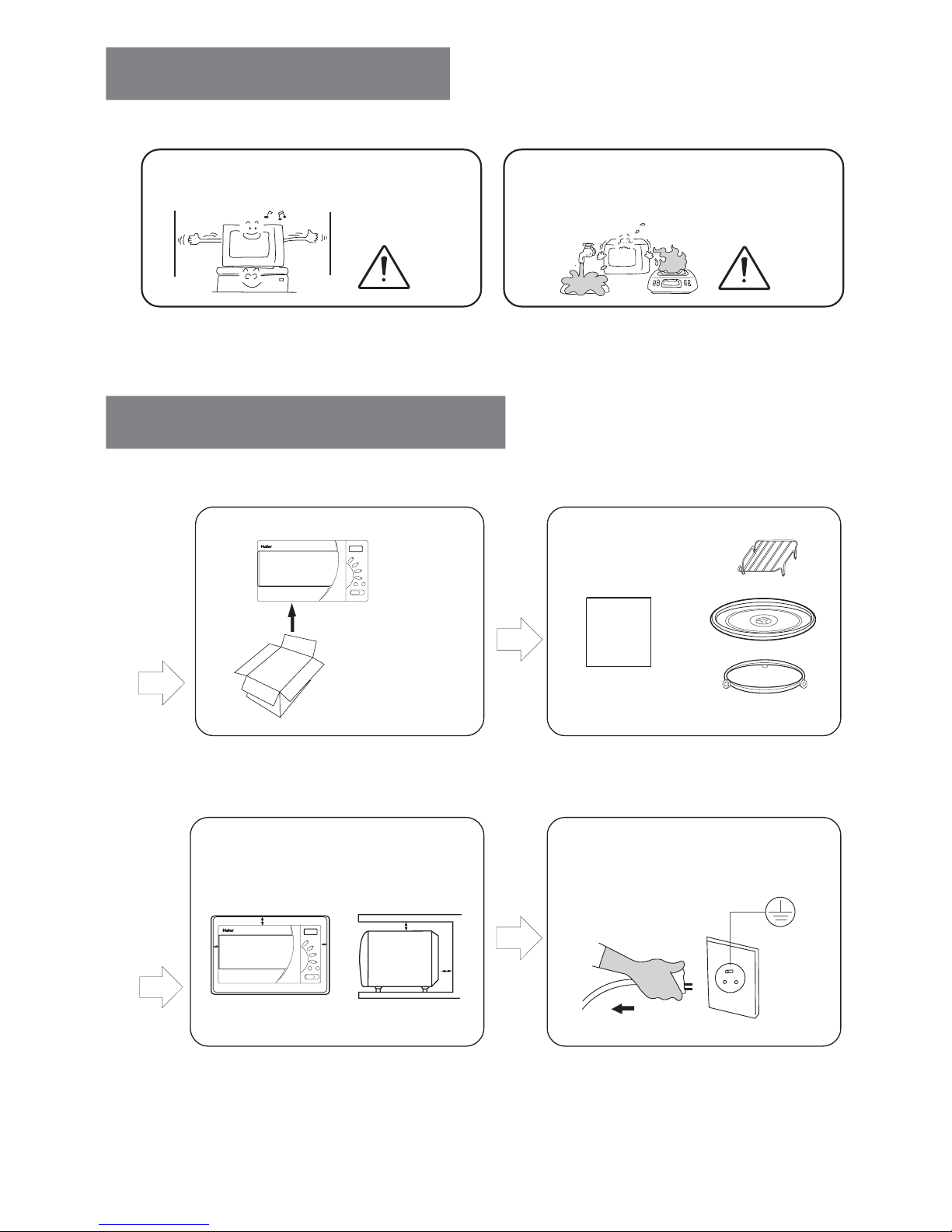

Ventilation space is required in installation
of the microwave oven.
Do not install the microwave oven in
environment that is humid or with high
temperature.
attention
attention
Install
Put the microwave oven levelly at the
position you choose. Keep good
ventilation.
Select independent special socket,
with current at least 10A. Be sure to
ground it reliable.
The gaps shall be all above 30cm
+30S
AUTOCOOKING MENU
1.Beverage
2.Fish
3.Auto
Reheat
4.Instant
Noodle
5.Barbecue
6.Vegetable
7.Chicken
8.Auto
Defrost
AUTOMENU
MICROPOWER
＋TIME/WEIGHTADJUST－
START
GRILL/COWER
PAUSE/CANCEL
baking mesh
Functions
+30SEC
AUTO MENU
MICRO POWER
＋TIME/WEIGHT ADJUST－
START
GRILL/COMBI
PAUSE/CANCEL
7
AUTO COOKING MENU
1. Beverage
2. Fish
3. Auto
Reheat
4. Instant
Noodle
5. Barbecue
6. Vegetable
7. Chicken
8. Auto
Defrost
Usage
1. In stand-by mode.
1. Cooking function
For instance
The microwave oven has five power levels, which are
able to meet your requirements for different cooking
functions.
Remarks:
1. This model uses a circulating display for power level selection i.e with each push, the
power level changes in following manner: P100-P70-P50-P30-P10, then P10-P100.
2. When the cooking time expires (the counting down time is 0:00), the buzzer will sound
five times to indicate that the cooking is finished.
3. The largest cooking time of this model is 30 minutes.
4. In stand-by mode LED display 0:00, if you push the
“START” button, the microwave cook
for 30 second with high power level. LED display
0:30, the oven starts counting down,if you
push the “START” button continously, the largest cooking time of this model is 5 minutes.
To cook for 10 minutes with Medium-high power level.
P100 P70 P50 P30 P10
High
●
●
●
●
Medium-high
Medium
Medium-low
Low
LED display
3. Push the “+TIME/WEIGHT ADJUST-”
button ninteen times or push the
button eleven times or push the “-
”
button until LED display 10:00.
4. Push the “START +30SEC” button.
5. When the cooking time expires. the
buzzer will sound five times to indicate
that the cooking is finished.
LED display
LED display
LED display
8
2. Push the “MICRO POWER”
button twice.
LED display
●
●
“+” or push the “+TIME/WEIGHT ADJUST-”
AUTO MENU
cooking
With the AUTO MENU cooking function, you only need
to set the type and weight of the food then press the
start button, the oven will start cooking automatually.

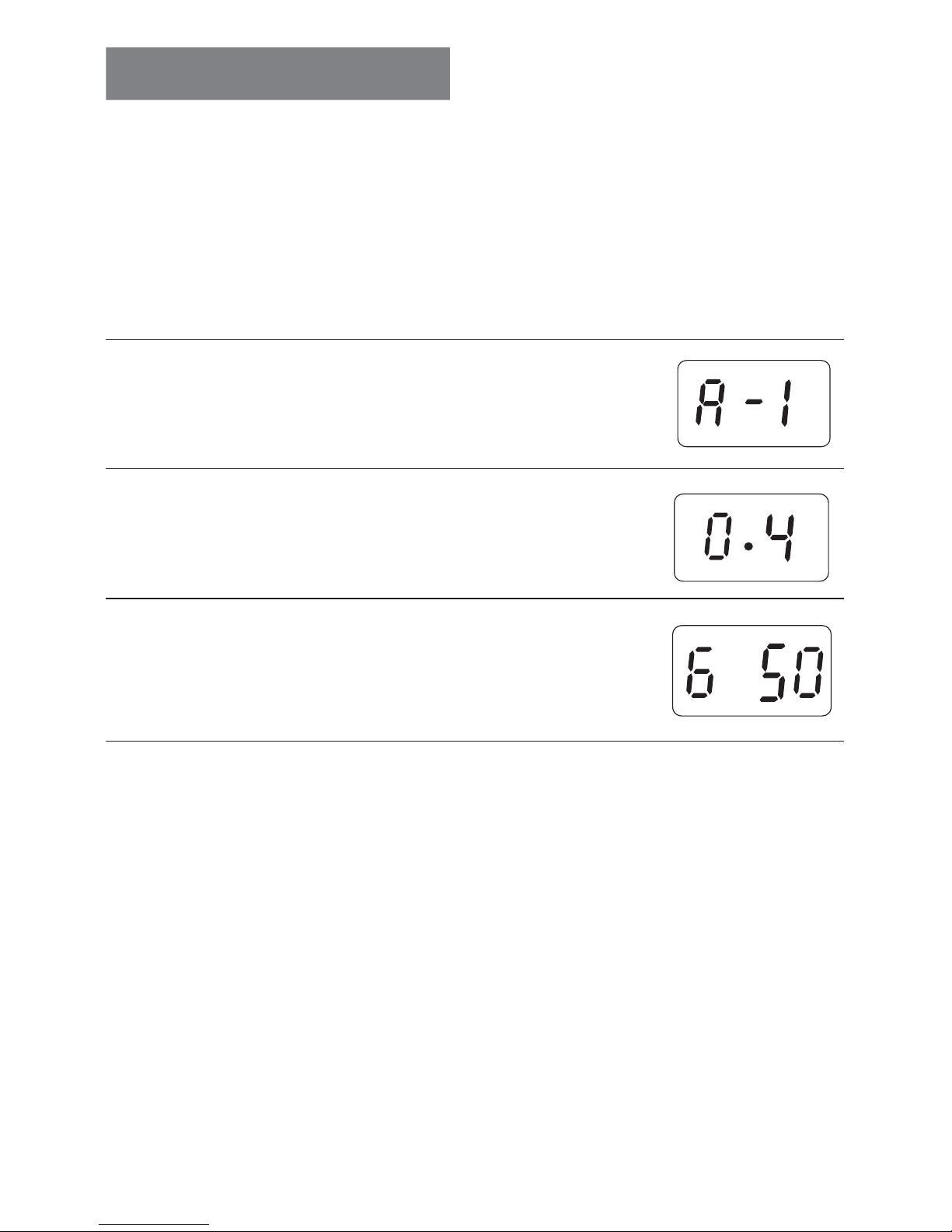

1. In stand-by mode, push the “AUTO
MENU” button once LED display
●
●
Usage
For instance
Heat 400g milk with AUTO MENU
function.
2. Push the “+TIME/WEIGHT ADJUST-”button
continuously untill LED display 0.4 .
3. Push the “START +30S” button.
LED display
LED display
9
4. When the cooking time expires, the
buzzer will sound five times to indicate
that the cooking is finished.
