USER'S MANUAL
LCD TV RECEIVER
Please read thismanual carefully before
using your televisionand keep thismanual
In a goodplace for futurereference.
MODEL:
L1509A-A, L1709A-A, L1910A-A,
L2009A-A, L1911W-A
To users:
Thank you for using our LCD-TV.
Before connecting the LCD-TV and turning the power on, please
read this book carefully. Please keep this book for later use. When it
was loss of function by electrostatic shock, please switch the on/off
button for restoring the function.
CONTENT
Safety Notice Items...................................................................................
Front Panel Controls..................................................................................
Connection Options...................................................................................
Remote Control Key Functions...................................................................
Remote Control ..................................................................................
Installing Batteries..................................................................................
Connection Instructions.............................................................................
Grounding..............................................................................................
External equipment Connections..............................................................
Antenna Connection.............................................................................
PC Setup.............................................................................................
VCR Setup...........................................................................................
Cable TV Setup....................................................................................
External AV Source Setup......................................................................
Basic Operating Instructions.......................................................................
Turn on the LCD-TV.................................................................................
Audio Control..........................................................................................
Mute......................................................................................................
Select the TV Channel You Want...............................................................
Picture Mode...........................................................................................
Menu Operations.......................................................................................
Picture Menu Options...............................................................................
Picture Menu Options Continued...............................................................
Audio Menu Options................................................................................
Audio Menu Options Continued................................................................
Function Menu Options.............................................................................
Function Menu Options Continued.............................................................
Adjust Menu Options................................................................................
Tuning Menu Options..............................................................................
Tuning Menu Options Continued..............................................................
TELE TEXT...............................................................................................
Troubleshooting Guide...............................................................................
Specifications...........................................................................................
1
2
3
4
5
5
6
6
6
6
7
8
9
9
10
10
10
10
11
11
12
12
13
13
14
15
16
16
17
18
19
21
22
Safety Notice Items
Incorrect usage will cause fire or electric shock. To prevent this, please do
as required when you are installing, using and cleaning this machine. To insure
your safety and extend the life-span of LCD-TV, please read the following items
carefully before using:
lPlease read and understand all the instructions before operation;
lPlease keep the book for later use;
lPlease comply with the warning instructions on the machine and in this book
strictly;
lPlease comply with the instructions provided;
lPlease do not use additional devices that are not recommended by
manufacturer:
lBefore operation, please make sure that the operating voltage of your unit is
normal;
lDo not placethe unit on unstable, dusty andhumid places;
lNever put theunit in direct sunlight or nearheat sources;
lAllow enough space for proper ventilation;
lPlease keep water away from the LCD-TV . If water comes in contact with the
LCD-TV, disconnect the power cord from the power source, then wipe the set
with a dry soft cloth;
lDo not remove the back cover. If services were need, please refer to qualified
Personnel

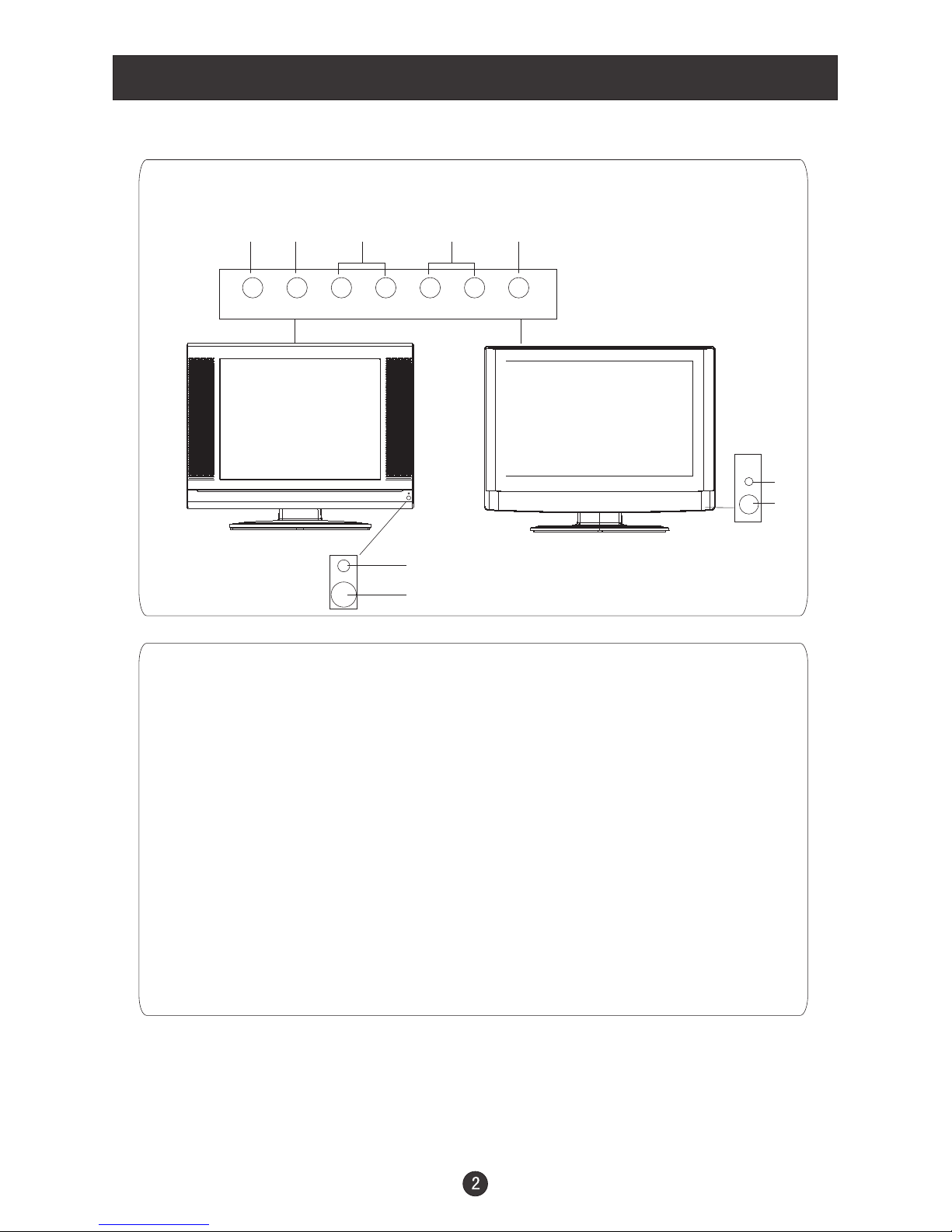

Front Panel Controls
Control Panel Function
6
7
TV/AV MENU VOL- VOL+ CH- CH+ POWER
2345
1. Power supplyswitch
2.TV/AV Select the inputsignals: COMPONENT/PC/AV/SV/TV
3. MENU Press to select the main menu
4. VOL- Volume down/ Left orientation to adjustthe item in the OSD
VOL+ Volume up / Right orientation to adjust the item/Press to enter
5. CH- TV channel down / to select the item in the menu
CH+ TV channel up / to select the item in the menu
6. Power indicator
Illuminates red in standby mode, illuminates green when the display is
turned on
7.Remote Sensor Receivingremote control sends the infrared remote
signal.
1
6
7
L1509A-A, L1709A-A, L1910A-A,
L2009A-A
L1911W-A

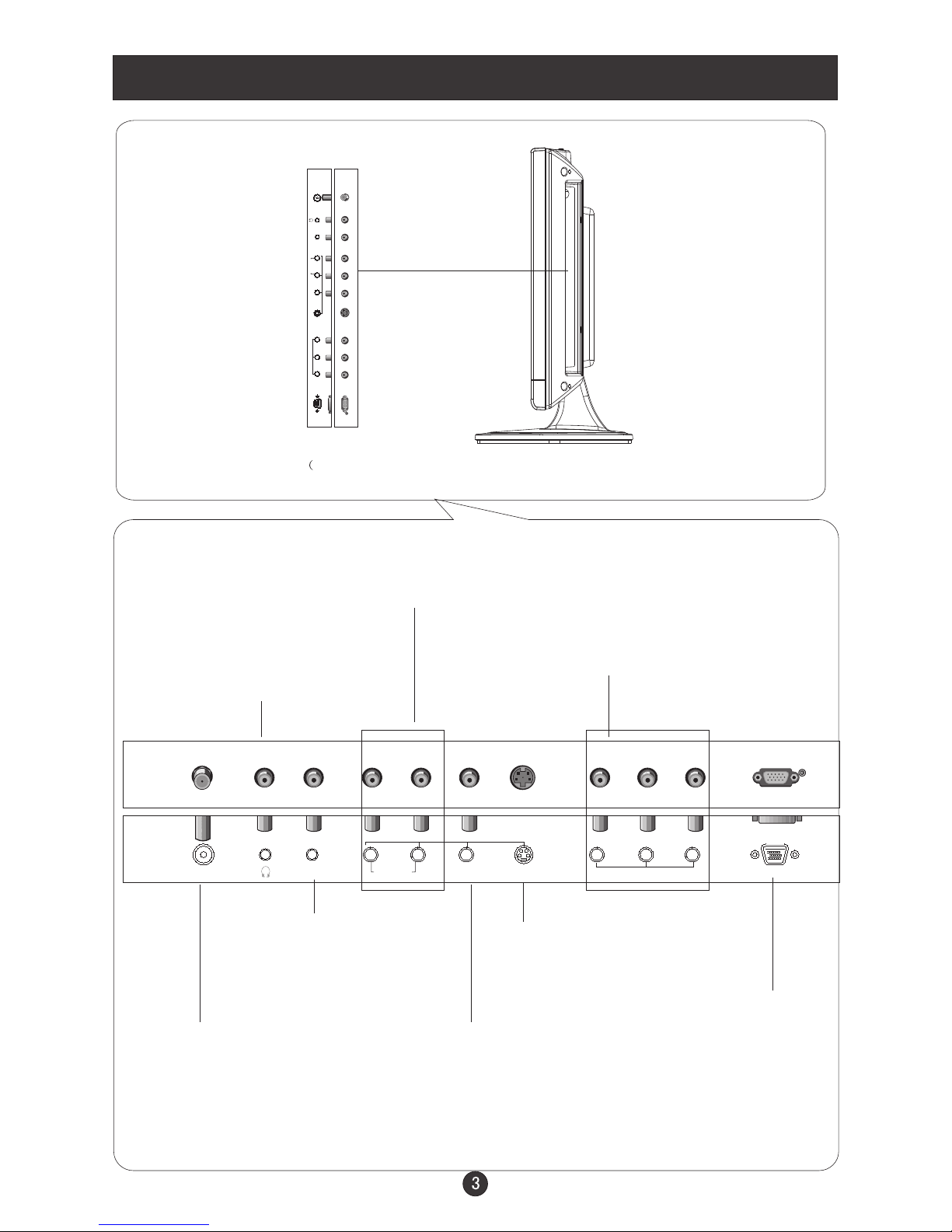

Connection Options
The figure is just for reference, please see the real.
And the AC power supply switch is on the back of the set)
AV /S-VIDEO/COMPONENT Audio Input
Connect audio
output from an external
device to thisjack
VGA Input
Connect to theVGA
15PIN analog output
connector of thePC
display card forPC
display purpose
S-Video Input
Connect S-Video out
from an S-Video device
to the jacks.
Antenna Input
Connect cable or
antenna signals to
the TV, either direc-
tly or through your
cable box.
Earphone port
PC Audio Input
Connect the PC output
connector from aPC to
the audio inputport
DVD/DTV Input
Connect a componentvideo/audio
device to thesejacks
ANT IN S-VIDEO VGA IN
PC AUDIO IN AUDIO IN
R L
VIDEO IN
V
Pb
Pr Y
COMPONENT IN
ANT IN S-VIDEO VGA IN
PC AUDIO IN AUDIO IN
R L
VIDEO IN
V
Pb
Pr Y
COMPONENT IN
Video Input
Connect video
output from an external
device to thisjack

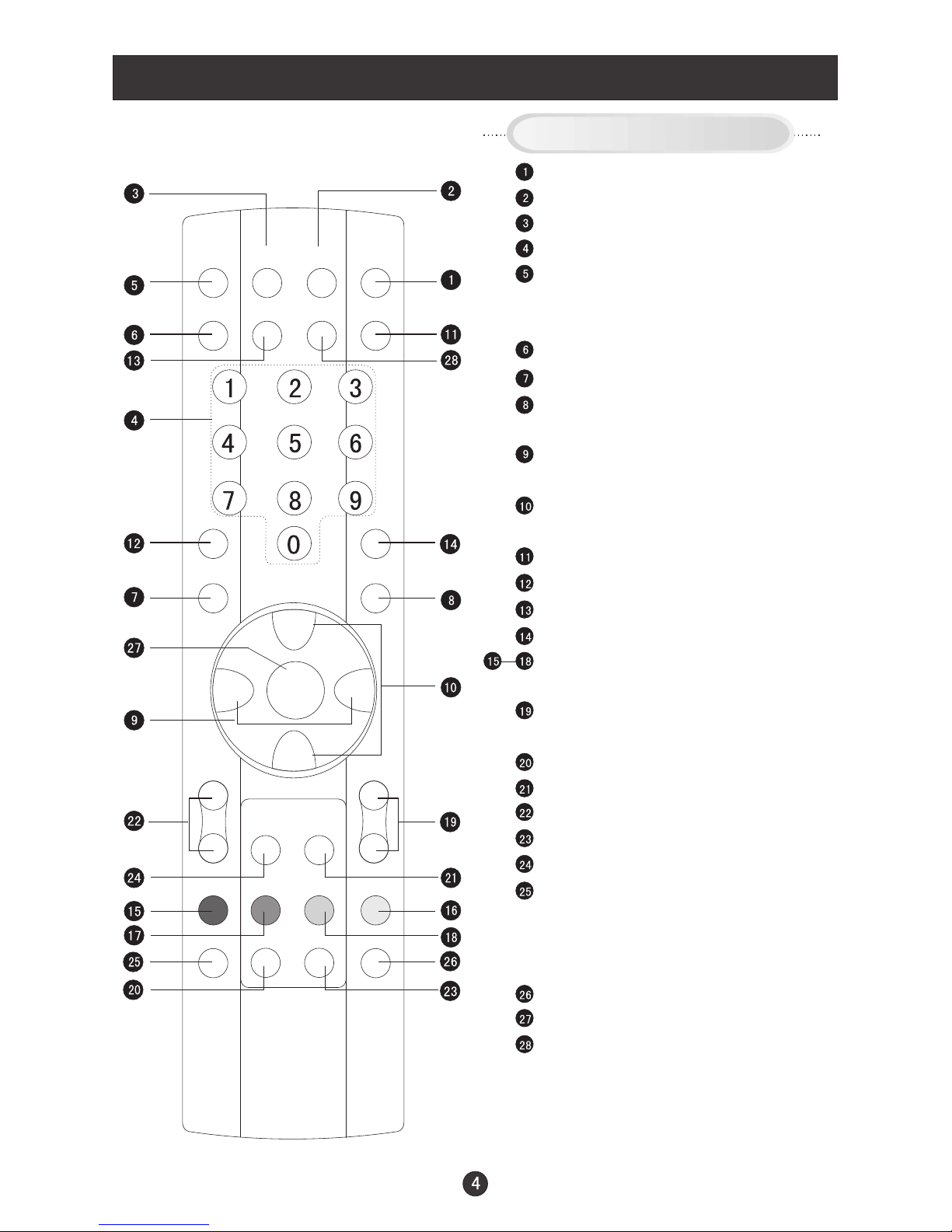

Remote Control Key Functions
When using the remote control, aim it
towards the remotesensor on the TV
Stand By
MUTE
Display current input signal information
TV channel number select
Set time to change the TV into the
standby status after a period of preset
time.(time is 240/180/120/90/60/45/30/15/0)
NICAM/A2 Stereo select
EXIT
Quick TV channel switch(return to the
last channel)
Volume down/up Left/right orientation to
adjust the item in the OSD
TV channel up/down or select the item
of the menu
Select COMPONENT/PC/AV/SV/TV
Select picture mode
PC system select
Select sound mode
Correspond to the differently colored
subjects
Switch to the Teletext with text mode/turn
off Teletext and switch to TV mode
Hold on or off for current page display
Switch to the Teletext with mix mode
Request index page
Change display size
Sub coded page access
Reveal or hidden the hidden words
Press to select the main menu
Auto adjust (PC mode)
While in normal TV mode only, pressing
the button TIME will display the teletext
time in the top right corner for a few
seconds.
Buttons on the remote control
P+
P-
V- V+
SLEEP DISPLAY MUTE POWER
NICAM PC AUTO AD TV/AV
PSM
OK Q.VIEW
MENU
INDEX TEXT
TIME HOLD SIZE REVEAL
SUBCODE MIX
SSM
Remote Control

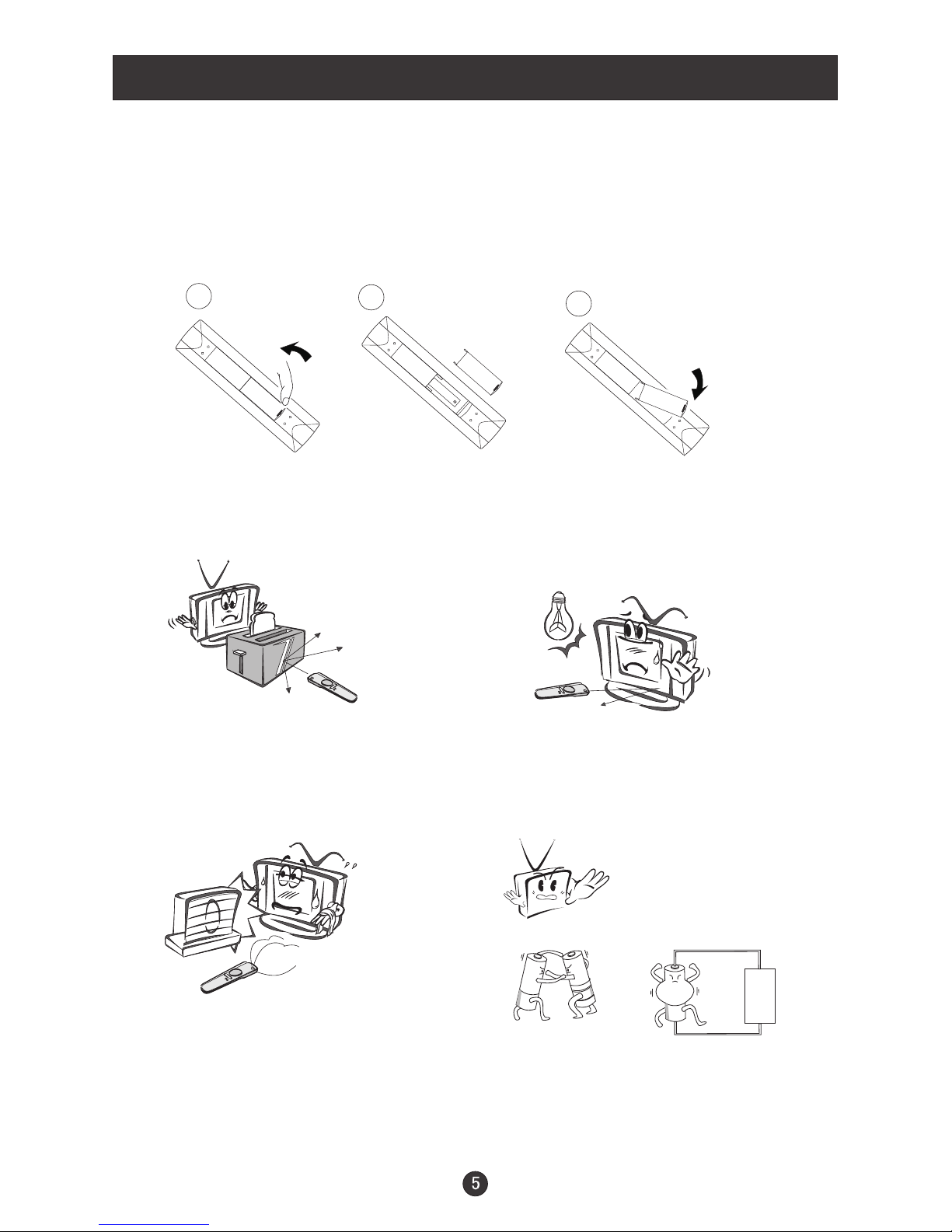

Installing Batteries
3
2
1
1.Slide open thecover of the battery compartment on the back ofthe remote
control.
2.Load two 5#alkaline batteries in the compartment. (plus and minus poles to
respective mark)
3.Replace the coverof the battery compartment.
Precautions
Make sure that there is no
obstacle between theremote
controller and televisionset.
As strong light may interfere the
signals, change yourposition to
operate the remote controller if
the television cannot be turned
on or off as youexpect.
Keep the remote controller
away from heat source or
humid area toensure
effective performance of
the remote controller.
Make sure that two 5# 1.5V alkaline
batteries are loaded. The batteries
must be of the same type. The batteries
must be located properly. The batteries
are not rechargeable.
Connection Instructions
Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connectingit to telephone wires, lighteningrods, or gaspipes.
Grounding
External Equipment Connections

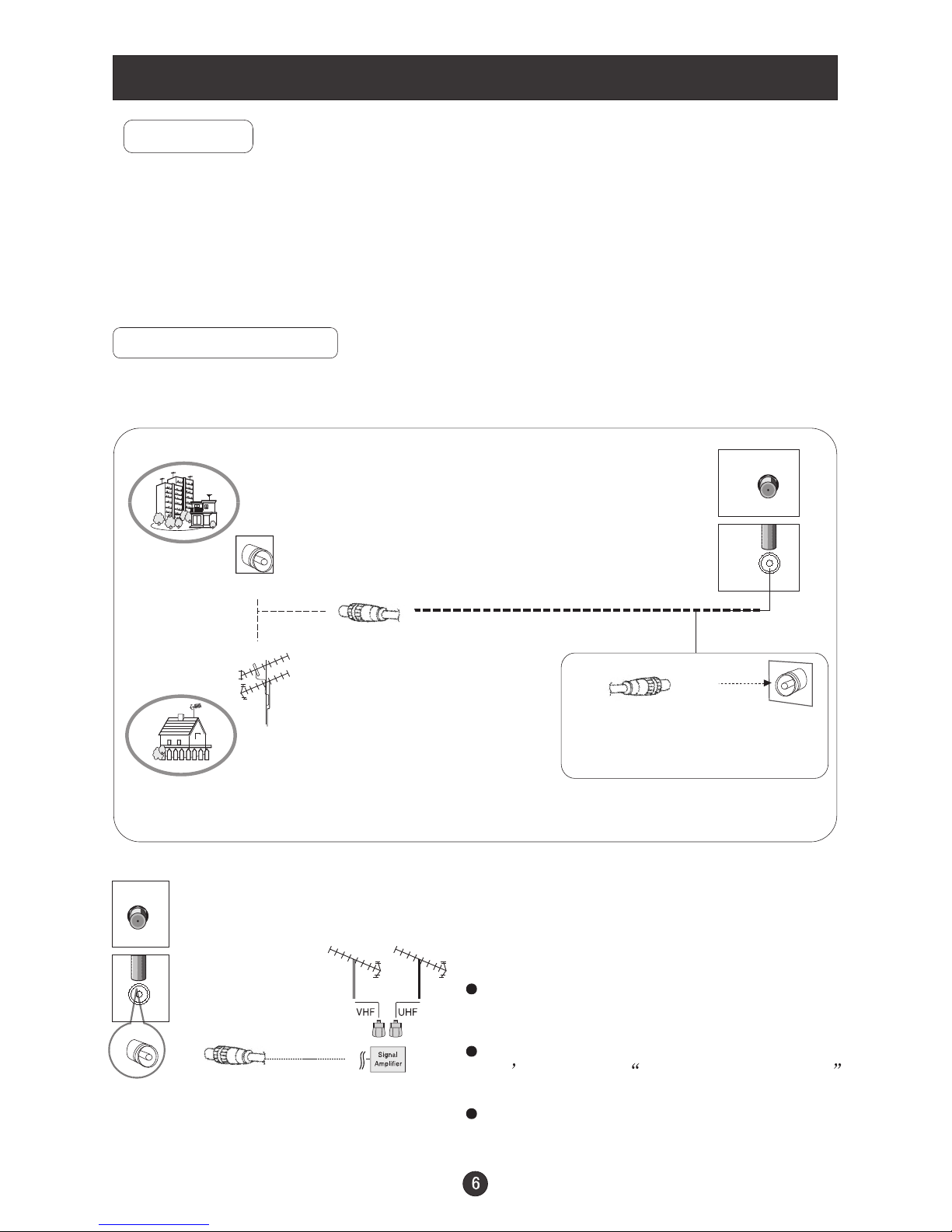

Antenna Connection
- Antenna or Cable Service with a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wallantenna socket)
wall antenna
socket
VHF antenna
UHF antenna
outdoor
antenna
Single-family Dwellings /Houses
(Connect to walljack for outdoorantenna)
Be careful notto bend thebronze
wire when connectingthe antenna.
To improve picture quality in a poor
signal area, purchase and install a
signal amplifier.
If the antenna needs to be split for two
TV s, install a 2-Way Signal Splitter
in the connections.
If the antenna is not installed properly,
contact your dealer for assistance.
NOTE: All cables shown are not included with the TV
RF coaxial wire(75 ohm)
ANT IN
ANT IN
Connection Instructions
You can use your LCD-TV as a monitor for your personal computer using a VGA
cable (not supplied).

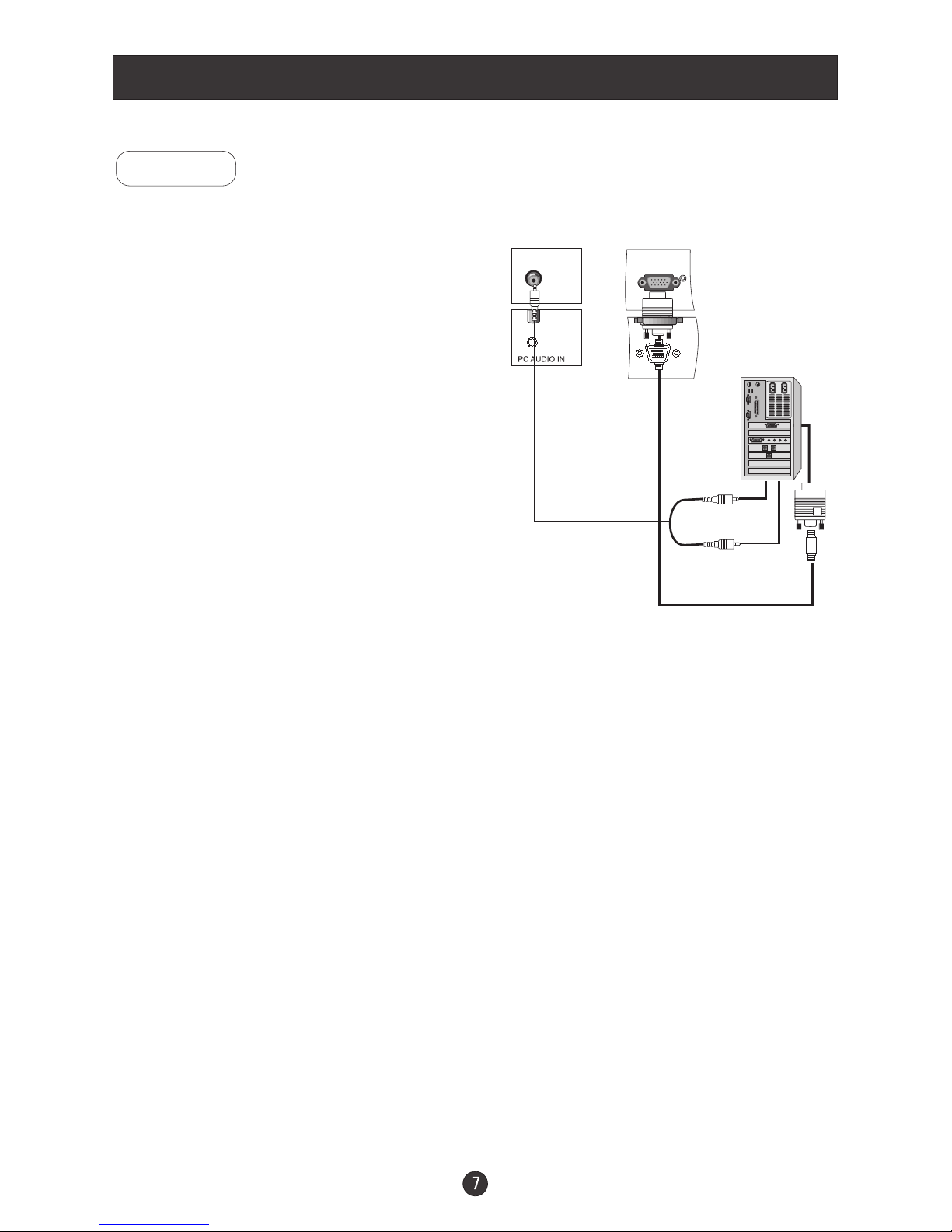

PC Setup
Connection and use steps:
1.Read the userguide supplied with
your computer and ensure that it has
a VGAconnector;
2.Make sure that the power of the LCD
-TV and thePC are off;
3.Connect a Dtype 15-pin VGAinterface
cable ( not supplied ) to the VGA video
interface connector on the PC. Then
connect the other end to the VGA video
interface connector on the back of the
LCD-TV.Tighten the screwson the VGA
connectors once they are firmly
connected;
4.Turn on the power of the LCD-TV first ,
and then turn on the power of the PC;
5.Press the TV/AV button to set the video
input mode ofthe LCD-TV to PC-RGB;
6.Check the image on your TV. There may be noise associated with the resolution,
vertical pattern, contrast or brightness in PC mode. If noise is present, change
the PC mode to another resolution, change the refresh rate to another rate or
adjust the brightness and contrast on the menu until the picture is clear. If the
refresh rate of the PC graphic card can not be changed,change the PC graphic
card or consult the manufacturer of the PC graphic card.
VGA IN
Connection Instructions

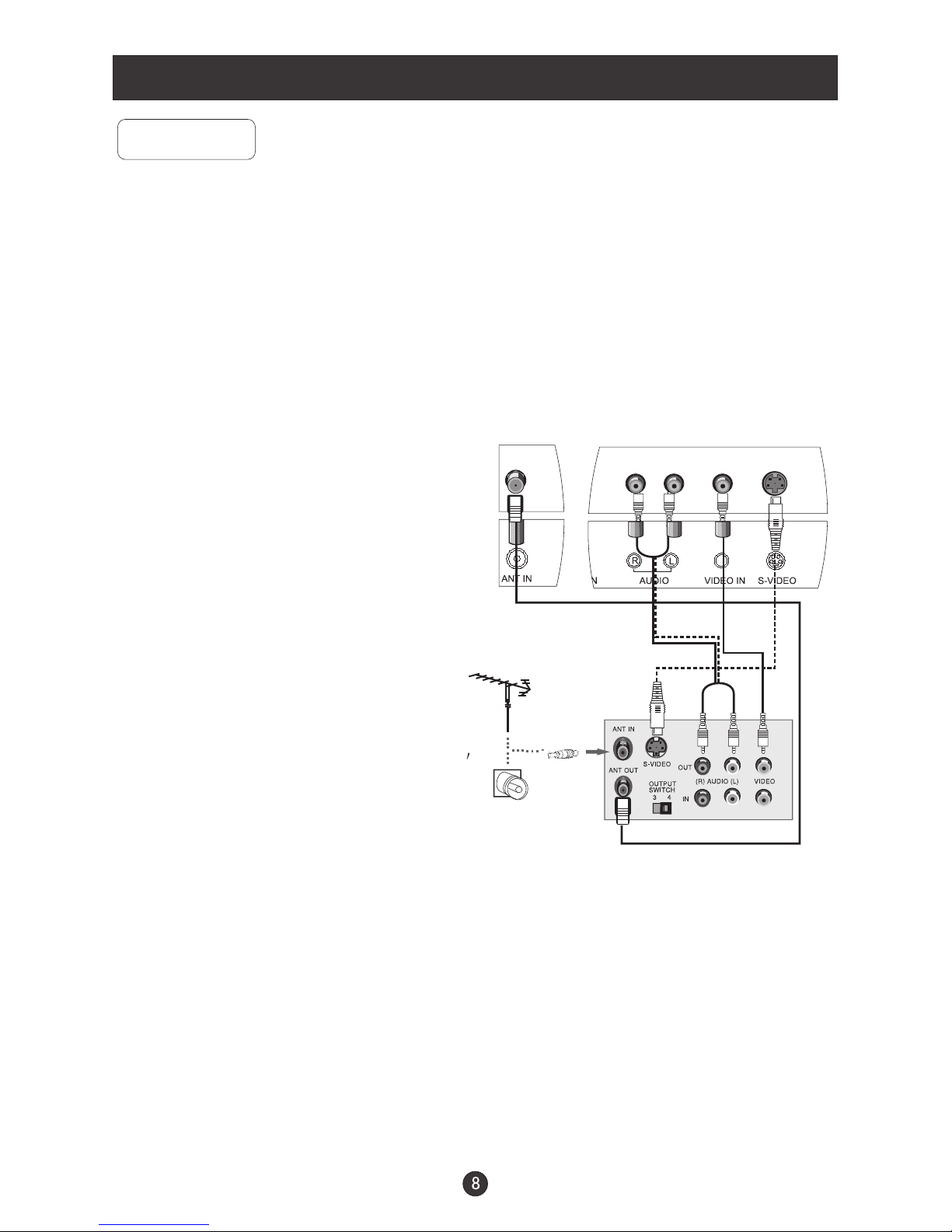

VCR Setup
Connection and use steps:
1.Read the user guide supplied with your AV devices and ensure that it has
Composite or S-Video connectors;
2.Make sure that the power of the LCD-TV and the AV device are off;
.Turn on the power of the LCD-TV first ;
and then turn on the power of the AV
device;
4.Press the TV/AV button to set the video
input mode of the LCD-TV to S-VIDEO
mode or AV mode.
Connection Option 1
Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from
the VCR's output jacks to the TV input jacks,
as shown in the figure.
When connecting the TV to VCR, match
the jack colors (Video = yellow, Audio
Left = white,and Audio Right = red).
If you connect an S-VIDEO output from
VCR to the S-VIDEO input, the picture
quality is improved; compared to conne-
cting a regular VCR to the Video input.
2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner s
manual.)
3
- To avoid picture noise (interference), leave an adequate distance between the
VCR and TV
.
VCR
1
2
Questo manuale è adatto per i seguenti modelli
4
Indice
Altri manuali Haier Ricevitore TV
Haier
Haier D34FV6 Manuale utente
Haier
Haier 21FA10-AM Manuale utente
Haier
Haier LT15T1WW Manuale utente
Haier
Haier 29F9D-P Manuale utente
Haier
Haier L22A11W Manuale utente
Haier
Haier 29FA18 Manuale utente
Haier
Haier 29FV6 Manuale utente
Haier
Haier LE55D20FM Manuale utente
Haier
Haier 21FB1 Manuale utente
Haier
Haier 21F3A Manuale utente
Haier
Haier L1510A-C Manuale utente
Haier
Haier 1509-A Manuale utente
Haier
Haier D32A9-AKM Manuale utente
Haier
Haier 21F7A Manuale utente
Haier
Haier 29F5D Manuale utente
Haier
Haier LEY19T1000H Manuale utente
Haier
Haier 34F9K-P Manuale utente
Haier
Haier 21F9D-P Manuale utente
Haier
Haier LE46D10F Manuale utente
Haier
Haier WL19T1 Manuale utente
