Haier LET26C430F Manuale utente

LED LCD TV RECEIVER

USER MANUAL

Please read this manual carefully before using

your television and keep this manual in a good

place for future reference.

MODEL:

LET26C430F

LET32C430F

P.22

P.23

P.02

P.03

P.04

P.05

P.07

P.08

P.09

P.10

P.11

P.12

P.14

P.02

Thanks for buying this 26"/32" LED LCD TV. This guide will help you set up and begin using your TV.

26" Full HD 1080P Digital LED LCD TV

Remote control

AAA ba x2

Instruction Manual

Quick start guide

ttery

Scart cable x1

32" HD Ready LED LCD TV

Remote control

AAA ba x2

Instruction Manual

Quick start guide

ttery

Scart cable x1

P.03

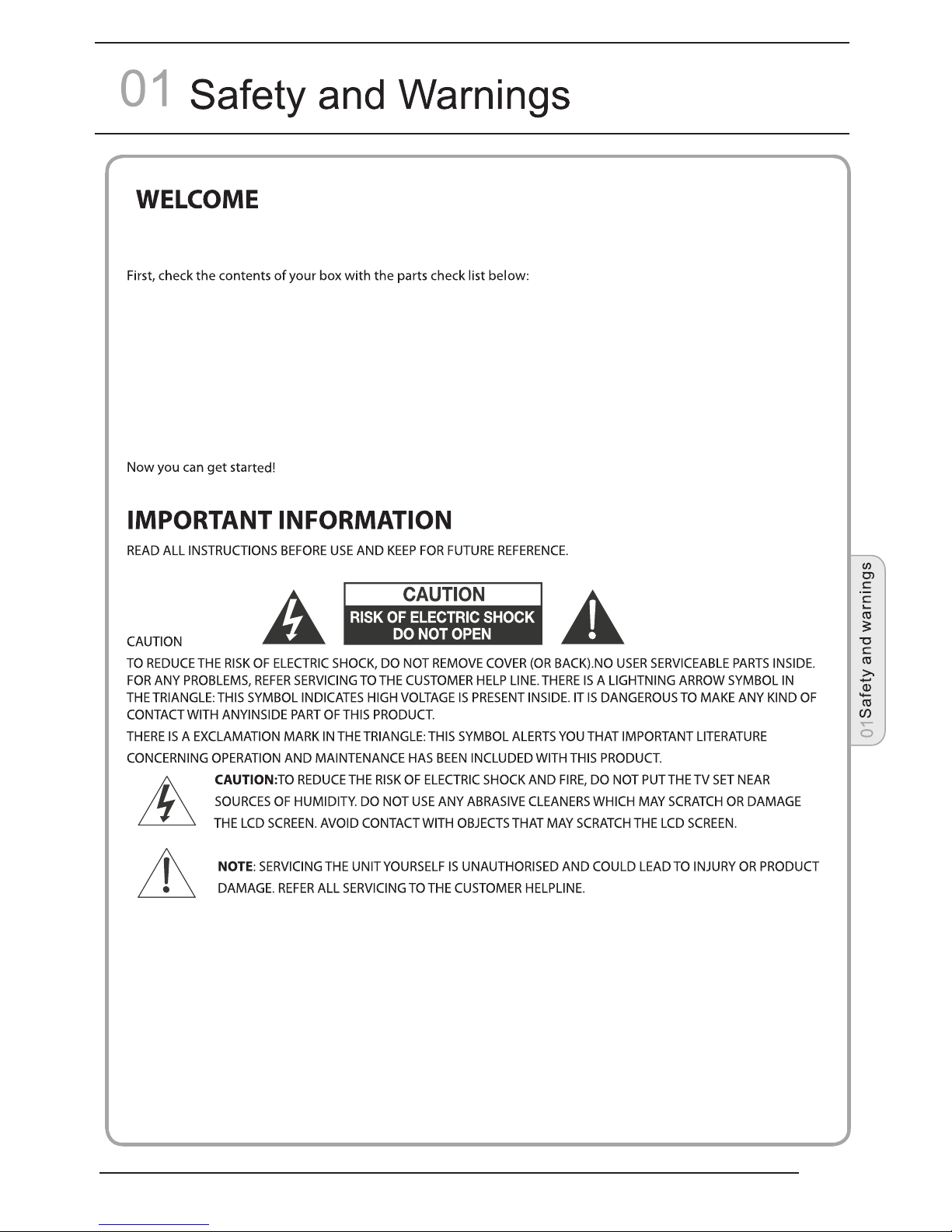

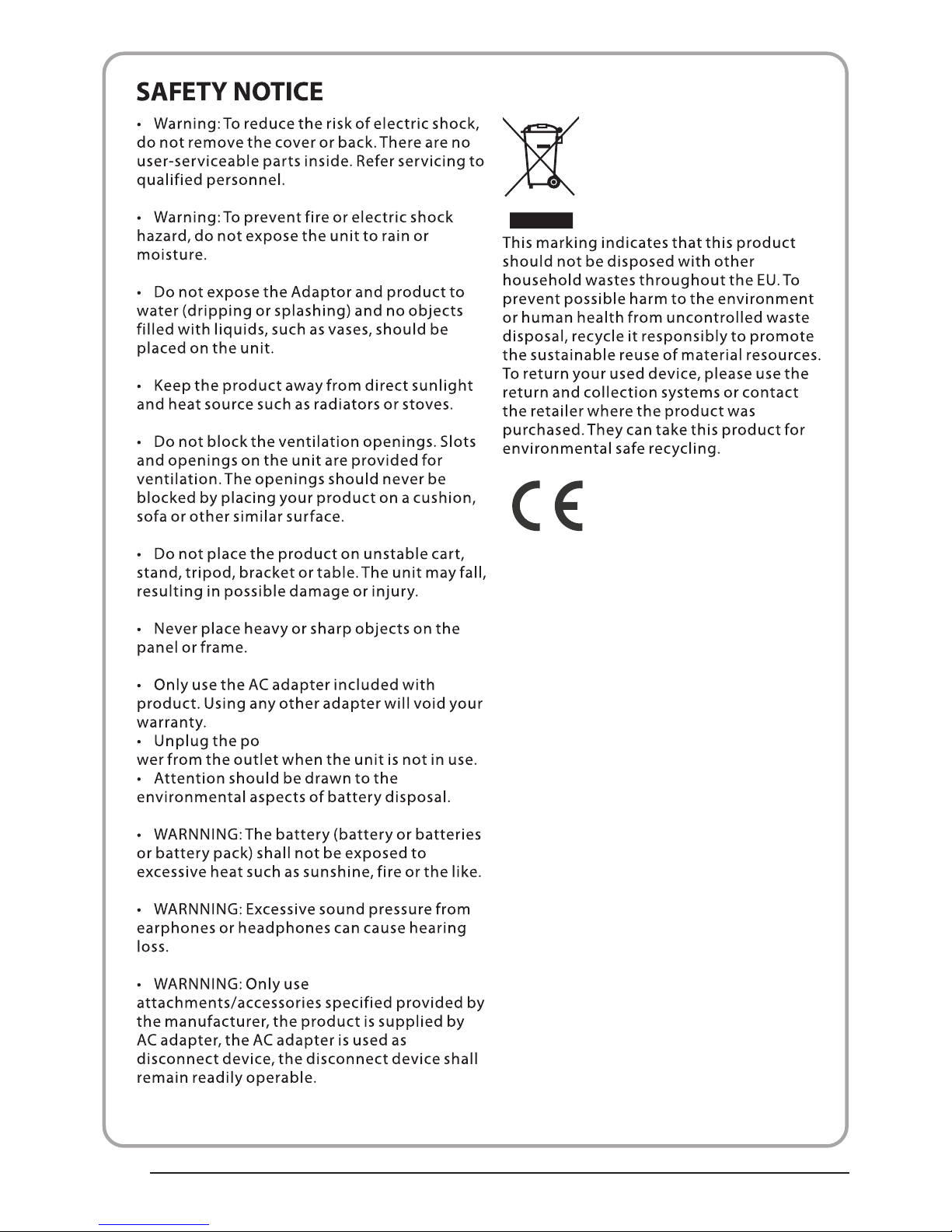

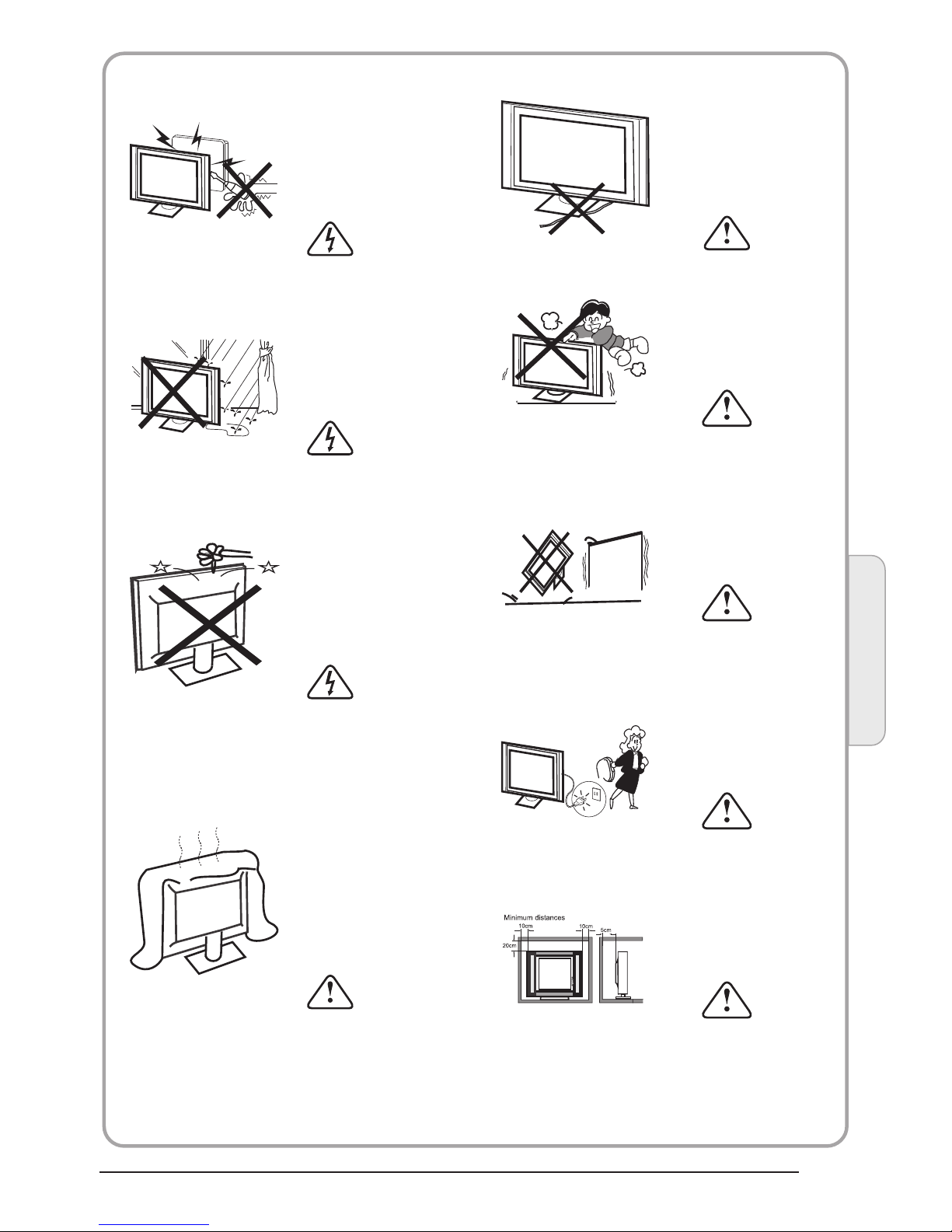

WARNINGS AND CAUTIONS

Warning

High voltages are used in the operation

of this television receiver. Do not remove

the cabinet back from your set. Refer

servicing to qualified service personnel.

Warning

To prevent fire or electrical shock

hazard, do not expose the television

receiver to rain or moisture.

Warning

Do not drop or push objects into the

television cabinet slots or openings.

Never spill any kind of liquid on the

television receiver.

Caution

Do not block the ventilation holes in the

back cover. Adequate ventilation is

essential to prevent failure of electrical

components.

Caution

Do not trap the power supply cord under

the television receiver.

Caution

Never stand on, lean on, or suddenly push

the television or its stand. You should pay

special attention to children. Serious injury

may result if it should fall.

Caution

Do not place your television on an unstable

cart, stand, shelf or table. Serious injury to

an individual , and damage to the

television, may result if it should fall.

Caution

When the television receiver is not

used for an extended period of time, it

is advisable to disconnect the AC power

cord from the AC outlet.

Dim:5 15*3 20mm(不包括底座）

Caution

If the television is to be built into a

compartment or similar enclosure, the

minimum distances must be maintained.

Heat build-up can reduce the service life of

your television, and can also be dangerous.

P.04

Safety and warnings

Introduction

INSTALLATION

CAUTION

*Locate the TV in the room where light

does not strike the screen directly.

*Total darkness or a reflection on the

picture screen can cause eyestrain. Soft

and indirect lighting is recommended for

comfortable viewing.

*Allow enough space between the TV and

the wall to permit ventilation.

*Avoid excessively warm locations to

prevent possible damage to the cabinet or

premature component failure.

*Do not cover the ventilation openings

when using theTV.

Never tamper with any components inside

the TV, or any other adjustment controls

not mentioned in this manual. All LED-TVs

are high voltage instruments. When you

clean up dust or water drops on the LED

PANEL or CABINET, the power cord should

be pulled out from the receptacle, then

wipe the TV with a dry soft cloth. During

thunder and lighting, unplug the power cord

and antenna cord to prevent damage to

your TV. All repairs to this TV should only

be performed by qualified TV service

personnel.

P.05

Panel

TV System PAL-B/G、I、D/K

SECAM- B/G、D/K、L、 L

Video Signal System PAL/SECAM

Input Power Voltage AC 100V-240V 50/60Hz

Power consumption

Audio Output Power （THD 7%）2x5W

Signal Input Analog RGB(PC) x1; PC audio x1

High-Definition Multimedia Interface (HDMI)x2

Video INput x2

Audio Input x2

Y、Pb Prx1

Mini SCARTx1

Horizontal definition（TV line）Composite Video input >=350

YPbPr >=400

55W

Main parameter

Main features

1 Used as Television, display terminal,

PC display；

2 High luminance, wide viewing

Angle；

3 Time-shift

4 HDMI interface and SCART

Interface；

5 NICAM；

CI x 1

USB x 1

Tuner x 1

2x8W

90W

PRESET MODE

P.06

02 Introduction

1024x768

1280x1024

640x480 60 31.47

800x600 60 37.88

48.36

63.98

RESOLUTION V.Freq.(Hz) H.Freq.(KHz)

1360x768 60 47.7

1920x1080 60 66.64

(Only for LET26C430F)

INSTALLATION NOTES

Locate the TV in a room where light does not strike the screen directly. Total darkness

or a reflection on the screen can cause eyestrain. Soft and indirect lighting is

recommended for comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation.

Avoid excessively warm locations to prevent possible damage to the cabinet or

premature component failure.

P.07

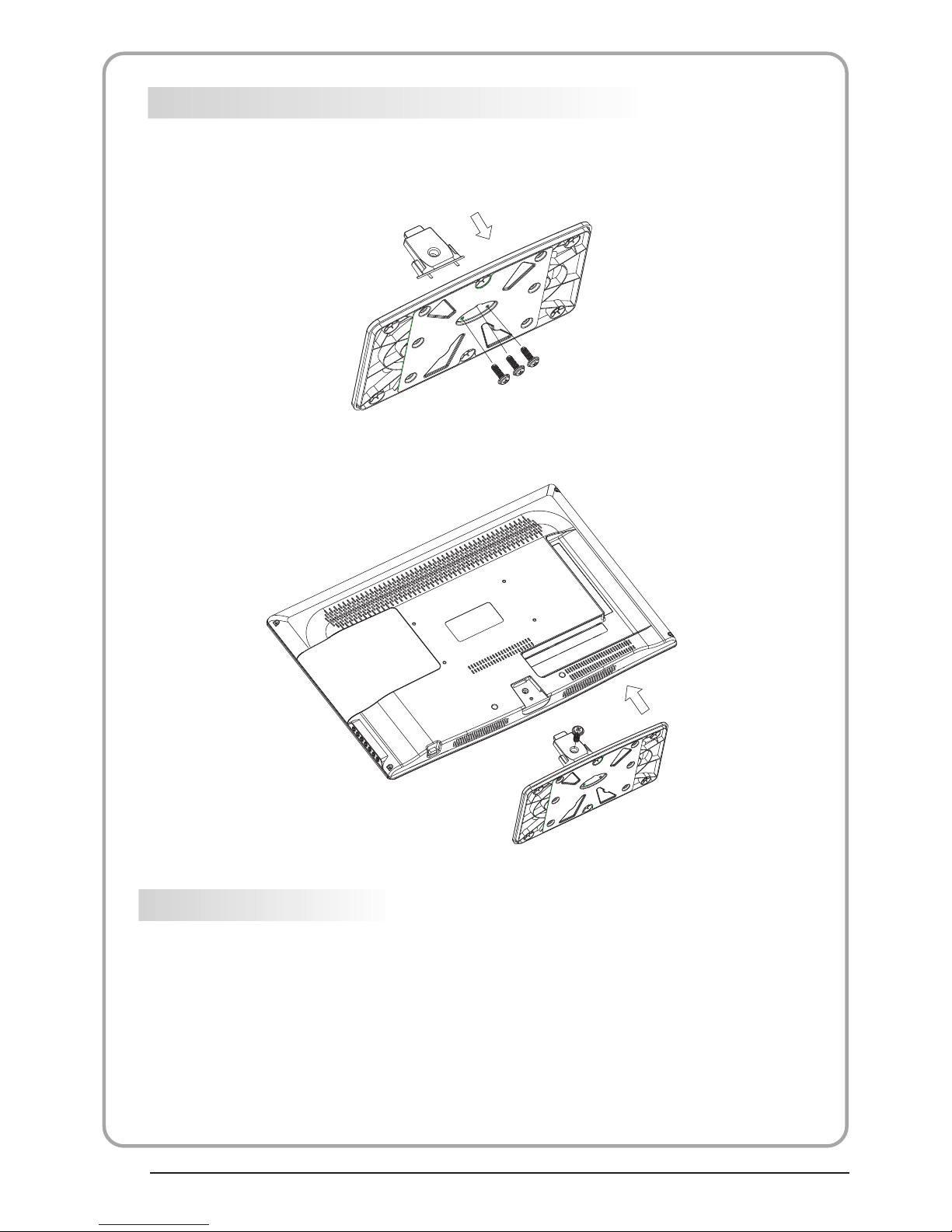

Base Stand Assembly Instruction

1. Insert the stand support pillar into the stand as the arrow indicated

direction, and then fastened with three screws.

2. Insert the stand Ass'y into back cover as the arrow indicated direction,

and then fastened with one screw.

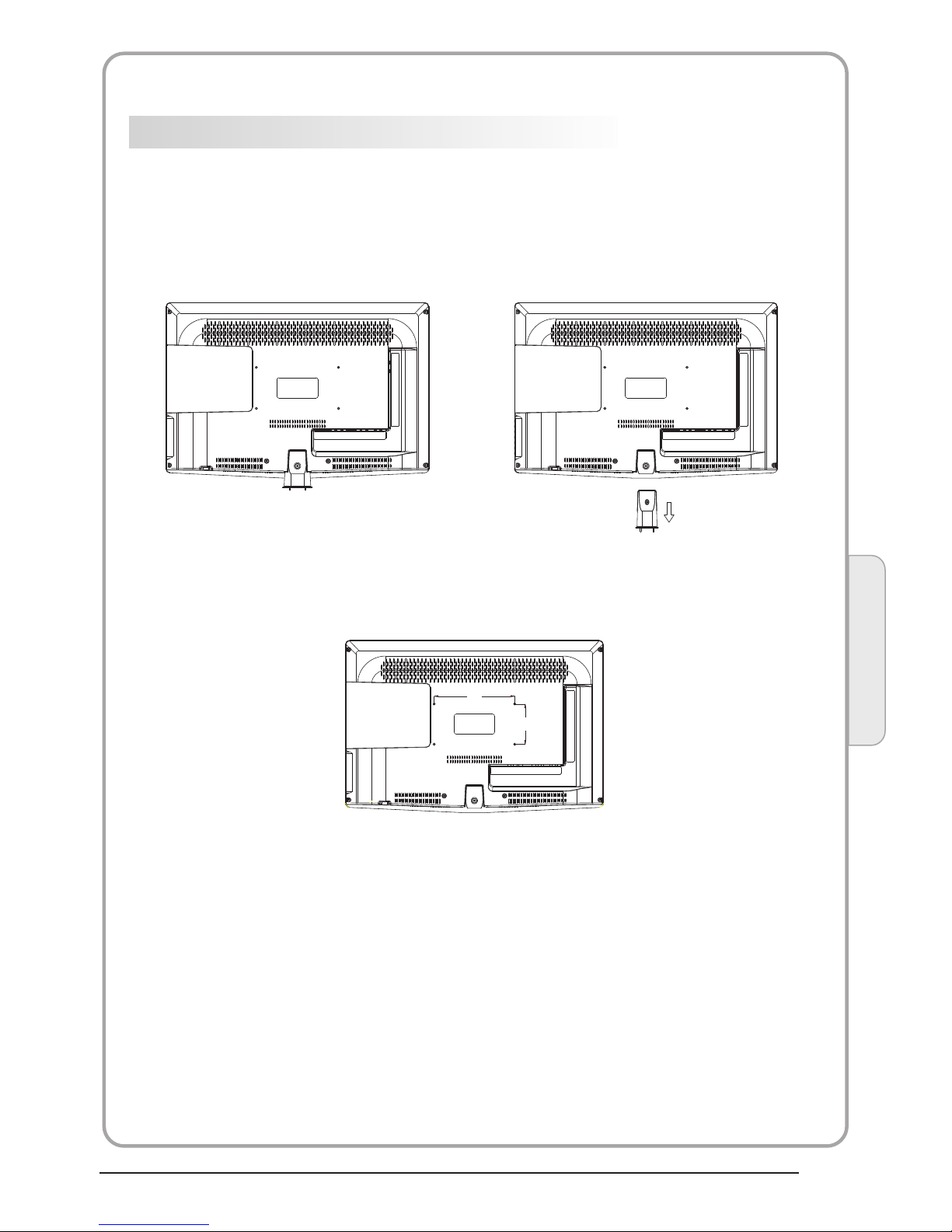

WALL MOUNTING INSTALLATION GUIDELINES

This television can be wall mounted as follows:

1.Place the LED LCD Television onto a solid surface. Please place some soft material

over the front of the screen to protect it from any damage.

2.Remove the screws from the lower part of the television, where the base joins to the

TV, and take away the stand (put the stand somewhere safe for future use).

3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included)

via the four VESA standard holes on the back of the television.

P.08

02 Introduction

200.00

100.00

1AV

input

YPbPr

input

5input

input

SCART

input

8PC AUDIO input

L/R AUDIO

Intput

Input

12 input

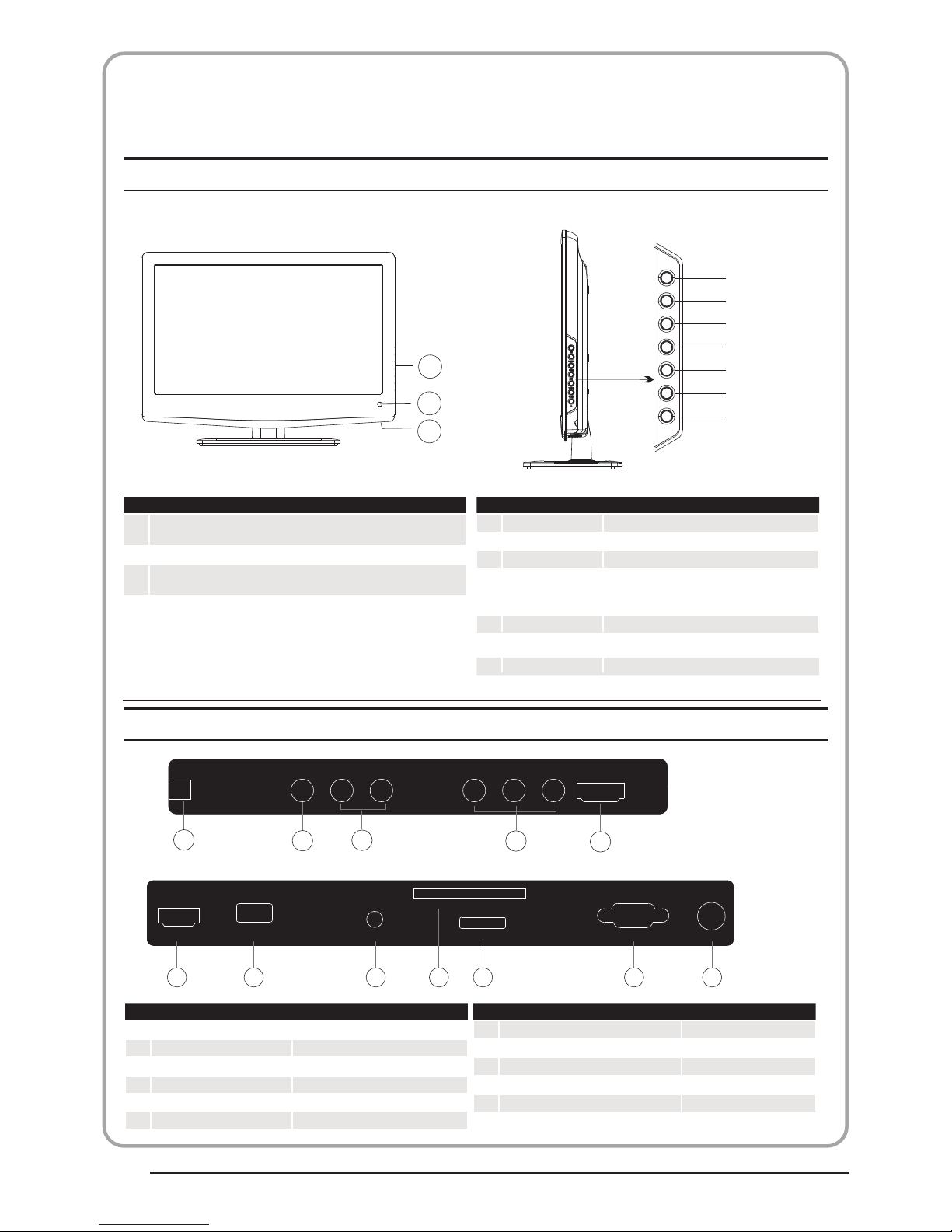

Front control panel

Remote control sensor.

Indicator LED:

BLUE: POWER ON. RED: STAND BY.

Key board.

Rear/Side Sockets

1SOURCE

Display the input source menu.

MENU Display main MENU.

CH+/CH- In TV mode,press CH+ or CH- to change

the channel up and down.

In MENU, press CH+ or CH- to select items .

In standby mode, it can Turn on the TV.

STANDBY

VOL+/VOL- Adjust sound level.

In MENU,adjust the item that you Selected.

Remote Control

SOURCE

CH+

CH-

VOL+

VOL-

STANDBY

AV L RAV L R Y Pb PrY Pb Pr HDMI2

100-240V~ 50/60Hz

AC-INPUT

1 2

345

HDMI1 USB PC AUDIO VGA ANT

SCART

COMMON INTERFACE (CI)

6 7 8 10

911 12

AC Power Source

HDMI2

input

HDMI1

USB

COMMON INTERFACE(CI)

VGA INPUT

ANT

Intput

P.09
