HAIER

FRONT LOADING WASHING

MACHINE

Service Manual

PART # AC-8888-07

HAIER AMERICA TRADING, LLC

www.haieramerica.com

Table Of Contents

Product Code Explanation And Series Introduction 3

Features 4

Specifications 5

Safety Caution 7

Installation 11

Names of Parts 13

Function 14

Troubleshooting 17

Circuit Wiring 24

Product Code Explanation and Series Introduction

Model code rule description

Model identification

XQG50 – QF802

A, B, C, D, E, F.

A. Washing machine

B. Automatic

C. Drum style

D. Max washing capacity

E. Appearance symbol

F. Max spin speed: 800rpm

Examples

XQG50 - QF802

It represents QF series appearance with oval porthole push appearance and

handgrip opening door. Max washing capacity 11.0lb, 800rpm spin speed.

temperature is adjustive from 86ºF -194ºF.

Features

●Washing Programs.

●Selecting-washing temperature according to the type of fabrics.

●Max spinning speed 800r/min.

●Max load 11.0lb.

●Stainless steel tub.

●No button spin.

●Spin speed switch: 500/800.

●Oval porthole appearance.

●Opening hand grip door.

Specification

WASHING MACHINE MODEL XQG50-QF802

Free standing ●

Built under

Front F or Top T loader F

EAN code

Certification C-ETL

Features for use

Capacity lb 11

Drum volume lb 42

Spinning cycle rpm 800

Washing time (max) min 122

Residual dampness % 67

Other Features

Programs qty 14

Drying

Quick wash

Cold wash

Delicate and wool cycle ●

Special cashmere cycle

Temperature selection

Two speed selector

Variable spin

Setting for ½ load ●

Spin exclusion button ●

Rinse stop button

Extra rinse button

Automatic balancing

Self clean pump ●

Outer drum9stainless steel=s / plastic=p) S

Door (glass=g /plastic=p) G

Work top ●

Adjustable feet qty 4

Technical data

Voltage frequency WHz 110-120V-60Hz

Nominal power w 1100

Main fuse A 12

Water consumption I 76

Product dimensions

Height/ built under inch 33.4

Width inch 23.4

Depth / with open door inch 21.6 / 38.1

Dimensions packed

Height inch 34.4

Width inch 25.9

Depth inch 23.9

Net weight lb 158.7

Gross weight lb 171.9

Container 40'HC

Safety caution

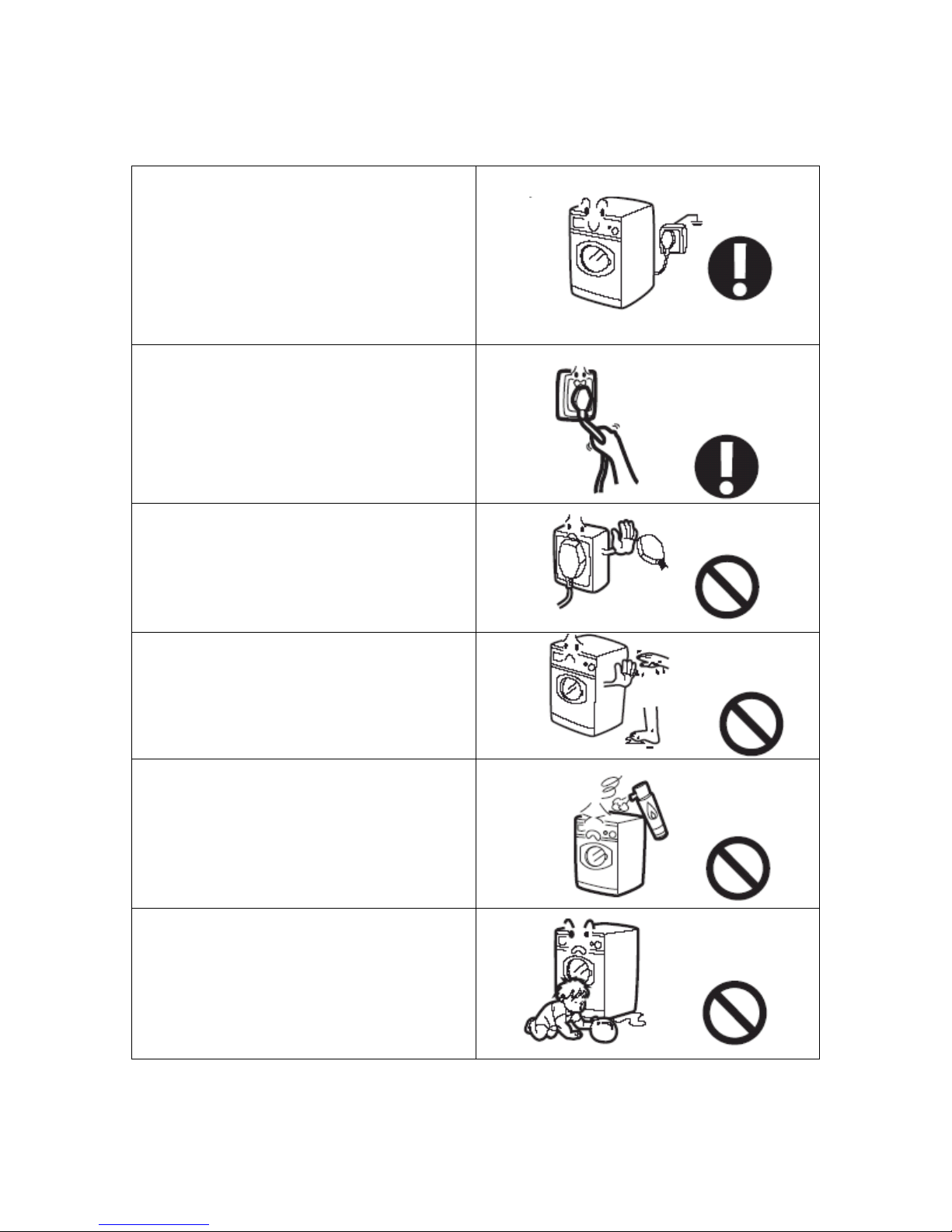

1. A separate earthed socket is

required for the power supply.

After installation of the washing

machine the power plug must be

accessible during normal

operation.

2. Pull the plug and not the electric

cable when unplugging the washing

machine.

3. Fuses in the power circuit should

berate for 15A. Contact a washing

machine technician or a Haier

designated service point for power

cable replacement.

4. For your safety, dry your hands

before touching the washing machine

and wear appropriate footwear.

5. Do not use flammable detergents or

dry cleaning agents. Do not use

flammable sprays near the washing

machine. Do not remove or insert the

plug in the presence of flammable gas.

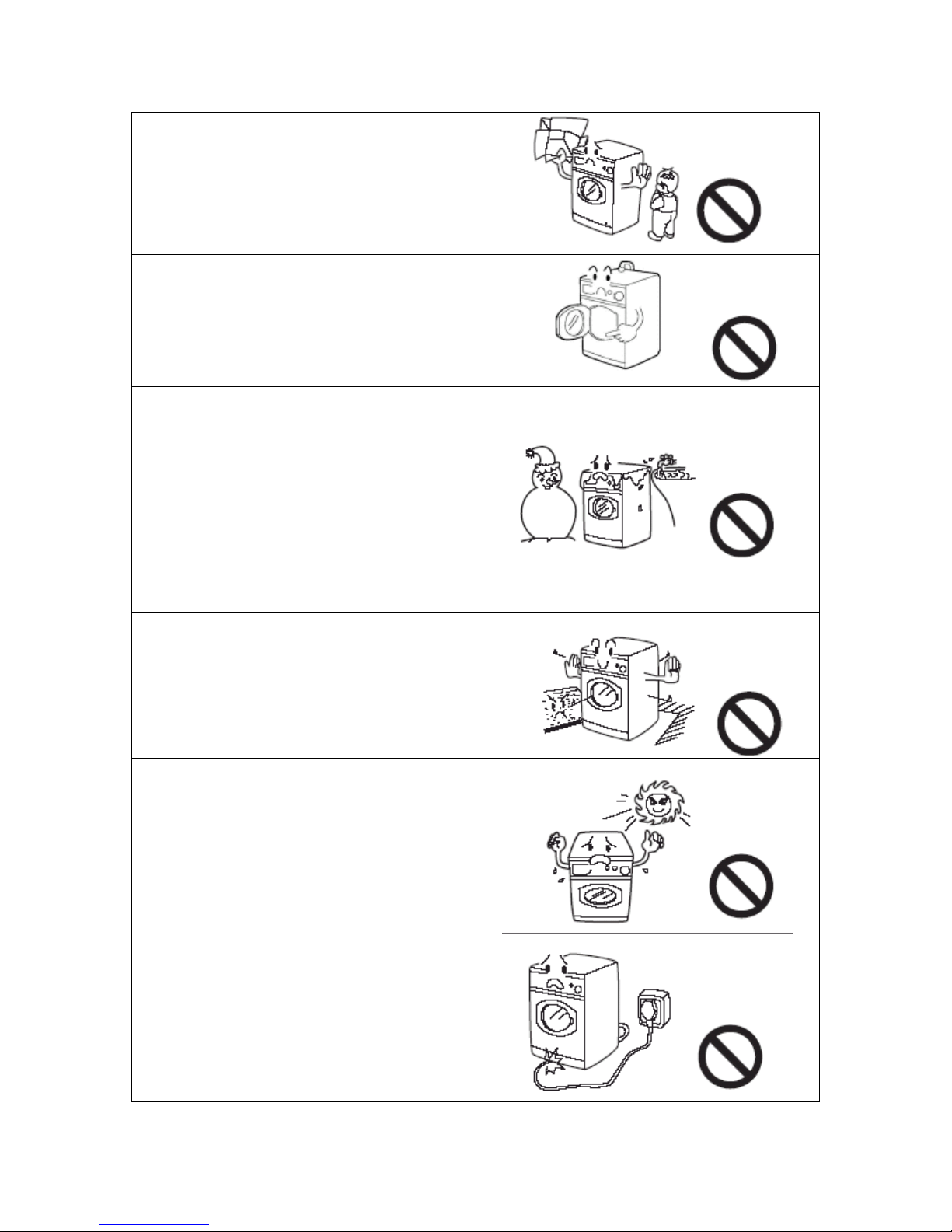

6. The door of the washing machine

becomes hot during the water heating

process. Avoid contact with the door

during the heating process. For safety,

keep children away from the washing

machine.

7. Do not allow children to play with the

packing materials after unpacking.

8. Do not touch the inside of the door if

it is opened during the drying process.

9. The washing machine must not be

used in the open or in an area of high

humidity, as water droplets may form

on the electrical components. Air-dry

the appliance if the washing machine

components become wet.

10. The washing machine should be

placed in a well-ventilated area, leaving

a space between the appliance and

adjacent walls or furniture.

11. Keep away from heat sources and

direct sunlight to prevent plastic and

rubber components from ageing.

12. During installation, ensure that the

electric cable is not trapped by the

washing machine and damaged.

●Use

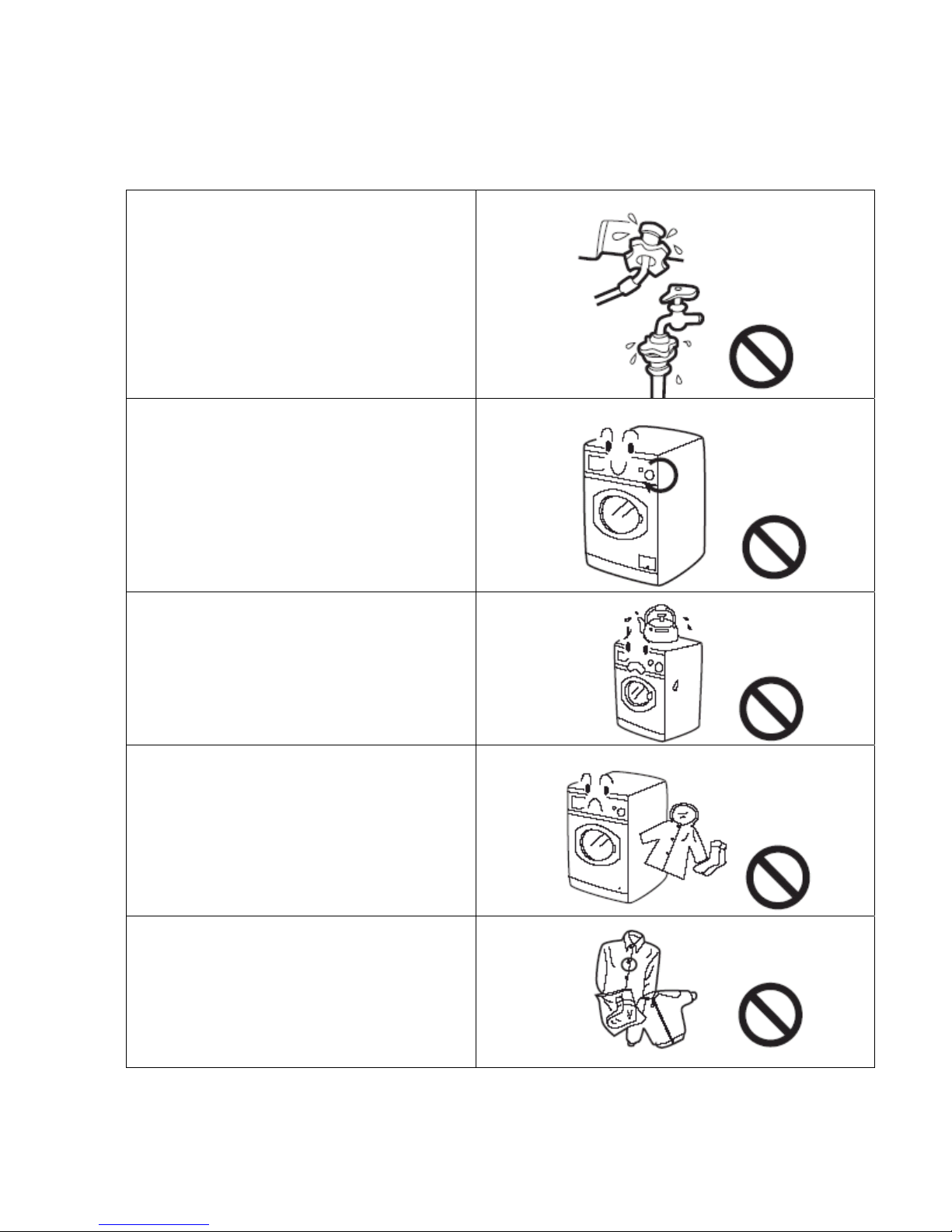

1.Make sure that the washing machine

is securely connected to the water

supply. Take the necessary precautions

or contact the local service center if the

connection is poor or there is a water

leak.

2. After turning the power off, turn the

program knob clockwise to set the wash

cycle.

3. Never place heavy objects, e.g. a

heating appliance or water container, on

the top panel of the washing machine.

4. Do not wash foam rubber or similar

sponge materials.

5. Before washing, close zippers,

buttons, laces and repair damaged

areas. Underwear and small items

should be placed in a laundry bag or

pillowslip. Do not wash clothes

containing wire frames.

6. Do not open the detergent dispenser

during the wash cycle.

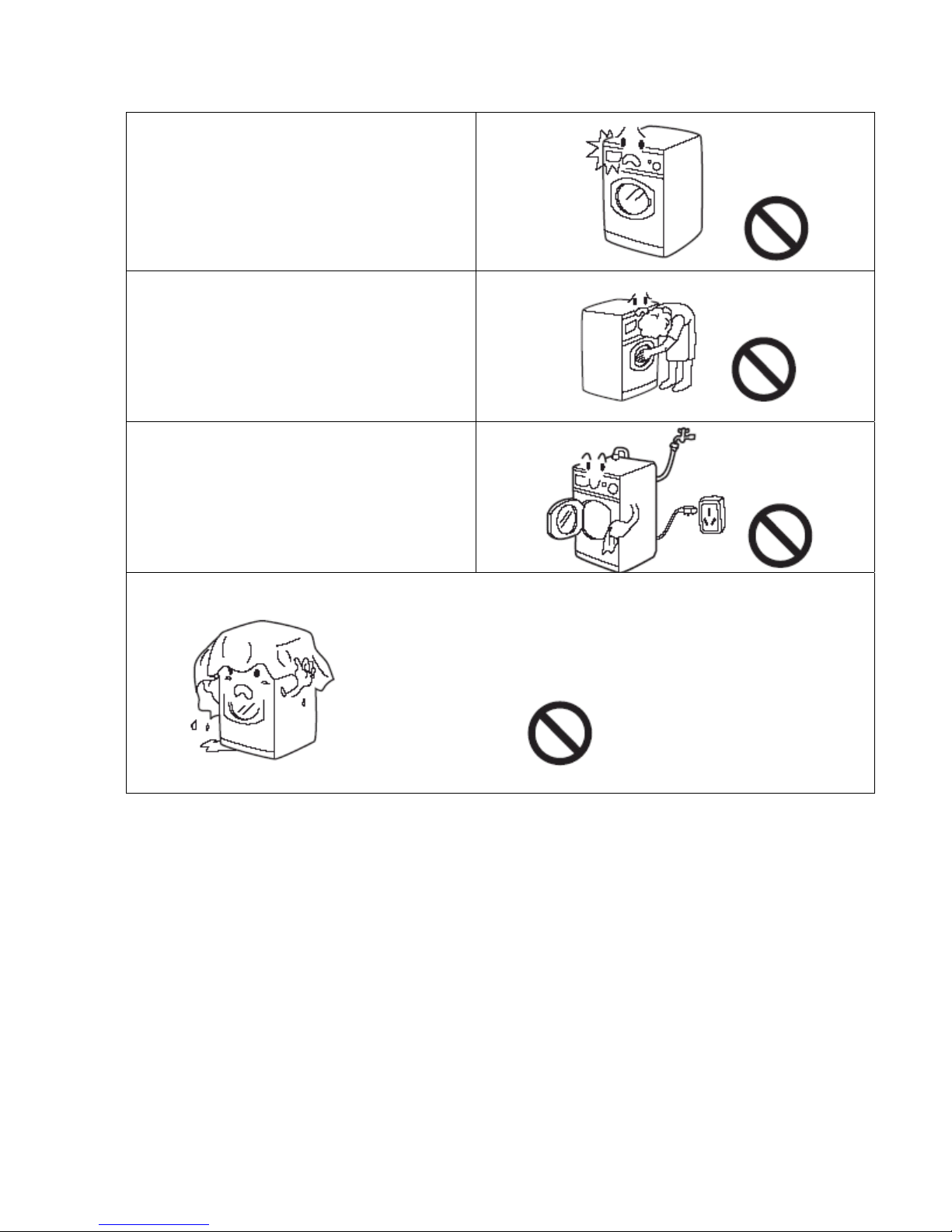

7. The door is fitted with a self-locking

device and will only open 2-3 minutes

after the washing machine stops.

Do not force the door open. Do not

open the door when the water level

reaches the porthole.

8. After washing, turn off the tap to

prevent leaking; unplug the washing

machine and wipe clean the lower part

of the porthole.

9. Keep the door slightly open when the washing machine is not being used. Never

cover the machine with a plastic sheet.
