Haier HWM105-M186 Manuale utente

Please read this manual carefully before

operating your washing machine and retain

it for future reference.

TWIN-TUB WASHING MACHINE

OWNER’S MANUAL

MODEL

HWM105-M186

HWM130-M186

HWM150-M186

CONTENTS

Safety precautions

Packing list

Machine components

Installation and adjustment

Pre-wash preparation

Washing sequence

Troubleshooting

Specifications

Disposal after washing

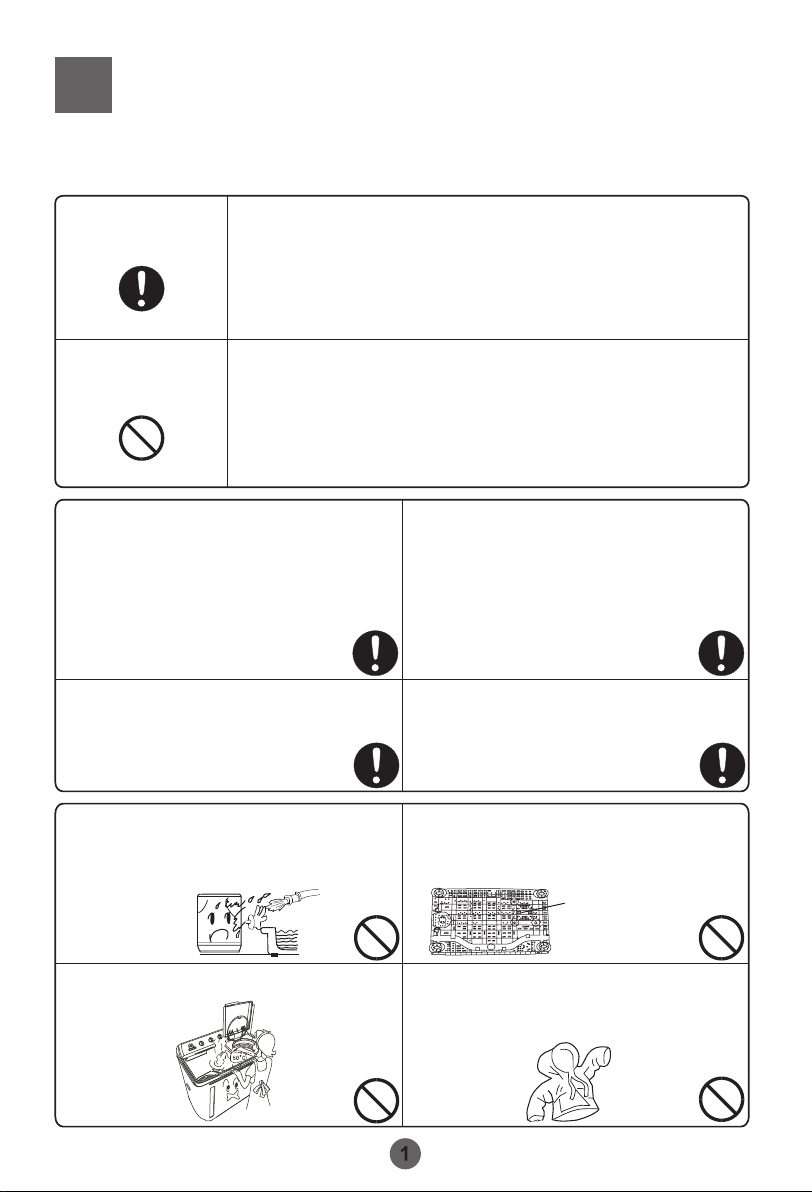

Safety precautions

Meaning and description of the symbols

Warning sign

Forbidden sign

Contents marked with this symbol are related to the safe use of

the product and the personal safety of the user.

Please operate in accordance to the contents of this manual,to

avoid harm to the user or damage to the machine itself.

Contents marked with this symbol indicate operations or actions

that should not be undertaken by the user.

Performing of such actions may result an injury to the user or

damage to machine itself,and void warranty.

Please insert the power cord into a rated

voltage outlet.Be sure to use a single

-phase three pin outlet.Also,the terminal

of the outlet must be grounded.If possible,

please install an electric leakage protector.

If the supply cord is damaged,it must be

replaced by the manufacturer,its service

agent or similarly qualified persons in

order to avoid a hazard.

Use only the supplied hose set for the

connection.

Never reuse old hose sets!

When the machine is in use,place the

power plug in a location where it can be

easily inserted and extracted by hand.Be

sure to remove the plug if power failure

occurs,when moving or cleaning the

machine,or when the machine is idle.

Do not place the machine in a damp place

like the bathroom and never wash it with

water.Do not place wet laundry on the

control panel.

Do not use water warmer than 50

°C.

To avoid abnormal vibrations in spinning,

do not use the machine to wash water

-proof laundries like raincoats,bike covers

etc.

If the washing machine is installed on the

ground near carpet,make sure to keep the

ventilation hole clear of obstruction.

Ventilation hole atthe

bottom of the

washing machine

Do not share the outlet with other electric

appliances.If the power plug is damaged,

or feels loose when

plugged into the

outlet,stop using

the plug immediately.

Do not put any high temperature or heavy

objects on the washing machine.

Disabled children or those not under adult

supervision should not operate the

machine.

Keep the machine away from direct sunlight

and heat sources like the radiator.

To guarantee your safety,please ensure the power outlet is grounded before use.

Please check if the water faucet is turned on and make sure you have the proper

water pipe connection.

Do not wash laundry with volatile or

flammable materials (such as thinner,

petrol etc.).

Do not attempt to take apart,repair or

alter the machine by yourself.

Do not stretch hands into the working machine.It is dangerous

even if the rotation is slow. Take special care of the children.

This appliance is not intended for use by persons (including

children) witheduce physical,sensory or mental capabilities of,

lack of experience and knowledge,unless they have been

given supervision or instruction conceming use of the

appliance by a person responsible for their safety.

Safety precautions

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities,or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety. Children should be supervised to ensure that they

do not play with the appliance.

This appliance is intended to be used in household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;

– farm houses;

– by clients in hotels, motels and other residential type environments;

– bed and breakfast type environments;

– areas for communal use in blocks of flats or in launderettes.

Packing list

Machine components

Name Quantity

Twin- tub washing machine

Water intake hose

Owner’s manual

One

Gland One

One

Draining hose

(on model HWM130-M186,HWM150-M186)

Bottom leg

(on models HWM130-M186,HWM150-M186)

Wash time Spin time

Wash selector

If you wish to set it for less

than 2 min,you should first

turn past 6 min and then

turn back.

Intensity can be set to

standard,soft and drain.

If to set less than 1 min,in

order to ensure a long

service life,please first turn

past 2 min and then turn back.

On model HWM105-M186.

Five

Machine components

Important notes:

All illustrations contained in this manual have a reference purpose only.Your washing

machine as well as the accessories may look different from these illustrations.

Wash timer Spin timer

Wash selector Drain

If you wish to set it

for less than 2 min,

you should first turn

past 6 min and then

turn back.

Intensity can be

set to standard,

soft.

Warning:do not

set the switch on

Drain position

during washing.

If to set less than 1 min,

in order to ensure a

long service life,please

first turn past 2 min and

then turn back.

Drain

selector

knob

Wash type selector knob

Wash timer

Wash tub cover

Water inlet port

Water inlet switch

Control panel

Main frame

Drain hose

Spin tub exterior cover

Spin tub interior cover

Spin timer knob

Spin tub frame

Spin tub

Wash tub

Overﬂow ﬁlter

Lint ﬁlter

Pulsator

Base

On models HWM130-M186,HWM150-M186.

Installation and adjustment

For your security and to ensure correct operation of the machine, please install and

adjust the machine according to this manual’s instructions.

Installation of the lint filter

Place the bottom side of the lint filter in to the overflow

filter , then push the top side into the overflow filter.

After installation, please double check to make sure

that the lint filter is installed in the correct location;

otherwise it may fall off during operation.

Drain hose usage

Drain hose drainage should be smooth and unobstructed.

1.The height of the drain hose shall be less than 10cm,

or the drainage will not be smooth enough and cause

incomplete drainage.

2.Do not tramp or press the drain hose.

3.If the drain hose is too long, cut it at mid point.

To make smooth drainage, cut the front end of

the hose slantingly.

4.If extra drain hose is needed, please make

separate purchase. The inner diameter of the

extra hose shall not less than 30mm,and the

length shall not exceed 1.5m.

5.If the extra hose is too long, cut it either at point A or B.

overflow filter

lint filter

overflow filter

lint filter

On model HWM105-M186 On models HWM130-M186,HWM150-M186

Installation and adjustment

Change the direction of the drain hoses

Drain valve parts 2.Install the drain hose

1.Remove the cover

The drain hoses in the wash tub when out off factory,brfore use the machine,please

screw the drain hose on the drain valve parts,make sure the drain hose fixing as

necessary.

On models HWM130-M186,HWM150-M186

Figure 1

Figure 2

Figure 3

Figure 4

Figure 1 shows the factory installation position of the

drain hose.

1.Remove the drain hose from the hanging hole on

the cabinet.Pull the drain hose fixing hook outwards

gently to take out the drain hose from the two fixing

hooks.(See Figure 2)

2.Turn 90° the drain hose fixing hookto remove it from

the installation hole.(See Figure 3)

3.Install the two drain hose fixing hooks taken out,into

the installation hole at the other side of the base

frame (to aim at the installation hole accurately you

can lean the washing machine forward slightly).

Then turn 90°.(See Figure 4)

Extend the drain hose from the spin tub side:

drain hose fixing hook

Side Section View

drain hose

fixing hook

drain hose

take off drain hose

slightly

pull out

fixing hook

installation hole

take off the fixing

hook downwards

turn 90° the

fixing hook

insert the fixing hook into

the installation hole upwards

turn 90° the

hook to fix it

On model HWM105-M186

Install the washer legs

1.Carefully tilt the washing machine to the back and install the bottom legs at the

front of the base.Make sure that the legs are installed in place.(Figure 1).

2.Carefully tilt the washing machine to front and install the bottom legs at the back

of the base.Make sure that legs are installed in place.(Figure 2)

Bottom legs Bottom legs

Figure 1 Figure 2

Installation and adjustment

Install the water intake hose

Insert the water intake hose into the

water-inlet entrance on the control panel.

Add water as necessary.

Water intake hose

Water inlet

Only on models HWM130-M186,HWM150-M186

Pre-wash Preparation

Basic know-how

The maximum capacity during washing and spinning cycles

refers to the max weight of standard dry laundry that can be

washed or spun at one time.The laundry quantity during one

washing cycle should be lower than the rated capacity.

Thickness,size,and the type of cloth will influence actual

washing capacity.It is acceptable to put in a reasonable

amount of laundry as the laundry will be mixed around

during the washing process.

To avoid splashing,do not select the “Maximum”water

level for low loads.

Using high sudsing detergent is not recommended.

Check to see if the items have special

washing requirements.

Pay attention to followings before washing the laundries

Put hard to absorb water items into the

machine by hand.

Empty out pockets.

Take out any coins,sand,

hairpins.

Check to see if the items are appropriate

for use with the washing.

Do not overload the washer.

Stretch and loosen the

laundry before putting it

into the washer.

Tie any long strips;

fasten buttons;and

close any zippers.

For laundry that is susceptible to lint balls

and/or has long fur,turn it inside out

before putting it in the washer.

Do not put laundry polluted by chemicals

into the washing machine directly.

For heavily solied laundry,try to remove

dirt such as mud or dust first and apply

detergent in advance.This will help to

remove the stains more easily.

Divide non-colorfast laundry from other

laundry.

When the pulsator is running,some noise may emit from laundry

that contains buttons.To minimize this noise,surround laundry

with buttons with other laundry.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Haier Rondella

Haier

Haier HWM96-0623S Manuale

Haier

Haier HWM110-187S Manuale utente

Haier

Haier I-Pro 7 Series Manuale utente

Haier

Haier HWM70-FD10829 Manuale utente

Haier

Haier GWT750AW Istruzioni per il montaggio

Haier

Haier HKS1000TXVE, HKS1000TXME Manuale utente

Haier

Haier HW60-1479-DF Manuale utente

Haier

Haier HWMP95TLU Manuale utente

Haier

Haier HW80-1482-F Manuale utente

Haier

Haier SBM600T Manuale utente

Haier

Haier HWM50-0701 Manuale utente

Haier

Haier HLP021WM - PULSATOR Portable Washer Manuale utente

Haier

Haier HWM90-0713S Manuale utente

Haier

Haier HWM110VA Manuale utente

Haier

Haier HWM160-B1678S Manuale utente

Haier

Haier HW80-BD1626 Manuale utente

Haier

Haier HWM40-32W Manuale utente

Haier

Haier HW80-B1439N Manuale utente

Haier

Haier HW-C1270TVE-F - SERVICE Manuale utente

Haier

Haier XPB50-LS Manuale utente

Haier

Haier HW80-1279 Manuale utente

Haier

Haier HN800TX Guida utente

Haier

Haier HL1200TXV Manuale utente

Haier

Haier XPB55-13S Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
