Haier HWM110-0626S Manuale utente

User's manu l

This manual is for

HWM110-0626S

Please read this manual

carefully before using.

Retain it for future reference.

Twin-tub Washing Machine

0030807109F

Contents

Names of the parts - - - - - - - - - - - - - - - - - 1

Safety precautions - - - - - - - - - - - - - - - - - 2

Installation and adjustment - - - - - - - - - - - 4

Preparation before washing - - - - - - - - - - -6

The musts in washing - - - - - - - - - - - - - - - 7

Usage of the detergent - - - - - - - - - - - - - 7

Washing sequence - - - - - - - - - - - - - - - - 8

Disposal after washing - - - - - - - - - - - - - - -11

Trouble-Shooting *Answer to question - - - 12

Packing list*Specification- - - - - - - - - - - - -14

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

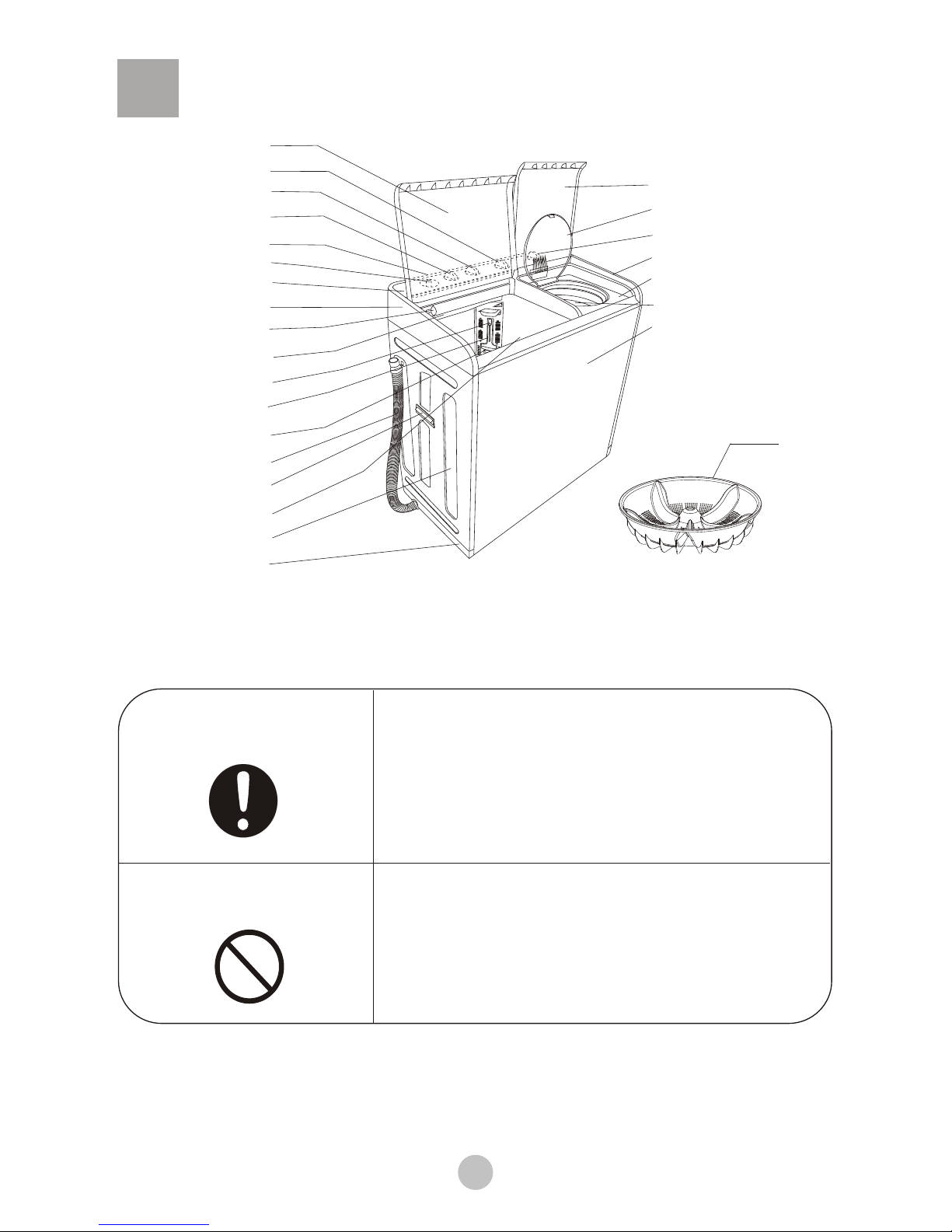

Control panel seat

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Front door

Control panel

Bypass channel

Overflow filter

Water level adjust lever

Water filling control handle

Drain hose

Cabinet handle

Wash tub

Base frame

Lint filter

Cabinet

Plate support(right)

Wash timer

Water-filling entrance

Plate support (left)

Drain selector

Wash tub cover

Pulsator

Wash selector

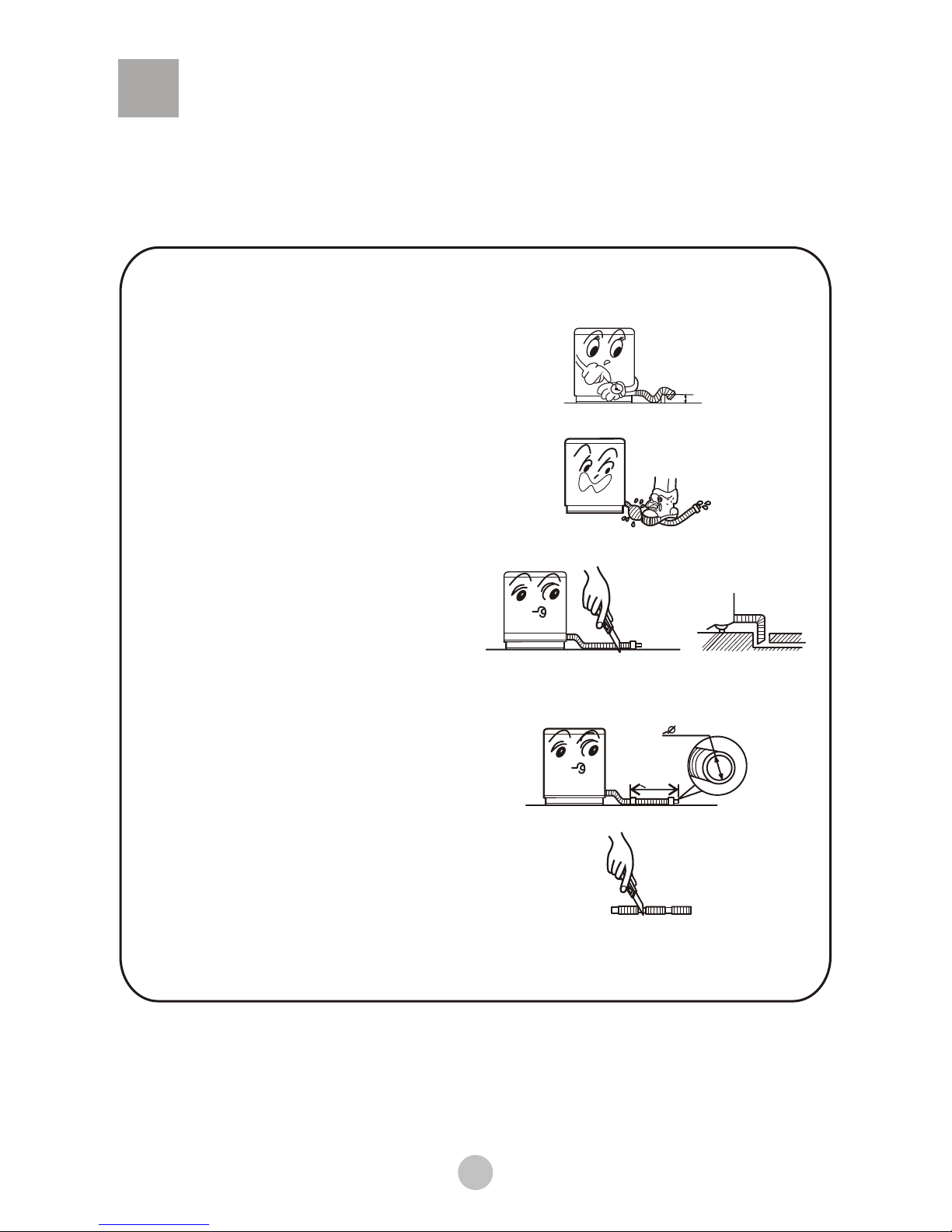

Please insert the power cord into

special receptacle with rated vol-

tage.Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably.If possible,please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

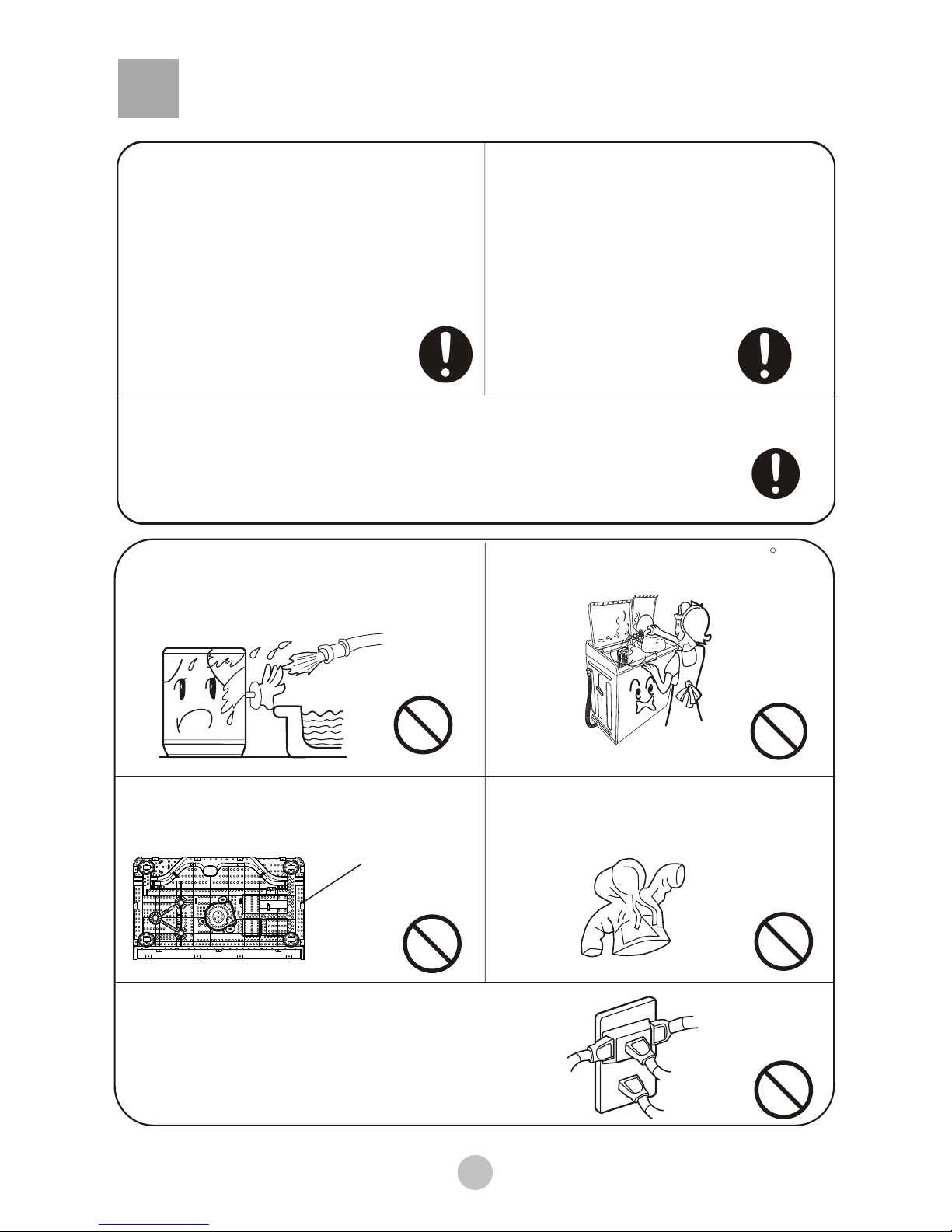

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not wash water-proof laundries

like the raincoat, bike covers etc.

to avoid abnormal vibrations.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Ventilation hole at

the bottom of the

washing machine

If the supply cord is damaged,it must be replaced

by the manufacturer or its service

agent or a similarly qualified person

in order to avoid a hazard.

Do not use water hotter than 50 C .

For washing machine with ventilation

openings in the base, that a carpet

must not obstruct the openings.

50 C

Safety precautions

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

h nn

Tier

To protect your laundries and wash-

ing ma chine, please take out all of the

coins, buttons, sand, hairpin and

other foreign ma terials before washing.

Please check if the con ne ction of the

wat er inl et pi pe is proper.

It is sug ge sted to us e foa mless was hing

powde r.

Installation and adjustment

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct operating

the machine.

Usage of the drain hose

If the extra hose is too long, cut it either

at point A or B.

<10cm

> 30mm

<1.5m

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not tramp or press the drain hose.

3.If the drain hose is too long, cut it at mid point.

To make smooth drainage, cut the front end of

the hose slantingly.

4.If extra drain hose is needed , please make

separate purchase. The inner diameter of the

extra hose shall not less than 30mm, and the

length shall not exceed 1.5m.

Install the water inlet hose; Select the water level

Figure 1 indicates the ex factory installation

position of the drain hose.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Dismantle the drain hose fixing clamp and take

the hose out of the fixing groove.

(See to Figure 2).

Extend the drain hose from the side of spin tub

Figure 1

Back

Front

Soft item

Figure 2

Extend to the

spin tub side

Fig ure 3

Embed the drain hose into the groove along the side

of the spin tub in the order of 1 ~ 3 , heading for the

side of the spin tub. (See to Figure 3).

Embed the drain hose into the groove with

hands. Take care not to damage the drain

hose in fastening the fixing clamp.

Insert the water inlet hose into the water-filling

entrance on the control panel To

dismantle the water inlet pipe, just push the

control handle as indicated in the figure and

pull it out

（

）

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever

to needed line.

Water inlet

hose

Water-filling

entrance

Water level

indicator

Maximum

Medium

Minimum

Max

Med

Min

Use the new water inlet hose provided

with the machine to connect to the

water faucet.Old hose sets should

not be reused.

How to change the direction of the drain hoses

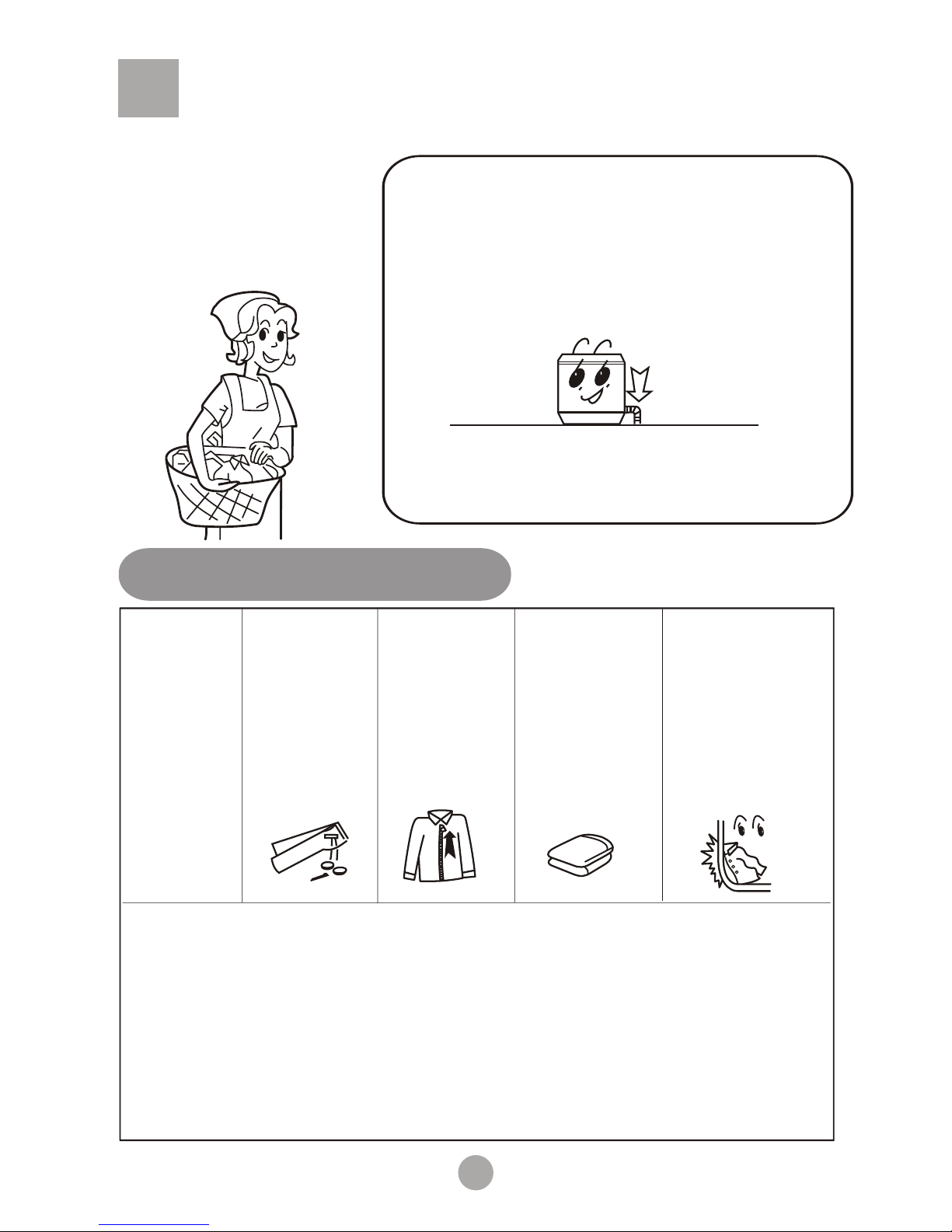

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Preparation before washing

Pay attention to following before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

The musts in washing

The capacity of washing and spinning of the

machine refer to the largest weight of the

standard laundries under dry condition that can

be washed or spinned in one time. Laundries

quantity in one washing cycle shall be lower

than the rated capacity.

The thickness ,size , type of the cloth will influ-

ence the actual washing capacity. It is suit-

able to put in reasonable amount of laundries

and the laundries can be turned round in wash-

ing for one time washing.

Do not select " Maximum " water level for

laundries less than 1.0kg, so as to avoid

splashing of water.

How to use the whitener

Fill water to decided level. Dilute

the whitener with container.

Pour it slowly into the washing tub.

Avoid using whitener on laun-

dries with color or pattern as they

are prone to lose color.

The whitener shall not touch

the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30

seconds to dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing

powder:

1.Prepare warm water of 30 C and a

container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for

the usage and quantity of the

whitener.

For powder whitener, please

dissolve it before using.

How to use the washing powder

Usage of the detergent

Washing sequence

（Not set the switch to

DRAIN during washing）

Wash timer

(To set to below 2 minutes,

first set to 6 minutes then

turn it back.).

Drain selector Spin timer

(To set to below 1 minute,

first set to 2 minutes then

turn it back. it can increase

the service life of the timer).

WATER INLET SELECTOR

WASH SPIN

1.Water-filling selector

1 Set the water inlet selector at the "WASH" side.

(Figure 1)

2 Set the water level adjusting lever to needed line.

2. Fill the water and add the dissolved washing

powder to make the water level reach the preset

position. (Figure 2)

Run washing program for some time to stir and

dissolve the powder completely.

3.Put in the laundries. If the water quantity is

insufficient, please add water.

4.Select the current.

Select the strength of the current according to

the laundries. (Figure 3)

5.Select the washing time

Select the washing time according to the laundries.

(Figure 4)

6.After washing, set the "DRAIN SELECTOR"

at "DRAIN". (Figure 5).

Wash

Figure 1

Figure 2

Figure 3

Wash selector

(Strong current,

Standard current)

Figure 5

Figure 4

Altri manuali Haier Rondella

Haier

Haier GE Profile UltraFresh GFW650S Guida alla configurazione

Haier

Haier QFW150 Series Istruzioni originali

Haier

Haier HW70-B1239N Manuale utente

Haier

Haier Thermocool HMS1000TVE Manuale utente

Haier

Haier HWD1000 - 1.7 cu. Ft. Washer/Dryer Combo Manuale utente

Haier

Haier HWM120-1678ES5 Manuale utente

Haier

Haier HWM88VA Manuale utente

Haier

Haier HLT364XXQ - Genesis Washer Manuale utente

Haier

Haier HWM45-10B Manuale utente

Haier

Haier HWM100-198 Manuale utente

Haier

Haier XQJ100-96A - 09-01 Manuale utente

Haier

Haier XPB68-114D Manuale utente

Haier

Haier HWM60-918NZP Manuale utente

Haier

Haier HWMP60TLF Manuale utente

Haier

Haier HW-D1260TVE Manuale utente

Haier

Haier HWM60-728 Manuale utente

Haier

Haier XPB70-0713S Manuale utente

Haier

Haier HWM110-0713S Manuale utente

Haier

Haier HG1400TXVE Manuale utente

Haier

Haier HBF800TE Manuale utente

Haier

Haier HWM100-99VGS Manuale utente

Haier

Haier HW90-B14636N Manuale utente

Haier

Haier HLP21E - Pulsator Wash With Tub Manuale utente

Haier

Haier HWM80-68B Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
