Haier HWM60-10 Manuale utente

Full Automatic Washing Machine

HWM60-10

User's manual

This manual is for

Please read this manual

carefully before using.

Retain it for future reference. 0030807260

Contents

Names of the parts................................................1

Safety precautions ...............................................2

Installation and adjustment ..................................4

Install the water inlet hose....................................6

Preparation before washing ................................7

Put in the laundries ..............................................8

Put in the detergent ..............................................9

Use the operation buttons ...................................10

Close the top lid ...................................................14

Finish washing .....................................................15

Disposal after washing .........................................15

Trouble shooting Answer to question................16

Packing list ...........................................................17

Specifications...........................................back cover

Meaning and description of the symbols

Before Using

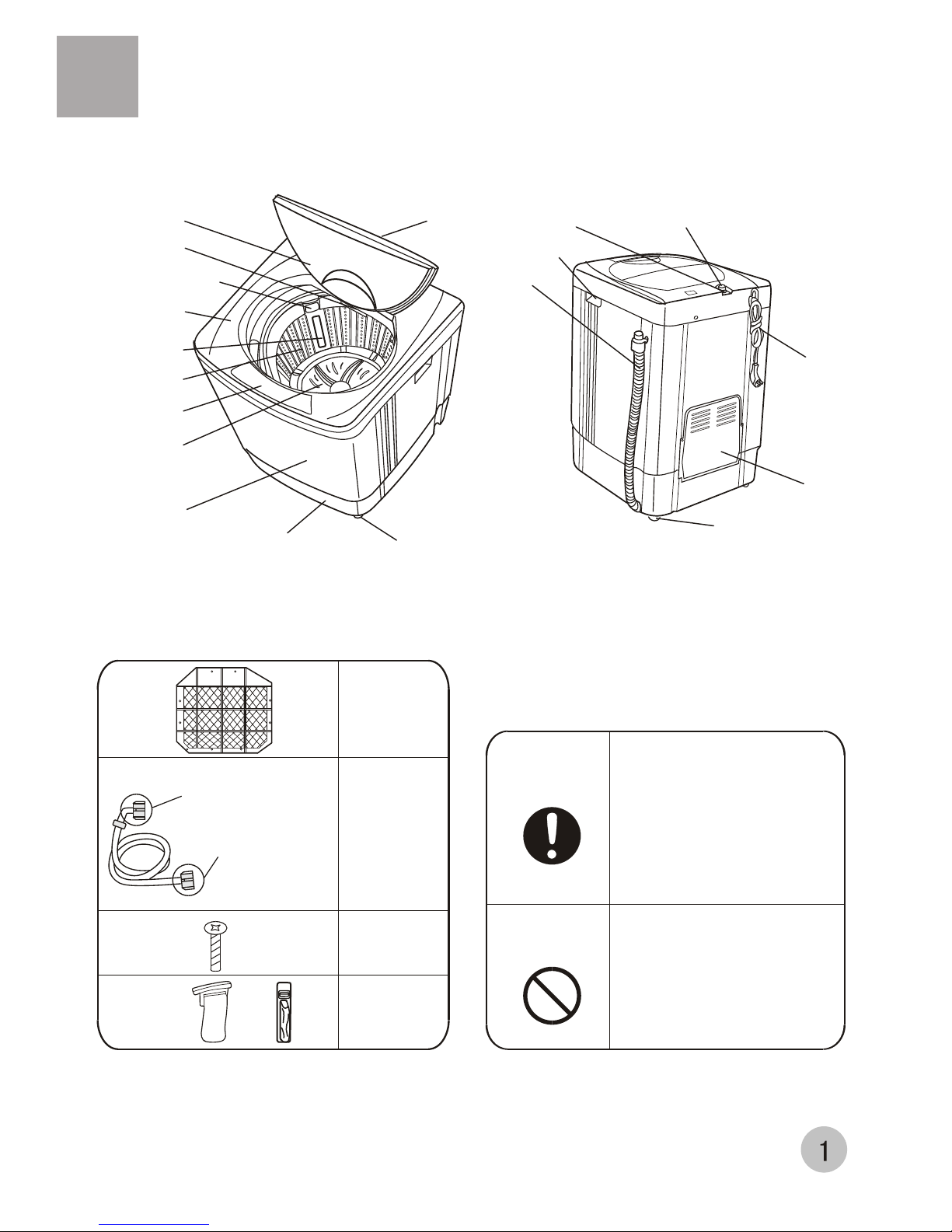

Names of the parts

Warning sign

Forbidden sign

Contents marked with that symbol

are related to the safety of the

product and the personal safety

of the users. Please operate in

strict conformity to the contents,

otherwise it may cause damage

of the machine or injure the

personal safety of the user.

Contents marked with that symbol

are actions forbidden to perform.

Performing of those actions may

result in damage of the machine

or injure the personal safety of

the user.

Accessories

Bottom plate

(one)

water inlet hose

(one)

ST4X16

tapping screws

(eight)

Lint filter

(two)

Adjustable foot

fixed foot (3)

back cover

Cabinet

base frame

Drain hose

Control panel

film

Control panel

Filter cover

Power line

Pulsator

Inner tub

Detergent box

Lint filter

Top lid B

Cabinet handle

water valve

Top lidA Sop mat

(Installed by user)

The end connecting

to the washing machine

The end connection

to the water inlet

hose

Before Using

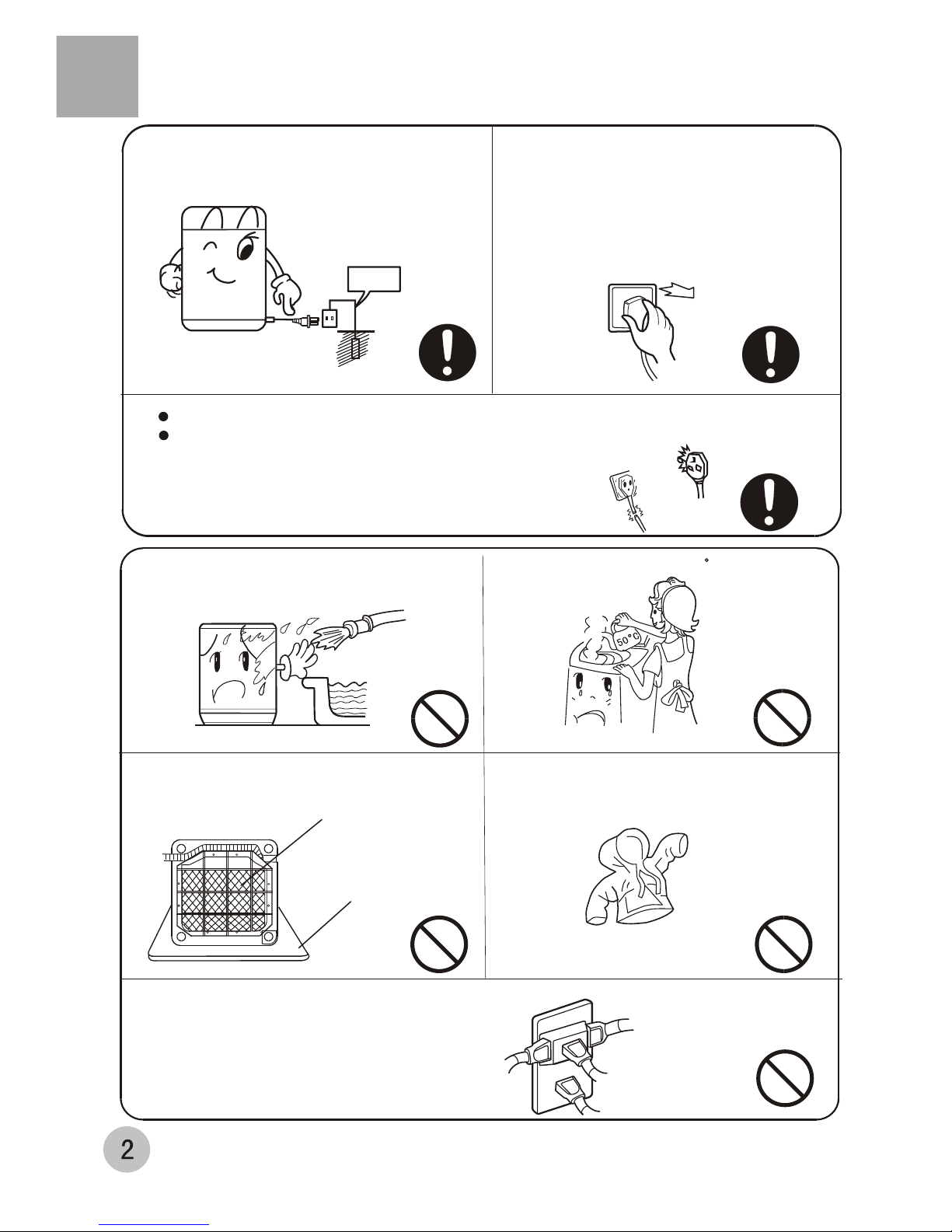

Safety precautions

Please plug the plug on special 220V AC

receptacle.Please guarantee that the

earthing wire is ear-thed reliably.

The power cord plug should be convenient

to be pluged in or pluged out with hand

while the washing machine runs normally.

Be sure to pull the plug out and close the

water tap when the machine is idle,when

moving the machine,or when cleaning

the machine.Do not use wet hand to ins-

ert or pull out the power plug.

In case the washing machine is installed on ground with

carpet, do not block the ventilation hole with carpet.

Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the

plugging into the receptacle is loose, do not use the plug any more.

Do not wash water-proof laundries like the raincoat,

bike covers etc. to avoid abnormal vibrations in spinning.

Do not use water hotter above 50 C .

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Do Not put wet laundries on the control panel.

soft items

The ventilation holes

at the bottom

Do not bend ,extend,twist,bind by force.Do not press or nip it with weight.

Keep the pin of the power plug clean,if the power plug is polluted with dust,

please wipe with dry cloth carefully.

earth

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

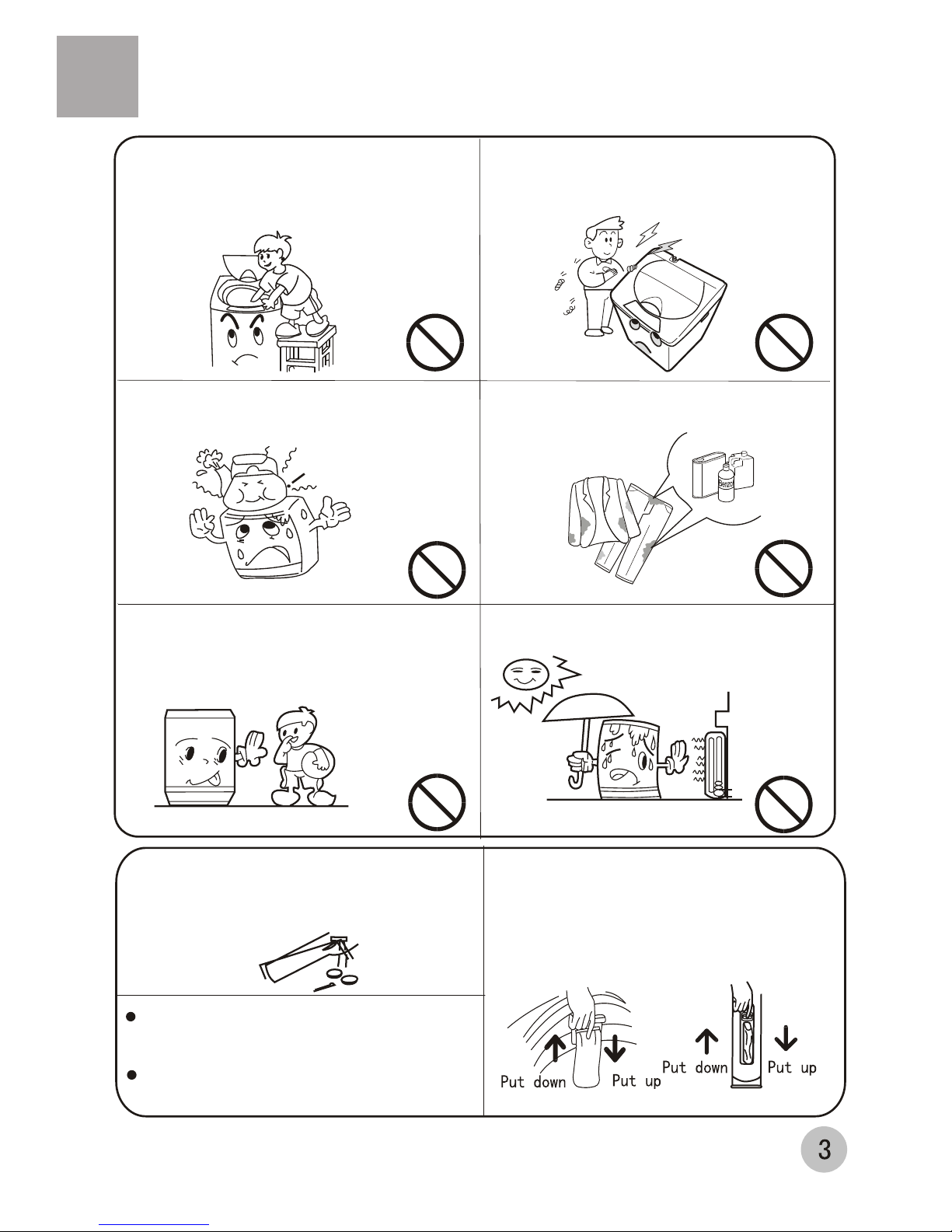

Before Using

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.Do not let the children

climb the washing machine.

Petrol

Thinner

To prevent your laundries and washing

machine from damage,be sure to take

out all of the foreign materials from your

pocket,such as coins,buttons,sand or

hairpins etc.

Before washing,please check if the water

tap is open ,and if the water inlet pipe is

connected properly.

It is suggested to use low-foaming was-

hing powder

To prevent the lint in the tub from blocking

the cascade outlet and influencing the

cascade effect, please keep the lint filter

in good condition, and install it to proper

position during washing.

The largest allowed slope of the

shank base of the machine is 2 .

The slanting or rough ground will

result in unstable running or

stoppage of the machine. Please

adjust it with following methods:

Adjust the adjustable foot:

Adjust the installation position

Before Using

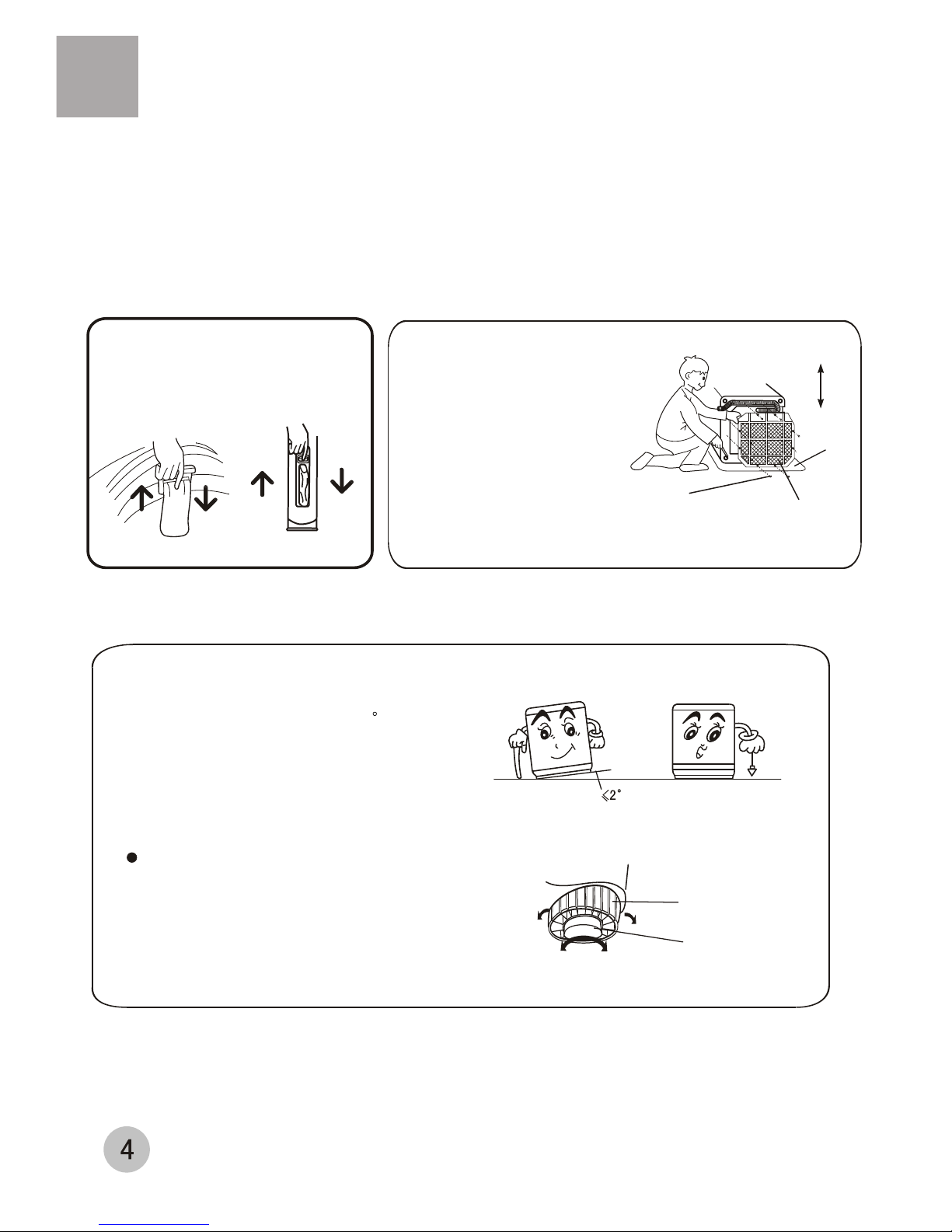

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

1.Press downward to assmble.

2.Pull upward to detach.

1.To twist the adjustable foot, please

first lift up the side of the foot slightly,

loosen the adjustable nut, and twist

the foot.

2.Fasten the nut after adjustment.

Loosen Fasten

High Low

adjustable nut

adjustable foot

Install the bottom plate

After you open the package,

please lean the washing

machine gently down on soft

items ( like the towel cloth,

blanket, etc. ). Install the

bottom plate to the bottom of

the machine with the eight

screws by a cross screwdriver,

then lift the machine up gently.

See to the figure:

Back

Front

Bottom plate

Screw

Soft items

Put down Put up

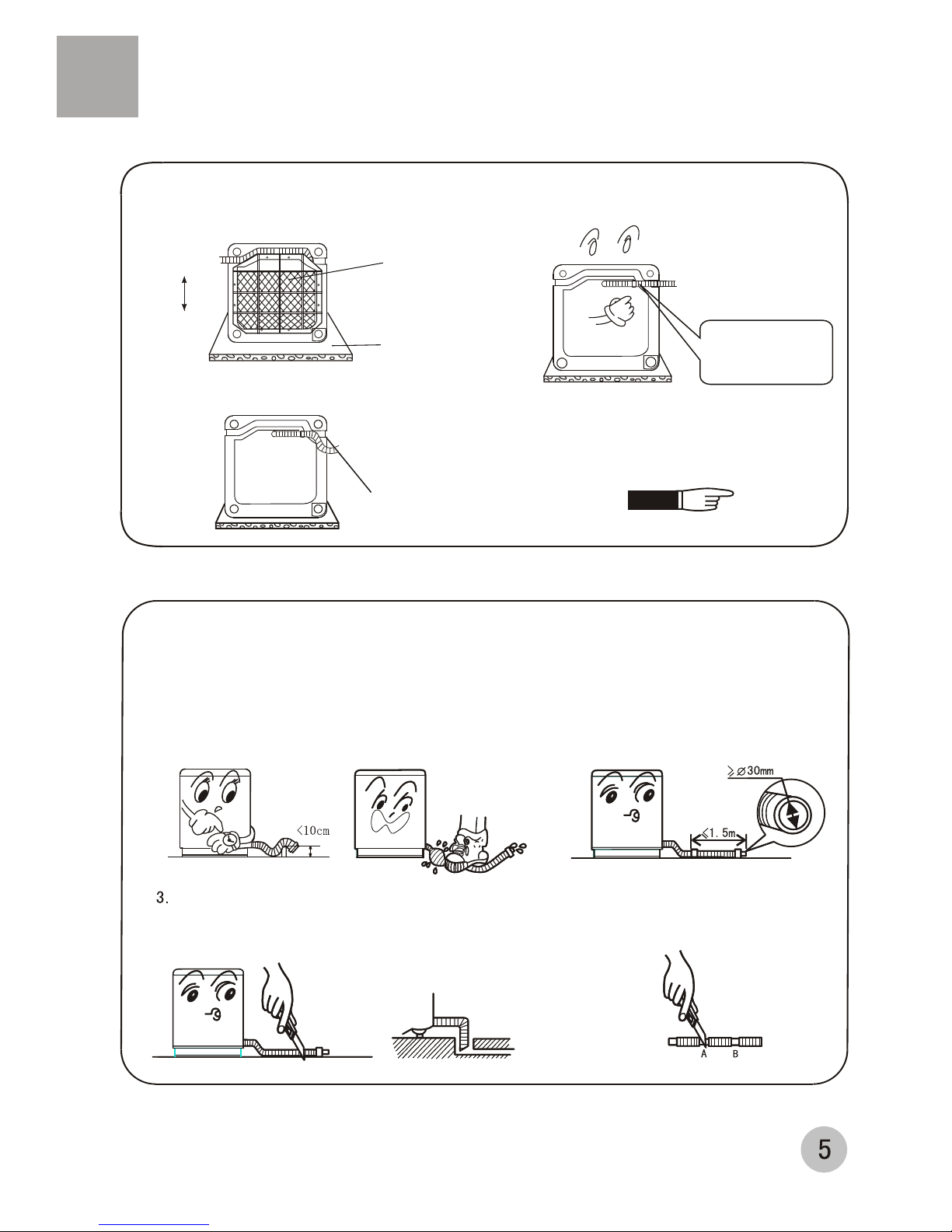

Install the lint filter

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not trample or press the drain hose.

If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

1.Lean the machinedown gently withthe

front surface facingthe ground. Loosen

the eight screwsby a crossscrewdriver.

3.Extend the drain hose from the left side.

Push the drain hose into the groove with

hands.

4.Install the bottom plate (as per indicated

before), then lift the machine up gently.

2.Pull out the drain hose from the groove at the

right side.

Back

Front

Bottom plate

Soft item

Use groove at

this side after

direction changing

Page 4

Push the drain hose

into the groove with

hands at this point

How to change the direction of the drain hose

Usage of the drain hose

The drain hoseshall drain smoothly

5.If the extrahose is toolong,

cut it eitherat Aor at Bpoint.

Before Using

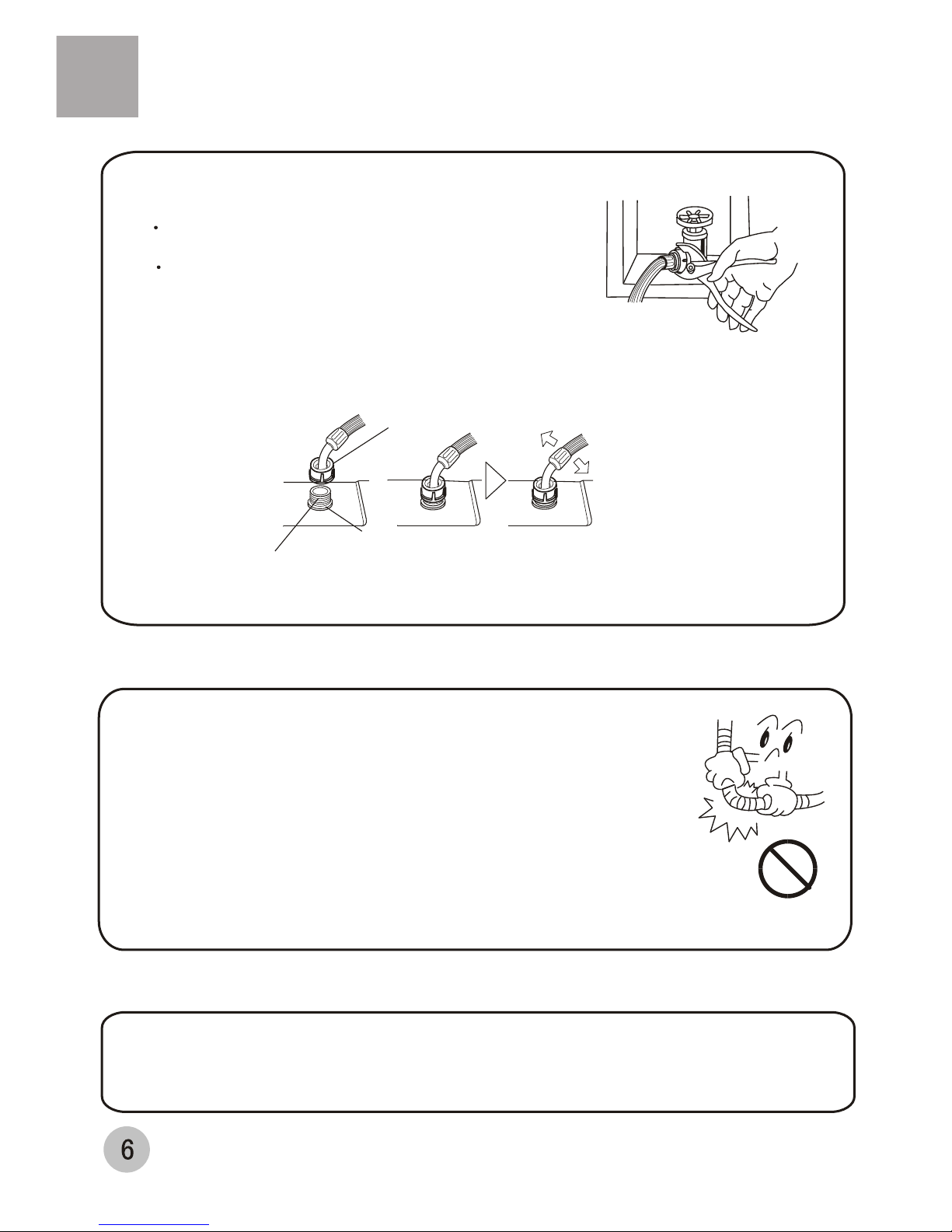

Install the water inlet hose

1. Insert a new flat washer into each end of the inlet hoses. Firmly put the

washers in the coupling.

2. Connect the water inlet hoses to the water faucet.

Use the new hose sets supplied with the washer.

Any other old hose sets should not be used.

You may have to use pliers to tighten the coupling.

Do not over tighten because you may cause

damage to the valve.

Note:

3. Connect the other ends to their respective cold and hot water inlet valve

located at the rear of the washer

Check the connection between the water inlet

hose and the water tap

1.Close the water tap.

2. Pull off the water inlet hose from the water tap

and washer

Take down the water inlet hose

Install the water inlet hose

4.Fasten the nut. Swing it gently to confirm if it's suitable.

Water absorption cushion

Nut of the water inlet hose

Jointer of the water inlet valve

1.Swaying the hose gently to confirm if it is

fastened stable.

2.After installation, open the tap to check if it leaks.

3.Do not bend the hose with overstrain.

4.Before each usage please check if the connection

between the water inlet hose and the water tap,

and the connection between the water inlet hose

and washer are firm, so as to prevent dropping

from improve Installation position.

Before Using

Confirm if

there's special

requirment for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

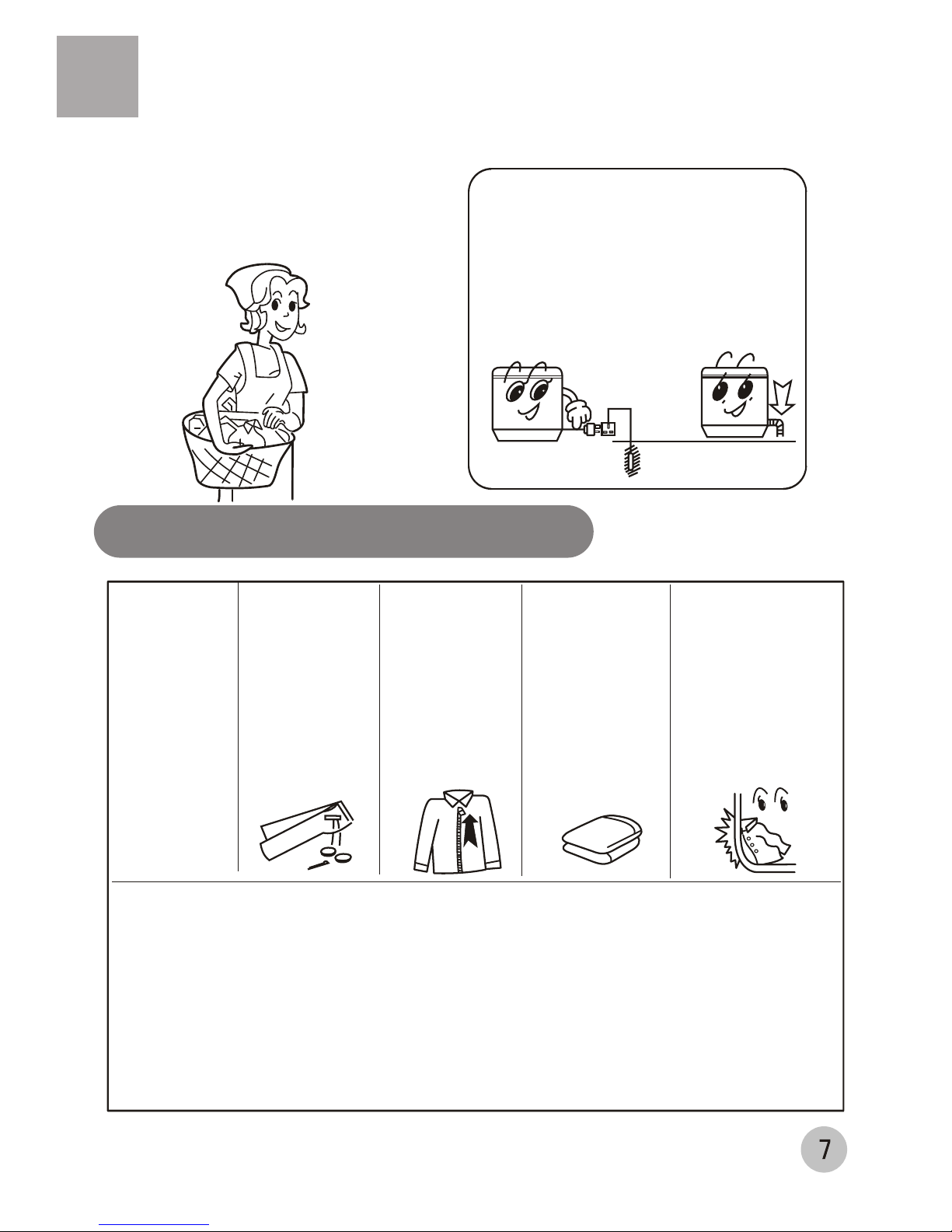

Preparation before washing

1.Connect the water inlet hose and open

the water tap .

2.Confirm that the washing machine is

earthed reliably . Then insert the power

plug into the receptacle. Do not connect

the earth terminal to the gas pipe and

tap water pipe.

3.Put down the drain hose.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Using process

1 Preparation before washing

Pay attention to followings before washing the laundries

A. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust.

For the parts with heavy soil, please apply detergent on them in advance, which

can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn itover before

putting in.

f. Do not put those laundries polluted by chemicals into the washing machine directly.

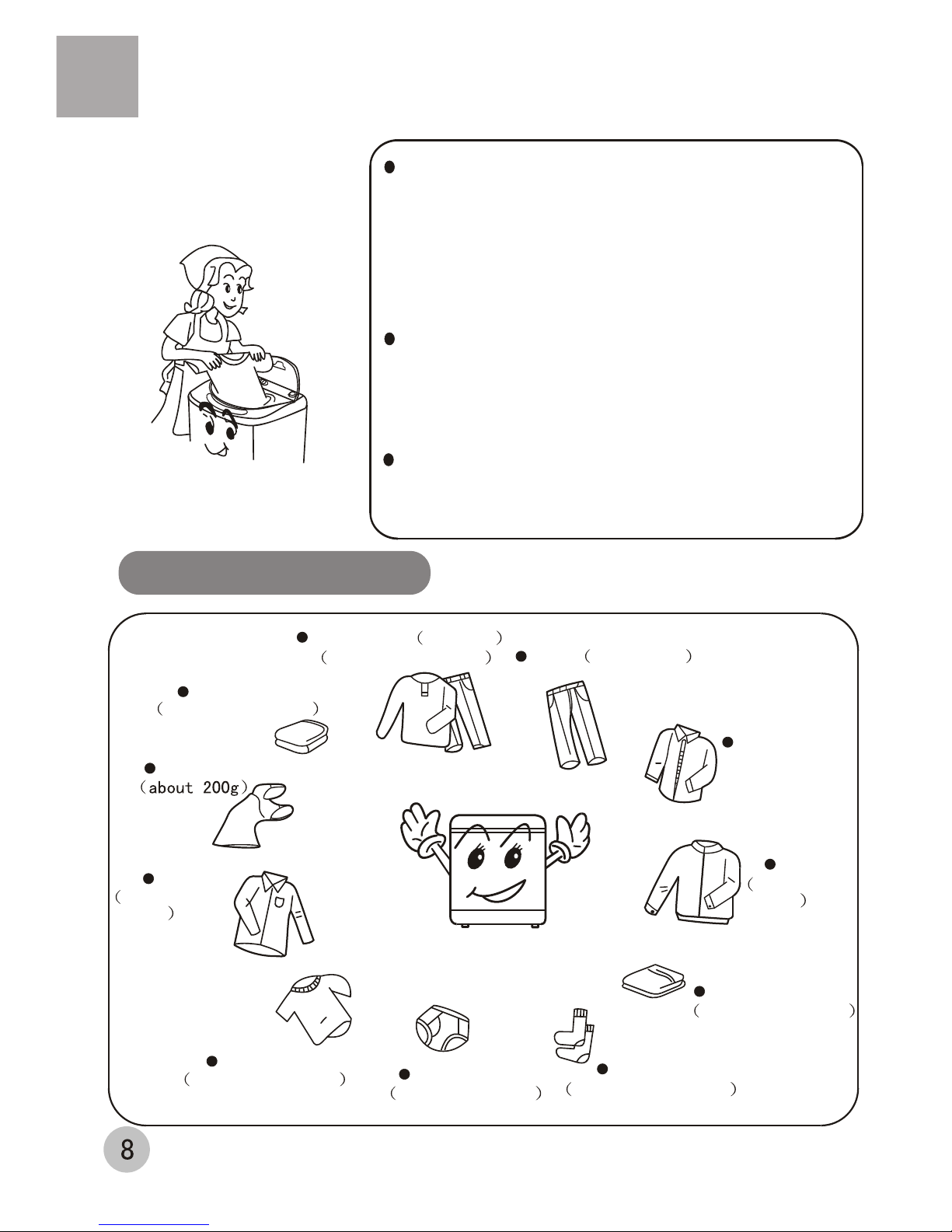

Reference weight of the laundries:

working suit up,down

jeans about 800g

shirt jacket

single bed sheet

Socks

underpants

undershirt

pajamas

blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

2 Put in the laundries

cotton,about 1120g

blending coat

(about 800g)

The capacity of washing and spinning of

the machine refer to the largest weight of

the standard laundries under dry condition

that can be washed or spinned in one time.

One time washing quantity shall be lower

than the rated capacity. The largest capacity

of this machine is 5.0kg.

The thickness, size, type of the cloth will

influence the actual washing capacity. It is

suitable for one time washing to put in

reasonable amount of laundries and the

laundries can be turned round in washing.

Do not select "High" water level for

laundries small than 0.5kg, so as to avoid

splashing of water.

Altri manuali per HWM60-10

Indice

Altri manuali Haier Rondella

Haier

Haier HLT23E1 Manuale utente

Haier

Haier XQJ50-31 Manuale utente

Haier

Haier HDS1055TVE Manuale utente

Haier

Haier JW-K33A Manuale utente

Haier

Haier HWM-13.0/S Manuale utente

Haier

Haier XPB60-0713S Manuale utente

Haier

Haier XQS60-78H Manuale utente

Haier

Haier HW70-I1286 Manuale utente

Haier

Haier WM7003A Manuale utente

Haier

Haier HT1006TXVE Manuale utente

Haier

Haier XQJ50-31 Manuale utente

Haier

Haier HD1405TXV Manuale utente

Haier

Haier HW-C1470TVE ME-U Manuale utente

Haier

Haier HWD1600 Manuale utente

Haier

Haier BEWM1000H Manuale di istruzioni

Haier

Haier JW-K60B Manuale utente

Haier

Haier B1000VE Manuale utente

Haier

Haier HWM75-113S Manuale utente

Haier

Haier XPB50-23BS Manuale utente

Haier

Haier HWM80-68B Manuale utente

Haier

Haier HWD1000 - 1.7 cu. Ft. Washer/Dryer Combo Manuale utente

Haier

Haier HWM85-9288 Manuale utente

Haier

Haier HWM80-35 Manuale utente

Haier

Haier HWM 80-AS Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
