Haier HWM68VA Manuale utente
Twin-tub Washing Machine User's manual
Twin-tub Washing Machine User's manual
This manual is for
Please read this manual
carefully before using.
Retain it for future reference.
Special number:0030807643C
Contents
Safety precautions
Installation and adjustment
Preparation before washing
The musts in washing
Usage of the detergent
Washing sequence
Disposal after washing
Names of the parts
The cover 2
Packing list
Trouble-Shooting Answers to question
Specification
×°Ïä˵Ã÷
Water inlet hose
Gland
Lint filter
Packing list
Twin-tub washing machine
Name Quantity
User's manual One piece
One piece
One piece
One piece
One set
Warranty card One piece
¸÷²¿Î»Ãû³Æ
1
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of the user.
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.

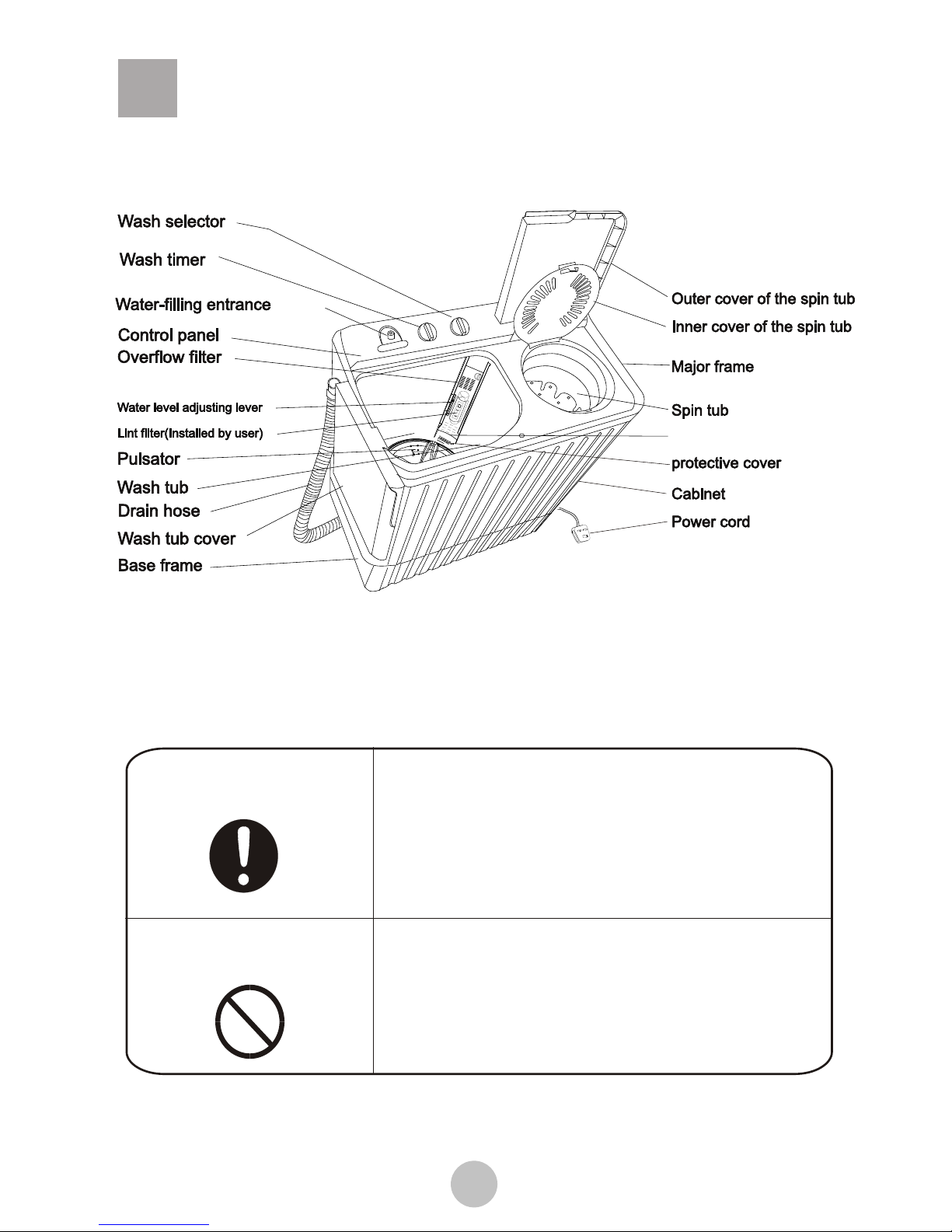

Names of the parts
Valve cover
×¢ÒâÊÂÏî
2

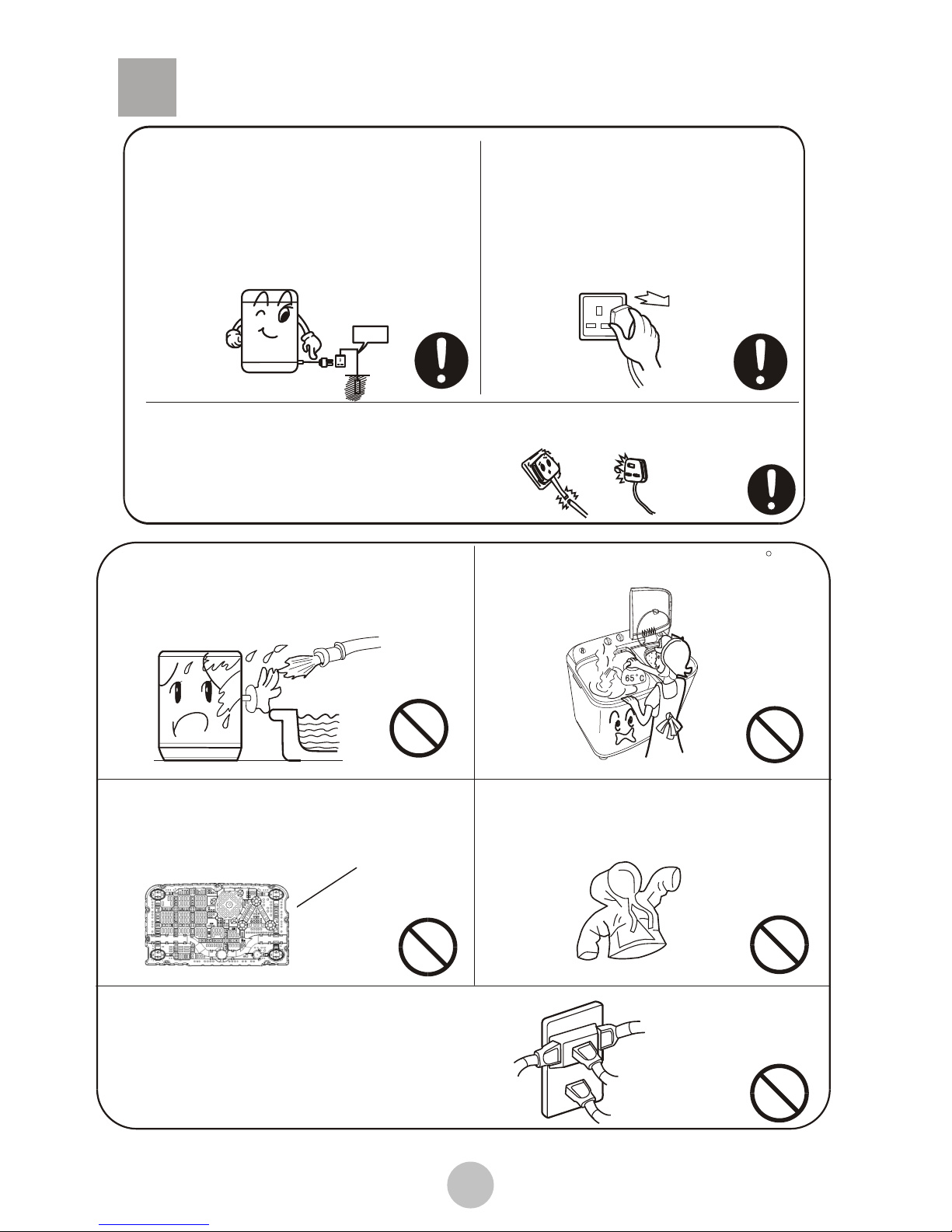

Safety precautions
Please insert the power cord into
special receptacle with rated vol-
tage.Be sure to use single-phase
three pins receptacle.The earthing
terminal of the receptacle must be
earthed reliably.If possible,please
adopt electric leakage protector.
When the machine is normally
using, please put the power plug
at the location easily to be insert-
ed and extracted by hand. Be sure
to pull the plug off when there's
power failure, or the machine is
being moved, cleaned or when it
is idle.
Do not put the machine at damp
place like the bathroom . Never
wash it with water. Do not place
wet laundries on the control panel.
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
Ventilation hole at
the bottom of the
washing machine
Earth
If the supply cord is damaged,it must be replaced
by the manufacturer or its service
agent or a similarly qualified person
in order to avoid a hazard.
Do not use water hotter than 65 C .
For washing machine with ventilation
openings in the base, that a carpet
must not obstruct the openings.
×¢ÒâÊÂÏî
3

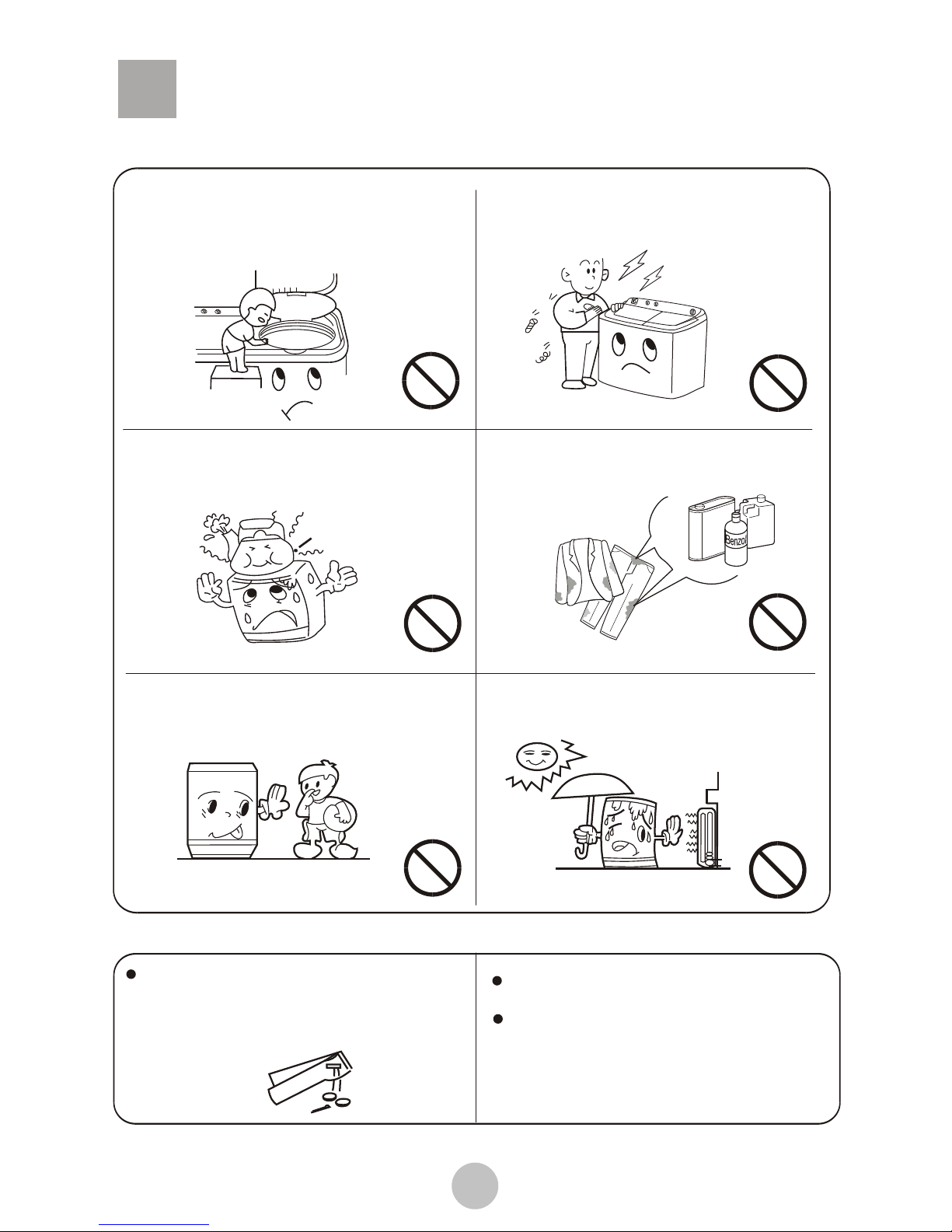

Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Safety precautions
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not decompose, repair or alter the
machine by yourself.
Handicapped or children without care
shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the
heater.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Petrol
Thinner
To protect your laundries and wash-
ing machine, please take out all of the
coins, buttons, sand, hairpin and
other foreign materials before washing.
Please check if the connection of the
water inlet pipe is proper.
It is suggested to use foamless washing
powder.
Overflow filter
Lint filter
If the extra hose is too long, cut it either
at point A or B.
<10cm
BA
> 30mm
<1.5m
4

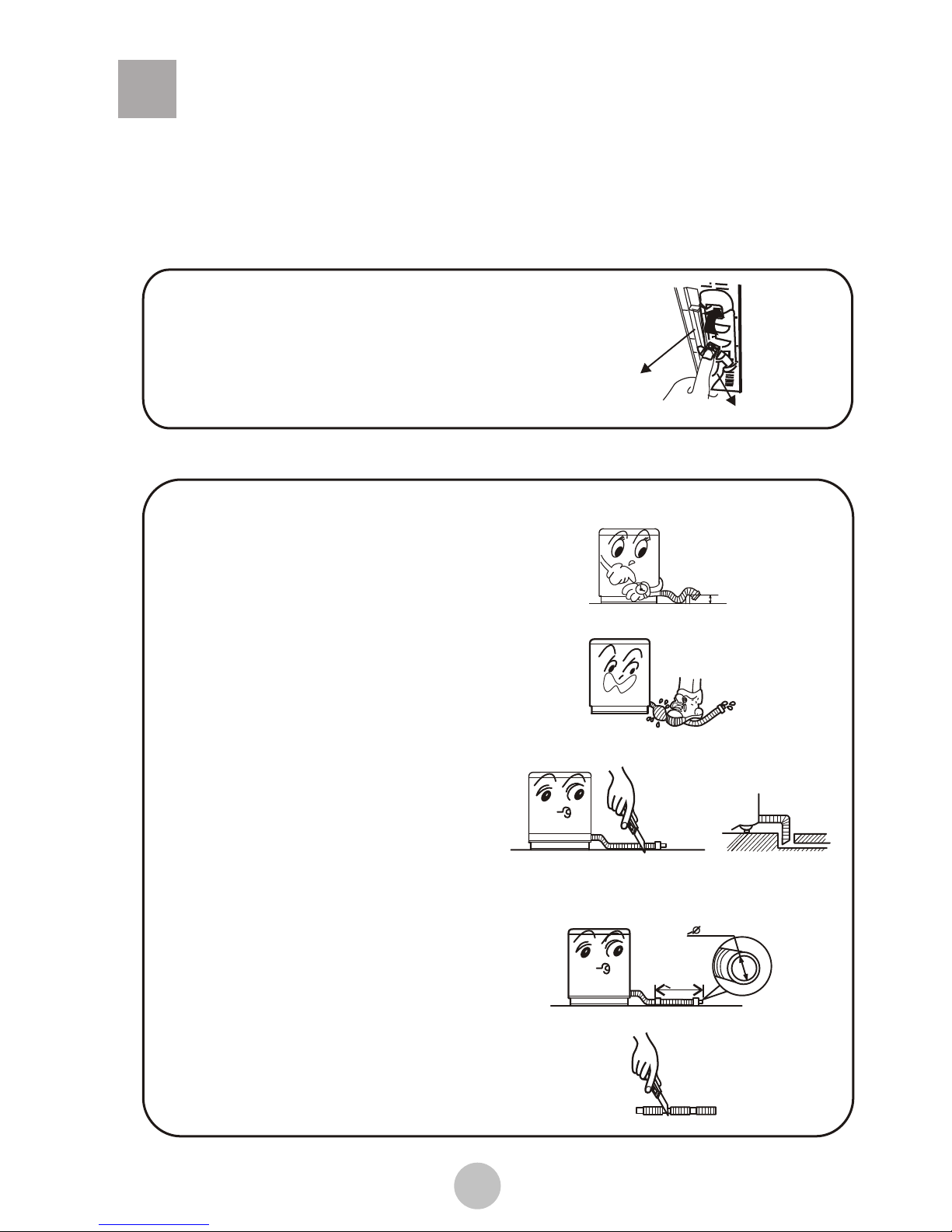

Installation and adjustment
Please install and adjust the machine according to the requirement of
the manual. It is very important to your security and correct operating
the machine.
Install the lint filter
After opening the package,please take out the lint
filter from the document bag,install it to the overflow
filter of the wash tub.See to the figure.
Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.
2.Do not tramp or press the drain hose.
3.If the drain hose is too long, cut it at mid point.
To make smooth drainage, cut the front end of
the hose slantingly.
4.If extra drain hose is needed , please make
separate purchase. The inner diameter of the
extra hose shall not less than 30mm, and the
length shall not exceed 1.5m.
Install the water inlet hose; Select the water level
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.
Insert the water inlet hose into the water-filling
entrance on the control panel directly.(pull it
out to dismantle it)
Maximum Max.
Minimum Min
Medium Med
Water level
indicator
Water inlet hose
Water-filling
entrance
Use the new water inlet hose provided
with the machine to connect to the
water faucet.Old hose sets should
not be reused.
5

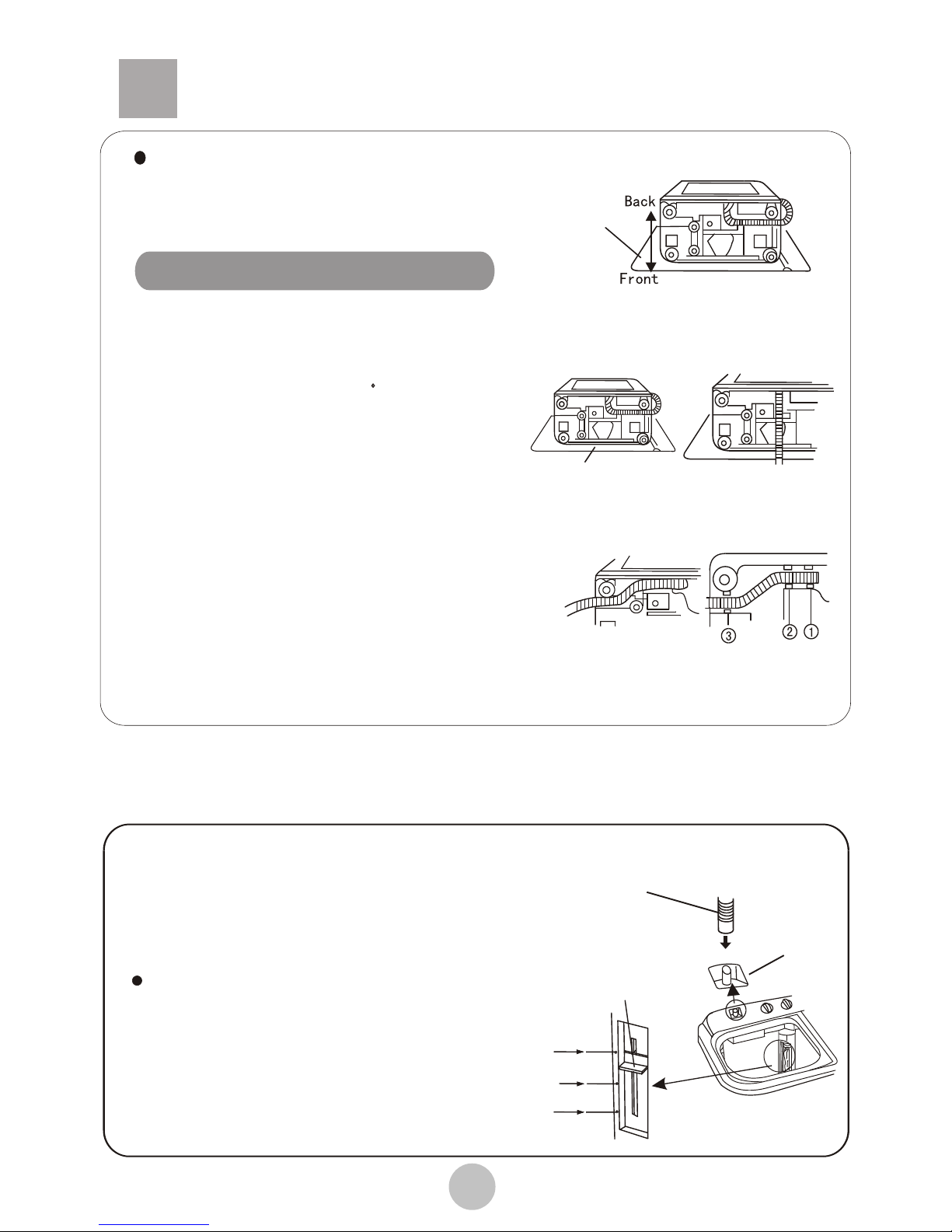

How to change the direction of the drain hoses
Figure 1 indicates the ex factory installation
position of the drain hose.
Extend the drain hose from the side of wash tub.
Figure 1
Soft item
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Take the hose out of the fixing groove.
(See to Figure 2).
Embed the drain hose into the groove along the side
of the spin tub in the order of (1)~(3), heading for the
side of the wash tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Soft item Figure 2
Figure 3
Embed into the
groove in turn
Extend to the
spin tub side
Ï´Ç°×¼±¸

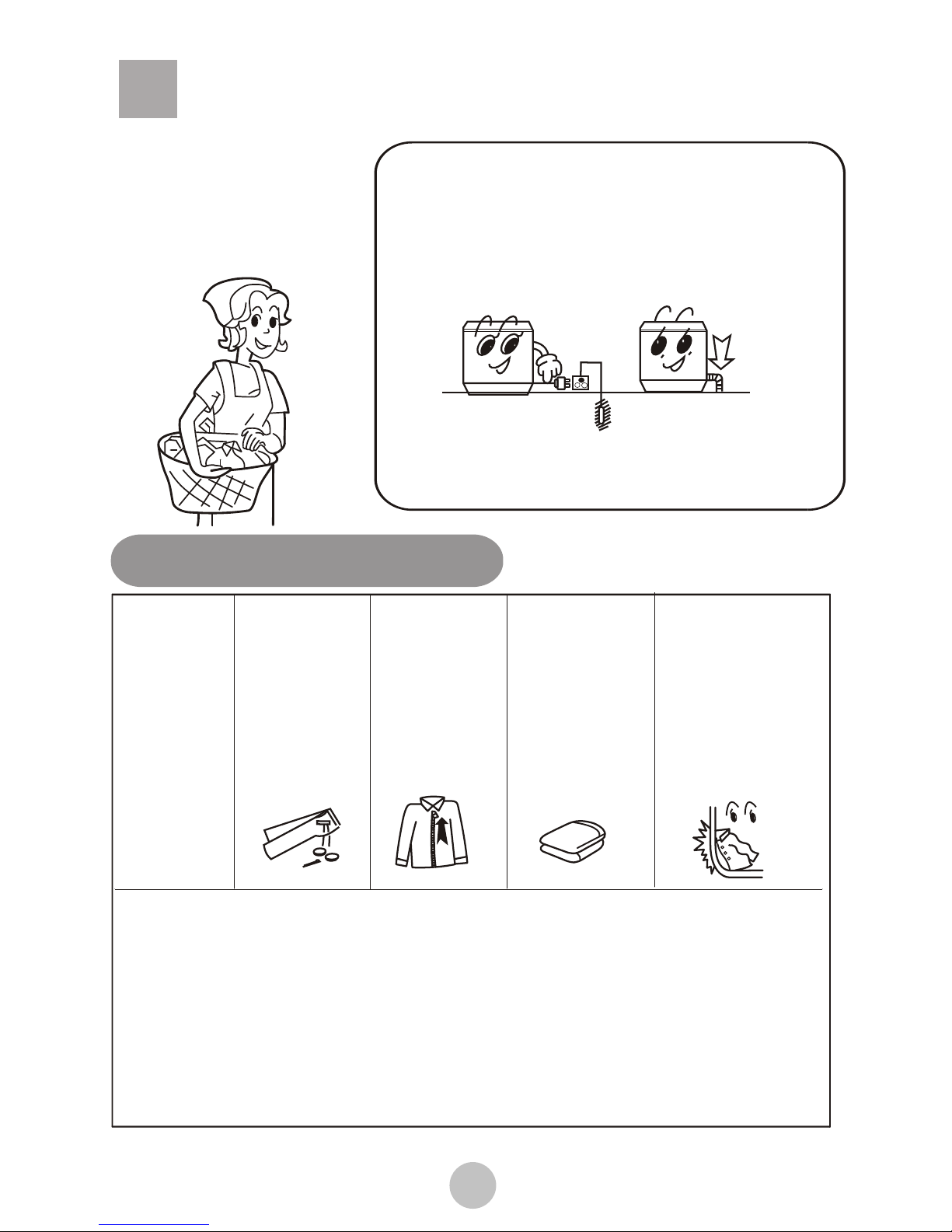

Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put down the drain hose .
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
Preparation before washing
Pay attention to followings before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent on
them in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn
it over before putting in.
f. Do not put those laundries polluted by chemicals into the washing
machine directly.
6
Ï´µÓÎïµÄ²Î¿¼ÖØÁ¿
Ï´µÓÐëÖª
Ï´µÓ¼ÁµÄʹÓÃ
The capacity of washing and spinning of the
machine refer to the weight of the
standard laundries under dry condition that can
be washed or spinned in one time. Laundries
quantity in one washing cycle shall be lower
than the standard capacity.
the largest capacity is only the loading capacity
of the drum
The thickness ,size , type of the cloth will influ-
ence the actual washing capacity. It is suit-
able to put in reasonable amount of laundries
and the laundries can be turned round in wash-
ing for one time washing.
Do not select " Maximum " water level for
laundries less than 1.0kg, so as to avoid
splashing of water.
The musts in washing
How to use the whitener
Fill water to decided level. Dilute
the whitener with container.
Pour it slowly into the washing tub.
Avoid using whitener on laun-
dries with color or pattern as they
are prone to lose color.
The whitener shall not touch
the laundries directly.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30
seconds to dissolve it completely.
3.Put in laundries. Select suitable
water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 C and a
container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before using.
It is suggested not to use high sudsing detergent.
How to use the washing powder
Usage of the detergent
7
Âé

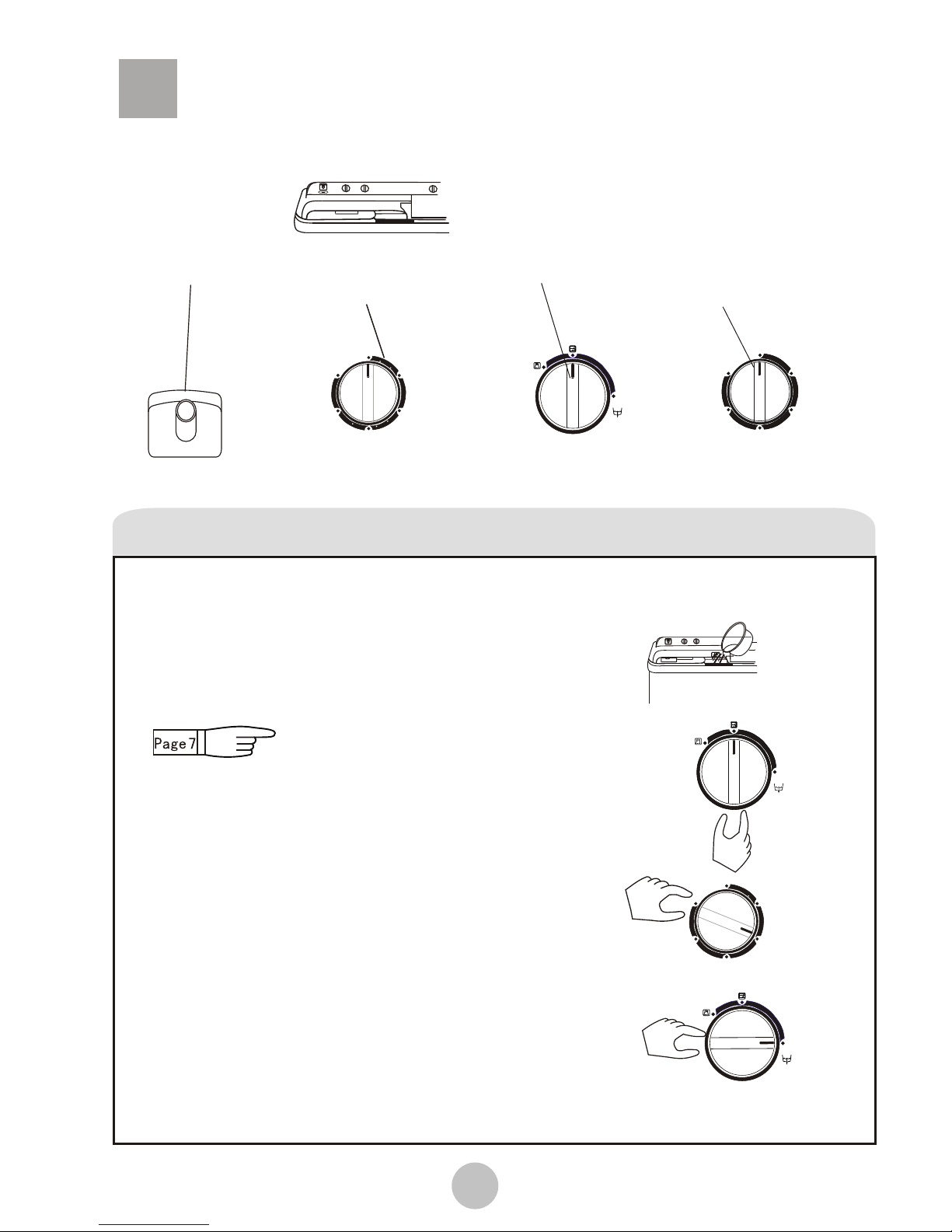

Spin timer
Wash timer Wash selector
Water-filling entrance
(To set to below 2 minute,
first set to 5 minute then
turn it back. it can increase
the service life of the timer).
(Strong current,
standard current)
(to set to below 1 minute,
first set to 2 minute then
turn it back. it can increase
the service life of the timer).
SPIN TIMER
WASH TIMER WASH SELECTOR
WASH SELECTOR
Ï´µÓ˳Ðò
Washing sequence
Wash
Figure 4
WASH TIMER Figure 3
WASH SELECTOR
1. Fill the water and add the dissolved washing
powder to make the water level reach the preset
position. (Figure 1)
Run washing program for some time to stir and
dissolve the powder completely.
2.Put in the laundries. If the water quantity is
insufficient, please add water.
3.Select the current.
Select the strength of the current according to
the laundries. (Figure 2)
4.Select the washing time
Select the washing time according to the
laundries. (Figure 3)
5.After washing,Set the "WASH SELECTOR"
at "DRAIN". (Figure 4).
Figure 2
Figure 1
8
1212
99
66
33
1515
OFF
OFF
ÃÞ
DRAINDRAIN
STANDARD
STRONG
44
33
22
11
55
OFFOFF
Âé
1212
99
66
33
1515
OFF
OFF
ÃÞ
DRAINDRAIN
STANDARDSTANDARD
STRONGSTRONG
DRAINDRAIN
STANDARD
STRONG
Indice
Altri manuali Haier Rondella
Haier
Haier JW-K70F Manuale utente
Haier
Haier HWM15-0501 Manuale
Haier
Haier XQG6511SU - Front-Load Washer/Dryer Combo Manuale utente
Haier
Haier XPB50-LS Manuale utente
Haier
Haier HW75-BD12756NZP Manuale utente
Haier
Haier HLPW028AXWP Manuale utente
Haier
Haier HLP21E - Pulsator Wash With Tub Manuale utente
Haier
Haier HWM90-23BS Manuale utente
Haier
Haier washing machine Manuale utente
Haier
Haier HNS1000B Manuale utente
Haier
Haier HW70-B1239 Manuale utente
Haier
Haier HN500TX Manuale utente
Haier
Haier HWM110-9188DD Manuale utente
Haier
Haier Thermocool HWM110-287S Manuale utente
Haier
Haier HW80-BP14636N Manuale utente
Haier
Haier XPB55-13S Manuale utente
Haier
Haier XPB68-27S Manuale utente
Haier
Haier HW70-1482 Manuale utente
Haier
Haier HMS1000B Manuale utente
Haier
Haier B628TX Istruzioni per il montaggio
