Haier HWM80-35 Manuale utente

HWM80-35

Single-tub Washing Machine with Pump

Names of the parts........... the 2

cover

Safety precautions ........................... 1

Installation and adjustment ..................3

Preparation before washing .............. 5

Put in the laundries ............................ 6

Put in the detergent ............................ 7

Select the wash selector...................... 7

Select the wash time .......................... 7

Close the top cover ............................. 8

Finish washing .................................... 8

Disposal after washing .........................8

Trouble shooting.................................9

Packing list...........................................9

Specification................the back cover

Contents

Before using

Using process

User's manual

Please read thismanual carefully beforeusing.

Retain it forfuture reference

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

The manufacturer willnot bear theresponsibility for

those risks occurredfrom not obeyingthis manual.

Contents marked with that symbol are related to the safety of the product

and the personal safety of the users. Please operate in strict conformity to

the contents.

Contents marked with that symbol are actions forbidden to perform.

Performing of those action may result in damage of the machine or

influence the personal safety of the users.

Accessories

water inlet hose

( one piece )

Base

Cabinet

Drain hose

Back cover

Fixing leg

(four pieces)

Power cord

Valve cover

Handle

Panel support

Pulsator

Lint filter(Installed by user)

Filter cap

Top lid

Before Using

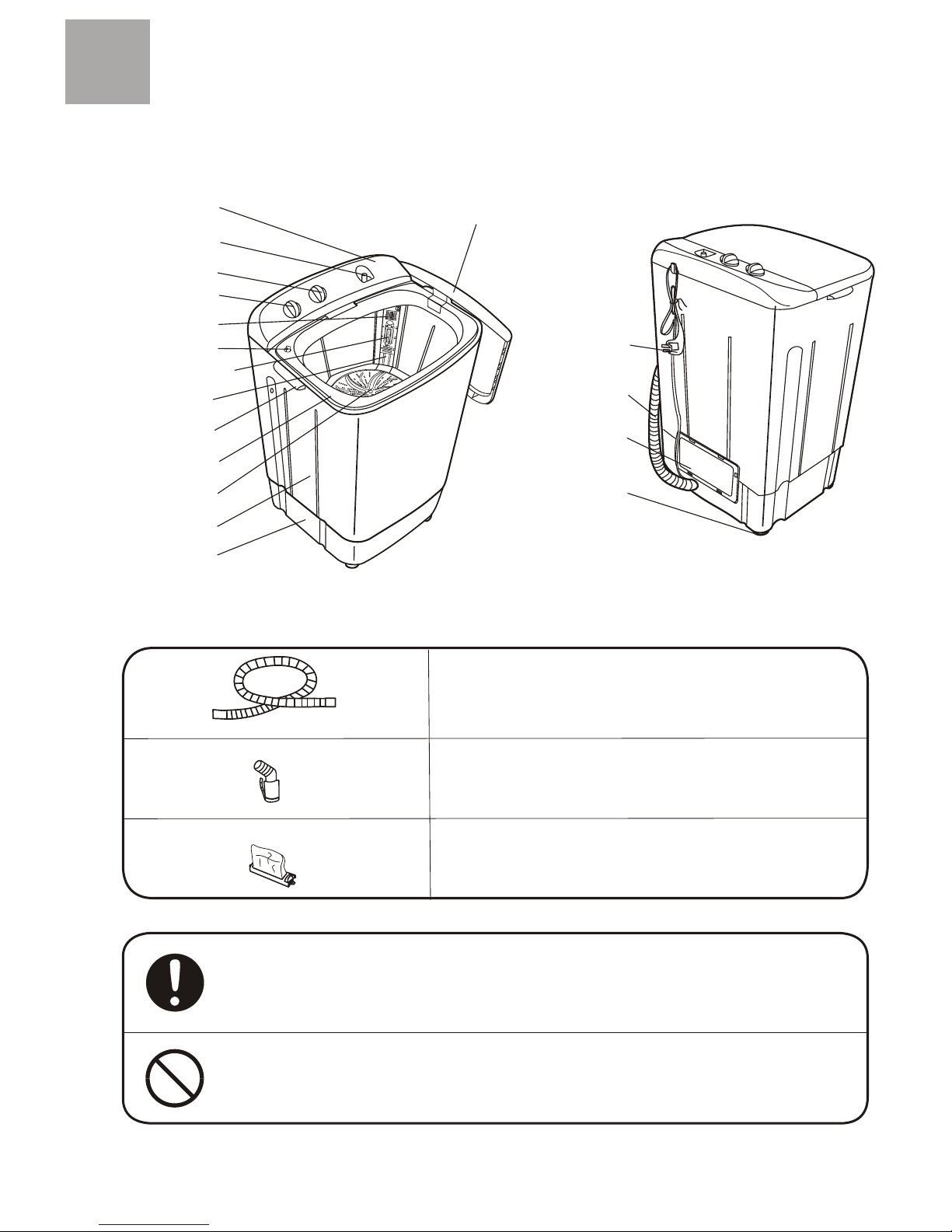

Names of the parts

Control panel

Water inlet

Quick water inlet

Timer knob

Water selector

MAX

MED

MIN

Water-filling jointer

(one piece)

Lint filter

( one piece )

Before Using

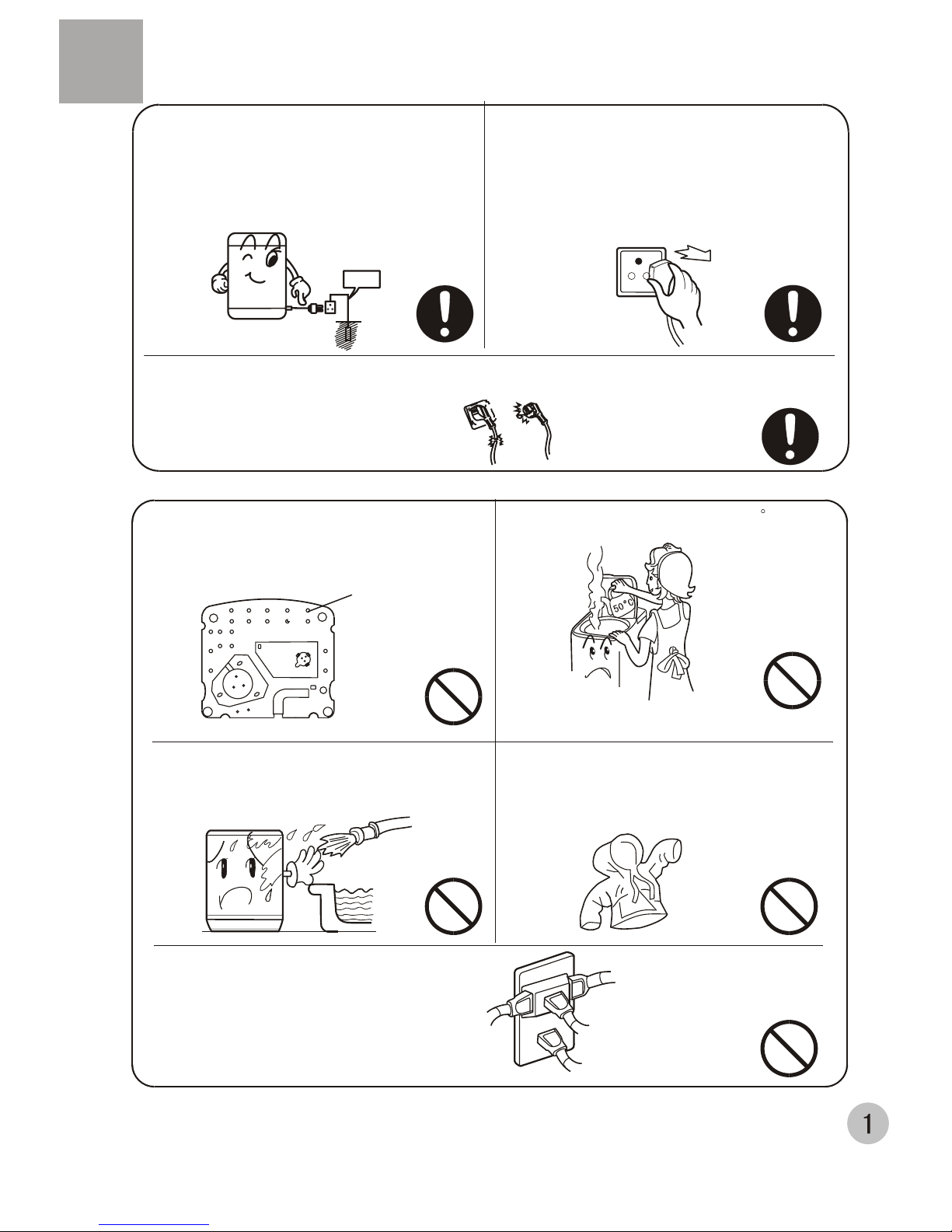

Safety precautions

If the power cord is bad, to avoid risk it is required to replace it by the technicians of

our special shop or the after-sale service department. Keep the pin of the power

plug clean.

Please insert the power cord into special

receptacle with rated voltage.Be sure to

use single-phase three pins receptacle.

The earthing terminal of the receptacle

must be earthed reliably.If possible,please

adopt electric leakage protector.

When the machine is normally using, please

put the power plug at the location easily to

be inserted and extracted by hand. Be sure

to pull the plug off when there'spower failure,

or the machine is being moved, cleaned or

when it is idle.

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Do not use water hotter than 50 C .

Do not share one receptacle with other

electric appliances. Do not use it in

case that the power plug is damaged

or the inserting into the receptacle is

loose.

Do not wash water-proof laundries such

as the raincoat, bicycle shelter etc. To

avoid abnormal vibration during spinning.

Do not put the machine at damp place

like the bathroom . Never wash it with

water. Do not place wet laundries on the

control panel.

Ventilation hole at

the bottom of the

washing machine

Earth

Before Using

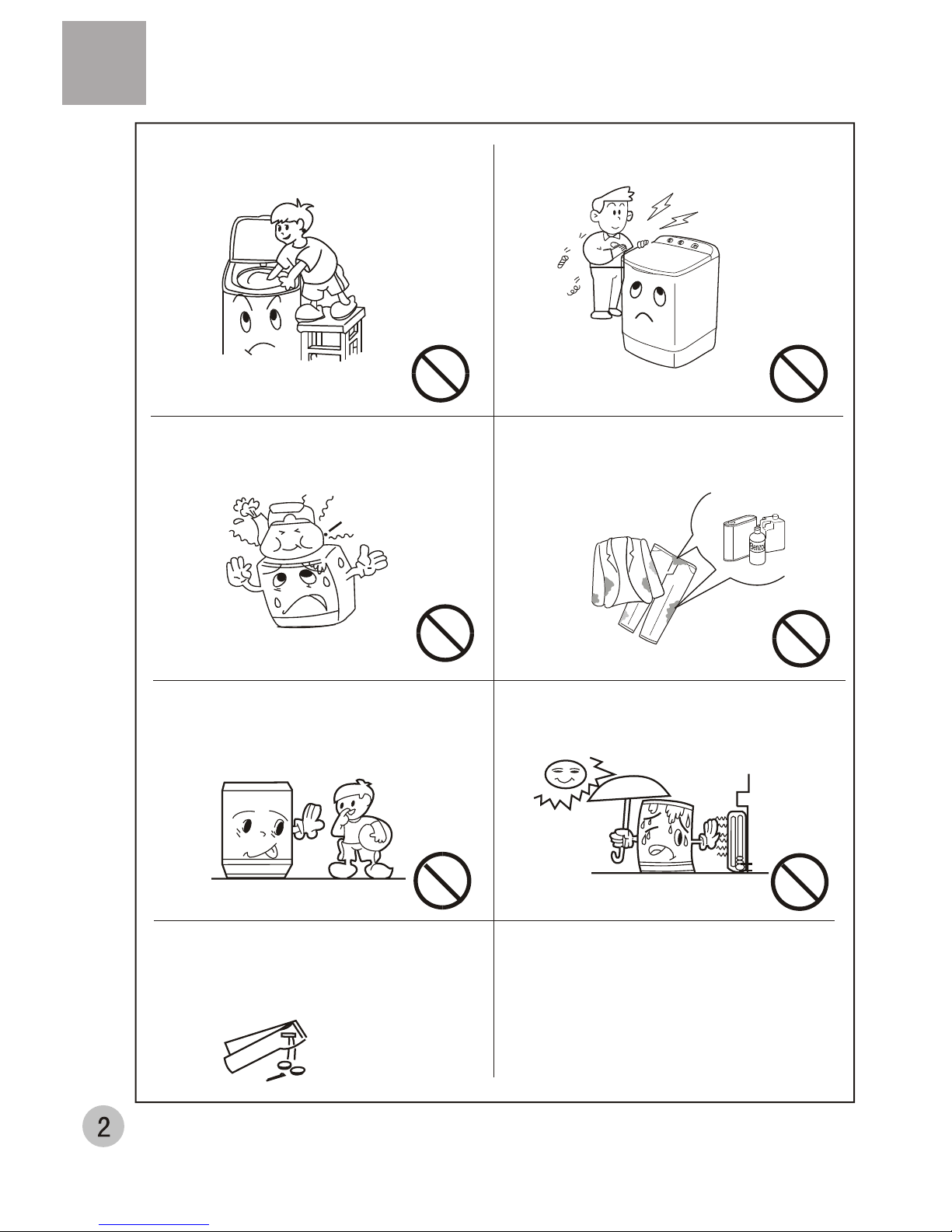

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Handicapped or children without care

shall not use the machine.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

Safety precautions

Please check if the water faucet is open, and if

the connection of the water inlet pipe is proper.

It issuggested to use foamless washing powder.

To protect your laundries and washing

machine, please take out all of the coins,

buttons, sand, hairpin and other foreign

materials before washing.

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Usage of the drain hose

Before Using

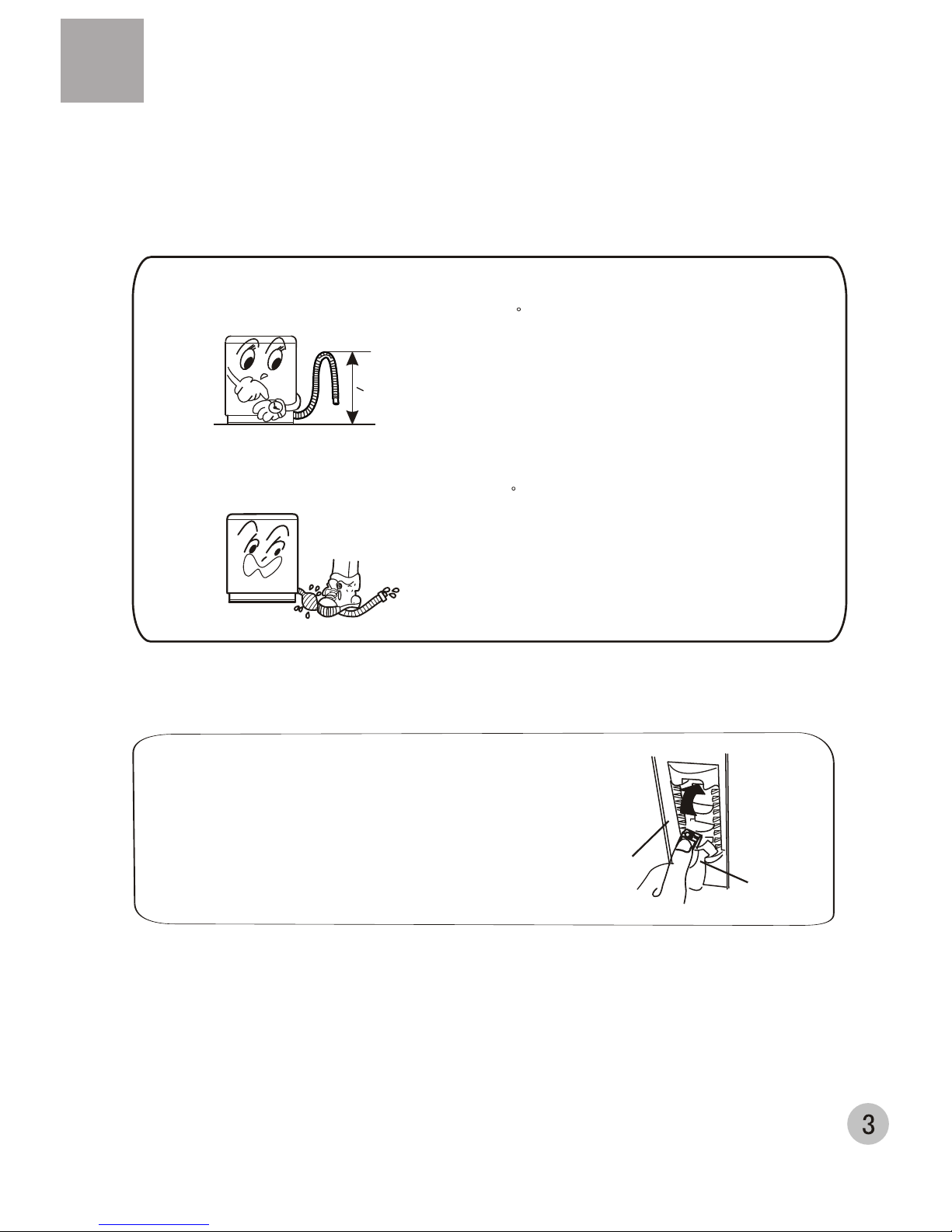

Installation and adjustment

After opening the package,please take out the lint filter

from the document bag,install it to the filter cap of the

cabinet.See to the figure

Install the lint filter

Lint filter

Filter cap

The drainage shall be smooth with the drain hose.

1.Put the drain hose up to suitable position

2.Do not step on or press the drain hose

<1.2m

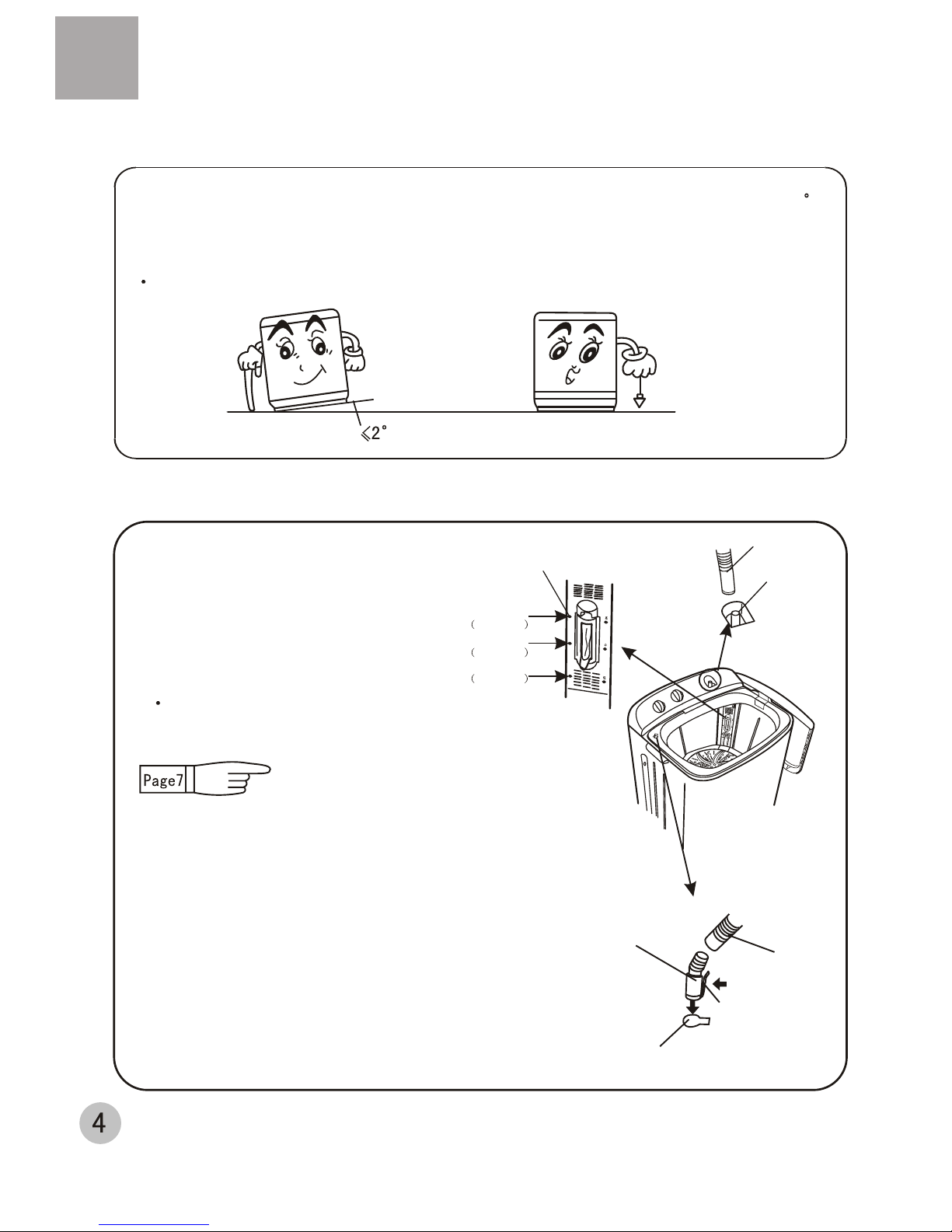

Adjust the installation position

Install the water inlet hose ; Select the water level

The largest permittedslope of the bearing surface ofthe washing machine is 2.

Slanting or unevenground will cause unstable operation ofthe machine. Please

check with followingmethods:

Hang a becketwith weight to confirm if thewashing machine is horizontal.

Before Using

Water inlet hose

Water inlet

Maximum

about 83L

about 68L

about 49L

Minimum

Medium

Water level

indicator

Insert the water inlet hose into the water-inlet

on the control panel directly. ( pull it out to

dismantle it)

Fill the water to the water level selected

according to the quantity of the laundries.

Attention:

Do not exceed the " Maximum" water

level , otherwise the water may

overflow out of the machine.

Use the quick water inlet

MAX

MED

MIN

Insert the water-filling jointer into water inlet hose,

then push the water-filling jointer into the water

inlet on the control panel. (To dismantle the water

inlet hose, just push the control handle as

indicated in the figure and pull it out)

Fill water into the wash tub directly through

quick water inlet. It can reduce the humidity

inside the control panel significantly and

prolong the operating life of the components.

Quick water inlet

Water-filling jointer

Control handle

Push

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is

earthed reliably . Then insert the power

plug into the receptacle. Do not connect

the earth terminal to the gas pipe and

tap water pipe.

3.Hang the drain hose up.

Using process

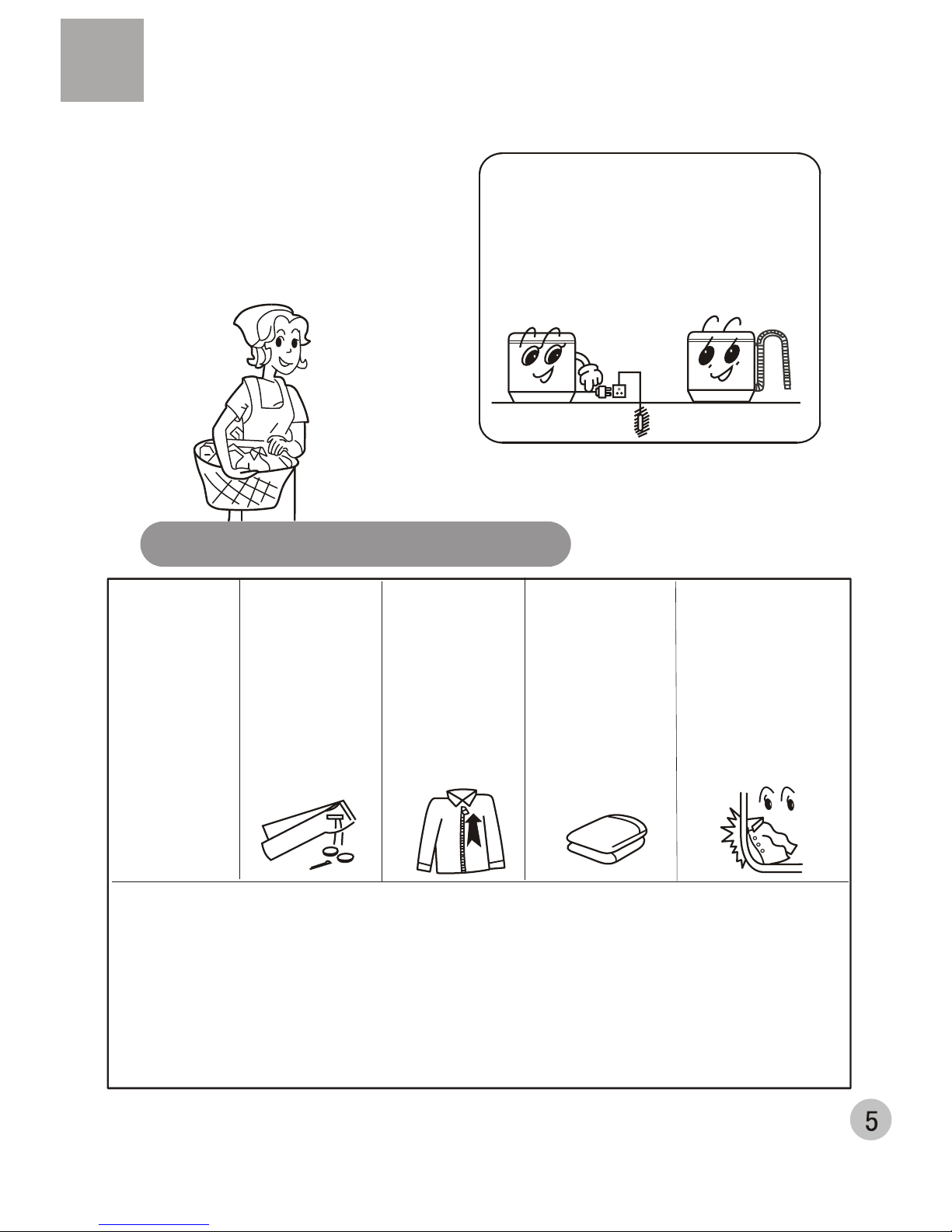

1 Preparation before washing

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

Thequantityof

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust.

For the parts with heavy soil, please apply detergent on them in advance, which

can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn it over before

putting in.

f. Do not put those laundries polluted by chemicals into the washing machine directly.

Reference weight of the laundries:

working suit up,down

jeans about 800g

The capacity of washing of the machine

refer to the largest weight of the standard

laundries under dry condition that can be

washed in one time. Laundries quantity

in one washing cycle shall be lower

than the rated capacity.

The thickness ,size , type of the cloth will

influence the actual washing capacity. It

is suitable to put in reasonable amount of

laundries and the laundries can be turned

round in washing for one time washing.

Do not select " Maximum " water level

for laundries less than 2.4kg, so as to

avoid splashing of water.

blending coat

about 800g

shirt jacket

single bed sheet

socking

underpants

undershirt

pajamas

blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

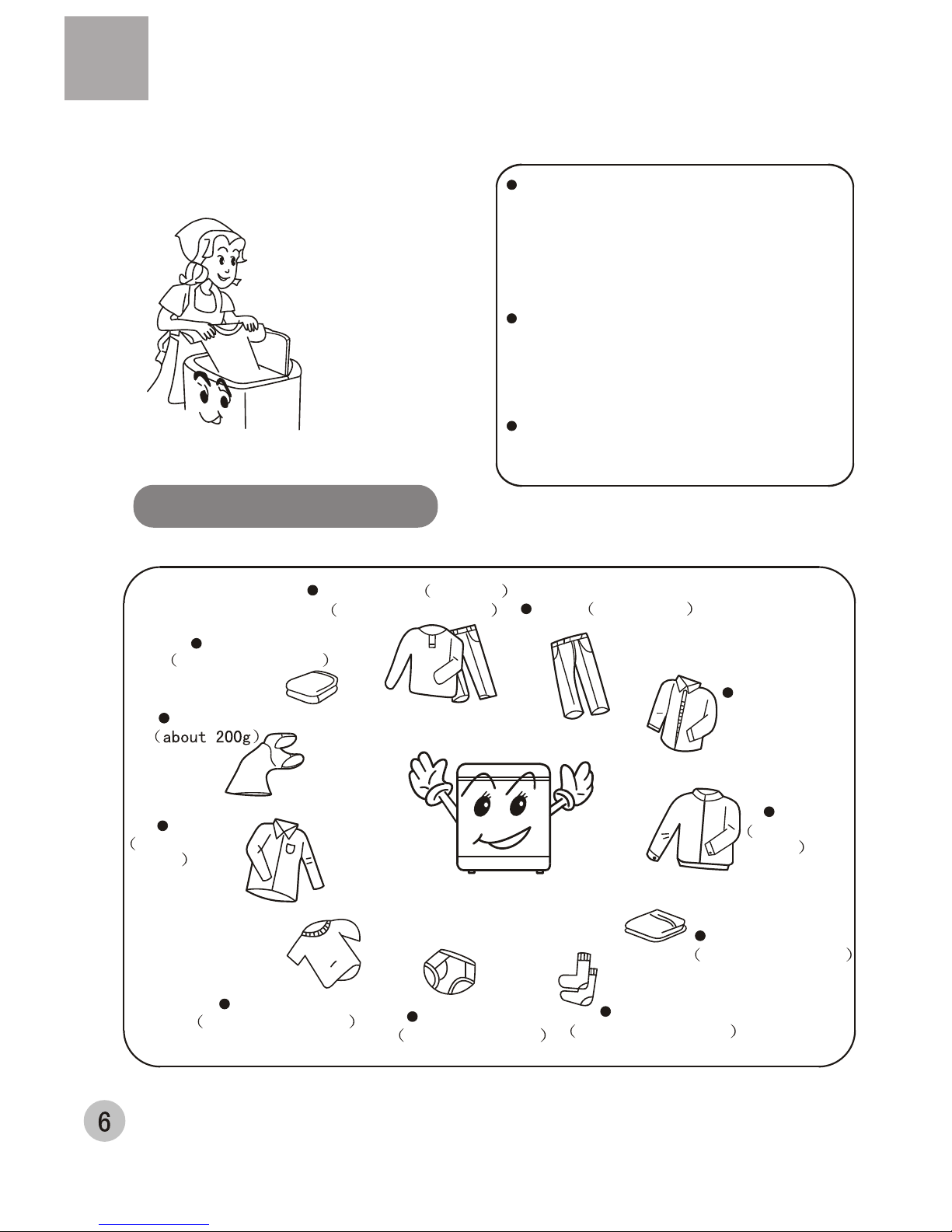

2 Put in the laundries

cotton,about 1120g

Selection of the quantity of the washing powder

How to use the washing powder

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the

washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30 seconds to

dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing powder:

1.Prepare warm water of 30 C and a container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

It is suggested not to use high sudsing

detergent.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener,please dissolve it before using.

Please select wash time according to the laundries.

Please select water current according to the laundries.

Laundries Wash time minutes

Knitwear/chemical fiber

Cotton,blending,linen

Very dirty and thick laundries

Bed sheet

Silk(thin laundries) About2 4~

About3~6

About7~13

About8~10

About10~13

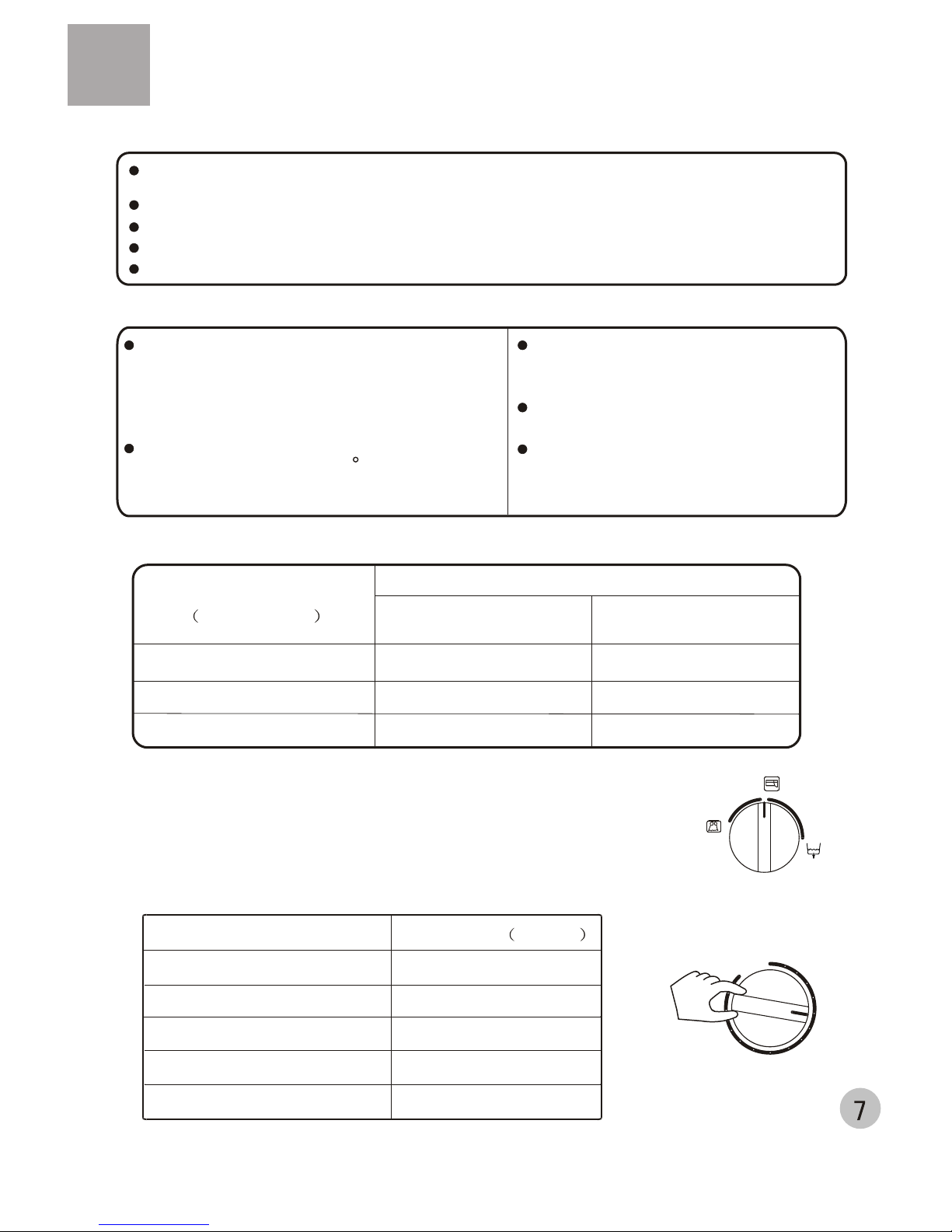

3 Put in the detergent

5 select the wash time

4 select the wash selector

Using process

Water level

Standard dosage

Concentrated washing

powder Common washing

powder

Water quantity

About About

Maximum (about83L)

Minimum (about49L)

Medium (about68L)

75g

61g

43g

83g

68g

49g

STANDARD

GENTLE

WASH SELECTOR

DRAIN

6 Close the top lid

7 Finish washing

8 Disposal after washing

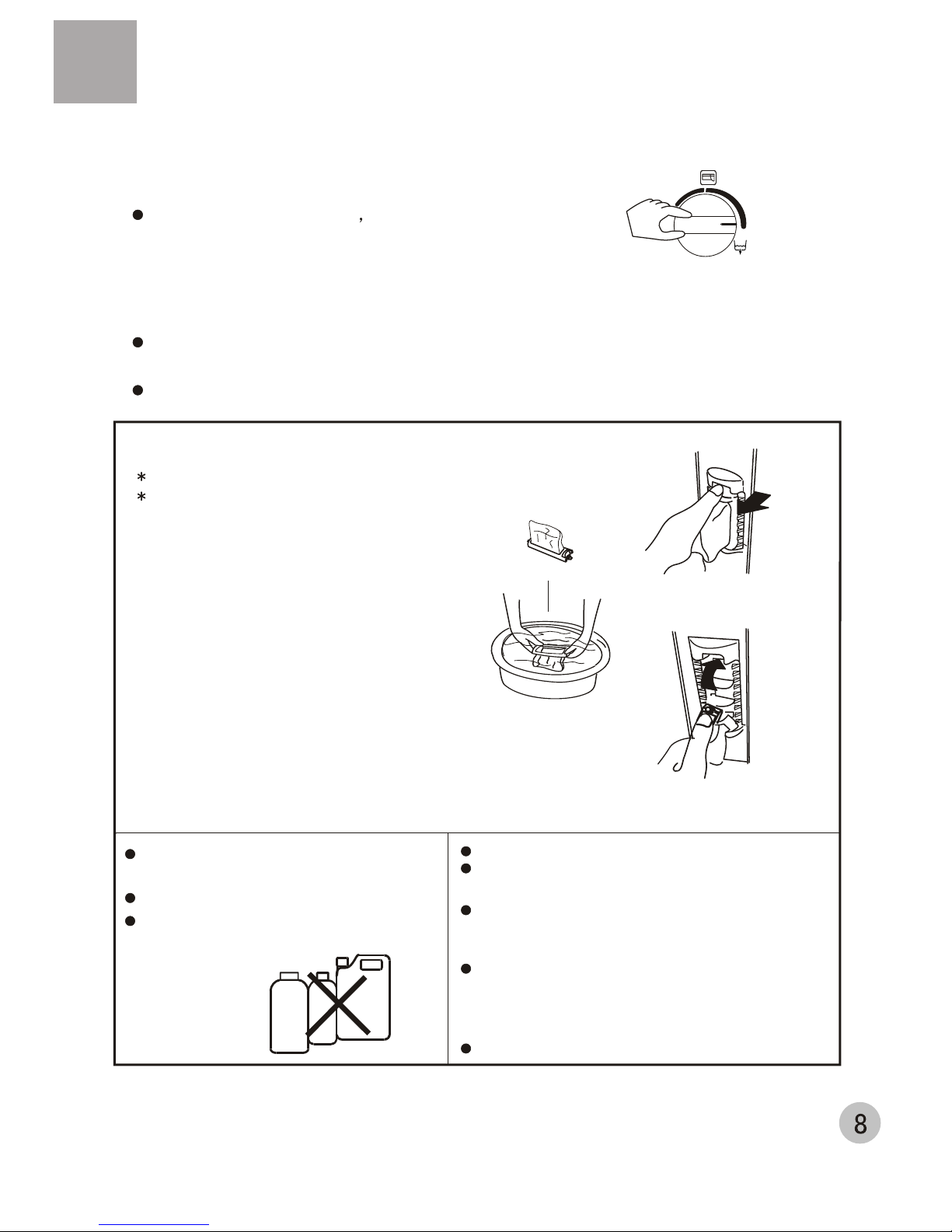

The pulsator stops rotating set the "WASH

SELECTOR" at "DRAIN".

After using, please clean the lint and foreign materials of the lint filter and lint frame in time.

Otherwise it may influence your using the machine.

Please first pull off the power plug from the receptacle before cleaning.

Thinner

Alcohol

Petrol

1. Take off the lint filter

Put hand at the indicated position.

Push down to take it off. (See to

Figure 1)

2. Clean the lint

Put it in water and clean while it is still

wet.(See to Figure 2)

Attention: be sure not to confuse the direction.

Wipe the complete unit with soft cloth

twisted dry.

Wipe with neutral detergent if too dirty.

After washing, dismount the water inlet hose.

Pull off the power plug and hang up the

power cord.

Do not store water in the tub for long period.

Discharge the water immediately after each

using.

Wipe off the water drops on the surface and

inside the tub with clean soft cloth. Open the

cover of the wash tub for some time (about

one hour), then close it.

Hang up the drain hose.

Do not wash it directly by water.

3. Install the lint filter

After cleaning, insert the bottom of

the lint filter (marked with "down side")

into the filter frame, then push the

upper part of the filter in (marked with

"up side"). (See to Figure 3)

The lint filter must be used during washing.

It must be cleaned in time after each using.

Cleaning the lint filter

Using process

Figure 2

Figure 3

Figure 1

DRAIN

STANDARD

GENTLE

WASH SELECTOR

Altri manuali per HWM80-35

Indice

Altri manuali Haier Rondella

Haier

Haier HWM65-0566 Manuale utente

Haier

Haier HLP24E Manuale utente

Haier

Haier HW-B1060TVE Manuale utente

Haier

Haier HWM75-78 Manuale utente

Haier

Haier XPB80-113S Guida utente

Haier

Haier HWM65-828 Manuale utente

Haier

Haier HSW-70S1 Manuale utente

Haier

Haier XQG50-QF800 - 07-01 Manuale utente

Haier

Haier HLP21E - Pulsator Wash With Tub Manuale utente

Haier

Haier Thermocool HMS1000TVE Istruzioni per la costruzione

Haier

Haier HW100-BDV14979S8U1 Manuale utente

Haier

Haier HWM130-9188DD Manuale utente

Haier

Haier HWM150-0623S Manuale utente

Haier

Haier HW80-B14266 Manuale utente

Haier

Haier HW-E1070TVE Manuale utente

Haier

Haier HMS1200TVE Guida rapida

Haier

Haier HWM120-0523S Manuale utente

Haier

Haier HW70-1003D S Manuale utente

Haier

Haier DWE-355 Manuale utente

Haier

Haier HW50-1010D Manuale utente

Haier

Haier HWM60-10 Manuale utente

Haier

Haier HLP21 Manuale utente

Haier

Haier HWM85-7288 Manuale utente

Haier

Haier HWM65-1128NZP Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
