WM7003A

User's manual

Computerized Full-auto

Washing Machine

Please read this manual carefully before using.

Retain it for future reference.

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

The manufacturer will not take responsibility for those

risks occurred from not obeying this manual.

Names of the parts.............the 2nd cover

Safety precautions .............................................1

Installation and adjustment .........................3

Install the water inlet hose............5

Preparation before washing ...............7

Put in the laundries .............................8

Put in the detergent ............................9

Use the operation buttons ...................10

Close the top lid .................................14

Finish washing ...................................14

Disposal after washing .........................15

Trouble shooting..............................16

Packing list.....................................17

Specification................the back cover

CONTENTS

Before using

Using process

Contents marked with that symbol are related to the safety of the product and the personal

safety of the users. Please operate in strict conformity to the contents.

Contents marked with that symbol are actions forbidden to perform. Performing of those

action may result in damage of the machine or influence the personal safety of the users.

Accessories

Meaning and description of the symbols

Cabinet

Drain hose

Hanging hole for

the drain hose Back cover

Fixing leg

(three pieces)

Adjustable leg

Adjustable leg film

Power cord

Handle

Control pannel sheet

Control pannel

Washbox

Pulsator

Lint filter fixing

Water channel

Filter cap

Top lid

Before Using

Names of the parts

Water inlet valve

Inner tub

Notice film

1 piece

8 pieces

bottom plate

Fastening screws

ST4X16-B

Water absorption

cushion

Water inlet hose (1 piece)

Water inlet hose joint (1 piece)

the end connecting to the washing machine

jointer connecting the water

inlet hose and the water faucet

the end connecting to the water

inlet hose jointer

Lint filter (1 piece)

The ventilation

holes at the bottom

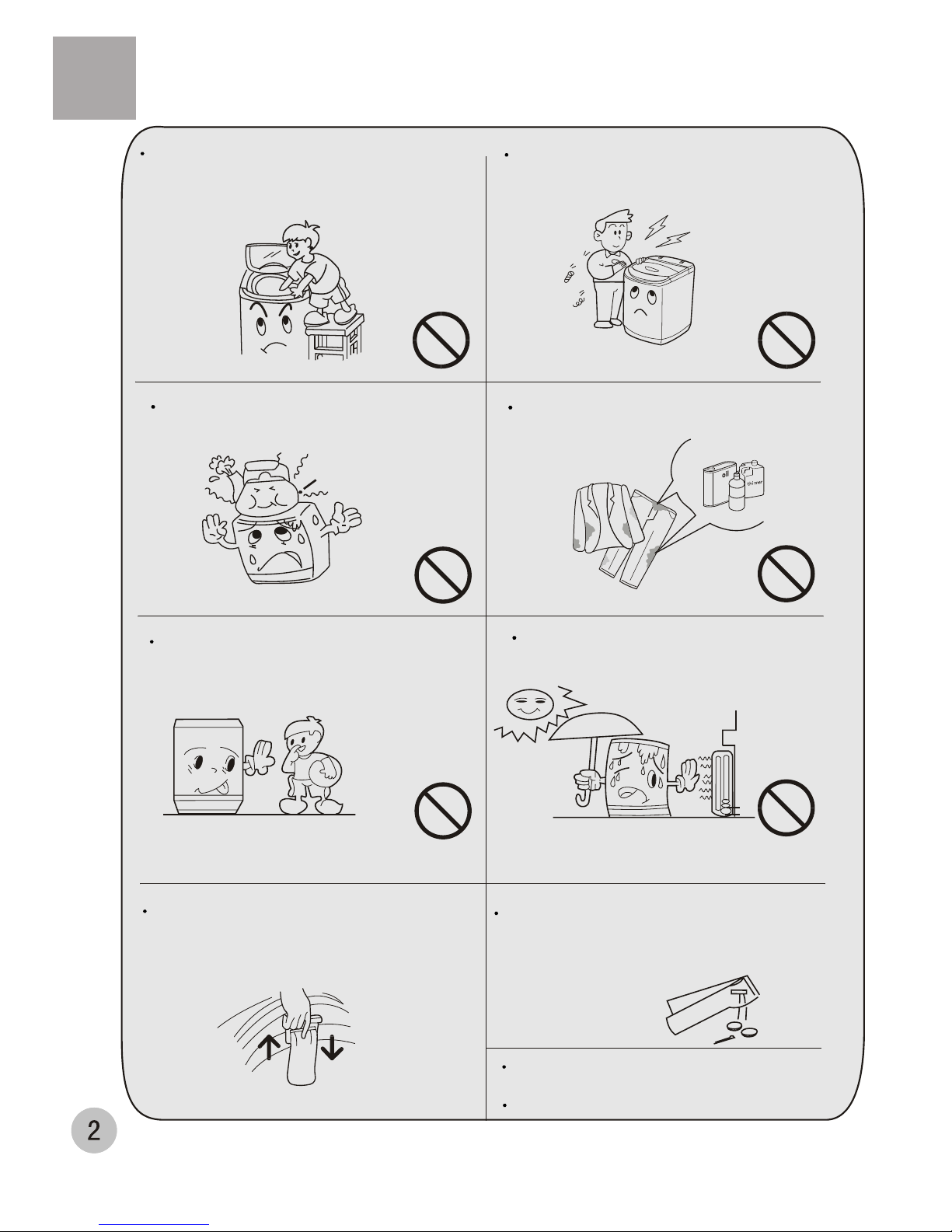

Before Using

Safety precautions

In case the washing machine is installed on ground with

carpet, do not block the ventilation hole with carpet.

Do not use water hotter than 50 C .

Do not bend, stretch, twist, bind the power cord by force, or reformit.

Do not press or clamp it with heavy items. If the power cord and power

plug are bad, or the receptacle is loose, be sure to have it replaced by

the technicians of our special shop or our agent,or the after-sales service

department to avoid any risk.Keep the prong of the power plug clean.If

dust is found on the power plug, please wipe it off with dry cloth.

In normal usage of the washing machine, the power

plug shall be ready to be pulled or plugged with hand.

Be sure to pull the plug off and close the water faucet

when occurring power failure,delivering the machine,

setting the machine idle or cleaning the machine,Do

not plug or pull the power plug with wet hand.

earth

Please plug the plug on special 220-240V AC receptacle.

Be sure to use three phase power receptacle.Ensure

the earthing prong of the power receptacle is earth-

ed reliably.Use leakage protector if possible.

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Do not wash water-proof laundry like the raincoat,

bikecovers, down textiles etc. To avoid abnormal

vibrations in spinning and damages to the laundries.

Do not let the machine share one receptacle with other

electric appliances. If the power plug is damaged, or

the plugging into the receptacle is loose, do not use

the plug any more.

Before Using

Safety precautions

Do not put hand into the rotating tub.It is dangerous

even if the rotation speed is slow. Take special care of

the children. Keep children away from the washing

machine to avoid them climbing on.

Do not decompose, repair or alter the machine by

yourself.

Do not put any hot or heavy items (such as the

kettle with hot water) on the washing machine.

Do not wash laundry with volatile materials

(such as thinner, petrol etc.).

Keep the machine away from direct sunlight and

heat source like the heater.

The handicapped or children without care shall not

use the machine.

Please keep the lint filter in good condition, and

install it to proper position during washing. If the

lint filter is lost or damaged,please contact the local

after-sales service department of our company.

Benzene

Before Using

Safety precautions

To protect your laundries and washing machine,

please take out all of the coins, buttons, sand, hairpin

and other foreign materials before washing.

Please check if the water faucet is open, and if the

connection of the water inlet pipe is proper.

It is suggested to use foamless washing powder.

Dismantle Install

Install the bottom plate

Install the lint filter

Adjust the Installation position

Screw

Back

Front

bottom plate

Soft object

Please install and adjust the machine according to the requirement of the mannual.

It is very important to your security and correct operating the machine.

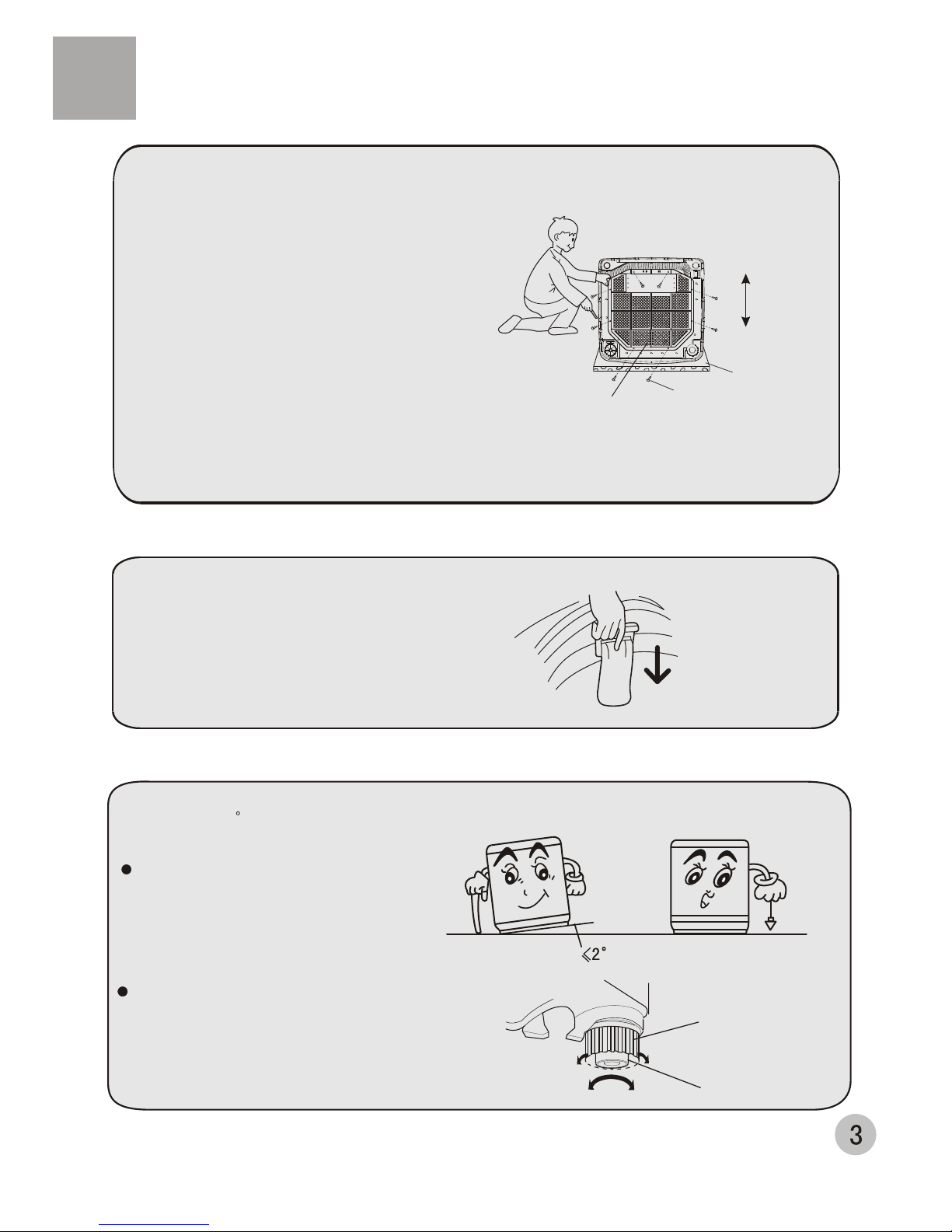

Before Using

Installation and adjustment

After open the package, please lean the

washing machine gently down to soft

items (towel cloth, blanket, etc.). Install the

bottom plate to the bottom of the machine

with the eight screws by a cross

screwdriver, then lift the machine up gently.

See to the figure.

The washing machine away from wall should be overrun 20mm.The largest allowable slope of the shank base of

the machine is 2 .The slanting or rough ground will result in unstable running or stoppage of the machine.

Please adjust it with following methods:

Confirm it's horizontal:

Hang the lead line to check if it is

horizontal.

Adjust the adjustable foot:

FastenLoosen

High Low

the adjustable nut

the adjustable foot

1 .To twist the adjustable leg, please first lift up the

side of the foot slightly, loosen the adjustable nut,

and twist the foot.

2 .After adjustment, fastenthe nut.

Install the lint filter in the balance ring.

(See to the right figure)

Install

The drainage shall be smooth with the drain hose.

The height of the drain hose shall be less than 10cm,

or the drainage will not be smooth, and cost such long

time that the machine may stop at mid way.

Do not step on or press the drain hose.

If extra drain hose is needed, please make separate

purchase. The inner diameter of the extra hose shall

not less than 30mm, and the length shall not exceed 1.5m.

If the extra hose is too long,

cut it either at A or at B point.

<10cm

> 30mm

<1.5m

How to change the direction of the drain hose

Back

Front

The bottom plate

Soft object

Figure 1

Page 3

If the drain hose is too long, cut it at mid point. To make

smooth drainage, cut the front end of the hose slantingly.

Use this side groove after

change the direction.

Fix the drain hose

onto the groove.

Useage the drain hose

Before Using

2.Pull out the drain hose from the right side groove.

3.Extend the drain hose out from the left side

4.Install the bottom plate (method as stated in P3).

Lift up the machine gently.

1.Disassemble the bottom plate.

Lean the machine down gently with the front

surface facing the ground. Loosen the eight

screws by a cross screwdriver.

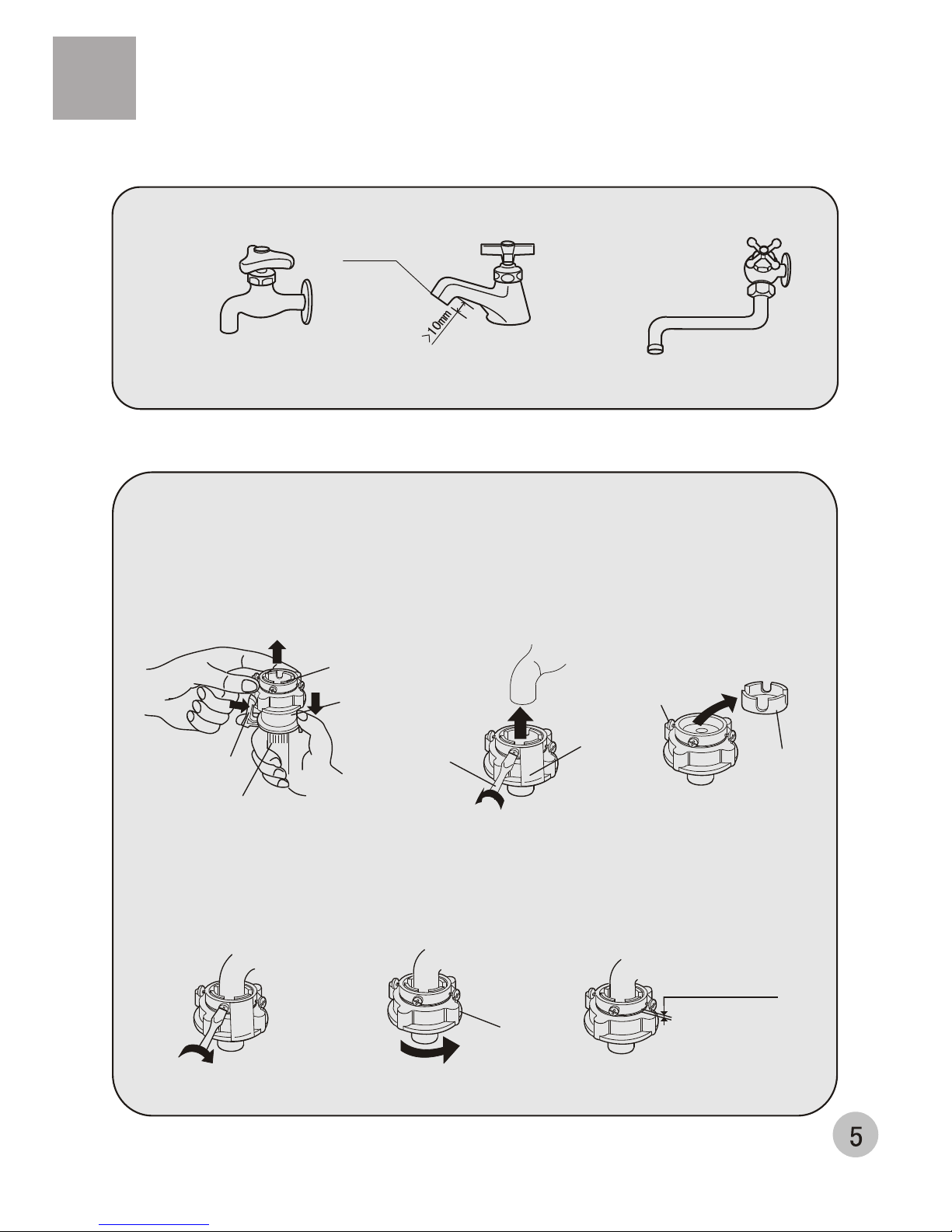

The exit end face of the faucet

Confirm the water faucet

Connection between the water inlet hose jointer and the water faucet

water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.

2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.

See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen

the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth,

otherwise it may leak water. See to Figure 3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3.Fasten the four screws evenly. See to Figure 4.

About 4mm before twisting

remark: Before installation, the threading is 4mm above the upper surface of the nut.

After installation, the threading is 2mm above the upper surface of the nut..(see to figure 6)

About less than 2mm after twisting

water inlet hose jointer

Screw knife

Screw

Bushing

Sign plate

Screw nut

water inlet hose

Figure 1

Figure 4

Figure 2

Figure 5

Figure 3

Figure 6

Slider

Lock lever

Before Using

Install the water inlet hose

4 Take off the sign plate. Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

Use the newwater inlet hoseprovided with themachine to connectto the waterfaucet.Old hose sets

should not bereused.

Connection between the water inlet hose and the washer

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose

and the water inlet hose

Check the connection between the jointer of the water inlet hose

and the water faucet

1.Do not take off the water absorption cushion. Please check if the

cushion is dropped or damaged before each usage. If it happens

please contact our after-sale department immediately.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

1.Push down the slider. Insert the water inlet hose into the jointer.

2 Hang the lock lever to the jointer. Release the slider till a click

sound is heard.

Locking lever

Slider

water absorption

cushion.

nut of thewater

inlet hose

the jointer of the

water inlet hose

Slider

Locking lever

jointer of the

water inlet valve

1. Close the water faucet.

2. Press the locking lever. Push down the slider. Then pull of the water inlet

hose.

If the machine is used frequently, the jointer of the water inlet hose can be

kept

on the faucet to prevent damaging the fixing screw.

Before Using

2 Put the nut of the water inlet hose on the valve jointer.

3 Fasten the nut. Swing it gently to confirm if it's suitable.

4.Before each usage please check if the connection

between the jointer of the water inlet hose and the

water faucet, and the installation of the water inlet

hose are firm, so as to prevent dropping from

improper installation position.

Using process

1 Preparation before washing

Confirm if there's

special requirement

for the laundries.

Clear the pocket.

Take out the coins ,

sand,hairpins etc.

Fasten the buttons

and zippers.

When the pulsator is

running ,the buttons of

the laundries may cause

noise. For the sake of

discretion ,please put

the laundries with

buttons into other

laundries.

Preparation before washing

The quantity of the

laundries shall not

exceed the rated

value. The big

laundries like the

jeans shall be put

in loosely.

Pay attention to followings before washing the laundries

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries with unfast color from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust. For the parts with heavy soil,

please apply detergent in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn it over before putting in.

f. Do not put those laundries polluted by chemicals directly into the washing machine.

g. For those small laundries and those may get twisting or worn, and woolen/fur laundries, please put them into

mesh bag for washing.

Reference weight of the laundries:

working suit up,down

jeans about 800g

The capacity of washing of the machine refer to the

largest weight of the standard laundries under dry

condition that can be washed in one time. Laundries

quantity in one washing cycle shall be lower

than the rated capacity. The largest

capacity of this machine is 7.0kg.

The thickness ,size , type of the cloth will influence the

actual washing capacity. It is suitable to put in

reasonable amount of laundries and the laundries can

be turned round in washing for one time washing.

Do not select above" 8 " water level for laundries

less than 2.0kg ,so as to avoid splashing of water.

blending coat

about 800g

shirt jacket

single bed sheet

socking

underpants

undershirt

pajamas

blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

about 200g

Using process

2 Put in the laundries

cotton,about 1120g

Indice

Altri manuali Haier Rondella

Haier

Haier HWM70-9288 Manuale utente

Haier

Haier HWM105-0626S Manuale utente

Haier

Haier HW-D1070TVE Manuale utente

Haier

Haier HLPW028AXWP Manuale utente

Haier

Haier HW-C1270TVEME Manuale utente

Haier

Haier HWM170-B278S6 Manuale utente

Haier

Haier HW-D860TVE Manuale utente

Haier

Haier HW-C1070TVE Manuale utente

Haier

Haier HW90-SB1230N Manuale utente

Haier

Haier HW100-B14266A Manuale utente

Haier

Haier HWM6802 Manuale utente

Haier

Haier QFQ100 Manuale utente

Haier

Haier HK1007TVE/ME Manuale utente

Haier

Haier CANDY CSS4 1272D3/1-S Scheda tecnica

Haier

Haier B629TX Guida all'installazione

Haier

Haier HNS1002A Guida rapida

Haier

Haier HAS1000TVE Manuale utente

Haier

Haier HW-CS850TXVE Manuale utente

Haier

Haier HLP20E - Pulsator Washer Manuale utente

Haier

Haier HW60-12829S Manuale utente

Haier

Haier HWM60-10866 Manuale utente

Haier

Haier HMS1000TVE/ME Manuale utente

Haier

Haier HWM95-113S Manuale utente

Haier

Haier HNY500TX Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
