Haier XPB88-LS Manuale utente

User's manual

XPB88-LS

Twin-tub Washing Machine with Pump

Names of the parts.............the 2nd cover

Safety precautions ...............................1

Installation and adjustment ..................3

Introduction of the major functions .......5

Preparation before washing ................6

The musts in washing .........................7

Usage of the detergent .......................8

Washing sequence ..............................9

Disposal after washing .......................13

Contents

Before using

Using process

Trouble-shooting

Answers to question.....................15

Specification..............the back cover

Packing list ......................................17

Please read this manual carefully before using.

Retain it for future reference

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

The manufacturer will not bear the responsibility for

those risks occurred from not obeying this manual.

Before Using

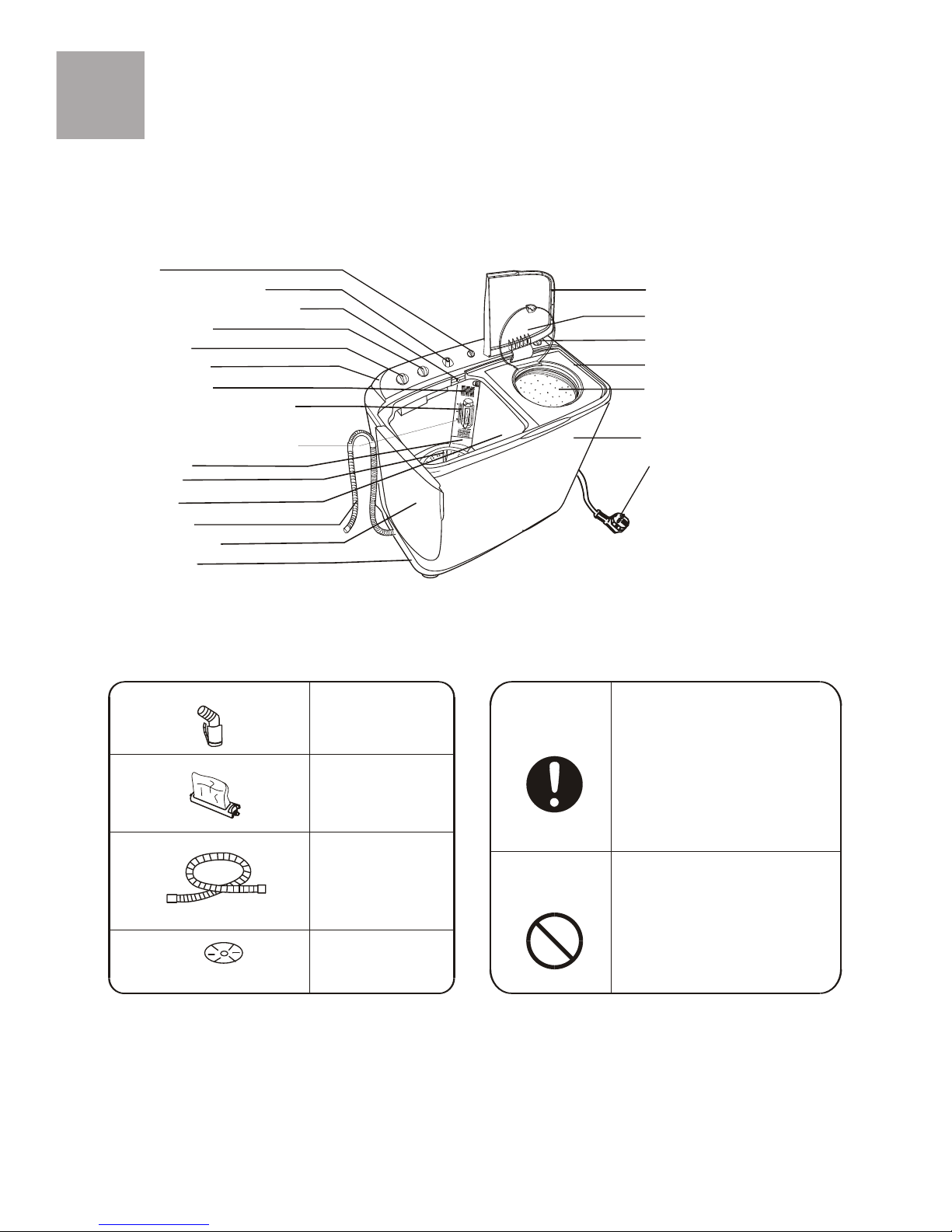

Names of the parts

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol

are related to the safety of the

product and the personal safety

of the users. Please operate in

strict conformity to the contents,

otherwise it may cause damage

of the machine or injure the

personal safety of the user.

Contents marked with that symbol

are actions forbidden to perform.

Performing of those actions may

result in damage of the machine

or injure the personal safety of

the user.

Accessories

Water-filling jointer

(one piece)

Lint Filter

(one piece)

Water inlet hose

(one piece)

Gland

(one piece)

Buzzer

Water-filling entrance

Water inlet selector handle

Water selector

Wash timer

Control panel

Overflow filter

Water level adjusting lever

Lint filter(Installed by user)

Valve cover

Pulsator

Wash tub

Drain hose

Wash tub cover

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Power cord

Base frame

Before Using

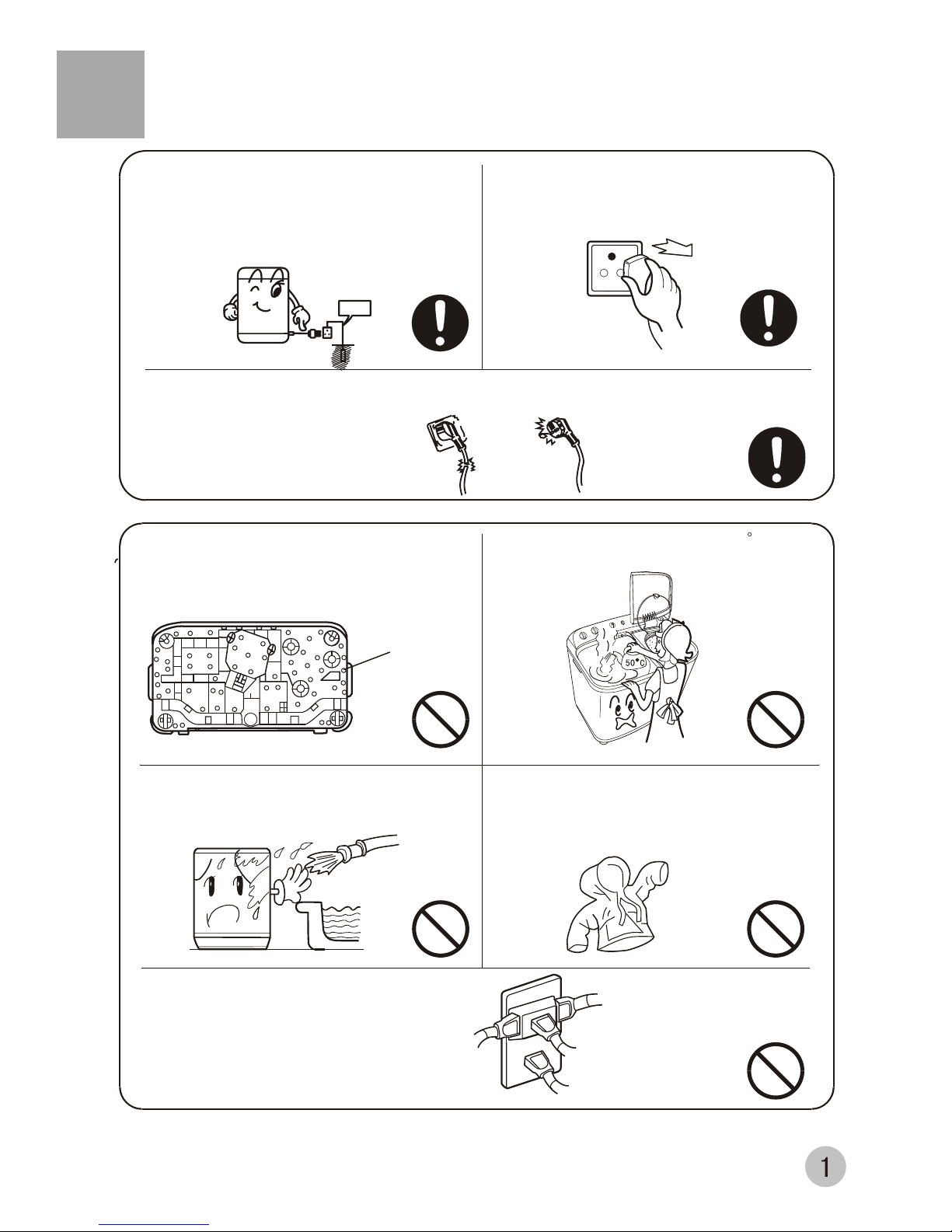

Safety precautions

If the power cord is bad, to avoid risk it is required to replace it by the technicians

of our special shop or the after-sale service department. Keep the pin of the power

plug clean.

Do not put the machine at damp place

like the bathroom . Never wash it with

water.

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Be sure to pull the plug off when there's

power failure, or the machine is being

moved, cleaned or when it is idle.

Do not use water hotter than 50 C .

Do not share one receptacle with other

electric appliances. Do not use it in

case that the power plug is damaged

or the inserting into the receptacle is

loose.

Do not wash water-proof laundries such

as the raincoat, bicycle shelter etc. To

avoid abnormal vibration during spinning.

Earth

Please insert the power cord into special recep-

tacle with rated voltage.Be sure to use single

-phase three pins receptacle.The earthing ter-

minal of the receptacle must be earthed reliably.

If possible,please adopt electric leakage protector.

Before Using

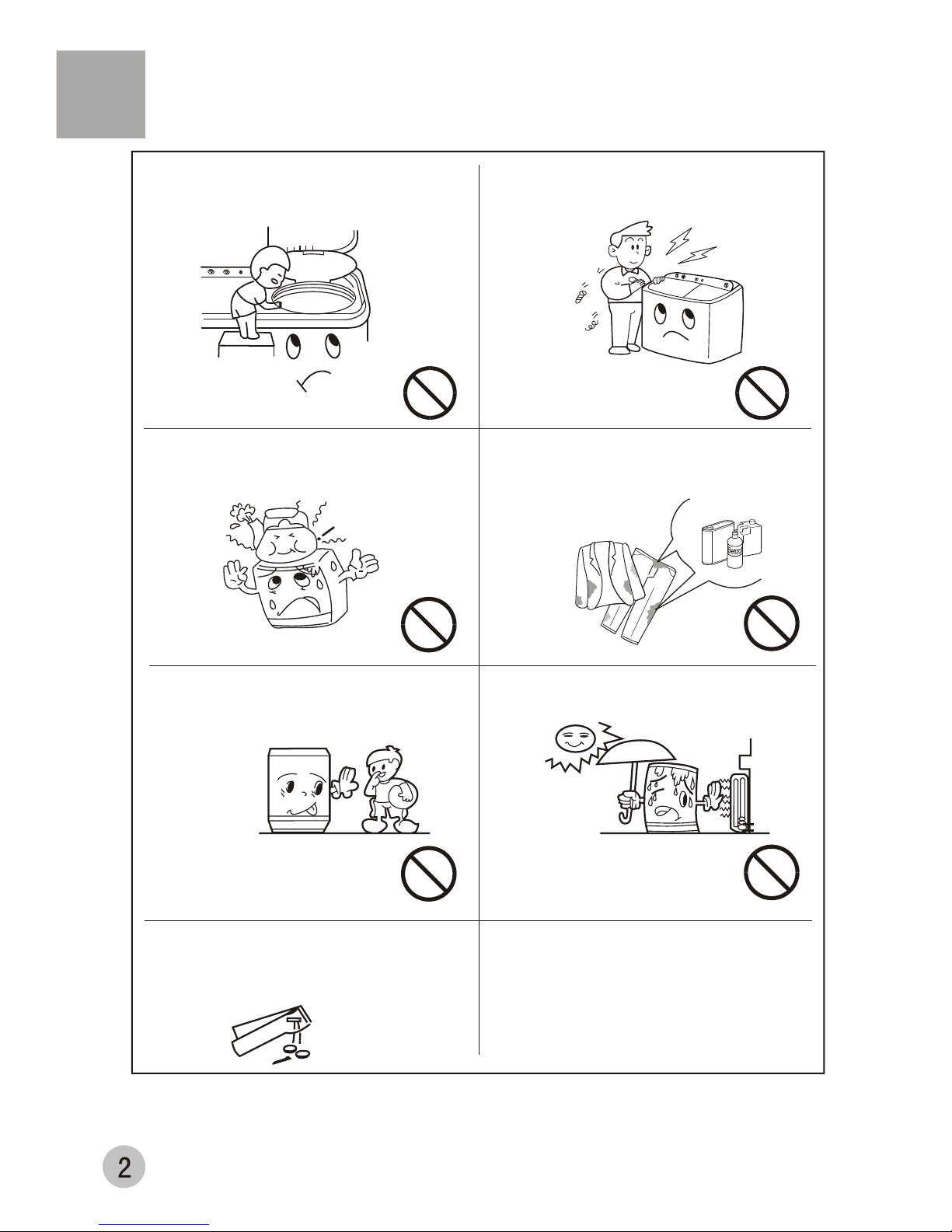

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Handicapped or children without care

shall not use the machine.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

Safety precautions

Please check if the water faucet is open, and if

the connection of the water inlet pipe is proper.

It is suggested to use foamless washing powder.

To protect your laundries and washing

machine, please take out all of the coins,

buttons, sand, hairpin and other foreign

materials before washing.

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Usage of the drain hose

Before Using

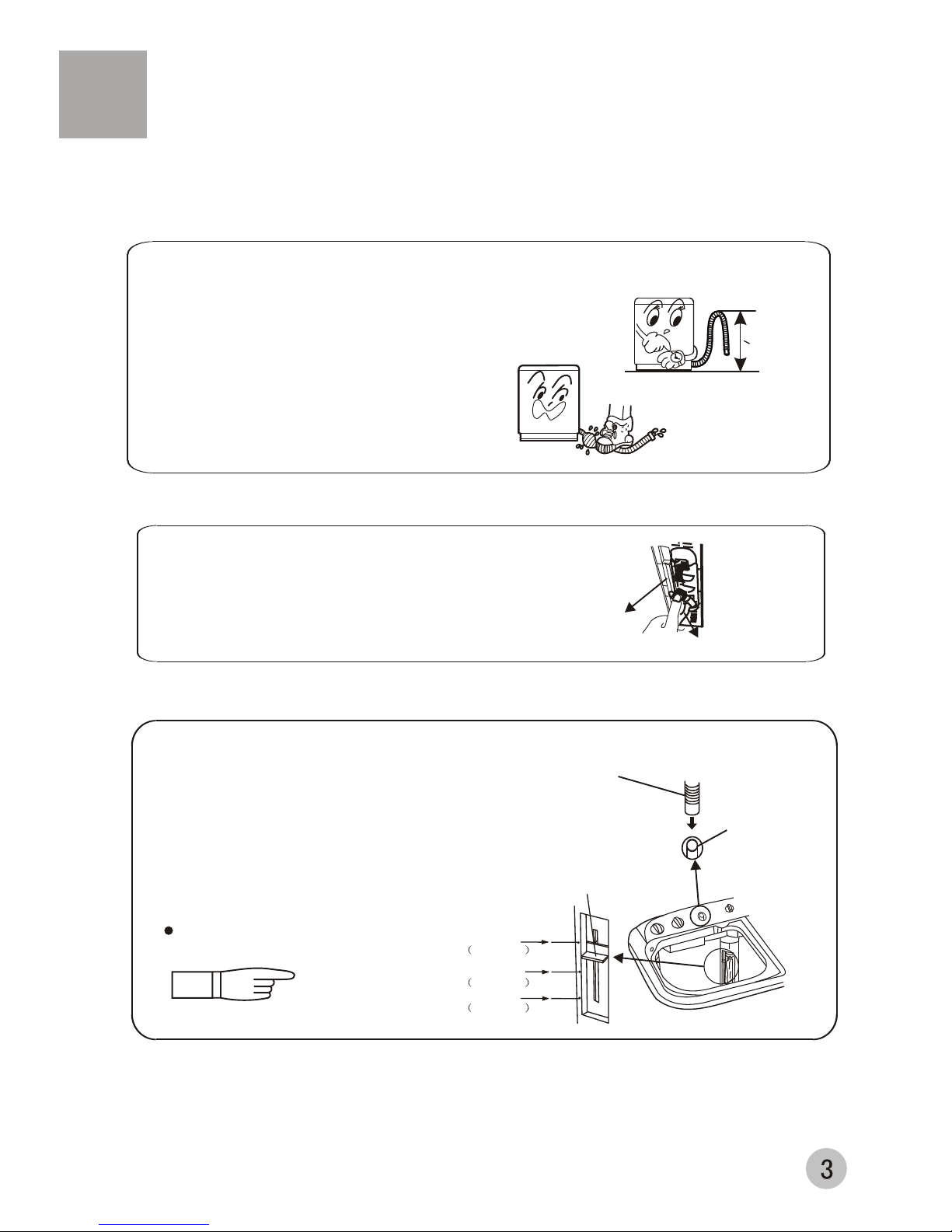

Installation and adjustment

Install the lint filter

After opening the package,pllease take out the lint filter from

the document bag,install it to the overflow filter of the wash

tub.See to the figure.

After opening the package,pllease take out the lint filter from

the document bag,install it to the overflow filter of the wash

tub.See to the figure.

Overflow filter

Lint filter

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be less than 1.2m , or the drainage will

not be smooth enough and cause incomplete drainage.

2.Do not step on or press the drain hose.

<1.2m

Install the water inlet hose; Select the water level

Page8

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever

to needed line.

Water inlet hose

Water inlet entrance

Maximum Max

about 43L

about 36L

about 30L

Minimum Min

Medium Med

Water level

indicator

Insert the water inlet hose into the water-filling

entrance on the control panel.

Extend the drain hose from the rear side

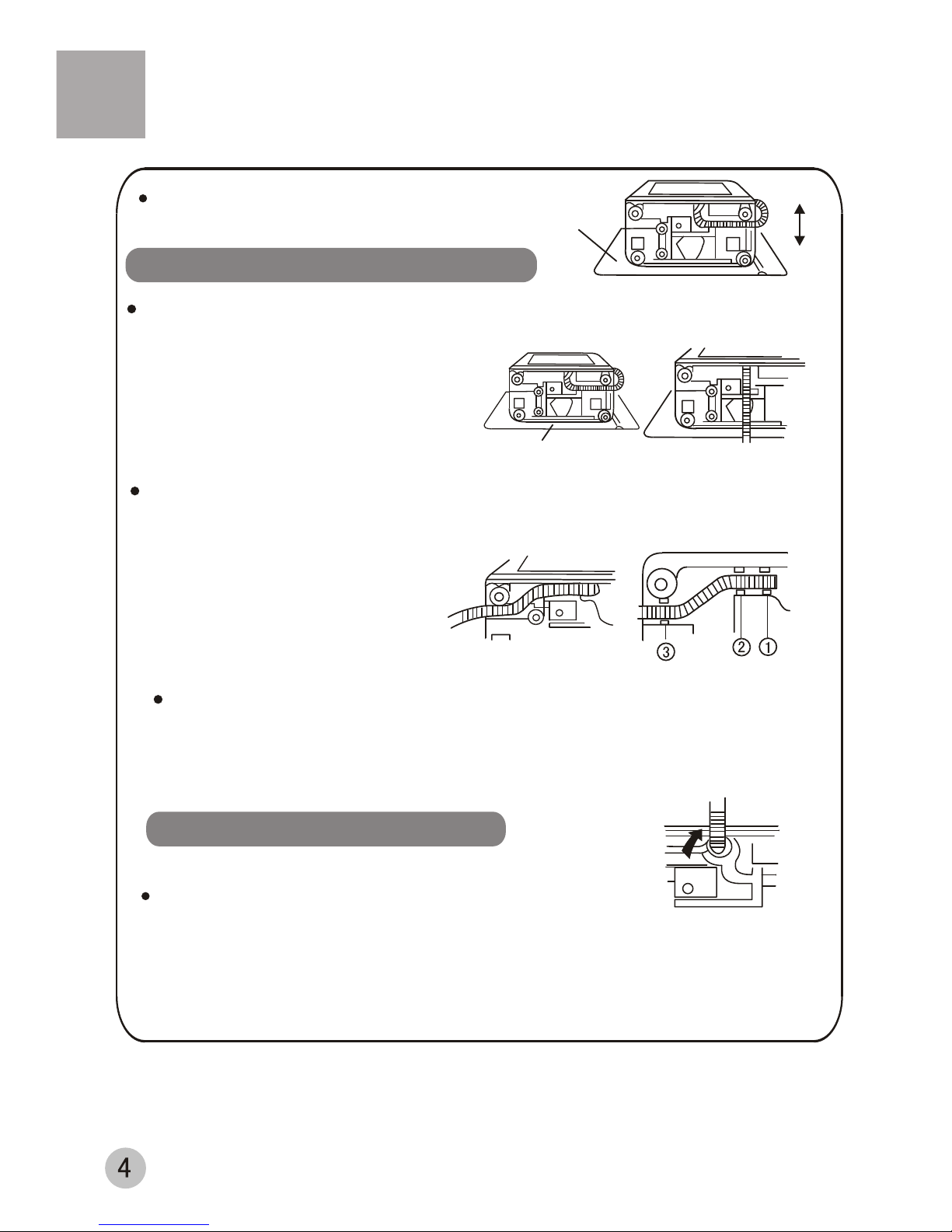

How to change the direction of the drain hoses

Figure 1 indicates the ex factory installation

position of the drain hose.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Take the hose out of the fixing groove.

(See to Figure 2).

Embed the drain hose into the groove along the side

of the spin tub in the order of (1)~(3), heading for the

side of the spin tub. (See to Figure 3).

Embed the drain hose into the groove with

hands. Take care not to damage the drain

hose in fastening the fixing clamp.

Figure 1

Figure 4

Back

Before Using

Extend the drain hose from the side of spin tub

Soft item

Figure 2

Soft item

Figure 3

Embed into the

groove in turn

Extend to the

spin tub side

Take out the drain hose from the fixing groove. Extend it from

the rear side as per the direction of the arrow. (When the drain

hose is extended from the rear side, it can be hung on the

point for drain hose at the two sides of the cabinet.)

(See to Figure 4).

Front

Quick water-filling entrance

If you do not need spraying spin, you can

fill water into the wash tub directly through

this entrance. It can reduce the humidity

inside the control panel significantly and

prolong the operating life of the components.

Quick water-filling entrance

Using process

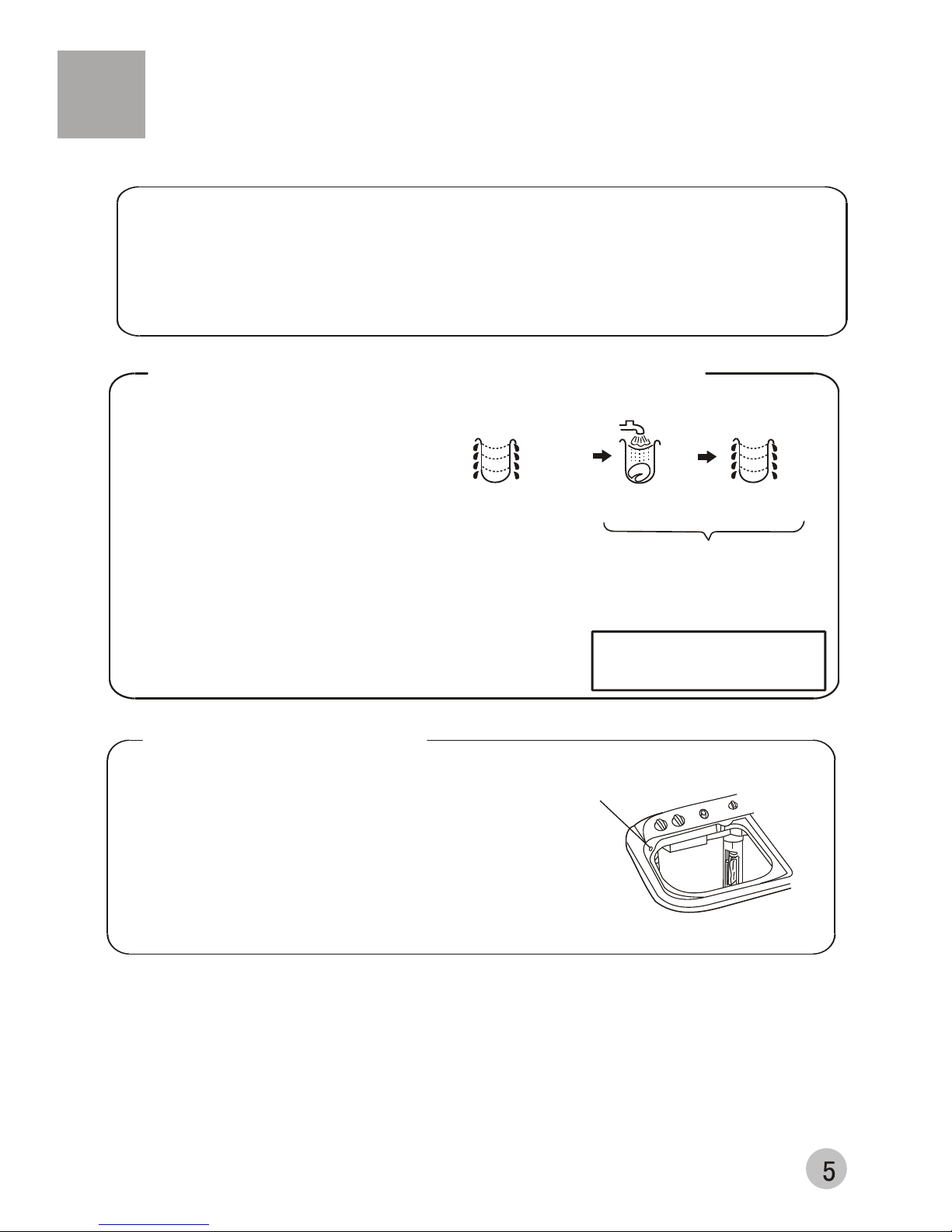

Introduction of the major functions

The machine has good comprehensive performance, and nice appearance.

It adopts complete enclosed base frame and low-noise motor, and thus reduces the

working noise significantly. We can guarantee that the purchase of this machine will bring

you a clean world without disturbing your quiet life.

Foam-removing spinning during high-efficiency rinsing

Use the foam-removing spinning to

remove the extra detergent liquid. It can

both shorten the washing time and save

the water consumption.

Foam-removing

spinning

Remove most of the foam

extra detergent liquid. it can

both shorten the washing

time and save the water

consumption.

Remove the detergent

liquid remained

The effect is best when the

laundries quantity is below

80% of the rated value.

Spin

Spin for about

1~2 minutes Fill water for

about 1 minutes Spin for about

1~2 minutes

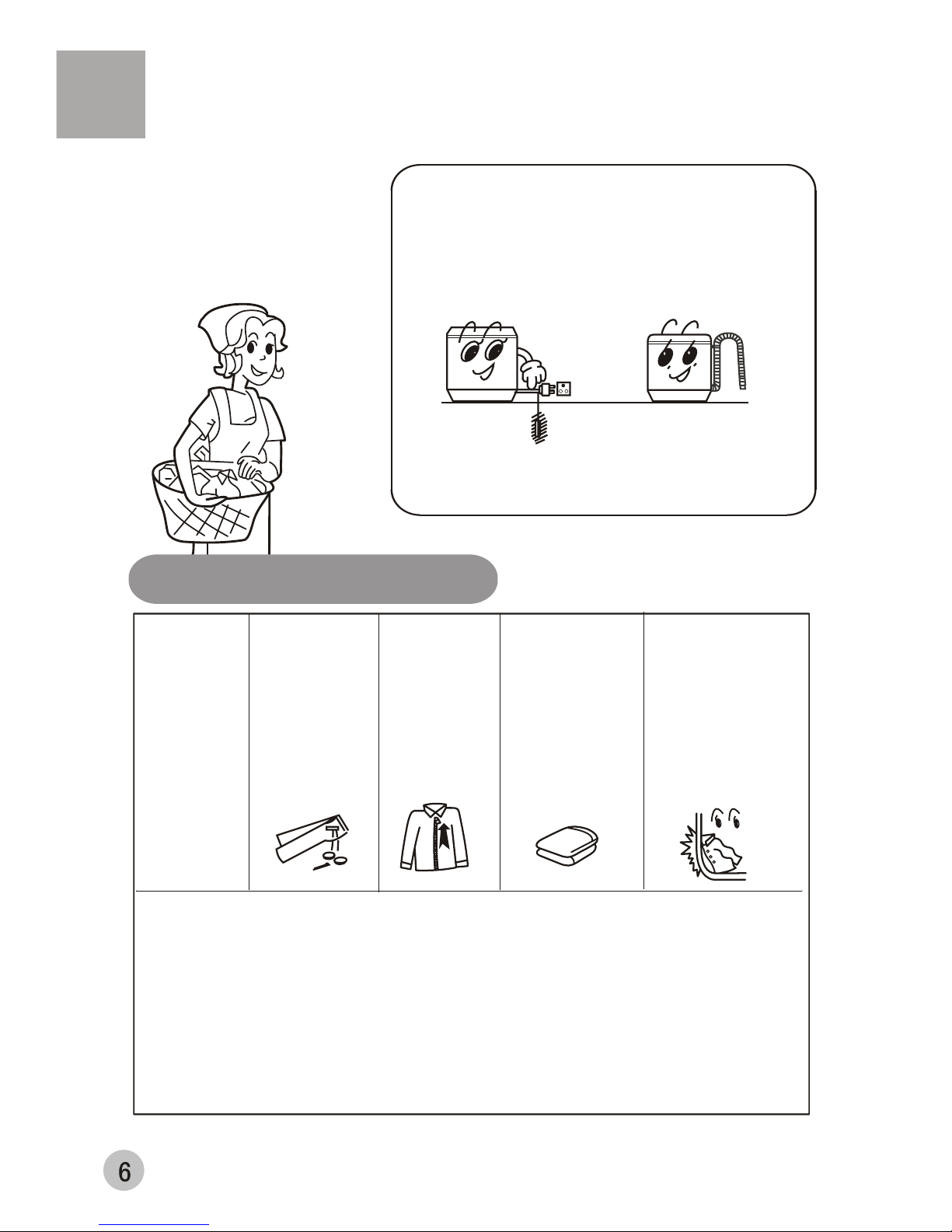

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put the drain hose up to suitable position.

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Using process

Preparation before washing

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

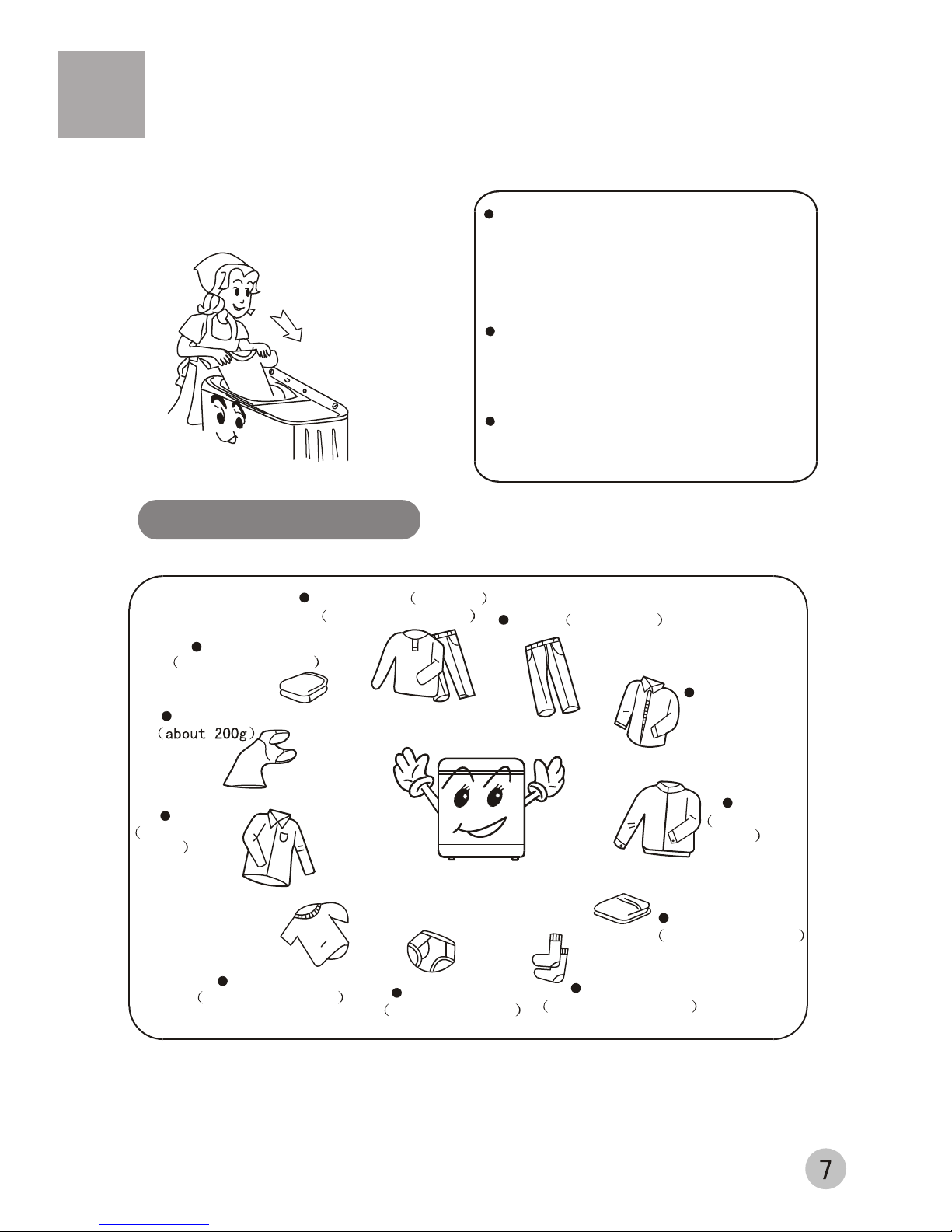

Reference weight of the laundries

Working suit up,down

Jeans about 800g

The capacity of washing and spinning of

the machine refer to the largest weight of

the standard laundries under dry condition

that can be washed or spinned in one time.

Laundries quantity in one washing cycle

shall be lower than the rated capacity.

The thickness ,size , type of the cloth will

influence the actual washing capacity. It

is suitable to put in reasonable amount of

laundries and the laundries can be turned

round in washing for one time washing.

Do not select " Maximum " water level

for laundries less than 2.4kg, so as to

avoid splashing of water.

Blending coat

about 800g

Shirt Jacket

Single bed sheet

Socking

Underpants

Undershirt

Pajamas

Blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

The musts in washing

cotton,about 1120g

Selection of the quantity of the washing powder list 1

Selection of the current , water level and washing time list 2

How to use the washing powder

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the

washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30 seconds to

dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing powder:

1.Prepare warm water of 30 C and a container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

It is suggested not to use high sudsing

detergent.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener, please dissolve it before using.

Laundries

quantity

Laundries

quantity

Water level

Current

Standard dosage

Concentrated washing

powder

Laundries

Common washing

powder

Washing time

(minutes)

Water quantity

About About

About3~6

About8~10

About10~13

About7~13

About2~4

About3~6

About8~10

About About

3.6kg~8.0kg

2.4kg~8.0kg

2.0kg~3.6kg

Below2.0kg

Below2.4kg

Maximum (about43L)

Strong

Minmum (about30L)

Minimum (about30L)

Standard

Medium (about36L)

36g

30g

25g

43g

36g

30g

Usage of the detergent Using process

Using process

Knitwear

Cotton,blending,linen

Very dirty and thick

Bed sheet

Silk(thin laundries)

Chemical fiber

Cotton,blending,linen

Indice

Altri manuali Haier Rondella

Haier

Haier XPB60-23S Manuale utente

Haier

Haier HWM110-0713P Manuale utente

Haier

Haier XQBM22-C Manuale utente

Haier

Haier HWM65-0523K Manuale utente

Haier

Haier HLT23E1 Manuale utente

Haier

Haier GWT950AW Istruzioni per il montaggio

Haier

Haier HW75-BD12756NZP Manuale utente

Haier

Haier HWM68-0523K Manuale utente

Haier

Haier HWM60-F14N Manuale utente

Haier

Haier XQG50-QF800 Manuale utente

Haier

Haier LMA6120WPBB0 Manuale utente

Haier

Haier 636 Series Manuale utente

Haier

Haier HWM100-0626S Manuale utente

Haier

Haier AWT-120LI Manuale utente

Haier

Haier LMDR8124PBAB0 Manuale utente

Haier

Haier HWM100-1701R Manuale utente

Haier

Haier B1000TX Manuale utente

Haier

Haier XQB50-20 Manuale utente

Haier

Haier HWM140-1678S Manuale utente

Haier

Haier HTD1268 Manuale utente

Haier

Haier HWM80-68B Manuale utente

Haier

Haier M5001T Manuale utente

Haier

Haier B629TX Guida all'installazione

Haier

Haier XQJ85E Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
