Haier XQB100-96 Manuale utente

XQB100-96

User's manual

Automatic Washing Machine

Troubleshooting Answer to question.....12

Names of the parts....................the 2nd cover

Safety precautions .............................1

Installation and adjustment .......................3

Install the water inlet hose..................4

Packing list ..........................13

Using process

Contents

Before using

Preparation before washing ..................6

Put in the laundries .........................7

Put in the detergent ..............................8

Close the top lid ..............................8

Select water level............................9

Press the POWER button.......................9

Select program.................................9

Press the START/PAUSE button..............10

The washing is finished .......................10

Disposal after washing ................................11

Specification....................the back cover

Please read this manual carefully before using.

Please retain it for future reference.

Please check if the power receptacle is earthed

reliably before usage to guarantee your safety

The manufacture is not responsible for any risks

occurred owing to disobey these stipulations.

Before Using

Names of the parts

Adjustable foot

(four pieces)

Power line

Water inlet valve

Water absorption

cushion

Drain hose joint

Meaning and description of the symbols

Warning sign

Prohibition sign

Contents marked with that symbol

are related to the safety of the

product and the personal safety

of the users. Please operate in

strict conformity to the contents,

otherwise it may cause damage

of the machine or injure the

personal safety of the user.

Contents marked with that symbol

are actions forbidden to perform.

Performing of those actions may

result in damage of the machine

or injure the personal safety of

the user.

Accessories

Honourable users:

Thank you for choosing our products.

Our products integrade high-tech, precision frontier science.To facilitate using it, please

read this manual carefully and operate this machine according to it.

Power switch

Program selector

Bleach injection inlet

Cabinet

Control panel

Control panel seat

Inner tub

Top lid

Water level knob

Control foot of door switch

Pulsator

Start/Pause switch

Outer drain

hose component

(one)

Drain hose

clamp

(one)

Door switch

the end connecting to

the water inlet hose jointer

the end connecting to

the washing machine

jointer connecting the

water inlet hose and

the water faucet

water inlet hose

(one)

Water inlet

hose jointer

(one)

Lint filter

(one)

Before Using

Safety precautions

If the power line is bad, to avoid risk it is required to have it replaced by the technicians

of our special shop or our agent or the after-sale service department. Keep the pin of

the power plug clean.

Do not use water hotter than 50

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Ensure that the earth terminal of the power

receptacle is earthed reliably.

Be sure to pull the plug off when the machine

is idle or when cleaning the machine. Plug

prongs shall be kept clean.

Do not put the machine at damp place

like the bathroom . Never wash it with

water. Do not place wet laundries on the

control panel.

Safety precautions

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Petrol

Thinner

To prevent your laundries and washing

machine from damages, be sure to take

out all of the foreign materials from your

pocket, such as coins, buttons, sand or

hair pins etc. Before washing, please check if the

water tap is open, and if the water inlet

pipe is connected properly.

It is suggested to use low-foaming

washing powder.

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

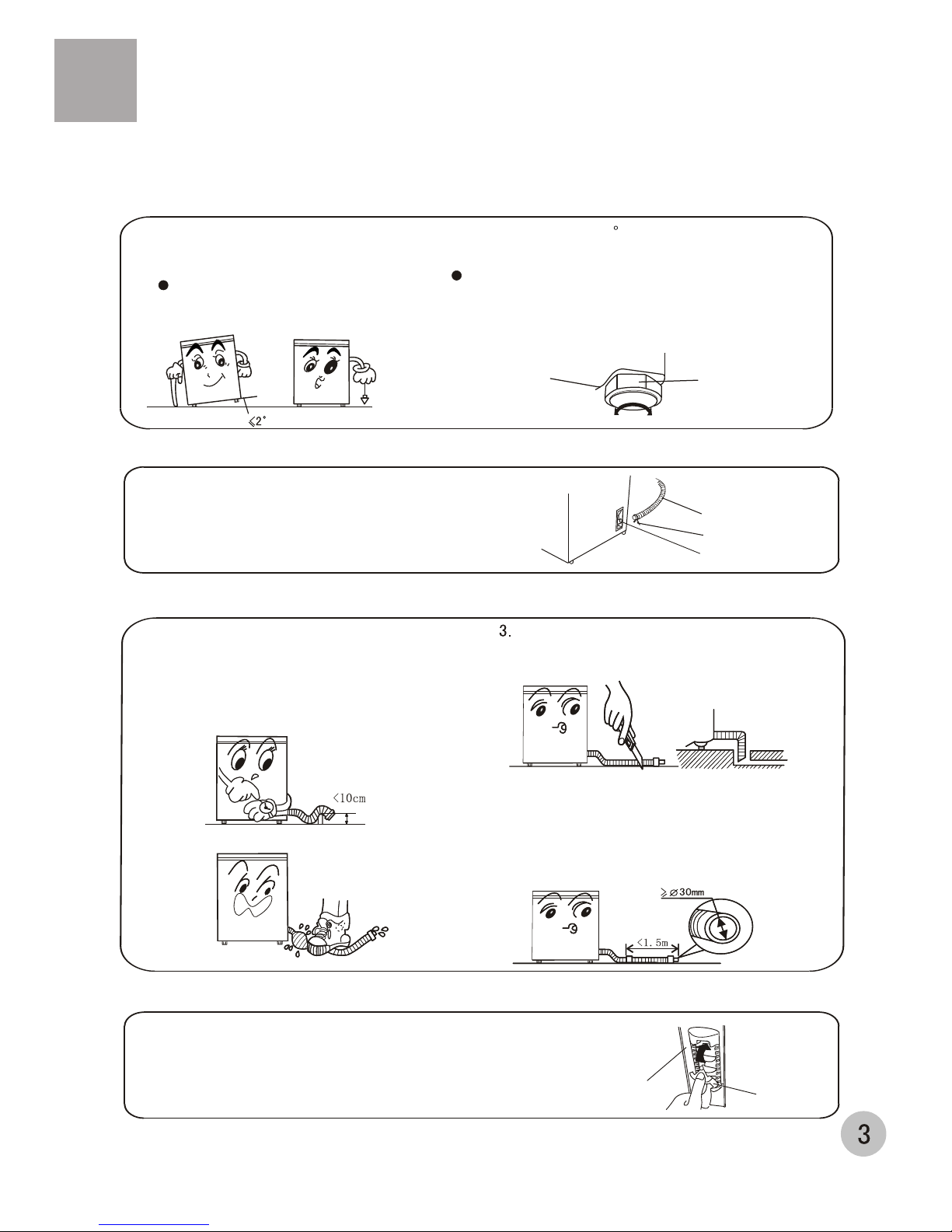

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

Adjust the installation position

The largest allowed slope of the base of the machine is 2 . The slanting or rough

ground will result in unstable running or stoppage of the machine. Please adjust

it with following methods:

Confirm it's horizontal:

Hang the lead line to confirm

if it is horizontal.

Adjust the adjustable foot:

1.To twist the adjustable foot, please first lift up

the side of the foot slightly, and twist the foot.

2.Fasten the nut after adjustment.

High Low

Adjustable foot

Put the drain hose clamp on the outer drain hose,

insert the outer drain hose into the joint for it, and

then clutch tightly with drain hose clamp.

Drain hose joint

Drain hose clamp

Drain hose

Install the drain hose

Usage of the drain hose

If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not tramp or press the drain hose.

The drain hose shall drain smoothly

Before Using

After opening the package, please take out the lint filter

from the document bag and install it into the frame of

the inner tub. See to the right Figure.

Filter frame Lint filter

Install the lint filter

Before Using

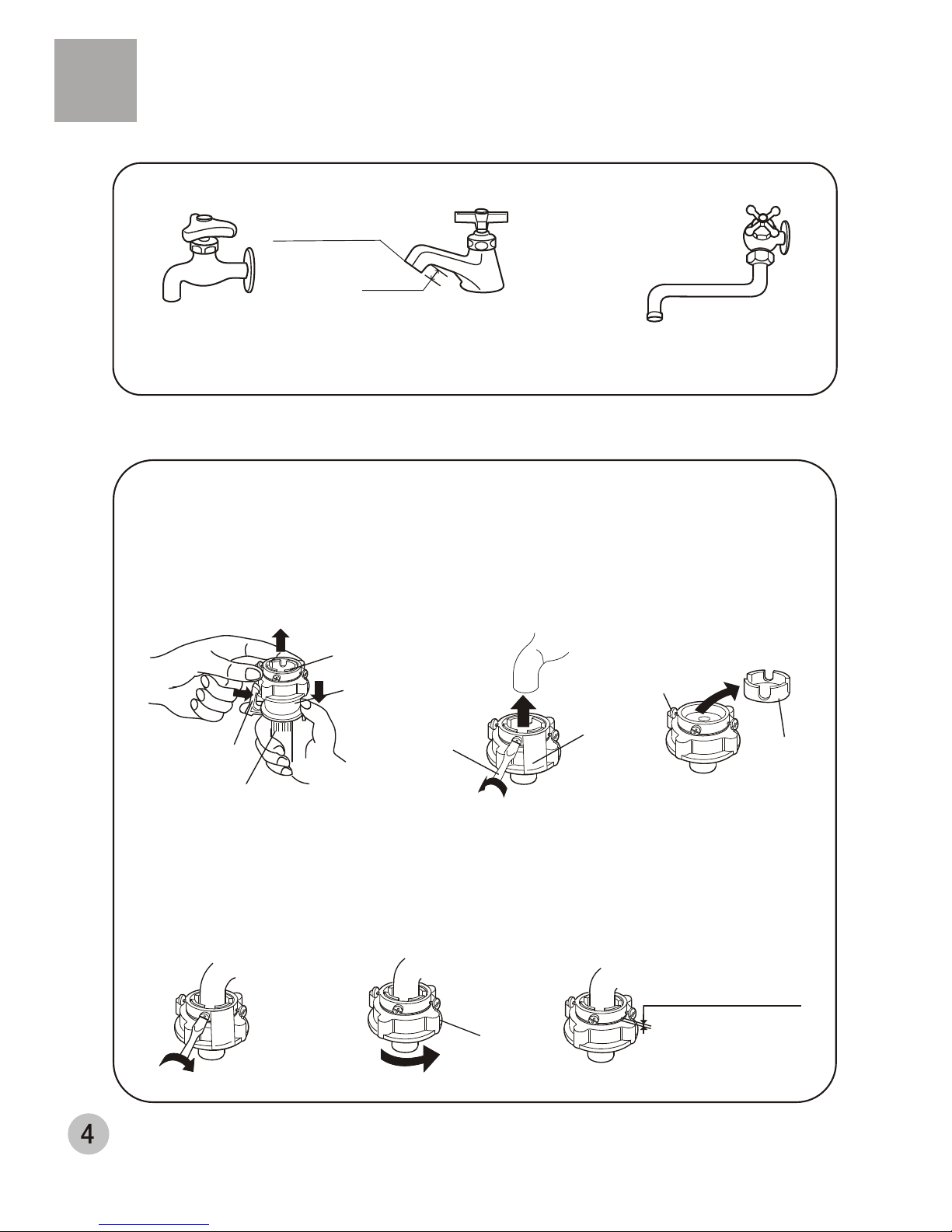

Install the water inlet hose

Water faucet,suitable Water faucet,not suitable

It is required that the front end shall be longer than 10cm.

The outlet end surface of the faucet shall be flat and smooth. If not please file it

to avoid leakage.

2.Loosen the screw till the water faucet can be accessed. Put the jointer of the water

inlet hose on the faucet. See to Figure 2. (If the faucet is too large and the jointer can

not be set on the water faucet, please loosen the four screws and take out the

bushing in the jointer. See to the figure.)

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet

hose jointer from the water inlet hose component. See to Figure 1.

Remarks: Before installation, the threading is 4mm above the upper surface of

the nut. After installation, the threading is 2mm above the upper surface of the

nut. See to Figure 6.

4.Take off the nameplate. Twist the fastening nut as per the indication of the figure to

seal up the outlet end surface of the faucet. See to Figure 5.

3.Fasten the four screws evenly. See to Figure 4.

>10mm

Outlet end surface

Nut

About 4mm before twisting

About below 2mm after twisting

Screw

Screwdriver Mark label

Liner

Figure 2

Figure 5

Figure 1

Figure 4

Figure 3

Figure 6

Slider

Water inlet pipe jointer

Water inlet pipe

Locking lever

Confirm the water faucet

Connection between the water inlet hose jointer and

the water faucet

1.Do not take off the water absorption

cushion. Please check if the cushion

is dropped or damaged before each

usage. If it happens please contact

our after-sale department immediately.

2.Put the nut of the water inlet hose on

the valve jointer.

3.Fasten the nut. Swing it gently to

confirm if it's suitable.

1.Close the water faucet.

2.Press the locking lever. Push down the slider. Then

pull of the water inlet hose. If the machine is used

more than once every week, the jointer of the water

inlet hose can be kept on the faucet to prevent

damaging the fixing screw.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

4.Before each usage please check if

the connection between the jointer

of the water inlet hose and the water

faucet, and the installation of the

water inlet hose are firm, so as to

prevent dropping from improper

Installation position.

1.Push down the slider. Insert the

water inlet hose into the jointer.

2.Hang the lock lever to the jointer.

Release the slider till a click

sound is heard.

Locking lever

Slider

Water absorption cushion

Nut of the water inlet hose

Jointer of the water inlet valve

Slider

The jointer of the

water inlet hose

Locking lever

Before Using

Connection between the water inlet hose and the

washing machine

Connection between the jointer of the water inlet

hose and the water inlet hose

Check the connection between the jointer of the

water inlet hose and the water faucet

Dismantle the water inlet hose

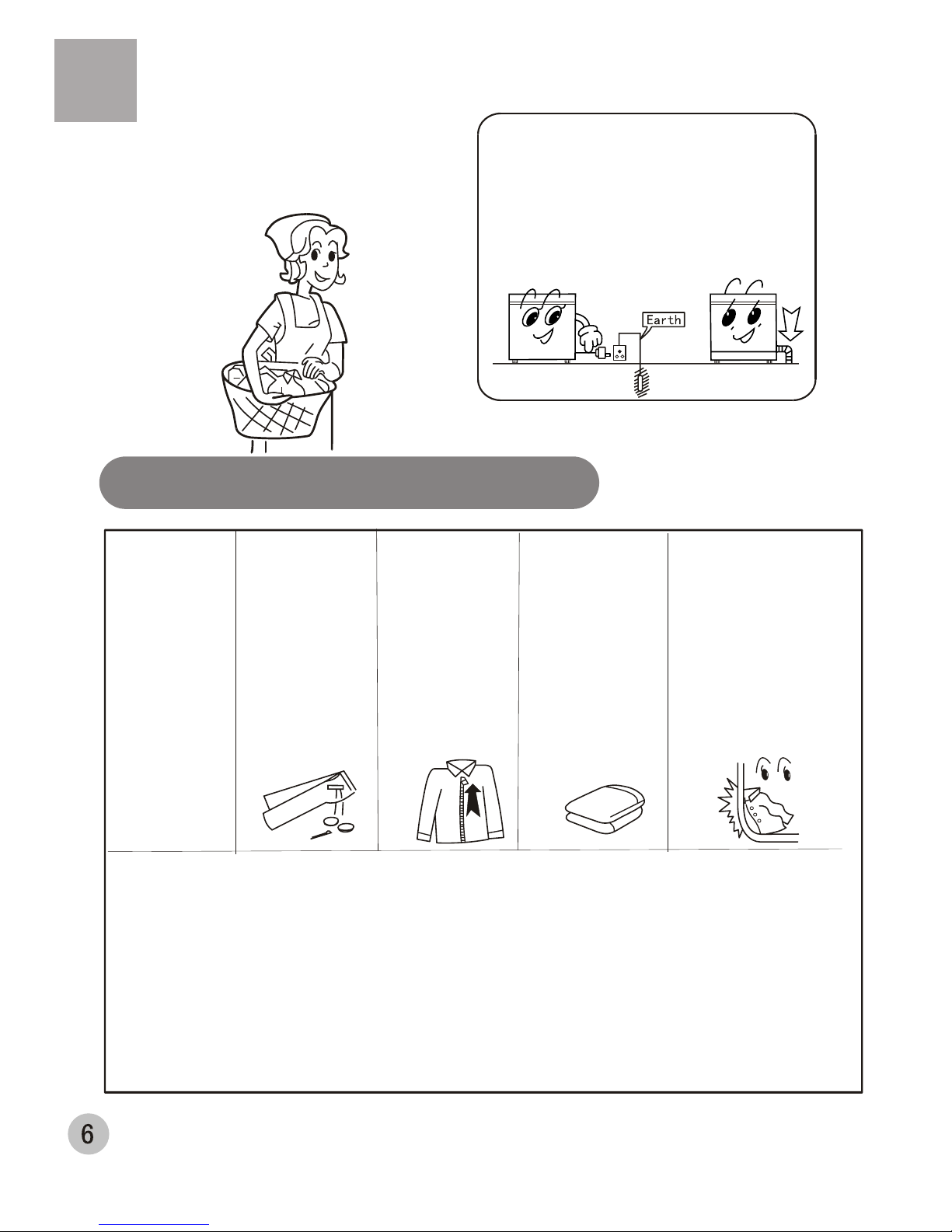

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is

earthed reliably. Then insert the power

plug into the receptacle. Do not connect

the earth terminal to the gas pipe and

tap water pipe.

3.Put down the drain hose.

Using process

1 Preparation before washing

Pay attention to followings before washing the laundries

Confirm if

there is special

requirement for

the laundries.

Clear the pocket.

Take out the

coins, sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running, the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

a. Please check if the laundries are applicable for washing.

b. Separate those not colorfast from other laundries.

c. For laundries not water absorbing, please put them into water with hands.

d. For laundries with much soil, please remove the soil first. You can add detergent on the

part with serious soil directly. It is much easier to remove the soil by that mean.

e. For laundries likely to get lint ball or with long fibre, please first turn the inside out before

putting them into water.

f. Don't put the laundries polluted with chemicals directly into the washing machine.

g. For those small laundries, laundries likely to be twisted or be twisted or worn, and woolen

Laundries, please put them into mesh bag before washing.

Reference weight of the laundries:

Using process

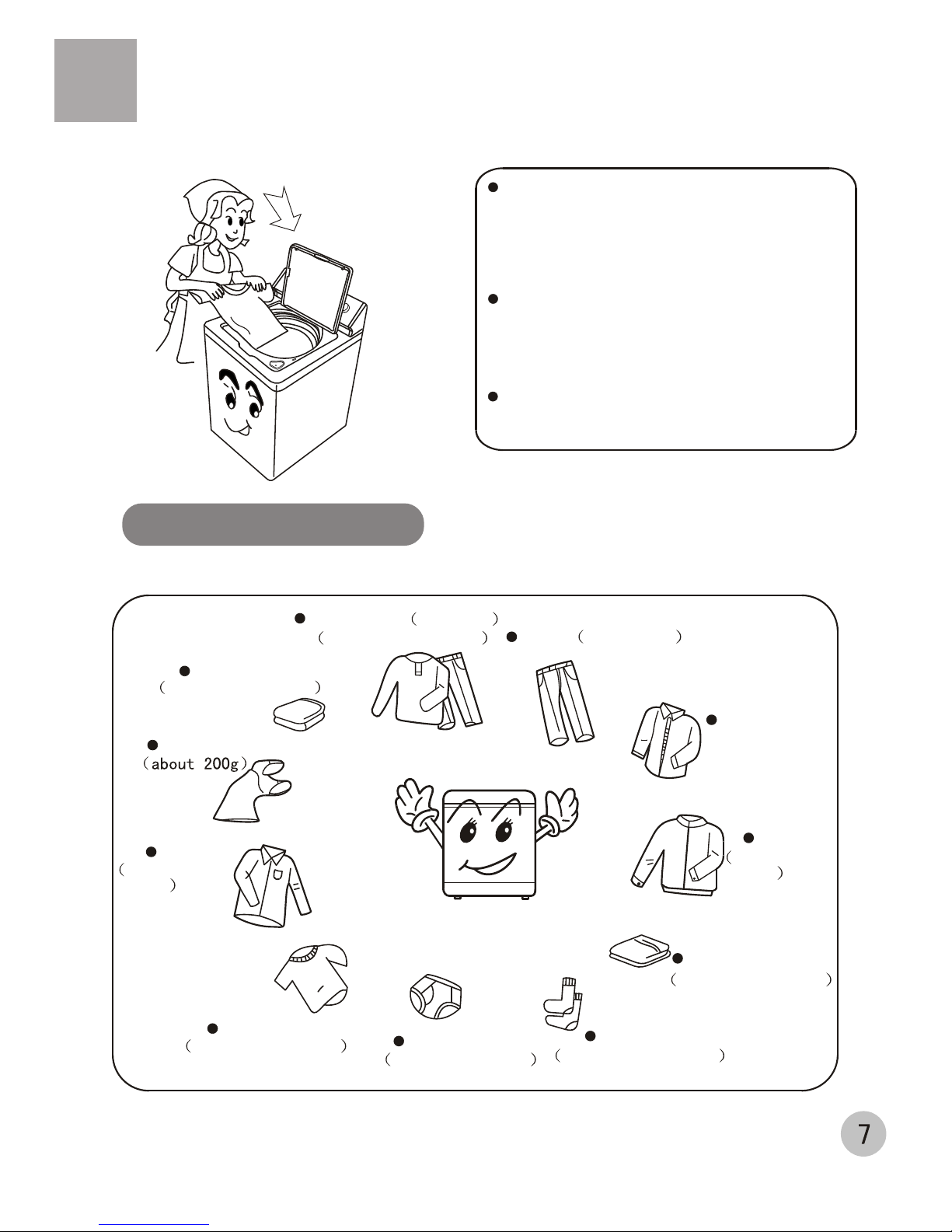

2 Put in the laundries

The thickness, size,type of the cloth will influence the

actual washing capacity. It is suitable for one time

washing to put in reasonable amount of laundries

and the laundries can beturned round in washing.

Do not select high water level for laundries small than

4.0kg, so as to avoid splashing of water.

working suit up, down

Jeans about 800g

blending coat

about 800g

Shirt Jacket

Single bed sheet

Socking

Underpants

Undershirt

Pajamas

Blanket

cotton, about 900g

cotton, about

300g

cotton, about

800g

cotton, about 600g

blending, about 50g

cotton, about 70g

cotton, about 180g

cotton, about 1120g

The capacity ofwashing and spinning of the machine

refer to the largest weight of the standard laundries

under dry condition that can be washed or spined in

one times. Washing quantity shallbe lower than the

rated capacity.

The largest capacity of thismachine is 10.0kg.

3 Add the detergent Using process

Using process

How to use the washing powder

Direct dissolved in the machine(not applicable for fuzzy

and reserve programs)

1.Fill small quantity of water.

2.Add the power. Run for 30 seconds to dissolve

it completely.

3.Put in the laundries. Select suitable water level.

Washing power with poor quality or not used for a long

period may get blocked. Please clean the detergent box

in time.

It is suggested not to use high sudsing detergent.

The powder is more prone to pollute the laundries than

the detergent. Therefore please use it with proper quantity.

The instant dissolving of the washing powder:

1. Prepare warm water of 30 and a container.

2. Add the powder while stirring to fully dissolve it.

How to use the whitener

Fill water to decided level .Dilute the whitener with

container. Pour it slowly into the washing tub.

Avoid using whitener on laundries with colour or

pattern as they are prone to lose colour.

The whitener shall not touch the laundries directly.

Refer to the user's manual for the usage and

quantity of the whitener.

For whitener powder, please dissolve it before use.

Standard dosage of the detergent and water quantity(suggest)

Laundries

quantity

(kg)

Water

level

Water

quantity

Common powder, Concentrated powder,

Add 40g in each 30L water

Add 25g in each 30L water

High

Medium

Low

4 Close the top lid

If you open the top lid,

the machine will stop

working during spinning.

Indice

Altri manuali Haier Rondella

Haier

Haier RS35 Manuale utente

Haier

Haier HW-B1270 Manuale utente

Haier

Haier HW70-B14636N Manuale utente

Haier

Haier XQB60-91AF - 07-01 Manuale utente

Haier

Haier JW-YP60A Manuale utente

Haier

Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Manuale utente

Haier

Haier HWM80-828A Manuale utente

Haier

Haier RWT360BW Manuale utente

Haier

Haier HWM80-0566 Manuale utente

Haier

Haier HWM75TLA Manuale utente

Haier

Haier HW80-B14979 Manuale utente

Haier

Haier GE Profile UltraFresh GFW650S Guida alla configurazione

Haier

Haier HWM50-0566 Manuale utente

Haier

Haier HW60-1081 Manuale utente

Haier

Haier HWM65-728 Manuale utente

Haier

Haier HW80-BD1626 Manuale utente

Haier

Haier HD1200TXV Manuale utente

Haier

Haier HWM 80-200 S Manuale utente

Haier

Haier HWM96-0613S Manuale utente

Haier

Haier RWT350AW Manuale utente

Haier

Haier HWT07AN1 Manuale utente

Haier

Haier HWM105-826S6 Manuale utente

Haier

Haier HWM130-0713S Manuale utente

Haier

Haier HW110-B14979S8EU1 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
