Haier XQB50-68 Manuale utente

Special number 0030506438

Please read this manual

carefully before using.

Retain it for future reference.

Full automatic washing machine User's manual

This manual is for

XQB50-68

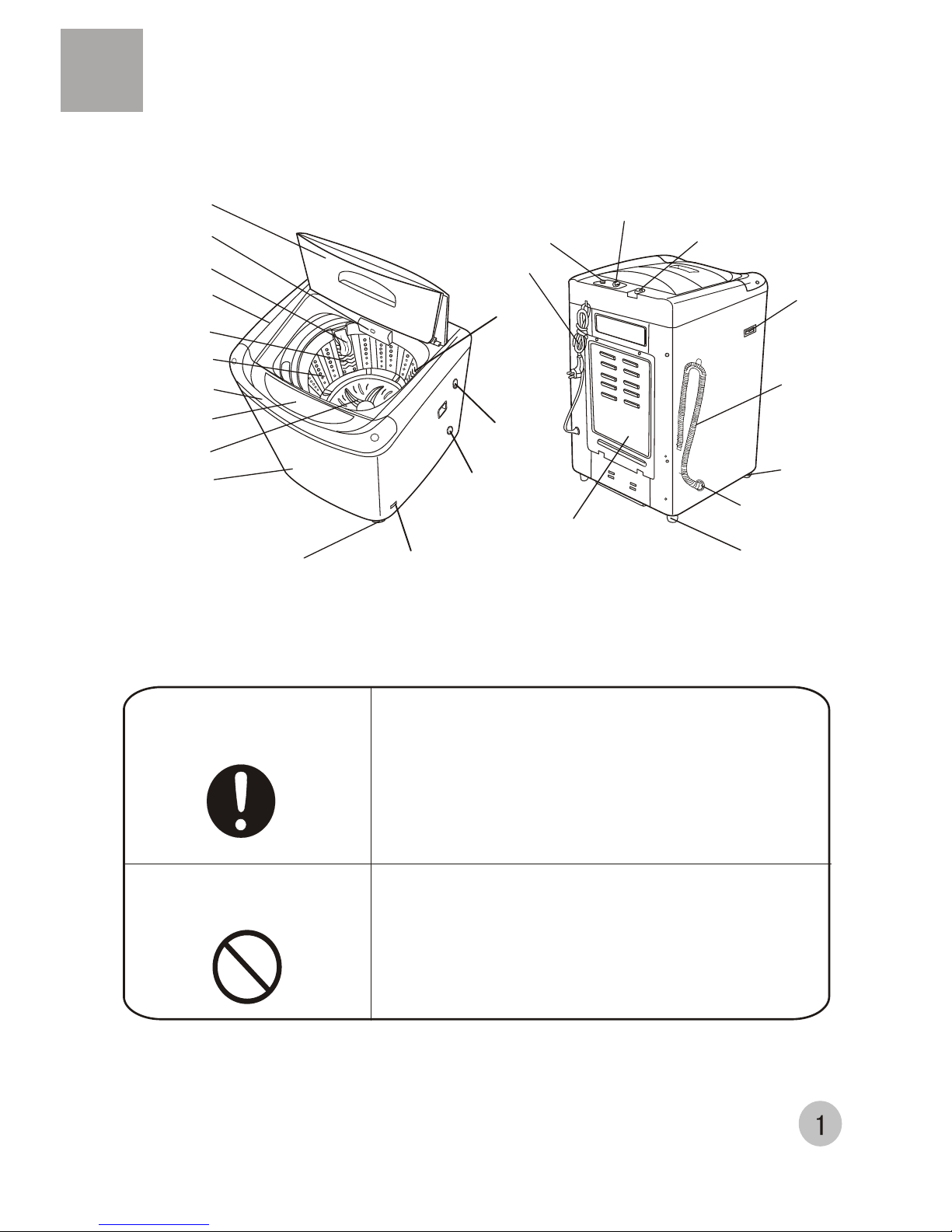

Names of the parts

Safety precautions

Contents

Disposal after washing

Trouble shooting

*Answers to question

Packing list Specification

Installation and adjustment

Installation the water inlet hose

Preparation before washing

Put in the laundries

Put in the detergent

Use the operation knobs

Close the top lid

Finish washing

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

Warning sign

Adjustable foot

Adjustable foot seam

Back cover

Cabinet

Control panel seat

Control panel sheet

Front control board

Lint filter(Installed by user)

Pulsator

Inner tub

Filter cover

Detergent box

Top lid

Power switch

Water level knob

Power wire

Drain hose

hanging hole

Water

channel

Drain outlet

protecting cover

Front fixed foot

Rear fixed foot

Drain hose bushing

Drain hose

Cabinet handle

Water inlet valve

Names of the parts

Meaning and description of the symbols

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damageof the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

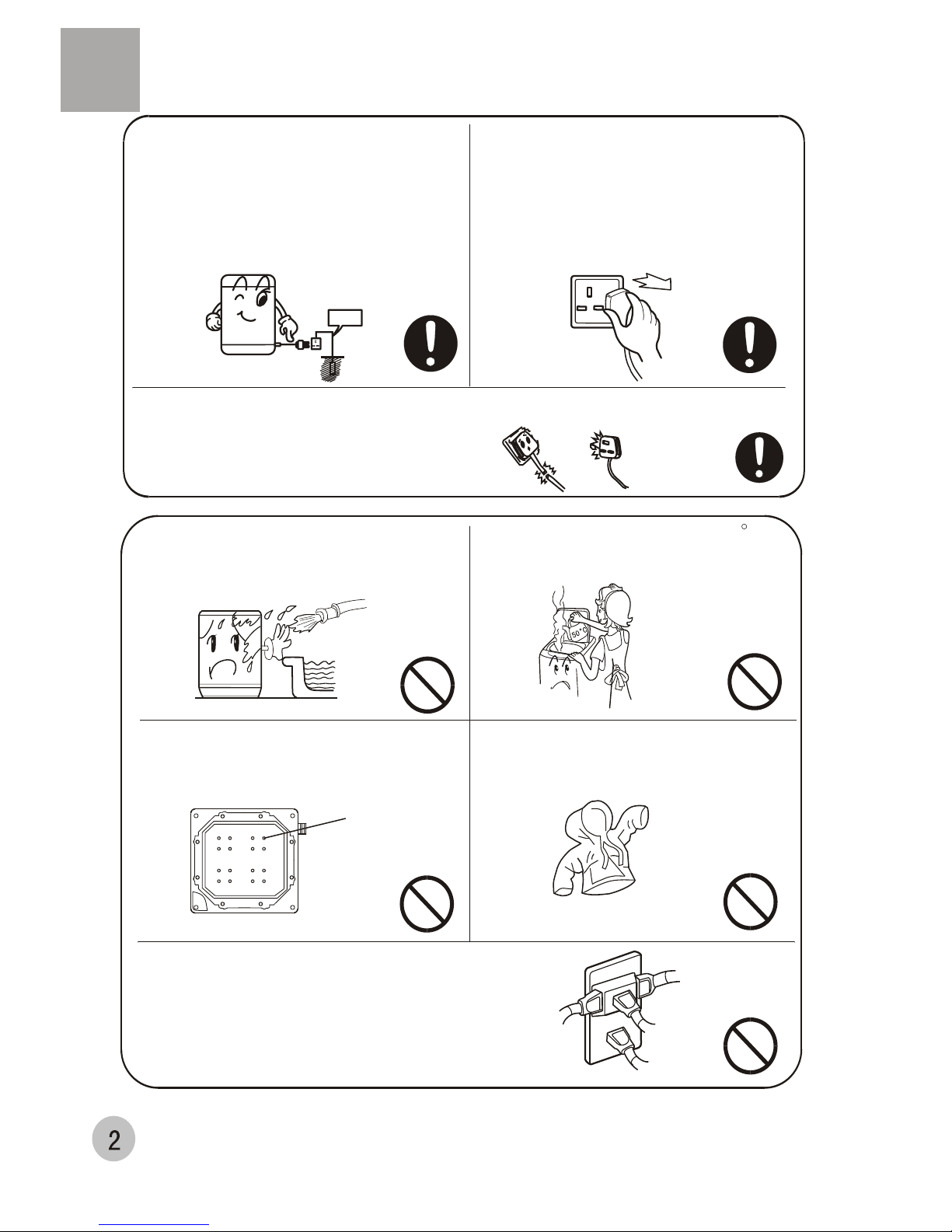

Safety precautions

Earth

Please insert the power cord into

special receptacle with rated vol-

tage.Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably.If possible,please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned orwhen it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians ofour special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is in-

stalled on ground with carpet, do not

block the ventilation hole with carpet.

The ventilation holes

at the bottom

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

To prevent the lint inside the tub from

blockingthe cascade outlet during

washing, please keep the lint filter in

good condition, and install it to proper

position. If the lint filter is lost or da-

maged, please contact the local after-

sales service department of our company.

Dismantle Install

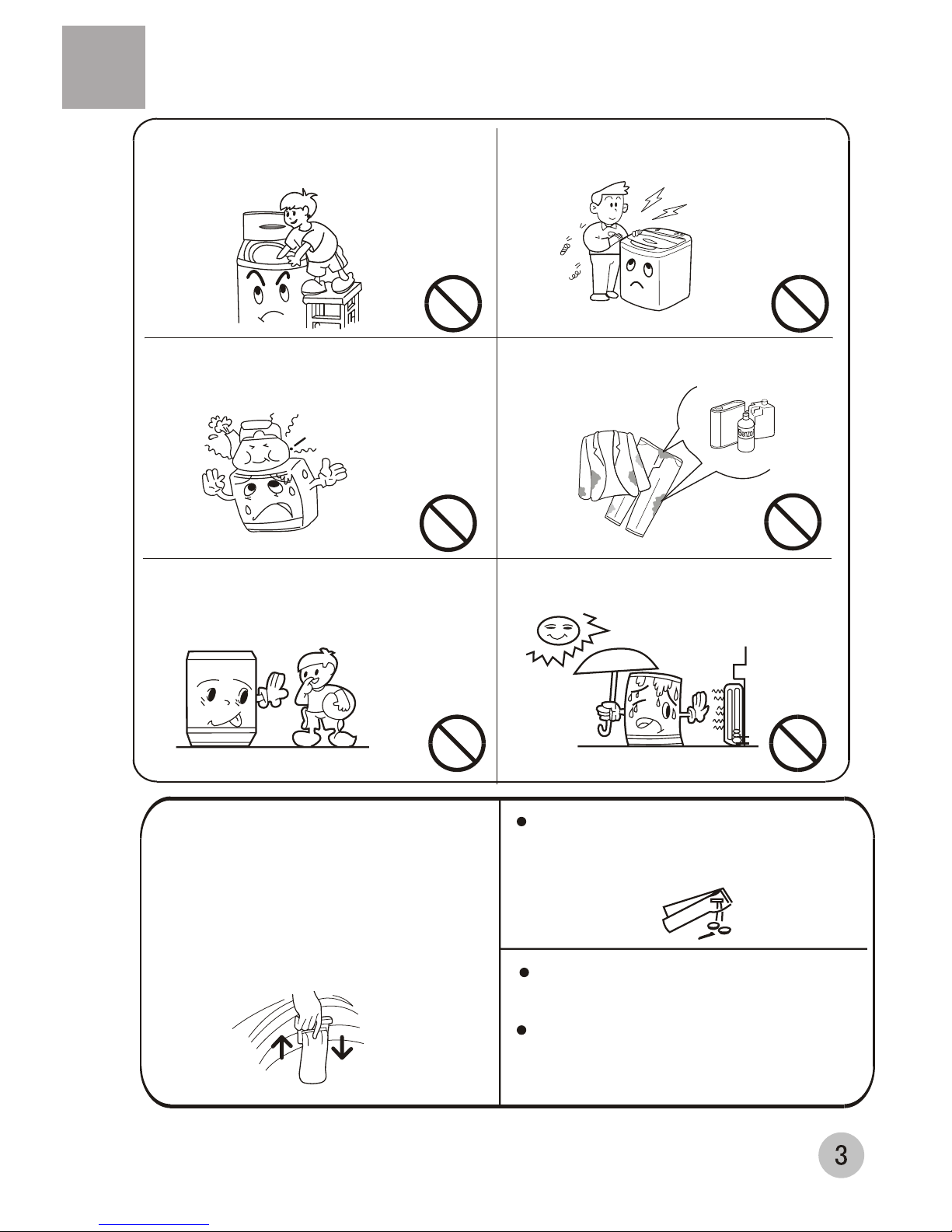

Safety precautions

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Petrol

Thinner

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to use foamless washing

powder.

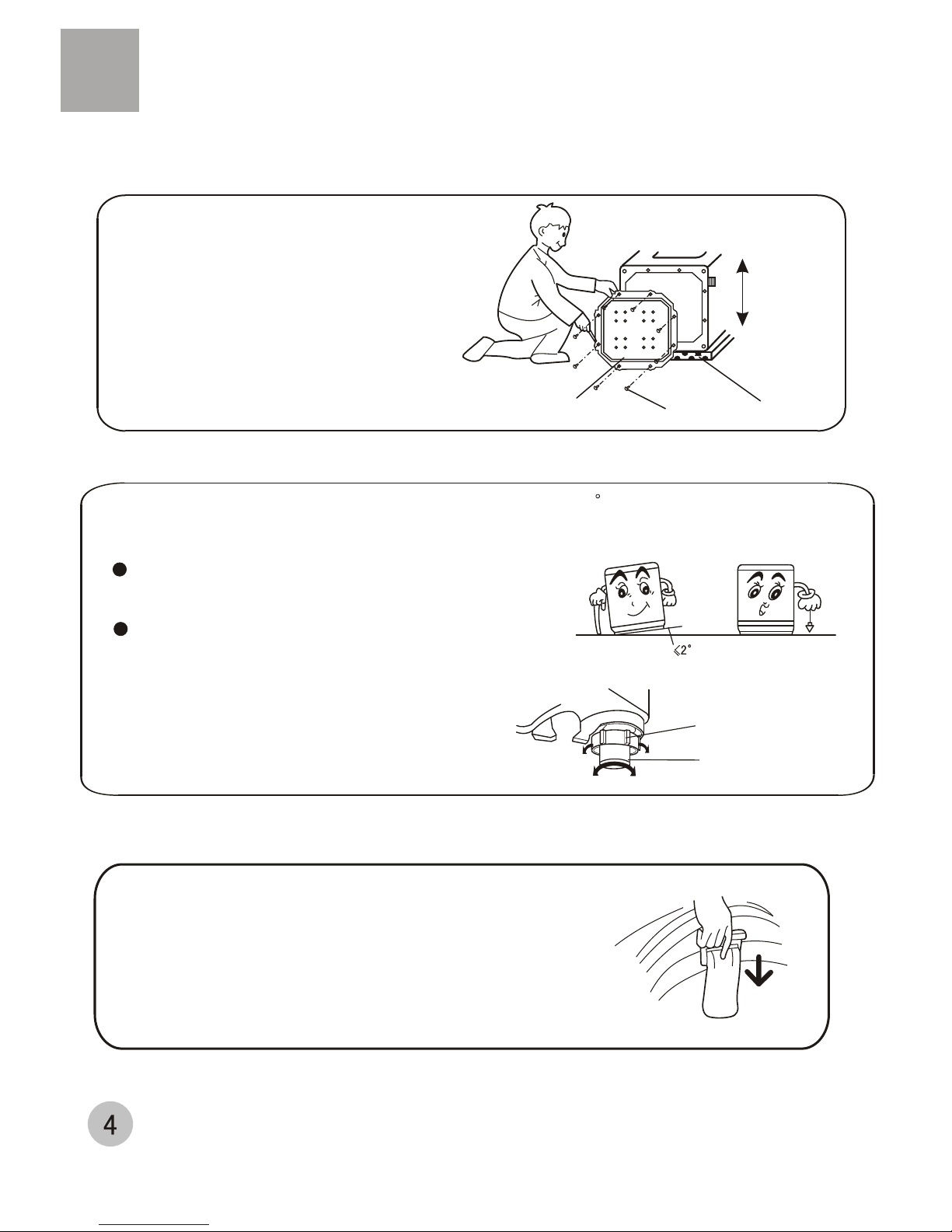

The largest allowed slope of the base of the machine is 2 . The slanting or rough

ground will result in unstable running or stoppage of the machine. Please adjust

it with following methods:

Confirm it's horizontal:

Adjust the adjustable foot:

Hang the lead line to confirm if it is horizontal.

Install the bottom plate

After you open the package, please lean

the washing machine gently down on soft

items ( like the towel cloth, blanket, etc. ).

Install the bottom plate to the bottom of

the machine with the eight screws by

a cross screwdriver, then lift the machine

up gently. See to the figure:

Adjust the installation position

Soft items

Bottom plate Screw

Loosen Fasten

High Low

Adjustable nut

Adjustable foot

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

Back

Front

1.To twist the adjustable foot, please first lift up the side of the foot slightly, loosen

the adjustable nut, and twist the foot.

2.Fasten the nut after adjustment.

Install the lint filter

After opening the package, please take out the lint

filter from the document bag, install it to the

inner tub. See to the figure.

Install

<1.2m

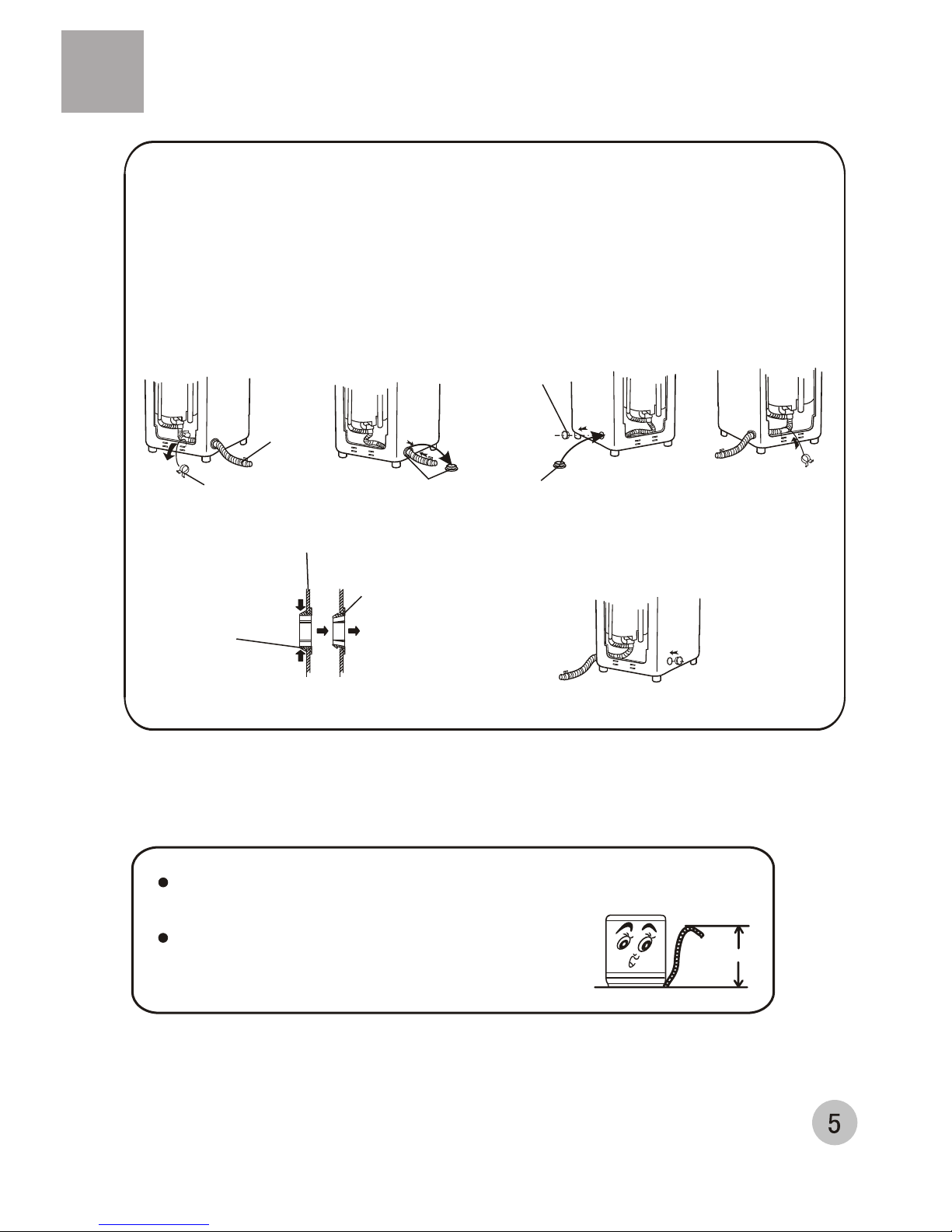

How to change the direction of the drain hose

Usage of the drain hose

1.Dismantle the back cover of the washing

machine.

3.Dismantle the protecting cover of the

drain outletat the other side (method

the same as the bushing). Install the

bushing as per indicated in Figure 4.

4.Extend the drain hose from the other

side. Fix thedrain hose onto the base

frame with the drain hoseframe. (As

indicated in Figure 5)

5.Install the protecting cover of the drain

outlet at the other side as per indicated

in Figure 6.

Drain outlet

protecting cover

Drain hose bushing Drain hose bushing

Figure 1 Figure 4 Figure 5

Figure 6

Drain hose

bushing

Take off

Drain hose

bushing claw

Cabinet

Figure 2

Figure 3

Inner

Press

Outer

2.Put down the drain hose. Take off the

drainhose frame. As indicated in Figure

1, put thedrain hose into the cabinet.

Then stretch onehand into the cabinet

to nip the claw of the drain hose bush-

ing to remove the claw fromoriginal

position. Take off the drain hose bush-

ing with the other hand. (As indicated in

Figure 2 and 3).

Drain hose frame

Outer

drain

hose

Before using , hang up the drain hose on suitable location.

Do not put down the drain hose on the ground.

Confirm the end of drain hose is higher than

the level of tub . If not the siphon will being .

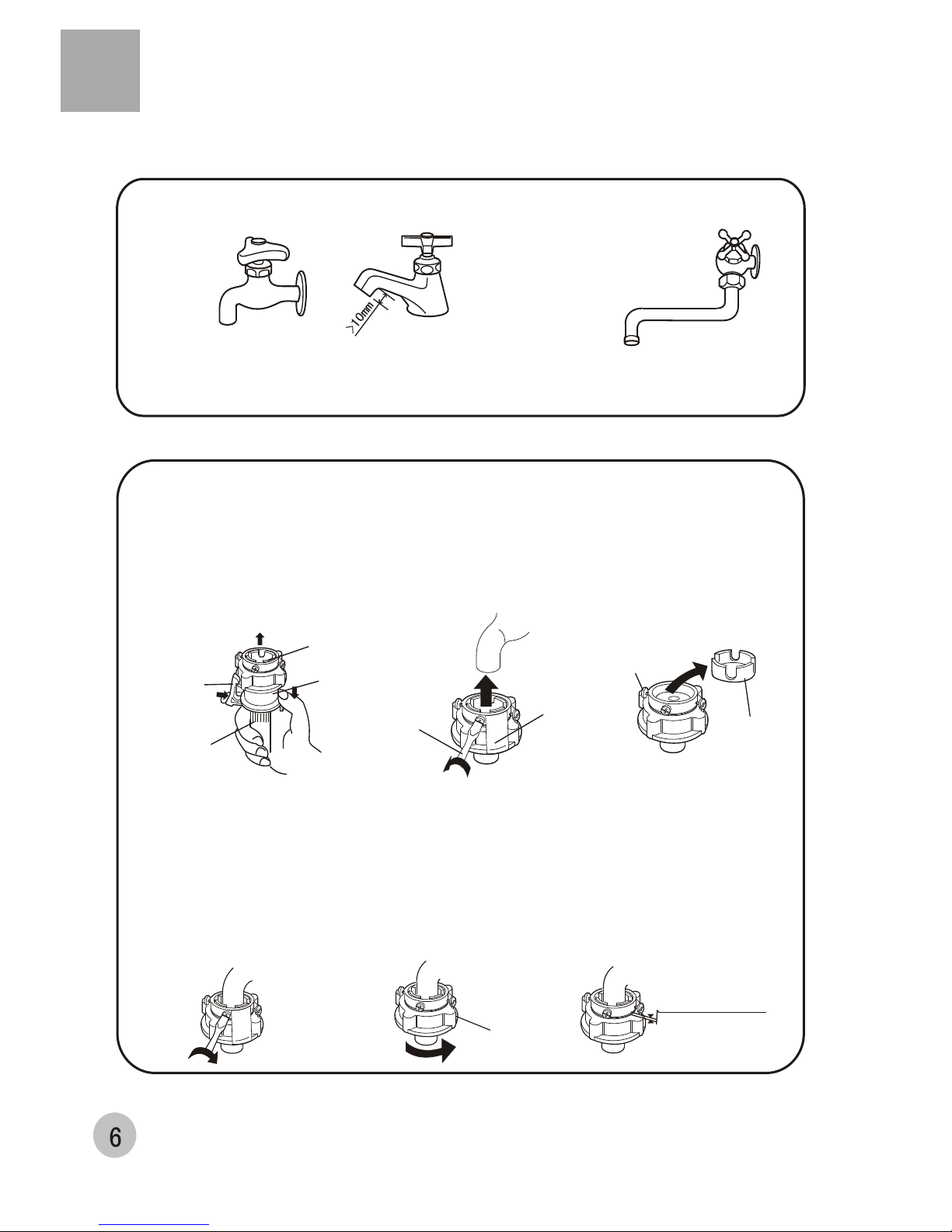

Confirm the water faucet

Connection between the water inlet hose jointer and the water faucet

Water faucet, suitable

Water faucet, not suitable

It is required that the front end shall be longer than 10cm.

The outlet end surface of the faucet shall be flat and smooth. If not please file it to

avoid leakage.

3.Fasten the four screws evenly. See to Figure 4.

4.Take off the nameplate. Twist the fastening nut as per the indication of the

figure to seal up the outlet end surface of the faucet. See to Figure 5.

Remarks:

Before installation, the threading is 4mm above the upper surface of the

nut. After installation, the threading is 2mm above the upper surface of the nut.

See to Figure 6.

Nut

About 4mm

before twisting;

about below 2mm

after twisting

Figure 5)Figure 4 Figure 6

Screw

Screwdriver Nameplate

Bushing

Figure 2

Figure 1 Figure 3

Slider

Water inlet hose jointer

Water inlet hose

Lock lever

Install the water inlet hose

1.Press the lower end of the lock lever and push down the slider. Take off the

water inlet hose jointer from the water inlet hose component. See to Figure 1.

2.Loosen the screw till the water faucet can be accessed. Put the jointer of the

water inlet hose on the faucet. See to Figure 2. (If the faucet is too large and

the jointer can not be set on the water faucet, please loosen the four screws

and take out the bushing in the jointer. The front end of the faucet must be

smooth, otherwise it may leak water. See to Figure 3.)

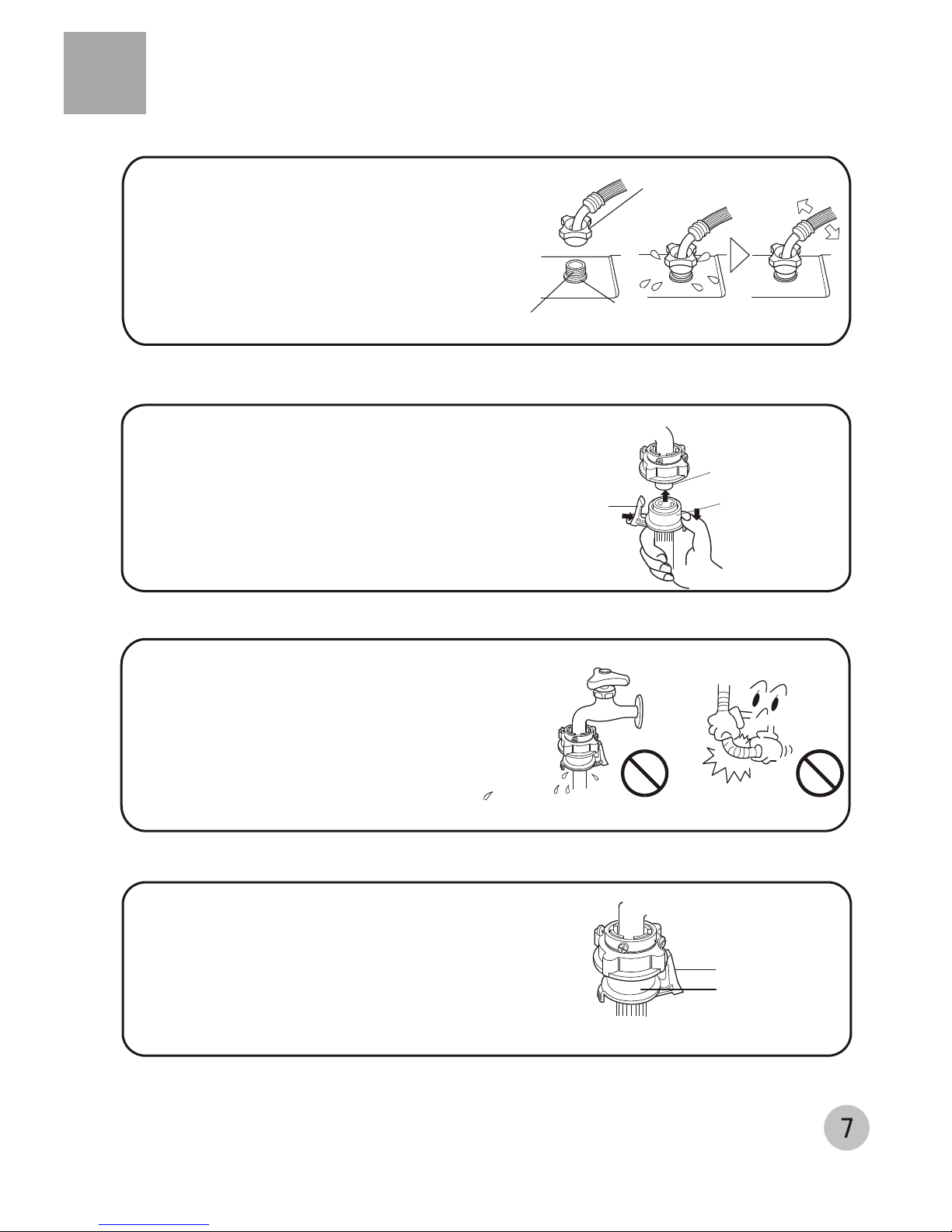

Connection between the water inlet hose and the washing machine

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose and the water inlet hose

Check the connection between the jointer of the water inlet hose and the water faucet

1.Do not take off the water absorption cushion.

Please check if the cushion is dropped or

damaged before each usage. If it happens

please contact our after-sale department

immediately.

2.Put the nut of the water inlet hose on the

valve jointer.

3.Fasten the nut. Swing it gently to confirm

if it's suitable.

1.Close the water faucet.

2.Press the locking lever. Push down the slider.

Then pull off the water inlet hose. If the machine

is used more than once every week, the jointer

of the water inlet hose can be kept on the faucet

to prevent damaging the fixing screw.

1.Push down the slider. Insert the water inlet

hose into the jointer.

2.Hang the lock lever to the jointer. Release

the slider till a click sound is heard.

Locking lever

Slider

Water absorption cushion

Nut of the water I

nlet hose

Jointer of the

water inlet valve

Slider

Jointer of the

water inlet hose

Locking lever

1.Swing the hose gently to confirm if it is fastened

stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

4.Each time before use please check if the

connection between the jointer of the water inlet

hose and the water faucet, and the installation

of the water inlet hose are firm, so as to prevent

dropping from improper installation position.

<1.2m

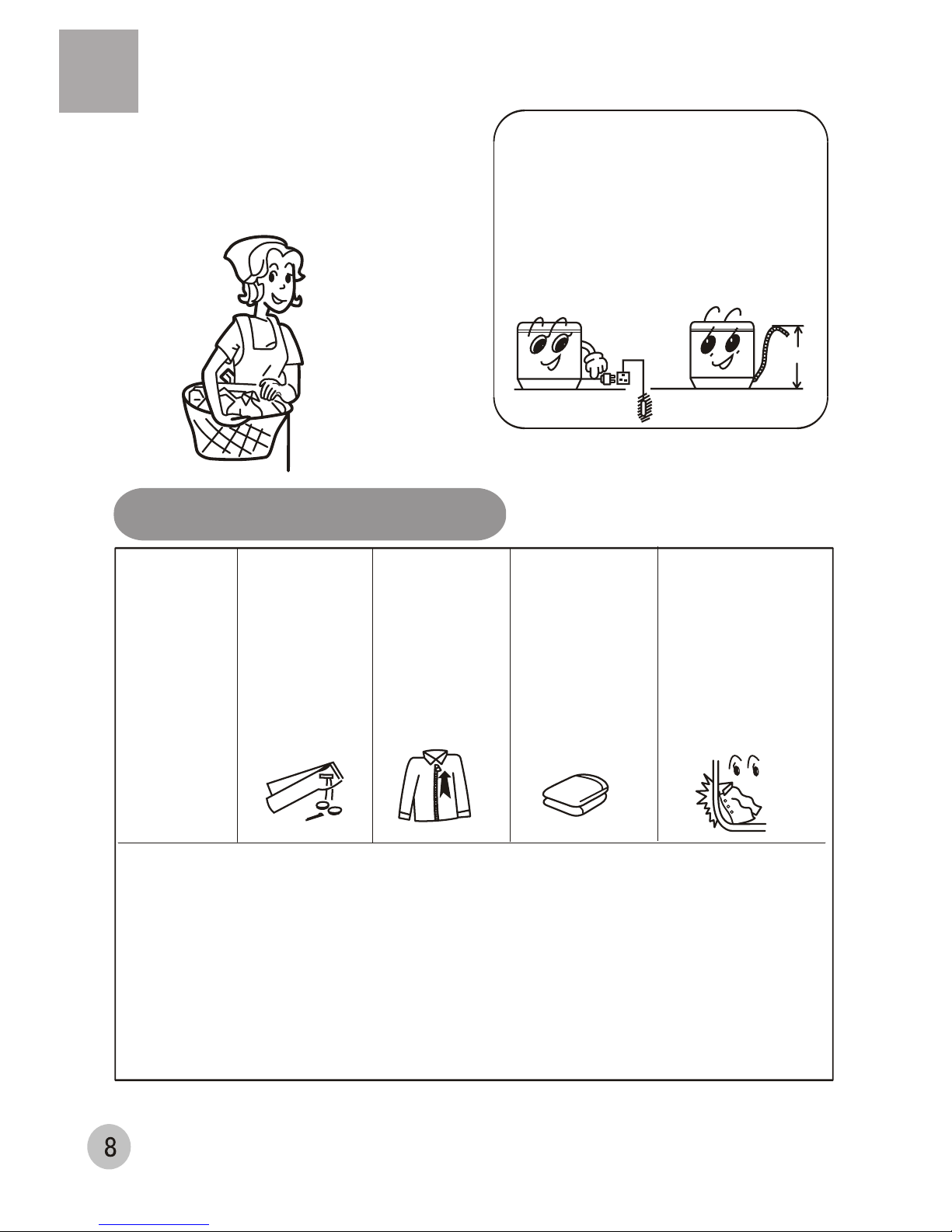

1Preparation before washing

Preparation before washing

1.Connect the water inlet hose. Open

the water faucet.

2.Confirm that the washing machine is

earthed reliably. Then insert the

power plug into the receptacle. The

earth terminal shall not link to gas

pipeline and faucet water pipeline.

3.Hang up the drain hose.

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

Indice

Altri manuali Haier Rondella

Haier

Haier THERMOCOOL TLSA13B Manuale utente

Haier

Haier HBF1000TEME Manuale utente

Haier

Haier XQB50-20 Manuale utente

Haier

Haier JW-G50C Manuale utente

Haier

Haier HNS1460TVE-FD Manuale utente

Haier

Haier W-465 Manuale utente

Haier

Haier HWF75DW1 Manuale utente

Haier

Haier HTW70-M1217 Manuale utente

Haier

Haier XQJ100-96 Manuale utente

Haier

Haier HWM110-0626S Manuale utente

Haier

Haier XPB150-0623S Manuale di istruzioni

Haier

Haier HWM6000 Manuale utente

Haier

Haier HW-F1060TVE Manuale utente

Haier

Haier HW70-BP1439 Manuale utente

Haier

Haier HW-C1070TVE Manuale utente

Haier

Haier HWM 30-22 Manuale utente

Haier

Haier HNS1460TVE Manuale utente

Haier

Haier HBF655TE Manuale utente

Haier

Haier HWM65-0523K Manuale utente

Haier

Haier HWM65-0523S Manuale utente

Haier

Haier HW-CS850TXVE Manuale utente

Haier

Haier HW-D860TVE Manuale utente

Haier

Haier XPM20-A Manuale utente

Haier

Haier Thermocool HMS1000TVE Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
