Haier XQB60-C Manuale utente

XQB60-C

User's Manual

Automatic Washing Machine

Please read this manual carefully before using.

Retain it for future reference

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

The manufacturer will not bear the responsibility for

those risks occurred from not obeying this manual.

Specifications the back cover

Picking list

Contents

Before using

Using process

Trouble shooting *

Answers to questions

Preparation before washing

Put in the laundries

Add the detergent and softener

Use the operation buttons

Close the top lid

Finish washing

Disposal after washing

Names of the parts The 2 cover

Safety precautions

Installation and adjustment

Install the water inlet hose 5

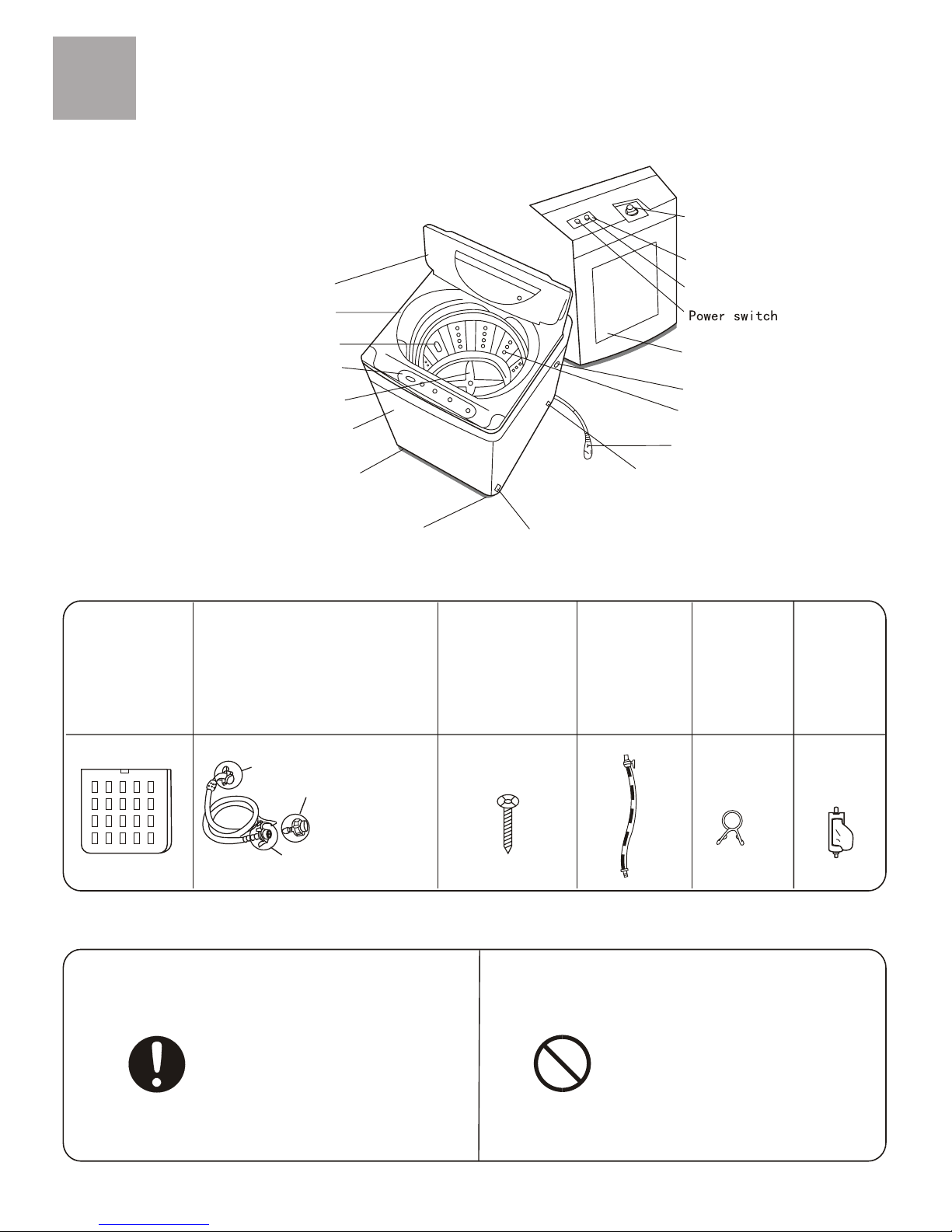

Names of the parts

Before using

Meaning and description of the symbols

Accessories

Contents marked with

that symbol are related

to the safety of the

product and the personal

safety of the users. Failure

to comply with the

instruction could cause

damage of the machine

or injure the personal

safety of the user.

Warning

mark

Top lid

Control panel

Lint filter(Installed by user)

Control panel film

Pulsator

Cabinet

Base frame

Adjustable foot

seam

Adjustable foot

Inner drain hose

Power line

Inner tub

Cabinet handle

Back cover

Water level Switch

Control panel film

Water valve

Bottom plate

(1 piece)

The end connecting to

the washing machine

The end connecting to

the water inlet hose jointer

Jointer connecting

the water inlet hose

to the water faucet

Water inlet hose

(2 pieces)

Water inlet

hose jointer

(2 pieces)

Tapping screw

ST4x 16

(1 pieces)

Drain hose

(1 pieces)

Hose clamp

(1 pieces)

Lint filter

(1 piece)

Contents marked with

that symbol are actions

forbidden to perform.

Failure to comply with

the instruction could

result in damage of the

machine or injure the

personal safety of the user.

Forbidding

mark

Safety precautions Before using

Before using

In normal usage of the washing machine,

the power plug shall be ready to be pulled

or plugged with hand. Be sure to pull the

plug off and close the water faucet in

following cases: power failure, delivering

the machine, setting the machine idle or

cleaning the machine. Do not plug

or pull the power plug with wet hand.

In case the washing machine is installed on

ground with carpet, be careful not to block the

ventilation hole with carpet.

Do not let the machine share one receptacle with other

electric appliances. If the power plug is damaged, or the

plugging into the receptacle is loose, do not use it any

more.

Do not set the machine at damp place

like the bathroom. Never wash it with water.

Do not put wet laundries on the control

panel coating.

Do not use water with temperature

higher than 50 inside the tub.

Do not wash water-proof laundries like

the raincoat, bikecovers, down textiles etc.

to avoid abnormal vibrations in spinning and

damaging the laundries.

Do not bend, stretch, twist, bind the power cord by force,

or reform it. Do not press or clamp it with heavy items. If the

power cord and power plug are bad, or the receptacle is loose,

be sure to have it replaced by the technicians of our special shop

or our agent, or the after-sale service department for the sake

of avoiding any risk. Keep the prong of the power plug clean.

If dust is found on the power plug, please wipe it off with dry cloth.

Earth

The ventilation

holes at the

bottom

Please insert the power cord into special

receptacle with rated voltage.Be sure to

use single-phase three pins receptacle.

The earthing terminal must be earthed

reliably.If possible,please adopt electric

leakage protector.

Do not put hand into the rotating tub. It is

dangerous even if the rotation speed is slow.

Take special care of the children. Keep

children away from the washing machine

to avoid them climbing on it.

Do not decompose, repair or alter

the machine by yourself.

Do not put any hot or heavy items

(such as the kettle with hot water) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Keep the machine away from direct

sunlight and heat source like the heater.

The handicapped or children shall not

use the machine without care.

Safety precautions Before using

Before using

Please check if the water faucet is open, and if

the connection of the water inlet pipe is proper.

It is suggested to use foamless washing powder.

To prevent the lint in the tub from blocking

the cascade outlet and influencing the

cascade effect, please keep the lint filter

in good condition, and install it to proper

position during washing. If the lint filter is

lost or damaged, please contact the local

after-sale service department of our

company.

Toprotect your laundries and washing

machine, please take out all of the coins,

buttons, sand, hairpin and other foreign

materials before washing.

Adjust the installation position

Please install and adjust the machine according to the requirement of the manual, which is very

important for you to operate the machine safely and properly.

Safety precautions Before using

Before using

The largest allowable slope of the shank base

of the machine is 2 . The slanting or rough

ground will result in unstable running or

stoppage of the machine. Please adjust it with

following methods:

Adjust the adjustable leg:

1.To twist the adjustable leg, please first lift up the

leg side slightly, loosen the adjustable nut, and

then twist the leg.

2.After adjustment, fasten the nut.

Loosen Fasten

High Low

Adjustable nut

Adjustable leg

Insert the bottomof the lintfilter

( marked with down side ) into

the filter frame,then push the

upper part ofthe filter in( marked

with up side ).(See to Figure)

Install the lint filter

Install the bottom plate

After opening the package, please lean the

washing machine gently down on soft items

(like towel cloth, blanket, etc.). Install the

bottom plate to the bottom of the machine

with one screw by a cross screwdriver,

then lift the machine up gently. See to the

figure:

Before using

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not ramp or press the drain hose.

If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

If the extra hose is too long, cut it

either at A or at B point.

Usage of the drain hose

The drain hose shall drain smoothly

Install the outer drain hose

Connect the outer drain hose to the inner drain hose by using the drain hose clamp clip them.

Remarks: The direction of thedrain hose canbe changed byprofessional person.

Install the water inlet pipe

Connection between the water inlet hose jointer and the water faucet

Water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The outlet end surface of the faucet shall be flat and smooth. If not, please file it smooth to avoid leakage.

2 Loosen the four screws of the water inlet hose jointer till the water faucet can be accessed. Then set the water inlet hose

jointer on the faucet. See to Figure 2. If the faucet is too large and the jointer cannot be set on, please loosen the four

screws and take out the bush inside the jointer. See to Figure 3.

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3 Fasten the four screws of the water inlet hose jointer evenly. See to Figure 4.

About 4mm after twisting

Remark: .Before installation, the threading is 4mm above the upper surface of the nut.

After installation, the threading is 2mm above the upper surface of the nut..

About above 2mm after twisting

Water inlet hose jointer

Screw knife

Screw

Bushing

Nameplate

Screw nut

Water inlet hose Figure 1

Figure 4

Figure 2

Figure 5

Figure 3

Figure 6

Slider

Lock level

Before Using

Install the water inlet hose

4 Take off the nameplate. Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

Connection between the water inlet hose and the washing machine

1 Do nottake off the water absorptioncushion. Please check

if the cushionis dropped ordamaged each timebefore using.

If it happensso, please dulycontact our after-sale service

department.

2 Set thenut of thewater inlet hoseon the waterinlet valve jointer.

3 Fasten thenut. Swing itgently to confirmif it's fastenedwell.

Water absorptioncushion.

Water inlet

hose nut

Water inletvalve jointer

Dismount the water inlet hose

Connection between the water inlet hose jointer and the water inlet hose

Check the connection between the water inlet hose jointer and the

water faucet

1.Swing the hosegently to checkif it isfastened stably.

2.After installation, openthe faucet tocheck if itleaks water.

3.Do not bendthe hose byforce.

4.Each time beforeusing, please checkif the connection

between the waterinlet hose jointerand the waterfaucet,

and the installation of the waterinlet hoseis firm,so as

to avoid droppingowing to improperinstallation.

1 Push down the slider. Plug the water inlet hose into the jointer.

2 Hang the lock lever onto the jointer. Release

the slider till a click sound is heard.

Lock level

Slider

The water inlet

hose jointer

Slider

Locking level

1 Close the water faucet.

2 Press the lock lever and push down the slider. Then pull off the

water inlet hose. If the machine is used more than once every

week, the water inlet hose jointer can remain on the faucet to

avoid damaging the fastening screws.

Before Using

Using process

1Preparation before washing

Pay attention to the followings before washing

Preparation before washing

1 Connect the water inlet hose. Open the water faucet.

2 Confirm that the washing machine is earthed reliably.

Then plug the power plug into the receptacle. The

earthing terminal shall not link to gas pipeline and

faucet water pipeline.

3 Put down the drain hose.

Check if

the laundries

have special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running ,the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

A. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put the laundries difficult to absorb water into water with hand.

d. For the laundries with heavy soil, please first remove the dirt like mud or dust.

For the parts with heavy soil, please apply detergent on them in advance, which

can make it easier to remove the soil.

e. For the laundries that may get lint ball and those with long fur, turn it over before

putting in.

f. Do not put the laundries polluted by chemicals into the washing machine directly.

Earth

Reference weight of the laundries:

Working suit up,down

Jeans about 800g

The capacity of washing and spinning refer to the

largest weight of the standard laundries under dry

condition that can be washed or spinned in one

cycle. Washingquantity for one cycle shall be

less than the rated capacity.The largest capacity of

this machine is 6.0kg.

The thickness, size and type of the cloth will

influence the actual washing capacity. It is

feasible to put in suitable amount of laundries and

the laundries can be tumbled normally in washing

for one cycle.

Please do not select high water level for laundries

less than 2.0kg to avoid splashing.

blending coat

about 800g

Shirt Jacket

Single bed sheet

Socking

Underpants

Undershirt

Pajamas

Blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

about 200g

Using process

2 Put in the laundries

cotton,about 1120g

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Haier Rondella

Haier

Haier HWM85-7288 Manuale utente

Haier

Haier GWT950AW Istruzioni per il montaggio

Haier

Haier XQJ60-31 Manuale utente

Haier

Haier HW-D1060TVE Manuale utente

Haier

Haier HMS1002AA Manuale utente

Haier

Haier XQS60-78 Manuale utente

Haier

Haier HW60-12829 Manuale utente

Haier

Haier AC-8888-07 Manuale utente

Haier

Haier HNY500TX Manuale utente

Haier

Haier XPM20-A Manuale utente

Haier

Haier HSW-BD70A Manuale utente

Haier

Haier Thermocool HMS1000TVE Istruzioni per la costruzione

Haier

Haier GWT460AW Istruzioni per il montaggio

Haier

Haier HWF12D1W1 Manuale utente

Haier

Haier HWMP95TL Manuale utente

Haier

Haier HWF5300AW Istruzioni per il montaggio

Haier

Haier HW80-1482 Manuale utente

Haier

Haier B1000TX Manuale utente

Haier

Haier HW90-B14636 Manuale utente

Haier

Haier HWM100-0626S Manuale utente

Haier

Haier HWD100-FD756DD Manuale utente

Haier

Haier HWF10BW1 Manuale utente

Haier

Haier HW-C1270TVE-F - SERVICE Manuale utente

Haier

Haier HE1005TXV Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
