Haier HVCE15 Manuale utente

Built-In / Freestanding Wine Cellar

Construire Dans / Indépendant Vin Cave

Construido En / Bodega Aislada

User Manual

Model # HVCE15, HVCE24

Guide de l’Utilisateur

Modéle # HVCE15, HVCE24

Manual del Usuario

Para Modelo de # HVCE15, HVCE24

HVCE24

Quality ßInnovation ßStyle

When using this appliance, always exercise basic safety

precautions, including the following:

1) Read all of the instructions before using this appliance.

2) Use this appliance only for its intended purpose as described in this use

and care guide.

3) This wine cellar must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the

installation section.

4) Never unplug your wine cellar by pulling on the power cord. Always grasp

the plug firmly and pull straight out from the outlet.

5) Repair or replace immediately, all electric service cords that have become

frayed or otherwise damaged. Do not use a cord that shows cracks or

abrasion damage along its length, the plug or the connector end.

6) Unplug your wine cellar before cleaning or before making any repairs.

Note: If for any reason this product requires service, we strongly

recommend that a certified technician performs the service.

7) If your old wine cellar is not being used, we recommend that you remove

the door and leave the shelves in place. This will reduce the possibility

of danger to children.

8) Do not operate your wine cellar in the presence of explosive fumes.

9) Do not store foods in wine cellar as interior temperature may not be cool

enough to prevent spoilage.

SAVE THESE INSTRUCTIONS

English

SAFETY PRECAUTIONS

Thank you for using our Haier product.

This easy-to-use manual will guide you in

getting the best use of your wine cellar.

Remember to record the model and serial

number. They are on a label in back of the

wine cellar.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

DANGER

Risk of child entrapment. Before you throw away your

old wine cellar, take off the doors. Leave the shelves in

place so that children may not easily climb inside.

English

PAGE

Safety Precautions ..................................................................1

Parts And Features .................................................................4

Installing Your Wine Cellar......................................................5

Unpacking Your Wine Cellar.................................................................5

Leveling Your Wine Cellar.....................................................................5

Electrical Requirements .........................................................................5

Use of Extension Cord..........................................................................5

Wine Cellar Features And Use.................................................6

Initial Set Up .......................................................................................6

Shelving..............................................................................................7

Interior Light ........................................................................................7

Normal Operating Sounds....................................................................7

Wine Cellar Installation...........................................................8

Installation Limitations...........................................................................8

Dimensions..........................................................................................8

Door Reversal......................................................................................9

Replace Light Bulbs ............................................................................11

Proper Wine Cellar Care and Cleaning..................................12

Cleaning and Maintenance.................................................................12

Power Interruptions.............................................................................12

Vacation and Moving Care.................................................................12

Troubleshooting ....................................................................13

Limited Warranty..................................................................14

TABLE OF CONTENTS

bottle

capacity

adjustable

temp.

control

shelving* 4.

interior

light

door

handle

door trim 7.

leveling

legs

reversible

door

tinted

glass

HVCE15 26 electronic

(not

shown)

glide-out

with

woodtrim

yes

manual

(not

shown)

tube type

grip brushed

metal or

black

(not

shown)

yes UV-blue

gray

HVCE24 50 electronic

(not shown) glide-out

with

woodtrim

yes

manual

(not

shown)

tube type

grip brushed

metal or

black

(not

shown)

yes UV-blue

gray

* Quantity and style will vary per model purchased.

English

HVCE24 HVCE15

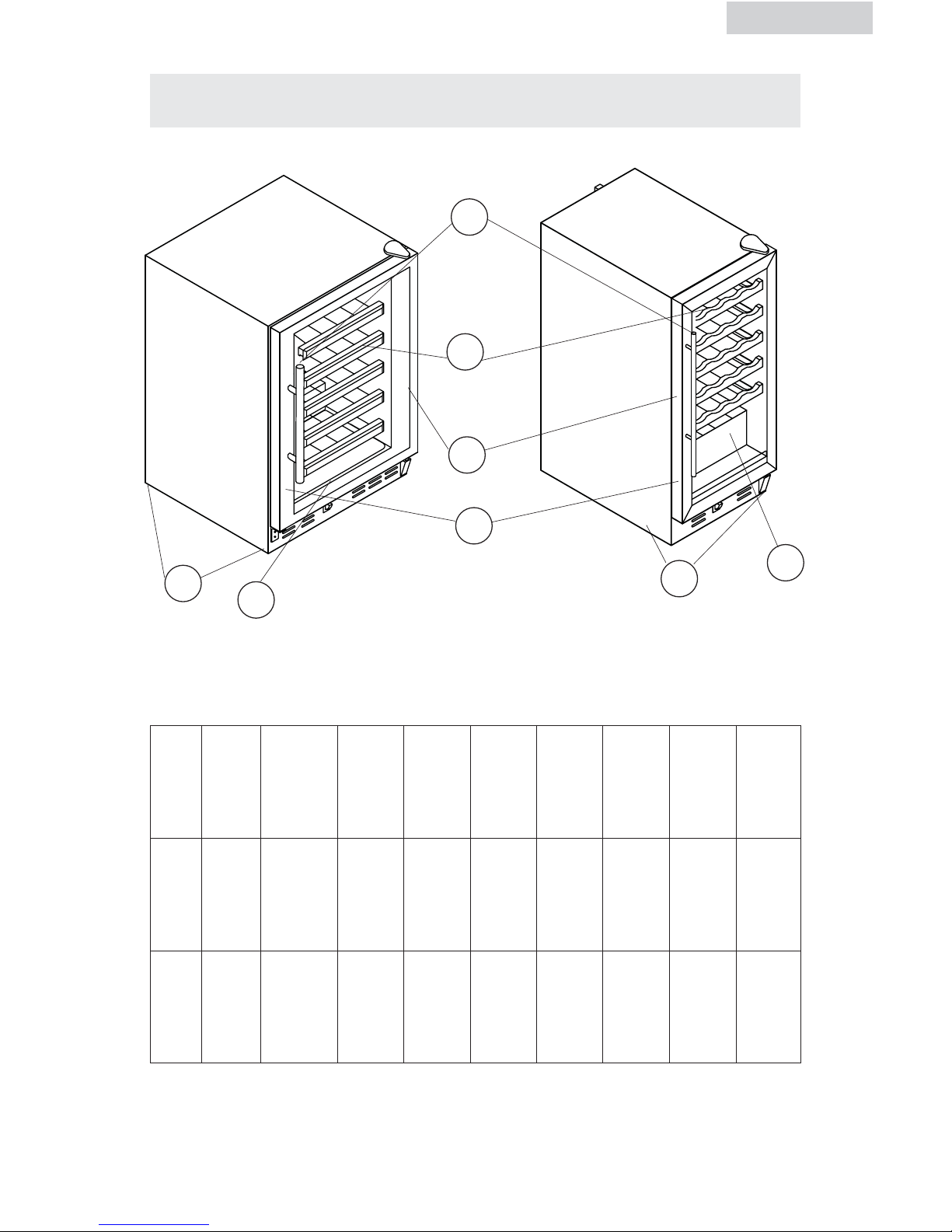

PARTS AND FEATURES

Unpacking Your Wine Cellar

1. Remove all packaging material. This includes the foam base and all adhesive

tape holding the wine cellar accessories inside and outside.

2. Inspect and remove any remains of packing, tape or printed materials before

powering on the wine cellar.

Leveling Your Wine Cellar

• Your wine cellar has four leveling legs which are located in the front and rear

corners of your wine cellar. After properly placing your wine cellar in its final

position, you can level your wine cellar.

• Leveling legs can be adjusted by turning them clockwise to raise your wine

cellar or by turning them counterclockwise to lower your wine cellar. The wine

cellar door will close easier when the leveling legs are extended.

Electrical Requirements

• Make sure there is a suitable power outlet (115 volts, 15 amps outlet) with

proper grounding to power the wine cellar.

• Avoid the use of three plug adapters or cutting off the third grounding in

order to accommodate a two plug outlet. This is a dangerous practice

since it provides no effective grounding for the wine cellar and may result

in shock hazard.

Use of Extension Cord

• Avoid the use of an extension cord because of potential safety hazards under

certain conditions. If it is necessary to use an extension cord, use only a 3-wire

extension cord that has a 3-blade grounding plug and a 3-slot outlet that will

accept the plug. The marked rating of the extension cord must be equal to or

greater than the electrical rating of the appliance.

English

INSTALLING YOUR WINE CELLAR

HVCE15 / HVCE24

• Once you have plugged the unit into an electrical outlet, let the unit run for

at least 30 minutes to acclimate itself before making any adjustments. During

this time the Red Wine light will stay on. Temperature inside the cooler, if not

adjusted, will be at 55°-60°F.

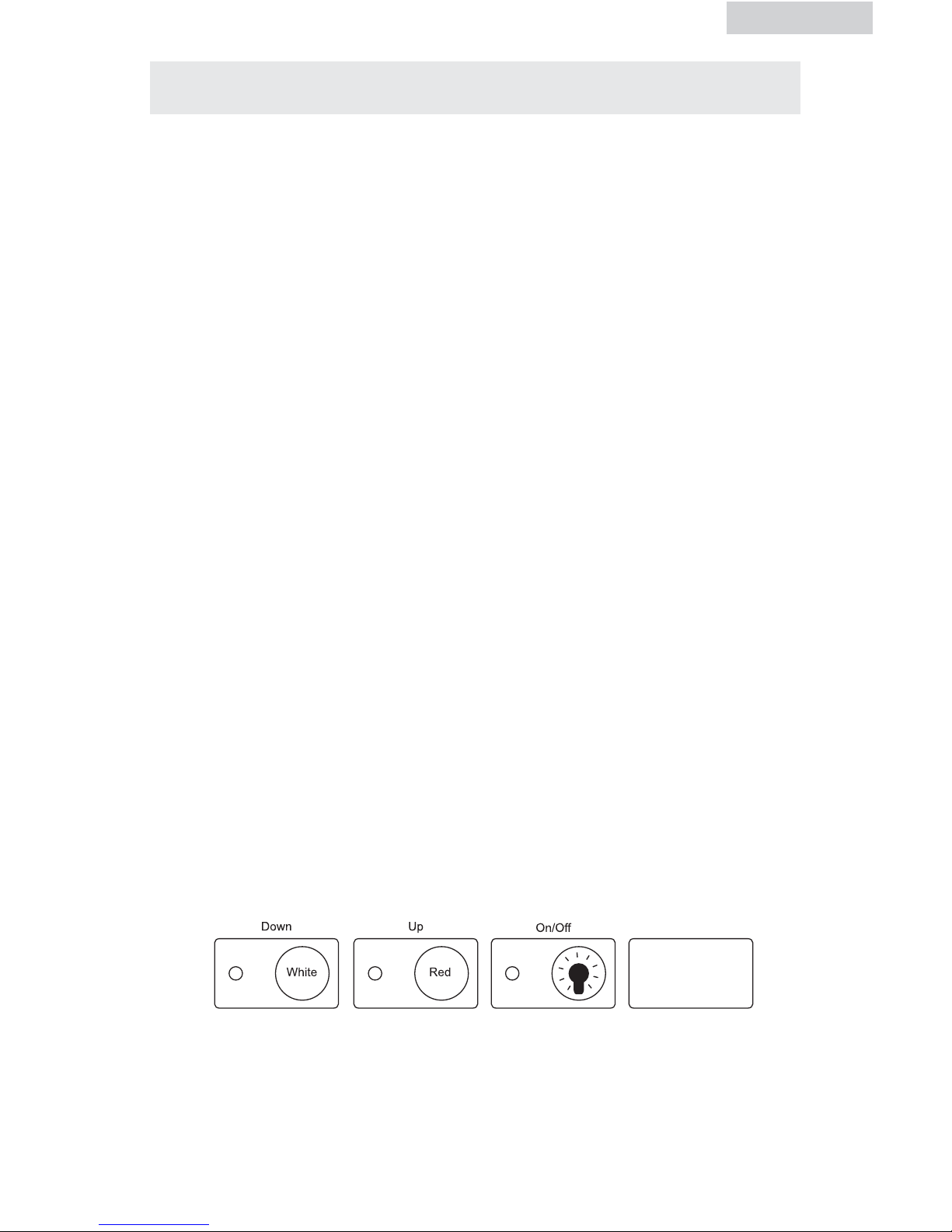

• The wine cellar can be set to any temperature you desire to accommodate

your wine storage requirements. To set the temperature, press both the “White

Wine” and “Red Wine” buttons simultaneously and hold for approximately 3

seconds. Now you are in temperature set mode. Decrease the temperature by

pushing the “White Wine” button and increase the temperature by pressing

the “Red Wine” button. Pressing the appropriate button 3 times will adjust the

temperature 3 degrees, pressing 4 times equals 4 degrees, 5 times equals 5

degrees, and so on. Once you have selected the temperature you desire, push

the "On/Off" button. Now the wine cellar is programmed and the LED readout

will return to current internal temperature reading.

• There will be a 3 degree variance +/- between the temperature you select and

the temperature indicated on the LED readout. This occurs because the wine

cellar activates and deactivates trying to maintain your desired temperature.

There is often a 10° variance between the top and bottom shelves of the wine

cellar. Therefore, if you have set the wine cellar for 50° and have a mix of

red and white wines, you may want to put the white wine on the bottom shelf

where the temperature will be 45° F, and place the red wine on the top shelf

where the temperature will be 55° F.

Initial Setup

Temperature

English

WINE CELLAR FEATURES AND USE

Installation Limitations

• Do not install your wine cellar in any location not properly insulated or heated,

e.g. garage etc. Your wine cellar was not designed to operate in temperature

settings below 55˚ Fahrenheit.

• Select a suitable location for the wine cellar on a hard, even surface away

from direct sunlight or heat source, e.g. radiators, baseboard heaters, cooking

appliances etc. Any floor unevenness should be corrected with the leveling legs

located on the front and rear bottom corners of the wine cellar.

Dimensions

• Built-in wine cellars need to be ventilated from the front. This feature allows the

unit to be built-in in an enclosed area. The bottom front grille should be clear of

all obstructions. This is absolutely necessary for the air to circulate and for the

unit to operate efficiently. The dimensions for installation are as

follows (WxDxH):

Shelving (will vary by model purchased)

• The shelves are chrome-plated glide-out with wood trim. They are designed

for flexibility and easy cleaning. The shelves are designed to allow free

air movement.

Interior Light

• To complement the look of your wine collection, a soft light has been built

into the wine cellar. The light switch is on the front bottom, or on the electronic

control panel.

Normal Operating Sounds You May Hear

• Boiling water, gurgling sounds or slight vibrations that are the result of the

refrigerant circulating through the cooling coils.

• The thermostat control will click when it cycles on and off.

English

WINE CELLAR INSTALLATIONS

Unit Dimensions

Built-In Dimensions

22-1/8"

English

MODEL W D1 D2 H

HVCE15 14-7/8" 20-5/8" 22-1/8" 34-1/4"

HVCE24 23-7/8" 21-15/32" 22-15/16" 34-1/4"

MODEL W D H

HVCE15 15" 24" 34-1/2"

HVCE24 24" 24" 35"

14-7/8"

20-5/8"

34-1/4"

22-15/16"

23-7/8"

21-15/32"

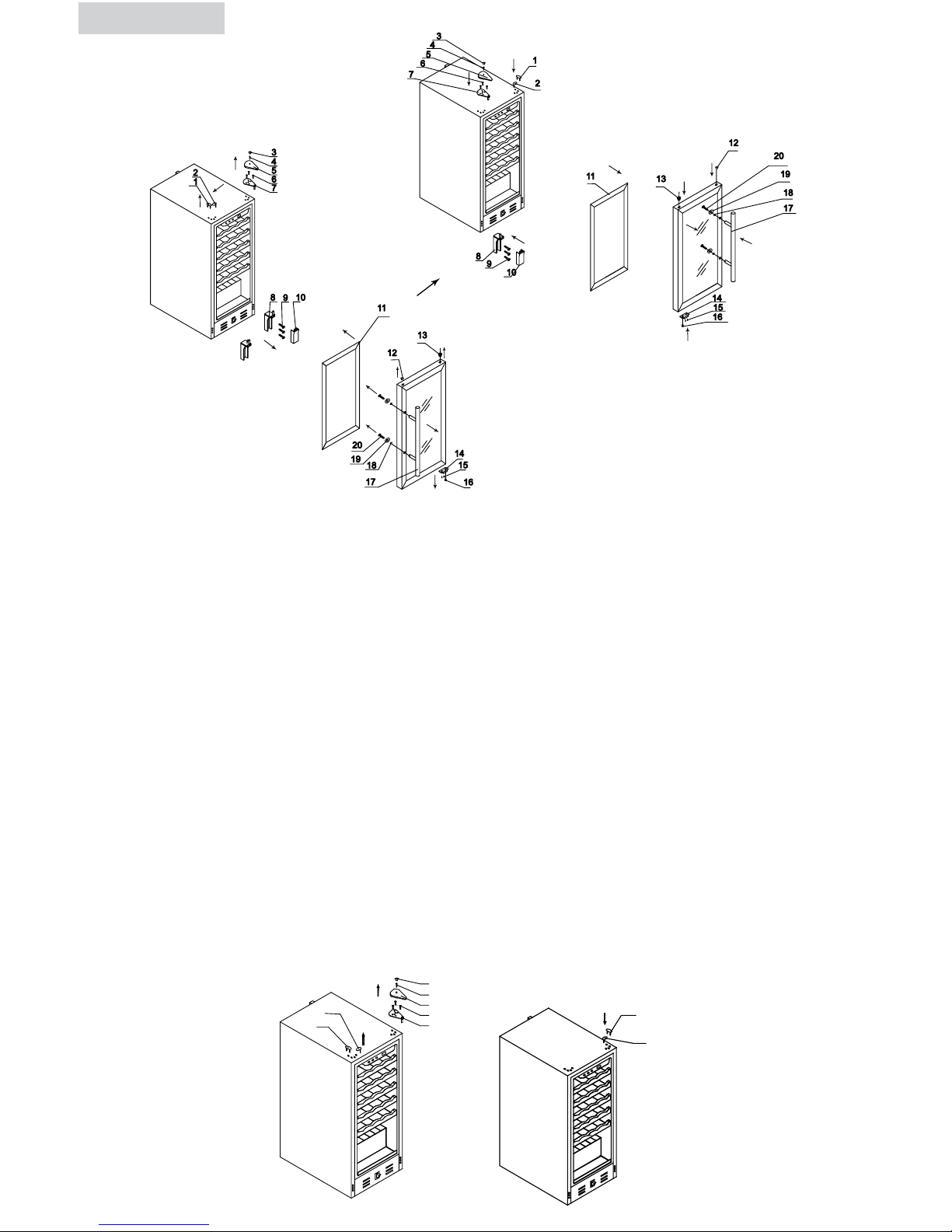

Door Reversal

1. Upper Hinge Hole Cover 1

2. Upper Hinge Hole Cover 2

3. Upper Hinge Screw Cover

4. Upper Hinge Cover Screw

5. Hinge Cover

6. Upper Hinge Screw

7. Upper Hinge

8. Lower Hinge

9. Lower Hinge Screw

10. Lower Hinge Cover

11. Door Seal

12. Hole Cover

13. Upper Hinge Axes Bushing

14. Door Bushing

15. Axis Bushing Screw

16. Lower Hinge Axes Bushing

17. Handle

18. Spring Gasket

19. Flat Gasket

20. Handle Screw

1. Remove the screw cover from the upper hinge cover. Use a Phillips

head screwdriver to remove the screw that holds the upper hinge cover in place.

Remove the upper hinge cover.

Loosen and remove the screws that hold the upper hinge in place.

Note: Make sure you hold door to prevent it from falling or

being damaged.

Lift and set aside for now.

Remove both of the upper hinge hole covers (left side) and set aside.

English

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Haier Refrigeratore per vino

Haier

Haier HW24WF10NG Manuale utente

Haier

Haier HVTB40DPABS Manuale utente

Haier

Haier HVT18DFBB Manuale utente

Haier

Haier HVA037-5S - 08-03 Manuale utente

Haier

Haier HVUE12ABB - 12 BTTL Wine CLR Manuale utente

Haier

Haier HVFE024BBB Manuale utente

Haier

Haier HVW12A - 04-05 Manuale utente

Haier

Haier HVF020A Manuale utente

Haier

Haier HVFE040BBB Manuale utente

Haier

Haier HVTB18DABB Manuale utente

Haier

Haier HBCN05EBB - Beverage Centers - 4.6 cu. ft.... Manuale utente

Haier

Haier HJC-83KB Manuale utente

Haier

Haier HVB050ABH - Designer Series 50 Bottle Capacity Wine... Manuale utente

Haier

Haier HVW18 Service Manuale utente

Haier

Haier WINE BANK 60 Manuale utente

Haier

Haier WS160FSAA Manuale utente

Haier

Haier HVTEC12DABS Manuale utente

Haier

Haier HVD024E Manuale utente

Haier

Haier WS50GA Manuale utente

Haier

Haier HWVFM032 - 08-06 Manuale utente

Haier

Haier HVTM12DABB Manuale utente

Haier

Haier WS120GA Manuale utente

Haier

Haier HWS247GGU1 Manuale utente

Haier

Haier JC-112GEA Manuale utente

Manuali Refrigeratore per vino popolari di altre marche

U-Line

U-Line Echelon Wine Captain 2075WC Manuale del proprietario

Cavist

Cavist 62 Manuale utente

Kenmore

Kenmore 461.99130 Manuale utente

Miele

Miele KWT 6422 iG Manuale utente

Danby

Danby DWC113BLSDB Manuale utente

Caple

Caple Wi6128 Manuale utente

Avanti

Avanti WC1001 Manuale utente

Frigidaire

Frigidaire FFWC38F6LS Manuale utente

Titan

Titan TT-W2454SZ Manuale di installazione

Klarstein

Klarstein Botella 166 Uno Manuale utente

Costway

Costway FP10130WL Manuale utente

Lemair

Lemair LWC59 Manuale utente

Caple

Caple WCi46B Manuale utente

Climadiff

Climadiff CLI24 Guida rapida

Viking

Viking VCWB301LSS Manuale utente

Caple

Caple WC6511 Manuale utente

Vinvautz

Vinvautz VZ08BHK Manuale utente

AVG

AVG PRYMO PMB76SS Manuale utente
